• SMC V100 3-Port Solenoid Valve (Direct Operated, Base Piping)
1 1

SMC V100 3-Port Solenoid Valve (Direct Operated, Base Piping)

SMC V100 3-Port Solenoid Valve (Direct Operated, Base Piping)

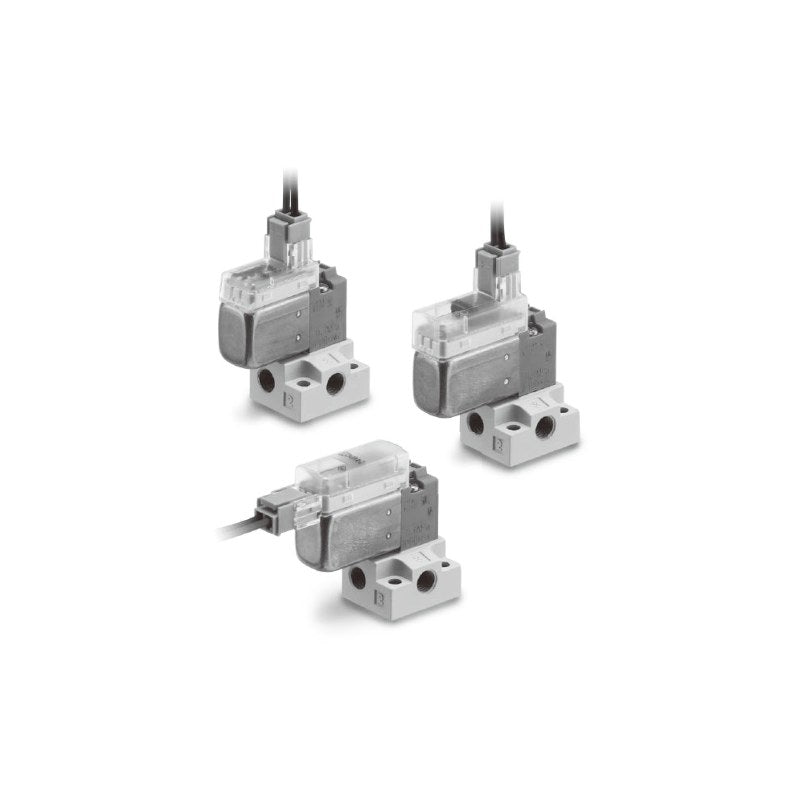

SMC V100 series direct-operated 3-port solenoid valve with rubber seal for base piping (sub-plate or VV100 manifold), in standard, high-flow A and high-flow U types.

Key features

  • Power consumption down to 0.1 W with power-saving circuit (standard type T, DC24V/12V)
  • Coil temperature rise approx. 1°C (standard type with power-saving circuit)
  • Sonic conductance: standard 0.037, high-flow A 0.076, high-flow U 0.16 dm³/(s·bar)
  • Usable for vacuum down to -100 kPa; N.C. or N.O. (standard and A types)
  • Lamp/surge suppressor (S, Z, R, U), lock manual override (B) and lead-wire variants (H, LN, LO, MN, MO) are ordered as suffixes

Specifications

Fluid Air
Operating pressure range 0 to 0.7 MPa (U type 0 to 0.6 MPa)
Ambient and fluid temperature -10 to 50°C (no freezing)
Response time (DC) ON 5 ms, OFF 4 ms or less
Max. operating frequency 20 Hz
Port size M5x0.8 (sub-plate)
Manual override Non-locking push or locking slotted (B)
Lubrication Not required
Impact/vibration resistance 150/30 m/s²
Enclosure Dustproof
Source SMC Korea catalog V100 (SMCKR_V100.pdf), p. 1165-1170 (PDF p. 1-6)
V114-5G Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: None
V114-5L Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: None
V114-5M Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: None
V114-6G Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: None
V114-6L Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: None
V114-6M Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: None
V114-1G Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: Grommet | Sub-plate: None
V114-1L Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: L-type plug connector | Sub-plate: None
V114-1M Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: M-type plug connector | Sub-plate: None
V114-2G Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: Grommet | Sub-plate: None
V114-2L Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: L-type plug connector | Sub-plate: None
V114-2M Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: M-type plug connector | Sub-plate: None
V114T-5GZ Switching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: None
V114A-5G Switching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: None
V114T-5LZ Switching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: None
V114A-5L Switching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: None
V114T-5MZ Switching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: None
V114A-5M Switching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: None
V114T-6GZ Switching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: None
V114A-6G Switching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: None
V114T-6LZ Switching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: None
V114A-6L Switching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: None
V114T-6MZ Switching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: None
V114A-6M Switching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: None
V114-5G-M5 Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V114-5L-M5 Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V114-5M-M5 Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V114-6G-M5 Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V114-6L-M5 Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V114-6M-M5 Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V114-1G-M5 Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V114-1L-M5 Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V114-1M-M5 Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V114-2G-M5 Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V114-2L-M5 Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V114-2M-M5 Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V114T-5GZ-M5 Switching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V114A-5G-M5 Switching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V114T-5LZ-M5 Switching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V114A-5L-M5 Switching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V114T-5MZ-M5 Switching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V114A-5M-M5 Switching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V114T-6GZ-M5 Switching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V114A-6G-M5 Switching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V114T-6LZ-M5 Switching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V114A-6L-M5 Switching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V114T-6MZ-M5 Switching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V114A-6M-M5 Switching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V124-5G Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: None
V124-5L Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: None
V124-5M Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: None
V124-6G Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: None
V124-6L Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: None
V124-6M Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: None
V124-1G Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: Grommet | Sub-plate: None
V124-1L Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: L-type plug connector | Sub-plate: None
V124-1M Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: M-type plug connector | Sub-plate: None
V124-2G Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: Grommet | Sub-plate: None
V124-2L Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: L-type plug connector | Sub-plate: None
V124-2M Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: M-type plug connector | Sub-plate: None
V124T-5GZ Switching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: None
V124A-5G Switching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: None
V124T-5LZ Switching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: None
V124A-5L Switching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: None
V124T-5MZ Switching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: None
V124A-5M Switching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: None
V124T-6GZ Switching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: None
V124A-6G Switching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: None
V124T-6LZ Switching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: None
V124A-6L Switching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: None
V124T-6MZ Switching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: None
V124A-6M Switching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: None
V124-5G-M5 Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V124-5L-M5 Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V124-5M-M5 Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V124-6G-M5 Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V124-6L-M5 Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V124-6M-M5 Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V124-1G-M5 Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V124-1L-M5 Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V124-1M-M5 Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V124-2G-M5 Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V124-2L-M5 Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V124-2M-M5 Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V124T-5GZ-M5 Switching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V124A-5G-M5 Switching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V124T-5LZ-M5 Switching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V124A-5L-M5 Switching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V124T-5MZ-M5 Switching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V124A-5M-M5 Switching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V124T-6GZ-M5 Switching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V124A-6G-M5 Switching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V124T-6LZ-M5 Switching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V124A-6L-M5 Switching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V124T-6MZ-M5 Switching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V124A-6M-M5 Switching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V114UT-5LZ Switching: N.C. | Type: High flow U | Coil: 0.35 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: None
V114UT-5MZ Switching: N.C. | Type: High flow U | Coil: 0.35 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: None
V114UT-5LZ-M5 Switching: N.C. | Type: High flow U | Coil: 0.35 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V114UT-5MZ-M5 Switching: N.C. | Type: High flow U | Coil: 0.35 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
3-Port Solenoid ValvesSMC
100 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC V100 3-Port Solenoid Valve (Direct Operated, Base Piping)

Brand SMC·3-Port Solenoid Valves

Available part numbers (100)

V114-5G, V114-5L, V114-5M, V114-6G, V114-6L, V114-6M, V114-1G, V114-1L, V114-1M, V114-2G + 90 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
V114-5GSwitching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: None
V114-5LSwitching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: None
V114-5MSwitching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: None
V114-6GSwitching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: None
V114-6LSwitching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: None
V114-6MSwitching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: None
V114-1GSwitching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: Grommet | Sub-plate: None
V114-1LSwitching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: L-type plug connector | Sub-plate: None
V114-1MSwitching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: M-type plug connector | Sub-plate: None
V114-2GSwitching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: Grommet | Sub-plate: None
V114-2LSwitching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: L-type plug connector | Sub-plate: None
V114-2MSwitching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: M-type plug connector | Sub-plate: None
V114T-5GZSwitching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: None
V114A-5GSwitching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: None
V114T-5LZSwitching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: None
V114A-5LSwitching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: None
V114T-5MZSwitching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: None
V114A-5MSwitching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: None
V114T-6GZSwitching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: None
V114A-6GSwitching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: None
V114T-6LZSwitching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: None
V114A-6LSwitching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: None
V114T-6MZSwitching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: None
V114A-6MSwitching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: None
V114-5G-M5Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V114-5L-M5Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V114-5M-M5Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V114-6G-M5Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V114-6L-M5Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V114-6M-M5Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V114-1G-M5Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V114-1L-M5Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V114-1M-M5Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V114-2G-M5Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V114-2L-M5Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V114-2M-M5Switching: N.C. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V114T-5GZ-M5Switching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V114A-5G-M5Switching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V114T-5LZ-M5Switching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V114A-5L-M5Switching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V114T-5MZ-M5Switching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V114A-5M-M5Switching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V114T-6GZ-M5Switching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V114A-6G-M5Switching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V114T-6LZ-M5Switching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V114A-6L-M5Switching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V114T-6MZ-M5Switching: N.C. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V114A-6M-M5Switching: N.C. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V124-5GSwitching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: None
V124-5LSwitching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: None
V124-5MSwitching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: None
V124-6GSwitching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: None
V124-6LSwitching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: None
V124-6MSwitching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: None
V124-1GSwitching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: Grommet | Sub-plate: None
V124-1LSwitching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: L-type plug connector | Sub-plate: None
V124-1MSwitching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: M-type plug connector | Sub-plate: None
V124-2GSwitching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: Grommet | Sub-plate: None
V124-2LSwitching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: L-type plug connector | Sub-plate: None
V124-2MSwitching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: M-type plug connector | Sub-plate: None
V124T-5GZSwitching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: None
V124A-5GSwitching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: None
V124T-5LZSwitching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: None
V124A-5LSwitching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: None
V124T-5MZSwitching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: None
V124A-5MSwitching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: None
V124T-6GZSwitching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: None
V124A-6GSwitching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: None
V124T-6LZSwitching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: None
V124A-6LSwitching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: None
V124T-6MZSwitching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: None
V124A-6MSwitching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: None
V124-5G-M5Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V124-5L-M5Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V124-5M-M5Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V124-6G-M5Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V124-6L-M5Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V124-6M-M5Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V124-1G-M5Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V124-1L-M5Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V124-1M-M5Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC100V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V124-2G-M5Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V124-2L-M5Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V124-2M-M5Switching: N.O. | Type: Standard | Coil: 0.35 W | Voltage: AC200V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V124T-5GZ-M5Switching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V124A-5G-M5Switching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V124T-5LZ-M5Switching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V124A-5L-M5Switching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V124T-5MZ-M5Switching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V124A-5M-M5Switching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V124T-6GZ-M5Switching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V124A-6G-M5Switching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: Grommet | Sub-plate: With sub-plate M5
V124T-6LZ-M5Switching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V124A-6L-M5Switching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V124T-6MZ-M5Switching: N.O. | Type: Standard | Coil: 0.1 W power-saving (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V124A-6M-M5Switching: N.O. | Type: High flow A | Coil: 1 W | Voltage: DC12V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5
V114UT-5LZSwitching: N.C. | Type: High flow U | Coil: 0.35 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: None
V114UT-5MZSwitching: N.C. | Type: High flow U | Coil: 0.35 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: None
V114UT-5LZ-M5Switching: N.C. | Type: High flow U | Coil: 0.35 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector | Sub-plate: With sub-plate M5
V114UT-5MZ-M5Switching: N.C. | Type: High flow U | Coil: 0.35 W power-saving (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector | Sub-plate: With sub-plate M5

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
