• SMC VA/VB Oil Distributor (4 to 16 Outlets, ø6 Tube)
1 1

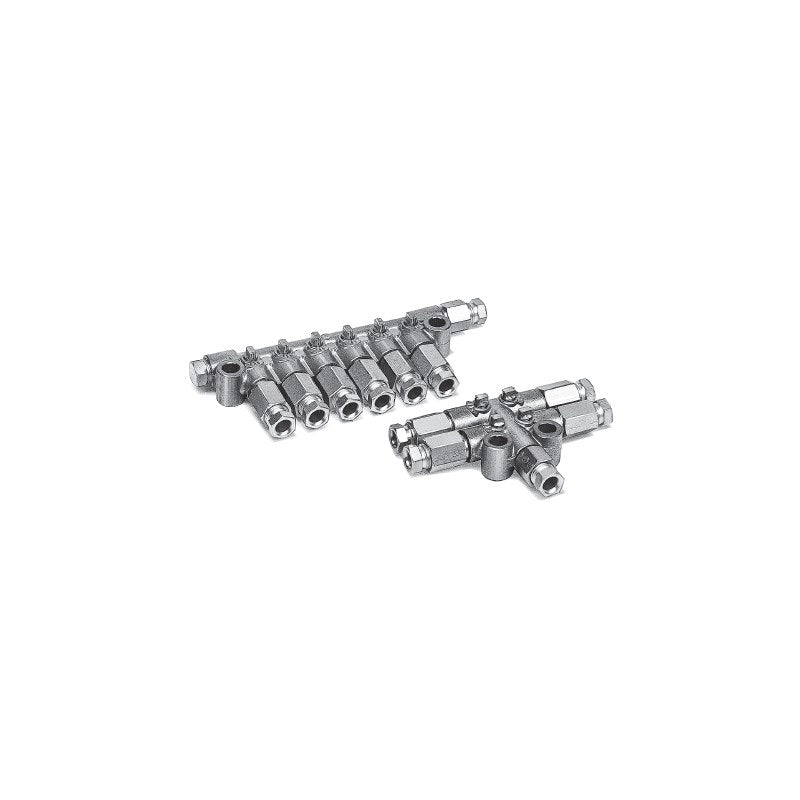

SMC VA/VB Oil Distributor (4 to 16 Outlets, ø6 Tube)

SMC VA/VB Oil Distributor (4 to 16 Outlets, ø6 Tube)

SMC VA and VB oil distributors that branch oil from an ALT auto-feed tank to several ALF lubricators through ø6 nylon tubing.

Key features

  • VA: outlets on both sides, 4/6/10/16 ports; VB: outlets on one side, 4/6/8 ports
  • For ø6 OD / ø4 ID tubing (T0604 nylon tube recommended)
  • Unused outlets are sealed with PG1 plugs
  • Used in the ALF/ALT auto-feed lubrication system

Specifications

Applicable tube OD ø6 / ID ø4
Recommended tube T0604 nylon 12, max. 1.5 MPa, -20 to 60°C
Plug for unused outlets PG1
Source SMC Korea catalog ALF400-900/ALT (SMCKR_ALF400-900_ALT_.pdf), p. 1318 (PDF p. 5)
VA4-6 Series: VA | Outlet layout: Both sides | Outlets: 4
VA6-6 Series: VA | Outlet layout: Both sides | Outlets: 6
VA10-6 Series: VA | Outlet layout: Both sides | Outlets: 10
VA16-6 Series: VA | Outlet layout: Both sides | Outlets: 16
VB4-6 Series: VB | Outlet layout: One side | Outlets: 4
VB6-6 Series: VB | Outlet layout: One side | Outlets: 6
VB8-6 Series: VB | Outlet layout: One side | Outlets: 8
LubricatorsSMC
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VA/VB Oil Distributor (4 to 16 Outlets, ø6 Tube)

Brand SMC·Lubricators

Available part numbers (7)

VA4-6, VA6-6, VA10-6, VA16-6, VB4-6, VB6-6, VB8-6

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VA4-6Series: VA | Outlet layout: Both sides | Outlets: 4
VA6-6Series: VA | Outlet layout: Both sides | Outlets: 6
VA10-6Series: VA | Outlet layout: Both sides | Outlets: 10
VA16-6Series: VA | Outlet layout: Both sides | Outlets: 16
VB4-6Series: VB | Outlet layout: One side | Outlets: 4
VB6-6Series: VB | Outlet layout: One side | Outlets: 6
VB8-6Series: VB | Outlet layout: One side | Outlets: 8
