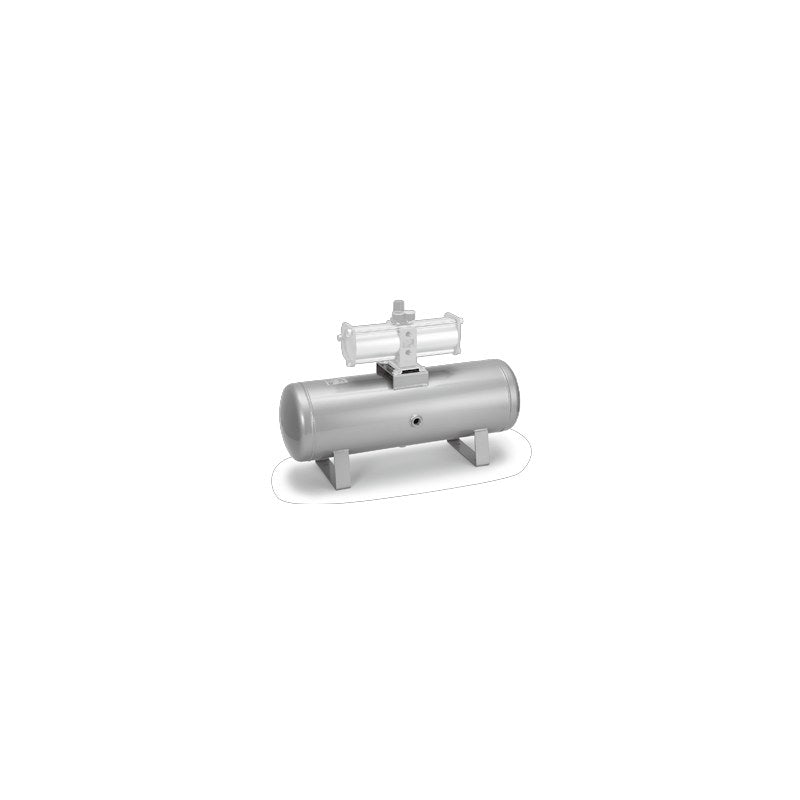

SMC VBAT Air Tank for Booster Regulator (5 to 38 L, Korea Models)

SMC VBAT Air Tank for Booster Regulator (5 to 38 L, Korea Models)

SMC VBAT series air tank (Korea models) that connects compactly to a VBA booster regulator to damp outlet pulsation and store air for intermittent peak consumption, also usable as a standalone tank.

Key features

  • Connects directly to VBA booster regulators (compatibility by tank size per catalog table)
  • Smooths pulsation on the booster outlet and buffers intermittent high air consumption
  • Carbon steel SS400 (silver paint outside, rust-preventive inside) or stainless steel SUS304, 5 to 38 L
  • Korea models: -CJSZ1160 versions come with KCs safety certification, safety valve and instruction manual
  • Drain valve VBAT-V1 sold separately; not a Class 2 pressure vessel

Specifications

Fluid Compressed air
Max. operating pressure 0.97 MPa
Ambient and fluid temperature 0 to 75°C
Mass SS400 6.6 to 21.0 kg; SUS304 3.2 to 19.0 kg
Mounting Horizontal (floor)
Note Standalone use above 1 MPa falls under High-Pressure Gas Safety Act
Source SMC Korea catalog VBA/VBAT Series (SMCKR_VBA_VBAT.pdf), p. 1287-1 to 1287-2 (PDF p. 18-19)
VBAT05A1-X101 Material: Carbon steel SS400 | Capacity: 5 L | IN/OUT port: Rc3/8 / Rc3/8 | Certification: Not subject to safety cert.
VBAT10A1-X101-CJSZ1160 Material: Carbon steel SS400 | Capacity: 10 L | IN/OUT port: Rc1/2 / Rc1/2 | Certification: Safety certified (KCs)
VBAT20A1-X101-CJSZ1160 Material: Carbon steel SS400 | Capacity: 20 L | IN/OUT port: Rc1/2 / Rc1/2 | Certification: Safety certified (KCs)
VBAT38A1-X101-CJSZ1160 Material: Carbon steel SS400 | Capacity: 38 L | IN/OUT port: Rc1/2 / Rc3/4 | Certification: Safety certified (KCs)
VBAT05S1-X101-CJSZ1160 Material: Stainless steel SUS304 | Capacity: 5 L | IN/OUT port: Rc3/8 / Rc3/8 | Certification: Safety certified (KCs)
VBAT10S1-X101-CJSZ1160 Material: Stainless steel SUS304 | Capacity: 10 L | IN/OUT port: Rc3/8 / Rc1/2 | Certification: Safety certified (KCs)
VBAT20S1-X101-CJSZ1160 Material: Stainless steel SUS304 | Capacity: 20 L | IN/OUT port: Rc1/2 / Rc1/2 | Certification: Safety certified (KCs)
VBAT38S1-X101-CJSZ1160 Material: Stainless steel SUS304 | Capacity: 38 L | IN/OUT port: Rc1/2 / Rc3/4 | Certification: Safety certified (KCs)
VBAT-V1 Material: Drain valve (sold separately) | Capacity: n/a | IN/OUT port: R1/4 / Rc1/8 | Certification: n/a
Air TanksSMC
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VBAT Air Tank for Booster Regulator (5 to 38 L, Korea Models)

Brand SMC·Air Tanks

Available part numbers (9)

VBAT05A1-X101, VBAT10A1-X101-CJSZ1160, VBAT20A1-X101-CJSZ1160, VBAT38A1-X101-CJSZ1160, VBAT05S1-X101-CJSZ1160, VBAT10S1-X101-CJSZ1160, VBAT20S1-X101-CJSZ1160, VBAT38S1-X101-CJSZ1160, VBAT-V1

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
