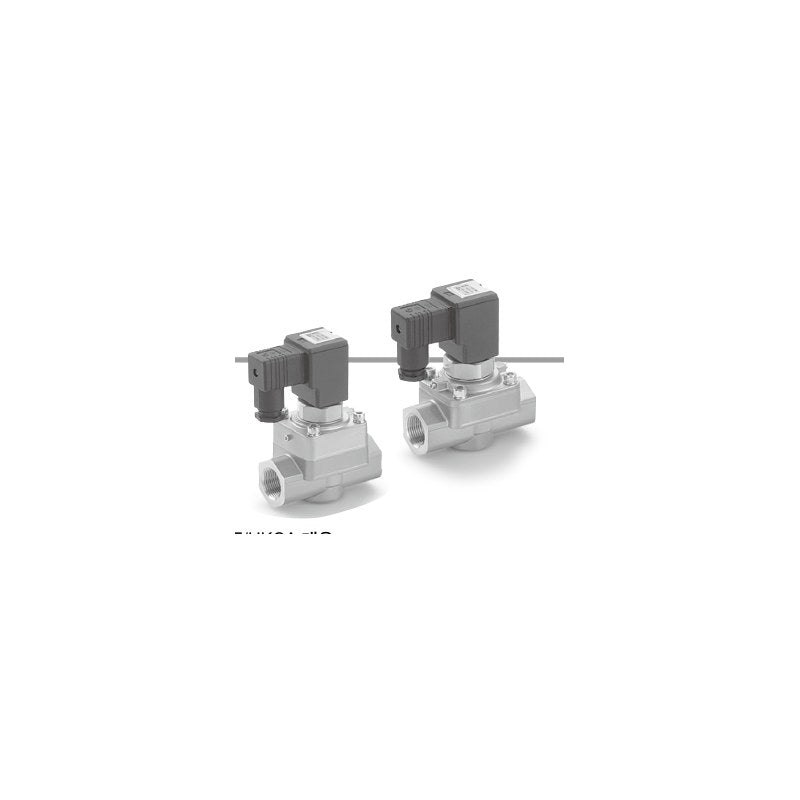

SMC VCH40 5.0 MPa Pilot Operated 2-Port Solenoid Valve

SMC VCH40 5.0 MPa Pilot Operated 2-Port Solenoid Valve

SMC VCH40 series pilot-operated diaphragm 2-port solenoid valve for 5.0 MPa air, in N.C. (VCH41) and N.O. (VCH42) types with G3/4 or G1 ports.

Key features

  • 5.0 MPa max. operating pressure; stable response, variation ±2 ms; life 10 million cycles
  • Polyurethane elastomer poppet for durability in high-pressure service; impact-absorbing rubber protects pilot and electrical parts
  • Brass body; G3/4 or G1 ports (ISO 1179-1 for hydraulics)
  • DIN connector (D), with light (DL) or without connector (DO); surge suppressor built into coil
  • Paired with VCHC40 check valve, VCHN silencer and VCHR regulator in 5.0 MPa systems; CE/UKCA (Q) on order

Specifications

Valve construction Pilot-operated diaphragm poppet
Fluid Air
Max. operating pressure 5.0 MPa
Operating pressure differential 0.5 to 5.0 MPa
Fluid and ambient temperature 5 to 80°C
Orifice ø16 (VCH41), ø17.5 (VCH42)
Enclosure Dustproof (IP65 equivalent)
Coil insulation Class B
Power consumption 5 W (DC), 13 VA (AC)
Mass 1.67 kg (VCH41), 1.9 kg (VCH42)
Source SMC Korea catalog VCH Series (SMCKR_VCH.pdf), p. 431-432 (PDF p. 1-4)
VCH41-1D-06G Valve type: N.C. | Voltage: AC100V | Electrical entry: DIN connector | Port: G3/4
VCH41-1D-10G Valve type: N.C. | Voltage: AC100V | Electrical entry: DIN connector | Port: G1
VCH41-1DL-06G Valve type: N.C. | Voltage: AC100V | Electrical entry: DIN connector with light | Port: G3/4
VCH41-1DL-10G Valve type: N.C. | Voltage: AC100V | Electrical entry: DIN connector with light | Port: G1
VCH41-1DO-06G Valve type: N.C. | Voltage: AC100V | Electrical entry: DIN, no connector (gasket) | Port: G3/4
VCH41-1DO-10G Valve type: N.C. | Voltage: AC100V | Electrical entry: DIN, no connector (gasket) | Port: G1
VCH41-2D-06G Valve type: N.C. | Voltage: AC200V | Electrical entry: DIN connector | Port: G3/4
VCH41-2D-10G Valve type: N.C. | Voltage: AC200V | Electrical entry: DIN connector | Port: G1
VCH41-2DL-06G Valve type: N.C. | Voltage: AC200V | Electrical entry: DIN connector with light | Port: G3/4
VCH41-2DL-10G Valve type: N.C. | Voltage: AC200V | Electrical entry: DIN connector with light | Port: G1
VCH41-2DO-06G Valve type: N.C. | Voltage: AC200V | Electrical entry: DIN, no connector (gasket) | Port: G3/4
VCH41-2DO-10G Valve type: N.C. | Voltage: AC200V | Electrical entry: DIN, no connector (gasket) | Port: G1
VCH41-4D-06G Valve type: N.C. | Voltage: AC220V | Electrical entry: DIN connector | Port: G3/4
VCH41-4D-10G Valve type: N.C. | Voltage: AC220V | Electrical entry: DIN connector | Port: G1
VCH41-4DL-06G Valve type: N.C. | Voltage: AC220V | Electrical entry: DIN connector with light | Port: G3/4
VCH41-4DL-10G Valve type: N.C. | Voltage: AC220V | Electrical entry: DIN connector with light | Port: G1
VCH41-4DO-06G Valve type: N.C. | Voltage: AC220V | Electrical entry: DIN, no connector (gasket) | Port: G3/4
VCH41-4DO-10G Valve type: N.C. | Voltage: AC220V | Electrical entry: DIN, no connector (gasket) | Port: G1
VCH41-5D-06G Valve type: N.C. | Voltage: DC24V | Electrical entry: DIN connector | Port: G3/4
VCH41-5D-10G Valve type: N.C. | Voltage: DC24V | Electrical entry: DIN connector | Port: G1
VCH41-5DL-06G Valve type: N.C. | Voltage: DC24V | Electrical entry: DIN connector with light | Port: G3/4
VCH41-5DL-10G Valve type: N.C. | Voltage: DC24V | Electrical entry: DIN connector with light | Port: G1
VCH41-5DO-06G Valve type: N.C. | Voltage: DC24V | Electrical entry: DIN, no connector (gasket) | Port: G3/4
VCH41-5DO-10G Valve type: N.C. | Voltage: DC24V | Electrical entry: DIN, no connector (gasket) | Port: G1
VCH42-1D-06G Valve type: N.O. | Voltage: AC100V | Electrical entry: DIN connector | Port: G3/4
VCH42-1D-10G Valve type: N.O. | Voltage: AC100V | Electrical entry: DIN connector | Port: G1
VCH42-1DL-06G Valve type: N.O. | Voltage: AC100V | Electrical entry: DIN connector with light | Port: G3/4
VCH42-1DL-10G Valve type: N.O. | Voltage: AC100V | Electrical entry: DIN connector with light | Port: G1
VCH42-1DO-06G Valve type: N.O. | Voltage: AC100V | Electrical entry: DIN, no connector (gasket) | Port: G3/4
VCH42-1DO-10G Valve type: N.O. | Voltage: AC100V | Electrical entry: DIN, no connector (gasket) | Port: G1
VCH42-2D-06G Valve type: N.O. | Voltage: AC200V | Electrical entry: DIN connector | Port: G3/4
VCH42-2D-10G Valve type: N.O. | Voltage: AC200V | Electrical entry: DIN connector | Port: G1
VCH42-2DL-06G Valve type: N.O. | Voltage: AC200V | Electrical entry: DIN connector with light | Port: G3/4
VCH42-2DL-10G Valve type: N.O. | Voltage: AC200V | Electrical entry: DIN connector with light | Port: G1
VCH42-2DO-06G Valve type: N.O. | Voltage: AC200V | Electrical entry: DIN, no connector (gasket) | Port: G3/4
VCH42-2DO-10G Valve type: N.O. | Voltage: AC200V | Electrical entry: DIN, no connector (gasket) | Port: G1
VCH42-4D-06G Valve type: N.O. | Voltage: AC220V | Electrical entry: DIN connector | Port: G3/4
VCH42-4D-10G Valve type: N.O. | Voltage: AC220V | Electrical entry: DIN connector | Port: G1
VCH42-4DL-06G Valve type: N.O. | Voltage: AC220V | Electrical entry: DIN connector with light | Port: G3/4
VCH42-4DL-10G Valve type: N.O. | Voltage: AC220V | Electrical entry: DIN connector with light | Port: G1
VCH42-4DO-06G Valve type: N.O. | Voltage: AC220V | Electrical entry: DIN, no connector (gasket) | Port: G3/4
VCH42-4DO-10G Valve type: N.O. | Voltage: AC220V | Electrical entry: DIN, no connector (gasket) | Port: G1
VCH42-5D-06G Valve type: N.O. | Voltage: DC24V | Electrical entry: DIN connector | Port: G3/4
VCH42-5D-10G Valve type: N.O. | Voltage: DC24V | Electrical entry: DIN connector | Port: G1
VCH42-5DL-06G Valve type: N.O. | Voltage: DC24V | Electrical entry: DIN connector with light | Port: G3/4
VCH42-5DL-10G Valve type: N.O. | Voltage: DC24V | Electrical entry: DIN connector with light | Port: G1
VCH42-5DO-06G Valve type: N.O. | Voltage: DC24V | Electrical entry: DIN, no connector (gasket) | Port: G3/4
VCH42-5DO-10G Valve type: N.O. | Voltage: DC24V | Electrical entry: DIN, no connector (gasket) | Port: G1
