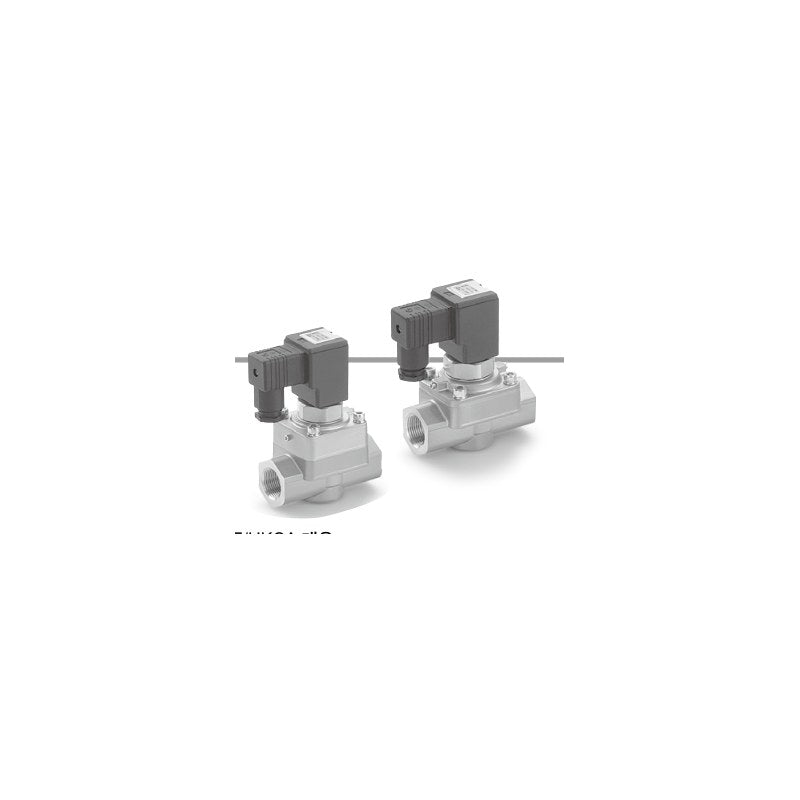

SMC VCH400 5.0 MPa Pilot Operated 3-Port Solenoid Valve

SMC VCH400 5.0 MPa Pilot Operated 3-Port Solenoid Valve

SMC VCH400 series (VCH410) pilot-operated 3-port poppet solenoid valve for 5.0 MPa air, with G1/2, G3/4 or G1 ports.

Key features

  • 5.0 MPa max. operating pressure; response variation ±2 ms; life 10 million cycles
  • Low-friction treated sliding parts with fluororesin seals and NSF-H1 grease; polyurethane elastomer poppet
  • Aluminum alloy body (hard anodized); G1/2, G3/4 or G1 ports
  • DIN connector (D), with light (DL) or without connector (DO); CE/UKCA (Q) on order

Specifications

Valve construction Pilot-operated poppet, 3-port
Fluid Air
Max. operating pressure 5.0 MPa
Operating pressure differential 0.5 to 5.0 MPa
Fluid and ambient temperature 5 to 80°C
Equivalent orifice ø18
Enclosure Dustproof (IP65 equivalent)
Coil insulation Class B
Power consumption 5 W (DC), 13 VA (AC)
Mass G1/2, 3/4: 1.83 kg; G1: 2.11 kg
Source SMC Korea catalog VCH Series (SMCKR_VCH.pdf), p. 436-437 (PDF p. 6-8)
VCH410-1D-04G Voltage: AC100V | Electrical entry: DIN connector | Port: G1/2
VCH410-1D-06G Voltage: AC100V | Electrical entry: DIN connector | Port: G3/4
VCH410-1D-10G Voltage: AC100V | Electrical entry: DIN connector | Port: G1
VCH410-1DL-04G Voltage: AC100V | Electrical entry: DIN connector with light | Port: G1/2
VCH410-1DL-06G Voltage: AC100V | Electrical entry: DIN connector with light | Port: G3/4
VCH410-1DL-10G Voltage: AC100V | Electrical entry: DIN connector with light | Port: G1
VCH410-1DO-04G Voltage: AC100V | Electrical entry: DIN, no connector (gasket) | Port: G1/2
VCH410-1DO-06G Voltage: AC100V | Electrical entry: DIN, no connector (gasket) | Port: G3/4
VCH410-1DO-10G Voltage: AC100V | Electrical entry: DIN, no connector (gasket) | Port: G1
VCH410-2D-04G Voltage: AC200V | Electrical entry: DIN connector | Port: G1/2
VCH410-2D-06G Voltage: AC200V | Electrical entry: DIN connector | Port: G3/4
VCH410-2D-10G Voltage: AC200V | Electrical entry: DIN connector | Port: G1
VCH410-2DL-04G Voltage: AC200V | Electrical entry: DIN connector with light | Port: G1/2
VCH410-2DL-06G Voltage: AC200V | Electrical entry: DIN connector with light | Port: G3/4
VCH410-2DL-10G Voltage: AC200V | Electrical entry: DIN connector with light | Port: G1
VCH410-2DO-04G Voltage: AC200V | Electrical entry: DIN, no connector (gasket) | Port: G1/2
VCH410-2DO-06G Voltage: AC200V | Electrical entry: DIN, no connector (gasket) | Port: G3/4
VCH410-2DO-10G Voltage: AC200V | Electrical entry: DIN, no connector (gasket) | Port: G1
VCH410-4D-04G Voltage: AC220V | Electrical entry: DIN connector | Port: G1/2
VCH410-4D-06G Voltage: AC220V | Electrical entry: DIN connector | Port: G3/4
VCH410-4D-10G Voltage: AC220V | Electrical entry: DIN connector | Port: G1
VCH410-4DL-04G Voltage: AC220V | Electrical entry: DIN connector with light | Port: G1/2
VCH410-4DL-06G Voltage: AC220V | Electrical entry: DIN connector with light | Port: G3/4
VCH410-4DL-10G Voltage: AC220V | Electrical entry: DIN connector with light | Port: G1
VCH410-4DO-04G Voltage: AC220V | Electrical entry: DIN, no connector (gasket) | Port: G1/2
VCH410-4DO-06G Voltage: AC220V | Electrical entry: DIN, no connector (gasket) | Port: G3/4
VCH410-4DO-10G Voltage: AC220V | Electrical entry: DIN, no connector (gasket) | Port: G1
VCH410-5D-04G Voltage: DC24V | Electrical entry: DIN connector | Port: G1/2
VCH410-5D-06G Voltage: DC24V | Electrical entry: DIN connector | Port: G3/4
VCH410-5D-10G Voltage: DC24V | Electrical entry: DIN connector | Port: G1
VCH410-5DL-04G Voltage: DC24V | Electrical entry: DIN connector with light | Port: G1/2
VCH410-5DL-06G Voltage: DC24V | Electrical entry: DIN connector with light | Port: G3/4
VCH410-5DL-10G Voltage: DC24V | Electrical entry: DIN connector with light | Port: G1
VCH410-5DO-04G Voltage: DC24V | Electrical entry: DIN, no connector (gasket) | Port: G1/2
VCH410-5DO-06G Voltage: DC24V | Electrical entry: DIN, no connector (gasket) | Port: G3/4
VCH410-5DO-10G Voltage: DC24V | Electrical entry: DIN, no connector (gasket) | Port: G1
3-Port Solenoid ValvesSMC
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VCH400 5.0 MPa Pilot Operated 3-Port Solenoid Valve

Brand SMC·3-Port Solenoid Valves

Available part numbers (36)

VCH410-1D-04G, VCH410-1D-06G, VCH410-1D-10G, VCH410-1DL-04G, VCH410-1DL-06G, VCH410-1DL-10G, VCH410-1DO-04G, VCH410-1DO-06G, VCH410-1DO-10G, VCH410-2D-04G + 26 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VCH410-1D-04GVoltage: AC100V | Electrical entry: DIN connector | Port: G1/2
VCH410-1D-06GVoltage: AC100V | Electrical entry: DIN connector | Port: G3/4
VCH410-1D-10GVoltage: AC100V | Electrical entry: DIN connector | Port: G1
VCH410-1DL-04GVoltage: AC100V | Electrical entry: DIN connector with light | Port: G1/2
VCH410-1DL-06GVoltage: AC100V | Electrical entry: DIN connector with light | Port: G3/4
VCH410-1DL-10GVoltage: AC100V | Electrical entry: DIN connector with light | Port: G1
VCH410-1DO-04GVoltage: AC100V | Electrical entry: DIN, no connector (gasket) | Port: G1/2
VCH410-1DO-06GVoltage: AC100V | Electrical entry: DIN, no connector (gasket) | Port: G3/4
VCH410-1DO-10GVoltage: AC100V | Electrical entry: DIN, no connector (gasket) | Port: G1
VCH410-2D-04GVoltage: AC200V | Electrical entry: DIN connector | Port: G1/2
VCH410-2D-06GVoltage: AC200V | Electrical entry: DIN connector | Port: G3/4
VCH410-2D-10GVoltage: AC200V | Electrical entry: DIN connector | Port: G1
VCH410-2DL-04GVoltage: AC200V | Electrical entry: DIN connector with light | Port: G1/2
VCH410-2DL-06GVoltage: AC200V | Electrical entry: DIN connector with light | Port: G3/4
VCH410-2DL-10GVoltage: AC200V | Electrical entry: DIN connector with light | Port: G1
VCH410-2DO-04GVoltage: AC200V | Electrical entry: DIN, no connector (gasket) | Port: G1/2
VCH410-2DO-06GVoltage: AC200V | Electrical entry: DIN, no connector (gasket) | Port: G3/4
VCH410-2DO-10GVoltage: AC200V | Electrical entry: DIN, no connector (gasket) | Port: G1
VCH410-4D-04GVoltage: AC220V | Electrical entry: DIN connector | Port: G1/2
VCH410-4D-06GVoltage: AC220V | Electrical entry: DIN connector | Port: G3/4
VCH410-4D-10GVoltage: AC220V | Electrical entry: DIN connector | Port: G1
VCH410-4DL-04GVoltage: AC220V | Electrical entry: DIN connector with light | Port: G1/2
VCH410-4DL-06GVoltage: AC220V | Electrical entry: DIN connector with light | Port: G3/4
VCH410-4DL-10GVoltage: AC220V | Electrical entry: DIN connector with light | Port: G1
VCH410-4DO-04GVoltage: AC220V | Electrical entry: DIN, no connector (gasket) | Port: G1/2
VCH410-4DO-06GVoltage: AC220V | Electrical entry: DIN, no connector (gasket) | Port: G3/4
VCH410-4DO-10GVoltage: AC220V | Electrical entry: DIN, no connector (gasket) | Port: G1
VCH410-5D-04GVoltage: DC24V | Electrical entry: DIN connector | Port: G1/2
VCH410-5D-06GVoltage: DC24V | Electrical entry: DIN connector | Port: G3/4
VCH410-5D-10GVoltage: DC24V | Electrical entry: DIN connector | Port: G1
VCH410-5DL-04GVoltage: DC24V | Electrical entry: DIN connector with light | Port: G1/2
VCH410-5DL-06GVoltage: DC24V | Electrical entry: DIN connector with light | Port: G3/4
VCH410-5DL-10GVoltage: DC24V | Electrical entry: DIN connector with light | Port: G1
VCH410-5DO-04GVoltage: DC24V | Electrical entry: DIN, no connector (gasket) | Port: G1/2
VCH410-5DO-06GVoltage: DC24V | Electrical entry: DIN, no connector (gasket) | Port: G3/4
VCH410-5DO-10GVoltage: DC24V | Electrical entry: DIN, no connector (gasket) | Port: G1
