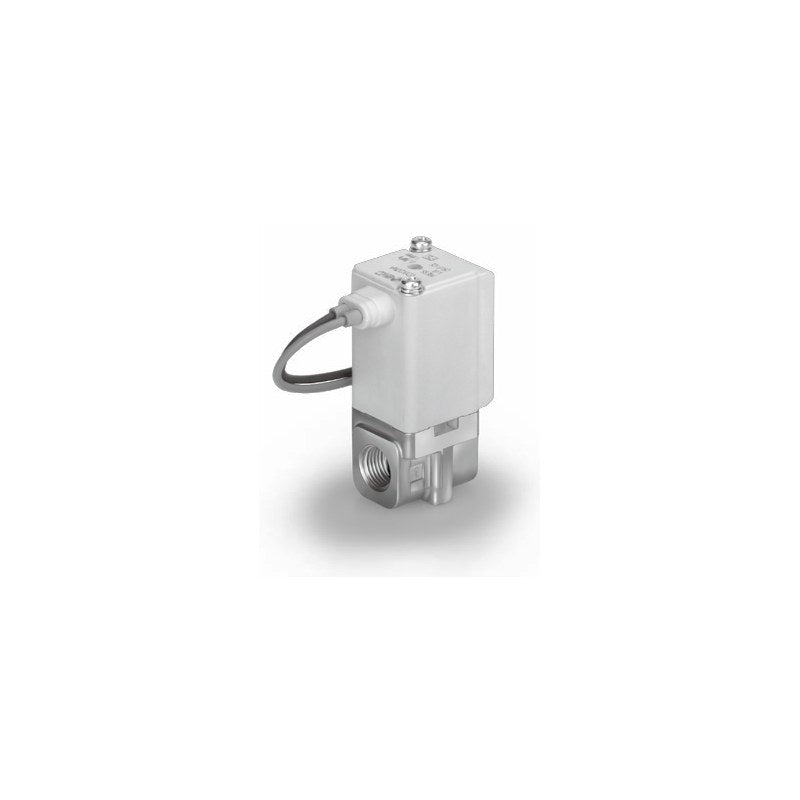

SMC VDW Compact Direct Operated 2-Port Solenoid Valve (Air/Vac/Water)

SMC VDW Compact Direct Operated 2-Port Solenoid Valve (Air/Vac/Water)

SMC VDW series compact direct-operated N.C. 2-port solenoid valve for air, medium vacuum and water, in two sizes with aluminum, PPS resin, brass or stainless steel bodies.

Key features

  • Compact and lightweight: 15 mm wide, 80 g (Al/PPS body VDW2); power consumption 2.5 W (VDW1) / 3 W (VDW2)
  • IP65 enclosure, UL94V-0 flame-retardant molded coil, rubber damper for quiet operation
  • Air (VDW_0, NBR), medium vacuum (VDW_4, FKM, oil-free standard) and water (VDW_2, NBR) versions
  • Ports M5, Rc1/8 or built-in one-touch fittings ø3.2/ø4/ø6 (PPS body); orifice ø1.0 to ø3.2 mm
  • Listed codes: grommet, DC24V/AC100V/AC200V; other voltages (Z: AC110V, AC230V, AC220V, AC240V, AC48V, DC12V), G/NPT thread, low-concentration ozone/deionized water, bracket and lead wire length (XL) are order options

Specifications

Valve type Direct operated poppet, N.C.
Proof pressure 2.0 MPa (resin body 1.5 MPa)
Max. system pressure 1.0 MPa
Fluid and ambient temperature -10 to 50°C (water/vacuum fluid 1 to 50°C)
Enclosure Dustproof, jetproof (IP65)
Electrical entry Grommet (approx. 300 mm lead wire)
Coil insulation Class B
Allowable voltage fluctuation ±10% of rated voltage
Power consumption Size 1: 2.5 W, Size 2: 3 W (AC types with built-in full-wave rectifier, same VA)
Thread Rc (resin body: M5 or one-touch fitting)
Source SMC Korea catalog VDW Series (SMCKR_VDW__New_.pdf), p. 453-463 (PDF p. 1-13)
VDW10AA Fluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.0 mm | Voltage: DC24V
VDW10AB Fluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.0 mm | Voltage: AC100V
VDW10AD Fluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.0 mm | Voltage: AC200V
VDW10BA Fluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW10BB Fluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW10BD Fluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW10CA Fluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.0 mm | Voltage: DC24V
VDW10CB Fluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.0 mm | Voltage: AC100V
VDW10CD Fluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.0 mm | Voltage: AC200V
VDW10DA Fluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.6 mm | Voltage: DC24V
VDW10DB Fluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.6 mm | Voltage: AC100V
VDW10DD Fluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.6 mm | Voltage: AC200V
VDW10EA Fluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.0 mm | Voltage: DC24V
VDW10EB Fluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.0 mm | Voltage: AC100V
VDW10ED Fluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.0 mm | Voltage: AC200V
VDW10FA Fluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: DC24V
VDW10FB Fluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: AC100V
VDW10FD Fluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: AC200V
VDW20AA Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW20AB Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW20AD Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW20BA Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø2.3 mm | Voltage: DC24V
VDW20BB Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø2.3 mm | Voltage: AC100V
VDW20BD Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø2.3 mm | Voltage: AC200V
VDW20CA Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø3.2 mm | Voltage: DC24V
VDW20CB Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø3.2 mm | Voltage: AC100V
VDW20CD Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø3.2 mm | Voltage: AC200V
VDW20DA Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: DC24V
VDW20DB Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: AC100V
VDW20DD Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: AC200V
VDW20EA Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø2.3 mm | Voltage: DC24V
VDW20EB Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø2.3 mm | Voltage: AC100V
VDW20ED Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø2.3 mm | Voltage: AC200V
VDW20FA Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø3.2 mm | Voltage: DC24V
VDW20FB Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø3.2 mm | Voltage: AC100V
VDW20FD Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø3.2 mm | Voltage: AC200V
VDW20GA Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø1.6 mm | Voltage: DC24V
VDW20GB Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø1.6 mm | Voltage: AC100V
VDW20GD Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø1.6 mm | Voltage: AC200V
VDW20HA Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø2.3 mm | Voltage: DC24V
VDW20HB Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø2.3 mm | Voltage: AC100V
VDW20HD Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø2.3 mm | Voltage: AC200V
VDW20JA Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø3.2 mm | Voltage: DC24V
VDW20JB Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø3.2 mm | Voltage: AC100V
VDW20JD Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø3.2 mm | Voltage: AC200V
VDW20KA Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW20KB Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW20KD Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW20LA Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: M5 | Orifice: ø2.3 mm | Voltage: DC24V
VDW20LB Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: M5 | Orifice: ø2.3 mm | Voltage: AC100V
VDW20LD Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: M5 | Orifice: ø2.3 mm | Voltage: AC200V
VDW20MA Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: M5 | Orifice: ø3.2 mm | Voltage: DC24V
VDW20MB Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: M5 | Orifice: ø3.2 mm | Voltage: AC100V
VDW20MD Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: M5 | Orifice: ø3.2 mm | Voltage: AC200V
VDW20NA Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: DC24V
VDW20NB Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: AC100V
VDW20ND Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: AC200V
VDW20PA Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: DC24V
VDW20PB Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: AC100V
VDW20PD Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: AC200V
VDW20QA Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: DC24V
VDW20QB Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: AC100V
VDW20QD Fluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: AC200V
VDW14GA Fluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.0 mm | Voltage: DC24V
VDW14GB Fluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.0 mm | Voltage: AC100V
VDW14GD Fluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.0 mm | Voltage: AC200V
VDW14HA Fluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW14HB Fluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW14HD Fluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW14JA Fluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.0 mm | Voltage: DC24V
VDW14JB Fluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.0 mm | Voltage: AC100V
VDW14JD Fluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.0 mm | Voltage: AC200V
VDW14KA Fluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW14KB Fluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW14KD Fluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW24KA Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW24KB Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW24KD Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW24LA Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø2.3 mm | Voltage: DC24V
VDW24LB Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø2.3 mm | Voltage: AC100V
VDW24LD Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø2.3 mm | Voltage: AC200V
VDW24MA Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø3.2 mm | Voltage: DC24V
VDW24MB Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø3.2 mm | Voltage: AC100V
VDW24MD Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø3.2 mm | Voltage: AC200V
VDW24NA Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: DC24V
VDW24NB Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: AC100V
VDW24ND Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: AC200V
VDW24PA Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: DC24V
VDW24PB Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: AC100V
VDW24PD Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: AC200V
VDW24QA Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: DC24V
VDW24QB Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: AC100V
VDW24QD Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: AC200V
VDW24RA Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW24RB Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW24RD Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW24SA Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø2.3 mm | Voltage: DC24V
VDW24SB Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø2.3 mm | Voltage: AC100V
VDW24SD Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø2.3 mm | Voltage: AC200V
VDW24TA Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø3.2 mm | Voltage: DC24V
VDW24TB Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø3.2 mm | Voltage: AC100V
VDW24TD Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø3.2 mm | Voltage: AC200V
VDW24UA Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: DC24V
VDW24UB Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: AC100V
VDW24UD Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: AC200V
VDW24VA Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: DC24V
VDW24VB Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: AC100V
VDW24VD Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: AC200V
VDW24WA Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: DC24V
VDW24WB Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: AC100V
VDW24WD Fluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: AC200V
VDW12AA Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.0 mm | Voltage: DC24V
VDW12AB Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.0 mm | Voltage: AC100V
VDW12AD Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.0 mm | Voltage: AC200V
VDW12BA Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW12BB Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW12BD Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW12CA Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.0 mm | Voltage: DC24V
VDW12CB Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.0 mm | Voltage: AC100V
VDW12CD Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.0 mm | Voltage: AC200V
VDW12DA Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.6 mm | Voltage: DC24V
VDW12DB Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.6 mm | Voltage: AC100V
VDW12DD Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.6 mm | Voltage: AC200V
VDW12EA Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.0 mm | Voltage: DC24V
VDW12EB Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.0 mm | Voltage: AC100V
VDW12ED Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.0 mm | Voltage: AC200V
VDW12FA Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: DC24V
VDW12FB Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: AC100V
VDW12FD Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: AC200V
VDW12GA Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.0 mm | Voltage: DC24V
VDW12GB Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.0 mm | Voltage: AC100V
VDW12GD Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.0 mm | Voltage: AC200V
VDW12HA Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW12HB Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW12HD Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW12JA Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.0 mm | Voltage: DC24V
VDW12JB Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.0 mm | Voltage: AC100V
VDW12JD Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.0 mm | Voltage: AC200V
VDW12KA Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW12KB Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW12KD Fluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW22AA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW22AB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW22AD Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW22BA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø2.3 mm | Voltage: DC24V
VDW22BB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø2.3 mm | Voltage: AC100V
VDW22BD Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø2.3 mm | Voltage: AC200V
VDW22CA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø3.2 mm | Voltage: DC24V
VDW22CB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø3.2 mm | Voltage: AC100V
VDW22CD Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø3.2 mm | Voltage: AC200V
VDW22DA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: DC24V
VDW22DB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: AC100V
VDW22DD Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: AC200V
VDW22EA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø2.3 mm | Voltage: DC24V
VDW22EB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø2.3 mm | Voltage: AC100V
VDW22ED Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø2.3 mm | Voltage: AC200V
VDW22FA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø3.2 mm | Voltage: DC24V
VDW22FB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø3.2 mm | Voltage: AC100V
VDW22FD Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø3.2 mm | Voltage: AC200V
VDW22GA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø1.6 mm | Voltage: DC24V
VDW22GB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø1.6 mm | Voltage: AC100V
VDW22GD Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø1.6 mm | Voltage: AC200V
VDW22HA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø2.3 mm | Voltage: DC24V
VDW22HB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø2.3 mm | Voltage: AC100V
VDW22HD Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø2.3 mm | Voltage: AC200V
VDW22JA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø3.2 mm | Voltage: DC24V
VDW22JB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø3.2 mm | Voltage: AC100V
VDW22JD Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø3.2 mm | Voltage: AC200V
VDW22KA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW22KB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW22KD Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW22LA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø2.3 mm | Voltage: DC24V
VDW22LB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø2.3 mm | Voltage: AC100V
VDW22LD Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø2.3 mm | Voltage: AC200V
VDW22MA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø3.2 mm | Voltage: DC24V
VDW22MB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø3.2 mm | Voltage: AC100V
VDW22MD Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø3.2 mm | Voltage: AC200V
VDW22NA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: DC24V
VDW22NB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: AC100V
VDW22ND Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: AC200V
VDW22PA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: DC24V
VDW22PB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: AC100V
VDW22PD Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: AC200V
VDW22QA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: DC24V
VDW22QB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: AC100V
VDW22QD Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: AC200V
VDW22RA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW22RB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW22RD Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW22SA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø2.3 mm | Voltage: DC24V
VDW22SB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø2.3 mm | Voltage: AC100V
VDW22SD Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø2.3 mm | Voltage: AC200V
VDW22TA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø3.2 mm | Voltage: DC24V
VDW22TB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø3.2 mm | Voltage: AC100V
VDW22TD Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø3.2 mm | Voltage: AC200V
VDW22UA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: DC24V
VDW22UB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: AC100V
VDW22UD Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: AC200V
VDW22VA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: DC24V
VDW22VB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: AC100V
VDW22VD Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: AC200V
VDW22WA Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: DC24V
VDW22WB Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: AC100V
VDW22WD Fluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: AC200V
2-Port ValvesSMC
204 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VDW Compact Direct Operated 2-Port Solenoid Valve (Air/Vac/Water)

Brand SMC·2-Port Valves

Available part numbers (204)

VDW10AA, VDW10AB, VDW10AD, VDW10BA, VDW10BB, VDW10BD, VDW10CA, VDW10CB, VDW10CD, VDW10DA + 194 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VDW10AAFluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.0 mm | Voltage: DC24V
VDW10ABFluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.0 mm | Voltage: AC100V
VDW10ADFluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.0 mm | Voltage: AC200V
VDW10BAFluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW10BBFluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW10BDFluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW10CAFluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.0 mm | Voltage: DC24V
VDW10CBFluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.0 mm | Voltage: AC100V
VDW10CDFluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.0 mm | Voltage: AC200V
VDW10DAFluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.6 mm | Voltage: DC24V
VDW10DBFluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.6 mm | Voltage: AC100V
VDW10DDFluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.6 mm | Voltage: AC200V
VDW10EAFluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.0 mm | Voltage: DC24V
VDW10EBFluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.0 mm | Voltage: AC100V
VDW10EDFluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.0 mm | Voltage: AC200V
VDW10FAFluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: DC24V
VDW10FBFluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: AC100V
VDW10FDFluid: Air (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: AC200V
VDW20AAFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW20ABFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW20ADFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW20BAFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø2.3 mm | Voltage: DC24V
VDW20BBFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø2.3 mm | Voltage: AC100V
VDW20BDFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø2.3 mm | Voltage: AC200V
VDW20CAFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø3.2 mm | Voltage: DC24V
VDW20CBFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø3.2 mm | Voltage: AC100V
VDW20CDFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø3.2 mm | Voltage: AC200V
VDW20DAFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: DC24V
VDW20DBFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: AC100V
VDW20DDFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: AC200V
VDW20EAFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø2.3 mm | Voltage: DC24V
VDW20EBFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø2.3 mm | Voltage: AC100V
VDW20EDFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø2.3 mm | Voltage: AC200V
VDW20FAFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø3.2 mm | Voltage: DC24V
VDW20FBFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø3.2 mm | Voltage: AC100V
VDW20FDFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø3.2 mm | Voltage: AC200V
VDW20GAFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø1.6 mm | Voltage: DC24V
VDW20GBFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø1.6 mm | Voltage: AC100V
VDW20GDFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø1.6 mm | Voltage: AC200V
VDW20HAFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø2.3 mm | Voltage: DC24V
VDW20HBFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø2.3 mm | Voltage: AC100V
VDW20HDFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø2.3 mm | Voltage: AC200V
VDW20JAFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø3.2 mm | Voltage: DC24V
VDW20JBFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø3.2 mm | Voltage: AC100V
VDW20JDFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø3.2 mm | Voltage: AC200V
VDW20KAFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW20KBFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW20KDFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW20LAFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: M5 | Orifice: ø2.3 mm | Voltage: DC24V
VDW20LBFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: M5 | Orifice: ø2.3 mm | Voltage: AC100V
VDW20LDFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: M5 | Orifice: ø2.3 mm | Voltage: AC200V
VDW20MAFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: M5 | Orifice: ø3.2 mm | Voltage: DC24V
VDW20MBFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: M5 | Orifice: ø3.2 mm | Voltage: AC100V
VDW20MDFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: M5 | Orifice: ø3.2 mm | Voltage: AC200V
VDW20NAFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: DC24V
VDW20NBFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: AC100V
VDW20NDFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: AC200V
VDW20PAFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: DC24V
VDW20PBFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: AC100V
VDW20PDFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: AC200V
VDW20QAFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: DC24V
VDW20QBFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: AC100V
VDW20QDFluid: Air (NBR seal) | Size: Size 2 (VDW2) | Body: Aluminum | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: AC200V
VDW14GAFluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.0 mm | Voltage: DC24V
VDW14GBFluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.0 mm | Voltage: AC100V
VDW14GDFluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.0 mm | Voltage: AC200V
VDW14HAFluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW14HBFluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW14HDFluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW14JAFluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.0 mm | Voltage: DC24V
VDW14JBFluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.0 mm | Voltage: AC100V
VDW14JDFluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.0 mm | Voltage: AC200V
VDW14KAFluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW14KBFluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW14KDFluid: Medium vacuum (FKM seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW24KAFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW24KBFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW24KDFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW24LAFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø2.3 mm | Voltage: DC24V
VDW24LBFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø2.3 mm | Voltage: AC100V
VDW24LDFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø2.3 mm | Voltage: AC200V
VDW24MAFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø3.2 mm | Voltage: DC24V
VDW24MBFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø3.2 mm | Voltage: AC100V
VDW24MDFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø3.2 mm | Voltage: AC200V
VDW24NAFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: DC24V
VDW24NBFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: AC100V
VDW24NDFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: AC200V
VDW24PAFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: DC24V
VDW24PBFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: AC100V
VDW24PDFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: AC200V
VDW24QAFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: DC24V
VDW24QBFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: AC100V
VDW24QDFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: AC200V
VDW24RAFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW24RBFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW24RDFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW24SAFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø2.3 mm | Voltage: DC24V
VDW24SBFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø2.3 mm | Voltage: AC100V
VDW24SDFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø2.3 mm | Voltage: AC200V
VDW24TAFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø3.2 mm | Voltage: DC24V
VDW24TBFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø3.2 mm | Voltage: AC100V
VDW24TDFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø3.2 mm | Voltage: AC200V
VDW24UAFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: DC24V
VDW24UBFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: AC100V
VDW24UDFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: AC200V
VDW24VAFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: DC24V
VDW24VBFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: AC100V
VDW24VDFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: AC200V
VDW24WAFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: DC24V
VDW24WBFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: AC100V
VDW24WDFluid: Medium vacuum (FKM seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: AC200V
VDW12AAFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.0 mm | Voltage: DC24V
VDW12ABFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.0 mm | Voltage: AC100V
VDW12ADFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.0 mm | Voltage: AC200V
VDW12BAFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW12BBFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW12BDFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW12CAFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.0 mm | Voltage: DC24V
VDW12CBFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.0 mm | Voltage: AC100V
VDW12CDFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.0 mm | Voltage: AC200V
VDW12DAFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.6 mm | Voltage: DC24V
VDW12DBFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.6 mm | Voltage: AC100V
VDW12DDFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø3.2 one-touch | Orifice: ø1.6 mm | Voltage: AC200V
VDW12EAFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.0 mm | Voltage: DC24V
VDW12EBFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.0 mm | Voltage: AC100V
VDW12EDFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.0 mm | Voltage: AC200V
VDW12FAFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: DC24V
VDW12FBFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: AC100V
VDW12FDFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: AC200V
VDW12GAFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.0 mm | Voltage: DC24V
VDW12GBFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.0 mm | Voltage: AC100V
VDW12GDFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.0 mm | Voltage: AC200V
VDW12HAFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW12HBFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW12HDFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW12JAFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.0 mm | Voltage: DC24V
VDW12JBFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.0 mm | Voltage: AC100V
VDW12JDFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.0 mm | Voltage: AC200V
VDW12KAFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW12KBFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW12KDFluid: Water (NBR seal) | Size: Size 1 (VDW1) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW22AAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW22ABFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW22ADFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW22BAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø2.3 mm | Voltage: DC24V
VDW22BBFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø2.3 mm | Voltage: AC100V
VDW22BDFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø2.3 mm | Voltage: AC200V
VDW22CAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø3.2 mm | Voltage: DC24V
VDW22CBFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø3.2 mm | Voltage: AC100V
VDW22CDFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: M5 | Orifice: ø3.2 mm | Voltage: AC200V
VDW22DAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: DC24V
VDW22DBFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: AC100V
VDW22DDFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø1.6 mm | Voltage: AC200V
VDW22EAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø2.3 mm | Voltage: DC24V
VDW22EBFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø2.3 mm | Voltage: AC100V
VDW22EDFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø2.3 mm | Voltage: AC200V
VDW22FAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø3.2 mm | Voltage: DC24V
VDW22FBFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø3.2 mm | Voltage: AC100V
VDW22FDFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø4 one-touch | Orifice: ø3.2 mm | Voltage: AC200V
VDW22GAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø1.6 mm | Voltage: DC24V
VDW22GBFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø1.6 mm | Voltage: AC100V
VDW22GDFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø1.6 mm | Voltage: AC200V
VDW22HAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø2.3 mm | Voltage: DC24V
VDW22HBFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø2.3 mm | Voltage: AC100V
VDW22HDFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø2.3 mm | Voltage: AC200V
VDW22JAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø3.2 mm | Voltage: DC24V
VDW22JBFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø3.2 mm | Voltage: AC100V
VDW22JDFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Resin (PPS) | Port: ø6 one-touch | Orifice: ø3.2 mm | Voltage: AC200V
VDW22KAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW22KBFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW22KDFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW22LAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø2.3 mm | Voltage: DC24V
VDW22LBFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø2.3 mm | Voltage: AC100V
VDW22LDFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø2.3 mm | Voltage: AC200V
VDW22MAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø3.2 mm | Voltage: DC24V
VDW22MBFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø3.2 mm | Voltage: AC100V
VDW22MDFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: M5 | Orifice: ø3.2 mm | Voltage: AC200V
VDW22NAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: DC24V
VDW22NBFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: AC100V
VDW22NDFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: AC200V
VDW22PAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: DC24V
VDW22PBFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: AC100V
VDW22PDFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: AC200V
VDW22QAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: DC24V
VDW22QBFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: AC100V
VDW22QDFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Brass | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: AC200V
VDW22RAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: DC24V
VDW22RBFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: AC100V
VDW22RDFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø1.6 mm | Voltage: AC200V
VDW22SAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø2.3 mm | Voltage: DC24V
VDW22SBFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø2.3 mm | Voltage: AC100V
VDW22SDFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø2.3 mm | Voltage: AC200V
VDW22TAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø3.2 mm | Voltage: DC24V
VDW22TBFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø3.2 mm | Voltage: AC100V
VDW22TDFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: M5 | Orifice: ø3.2 mm | Voltage: AC200V
VDW22UAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: DC24V
VDW22UBFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: AC100V
VDW22UDFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø1.6 mm | Voltage: AC200V
VDW22VAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: DC24V
VDW22VBFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: AC100V
VDW22VDFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø2.3 mm | Voltage: AC200V
VDW22WAFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: DC24V
VDW22WBFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: AC100V
VDW22WDFluid: Water (NBR seal) | Size: Size 2 (VDW2) | Body: Stainless steel | Port: Rc1/8 | Orifice: ø3.2 mm | Voltage: AC200V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
