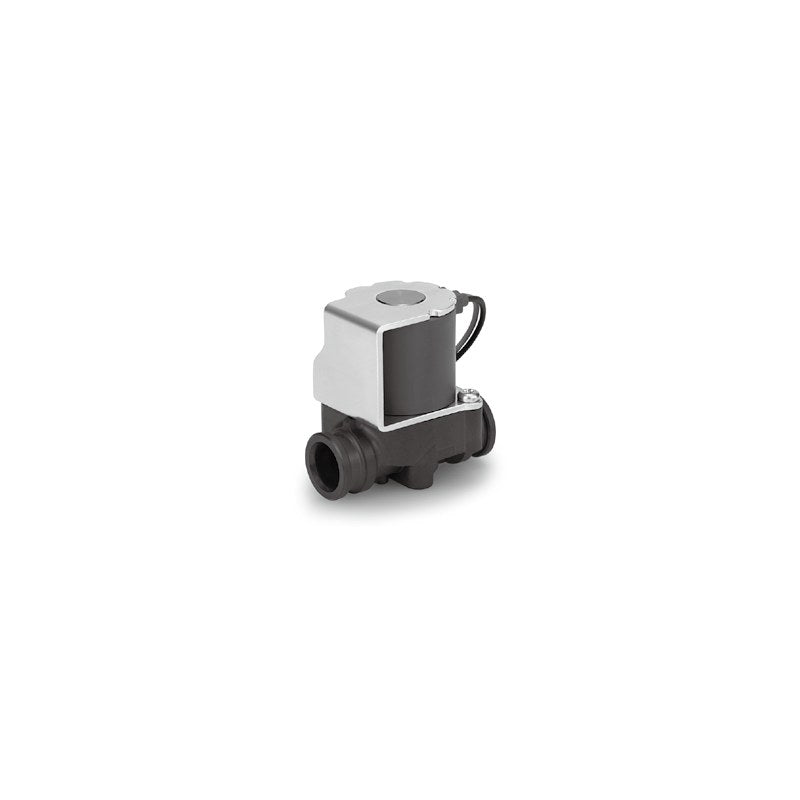

SMC VDW30/40-XF Compact Lightweight 2-Port Solenoid Valve (Air/Water)

SMC VDW30/40-XF Compact Lightweight 2-Port Solenoid Valve (Air/Water)

SMC VDW30/40-XF series compact, lightweight direct-operated N.C. 2-port solenoid valve with PPS resin body and quick-fastener or one-touch fitting connections for air and water.

Key features

  • PPS resin body, 120 g (VDW30-XF), IP65 enclosure
  • Quick fastener (P7/P10) or built-in one-touch fittings (ø4 to ø10): no thread torque control, fewer piping steps
  • Power consumption VDW30 3 W (0.5 W with power-saving circuit), VDW40 6.5 W (1 W with power-saving circuit)
  • Seal material NBR, FKM or EPDM; suits water, hot water (80°C), air and low vacuum (133 Pa abs)
  • Listed codes: DC24V grommet, standard lead wire direction; lead wire direction (L1/R2/L2), bottom mounting insert (N) and quick-fastener clips (K, VDW30-CP7 / VDW40-CP10) are order options

Specifications

Valve type Direct operated poppet, N.C.
Rated voltage DC24V (DC12V also available)
Electrical entry Grommet
Body material PPS
Proof pressure 1.0 MPa
Max. operating pressure differential VDW30 ø1: 0.6 MPa, ø3: 0.1 MPa; VDW40: 0.1/0.05 MPa
Ambient temperature -10 to 50°C
Fluid temperature 1 to 50°C (no freezing)
Enclosure IP65
Coil insulation Class B
Source SMC Korea catalog VDW30/40-XF (SMCKR_VDW30-XF_VDW40-XF.pdf), p. 497-499 (PDF p. 1-3)
VDW31-5G-1-P7-XF Series: VDW30 | Power-saving circuit: Without | Orifice: ø1.0 mm | Connection: Quick fastener P7 | Seal: NBR
VDW31-5G-1-P7-A-XF Series: VDW30 | Power-saving circuit: Without | Orifice: ø1.0 mm | Connection: Quick fastener P7 | Seal: FKM
VDW31-5G-1-P7-B-XF Series: VDW30 | Power-saving circuit: Without | Orifice: ø1.0 mm | Connection: Quick fastener P7 | Seal: EPDM
VDW31-5G-1-C4-XF Series: VDW30 | Power-saving circuit: Without | Orifice: ø1.0 mm | Connection: ø4 one-touch | Seal: NBR
VDW31-5G-1-C4-A-XF Series: VDW30 | Power-saving circuit: Without | Orifice: ø1.0 mm | Connection: ø4 one-touch | Seal: FKM
VDW31-5G-1-C4-B-XF Series: VDW30 | Power-saving circuit: Without | Orifice: ø1.0 mm | Connection: ø4 one-touch | Seal: EPDM
VDW31-5G-1-C6-XF Series: VDW30 | Power-saving circuit: Without | Orifice: ø1.0 mm | Connection: ø6 one-touch | Seal: NBR
VDW31-5G-1-C6-A-XF Series: VDW30 | Power-saving circuit: Without | Orifice: ø1.0 mm | Connection: ø6 one-touch | Seal: FKM
VDW31-5G-1-C6-B-XF Series: VDW30 | Power-saving circuit: Without | Orifice: ø1.0 mm | Connection: ø6 one-touch | Seal: EPDM
VDW31-5G-3-P7-XF Series: VDW30 | Power-saving circuit: Without | Orifice: ø3.0 mm | Connection: Quick fastener P7 | Seal: NBR
VDW31-5G-3-P7-A-XF Series: VDW30 | Power-saving circuit: Without | Orifice: ø3.0 mm | Connection: Quick fastener P7 | Seal: FKM
VDW31-5G-3-P7-B-XF Series: VDW30 | Power-saving circuit: Without | Orifice: ø3.0 mm | Connection: Quick fastener P7 | Seal: EPDM
VDW31-5G-3-C4-XF Series: VDW30 | Power-saving circuit: Without | Orifice: ø3.0 mm | Connection: ø4 one-touch | Seal: NBR
VDW31-5G-3-C4-A-XF Series: VDW30 | Power-saving circuit: Without | Orifice: ø3.0 mm | Connection: ø4 one-touch | Seal: FKM
VDW31-5G-3-C4-B-XF Series: VDW30 | Power-saving circuit: Without | Orifice: ø3.0 mm | Connection: ø4 one-touch | Seal: EPDM
VDW31-5G-3-C6-XF Series: VDW30 | Power-saving circuit: Without | Orifice: ø3.0 mm | Connection: ø6 one-touch | Seal: NBR
VDW31-5G-3-C6-A-XF Series: VDW30 | Power-saving circuit: Without | Orifice: ø3.0 mm | Connection: ø6 one-touch | Seal: FKM
VDW31-5G-3-C6-B-XF Series: VDW30 | Power-saving circuit: Without | Orifice: ø3.0 mm | Connection: ø6 one-touch | Seal: EPDM
VDW31-5GE-1-P7-XF Series: VDW30 | Power-saving circuit: With | Orifice: ø1.0 mm | Connection: Quick fastener P7 | Seal: NBR
VDW31-5GE-1-P7-A-XF Series: VDW30 | Power-saving circuit: With | Orifice: ø1.0 mm | Connection: Quick fastener P7 | Seal: FKM
VDW31-5GE-1-P7-B-XF Series: VDW30 | Power-saving circuit: With | Orifice: ø1.0 mm | Connection: Quick fastener P7 | Seal: EPDM
VDW31-5GE-1-C4-XF Series: VDW30 | Power-saving circuit: With | Orifice: ø1.0 mm | Connection: ø4 one-touch | Seal: NBR
VDW31-5GE-1-C4-A-XF Series: VDW30 | Power-saving circuit: With | Orifice: ø1.0 mm | Connection: ø4 one-touch | Seal: FKM
VDW31-5GE-1-C4-B-XF Series: VDW30 | Power-saving circuit: With | Orifice: ø1.0 mm | Connection: ø4 one-touch | Seal: EPDM
VDW31-5GE-1-C6-XF Series: VDW30 | Power-saving circuit: With | Orifice: ø1.0 mm | Connection: ø6 one-touch | Seal: NBR
VDW31-5GE-1-C6-A-XF Series: VDW30 | Power-saving circuit: With | Orifice: ø1.0 mm | Connection: ø6 one-touch | Seal: FKM
VDW31-5GE-1-C6-B-XF Series: VDW30 | Power-saving circuit: With | Orifice: ø1.0 mm | Connection: ø6 one-touch | Seal: EPDM
VDW31-5GE-3-P7-XF Series: VDW30 | Power-saving circuit: With | Orifice: ø3.0 mm | Connection: Quick fastener P7 | Seal: NBR
VDW31-5GE-3-P7-A-XF Series: VDW30 | Power-saving circuit: With | Orifice: ø3.0 mm | Connection: Quick fastener P7 | Seal: FKM
VDW31-5GE-3-P7-B-XF Series: VDW30 | Power-saving circuit: With | Orifice: ø3.0 mm | Connection: Quick fastener P7 | Seal: EPDM
VDW31-5GE-3-C4-XF Series: VDW30 | Power-saving circuit: With | Orifice: ø3.0 mm | Connection: ø4 one-touch | Seal: NBR
VDW31-5GE-3-C4-A-XF Series: VDW30 | Power-saving circuit: With | Orifice: ø3.0 mm | Connection: ø4 one-touch | Seal: FKM
VDW31-5GE-3-C4-B-XF Series: VDW30 | Power-saving circuit: With | Orifice: ø3.0 mm | Connection: ø4 one-touch | Seal: EPDM
VDW31-5GE-3-C6-XF Series: VDW30 | Power-saving circuit: With | Orifice: ø3.0 mm | Connection: ø6 one-touch | Seal: NBR
VDW31-5GE-3-C6-A-XF Series: VDW30 | Power-saving circuit: With | Orifice: ø3.0 mm | Connection: ø6 one-touch | Seal: FKM
VDW31-5GE-3-C6-B-XF Series: VDW30 | Power-saving circuit: With | Orifice: ø3.0 mm | Connection: ø6 one-touch | Seal: EPDM
VDW41-5G-4-P10-XF Series: VDW40 | Power-saving circuit: Without | Orifice: ø4.5 mm | Connection: Quick fastener P10 | Seal: NBR
VDW41-5G-4-P10-A-XF Series: VDW40 | Power-saving circuit: Without | Orifice: ø4.5 mm | Connection: Quick fastener P10 | Seal: FKM
VDW41-5G-4-P10-B-XF Series: VDW40 | Power-saving circuit: Without | Orifice: ø4.5 mm | Connection: Quick fastener P10 | Seal: EPDM
VDW41-5G-4-C8-XF Series: VDW40 | Power-saving circuit: Without | Orifice: ø4.5 mm | Connection: ø8 one-touch | Seal: NBR
VDW41-5G-4-C8-A-XF Series: VDW40 | Power-saving circuit: Without | Orifice: ø4.5 mm | Connection: ø8 one-touch | Seal: FKM
VDW41-5G-4-C8-B-XF Series: VDW40 | Power-saving circuit: Without | Orifice: ø4.5 mm | Connection: ø8 one-touch | Seal: EPDM
VDW41-5G-4-C10-XF Series: VDW40 | Power-saving circuit: Without | Orifice: ø4.5 mm | Connection: ø10 one-touch | Seal: NBR
VDW41-5G-4-C10-A-XF Series: VDW40 | Power-saving circuit: Without | Orifice: ø4.5 mm | Connection: ø10 one-touch | Seal: FKM
VDW41-5G-4-C10-B-XF Series: VDW40 | Power-saving circuit: Without | Orifice: ø4.5 mm | Connection: ø10 one-touch | Seal: EPDM
VDW41-5G-6-P10-XF Series: VDW40 | Power-saving circuit: Without | Orifice: ø6.0 mm | Connection: Quick fastener P10 | Seal: NBR
VDW41-5G-6-P10-A-XF Series: VDW40 | Power-saving circuit: Without | Orifice: ø6.0 mm | Connection: Quick fastener P10 | Seal: FKM
VDW41-5G-6-P10-B-XF Series: VDW40 | Power-saving circuit: Without | Orifice: ø6.0 mm | Connection: Quick fastener P10 | Seal: EPDM
VDW41-5G-6-C8-XF Series: VDW40 | Power-saving circuit: Without | Orifice: ø6.0 mm | Connection: ø8 one-touch | Seal: NBR
VDW41-5G-6-C8-A-XF Series: VDW40 | Power-saving circuit: Without | Orifice: ø6.0 mm | Connection: ø8 one-touch | Seal: FKM
VDW41-5G-6-C8-B-XF Series: VDW40 | Power-saving circuit: Without | Orifice: ø6.0 mm | Connection: ø8 one-touch | Seal: EPDM
VDW41-5G-6-C10-XF Series: VDW40 | Power-saving circuit: Without | Orifice: ø6.0 mm | Connection: ø10 one-touch | Seal: NBR
VDW41-5G-6-C10-A-XF Series: VDW40 | Power-saving circuit: Without | Orifice: ø6.0 mm | Connection: ø10 one-touch | Seal: FKM
VDW41-5G-6-C10-B-XF Series: VDW40 | Power-saving circuit: Without | Orifice: ø6.0 mm | Connection: ø10 one-touch | Seal: EPDM
VDW41-5GE-4-P10-XF Series: VDW40 | Power-saving circuit: With | Orifice: ø4.5 mm | Connection: Quick fastener P10 | Seal: NBR
VDW41-5GE-4-P10-A-XF Series: VDW40 | Power-saving circuit: With | Orifice: ø4.5 mm | Connection: Quick fastener P10 | Seal: FKM
VDW41-5GE-4-P10-B-XF Series: VDW40 | Power-saving circuit: With | Orifice: ø4.5 mm | Connection: Quick fastener P10 | Seal: EPDM
VDW41-5GE-4-C8-XF Series: VDW40 | Power-saving circuit: With | Orifice: ø4.5 mm | Connection: ø8 one-touch | Seal: NBR
VDW41-5GE-4-C8-A-XF Series: VDW40 | Power-saving circuit: With | Orifice: ø4.5 mm | Connection: ø8 one-touch | Seal: FKM
VDW41-5GE-4-C8-B-XF Series: VDW40 | Power-saving circuit: With | Orifice: ø4.5 mm | Connection: ø8 one-touch | Seal: EPDM
VDW41-5GE-4-C10-XF Series: VDW40 | Power-saving circuit: With | Orifice: ø4.5 mm | Connection: ø10 one-touch | Seal: NBR
VDW41-5GE-4-C10-A-XF Series: VDW40 | Power-saving circuit: With | Orifice: ø4.5 mm | Connection: ø10 one-touch | Seal: FKM
VDW41-5GE-4-C10-B-XF Series: VDW40 | Power-saving circuit: With | Orifice: ø4.5 mm | Connection: ø10 one-touch | Seal: EPDM
VDW41-5GE-6-P10-XF Series: VDW40 | Power-saving circuit: With | Orifice: ø6.0 mm | Connection: Quick fastener P10 | Seal: NBR
VDW41-5GE-6-P10-A-XF Series: VDW40 | Power-saving circuit: With | Orifice: ø6.0 mm | Connection: Quick fastener P10 | Seal: FKM
VDW41-5GE-6-P10-B-XF Series: VDW40 | Power-saving circuit: With | Orifice: ø6.0 mm | Connection: Quick fastener P10 | Seal: EPDM
VDW41-5GE-6-C8-XF Series: VDW40 | Power-saving circuit: With | Orifice: ø6.0 mm | Connection: ø8 one-touch | Seal: NBR
VDW41-5GE-6-C8-A-XF Series: VDW40 | Power-saving circuit: With | Orifice: ø6.0 mm | Connection: ø8 one-touch | Seal: FKM
VDW41-5GE-6-C8-B-XF Series: VDW40 | Power-saving circuit: With | Orifice: ø6.0 mm | Connection: ø8 one-touch | Seal: EPDM
VDW41-5GE-6-C10-XF Series: VDW40 | Power-saving circuit: With | Orifice: ø6.0 mm | Connection: ø10 one-touch | Seal: NBR
VDW41-5GE-6-C10-A-XF Series: VDW40 | Power-saving circuit: With | Orifice: ø6.0 mm | Connection: ø10 one-touch | Seal: FKM
VDW41-5GE-6-C10-B-XF Series: VDW40 | Power-saving circuit: With | Orifice: ø6.0 mm | Connection: ø10 one-touch | Seal: EPDM
2-Port ValvesSMC
72 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VDW30/40-XF Compact Lightweight 2-Port Solenoid Valve (Air/Water)

Brand SMC·2-Port Valves

Available part numbers (72)

VDW31-5G-1-P7-XF, VDW31-5G-1-P7-A-XF, VDW31-5G-1-P7-B-XF, VDW31-5G-1-C4-XF, VDW31-5G-1-C4-A-XF, VDW31-5G-1-C4-B-XF, VDW31-5G-1-C6-XF, VDW31-5G-1-C6-A-XF, VDW31-5G-1-C6-B-XF, VDW31-5G-3-P7-XF + 62 more — see full table ↓
