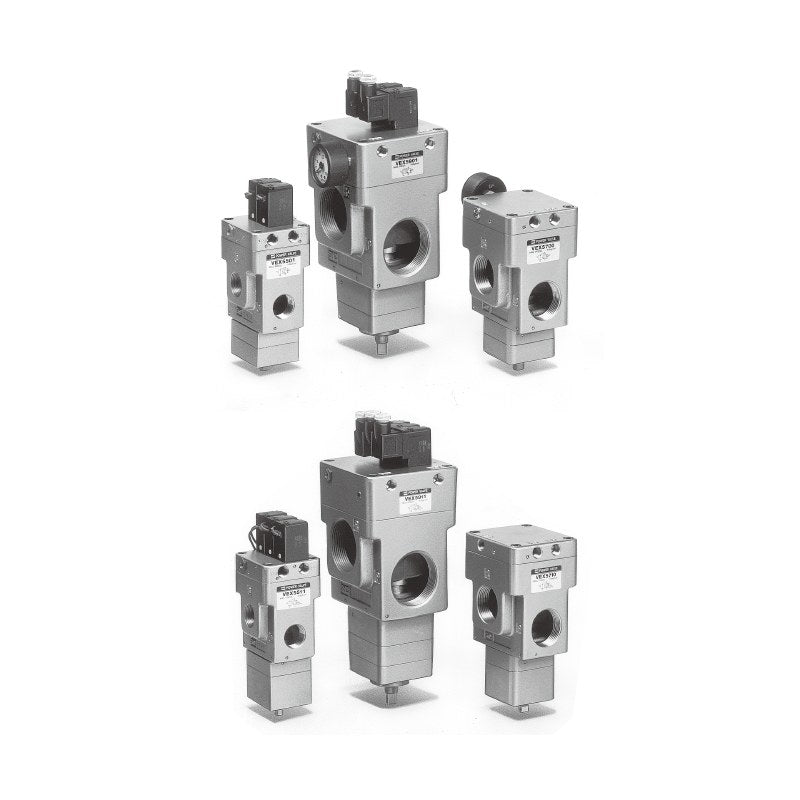

SMC VEX5 Economy Power Valve (Reducing, Switching and Speed Control)

SMC VEX5 Economy Power Valve (Reducing, Switching and Speed Control)

SMC VEX5 series large-flow economy power valve combining pressure reducing, switching and speed control functions in one valve, in basic and selector types, ports 1/2 to 2.

Key features

  • One valve performs three roles: pressure reduction, direction switching and speed control
  • Basic type and selector type (two supply pressures P2/P3 selectable)
  • Air operated (VEX5xx0) or external pilot solenoid (VEX5xx1, pilot valve SF4)
  • Electrical entry: grommet (G, H), grommet terminal (E), conduit terminal (T), DIN terminal (D)
  • Listed codes: Rc thread, standard voltages AC100V/AC200V/DC24V; other voltages, surge suppressor (S), light/surge (Z), bracket (B) and pressure gauge (G) on order

Specifications

Fluid Air
Operating pressure range 0 to 1.0 MPa
Set pressure range 0.05 to 0.9 MPa
Pilot pressure P1 0.05 to 0.9 MPa; P2 0.2 to 0.9 MPa (air operated)
Ambient and fluid temperature Max. 50°C (air operated 60°C)
Response time 60 ms or less
Max. operating frequency 3 cycles/s
Mounting orientation Unrestricted
Lubrication Not required
Effective area 130 mm² (VEX55-04) to 670 mm² (VEX59-20)
Source SMC Korea catalog VEX1/VEX3/VEX5 (SMCKR_VEX1_VEX3_VEX5.pdf), p. 2465-2469
VEX5500-04 Body size: 5 | Type: Basic | Port size: Rc1/2 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5501-041G Body size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5501-041H Body size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5501-041E Body size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5501-041T Body size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5501-041D Body size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5501-042G Body size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5501-042H Body size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5501-042E Body size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5501-042T Body size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5501-042D Body size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5501-045G Body size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5501-045H Body size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5501-045E Body size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5501-045T Body size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5501-045D Body size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5500-06 Body size: 5 | Type: Basic | Port size: Rc3/4 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5501-061G Body size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5501-061H Body size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5501-061E Body size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5501-061T Body size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5501-061D Body size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5501-062G Body size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5501-062H Body size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5501-062E Body size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5501-062T Body size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5501-062D Body size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5501-065G Body size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5501-065H Body size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5501-065E Body size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5501-065T Body size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5501-065D Body size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5500-10 Body size: 5 | Type: Basic | Port size: Rc1 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5501-101G Body size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5501-101H Body size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5501-101E Body size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5501-101T Body size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5501-101D Body size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5501-102G Body size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5501-102H Body size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5501-102E Body size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5501-102T Body size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5501-102D Body size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5501-105G Body size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5501-105H Body size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5501-105E Body size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5501-105T Body size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5501-105D Body size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5510-04 Body size: 5 | Type: Selector | Port size: Rc1/2 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5511-041G Body size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5511-041H Body size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5511-041E Body size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5511-041T Body size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5511-041D Body size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5511-042G Body size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5511-042H Body size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5511-042E Body size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5511-042T Body size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5511-042D Body size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5511-045G Body size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5511-045H Body size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5511-045E Body size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5511-045T Body size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5511-045D Body size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5510-06 Body size: 5 | Type: Selector | Port size: Rc3/4 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5511-061G Body size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5511-061H Body size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5511-061E Body size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5511-061T Body size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5511-061D Body size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5511-062G Body size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5511-062H Body size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5511-062E Body size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5511-062T Body size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5511-062D Body size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5511-065G Body size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5511-065H Body size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5511-065E Body size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5511-065T Body size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5511-065D Body size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5510-10 Body size: 5 | Type: Selector | Port size: Rc1 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5511-101G Body size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5511-101H Body size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5511-101E Body size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5511-101T Body size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5511-101D Body size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5511-102G Body size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5511-102H Body size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5511-102E Body size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5511-102T Body size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5511-102D Body size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5511-105G Body size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5511-105H Body size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5511-105E Body size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5511-105T Body size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5511-105D Body size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5700-10 Body size: 7 | Type: Basic | Port size: Rc1 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5701-101G Body size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5701-101H Body size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5701-101E Body size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5701-101T Body size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5701-101D Body size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5701-102G Body size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5701-102H Body size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5701-102E Body size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5701-102T Body size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5701-102D Body size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5701-105G Body size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5701-105H Body size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5701-105E Body size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5701-105T Body size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5701-105D Body size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5700-12 Body size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5701-121G Body size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5701-121H Body size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5701-121E Body size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5701-121T Body size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5701-121D Body size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5701-122G Body size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5701-122H Body size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5701-122E Body size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5701-122T Body size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5701-122D Body size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5701-125G Body size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5701-125H Body size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5701-125E Body size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5701-125T Body size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5701-125D Body size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5710-10 Body size: 7 | Type: Selector | Port size: Rc1 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5711-101G Body size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5711-101H Body size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5711-101E Body size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5711-101T Body size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5711-101D Body size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5711-102G Body size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5711-102H Body size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5711-102E Body size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5711-102T Body size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5711-102D Body size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5711-105G Body size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5711-105H Body size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5711-105E Body size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5711-105T Body size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5711-105D Body size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5710-12 Body size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5711-121G Body size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5711-121H Body size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5711-121E Body size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5711-121T Body size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5711-121D Body size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5711-122G Body size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5711-122H Body size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5711-122E Body size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5711-122T Body size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5711-122D Body size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5711-125G Body size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5711-125H Body size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5711-125E Body size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5711-125T Body size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5711-125D Body size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5900-14 Body size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5901-141G Body size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5901-141H Body size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5901-141E Body size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5901-141T Body size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5901-141D Body size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5901-142G Body size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5901-142H Body size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5901-142E Body size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5901-142T Body size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5901-142D Body size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5901-145G Body size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5901-145H Body size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5901-145E Body size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5901-145T Body size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5901-145D Body size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5900-20 Body size: 9 | Type: Basic | Port size: Rc2 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5901-201G Body size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5901-201H Body size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5901-201E Body size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5901-201T Body size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5901-201D Body size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5901-202G Body size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5901-202H Body size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5901-202E Body size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5901-202T Body size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5901-202D Body size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5901-205G Body size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5901-205H Body size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5901-205E Body size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5901-205T Body size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5901-205D Body size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5910-14 Body size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5911-141G Body size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5911-141H Body size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5911-141E Body size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5911-141T Body size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5911-141D Body size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5911-142G Body size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5911-142H Body size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5911-142E Body size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5911-142T Body size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5911-142D Body size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5911-145G Body size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5911-145H Body size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5911-145E Body size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5911-145T Body size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5911-145D Body size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5910-20 Body size: 9 | Type: Selector | Port size: Rc2 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5911-201G Body size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5911-201H Body size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5911-201E Body size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5911-201T Body size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5911-201D Body size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5911-202G Body size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5911-202H Body size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5911-202E Body size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5911-202T Body size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5911-202D Body size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5911-205G Body size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5911-205H Body size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5911-205E Body size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5911-205T Body size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5911-205D Body size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
3-Port Solenoid ValvesSMC
224 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VEX5 Economy Power Valve (Reducing, Switching and Speed Control)

Brand SMC·3-Port Solenoid Valves

Available part numbers (224)

VEX5500-04, VEX5501-041G, VEX5501-041H, VEX5501-041E, VEX5501-041T, VEX5501-041D, VEX5501-042G, VEX5501-042H, VEX5501-042E, VEX5501-042T + 214 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VEX5500-04Body size: 5 | Type: Basic | Port size: Rc1/2 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5501-041GBody size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5501-041HBody size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5501-041EBody size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5501-041TBody size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5501-041DBody size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5501-042GBody size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5501-042HBody size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5501-042EBody size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5501-042TBody size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5501-042DBody size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5501-045GBody size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5501-045HBody size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5501-045EBody size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5501-045TBody size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5501-045DBody size: 5 | Type: Basic | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5500-06Body size: 5 | Type: Basic | Port size: Rc3/4 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5501-061GBody size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5501-061HBody size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5501-061EBody size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5501-061TBody size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5501-061DBody size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5501-062GBody size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5501-062HBody size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5501-062EBody size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5501-062TBody size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5501-062DBody size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5501-065GBody size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5501-065HBody size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5501-065EBody size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5501-065TBody size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5501-065DBody size: 5 | Type: Basic | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5500-10Body size: 5 | Type: Basic | Port size: Rc1 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5501-101GBody size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5501-101HBody size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5501-101EBody size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5501-101TBody size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5501-101DBody size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5501-102GBody size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5501-102HBody size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5501-102EBody size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5501-102TBody size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5501-102DBody size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5501-105GBody size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5501-105HBody size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5501-105EBody size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5501-105TBody size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5501-105DBody size: 5 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5510-04Body size: 5 | Type: Selector | Port size: Rc1/2 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5511-041GBody size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5511-041HBody size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5511-041EBody size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5511-041TBody size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5511-041DBody size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5511-042GBody size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5511-042HBody size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5511-042EBody size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5511-042TBody size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5511-042DBody size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5511-045GBody size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5511-045HBody size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5511-045EBody size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5511-045TBody size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5511-045DBody size: 5 | Type: Selector | Port size: Rc1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5510-06Body size: 5 | Type: Selector | Port size: Rc3/4 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5511-061GBody size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5511-061HBody size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5511-061EBody size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5511-061TBody size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5511-061DBody size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5511-062GBody size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5511-062HBody size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5511-062EBody size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5511-062TBody size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5511-062DBody size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5511-065GBody size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5511-065HBody size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5511-065EBody size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5511-065TBody size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5511-065DBody size: 5 | Type: Selector | Port size: Rc3/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5510-10Body size: 5 | Type: Selector | Port size: Rc1 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5511-101GBody size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5511-101HBody size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5511-101EBody size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5511-101TBody size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5511-101DBody size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5511-102GBody size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5511-102HBody size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5511-102EBody size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5511-102TBody size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5511-102DBody size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5511-105GBody size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5511-105HBody size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5511-105EBody size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5511-105TBody size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5511-105DBody size: 5 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5700-10Body size: 7 | Type: Basic | Port size: Rc1 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5701-101GBody size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5701-101HBody size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5701-101EBody size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5701-101TBody size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5701-101DBody size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5701-102GBody size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5701-102HBody size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5701-102EBody size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5701-102TBody size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5701-102DBody size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5701-105GBody size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5701-105HBody size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5701-105EBody size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5701-105TBody size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5701-105DBody size: 7 | Type: Basic | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5700-12Body size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5701-121GBody size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5701-121HBody size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5701-121EBody size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5701-121TBody size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5701-121DBody size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5701-122GBody size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5701-122HBody size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5701-122EBody size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5701-122TBody size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5701-122DBody size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5701-125GBody size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5701-125HBody size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5701-125EBody size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5701-125TBody size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5701-125DBody size: 7 | Type: Basic | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5710-10Body size: 7 | Type: Selector | Port size: Rc1 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5711-101GBody size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5711-101HBody size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5711-101EBody size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5711-101TBody size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5711-101DBody size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5711-102GBody size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5711-102HBody size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5711-102EBody size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5711-102TBody size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5711-102DBody size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5711-105GBody size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5711-105HBody size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5711-105EBody size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5711-105TBody size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5711-105DBody size: 7 | Type: Selector | Port size: Rc1 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5710-12Body size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5711-121GBody size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5711-121HBody size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5711-121EBody size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5711-121TBody size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5711-121DBody size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5711-122GBody size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5711-122HBody size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5711-122EBody size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5711-122TBody size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5711-122DBody size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5711-125GBody size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5711-125HBody size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5711-125EBody size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5711-125TBody size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5711-125DBody size: 7 | Type: Selector | Port size: Rc1-1/4 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5900-14Body size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5901-141GBody size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5901-141HBody size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5901-141EBody size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5901-141TBody size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5901-141DBody size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5901-142GBody size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5901-142HBody size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5901-142EBody size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5901-142TBody size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5901-142DBody size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5901-145GBody size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5901-145HBody size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5901-145EBody size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5901-145TBody size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5901-145DBody size: 9 | Type: Basic | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5900-20Body size: 9 | Type: Basic | Port size: Rc2 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5901-201GBody size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5901-201HBody size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5901-201EBody size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5901-201TBody size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5901-201DBody size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5901-202GBody size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5901-202HBody size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5901-202EBody size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5901-202TBody size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5901-202DBody size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5901-205GBody size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5901-205HBody size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5901-205EBody size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5901-205TBody size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5901-205DBody size: 9 | Type: Basic | Port size: Rc2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5910-14Body size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5911-141GBody size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5911-141HBody size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5911-141EBody size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5911-141TBody size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5911-141DBody size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5911-142GBody size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5911-142HBody size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5911-142EBody size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5911-142TBody size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5911-142DBody size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5911-145GBody size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5911-145HBody size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5911-145EBody size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5911-145TBody size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5911-145DBody size: 9 | Type: Selector | Port size: Rc1-1/2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal
VEX5910-20Body size: 9 | Type: Selector | Port size: Rc2 | Operation: Air operated | Voltage: None | Electrical entry: None
VEX5911-201GBody size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 300 mm
VEX5911-201HBody size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet 600 mm
VEX5911-201EBody size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Grommet terminal
VEX5911-201TBody size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: Conduit terminal
VEX5911-201DBody size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC100V | Electrical entry: DIN terminal
VEX5911-202GBody size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 300 mm
VEX5911-202HBody size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet 600 mm
VEX5911-202EBody size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Grommet terminal
VEX5911-202TBody size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: Conduit terminal
VEX5911-202DBody size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: AC200V | Electrical entry: DIN terminal
VEX5911-205GBody size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 300 mm
VEX5911-205HBody size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet 600 mm
VEX5911-205EBody size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Grommet terminal
VEX5911-205TBody size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: Conduit terminal
VEX5911-205DBody size: 9 | Type: Selector | Port size: Rc2 | Operation: External pilot solenoid | Voltage: DC24V | Electrical entry: DIN terminal

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
