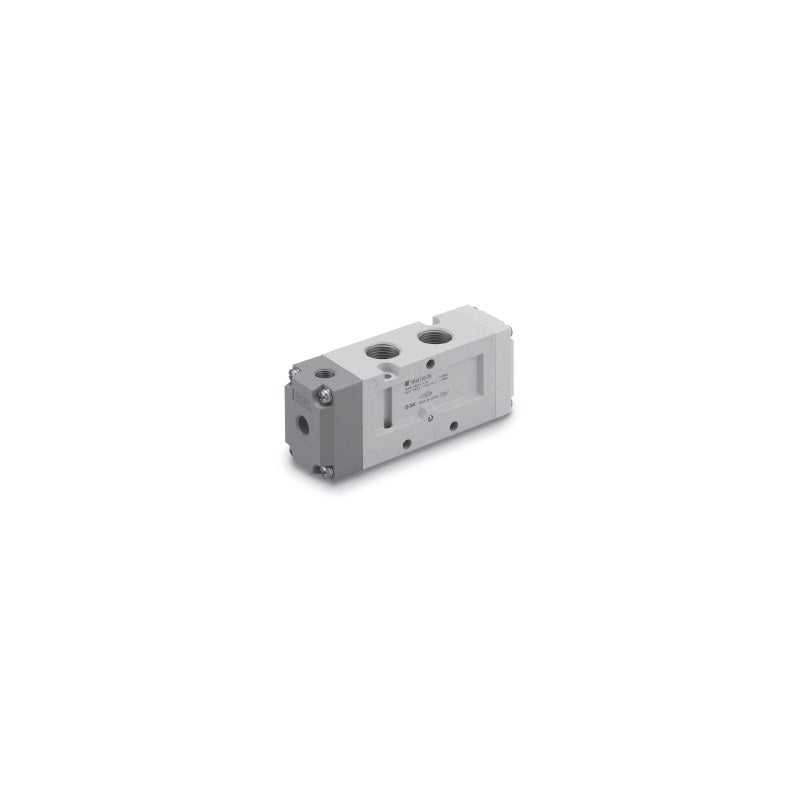

SMC VFA1000/3000/5000 5-Port Air Operated Valve

SMC VFA series air-piloted 5-port valve in three body sizes, as direct piping or base piping (sub-plate) single units and for VV5FA manifolds, rated to 1.0 MPa.

Key features

Switching: 2-position single/double and 3-position closed, exhaust and pressure center (VFA1000: 2-position only)
Direct piping types VFA120, VFA330, VFA520; VFA130 is the manifold-only body for VV5FA1
Base piping types VFA340 and VFA544, with or without sub-plate (Rc1/4 to Rc1/2)
Operating pressure up to 1.0 MPa; usable with vacuum (2-pos double and 3-pos)
Pilot port direction top (standard) or side (P); bracket (F); G, NPT, NPTF threads on order

Specifications

Fluid	Air
Valve type	Air-operated 5-port valve
Operating pressure	0.15 to 1.0 MPa (2-pos single), -101.2 kPa to 1.0 MPa (others)
Pilot pressure	(0.4xP+0.1) to 1.0 MPa (2-pos single), 0.1 to 1.0 (2-pos double), 0.15 to 1.0 MPa (3-pos)
Ambient and fluid temperature	-10 to 50°C (no freezing)
Lubrication	Not required
Mounting orientation	Unrestricted
Impact/vibration resistance	300/50 m/s²
RoHS	Compliant
Source	SMC Korea catalog VFA1000/3000/5000 (SMCKR_VFA1000_3000_5000.pdf), p. 1306-1307, 1314, 1320, 1326 (PDF p. 4-5, 12, 18, 24)

VFA1120-M5		Series: VFA1000 \| Switching: 2-pos single \| Piping: Direct piping \| Port: M5x0.8
VFA1120-01		Series: VFA1000 \| Switching: 2-pos single \| Piping: Direct piping \| Port: Rc1/8
VFA1220-M5		Series: VFA1000 \| Switching: 2-pos double \| Piping: Direct piping \| Port: M5x0.8
VFA1220-01		Series: VFA1000 \| Switching: 2-pos double \| Piping: Direct piping \| Port: Rc1/8
VFA3130-01		Series: VFA3000 \| Switching: 2-pos single \| Piping: Direct piping \| Port: Rc1/8
VFA3130-02		Series: VFA3000 \| Switching: 2-pos single \| Piping: Direct piping \| Port: Rc1/4
VFA3230-01		Series: VFA3000 \| Switching: 2-pos double \| Piping: Direct piping \| Port: Rc1/8
VFA3230-02		Series: VFA3000 \| Switching: 2-pos double \| Piping: Direct piping \| Port: Rc1/4
VFA3330-01		Series: VFA3000 \| Switching: 3-pos closed center \| Piping: Direct piping \| Port: Rc1/8
VFA3330-02		Series: VFA3000 \| Switching: 3-pos closed center \| Piping: Direct piping \| Port: Rc1/4
VFA3430-01		Series: VFA3000 \| Switching: 3-pos exhaust center \| Piping: Direct piping \| Port: Rc1/8
VFA3430-02		Series: VFA3000 \| Switching: 3-pos exhaust center \| Piping: Direct piping \| Port: Rc1/4
VFA3530-01		Series: VFA3000 \| Switching: 3-pos pressure center \| Piping: Direct piping \| Port: Rc1/8
VFA3530-02		Series: VFA3000 \| Switching: 3-pos pressure center \| Piping: Direct piping \| Port: Rc1/4
VFA5120-02		Series: VFA5000 \| Switching: 2-pos single \| Piping: Direct piping \| Port: Rc1/4
VFA5120-03		Series: VFA5000 \| Switching: 2-pos single \| Piping: Direct piping \| Port: Rc3/8
VFA5220-02		Series: VFA5000 \| Switching: 2-pos double \| Piping: Direct piping \| Port: Rc1/4
VFA5220-03		Series: VFA5000 \| Switching: 2-pos double \| Piping: Direct piping \| Port: Rc3/8
VFA5320-02		Series: VFA5000 \| Switching: 3-pos closed center \| Piping: Direct piping \| Port: Rc1/4
VFA5320-03		Series: VFA5000 \| Switching: 3-pos closed center \| Piping: Direct piping \| Port: Rc3/8
VFA5420-02		Series: VFA5000 \| Switching: 3-pos exhaust center \| Piping: Direct piping \| Port: Rc1/4
VFA5420-03		Series: VFA5000 \| Switching: 3-pos exhaust center \| Piping: Direct piping \| Port: Rc3/8
VFA5520-02		Series: VFA5000 \| Switching: 3-pos pressure center \| Piping: Direct piping \| Port: Rc1/4
VFA5520-03		Series: VFA5000 \| Switching: 3-pos pressure center \| Piping: Direct piping \| Port: Rc3/8
VFA1130-01		Series: VFA1000 \| Switching: 2-pos single \| Piping: Direct piping, manifold type \| Port: Rc1/8
VFA1230-01		Series: VFA1000 \| Switching: 2-pos double \| Piping: Direct piping, manifold type \| Port: Rc1/8
VFA3140		Series: VFA3000 \| Switching: 2-pos single \| Piping: Base piping \| Port: Without sub-plate
VFA3140-02		Series: VFA3000 \| Switching: 2-pos single \| Piping: Base piping \| Port: Sub-plate Rc1/4
VFA3140-03		Series: VFA3000 \| Switching: 2-pos single \| Piping: Base piping \| Port: Sub-plate Rc3/8
VFA3240		Series: VFA3000 \| Switching: 2-pos double \| Piping: Base piping \| Port: Without sub-plate
VFA3240-02		Series: VFA3000 \| Switching: 2-pos double \| Piping: Base piping \| Port: Sub-plate Rc1/4
VFA3240-03		Series: VFA3000 \| Switching: 2-pos double \| Piping: Base piping \| Port: Sub-plate Rc3/8
VFA3340		Series: VFA3000 \| Switching: 3-pos closed center \| Piping: Base piping \| Port: Without sub-plate
VFA3340-02		Series: VFA3000 \| Switching: 3-pos closed center \| Piping: Base piping \| Port: Sub-plate Rc1/4
VFA3340-03		Series: VFA3000 \| Switching: 3-pos closed center \| Piping: Base piping \| Port: Sub-plate Rc3/8
VFA3440		Series: VFA3000 \| Switching: 3-pos exhaust center \| Piping: Base piping \| Port: Without sub-plate
VFA3440-02		Series: VFA3000 \| Switching: 3-pos exhaust center \| Piping: Base piping \| Port: Sub-plate Rc1/4
VFA3440-03		Series: VFA3000 \| Switching: 3-pos exhaust center \| Piping: Base piping \| Port: Sub-plate Rc3/8
VFA3540		Series: VFA3000 \| Switching: 3-pos pressure center \| Piping: Base piping \| Port: Without sub-plate
VFA3540-02		Series: VFA3000 \| Switching: 3-pos pressure center \| Piping: Base piping \| Port: Sub-plate Rc1/4
VFA3540-03		Series: VFA3000 \| Switching: 3-pos pressure center \| Piping: Base piping \| Port: Sub-plate Rc3/8
VFA5144		Series: VFA5000 \| Switching: 2-pos single \| Piping: Base piping \| Port: Without sub-plate
VFA5144-02		Series: VFA5000 \| Switching: 2-pos single \| Piping: Base piping \| Port: Sub-plate Rc1/4
VFA5144-03		Series: VFA5000 \| Switching: 2-pos single \| Piping: Base piping \| Port: Sub-plate Rc3/8
VFA5144-04		Series: VFA5000 \| Switching: 2-pos single \| Piping: Base piping \| Port: Sub-plate Rc1/2
VFA5244		Series: VFA5000 \| Switching: 2-pos double \| Piping: Base piping \| Port: Without sub-plate
VFA5244-02		Series: VFA5000 \| Switching: 2-pos double \| Piping: Base piping \| Port: Sub-plate Rc1/4
VFA5244-03		Series: VFA5000 \| Switching: 2-pos double \| Piping: Base piping \| Port: Sub-plate Rc3/8
VFA5244-04		Series: VFA5000 \| Switching: 2-pos double \| Piping: Base piping \| Port: Sub-plate Rc1/2
VFA5344		Series: VFA5000 \| Switching: 3-pos closed center \| Piping: Base piping \| Port: Without sub-plate
VFA5344-02		Series: VFA5000 \| Switching: 3-pos closed center \| Piping: Base piping \| Port: Sub-plate Rc1/4
VFA5344-03		Series: VFA5000 \| Switching: 3-pos closed center \| Piping: Base piping \| Port: Sub-plate Rc3/8
VFA5344-04		Series: VFA5000 \| Switching: 3-pos closed center \| Piping: Base piping \| Port: Sub-plate Rc1/2
VFA5444		Series: VFA5000 \| Switching: 3-pos exhaust center \| Piping: Base piping \| Port: Without sub-plate
VFA5444-02		Series: VFA5000 \| Switching: 3-pos exhaust center \| Piping: Base piping \| Port: Sub-plate Rc1/4
VFA5444-03		Series: VFA5000 \| Switching: 3-pos exhaust center \| Piping: Base piping \| Port: Sub-plate Rc3/8
VFA5444-04		Series: VFA5000 \| Switching: 3-pos exhaust center \| Piping: Base piping \| Port: Sub-plate Rc1/2
VFA5544		Series: VFA5000 \| Switching: 3-pos pressure center \| Piping: Base piping \| Port: Without sub-plate
VFA5544-02		Series: VFA5000 \| Switching: 3-pos pressure center \| Piping: Base piping \| Port: Sub-plate Rc1/4
VFA5544-03		Series: VFA5000 \| Switching: 3-pos pressure center \| Piping: Base piping \| Port: Sub-plate Rc3/8
VFA5544-04		Series: VFA5000 \| Switching: 3-pos pressure center \| Piping: Base piping \| Port: Sub-plate Rc1/2

Air Operated ValvesSMC

61 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VFA1000/3000/5000 5-Port Air Operated Valve

Brand SMC·Air Operated Valves

Available part numbers (61)

VFA1120-M5, VFA1120-01, VFA1220-M5, VFA1220-01, VFA3130-01, VFA3130-02, VFA3230-01, VFA3230-02, VFA3330-01, VFA3330-02 + 51 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	VFA1120-M5	Series: VFA1000 \| Switching: 2-pos single \| Piping: Direct piping \| Port: M5x0.8
	VFA1120-01	Series: VFA1000 \| Switching: 2-pos single \| Piping: Direct piping \| Port: Rc1/8
	VFA1220-M5	Series: VFA1000 \| Switching: 2-pos double \| Piping: Direct piping \| Port: M5x0.8
	VFA1220-01	Series: VFA1000 \| Switching: 2-pos double \| Piping: Direct piping \| Port: Rc1/8
	VFA3130-01	Series: VFA3000 \| Switching: 2-pos single \| Piping: Direct piping \| Port: Rc1/8
	VFA3130-02	Series: VFA3000 \| Switching: 2-pos single \| Piping: Direct piping \| Port: Rc1/4
	VFA3230-01	Series: VFA3000 \| Switching: 2-pos double \| Piping: Direct piping \| Port: Rc1/8
	VFA3230-02	Series: VFA3000 \| Switching: 2-pos double \| Piping: Direct piping \| Port: Rc1/4
	VFA3330-01	Series: VFA3000 \| Switching: 3-pos closed center \| Piping: Direct piping \| Port: Rc1/8
	VFA3330-02	Series: VFA3000 \| Switching: 3-pos closed center \| Piping: Direct piping \| Port: Rc1/4
	VFA3430-01	Series: VFA3000 \| Switching: 3-pos exhaust center \| Piping: Direct piping \| Port: Rc1/8
	VFA3430-02	Series: VFA3000 \| Switching: 3-pos exhaust center \| Piping: Direct piping \| Port: Rc1/4
	VFA3530-01	Series: VFA3000 \| Switching: 3-pos pressure center \| Piping: Direct piping \| Port: Rc1/8
	VFA3530-02	Series: VFA3000 \| Switching: 3-pos pressure center \| Piping: Direct piping \| Port: Rc1/4
	VFA5120-02	Series: VFA5000 \| Switching: 2-pos single \| Piping: Direct piping \| Port: Rc1/4
	VFA5120-03	Series: VFA5000 \| Switching: 2-pos single \| Piping: Direct piping \| Port: Rc3/8
	VFA5220-02	Series: VFA5000 \| Switching: 2-pos double \| Piping: Direct piping \| Port: Rc1/4
	VFA5220-03	Series: VFA5000 \| Switching: 2-pos double \| Piping: Direct piping \| Port: Rc3/8
	VFA5320-02	Series: VFA5000 \| Switching: 3-pos closed center \| Piping: Direct piping \| Port: Rc1/4
	VFA5320-03	Series: VFA5000 \| Switching: 3-pos closed center \| Piping: Direct piping \| Port: Rc3/8
	VFA5420-02	Series: VFA5000 \| Switching: 3-pos exhaust center \| Piping: Direct piping \| Port: Rc1/4
	VFA5420-03	Series: VFA5000 \| Switching: 3-pos exhaust center \| Piping: Direct piping \| Port: Rc3/8
	VFA5520-02	Series: VFA5000 \| Switching: 3-pos pressure center \| Piping: Direct piping \| Port: Rc1/4
	VFA5520-03	Series: VFA5000 \| Switching: 3-pos pressure center \| Piping: Direct piping \| Port: Rc3/8
	VFA1130-01	Series: VFA1000 \| Switching: 2-pos single \| Piping: Direct piping, manifold type \| Port: Rc1/8
	VFA1230-01	Series: VFA1000 \| Switching: 2-pos double \| Piping: Direct piping, manifold type \| Port: Rc1/8
	VFA3140	Series: VFA3000 \| Switching: 2-pos single \| Piping: Base piping \| Port: Without sub-plate
	VFA3140-02	Series: VFA3000 \| Switching: 2-pos single \| Piping: Base piping \| Port: Sub-plate Rc1/4
	VFA3140-03	Series: VFA3000 \| Switching: 2-pos single \| Piping: Base piping \| Port: Sub-plate Rc3/8
	VFA3240	Series: VFA3000 \| Switching: 2-pos double \| Piping: Base piping \| Port: Without sub-plate
	VFA3240-02	Series: VFA3000 \| Switching: 2-pos double \| Piping: Base piping \| Port: Sub-plate Rc1/4
	VFA3240-03	Series: VFA3000 \| Switching: 2-pos double \| Piping: Base piping \| Port: Sub-plate Rc3/8
	VFA3340	Series: VFA3000 \| Switching: 3-pos closed center \| Piping: Base piping \| Port: Without sub-plate
	VFA3340-02	Series: VFA3000 \| Switching: 3-pos closed center \| Piping: Base piping \| Port: Sub-plate Rc1/4
	VFA3340-03	Series: VFA3000 \| Switching: 3-pos closed center \| Piping: Base piping \| Port: Sub-plate Rc3/8
	VFA3440	Series: VFA3000 \| Switching: 3-pos exhaust center \| Piping: Base piping \| Port: Without sub-plate
	VFA3440-02	Series: VFA3000 \| Switching: 3-pos exhaust center \| Piping: Base piping \| Port: Sub-plate Rc1/4
	VFA3440-03	Series: VFA3000 \| Switching: 3-pos exhaust center \| Piping: Base piping \| Port: Sub-plate Rc3/8
	VFA3540	Series: VFA3000 \| Switching: 3-pos pressure center \| Piping: Base piping \| Port: Without sub-plate
	VFA3540-02	Series: VFA3000 \| Switching: 3-pos pressure center \| Piping: Base piping \| Port: Sub-plate Rc1/4
	VFA3540-03	Series: VFA3000 \| Switching: 3-pos pressure center \| Piping: Base piping \| Port: Sub-plate Rc3/8
	VFA5144	Series: VFA5000 \| Switching: 2-pos single \| Piping: Base piping \| Port: Without sub-plate
	VFA5144-02	Series: VFA5000 \| Switching: 2-pos single \| Piping: Base piping \| Port: Sub-plate Rc1/4
	VFA5144-03	Series: VFA5000 \| Switching: 2-pos single \| Piping: Base piping \| Port: Sub-plate Rc3/8
	VFA5144-04	Series: VFA5000 \| Switching: 2-pos single \| Piping: Base piping \| Port: Sub-plate Rc1/2
	VFA5244	Series: VFA5000 \| Switching: 2-pos double \| Piping: Base piping \| Port: Without sub-plate
	VFA5244-02	Series: VFA5000 \| Switching: 2-pos double \| Piping: Base piping \| Port: Sub-plate Rc1/4
	VFA5244-03	Series: VFA5000 \| Switching: 2-pos double \| Piping: Base piping \| Port: Sub-plate Rc3/8
	VFA5244-04	Series: VFA5000 \| Switching: 2-pos double \| Piping: Base piping \| Port: Sub-plate Rc1/2
	VFA5344	Series: VFA5000 \| Switching: 3-pos closed center \| Piping: Base piping \| Port: Without sub-plate
	VFA5344-02	Series: VFA5000 \| Switching: 3-pos closed center \| Piping: Base piping \| Port: Sub-plate Rc1/4
	VFA5344-03	Series: VFA5000 \| Switching: 3-pos closed center \| Piping: Base piping \| Port: Sub-plate Rc3/8
	VFA5344-04	Series: VFA5000 \| Switching: 3-pos closed center \| Piping: Base piping \| Port: Sub-plate Rc1/2
	VFA5444	Series: VFA5000 \| Switching: 3-pos exhaust center \| Piping: Base piping \| Port: Without sub-plate
	VFA5444-02	Series: VFA5000 \| Switching: 3-pos exhaust center \| Piping: Base piping \| Port: Sub-plate Rc1/4
	VFA5444-03	Series: VFA5000 \| Switching: 3-pos exhaust center \| Piping: Base piping \| Port: Sub-plate Rc3/8
	VFA5444-04	Series: VFA5000 \| Switching: 3-pos exhaust center \| Piping: Base piping \| Port: Sub-plate Rc1/2
	VFA5544	Series: VFA5000 \| Switching: 3-pos pressure center \| Piping: Base piping \| Port: Without sub-plate
	VFA5544-02	Series: VFA5000 \| Switching: 3-pos pressure center \| Piping: Base piping \| Port: Sub-plate Rc1/4
	VFA5544-03	Series: VFA5000 \| Switching: 3-pos pressure center \| Piping: Base piping \| Port: Sub-plate Rc3/8
	VFA5544-04	Series: VFA5000 \| Switching: 3-pos pressure center \| Piping: Base piping \| Port: Sub-plate Rc1/2
