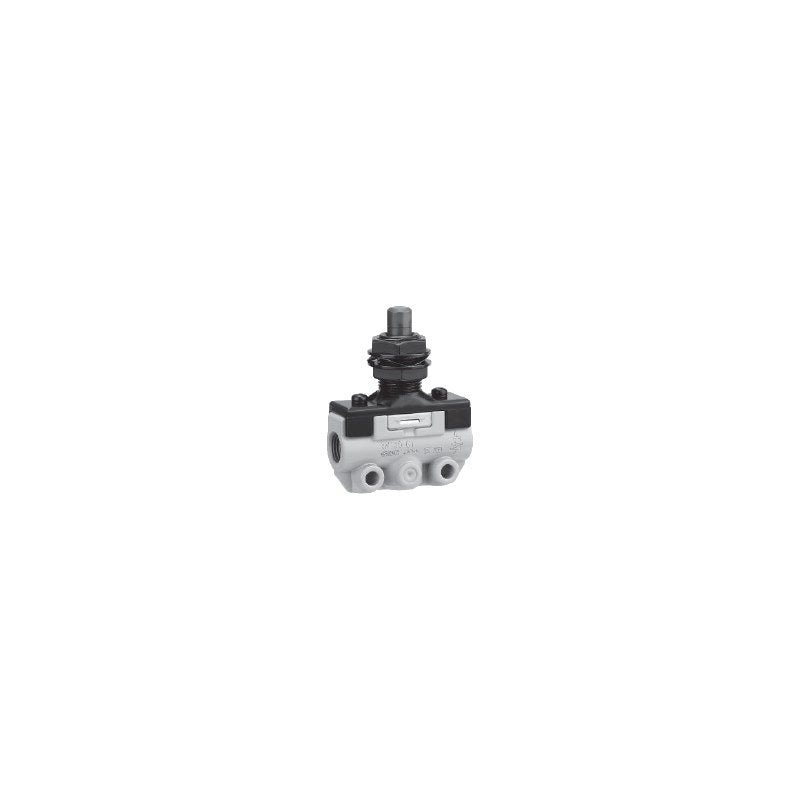

SMC VFM300 5-Port Mechanical Valve (Elastomer Seal, Rc1/4)

SMC VFM300 5-Port Mechanical Valve (Elastomer Seal, Rc1/4)

SMC VFM300 series pilot-operated 5-port mechanical valve with elastomer seal and Rc1/4 main ports, internal or external pilot.

Key features

  • Compact with large flow: C = 4.0 dm³/(s·bar); 300 c.p.m. max.
  • Mechanical actuators: roller lever, one-way roller lever, straight plunger and roller plunger (POM or hardened steel rollers)
  • Manual actuators: flip toggle, push buttons, 2-position selector and key selector; four button colors
  • Internal or external pilot type; all EXH ports can be piped
  • Foot bracket (F, internal pilot only), NPT1/4 (N02), G1/4 (F02) and push-lock buttons (X207A/X219A) on order

Specifications

Fluid Air
Operating pressure 0.15 to 0.9 MPa (external pilot: main 0 to 0.9, pilot 0.15 to 0.9)
Ambient and fluid temperature -5 to 60°C (no freezing)
Flow rate C [dm³/(s·bar)] 4.0 (P-A/B), 3.1 (A/B-EA/EB)
Cv 1.0 / 0.75
Max. operating frequency 300 c.p.m. (mechanical operation)
Port size P, A, B Rc1/4; EA, EB Rc1/8; pilot/exhaust M5
Seal Elastomer seal spool
Lubrication Not required (use ISO VG32 turbine oil if lubricated)
Replacement actuator part no. VM-<code>C; 05/06/08: VM-<code>D
Source SMC Korea catalog VM/VZM/VFM (SMCKR_VM_VZM_VFM.pdf), p. 1462-1463 (PDF p. 56-57)
VFM350-02-00 Pilot: Internal pilot | Actuator: Basic type (no actuator) | Color: N/A
VFM351-02-00 Pilot: External pilot | Actuator: Basic type (no actuator) | Color: N/A
VFM350-02-01 Pilot: Internal pilot | Actuator: Roller lever, POM roller | Color: N/A
VFM351-02-01 Pilot: External pilot | Actuator: Roller lever, POM roller | Color: N/A
VFM350-02-01S Pilot: Internal pilot | Actuator: Roller lever, steel roller | Color: N/A
VFM351-02-01S Pilot: External pilot | Actuator: Roller lever, steel roller | Color: N/A
VFM350-02-02 Pilot: Internal pilot | Actuator: One-way roller lever, POM roller | Color: N/A
VFM351-02-02 Pilot: External pilot | Actuator: One-way roller lever, POM roller | Color: N/A
VFM350-02-02S Pilot: Internal pilot | Actuator: One-way roller lever, steel roller | Color: N/A
VFM351-02-02S Pilot: External pilot | Actuator: One-way roller lever, steel roller | Color: N/A
VFM350-02-06 Pilot: Internal pilot | Actuator: Roller plunger, POM roller | Color: N/A
VFM351-02-06 Pilot: External pilot | Actuator: Roller plunger, POM roller | Color: N/A
VFM350-02-06S Pilot: Internal pilot | Actuator: Roller plunger, steel roller | Color: N/A
VFM351-02-06S Pilot: External pilot | Actuator: Roller plunger, steel roller | Color: N/A
VFM350-02-05 Pilot: Internal pilot | Actuator: Straight plunger | Color: N/A
VFM351-02-05 Pilot: External pilot | Actuator: Straight plunger | Color: N/A
VFM350-02-08 Pilot: Internal pilot | Actuator: Flip toggle | Color: N/A
VFM351-02-08 Pilot: External pilot | Actuator: Flip toggle | Color: N/A
VFM350-02-30R Pilot: Internal pilot | Actuator: Push button (mushroom) | Color: Red
VFM351-02-30R Pilot: External pilot | Actuator: Push button (mushroom) | Color: Red
VFM350-02-30B Pilot: Internal pilot | Actuator: Push button (mushroom) | Color: Black
VFM351-02-30B Pilot: External pilot | Actuator: Push button (mushroom) | Color: Black
VFM350-02-30G Pilot: Internal pilot | Actuator: Push button (mushroom) | Color: Green
VFM351-02-30G Pilot: External pilot | Actuator: Push button (mushroom) | Color: Green
VFM350-02-30Y Pilot: Internal pilot | Actuator: Push button (mushroom) | Color: Yellow
VFM351-02-30Y Pilot: External pilot | Actuator: Push button (mushroom) | Color: Yellow
VFM350-02-33 Pilot: Internal pilot | Actuator: Push button (flush) | Color: 4-color set (R/B/G/Y)
VFM351-02-33 Pilot: External pilot | Actuator: Push button (flush) | Color: 4-color set (R/B/G/Y)
VFM350-02-34R Pilot: Internal pilot | Actuator: Selector (2-position) | Color: Red
VFM351-02-34R Pilot: External pilot | Actuator: Selector (2-position) | Color: Red
VFM350-02-34B Pilot: Internal pilot | Actuator: Selector (2-position) | Color: Black
VFM351-02-34B Pilot: External pilot | Actuator: Selector (2-position) | Color: Black
VFM350-02-34G Pilot: Internal pilot | Actuator: Selector (2-position) | Color: Green
VFM351-02-34G Pilot: External pilot | Actuator: Selector (2-position) | Color: Green
VFM350-02-34Y Pilot: Internal pilot | Actuator: Selector (2-position) | Color: Yellow
VFM351-02-34Y Pilot: External pilot | Actuator: Selector (2-position) | Color: Yellow
VFM350-02-36 Pilot: Internal pilot | Actuator: Key selector (2-position) | Color: N/A
VFM351-02-36 Pilot: External pilot | Actuator: Key selector (2-position) | Color: N/A
VFM350-02-32R Pilot: Internal pilot | Actuator: Push button (extended) | Color: Red
VFM351-02-32R Pilot: External pilot | Actuator: Push button (extended) | Color: Red
VFM350-02-32B Pilot: Internal pilot | Actuator: Push button (extended) | Color: Black
VFM351-02-32B Pilot: External pilot | Actuator: Push button (extended) | Color: Black
VFM350-02-32G Pilot: Internal pilot | Actuator: Push button (extended) | Color: Green
VFM351-02-32G Pilot: External pilot | Actuator: Push button (extended) | Color: Green
VFM350-02-32Y Pilot: Internal pilot | Actuator: Push button (extended) | Color: Yellow
VFM351-02-32Y Pilot: External pilot | Actuator: Push button (extended) | Color: Yellow
