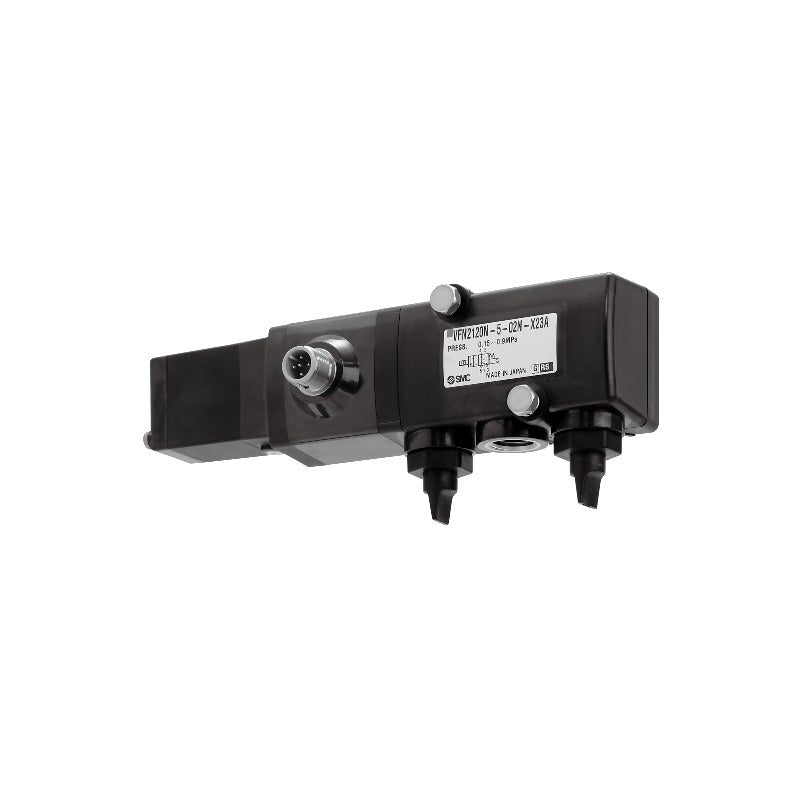

SMC VFN200N 3-Port Solenoid Valve (NAMUR Interface)

SMC VFN200N 3-Port Solenoid Valve (NAMUR Interface)

SMC VFN200N series pilot-operated 3-port N.C. solenoid valve with NAMUR-compliant interface for direct mounting on industrial valve actuators.

Key features

  • NAMUR interface: mounts directly on rotary valve actuators with two bolts
  • Single or double solenoid, elastic seal, 1/4 ports (Rc standard; G (F) and NPT (N) on order)
  • Electrical entry: grommet, grommet terminal, conduit terminal or DIN terminal (DIN 43650 Form B for Y)
  • Options: Z light/surge suppressor, S surge suppressor (grommet), manual override A (push, extended) / B (locking, tool), CE (Q)

Specifications

Fluid Air
Valve type Normally closed, pilot operated
Operating pressure 0.15 to 0.9 MPa
Ambient and fluid temperature -10 to 60°C
Lubrication Not required
Port size Rc1/4
Flow (P to A) C 2.68 dm³/(s·bar), Cv 0.72
Allowable voltage fluctuation -15% to +10% of rated voltage
Power consumption DC 1.8 W; AC 2.3 VA (60 Hz) holding
Mass 240 g (single), 380 g (double)
Source SMC Korea catalog VFN (SMCKR_VFN.pdf), p. 189-191 (PDF p. 1-3)
VFN212N-1G-02 Solenoid: Single | Voltage: AC100V | Electrical entry: Grommet
VFN212N-1E-02 Solenoid: Single | Voltage: AC100V | Electrical entry: Grommet terminal
VFN212N-1T-02 Solenoid: Single | Voltage: AC100V | Electrical entry: Conduit terminal
VFN212N-1D-02 Solenoid: Single | Voltage: AC100V | Electrical entry: DIN terminal
VFN212N-1DO-02 Solenoid: Single | Voltage: AC100V | Electrical entry: DIN terminal, no connector
VFN212N-1Y-02 Solenoid: Single | Voltage: AC100V | Electrical entry: DIN terminal (Form B)
VFN212N-1YO-02 Solenoid: Single | Voltage: AC100V | Electrical entry: DIN (Form B), no connector
VFN212N-2G-02 Solenoid: Single | Voltage: AC200V | Electrical entry: Grommet
VFN212N-2E-02 Solenoid: Single | Voltage: AC200V | Electrical entry: Grommet terminal
VFN212N-2T-02 Solenoid: Single | Voltage: AC200V | Electrical entry: Conduit terminal
VFN212N-2D-02 Solenoid: Single | Voltage: AC200V | Electrical entry: DIN terminal
VFN212N-2DO-02 Solenoid: Single | Voltage: AC200V | Electrical entry: DIN terminal, no connector
VFN212N-2Y-02 Solenoid: Single | Voltage: AC200V | Electrical entry: DIN terminal (Form B)
VFN212N-2YO-02 Solenoid: Single | Voltage: AC200V | Electrical entry: DIN (Form B), no connector
VFN212N-3G-02 Solenoid: Single | Voltage: AC110-120V | Electrical entry: Grommet
VFN212N-3E-02 Solenoid: Single | Voltage: AC110-120V | Electrical entry: Grommet terminal
VFN212N-3T-02 Solenoid: Single | Voltage: AC110-120V | Electrical entry: Conduit terminal
VFN212N-3D-02 Solenoid: Single | Voltage: AC110-120V | Electrical entry: DIN terminal
VFN212N-3DO-02 Solenoid: Single | Voltage: AC110-120V | Electrical entry: DIN terminal, no connector
VFN212N-3Y-02 Solenoid: Single | Voltage: AC110-120V | Electrical entry: DIN terminal (Form B)
VFN212N-3YO-02 Solenoid: Single | Voltage: AC110-120V | Electrical entry: DIN (Form B), no connector
VFN212N-4G-02 Solenoid: Single | Voltage: AC220V | Electrical entry: Grommet
VFN212N-4E-02 Solenoid: Single | Voltage: AC220V | Electrical entry: Grommet terminal
VFN212N-4T-02 Solenoid: Single | Voltage: AC220V | Electrical entry: Conduit terminal
VFN212N-4D-02 Solenoid: Single | Voltage: AC220V | Electrical entry: DIN terminal
VFN212N-4DO-02 Solenoid: Single | Voltage: AC220V | Electrical entry: DIN terminal, no connector
VFN212N-4Y-02 Solenoid: Single | Voltage: AC220V | Electrical entry: DIN terminal (Form B)
VFN212N-4YO-02 Solenoid: Single | Voltage: AC220V | Electrical entry: DIN (Form B), no connector
VFN212N-5G-02 Solenoid: Single | Voltage: DC24V | Electrical entry: Grommet
VFN212N-5E-02 Solenoid: Single | Voltage: DC24V | Electrical entry: Grommet terminal
VFN212N-5T-02 Solenoid: Single | Voltage: DC24V | Electrical entry: Conduit terminal
VFN212N-5D-02 Solenoid: Single | Voltage: DC24V | Electrical entry: DIN terminal
VFN212N-5DO-02 Solenoid: Single | Voltage: DC24V | Electrical entry: DIN terminal, no connector
VFN212N-5Y-02 Solenoid: Single | Voltage: DC24V | Electrical entry: DIN terminal (Form B)
VFN212N-5YO-02 Solenoid: Single | Voltage: DC24V | Electrical entry: DIN (Form B), no connector
VFN212N-6G-02 Solenoid: Single | Voltage: DC12V | Electrical entry: Grommet
VFN212N-6E-02 Solenoid: Single | Voltage: DC12V | Electrical entry: Grommet terminal
VFN212N-6T-02 Solenoid: Single | Voltage: DC12V | Electrical entry: Conduit terminal
VFN212N-6D-02 Solenoid: Single | Voltage: DC12V | Electrical entry: DIN terminal
VFN212N-6DO-02 Solenoid: Single | Voltage: DC12V | Electrical entry: DIN terminal, no connector
VFN212N-6Y-02 Solenoid: Single | Voltage: DC12V | Electrical entry: DIN terminal (Form B)
VFN212N-6YO-02 Solenoid: Single | Voltage: DC12V | Electrical entry: DIN (Form B), no connector
VFN212N-7G-02 Solenoid: Single | Voltage: AC240V | Electrical entry: Grommet
VFN212N-7E-02 Solenoid: Single | Voltage: AC240V | Electrical entry: Grommet terminal
VFN212N-7T-02 Solenoid: Single | Voltage: AC240V | Electrical entry: Conduit terminal
VFN212N-7D-02 Solenoid: Single | Voltage: AC240V | Electrical entry: DIN terminal
VFN212N-7DO-02 Solenoid: Single | Voltage: AC240V | Electrical entry: DIN terminal, no connector
VFN212N-7Y-02 Solenoid: Single | Voltage: AC240V | Electrical entry: DIN terminal (Form B)
VFN212N-7YO-02 Solenoid: Single | Voltage: AC240V | Electrical entry: DIN (Form B), no connector
VFN212N-1G-02-D Solenoid: Double | Voltage: AC100V | Electrical entry: Grommet
VFN212N-1E-02-D Solenoid: Double | Voltage: AC100V | Electrical entry: Grommet terminal
VFN212N-1T-02-D Solenoid: Double | Voltage: AC100V | Electrical entry: Conduit terminal
VFN212N-1D-02-D Solenoid: Double | Voltage: AC100V | Electrical entry: DIN terminal
VFN212N-1DO-02-D Solenoid: Double | Voltage: AC100V | Electrical entry: DIN terminal, no connector
VFN212N-1Y-02-D Solenoid: Double | Voltage: AC100V | Electrical entry: DIN terminal (Form B)
VFN212N-1YO-02-D Solenoid: Double | Voltage: AC100V | Electrical entry: DIN (Form B), no connector
VFN212N-2G-02-D Solenoid: Double | Voltage: AC200V | Electrical entry: Grommet
VFN212N-2E-02-D Solenoid: Double | Voltage: AC200V | Electrical entry: Grommet terminal
VFN212N-2T-02-D Solenoid: Double | Voltage: AC200V | Electrical entry: Conduit terminal
VFN212N-2D-02-D Solenoid: Double | Voltage: AC200V | Electrical entry: DIN terminal
VFN212N-2DO-02-D Solenoid: Double | Voltage: AC200V | Electrical entry: DIN terminal, no connector
VFN212N-2Y-02-D Solenoid: Double | Voltage: AC200V | Electrical entry: DIN terminal (Form B)
VFN212N-2YO-02-D Solenoid: Double | Voltage: AC200V | Electrical entry: DIN (Form B), no connector
VFN212N-3G-02-D Solenoid: Double | Voltage: AC110-120V | Electrical entry: Grommet
VFN212N-3E-02-D Solenoid: Double | Voltage: AC110-120V | Electrical entry: Grommet terminal
VFN212N-3T-02-D Solenoid: Double | Voltage: AC110-120V | Electrical entry: Conduit terminal
VFN212N-3D-02-D Solenoid: Double | Voltage: AC110-120V | Electrical entry: DIN terminal
VFN212N-3DO-02-D Solenoid: Double | Voltage: AC110-120V | Electrical entry: DIN terminal, no connector
VFN212N-3Y-02-D Solenoid: Double | Voltage: AC110-120V | Electrical entry: DIN terminal (Form B)
VFN212N-3YO-02-D Solenoid: Double | Voltage: AC110-120V | Electrical entry: DIN (Form B), no connector
VFN212N-4G-02-D Solenoid: Double | Voltage: AC220V | Electrical entry: Grommet
VFN212N-4E-02-D Solenoid: Double | Voltage: AC220V | Electrical entry: Grommet terminal
VFN212N-4T-02-D Solenoid: Double | Voltage: AC220V | Electrical entry: Conduit terminal
VFN212N-4D-02-D Solenoid: Double | Voltage: AC220V | Electrical entry: DIN terminal
VFN212N-4DO-02-D Solenoid: Double | Voltage: AC220V | Electrical entry: DIN terminal, no connector
VFN212N-4Y-02-D Solenoid: Double | Voltage: AC220V | Electrical entry: DIN terminal (Form B)
VFN212N-4YO-02-D Solenoid: Double | Voltage: AC220V | Electrical entry: DIN (Form B), no connector
VFN212N-5G-02-D Solenoid: Double | Voltage: DC24V | Electrical entry: Grommet
VFN212N-5E-02-D Solenoid: Double | Voltage: DC24V | Electrical entry: Grommet terminal
VFN212N-5T-02-D Solenoid: Double | Voltage: DC24V | Electrical entry: Conduit terminal
VFN212N-5D-02-D Solenoid: Double | Voltage: DC24V | Electrical entry: DIN terminal
VFN212N-5DO-02-D Solenoid: Double | Voltage: DC24V | Electrical entry: DIN terminal, no connector
VFN212N-5Y-02-D Solenoid: Double | Voltage: DC24V | Electrical entry: DIN terminal (Form B)
VFN212N-5YO-02-D Solenoid: Double | Voltage: DC24V | Electrical entry: DIN (Form B), no connector
VFN212N-6G-02-D Solenoid: Double | Voltage: DC12V | Electrical entry: Grommet
VFN212N-6E-02-D Solenoid: Double | Voltage: DC12V | Electrical entry: Grommet terminal
VFN212N-6T-02-D Solenoid: Double | Voltage: DC12V | Electrical entry: Conduit terminal
VFN212N-6D-02-D Solenoid: Double | Voltage: DC12V | Electrical entry: DIN terminal
VFN212N-6DO-02-D Solenoid: Double | Voltage: DC12V | Electrical entry: DIN terminal, no connector
VFN212N-6Y-02-D Solenoid: Double | Voltage: DC12V | Electrical entry: DIN terminal (Form B)
VFN212N-6YO-02-D Solenoid: Double | Voltage: DC12V | Electrical entry: DIN (Form B), no connector
VFN212N-7G-02-D Solenoid: Double | Voltage: AC240V | Electrical entry: Grommet
VFN212N-7E-02-D Solenoid: Double | Voltage: AC240V | Electrical entry: Grommet terminal
VFN212N-7T-02-D Solenoid: Double | Voltage: AC240V | Electrical entry: Conduit terminal
VFN212N-7D-02-D Solenoid: Double | Voltage: AC240V | Electrical entry: DIN terminal
VFN212N-7DO-02-D Solenoid: Double | Voltage: AC240V | Electrical entry: DIN terminal, no connector
VFN212N-7Y-02-D Solenoid: Double | Voltage: AC240V | Electrical entry: DIN terminal (Form B)
VFN212N-7YO-02-D Solenoid: Double | Voltage: AC240V | Electrical entry: DIN (Form B), no connector
3-Port Solenoid ValvesSMC
98 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VFN200N 3-Port Solenoid Valve (NAMUR Interface)

Brand SMC·3-Port Solenoid Valves

Available part numbers (98)

VFN212N-1G-02, VFN212N-1E-02, VFN212N-1T-02, VFN212N-1D-02, VFN212N-1DO-02, VFN212N-1Y-02, VFN212N-1YO-02, VFN212N-2G-02, VFN212N-2E-02, VFN212N-2T-02 + 88 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VFN212N-1G-02Solenoid: Single | Voltage: AC100V | Electrical entry: Grommet
VFN212N-1E-02Solenoid: Single | Voltage: AC100V | Electrical entry: Grommet terminal
VFN212N-1T-02Solenoid: Single | Voltage: AC100V | Electrical entry: Conduit terminal
VFN212N-1D-02Solenoid: Single | Voltage: AC100V | Electrical entry: DIN terminal
VFN212N-1DO-02Solenoid: Single | Voltage: AC100V | Electrical entry: DIN terminal, no connector
VFN212N-1Y-02Solenoid: Single | Voltage: AC100V | Electrical entry: DIN terminal (Form B)
VFN212N-1YO-02Solenoid: Single | Voltage: AC100V | Electrical entry: DIN (Form B), no connector
VFN212N-2G-02Solenoid: Single | Voltage: AC200V | Electrical entry: Grommet
VFN212N-2E-02Solenoid: Single | Voltage: AC200V | Electrical entry: Grommet terminal
VFN212N-2T-02Solenoid: Single | Voltage: AC200V | Electrical entry: Conduit terminal
VFN212N-2D-02Solenoid: Single | Voltage: AC200V | Electrical entry: DIN terminal
VFN212N-2DO-02Solenoid: Single | Voltage: AC200V | Electrical entry: DIN terminal, no connector
VFN212N-2Y-02Solenoid: Single | Voltage: AC200V | Electrical entry: DIN terminal (Form B)
VFN212N-2YO-02Solenoid: Single | Voltage: AC200V | Electrical entry: DIN (Form B), no connector
VFN212N-3G-02Solenoid: Single | Voltage: AC110-120V | Electrical entry: Grommet
VFN212N-3E-02Solenoid: Single | Voltage: AC110-120V | Electrical entry: Grommet terminal
VFN212N-3T-02Solenoid: Single | Voltage: AC110-120V | Electrical entry: Conduit terminal
VFN212N-3D-02Solenoid: Single | Voltage: AC110-120V | Electrical entry: DIN terminal
VFN212N-3DO-02Solenoid: Single | Voltage: AC110-120V | Electrical entry: DIN terminal, no connector
VFN212N-3Y-02Solenoid: Single | Voltage: AC110-120V | Electrical entry: DIN terminal (Form B)
VFN212N-3YO-02Solenoid: Single | Voltage: AC110-120V | Electrical entry: DIN (Form B), no connector
VFN212N-4G-02Solenoid: Single | Voltage: AC220V | Electrical entry: Grommet
VFN212N-4E-02Solenoid: Single | Voltage: AC220V | Electrical entry: Grommet terminal
VFN212N-4T-02Solenoid: Single | Voltage: AC220V | Electrical entry: Conduit terminal
VFN212N-4D-02Solenoid: Single | Voltage: AC220V | Electrical entry: DIN terminal
VFN212N-4DO-02Solenoid: Single | Voltage: AC220V | Electrical entry: DIN terminal, no connector
VFN212N-4Y-02Solenoid: Single | Voltage: AC220V | Electrical entry: DIN terminal (Form B)
VFN212N-4YO-02Solenoid: Single | Voltage: AC220V | Electrical entry: DIN (Form B), no connector
VFN212N-5G-02Solenoid: Single | Voltage: DC24V | Electrical entry: Grommet
VFN212N-5E-02Solenoid: Single | Voltage: DC24V | Electrical entry: Grommet terminal
VFN212N-5T-02Solenoid: Single | Voltage: DC24V | Electrical entry: Conduit terminal
VFN212N-5D-02Solenoid: Single | Voltage: DC24V | Electrical entry: DIN terminal
VFN212N-5DO-02Solenoid: Single | Voltage: DC24V | Electrical entry: DIN terminal, no connector
VFN212N-5Y-02Solenoid: Single | Voltage: DC24V | Electrical entry: DIN terminal (Form B)
VFN212N-5YO-02Solenoid: Single | Voltage: DC24V | Electrical entry: DIN (Form B), no connector
VFN212N-6G-02Solenoid: Single | Voltage: DC12V | Electrical entry: Grommet
VFN212N-6E-02Solenoid: Single | Voltage: DC12V | Electrical entry: Grommet terminal
VFN212N-6T-02Solenoid: Single | Voltage: DC12V | Electrical entry: Conduit terminal
VFN212N-6D-02Solenoid: Single | Voltage: DC12V | Electrical entry: DIN terminal
VFN212N-6DO-02Solenoid: Single | Voltage: DC12V | Electrical entry: DIN terminal, no connector
VFN212N-6Y-02Solenoid: Single | Voltage: DC12V | Electrical entry: DIN terminal (Form B)
VFN212N-6YO-02Solenoid: Single | Voltage: DC12V | Electrical entry: DIN (Form B), no connector
VFN212N-7G-02Solenoid: Single | Voltage: AC240V | Electrical entry: Grommet
VFN212N-7E-02Solenoid: Single | Voltage: AC240V | Electrical entry: Grommet terminal
VFN212N-7T-02Solenoid: Single | Voltage: AC240V | Electrical entry: Conduit terminal
VFN212N-7D-02Solenoid: Single | Voltage: AC240V | Electrical entry: DIN terminal
VFN212N-7DO-02Solenoid: Single | Voltage: AC240V | Electrical entry: DIN terminal, no connector
VFN212N-7Y-02Solenoid: Single | Voltage: AC240V | Electrical entry: DIN terminal (Form B)
VFN212N-7YO-02Solenoid: Single | Voltage: AC240V | Electrical entry: DIN (Form B), no connector
VFN212N-1G-02-DSolenoid: Double | Voltage: AC100V | Electrical entry: Grommet
VFN212N-1E-02-DSolenoid: Double | Voltage: AC100V | Electrical entry: Grommet terminal
VFN212N-1T-02-DSolenoid: Double | Voltage: AC100V | Electrical entry: Conduit terminal
VFN212N-1D-02-DSolenoid: Double | Voltage: AC100V | Electrical entry: DIN terminal
VFN212N-1DO-02-DSolenoid: Double | Voltage: AC100V | Electrical entry: DIN terminal, no connector
VFN212N-1Y-02-DSolenoid: Double | Voltage: AC100V | Electrical entry: DIN terminal (Form B)
VFN212N-1YO-02-DSolenoid: Double | Voltage: AC100V | Electrical entry: DIN (Form B), no connector
VFN212N-2G-02-DSolenoid: Double | Voltage: AC200V | Electrical entry: Grommet
VFN212N-2E-02-DSolenoid: Double | Voltage: AC200V | Electrical entry: Grommet terminal
VFN212N-2T-02-DSolenoid: Double | Voltage: AC200V | Electrical entry: Conduit terminal
VFN212N-2D-02-DSolenoid: Double | Voltage: AC200V | Electrical entry: DIN terminal
VFN212N-2DO-02-DSolenoid: Double | Voltage: AC200V | Electrical entry: DIN terminal, no connector
VFN212N-2Y-02-DSolenoid: Double | Voltage: AC200V | Electrical entry: DIN terminal (Form B)
VFN212N-2YO-02-DSolenoid: Double | Voltage: AC200V | Electrical entry: DIN (Form B), no connector
VFN212N-3G-02-DSolenoid: Double | Voltage: AC110-120V | Electrical entry: Grommet
VFN212N-3E-02-DSolenoid: Double | Voltage: AC110-120V | Electrical entry: Grommet terminal
VFN212N-3T-02-DSolenoid: Double | Voltage: AC110-120V | Electrical entry: Conduit terminal
VFN212N-3D-02-DSolenoid: Double | Voltage: AC110-120V | Electrical entry: DIN terminal
VFN212N-3DO-02-DSolenoid: Double | Voltage: AC110-120V | Electrical entry: DIN terminal, no connector
VFN212N-3Y-02-DSolenoid: Double | Voltage: AC110-120V | Electrical entry: DIN terminal (Form B)
VFN212N-3YO-02-DSolenoid: Double | Voltage: AC110-120V | Electrical entry: DIN (Form B), no connector
VFN212N-4G-02-DSolenoid: Double | Voltage: AC220V | Electrical entry: Grommet
VFN212N-4E-02-DSolenoid: Double | Voltage: AC220V | Electrical entry: Grommet terminal
VFN212N-4T-02-DSolenoid: Double | Voltage: AC220V | Electrical entry: Conduit terminal
VFN212N-4D-02-DSolenoid: Double | Voltage: AC220V | Electrical entry: DIN terminal
VFN212N-4DO-02-DSolenoid: Double | Voltage: AC220V | Electrical entry: DIN terminal, no connector
VFN212N-4Y-02-DSolenoid: Double | Voltage: AC220V | Electrical entry: DIN terminal (Form B)
VFN212N-4YO-02-DSolenoid: Double | Voltage: AC220V | Electrical entry: DIN (Form B), no connector
VFN212N-5G-02-DSolenoid: Double | Voltage: DC24V | Electrical entry: Grommet
VFN212N-5E-02-DSolenoid: Double | Voltage: DC24V | Electrical entry: Grommet terminal
VFN212N-5T-02-DSolenoid: Double | Voltage: DC24V | Electrical entry: Conduit terminal
VFN212N-5D-02-DSolenoid: Double | Voltage: DC24V | Electrical entry: DIN terminal
VFN212N-5DO-02-DSolenoid: Double | Voltage: DC24V | Electrical entry: DIN terminal, no connector
VFN212N-5Y-02-DSolenoid: Double | Voltage: DC24V | Electrical entry: DIN terminal (Form B)
VFN212N-5YO-02-DSolenoid: Double | Voltage: DC24V | Electrical entry: DIN (Form B), no connector
VFN212N-6G-02-DSolenoid: Double | Voltage: DC12V | Electrical entry: Grommet
VFN212N-6E-02-DSolenoid: Double | Voltage: DC12V | Electrical entry: Grommet terminal
VFN212N-6T-02-DSolenoid: Double | Voltage: DC12V | Electrical entry: Conduit terminal
VFN212N-6D-02-DSolenoid: Double | Voltage: DC12V | Electrical entry: DIN terminal
VFN212N-6DO-02-DSolenoid: Double | Voltage: DC12V | Electrical entry: DIN terminal, no connector
VFN212N-6Y-02-DSolenoid: Double | Voltage: DC12V | Electrical entry: DIN terminal (Form B)
VFN212N-6YO-02-DSolenoid: Double | Voltage: DC12V | Electrical entry: DIN (Form B), no connector
VFN212N-7G-02-DSolenoid: Double | Voltage: AC240V | Electrical entry: Grommet
VFN212N-7E-02-DSolenoid: Double | Voltage: AC240V | Electrical entry: Grommet terminal
VFN212N-7T-02-DSolenoid: Double | Voltage: AC240V | Electrical entry: Conduit terminal
VFN212N-7D-02-DSolenoid: Double | Voltage: AC240V | Electrical entry: DIN terminal
VFN212N-7DO-02-DSolenoid: Double | Voltage: AC240V | Electrical entry: DIN terminal, no connector
VFN212N-7Y-02-DSolenoid: Double | Voltage: AC240V | Electrical entry: DIN terminal (Form B)
VFN212N-7YO-02-DSolenoid: Double | Voltage: AC240V | Electrical entry: DIN (Form B), no connector

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
