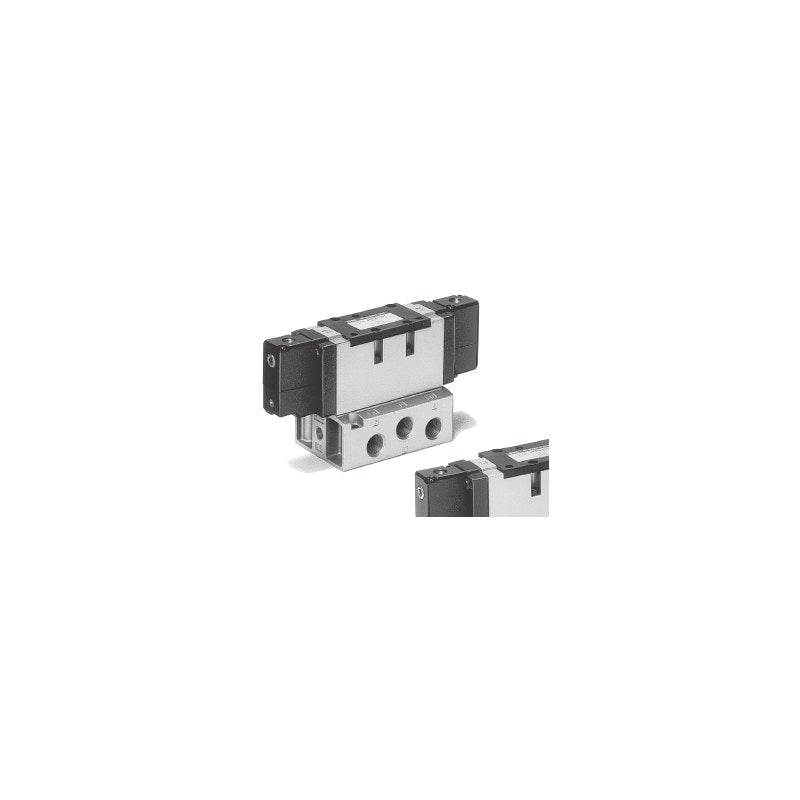

SMC VFRA3000/4000 5-Port Air Operated Valve (Base Mounted)

SMC VFRA3000/4000 5-Port Air Operated Valve (Base Mounted)

SMC VFRA3000/4000 series air-piloted 5-port base-mounted valve, the air-operated version of the VFR valve, supplied with or without sub-plate.

Key features

  • Five switching types: 2-position single/double and 3-position closed, exhaust and pressure center
  • Sub-plate ports VFRA3000 Rc1/4, Rc3/8; VFRA4000 Rc3/8, Rc1/2
  • Without sub-plate type mounts on VV5FRA3/VV5FRA4 manifolds (same as VV5FR3/VV5FR4)
  • Non-lube operation; turbine oil class 1 (ISO VG32) if lubricated
  • G (F), NPT (N), NPTF (T) threads on order (00 = no sub-plate with non-Rc pilot port)

Specifications

Fluid Air
Valve type Air-operated 5-port valve, base mounted
Operating pressure 0.2 to 0.9 MPa (2-pos single), 0 to 0.9 MPa (2-pos double), 0 to 0.9 / 0.2 to 0.9 MPa (3-pos)
Pilot pressure (0.6xP+0.1) to 0.9 MPa (2-pos single), 0.1 to 0.9 MPa (2-pos double)
Ambient and fluid temperature -10 to 60°C (no freezing)
Lubrication Not required
Mounting orientation Unrestricted
Impact/vibration resistance 300/50 m/s²
Source SMC Korea catalog VFRA3000/4000 (SMCKR_VFRA3000_4000.pdf), p. 1332-1333, 1335-1336 (PDF p. 1-2, 4-5)
VFRA3111 Series: VFRA3000 | Switching: 2-pos single | Port: Without sub-plate
VFRA3111-02 Series: VFRA3000 | Switching: 2-pos single | Port: Sub-plate Rc1/4
VFRA3111-03 Series: VFRA3000 | Switching: 2-pos single | Port: Sub-plate Rc3/8
VFRA3211 Series: VFRA3000 | Switching: 2-pos double | Port: Without sub-plate
VFRA3211-02 Series: VFRA3000 | Switching: 2-pos double | Port: Sub-plate Rc1/4
VFRA3211-03 Series: VFRA3000 | Switching: 2-pos double | Port: Sub-plate Rc3/8
VFRA3311 Series: VFRA3000 | Switching: 3-pos closed center | Port: Without sub-plate
VFRA3311-02 Series: VFRA3000 | Switching: 3-pos closed center | Port: Sub-plate Rc1/4
VFRA3311-03 Series: VFRA3000 | Switching: 3-pos closed center | Port: Sub-plate Rc3/8
VFRA3411 Series: VFRA3000 | Switching: 3-pos exhaust center | Port: Without sub-plate
VFRA3411-02 Series: VFRA3000 | Switching: 3-pos exhaust center | Port: Sub-plate Rc1/4
VFRA3411-03 Series: VFRA3000 | Switching: 3-pos exhaust center | Port: Sub-plate Rc3/8
VFRA3511 Series: VFRA3000 | Switching: 3-pos pressure center | Port: Without sub-plate
VFRA3511-02 Series: VFRA3000 | Switching: 3-pos pressure center | Port: Sub-plate Rc1/4
VFRA3511-03 Series: VFRA3000 | Switching: 3-pos pressure center | Port: Sub-plate Rc3/8
VFRA4111 Series: VFRA4000 | Switching: 2-pos single | Port: Without sub-plate
VFRA4111-03 Series: VFRA4000 | Switching: 2-pos single | Port: Sub-plate Rc3/8
VFRA4111-04 Series: VFRA4000 | Switching: 2-pos single | Port: Sub-plate Rc1/2
VFRA4211 Series: VFRA4000 | Switching: 2-pos double | Port: Without sub-plate
VFRA4211-03 Series: VFRA4000 | Switching: 2-pos double | Port: Sub-plate Rc3/8
VFRA4211-04 Series: VFRA4000 | Switching: 2-pos double | Port: Sub-plate Rc1/2
VFRA4311 Series: VFRA4000 | Switching: 3-pos closed center | Port: Without sub-plate
VFRA4311-03 Series: VFRA4000 | Switching: 3-pos closed center | Port: Sub-plate Rc3/8
VFRA4311-04 Series: VFRA4000 | Switching: 3-pos closed center | Port: Sub-plate Rc1/2
VFRA4411 Series: VFRA4000 | Switching: 3-pos exhaust center | Port: Without sub-plate
VFRA4411-03 Series: VFRA4000 | Switching: 3-pos exhaust center | Port: Sub-plate Rc3/8
VFRA4411-04 Series: VFRA4000 | Switching: 3-pos exhaust center | Port: Sub-plate Rc1/2
VFRA4511 Series: VFRA4000 | Switching: 3-pos pressure center | Port: Without sub-plate
VFRA4511-03 Series: VFRA4000 | Switching: 3-pos pressure center | Port: Sub-plate Rc3/8
VFRA4511-04 Series: VFRA4000 | Switching: 3-pos pressure center | Port: Sub-plate Rc1/2
Air Operated ValvesSMC
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VFRA3000/4000 5-Port Air Operated Valve (Base Mounted)

Brand SMC·Air Operated Valves

Available part numbers (30)

VFRA3111, VFRA3111-02, VFRA3111-03, VFRA3211, VFRA3211-02, VFRA3211-03, VFRA3311, VFRA3311-02, VFRA3311-03, VFRA3411 + 20 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VFRA3111Series: VFRA3000 | Switching: 2-pos single | Port: Without sub-plate
VFRA3111-02Series: VFRA3000 | Switching: 2-pos single | Port: Sub-plate Rc1/4
VFRA3111-03Series: VFRA3000 | Switching: 2-pos single | Port: Sub-plate Rc3/8
VFRA3211Series: VFRA3000 | Switching: 2-pos double | Port: Without sub-plate
VFRA3211-02Series: VFRA3000 | Switching: 2-pos double | Port: Sub-plate Rc1/4
VFRA3211-03Series: VFRA3000 | Switching: 2-pos double | Port: Sub-plate Rc3/8
VFRA3311Series: VFRA3000 | Switching: 3-pos closed center | Port: Without sub-plate
VFRA3311-02Series: VFRA3000 | Switching: 3-pos closed center | Port: Sub-plate Rc1/4
VFRA3311-03Series: VFRA3000 | Switching: 3-pos closed center | Port: Sub-plate Rc3/8
VFRA3411Series: VFRA3000 | Switching: 3-pos exhaust center | Port: Without sub-plate
VFRA3411-02Series: VFRA3000 | Switching: 3-pos exhaust center | Port: Sub-plate Rc1/4
VFRA3411-03Series: VFRA3000 | Switching: 3-pos exhaust center | Port: Sub-plate Rc3/8
VFRA3511Series: VFRA3000 | Switching: 3-pos pressure center | Port: Without sub-plate
VFRA3511-02Series: VFRA3000 | Switching: 3-pos pressure center | Port: Sub-plate Rc1/4
VFRA3511-03Series: VFRA3000 | Switching: 3-pos pressure center | Port: Sub-plate Rc3/8
VFRA4111Series: VFRA4000 | Switching: 2-pos single | Port: Without sub-plate
VFRA4111-03Series: VFRA4000 | Switching: 2-pos single | Port: Sub-plate Rc3/8
VFRA4111-04Series: VFRA4000 | Switching: 2-pos single | Port: Sub-plate Rc1/2
VFRA4211Series: VFRA4000 | Switching: 2-pos double | Port: Without sub-plate
VFRA4211-03Series: VFRA4000 | Switching: 2-pos double | Port: Sub-plate Rc3/8
VFRA4211-04Series: VFRA4000 | Switching: 2-pos double | Port: Sub-plate Rc1/2
VFRA4311Series: VFRA4000 | Switching: 3-pos closed center | Port: Without sub-plate
VFRA4311-03Series: VFRA4000 | Switching: 3-pos closed center | Port: Sub-plate Rc3/8
VFRA4311-04Series: VFRA4000 | Switching: 3-pos closed center | Port: Sub-plate Rc1/2
VFRA4411Series: VFRA4000 | Switching: 3-pos exhaust center | Port: Without sub-plate
VFRA4411-03Series: VFRA4000 | Switching: 3-pos exhaust center | Port: Sub-plate Rc3/8
VFRA4411-04Series: VFRA4000 | Switching: 3-pos exhaust center | Port: Sub-plate Rc1/2
VFRA4511Series: VFRA4000 | Switching: 3-pos pressure center | Port: Without sub-plate
VFRA4511-03Series: VFRA4000 | Switching: 3-pos pressure center | Port: Sub-plate Rc3/8
VFRA4511-04Series: VFRA4000 | Switching: 3-pos pressure center | Port: Sub-plate Rc1/2
