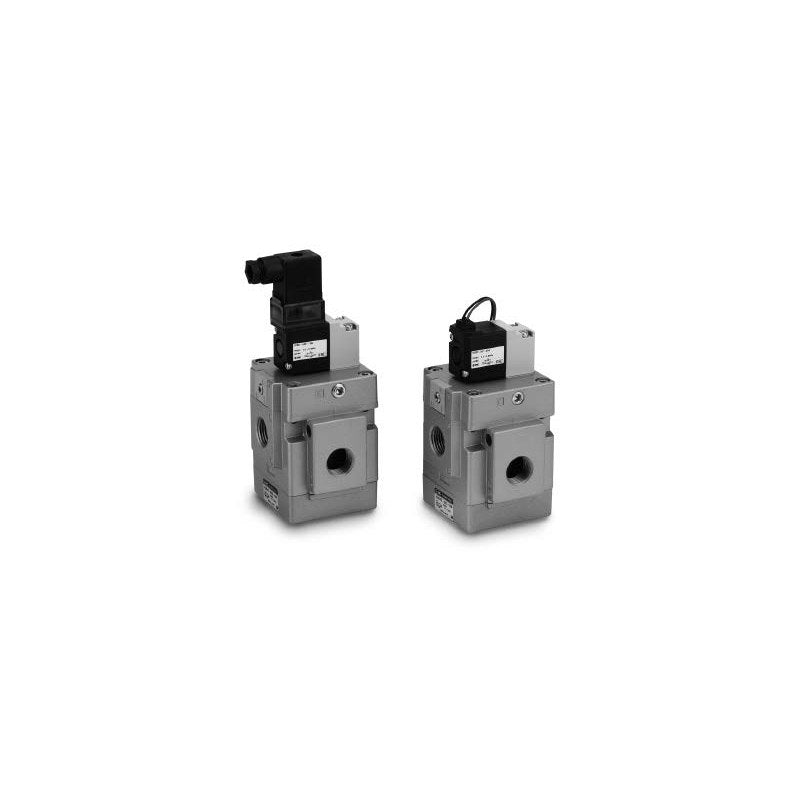

SMC VG342 3-Port Solenoid Valve (Poppet, Rc1/2 to Rc1)

SMC VG342 3-Port Solenoid Valve (Poppet, Rc1/2 to Rc1)

SMC VG342 series pilot-operated 3-port poppet solenoid valve with elastomer seal, Rc1/2, 3/4 and 1 ports, convertible N.C./N.O./external pilot.

Key features

  • N.C., N.O. and external pilot selectable by the switching plate; usable as selector or divider valve (external pilot)
  • Low power consumption: 4 W DC standard, 1.8 W DC low-power type (Y)
  • Non-lube operation; external pilot type usable for vacuum to -101.2 kPa and low pressure 0 to 0.2 MPa
  • Listed codes: Rc thread, standard pilot valve, AC100V/200V, DC24V/12V; AC110V/220V/240V also available
  • Pilot valve options Y (low power, DC) and E (continuous duty), G/NPT/NPTF threads and CE/UKCA (Q, DIN only) by suffix

Specifications

Fluid Air
Valve type Pilot-operated 3-port poppet, elastomer seal
Operating pressure Internal pilot 0.2 to 0.9 MPa; external pilot -101.2 kPa to 0.9 MPa
Response time 30 ms or less (0.5 MPa)
Max. operating frequency 5 cycles/s
Ambient and fluid temperature -10 to 50°C (no freezing)
Lubrication Not required
Manual override Non-locking push
Impact/vibration resistance 150/50 m/s²
Mass 1.0 kg
Flow rate C [dm³/(s·bar)] 1→2 1/2: 26, 3/4: 38
Source SMC Korea catalog VG342 (SMCKR_VG342.pdf), p. 1109-1110 (PDF p. 1-2)
VG342-1G-04A Pilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: Grommet | Port size: Rc1/2
VG342-1G-06A Pilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: Grommet | Port size: Rc3/4
VG342-1G-10A Pilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: Grommet | Port size: Rc1
VG342-1GS-04A Pilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342-1GS-06A Pilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342-1GS-10A Pilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342-1D-04A Pilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342-1D-06A Pilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342-1D-10A Pilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: DIN terminal | Port size: Rc1
VG342-1DZ-04A Pilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342-1DZ-06A Pilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342-1DZ-10A Pilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342-2G-04A Pilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: Grommet | Port size: Rc1/2
VG342-2G-06A Pilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: Grommet | Port size: Rc3/4
VG342-2G-10A Pilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: Grommet | Port size: Rc1
VG342-2GS-04A Pilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342-2GS-06A Pilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342-2GS-10A Pilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342-2D-04A Pilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342-2D-06A Pilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342-2D-10A Pilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: DIN terminal | Port size: Rc1
VG342-2DZ-04A Pilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342-2DZ-06A Pilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342-2DZ-10A Pilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342-5G-04A Pilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: Grommet | Port size: Rc1/2
VG342-5G-06A Pilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: Grommet | Port size: Rc3/4
VG342-5G-10A Pilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: Grommet | Port size: Rc1
VG342-5GS-04A Pilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342-5GS-06A Pilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342-5GS-10A Pilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342-5D-04A Pilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342-5D-06A Pilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342-5D-10A Pilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: DIN terminal | Port size: Rc1
VG342-5DZ-04A Pilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342-5DZ-06A Pilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342-5DZ-10A Pilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342-6G-04A Pilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: Grommet | Port size: Rc1/2
VG342-6G-06A Pilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: Grommet | Port size: Rc3/4
VG342-6G-10A Pilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: Grommet | Port size: Rc1
VG342-6GS-04A Pilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342-6GS-06A Pilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342-6GS-10A Pilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342-6D-04A Pilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342-6D-06A Pilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342-6D-10A Pilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: DIN terminal | Port size: Rc1
VG342-6DZ-04A Pilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342-6DZ-06A Pilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342-6DZ-10A Pilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342-1G-04B Pilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: Grommet | Port size: Rc1/2
VG342-1G-06B Pilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: Grommet | Port size: Rc3/4
VG342-1G-10B Pilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: Grommet | Port size: Rc1
VG342-1GS-04B Pilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342-1GS-06B Pilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342-1GS-10B Pilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342-1D-04B Pilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342-1D-06B Pilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342-1D-10B Pilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: DIN terminal | Port size: Rc1
VG342-1DZ-04B Pilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342-1DZ-06B Pilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342-1DZ-10B Pilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342-2G-04B Pilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: Grommet | Port size: Rc1/2
VG342-2G-06B Pilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: Grommet | Port size: Rc3/4
VG342-2G-10B Pilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: Grommet | Port size: Rc1
VG342-2GS-04B Pilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342-2GS-06B Pilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342-2GS-10B Pilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342-2D-04B Pilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342-2D-06B Pilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342-2D-10B Pilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: DIN terminal | Port size: Rc1
VG342-2DZ-04B Pilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342-2DZ-06B Pilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342-2DZ-10B Pilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342-5G-04B Pilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: Grommet | Port size: Rc1/2
VG342-5G-06B Pilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: Grommet | Port size: Rc3/4
VG342-5G-10B Pilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: Grommet | Port size: Rc1
VG342-5GS-04B Pilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342-5GS-06B Pilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342-5GS-10B Pilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342-5D-04B Pilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342-5D-06B Pilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342-5D-10B Pilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: DIN terminal | Port size: Rc1
VG342-5DZ-04B Pilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342-5DZ-06B Pilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342-5DZ-10B Pilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342-6G-04B Pilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: Grommet | Port size: Rc1/2
VG342-6G-06B Pilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: Grommet | Port size: Rc3/4
VG342-6G-10B Pilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: Grommet | Port size: Rc1
VG342-6GS-04B Pilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342-6GS-06B Pilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342-6GS-10B Pilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342-6D-04B Pilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342-6D-06B Pilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342-6D-10B Pilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: DIN terminal | Port size: Rc1
VG342-6DZ-04B Pilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342-6DZ-06B Pilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342-6DZ-10B Pilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342R-1G-04 Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: Grommet | Port size: Rc1/2
VG342R-1G-06 Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: Grommet | Port size: Rc3/4
VG342R-1G-10 Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: Grommet | Port size: Rc1
VG342R-1GS-04 Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342R-1GS-06 Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342R-1GS-10 Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342R-1D-04 Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342R-1D-06 Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342R-1D-10 Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: DIN terminal | Port size: Rc1
VG342R-1DZ-04 Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342R-1DZ-06 Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342R-1DZ-10 Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342R-2G-04 Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: Grommet | Port size: Rc1/2
VG342R-2G-06 Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: Grommet | Port size: Rc3/4
VG342R-2G-10 Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: Grommet | Port size: Rc1
VG342R-2GS-04 Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342R-2GS-06 Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342R-2GS-10 Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342R-2D-04 Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342R-2D-06 Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342R-2D-10 Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: DIN terminal | Port size: Rc1
VG342R-2DZ-04 Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342R-2DZ-06 Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342R-2DZ-10 Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342R-5G-04 Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: Grommet | Port size: Rc1/2
VG342R-5G-06 Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: Grommet | Port size: Rc3/4
VG342R-5G-10 Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: Grommet | Port size: Rc1
VG342R-5GS-04 Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342R-5GS-06 Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342R-5GS-10 Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342R-5D-04 Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342R-5D-06 Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342R-5D-10 Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: DIN terminal | Port size: Rc1
VG342R-5DZ-04 Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342R-5DZ-06 Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342R-5DZ-10 Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342R-6G-04 Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: Grommet | Port size: Rc1/2
VG342R-6G-06 Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: Grommet | Port size: Rc3/4
VG342R-6G-10 Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: Grommet | Port size: Rc1
VG342R-6GS-04 Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342R-6GS-06 Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342R-6GS-10 Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342R-6D-04 Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342R-6D-06 Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342R-6D-10 Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: DIN terminal | Port size: Rc1
VG342R-6DZ-04 Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342R-6DZ-06 Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342R-6DZ-10 Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
3-Port Solenoid ValvesSMC
144 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VG342 3-Port Solenoid Valve (Poppet, Rc1/2 to Rc1)

Brand SMC·3-Port Solenoid Valves

Available part numbers (144)

VG342-1G-04A, VG342-1G-06A, VG342-1G-10A, VG342-1GS-04A, VG342-1GS-06A, VG342-1GS-10A, VG342-1D-04A, VG342-1D-06A, VG342-1D-10A, VG342-1DZ-04A + 134 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VG342-1G-04APilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: Grommet | Port size: Rc1/2
VG342-1G-06APilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: Grommet | Port size: Rc3/4
VG342-1G-10APilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: Grommet | Port size: Rc1
VG342-1GS-04APilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342-1GS-06APilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342-1GS-10APilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342-1D-04APilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342-1D-06APilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342-1D-10APilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: DIN terminal | Port size: Rc1
VG342-1DZ-04APilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342-1DZ-06APilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342-1DZ-10APilot / flow: Internal pilot, N.C. | Voltage: AC100V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342-2G-04APilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: Grommet | Port size: Rc1/2
VG342-2G-06APilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: Grommet | Port size: Rc3/4
VG342-2G-10APilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: Grommet | Port size: Rc1
VG342-2GS-04APilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342-2GS-06APilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342-2GS-10APilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342-2D-04APilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342-2D-06APilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342-2D-10APilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: DIN terminal | Port size: Rc1
VG342-2DZ-04APilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342-2DZ-06APilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342-2DZ-10APilot / flow: Internal pilot, N.C. | Voltage: AC200V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342-5G-04APilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: Grommet | Port size: Rc1/2
VG342-5G-06APilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: Grommet | Port size: Rc3/4
VG342-5G-10APilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: Grommet | Port size: Rc1
VG342-5GS-04APilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342-5GS-06APilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342-5GS-10APilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342-5D-04APilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342-5D-06APilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342-5D-10APilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: DIN terminal | Port size: Rc1
VG342-5DZ-04APilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342-5DZ-06APilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342-5DZ-10APilot / flow: Internal pilot, N.C. | Voltage: DC24V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342-6G-04APilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: Grommet | Port size: Rc1/2
VG342-6G-06APilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: Grommet | Port size: Rc3/4
VG342-6G-10APilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: Grommet | Port size: Rc1
VG342-6GS-04APilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342-6GS-06APilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342-6GS-10APilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342-6D-04APilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342-6D-06APilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342-6D-10APilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: DIN terminal | Port size: Rc1
VG342-6DZ-04APilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342-6DZ-06APilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342-6DZ-10APilot / flow: Internal pilot, N.C. | Voltage: DC12V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342-1G-04BPilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: Grommet | Port size: Rc1/2
VG342-1G-06BPilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: Grommet | Port size: Rc3/4
VG342-1G-10BPilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: Grommet | Port size: Rc1
VG342-1GS-04BPilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342-1GS-06BPilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342-1GS-10BPilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342-1D-04BPilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342-1D-06BPilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342-1D-10BPilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: DIN terminal | Port size: Rc1
VG342-1DZ-04BPilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342-1DZ-06BPilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342-1DZ-10BPilot / flow: Internal pilot, N.O. | Voltage: AC100V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342-2G-04BPilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: Grommet | Port size: Rc1/2
VG342-2G-06BPilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: Grommet | Port size: Rc3/4
VG342-2G-10BPilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: Grommet | Port size: Rc1
VG342-2GS-04BPilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342-2GS-06BPilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342-2GS-10BPilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342-2D-04BPilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342-2D-06BPilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342-2D-10BPilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: DIN terminal | Port size: Rc1
VG342-2DZ-04BPilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342-2DZ-06BPilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342-2DZ-10BPilot / flow: Internal pilot, N.O. | Voltage: AC200V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342-5G-04BPilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: Grommet | Port size: Rc1/2
VG342-5G-06BPilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: Grommet | Port size: Rc3/4
VG342-5G-10BPilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: Grommet | Port size: Rc1
VG342-5GS-04BPilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342-5GS-06BPilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342-5GS-10BPilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342-5D-04BPilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342-5D-06BPilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342-5D-10BPilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: DIN terminal | Port size: Rc1
VG342-5DZ-04BPilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342-5DZ-06BPilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342-5DZ-10BPilot / flow: Internal pilot, N.O. | Voltage: DC24V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342-6G-04BPilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: Grommet | Port size: Rc1/2
VG342-6G-06BPilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: Grommet | Port size: Rc3/4
VG342-6G-10BPilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: Grommet | Port size: Rc1
VG342-6GS-04BPilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342-6GS-06BPilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342-6GS-10BPilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342-6D-04BPilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342-6D-06BPilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342-6D-10BPilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: DIN terminal | Port size: Rc1
VG342-6DZ-04BPilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342-6DZ-06BPilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342-6DZ-10BPilot / flow: Internal pilot, N.O. | Voltage: DC12V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342R-1G-04Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: Grommet | Port size: Rc1/2
VG342R-1G-06Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: Grommet | Port size: Rc3/4
VG342R-1G-10Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: Grommet | Port size: Rc1
VG342R-1GS-04Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342R-1GS-06Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342R-1GS-10Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342R-1D-04Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342R-1D-06Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342R-1D-10Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: DIN terminal | Port size: Rc1
VG342R-1DZ-04Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342R-1DZ-06Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342R-1DZ-10Pilot / flow: External pilot | Voltage: AC100V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342R-2G-04Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: Grommet | Port size: Rc1/2
VG342R-2G-06Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: Grommet | Port size: Rc3/4
VG342R-2G-10Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: Grommet | Port size: Rc1
VG342R-2GS-04Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342R-2GS-06Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342R-2GS-10Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342R-2D-04Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342R-2D-06Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342R-2D-10Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: DIN terminal | Port size: Rc1
VG342R-2DZ-04Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342R-2DZ-06Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342R-2DZ-10Pilot / flow: External pilot | Voltage: AC200V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342R-5G-04Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: Grommet | Port size: Rc1/2
VG342R-5G-06Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: Grommet | Port size: Rc3/4
VG342R-5G-10Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: Grommet | Port size: Rc1
VG342R-5GS-04Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342R-5GS-06Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342R-5GS-10Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342R-5D-04Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342R-5D-06Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342R-5D-10Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: DIN terminal | Port size: Rc1
VG342R-5DZ-04Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342R-5DZ-06Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342R-5DZ-10Pilot / flow: External pilot | Voltage: DC24V | Electrical entry: DIN terminal, light/surge | Port size: Rc1
VG342R-6G-04Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: Grommet | Port size: Rc1/2
VG342R-6G-06Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: Grommet | Port size: Rc3/4
VG342R-6G-10Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: Grommet | Port size: Rc1
VG342R-6GS-04Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: Grommet, surge suppressor | Port size: Rc1/2
VG342R-6GS-06Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: Grommet, surge suppressor | Port size: Rc3/4
VG342R-6GS-10Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: Grommet, surge suppressor | Port size: Rc1
VG342R-6D-04Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: DIN terminal | Port size: Rc1/2
VG342R-6D-06Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: DIN terminal | Port size: Rc3/4
VG342R-6D-10Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: DIN terminal | Port size: Rc1
VG342R-6DZ-04Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: DIN terminal, light/surge | Port size: Rc1/2
VG342R-6DZ-06Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: DIN terminal, light/surge | Port size: Rc3/4
VG342R-6DZ-10Pilot / flow: External pilot | Voltage: DC12V | Electrical entry: DIN terminal, light/surge | Port size: Rc1

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
