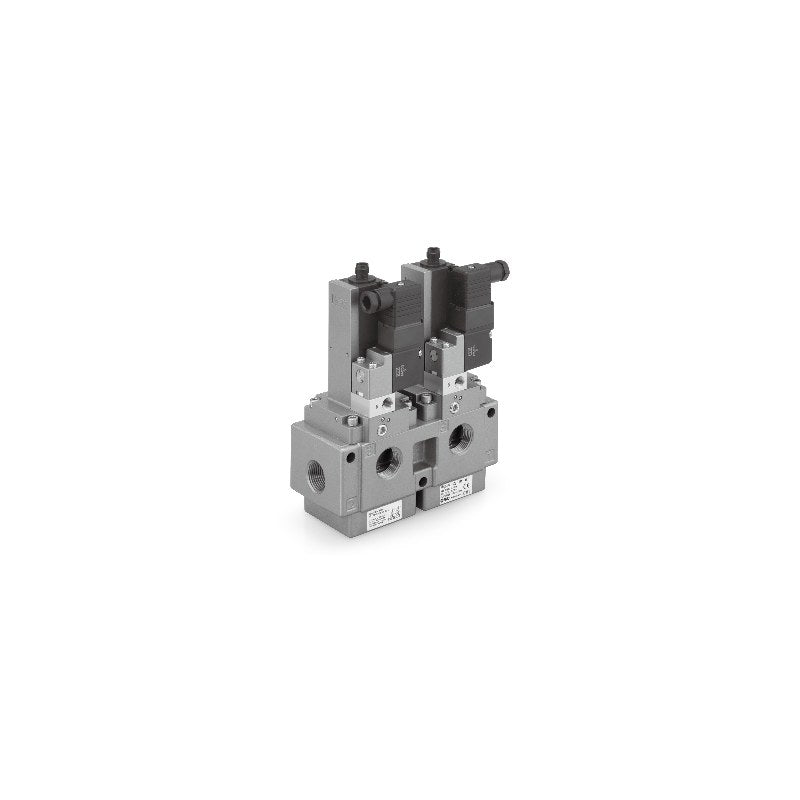

SMC VG342-X87 Dual Residual Pressure Release Valve (ISO 13849-1)

SMC VG342-X87 Dual Residual Pressure Release Valve (ISO 13849-1)

SMC VG342-X87 ISO 13849-1 certified dual 3-port residual pressure release valve with main valve position detection, Rc3/4 or Rc1 ports.

Key features

  • Dual valve construction for redundant systems (categories 3 and 4): if one valve fails, the other exhausts residual pressure
  • Main valve position detection by safety limit switch with M12 connector (Omron or Rockwell Automation)
  • DIN connector with light/surge suppressor, DC24V 2.2 W
  • Internal or external pilot; check valve on external pilot port (A ø8, B ø5/16") and G/NPT threads by code option

Specifications

Fluid Air
Switching N.C. (spring return)
Operating pressure 0.25 to 0.7 MPa
Electrical entry DIN connector, light/surge suppressor (DZ)
Rated voltage DC24V (-15% to +10%), 2.2 W
Ambient and fluid temperature -10 to 50°C (no freezing)
Enclosure IP40
Flow rate C [dm³/(s·bar)] 1→2 3/4: 26.6, 1: 25.5
Mass 2.8 to 3.3 kg
B10D 1,000,000 cycles
Source SMC Korea catalog CAT.KS11-111B (SMCKR_VP_VG_ISO13849-1.pdf), p. 23-24 (PDF p. 25-26)
VG342-5DZ-06-M-X87 Pilot: Internal | Port size: Rc3/4 | Limit switch: Omron, M12 connector
VG342-5DZ-06-S1-X87 Pilot: Internal | Port size: Rc3/4 | Limit switch: Rockwell, M12 connector
VG342-5DZ-10-M-X87 Pilot: Internal | Port size: Rc1 | Limit switch: Omron, M12 connector
VG342-5DZ-10-S1-X87 Pilot: Internal | Port size: Rc1 | Limit switch: Rockwell, M12 connector
VG342R-5DZ-06-M-X87 Pilot: External | Port size: Rc3/4 | Limit switch: Omron, M12 connector
VG342R-5DZ-06-S1-X87 Pilot: External | Port size: Rc3/4 | Limit switch: Rockwell, M12 connector
VG342R-5DZ-10-M-X87 Pilot: External | Port size: Rc1 | Limit switch: Omron, M12 connector
VG342R-5DZ-10-S1-X87 Pilot: External | Port size: Rc1 | Limit switch: Rockwell, M12 connector
