SMC VHA200 3-Port Ball Valve (Residual Pressure Exhaust)

SMC VHA200 3-Port Ball Valve (Residual Pressure Exhaust)

SMC VHA200 3-port manual ball valve for supply shut-off and residual pressure exhaust, resistant to drain and foreign matter, in a thin one-touch fitting type and a built-in silencer type.

Key features

  • Ball valve switching is stable even with drain or foreign matter in the air
  • Manual lever operation exhausts residual pressure (SHUT / EXH)

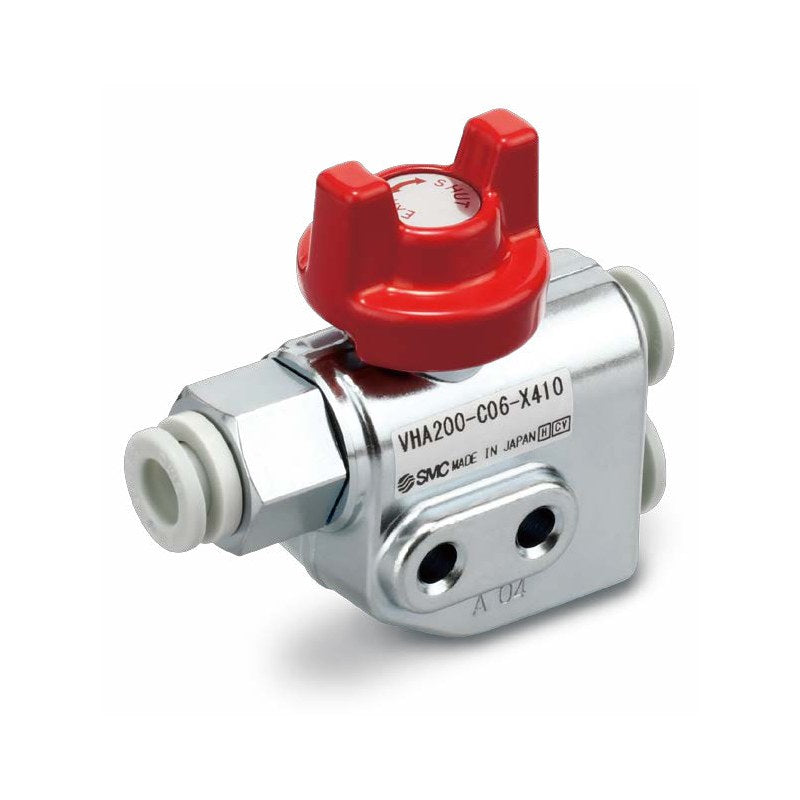

  • VHA200-C06-X410: thin body, universal porting (supply and exhaust ports interchangeable), ø6 one-touch fittings, Cv 4.1
  • Thin type connects as a manifold up to 10 stations (-B2 to -B10); bolts and hex nuts supplied
  • VHA200-02: Rc1/4 ports with built-in silencer (element and hex nut), Cv 6.0

Specifications

Fluid Air
Proof pressure 1.5 MPa
Operating pressure range 0 to 1.0 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Weight 56 g (VHA200-C06-X410), 157 g (VHA200-02)
Operation Manual lever, 3-port
Source SMC Korea information leaflet 25-K803 (SMCKR_VHA200.pdf), p. 1-3
VHA200-C06-X410 Model: Thin universal porting | Port: One-touch fitting ø6 | Configuration: Single unit | Flow Cv: 4.1
VHA200-C06-X410-B2 Model: Thin universal porting | Port: One-touch fitting ø6 | Configuration: Manifold 2 stations | Flow Cv: 4.1
VHA200-C06-X410-B3 Model: Thin universal porting | Port: One-touch fitting ø6 | Configuration: Manifold 3 stations | Flow Cv: 4.1
VHA200-C06-X410-B4 Model: Thin universal porting | Port: One-touch fitting ø6 | Configuration: Manifold 4 stations | Flow Cv: 4.1
VHA200-C06-X410-B5 Model: Thin universal porting | Port: One-touch fitting ø6 | Configuration: Manifold 5 stations | Flow Cv: 4.1
VHA200-C06-X410-B6 Model: Thin universal porting | Port: One-touch fitting ø6 | Configuration: Manifold 6 stations | Flow Cv: 4.1
VHA200-C06-X410-B7 Model: Thin universal porting | Port: One-touch fitting ø6 | Configuration: Manifold 7 stations | Flow Cv: 4.1
VHA200-C06-X410-B8 Model: Thin universal porting | Port: One-touch fitting ø6 | Configuration: Manifold 8 stations | Flow Cv: 4.1
VHA200-C06-X410-B9 Model: Thin universal porting | Port: One-touch fitting ø6 | Configuration: Manifold 9 stations | Flow Cv: 4.1
VHA200-C06-X410-B10 Model: Thin universal porting | Port: One-touch fitting ø6 | Configuration: Manifold 10 stations | Flow Cv: 4.1
VHA200-02 Model: Built-in silencer | Port: Rc1/4 | Configuration: Single unit | Flow Cv: 6.0
Manual ValvesSMC
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VHA200 3-Port Ball Valve (Residual Pressure Exhaust)

Brand SMC·Manual Valves

Available part numbers (11)

VHA200-C06-X410, VHA200-C06-X410-B2, VHA200-C06-X410-B3, VHA200-C06-X410-B4, VHA200-C06-X410-B5, VHA200-C06-X410-B6, VHA200-C06-X410-B7, VHA200-C06-X410-B8, VHA200-C06-X410-B9, VHA200-C06-X410-B10 + 1 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VHA200-C06-X410Model: Thin universal porting | Port: One-touch fitting ø6 | Configuration: Single unit | Flow Cv: 4.1
VHA200-C06-X410-B2Model: Thin universal porting | Port: One-touch fitting ø6 | Configuration: Manifold 2 stations | Flow Cv: 4.1
VHA200-C06-X410-B3Model: Thin universal porting | Port: One-touch fitting ø6 | Configuration: Manifold 3 stations | Flow Cv: 4.1
VHA200-C06-X410-B4Model: Thin universal porting | Port: One-touch fitting ø6 | Configuration: Manifold 4 stations | Flow Cv: 4.1
VHA200-C06-X410-B5Model: Thin universal porting | Port: One-touch fitting ø6 | Configuration: Manifold 5 stations | Flow Cv: 4.1
VHA200-C06-X410-B6Model: Thin universal porting | Port: One-touch fitting ø6 | Configuration: Manifold 6 stations | Flow Cv: 4.1
VHA200-C06-X410-B7Model: Thin universal porting | Port: One-touch fitting ø6 | Configuration: Manifold 7 stations | Flow Cv: 4.1
VHA200-C06-X410-B8Model: Thin universal porting | Port: One-touch fitting ø6 | Configuration: Manifold 8 stations | Flow Cv: 4.1
VHA200-C06-X410-B9Model: Thin universal porting | Port: One-touch fitting ø6 | Configuration: Manifold 9 stations | Flow Cv: 4.1
VHA200-C06-X410-B10Model: Thin universal porting | Port: One-touch fitting ø6 | Configuration: Manifold 10 stations | Flow Cv: 4.1
VHA200-02Model: Built-in silencer | Port: Rc1/4 | Configuration: Single unit | Flow Cv: 6.0
