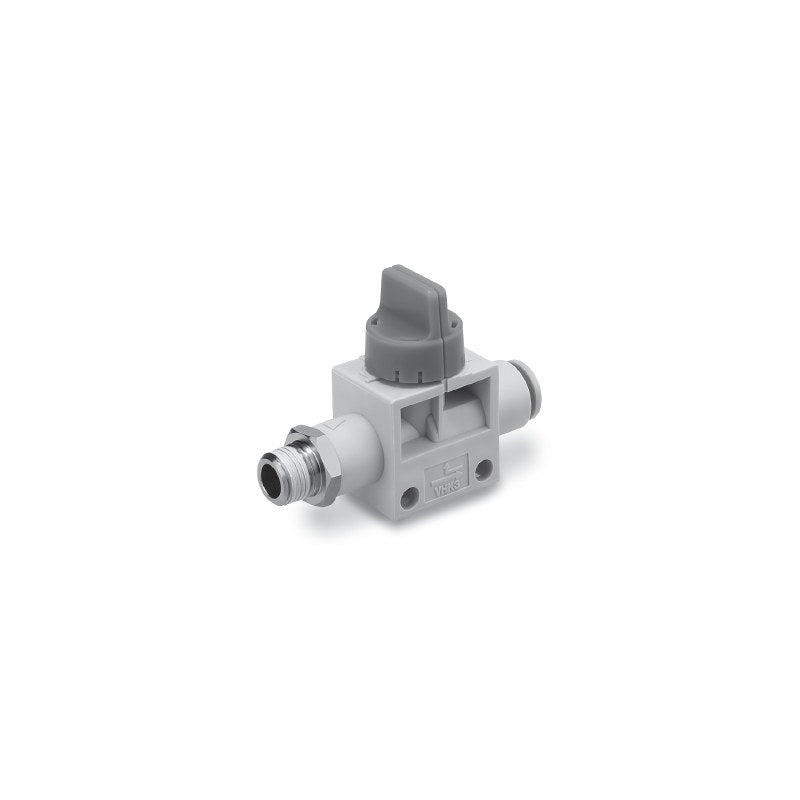

SMC VHK-A Finger Valve (2-Port / 3-Port, One-touch or Male Thread)

SMC VHK-A Finger Valve (2-Port / 3-Port, One-touch or Male Thread)

SMC VHK-A compact finger valve, a 90° quarter-turn 2-port shut-off or 3-port residual-exhaust valve with one-touch fittings or R male threads, in standard and flame-resistant versions.

Key features

  • 2-port valve (grey handle) or 3-port valve (blue handle) that exhausts 2(A) residual pressure at SHUT
  • Handle direction shows OPEN/SHUT; built-in handle drop-out prevention
  • Poppet valve structure, large effective area 2.0 to 17.5 mm², light operating force
  • Four piping types: one-touch/one-touch, male/one-touch, one-touch/male, male/male; ø4 to ø12, M5, R1/8 to R1/2
  • Flame-resistant type (R) to UL94 V-0 equivalent, optional flame-resistant cover (C)
  • Options as suffixes: L-bracket (L), red handle (R); inch sizes as made-to-order (X205/X216/X209/X247)

Specifications

Fluid Air
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Operating vacuum pressure -100 kPa (2-port valve)
Ambient and fluid temperature 0 to 60°C
Applicable tubing Nylon, soft nylon, polyurethane
Operating angle 90° (SHUT to OPEN counterclockwise)
Bracket assembly VHK-B1A (up to ø8), VHK-B2A (ø10 and up, R3/8 and up)
Source SMC Korea catalog VHK-A (SMCKR_VHK-A.pdf), p. 1504-1508 (PDF p. 1-5)
VHK2A-04F-04F Valve: 2-port valve | Type: Standard | 1(P) port: ø4 one-touch | 2(A) port: ø4 one-touch
VHK2A-06F-04F Valve: 2-port valve | Type: Standard | 1(P) port: ø6 one-touch | 2(A) port: ø4 one-touch
VHK2A-06F-06F Valve: 2-port valve | Type: Standard | 1(P) port: ø6 one-touch | 2(A) port: ø6 one-touch
VHK2A-08F-06F Valve: 2-port valve | Type: Standard | 1(P) port: ø8 one-touch | 2(A) port: ø6 one-touch
VHK2A-08F-08F Valve: 2-port valve | Type: Standard | 1(P) port: ø8 one-touch | 2(A) port: ø8 one-touch
VHK2A-10F-08F Valve: 2-port valve | Type: Standard | 1(P) port: ø10 one-touch | 2(A) port: ø8 one-touch
VHK2A-10F-10F Valve: 2-port valve | Type: Standard | 1(P) port: ø10 one-touch | 2(A) port: ø10 one-touch
VHK2A-12F-10F Valve: 2-port valve | Type: Standard | 1(P) port: ø12 one-touch | 2(A) port: ø10 one-touch
VHK2A-12F-12F Valve: 2-port valve | Type: Standard | 1(P) port: ø12 one-touch | 2(A) port: ø12 one-touch
VHK2A-M5-04F Valve: 2-port valve | Type: Standard | 1(P) port: M5x0.8 male | 2(A) port: ø4 one-touch
VHK2A-M5-06F Valve: 2-port valve | Type: Standard | 1(P) port: M5x0.8 male | 2(A) port: ø6 one-touch
VHK2A-01S-04F Valve: 2-port valve | Type: Standard | 1(P) port: R1/8 male | 2(A) port: ø4 one-touch
VHK2A-01S-06F Valve: 2-port valve | Type: Standard | 1(P) port: R1/8 male | 2(A) port: ø6 one-touch
VHK2A-01S-08F Valve: 2-port valve | Type: Standard | 1(P) port: R1/8 male | 2(A) port: ø8 one-touch
VHK2A-02S-06F Valve: 2-port valve | Type: Standard | 1(P) port: R1/4 male | 2(A) port: ø6 one-touch
VHK2A-02S-08F Valve: 2-port valve | Type: Standard | 1(P) port: R1/4 male | 2(A) port: ø8 one-touch
VHK2A-02S-10F Valve: 2-port valve | Type: Standard | 1(P) port: R1/4 male | 2(A) port: ø10 one-touch
VHK2A-02S-12F Valve: 2-port valve | Type: Standard | 1(P) port: R1/4 male | 2(A) port: ø12 one-touch
VHK2A-03S-06F Valve: 2-port valve | Type: Standard | 1(P) port: R3/8 male | 2(A) port: ø6 one-touch
VHK2A-03S-08F Valve: 2-port valve | Type: Standard | 1(P) port: R3/8 male | 2(A) port: ø8 one-touch
VHK2A-03S-10F Valve: 2-port valve | Type: Standard | 1(P) port: R3/8 male | 2(A) port: ø10 one-touch
VHK2A-03S-12F Valve: 2-port valve | Type: Standard | 1(P) port: R3/8 male | 2(A) port: ø12 one-touch
VHK2A-04S-10F Valve: 2-port valve | Type: Standard | 1(P) port: R1/2 male | 2(A) port: ø10 one-touch
VHK2A-04S-12F Valve: 2-port valve | Type: Standard | 1(P) port: R1/2 male | 2(A) port: ø12 one-touch
VHK2A-04F-M5 Valve: 2-port valve | Type: Standard | 1(P) port: ø4 one-touch | 2(A) port: M5x0.8 male
VHK2A-04F-01S Valve: 2-port valve | Type: Standard | 1(P) port: ø4 one-touch | 2(A) port: R1/8 male
VHK2A-06F-M5 Valve: 2-port valve | Type: Standard | 1(P) port: ø6 one-touch | 2(A) port: M5x0.8 male
VHK2A-06F-01S Valve: 2-port valve | Type: Standard | 1(P) port: ø6 one-touch | 2(A) port: R1/8 male
VHK2A-06F-02S Valve: 2-port valve | Type: Standard | 1(P) port: ø6 one-touch | 2(A) port: R1/4 male
VHK2A-06F-03S Valve: 2-port valve | Type: Standard | 1(P) port: ø6 one-touch | 2(A) port: R3/8 male
VHK2A-08F-01S Valve: 2-port valve | Type: Standard | 1(P) port: ø8 one-touch | 2(A) port: R1/8 male
VHK2A-08F-02S Valve: 2-port valve | Type: Standard | 1(P) port: ø8 one-touch | 2(A) port: R1/4 male
VHK2A-08F-03S Valve: 2-port valve | Type: Standard | 1(P) port: ø8 one-touch | 2(A) port: R3/8 male
VHK2A-10F-02S Valve: 2-port valve | Type: Standard | 1(P) port: ø10 one-touch | 2(A) port: R1/4 male
VHK2A-10F-03S Valve: 2-port valve | Type: Standard | 1(P) port: ø10 one-touch | 2(A) port: R3/8 male
VHK2A-10F-04S Valve: 2-port valve | Type: Standard | 1(P) port: ø10 one-touch | 2(A) port: R1/2 male
VHK2A-12F-02S Valve: 2-port valve | Type: Standard | 1(P) port: ø12 one-touch | 2(A) port: R1/4 male
VHK2A-12F-03S Valve: 2-port valve | Type: Standard | 1(P) port: ø12 one-touch | 2(A) port: R3/8 male
VHK2A-12F-04S Valve: 2-port valve | Type: Standard | 1(P) port: ø12 one-touch | 2(A) port: R1/2 male
VHK2A-M5-M5 Valve: 2-port valve | Type: Standard | 1(P) port: M5x0.8 male | 2(A) port: M5x0.8 male
VHK2A-01S-M5 Valve: 2-port valve | Type: Standard | 1(P) port: R1/8 male | 2(A) port: M5x0.8 male
VHK2A-01S-01S Valve: 2-port valve | Type: Standard | 1(P) port: R1/8 male | 2(A) port: R1/8 male
VHK2A-02S-01S Valve: 2-port valve | Type: Standard | 1(P) port: R1/4 male | 2(A) port: R1/8 male
VHK2A-02S-02S Valve: 2-port valve | Type: Standard | 1(P) port: R1/4 male | 2(A) port: R1/4 male
VHK2A-03S-02S Valve: 2-port valve | Type: Standard | 1(P) port: R3/8 male | 2(A) port: R1/4 male
VHK2A-03S-03S Valve: 2-port valve | Type: Standard | 1(P) port: R3/8 male | 2(A) port: R3/8 male
VHK2A-04S-03S Valve: 2-port valve | Type: Standard | 1(P) port: R1/2 male | 2(A) port: R3/8 male
VHK2A-04S-04S Valve: 2-port valve | Type: Standard | 1(P) port: R1/2 male | 2(A) port: R1/2 male
VHK2AR-04F-04F Valve: 2-port valve | Type: Flame resistant (UL94 V-0) | 1(P) port: ø4 one-touch | 2(A) port: ø4 one-touch
VHK2AR-06F-06F Valve: 2-port valve | Type: Flame resistant (UL94 V-0) | 1(P) port: ø6 one-touch | 2(A) port: ø6 one-touch
VHK2AR-08F-08F Valve: 2-port valve | Type: Flame resistant (UL94 V-0) | 1(P) port: ø8 one-touch | 2(A) port: ø8 one-touch
VHK2AR-10F-10F Valve: 2-port valve | Type: Flame resistant (UL94 V-0) | 1(P) port: ø10 one-touch | 2(A) port: ø10 one-touch
VHK2AR-12F-12F Valve: 2-port valve | Type: Flame resistant (UL94 V-0) | 1(P) port: ø12 one-touch | 2(A) port: ø12 one-touch
VHK2AR-01S-01S Valve: 2-port valve | Type: Flame resistant (UL94 V-0) | 1(P) port: R1/8 male | 2(A) port: R1/8 male
VHK2AR-02S-02S Valve: 2-port valve | Type: Flame resistant (UL94 V-0) | 1(P) port: R1/4 male | 2(A) port: R1/4 male
VHK2AR-03S-03S Valve: 2-port valve | Type: Flame resistant (UL94 V-0) | 1(P) port: R3/8 male | 2(A) port: R3/8 male
VHK2AR-04S-04S Valve: 2-port valve | Type: Flame resistant (UL94 V-0) | 1(P) port: R1/2 male | 2(A) port: R1/2 male
VHK3A-04F-04F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø4 one-touch | 2(A) port: ø4 one-touch
VHK3A-06F-04F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø6 one-touch | 2(A) port: ø4 one-touch
VHK3A-06F-06F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø6 one-touch | 2(A) port: ø6 one-touch
VHK3A-08F-06F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø8 one-touch | 2(A) port: ø6 one-touch
VHK3A-08F-08F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø8 one-touch | 2(A) port: ø8 one-touch
VHK3A-10F-08F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø10 one-touch | 2(A) port: ø8 one-touch
VHK3A-10F-10F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø10 one-touch | 2(A) port: ø10 one-touch
VHK3A-12F-10F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø12 one-touch | 2(A) port: ø10 one-touch
VHK3A-12F-12F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø12 one-touch | 2(A) port: ø12 one-touch
VHK3A-M5-04F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: M5x0.8 male | 2(A) port: ø4 one-touch
VHK3A-M5-06F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: M5x0.8 male | 2(A) port: ø6 one-touch
VHK3A-01S-04F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R1/8 male | 2(A) port: ø4 one-touch
VHK3A-01S-06F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R1/8 male | 2(A) port: ø6 one-touch
VHK3A-01S-08F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R1/8 male | 2(A) port: ø8 one-touch
VHK3A-02S-06F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R1/4 male | 2(A) port: ø6 one-touch
VHK3A-02S-08F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R1/4 male | 2(A) port: ø8 one-touch
VHK3A-02S-10F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R1/4 male | 2(A) port: ø10 one-touch
VHK3A-02S-12F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R1/4 male | 2(A) port: ø12 one-touch
VHK3A-03S-06F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R3/8 male | 2(A) port: ø6 one-touch
VHK3A-03S-08F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R3/8 male | 2(A) port: ø8 one-touch
VHK3A-03S-10F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R3/8 male | 2(A) port: ø10 one-touch
VHK3A-03S-12F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R3/8 male | 2(A) port: ø12 one-touch
VHK3A-04S-10F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R1/2 male | 2(A) port: ø10 one-touch
VHK3A-04S-12F Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R1/2 male | 2(A) port: ø12 one-touch
VHK3A-04F-M5 Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø4 one-touch | 2(A) port: M5x0.8 male
VHK3A-04F-01S Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø4 one-touch | 2(A) port: R1/8 male
VHK3A-06F-M5 Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø6 one-touch | 2(A) port: M5x0.8 male
VHK3A-06F-01S Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø6 one-touch | 2(A) port: R1/8 male
VHK3A-06F-02S Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø6 one-touch | 2(A) port: R1/4 male
VHK3A-06F-03S Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø6 one-touch | 2(A) port: R3/8 male
VHK3A-08F-01S Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø8 one-touch | 2(A) port: R1/8 male
VHK3A-08F-02S Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø8 one-touch | 2(A) port: R1/4 male
VHK3A-08F-03S Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø8 one-touch | 2(A) port: R3/8 male
VHK3A-10F-02S Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø10 one-touch | 2(A) port: R1/4 male
VHK3A-10F-03S Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø10 one-touch | 2(A) port: R3/8 male
VHK3A-10F-04S Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø10 one-touch | 2(A) port: R1/2 male
VHK3A-12F-02S Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø12 one-touch | 2(A) port: R1/4 male
VHK3A-12F-03S Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø12 one-touch | 2(A) port: R3/8 male
VHK3A-12F-04S Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: ø12 one-touch | 2(A) port: R1/2 male
VHK3A-M5-M5 Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: M5x0.8 male | 2(A) port: M5x0.8 male
VHK3A-01S-M5 Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R1/8 male | 2(A) port: M5x0.8 male
VHK3A-01S-01S Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R1/8 male | 2(A) port: R1/8 male
VHK3A-02S-01S Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R1/4 male | 2(A) port: R1/8 male
VHK3A-02S-02S Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R1/4 male | 2(A) port: R1/4 male
VHK3A-03S-02S Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R3/8 male | 2(A) port: R1/4 male
VHK3A-03S-03S Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R3/8 male | 2(A) port: R3/8 male
VHK3A-04S-03S Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R1/2 male | 2(A) port: R3/8 male
VHK3A-04S-04S Valve: 3-port valve (residual exhaust) | Type: Standard | 1(P) port: R1/2 male | 2(A) port: R1/2 male
VHK3AR-04F-04F Valve: 3-port valve (residual exhaust) | Type: Flame resistant (UL94 V-0) | 1(P) port: ø4 one-touch | 2(A) port: ø4 one-touch
VHK3AR-06F-06F Valve: 3-port valve (residual exhaust) | Type: Flame resistant (UL94 V-0) | 1(P) port: ø6 one-touch | 2(A) port: ø6 one-touch
VHK3AR-08F-08F Valve: 3-port valve (residual exhaust) | Type: Flame resistant (UL94 V-0) | 1(P) port: ø8 one-touch | 2(A) port: ø8 one-touch
VHK3AR-10F-10F Valve: 3-port valve (residual exhaust) | Type: Flame resistant (UL94 V-0) | 1(P) port: ø10 one-touch | 2(A) port: ø10 one-touch
VHK3AR-12F-12F Valve: 3-port valve (residual exhaust) | Type: Flame resistant (UL94 V-0) | 1(P) port: ø12 one-touch | 2(A) port: ø12 one-touch
VHK3AR-01S-01S Valve: 3-port valve (residual exhaust) | Type: Flame resistant (UL94 V-0) | 1(P) port: R1/8 male | 2(A) port: R1/8 male
VHK3AR-02S-02S Valve: 3-port valve (residual exhaust) | Type: Flame resistant (UL94 V-0) | 1(P) port: R1/4 male | 2(A) port: R1/4 male
VHK3AR-03S-03S Valve: 3-port valve (residual exhaust) | Type: Flame resistant (UL94 V-0) | 1(P) port: R3/8 male | 2(A) port: R3/8 male
VHK3AR-04S-04S Valve: 3-port valve (residual exhaust) | Type: Flame resistant (UL94 V-0) | 1(P) port: R1/2 male | 2(A) port: R1/2 male
