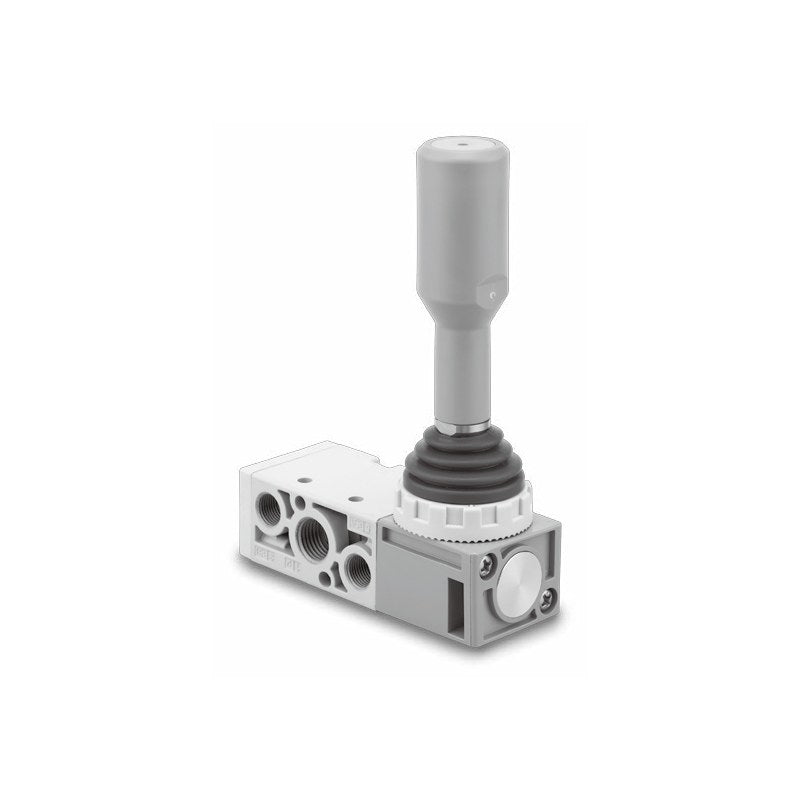

SMC VHL Hand Lever Valve (Vertical 5-Port, 1/4)

SMC VHL vertical hand lever 5-port valve with 1/4 ports, up to 45% lighter and 73% higher flow than the VH200, for direct or panel mounting.

Key features

Three operation types: spring return (S), detent (D) and detent double action (W) with lock button against unintended operation
Switching: 3-position closed center, 3-position exhaust center or 2-position
Direct mounting or panel mounting (M28x1.5), 58% smaller panel footprint than VH20
Ports: 1/4 (P, A, B), 1/8 (EA, EB); Rc standard, NPT (N) and G (G) available
Usable with vacuum: -0.1 to 1.0 MPa; dust boot supplied

Specifications

Fluid	Air
Operating pressure range	-0.1 to 1.0 MPa
Ambient and fluid temperature	-10 to 60°C (no freezing)
Valve type	5-port, vertical hand lever
Port size	P/A/B Rc1/4, EA/EB Rc1/8
Flow rate C [dm³/(s·bar)] P→A/B	VHL210 2.4, VHL211 2.6, VHL212 3
Supply	S and D: handle, dust boot, set nut shipped unassembled; W assembled
Source	SMC Korea catalog CAT.KS13-13A VHL (SMCKR_VHL.pdf), p. 2-6 (PDF p. 3-7)

VHL210S-02		Switching: 3-pos closed center \| Operation: Spring return \| Mass: 248 g
VHL210D-02		Switching: 3-pos closed center \| Operation: Detent \| Mass: 231 g
VHL210W-02		Switching: 3-pos closed center \| Operation: Detent, double action \| Mass: 249 g
VHL211S-02		Switching: 3-pos exhaust center \| Operation: Spring return \| Mass: 248 g
VHL211D-02		Switching: 3-pos exhaust center \| Operation: Detent \| Mass: 231 g
VHL211W-02		Switching: 3-pos exhaust center \| Operation: Detent, double action \| Mass: 249 g
VHL212S-02		Switching: 2-position \| Operation: Spring return \| Mass: 249 g
VHL212D-02		Switching: 2-position \| Operation: Detent \| Mass: 232 g
VHL212W-02		Switching: 2-position \| Operation: Detent, double action \| Mass: 251 g
