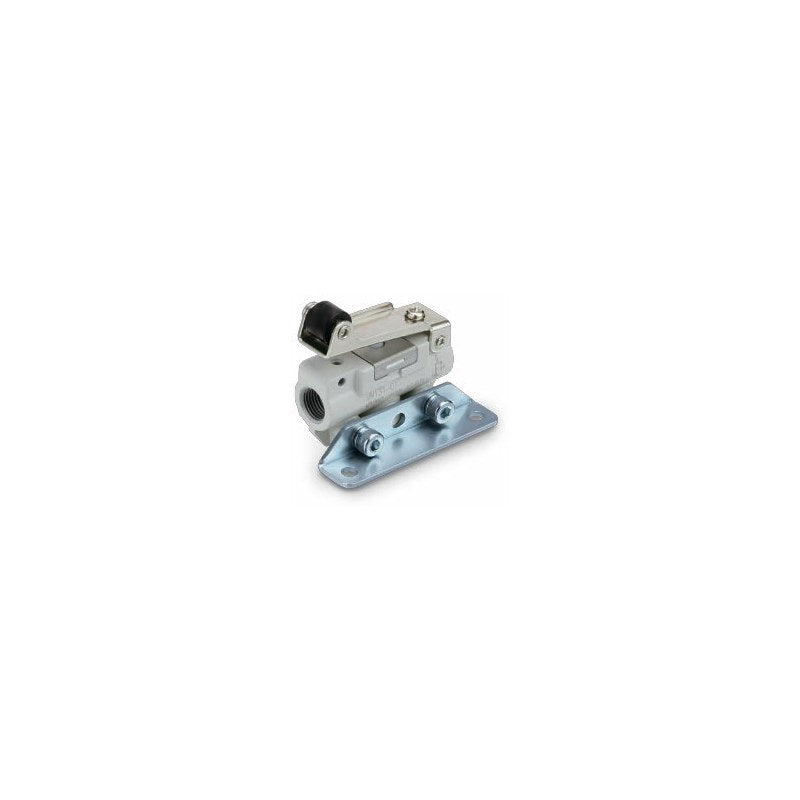

SMC VM100 2/3-Port Mechanical Valve (Side / Bottom Ported)

SMC VM100 2/3-Port Mechanical Valve (Side / Bottom Ported)

SMC VM100 series compact 2-port and 3-port mechanical valve, micro-switch sized, with side or bottom porting and a wide range of mechanical and manual actuators.

Key features

  • Micro-switch size body, 60 g (side ported, basic type); compatible mounting with previous models
  • Side ported (Rc1/8) or bottom ported (M5) piping; side ported type available threaded for bottom mounting (U)
  • Mechanical actuators: roller lever, one-way roller lever, straight, roller and cross roller plungers (POM or hardened steel rollers)
  • Manual actuators: flip toggle, mushroom/extended/flush push buttons, 2- and 3-position selectors and key selector in red, black, green or yellow
  • Vacuum use possible (-100 kPa); bracket (-B), miniature air indicator (Z, bottom ported), NPT/G threads (N01/F01) and push-lock buttons (X207A/X219A) on order

Specifications

Fluid Air
Operating pressure range -100 kPa to 1 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Lubrication Not required (use ISO VG32 turbine oil if lubricated)
Flow rate C [dm³/(s·bar)] Side 0.6 (P-A) / 0.5 (A-R); bottom 0.5 / 0.45
Cv Side 0.11 / 0.1; bottom 0.11 / 0.1
Weight (basic type) 60 g side ported, 67 g bottom ported
Bracket VM1-B (side ported, side mounting only; suffix -B)
Thread options Rc1/8 standard; NPT1/8 (N01), G1/8 (F01) side ported
Source SMC Korea catalog VM100/200 (SMCKR_VM100-A.pdf), p. 1588-1589 (PDF p. 3-4)
VM120-01-00A Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Basic type (no actuator) | Color: N/A
VM130-01-00A Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Basic type (no actuator) | Color: N/A
VM120U-01-00A Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Basic type (no actuator) | Color: N/A
VM130U-01-00A Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Basic type (no actuator) | Color: N/A
VM122-M5-00A Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Basic type (no actuator) | Color: N/A
VM132-M5-00A Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Basic type (no actuator) | Color: N/A
VM121-01-00A Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Basic type (no actuator) | Color: N/A
VM131-01-00A Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Basic type (no actuator) | Color: N/A
VM121U-01-00A Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Basic type (no actuator) | Color: N/A
VM131U-01-00A Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Basic type (no actuator) | Color: N/A
VM123-M5-00A Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Basic type (no actuator) | Color: N/A
VM133-M5-00A Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Basic type (no actuator) | Color: N/A
VM121-01-01A Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Roller lever, POM roller | Color: N/A
VM131-01-01A Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Roller lever, POM roller | Color: N/A
VM121U-01-01A Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Roller lever, POM roller | Color: N/A
VM131U-01-01A Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Roller lever, POM roller | Color: N/A
VM123-M5-01A Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Roller lever, POM roller | Color: N/A
VM133-M5-01A Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Roller lever, POM roller | Color: N/A
VM121-01-01SA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Roller lever, steel roller | Color: N/A
VM131-01-01SA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Roller lever, steel roller | Color: N/A
VM121U-01-01SA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Roller lever, steel roller | Color: N/A
VM131U-01-01SA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Roller lever, steel roller | Color: N/A
VM123-M5-01SA Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Roller lever, steel roller | Color: N/A
VM133-M5-01SA Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Roller lever, steel roller | Color: N/A
VM121-01-02A Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: One-way roller lever, POM roller | Color: N/A
VM131-01-02A Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: One-way roller lever, POM roller | Color: N/A
VM121U-01-02A Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: One-way roller lever, POM roller | Color: N/A
VM131U-01-02A Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: One-way roller lever, POM roller | Color: N/A
VM123-M5-02A Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: One-way roller lever, POM roller | Color: N/A
VM133-M5-02A Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: One-way roller lever, POM roller | Color: N/A
VM121-01-02SA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: One-way roller lever, steel roller | Color: N/A
VM131-01-02SA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: One-way roller lever, steel roller | Color: N/A
VM121U-01-02SA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: One-way roller lever, steel roller | Color: N/A
VM131U-01-02SA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: One-way roller lever, steel roller | Color: N/A
VM123-M5-02SA Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: One-way roller lever, steel roller | Color: N/A
VM133-M5-02SA Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: One-way roller lever, steel roller | Color: N/A
VM120-01-05A Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Straight plunger | Color: N/A
VM130-01-05A Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Straight plunger | Color: N/A
VM120U-01-05A Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Straight plunger | Color: N/A
VM130U-01-05A Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Straight plunger | Color: N/A
VM122-M5-05A Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Straight plunger | Color: N/A
VM132-M5-05A Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Straight plunger | Color: N/A
VM120-01-06A Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Roller plunger, POM roller | Color: N/A
VM130-01-06A Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Roller plunger, POM roller | Color: N/A
VM120U-01-06A Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Roller plunger, POM roller | Color: N/A
VM130U-01-06A Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Roller plunger, POM roller | Color: N/A
VM122-M5-06A Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Roller plunger, POM roller | Color: N/A
VM132-M5-06A Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Roller plunger, POM roller | Color: N/A
VM120-01-06SA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Roller plunger, steel roller | Color: N/A
VM130-01-06SA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Roller plunger, steel roller | Color: N/A
VM120U-01-06SA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Roller plunger, steel roller | Color: N/A
VM130U-01-06SA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Roller plunger, steel roller | Color: N/A
VM122-M5-06SA Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Roller plunger, steel roller | Color: N/A
VM132-M5-06SA Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Roller plunger, steel roller | Color: N/A
VM120-01-07A Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Cross roller plunger, POM roller | Color: N/A
VM130-01-07A Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Cross roller plunger, POM roller | Color: N/A
VM120U-01-07A Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Cross roller plunger, POM roller | Color: N/A
VM130U-01-07A Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Cross roller plunger, POM roller | Color: N/A
VM122-M5-07A Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Cross roller plunger, POM roller | Color: N/A
VM132-M5-07A Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Cross roller plunger, POM roller | Color: N/A
VM120-01-07SA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Cross roller plunger, steel roller | Color: N/A
VM130-01-07SA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Cross roller plunger, steel roller | Color: N/A
VM120U-01-07SA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Cross roller plunger, steel roller | Color: N/A
VM130U-01-07SA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Cross roller plunger, steel roller | Color: N/A
VM122-M5-07SA Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Cross roller plunger, steel roller | Color: N/A
VM132-M5-07SA Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Cross roller plunger, steel roller | Color: N/A
VM120-01-08A Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Flip toggle | Color: N/A
VM130-01-08A Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Flip toggle | Color: N/A
VM120U-01-08A Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Flip toggle | Color: N/A
VM130U-01-08A Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Flip toggle | Color: N/A
VM122-M5-08A Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Flip toggle | Color: N/A
VM132-M5-08A Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Flip toggle | Color: N/A
VM120-01-30RA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Red
VM130-01-30RA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Red
VM120U-01-30RA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (mushroom) | Color: Red
VM130U-01-30RA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (mushroom) | Color: Red
VM122-M5-30RA Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Red
VM132-M5-30RA Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Red
VM120-01-30BA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Black
VM130-01-30BA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Black
VM120U-01-30BA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (mushroom) | Color: Black
VM130U-01-30BA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (mushroom) | Color: Black
VM122-M5-30BA Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Black
VM132-M5-30BA Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Black
VM120-01-30GA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Green
VM130-01-30GA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Green
VM120U-01-30GA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (mushroom) | Color: Green
VM130U-01-30GA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (mushroom) | Color: Green
VM122-M5-30GA Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Green
VM132-M5-30GA Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Green
VM120-01-30YA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Yellow
VM130-01-30YA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Yellow
VM120U-01-30YA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (mushroom) | Color: Yellow
VM130U-01-30YA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (mushroom) | Color: Yellow
VM122-M5-30YA Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Yellow
VM132-M5-30YA Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Yellow
VM120-01-32RA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Red
VM130-01-32RA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Red
VM120U-01-32RA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (extended) | Color: Red
VM130U-01-32RA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (extended) | Color: Red
VM122-M5-32RA Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Red
VM132-M5-32RA Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Red
VM120-01-32BA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Black
VM130-01-32BA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Black
VM120U-01-32BA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (extended) | Color: Black
VM130U-01-32BA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (extended) | Color: Black
VM122-M5-32BA Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Black
VM132-M5-32BA Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Black
VM120-01-32GA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Green
VM130-01-32GA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Green
VM120U-01-32GA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (extended) | Color: Green
VM130U-01-32GA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (extended) | Color: Green
VM122-M5-32GA Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Green
VM132-M5-32GA Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Green
VM120-01-32YA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Yellow
VM130-01-32YA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Yellow
VM120U-01-32YA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (extended) | Color: Yellow
VM130U-01-32YA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (extended) | Color: Yellow
VM122-M5-32YA Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Yellow
VM132-M5-32YA Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Yellow
VM120-01-33A Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (flush) | Color: 4-color set (R/B/G/Y)
VM130-01-33A Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (flush) | Color: 4-color set (R/B/G/Y)
VM120U-01-33A Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (flush) | Color: 4-color set (R/B/G/Y)
VM130U-01-33A Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (flush) | Color: 4-color set (R/B/G/Y)
VM122-M5-33A Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (flush) | Color: 4-color set (R/B/G/Y)
VM132-M5-33A Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (flush) | Color: 4-color set (R/B/G/Y)
VM120-01-34RA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Red
VM130-01-34RA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Red
VM120U-01-34RA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Selector (2-position) | Color: Red
VM130U-01-34RA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Selector (2-position) | Color: Red
VM122-M5-34RA Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Red
VM132-M5-34RA Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Red
VM120-01-34BA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Black
VM130-01-34BA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Black
VM120U-01-34BA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Selector (2-position) | Color: Black
VM130U-01-34BA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Selector (2-position) | Color: Black
VM122-M5-34BA Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Black
VM132-M5-34BA Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Black
VM120-01-34GA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Green
VM130-01-34GA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Green
VM120U-01-34GA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Selector (2-position) | Color: Green
VM130U-01-34GA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Selector (2-position) | Color: Green
VM122-M5-34GA Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Green
VM132-M5-34GA Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Green
VM120-01-34YA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Yellow
VM130-01-34YA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Yellow
VM120U-01-34YA Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Selector (2-position) | Color: Yellow
VM130U-01-34YA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Selector (2-position) | Color: Yellow
VM122-M5-34YA Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Yellow
VM132-M5-34YA Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Yellow
VM120-01-36A Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Key selector (2-position) | Color: N/A
VM130-01-36A Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Key selector (2-position) | Color: N/A
VM120U-01-36A Ports: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Key selector (2-position) | Color: N/A
VM130U-01-36A Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Key selector (2-position) | Color: N/A
VM122-M5-36A Ports: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Key selector (2-position) | Color: N/A
VM132-M5-36A Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Key selector (2-position) | Color: N/A
VM131-01-35RA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Red
VM151-01-35RA Ports: 5-port (3-pos selector) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Red
VM131U-01-35RA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Selector (3-position) | Color: Red
VM151U-01-35RA Ports: 5-port (3-pos selector) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Selector (3-position) | Color: Red
VM133-M5-35RA Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Red
VM153-M5-35RA Ports: 5-port (3-pos selector) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Red
VM131-01-35BA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Black
VM151-01-35BA Ports: 5-port (3-pos selector) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Black
VM131U-01-35BA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Selector (3-position) | Color: Black
VM151U-01-35BA Ports: 5-port (3-pos selector) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Selector (3-position) | Color: Black
VM133-M5-35BA Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Black
VM153-M5-35BA Ports: 5-port (3-pos selector) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Black
VM131-01-35GA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Green
VM151-01-35GA Ports: 5-port (3-pos selector) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Green
VM131U-01-35GA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Selector (3-position) | Color: Green
VM151U-01-35GA Ports: 5-port (3-pos selector) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Selector (3-position) | Color: Green
VM133-M5-35GA Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Green
VM153-M5-35GA Ports: 5-port (3-pos selector) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Green
VM131-01-35YA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Yellow
VM151-01-35YA Ports: 5-port (3-pos selector) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Yellow
VM131U-01-35YA Ports: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Selector (3-position) | Color: Yellow
VM151U-01-35YA Ports: 5-port (3-pos selector) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Selector (3-position) | Color: Yellow
VM133-M5-35YA Ports: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Yellow
VM153-M5-35YA Ports: 5-port (3-pos selector) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Yellow
Mechanical ValvesSMC
180 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VM100 2/3-Port Mechanical Valve (Side / Bottom Ported)

Brand SMC·Mechanical Valves

Available part numbers (180)

VM120-01-00A, VM130-01-00A, VM120U-01-00A, VM130U-01-00A, VM122-M5-00A, VM132-M5-00A, VM121-01-00A, VM131-01-00A, VM121U-01-00A, VM131U-01-00A + 170 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VM120-01-00APorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Basic type (no actuator) | Color: N/A
VM130-01-00APorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Basic type (no actuator) | Color: N/A
VM120U-01-00APorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Basic type (no actuator) | Color: N/A
VM130U-01-00APorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Basic type (no actuator) | Color: N/A
VM122-M5-00APorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Basic type (no actuator) | Color: N/A
VM132-M5-00APorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Basic type (no actuator) | Color: N/A
VM121-01-00APorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Basic type (no actuator) | Color: N/A
VM131-01-00APorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Basic type (no actuator) | Color: N/A
VM121U-01-00APorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Basic type (no actuator) | Color: N/A
VM131U-01-00APorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Basic type (no actuator) | Color: N/A
VM123-M5-00APorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Basic type (no actuator) | Color: N/A
VM133-M5-00APorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Basic type (no actuator) | Color: N/A
VM121-01-01APorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Roller lever, POM roller | Color: N/A
VM131-01-01APorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Roller lever, POM roller | Color: N/A
VM121U-01-01APorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Roller lever, POM roller | Color: N/A
VM131U-01-01APorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Roller lever, POM roller | Color: N/A
VM123-M5-01APorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Roller lever, POM roller | Color: N/A
VM133-M5-01APorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Roller lever, POM roller | Color: N/A
VM121-01-01SAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Roller lever, steel roller | Color: N/A
VM131-01-01SAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Roller lever, steel roller | Color: N/A
VM121U-01-01SAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Roller lever, steel roller | Color: N/A
VM131U-01-01SAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Roller lever, steel roller | Color: N/A
VM123-M5-01SAPorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Roller lever, steel roller | Color: N/A
VM133-M5-01SAPorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Roller lever, steel roller | Color: N/A
VM121-01-02APorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: One-way roller lever, POM roller | Color: N/A
VM131-01-02APorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: One-way roller lever, POM roller | Color: N/A
VM121U-01-02APorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: One-way roller lever, POM roller | Color: N/A
VM131U-01-02APorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: One-way roller lever, POM roller | Color: N/A
VM123-M5-02APorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: One-way roller lever, POM roller | Color: N/A
VM133-M5-02APorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: One-way roller lever, POM roller | Color: N/A
VM121-01-02SAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: One-way roller lever, steel roller | Color: N/A
VM131-01-02SAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: One-way roller lever, steel roller | Color: N/A
VM121U-01-02SAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: One-way roller lever, steel roller | Color: N/A
VM131U-01-02SAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: One-way roller lever, steel roller | Color: N/A
VM123-M5-02SAPorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: One-way roller lever, steel roller | Color: N/A
VM133-M5-02SAPorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: One-way roller lever, steel roller | Color: N/A
VM120-01-05APorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Straight plunger | Color: N/A
VM130-01-05APorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Straight plunger | Color: N/A
VM120U-01-05APorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Straight plunger | Color: N/A
VM130U-01-05APorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Straight plunger | Color: N/A
VM122-M5-05APorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Straight plunger | Color: N/A
VM132-M5-05APorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Straight plunger | Color: N/A
VM120-01-06APorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Roller plunger, POM roller | Color: N/A
VM130-01-06APorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Roller plunger, POM roller | Color: N/A
VM120U-01-06APorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Roller plunger, POM roller | Color: N/A
VM130U-01-06APorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Roller plunger, POM roller | Color: N/A
VM122-M5-06APorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Roller plunger, POM roller | Color: N/A
VM132-M5-06APorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Roller plunger, POM roller | Color: N/A
VM120-01-06SAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Roller plunger, steel roller | Color: N/A
VM130-01-06SAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Roller plunger, steel roller | Color: N/A
VM120U-01-06SAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Roller plunger, steel roller | Color: N/A
VM130U-01-06SAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Roller plunger, steel roller | Color: N/A
VM122-M5-06SAPorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Roller plunger, steel roller | Color: N/A
VM132-M5-06SAPorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Roller plunger, steel roller | Color: N/A
VM120-01-07APorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Cross roller plunger, POM roller | Color: N/A
VM130-01-07APorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Cross roller plunger, POM roller | Color: N/A
VM120U-01-07APorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Cross roller plunger, POM roller | Color: N/A
VM130U-01-07APorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Cross roller plunger, POM roller | Color: N/A
VM122-M5-07APorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Cross roller plunger, POM roller | Color: N/A
VM132-M5-07APorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Cross roller plunger, POM roller | Color: N/A
VM120-01-07SAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Cross roller plunger, steel roller | Color: N/A
VM130-01-07SAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Cross roller plunger, steel roller | Color: N/A
VM120U-01-07SAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Cross roller plunger, steel roller | Color: N/A
VM130U-01-07SAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Cross roller plunger, steel roller | Color: N/A
VM122-M5-07SAPorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Cross roller plunger, steel roller | Color: N/A
VM132-M5-07SAPorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Cross roller plunger, steel roller | Color: N/A
VM120-01-08APorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Flip toggle | Color: N/A
VM130-01-08APorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Flip toggle | Color: N/A
VM120U-01-08APorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Flip toggle | Color: N/A
VM130U-01-08APorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Flip toggle | Color: N/A
VM122-M5-08APorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Flip toggle | Color: N/A
VM132-M5-08APorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Flip toggle | Color: N/A
VM120-01-30RAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Red
VM130-01-30RAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Red
VM120U-01-30RAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (mushroom) | Color: Red
VM130U-01-30RAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (mushroom) | Color: Red
VM122-M5-30RAPorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Red
VM132-M5-30RAPorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Red
VM120-01-30BAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Black
VM130-01-30BAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Black
VM120U-01-30BAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (mushroom) | Color: Black
VM130U-01-30BAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (mushroom) | Color: Black
VM122-M5-30BAPorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Black
VM132-M5-30BAPorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Black
VM120-01-30GAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Green
VM130-01-30GAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Green
VM120U-01-30GAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (mushroom) | Color: Green
VM130U-01-30GAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (mushroom) | Color: Green
VM122-M5-30GAPorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Green
VM132-M5-30GAPorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Green
VM120-01-30YAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Yellow
VM130-01-30YAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Yellow
VM120U-01-30YAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (mushroom) | Color: Yellow
VM130U-01-30YAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (mushroom) | Color: Yellow
VM122-M5-30YAPorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Yellow
VM132-M5-30YAPorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (mushroom) | Color: Yellow
VM120-01-32RAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Red
VM130-01-32RAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Red
VM120U-01-32RAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (extended) | Color: Red
VM130U-01-32RAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (extended) | Color: Red
VM122-M5-32RAPorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Red
VM132-M5-32RAPorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Red
VM120-01-32BAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Black
VM130-01-32BAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Black
VM120U-01-32BAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (extended) | Color: Black
VM130U-01-32BAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (extended) | Color: Black
VM122-M5-32BAPorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Black
VM132-M5-32BAPorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Black
VM120-01-32GAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Green
VM130-01-32GAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Green
VM120U-01-32GAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (extended) | Color: Green
VM130U-01-32GAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (extended) | Color: Green
VM122-M5-32GAPorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Green
VM132-M5-32GAPorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Green
VM120-01-32YAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Yellow
VM130-01-32YAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Yellow
VM120U-01-32YAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (extended) | Color: Yellow
VM130U-01-32YAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (extended) | Color: Yellow
VM122-M5-32YAPorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Yellow
VM132-M5-32YAPorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (extended) | Color: Yellow
VM120-01-33APorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (flush) | Color: 4-color set (R/B/G/Y)
VM130-01-33APorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Push button (flush) | Color: 4-color set (R/B/G/Y)
VM120U-01-33APorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (flush) | Color: 4-color set (R/B/G/Y)
VM130U-01-33APorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Push button (flush) | Color: 4-color set (R/B/G/Y)
VM122-M5-33APorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (flush) | Color: 4-color set (R/B/G/Y)
VM132-M5-33APorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Push button (flush) | Color: 4-color set (R/B/G/Y)
VM120-01-34RAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Red
VM130-01-34RAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Red
VM120U-01-34RAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Selector (2-position) | Color: Red
VM130U-01-34RAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Selector (2-position) | Color: Red
VM122-M5-34RAPorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Red
VM132-M5-34RAPorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Red
VM120-01-34BAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Black
VM130-01-34BAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Black
VM120U-01-34BAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Selector (2-position) | Color: Black
VM130U-01-34BAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Selector (2-position) | Color: Black
VM122-M5-34BAPorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Black
VM132-M5-34BAPorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Black
VM120-01-34GAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Green
VM130-01-34GAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Green
VM120U-01-34GAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Selector (2-position) | Color: Green
VM130U-01-34GAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Selector (2-position) | Color: Green
VM122-M5-34GAPorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Green
VM132-M5-34GAPorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Green
VM120-01-34YAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Yellow
VM130-01-34YAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Yellow
VM120U-01-34YAPorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Selector (2-position) | Color: Yellow
VM130U-01-34YAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Selector (2-position) | Color: Yellow
VM122-M5-34YAPorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Yellow
VM132-M5-34YAPorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Selector (2-position) | Color: Yellow
VM120-01-36APorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Key selector (2-position) | Color: N/A
VM130-01-36APorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Long | Actuator: Key selector (2-position) | Color: N/A
VM120U-01-36APorts: 2-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Key selector (2-position) | Color: N/A
VM130U-01-36APorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Long | Actuator: Key selector (2-position) | Color: N/A
VM122-M5-36APorts: 2-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Key selector (2-position) | Color: N/A
VM132-M5-36APorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Long | Actuator: Key selector (2-position) | Color: N/A
VM131-01-35RAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Red
VM151-01-35RAPorts: 5-port (3-pos selector) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Red
VM131U-01-35RAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Selector (3-position) | Color: Red
VM151U-01-35RAPorts: 5-port (3-pos selector) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Selector (3-position) | Color: Red
VM133-M5-35RAPorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Red
VM153-M5-35RAPorts: 5-port (3-pos selector) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Red
VM131-01-35BAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Black
VM151-01-35BAPorts: 5-port (3-pos selector) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Black
VM131U-01-35BAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Selector (3-position) | Color: Black
VM151U-01-35BAPorts: 5-port (3-pos selector) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Selector (3-position) | Color: Black
VM133-M5-35BAPorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Black
VM153-M5-35BAPorts: 5-port (3-pos selector) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Black
VM131-01-35GAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Green
VM151-01-35GAPorts: 5-port (3-pos selector) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Green
VM131U-01-35GAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Selector (3-position) | Color: Green
VM151U-01-35GAPorts: 5-port (3-pos selector) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Selector (3-position) | Color: Green
VM133-M5-35GAPorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Green
VM153-M5-35GAPorts: 5-port (3-pos selector) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Green
VM131-01-35YAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Yellow
VM151-01-35YAPorts: 5-port (3-pos selector) | Piping: Side ported, Rc1/8 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Yellow
VM131U-01-35YAPorts: 3-port (N.C.) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Selector (3-position) | Color: Yellow
VM151U-01-35YAPorts: 5-port (3-pos selector) | Piping: Side ported, Rc1/8 | Body: Threaded for bottom mounting | Plunger: Short | Actuator: Selector (3-position) | Color: Yellow
VM133-M5-35YAPorts: 3-port (N.C.) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Yellow
VM153-M5-35YAPorts: 5-port (3-pos selector) | Piping: Bottom ported, M5 | Body: Standard | Plunger: Short | Actuator: Selector (3-position) | Color: Yellow

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
