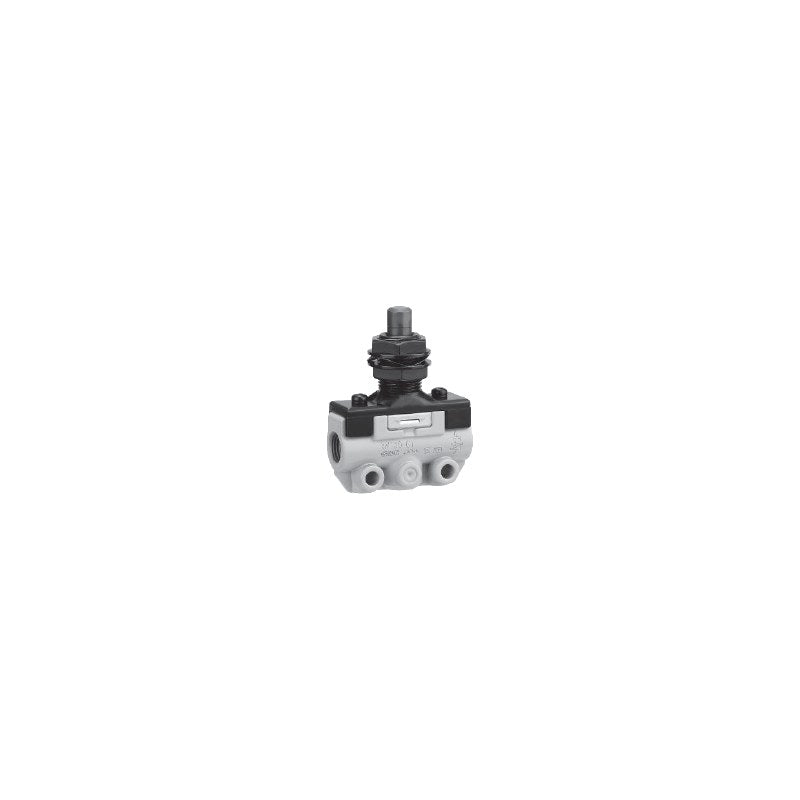

SMC VM1000 Micro Mechanical Valve (Barb Fitting, 2/3-Port)

SMC VM1000 Micro Mechanical Valve (Barb Fitting, 2/3-Port)

SMC VM1000 series micro mechanical valve, an N.C. poppet valve with hose nipple connections for ø4 tubing, in 2-port and 3-port, side or bottom ported versions.

Key features

  • Very compact body with small installation space; hose nipple (barb) tube connection
  • N.C. poppet valve, 2-port or 3-port, side or bottom ported
  • Large over travel; total travel 4.8 mm (2.5 mm semi-standard on basic type)
  • Actuators: basic, roller lever, one-way roller lever, flip toggle, push button (red, green, black)

Specifications

Valve type N.C. poppet
Fluid Air
Operating pressure 0 to 0.8 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Flow rate C [dm³/(s·bar)] 0.2
Cv 0.05
Lubrication Not required (use ISO VG32 turbine oil if lubricated)
Connection Hose nipple for ø4 tube
Total travel 4.8 mm (standard)
Source SMC Korea catalog VM/VZM/VFM (SMCKR_VM_VZM_VFM.pdf), p. 1407-1408 (PDF p. 1-2)
VM1000-4N-00 Ports: 3-port | Piping: Side ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Basic type (no actuator) | Color: N/A
VM1100-4N-00 Ports: 2-port | Piping: Side ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Basic type (no actuator) | Color: N/A
VM1010-4N-00 Ports: 3-port | Piping: Bottom ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Basic type (no actuator) | Color: N/A
VM1110-4N-00 Ports: 2-port | Piping: Bottom ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Basic type (no actuator) | Color: N/A
VM1000-4N-01 Ports: 3-port | Piping: Side ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Roller lever | Color: N/A
VM1100-4N-01 Ports: 2-port | Piping: Side ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Roller lever | Color: N/A
VM1010-4N-01 Ports: 3-port | Piping: Bottom ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Roller lever | Color: N/A
VM1110-4N-01 Ports: 2-port | Piping: Bottom ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Roller lever | Color: N/A
VM1000-4N-02 Ports: 3-port | Piping: Side ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: One-way roller lever | Color: N/A
VM1100-4N-02 Ports: 2-port | Piping: Side ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: One-way roller lever | Color: N/A
VM1010-4N-02 Ports: 3-port | Piping: Bottom ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: One-way roller lever | Color: N/A
VM1110-4N-02 Ports: 2-port | Piping: Bottom ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: One-way roller lever | Color: N/A
VM1000-4N-08 Ports: 3-port | Piping: Side ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Flip toggle | Color: N/A
VM1100-4N-08 Ports: 2-port | Piping: Side ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Flip toggle | Color: N/A
VM1010-4N-08 Ports: 3-port | Piping: Bottom ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Flip toggle | Color: N/A
VM1110-4N-08 Ports: 2-port | Piping: Bottom ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Flip toggle | Color: N/A
VM1000-4N-32R Ports: 3-port | Piping: Side ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Push button (extended) | Color: Red
VM1100-4N-32R Ports: 2-port | Piping: Side ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Push button (extended) | Color: Red
VM1010-4N-32R Ports: 3-port | Piping: Bottom ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Push button (extended) | Color: Red
VM1110-4N-32R Ports: 2-port | Piping: Bottom ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Push button (extended) | Color: Red
VM1000-4N-32B Ports: 3-port | Piping: Side ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Push button (extended) | Color: Black
VM1100-4N-32B Ports: 2-port | Piping: Side ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Push button (extended) | Color: Black
VM1010-4N-32B Ports: 3-port | Piping: Bottom ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Push button (extended) | Color: Black
VM1110-4N-32B Ports: 2-port | Piping: Bottom ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Push button (extended) | Color: Black
VM1000-4N-32G Ports: 3-port | Piping: Side ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Push button (extended) | Color: Green
VM1100-4N-32G Ports: 2-port | Piping: Side ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Push button (extended) | Color: Green
VM1010-4N-32G Ports: 3-port | Piping: Bottom ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Push button (extended) | Color: Green
VM1110-4N-32G Ports: 2-port | Piping: Bottom ported | Tube: Nylon ø4/2.5 (T0425) | Actuator: Push button (extended) | Color: Green
VM1000-4NU-00 Ports: 3-port | Piping: Side ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Basic type (no actuator) | Color: N/A
VM1100-4NU-00 Ports: 2-port | Piping: Side ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Basic type (no actuator) | Color: N/A
VM1010-4NU-00 Ports: 3-port | Piping: Bottom ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Basic type (no actuator) | Color: N/A
VM1110-4NU-00 Ports: 2-port | Piping: Bottom ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Basic type (no actuator) | Color: N/A
VM1000-4NU-01 Ports: 3-port | Piping: Side ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Roller lever | Color: N/A
VM1100-4NU-01 Ports: 2-port | Piping: Side ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Roller lever | Color: N/A
VM1010-4NU-01 Ports: 3-port | Piping: Bottom ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Roller lever | Color: N/A
VM1110-4NU-01 Ports: 2-port | Piping: Bottom ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Roller lever | Color: N/A
VM1000-4NU-02 Ports: 3-port | Piping: Side ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: One-way roller lever | Color: N/A
VM1100-4NU-02 Ports: 2-port | Piping: Side ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: One-way roller lever | Color: N/A
VM1010-4NU-02 Ports: 3-port | Piping: Bottom ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: One-way roller lever | Color: N/A
VM1110-4NU-02 Ports: 2-port | Piping: Bottom ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: One-way roller lever | Color: N/A
VM1000-4NU-08 Ports: 3-port | Piping: Side ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Flip toggle | Color: N/A
VM1100-4NU-08 Ports: 2-port | Piping: Side ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Flip toggle | Color: N/A
VM1010-4NU-08 Ports: 3-port | Piping: Bottom ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Flip toggle | Color: N/A
VM1110-4NU-08 Ports: 2-port | Piping: Bottom ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Flip toggle | Color: N/A
VM1000-4NU-32R Ports: 3-port | Piping: Side ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Push button (extended) | Color: Red
VM1100-4NU-32R Ports: 2-port | Piping: Side ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Push button (extended) | Color: Red
VM1010-4NU-32R Ports: 3-port | Piping: Bottom ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Push button (extended) | Color: Red
VM1110-4NU-32R Ports: 2-port | Piping: Bottom ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Push button (extended) | Color: Red
VM1000-4NU-32B Ports: 3-port | Piping: Side ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Push button (extended) | Color: Black
VM1100-4NU-32B Ports: 2-port | Piping: Side ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Push button (extended) | Color: Black
VM1010-4NU-32B Ports: 3-port | Piping: Bottom ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Push button (extended) | Color: Black
VM1110-4NU-32B Ports: 2-port | Piping: Bottom ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Push button (extended) | Color: Black
VM1000-4NU-32G Ports: 3-port | Piping: Side ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Push button (extended) | Color: Green
VM1100-4NU-32G Ports: 2-port | Piping: Side ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Push button (extended) | Color: Green
VM1010-4NU-32G Ports: 3-port | Piping: Bottom ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Push button (extended) | Color: Green
VM1110-4NU-32G Ports: 2-port | Piping: Bottom ported | Tube: ø4/3 nylon, ø4/2.5 soft nylon or PU | Actuator: Push button (extended) | Color: Green
