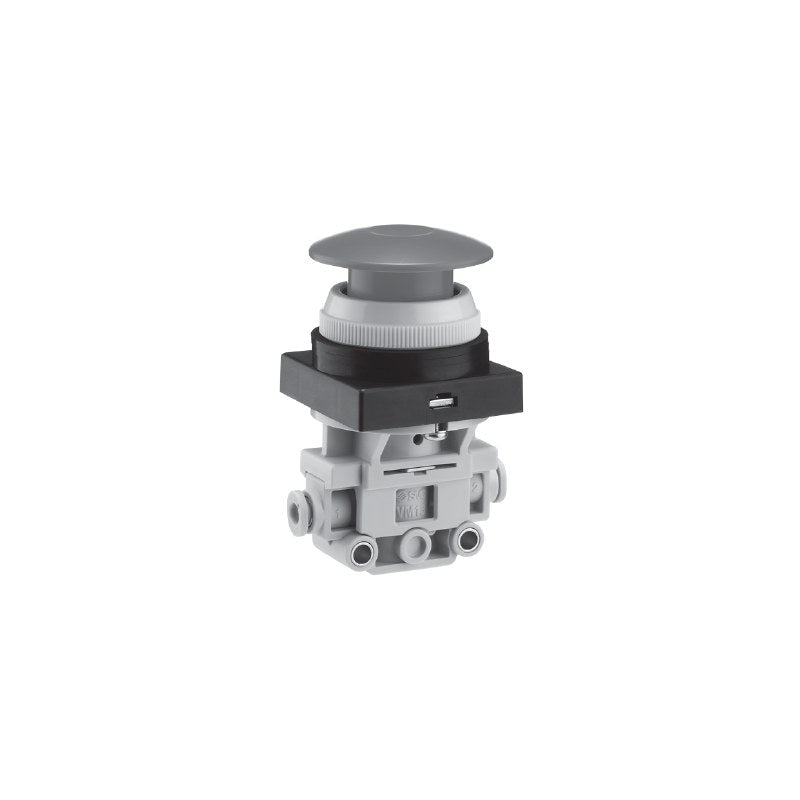

SMC VM100F 2/3-Port Mechanical Valve (One-touch Fittings)

SMC VM100F 2/3-Port Mechanical Valve (One-touch Fittings)

SMC VM100F series 2-port and 3-port mechanical valve with resin body and built-in one-touch fittings for metric or inch tubing, side or bottom ported.

Key features

  • Resin body with built-in one-touch fittings: 12 g, about 80% lighter than VM100 with separate fittings
  • Tube OD ø3.2, ø4, ø6 mm and ø1/8, ø5/32, ø1/4 in (side ported); bottom ported up to ø4 mm / ø5/32 in
  • Mounting compatible with VM100 (same mounting pitch and height); vacuum use to -100 kPa
  • Full actuator range: rollers, plungers, flip toggle, push buttons, selectors and key selector; four button colors
  • Bracket (-B, side ported) and miniature air indicator (Z, bottom ported) as suffix options

Specifications

Fluid Air and inert gas
Operating pressure range -100 kPa to 0.7 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Applicable tubing Nylon, soft nylon, polyurethane, FEP, PFA
Lubrication Not required
Flow rate C [dm³/(s·bar)] 0.35 to 0.45 depending on tube size
Weight (basic type) 12 g side ported, 15 g bottom ported
Bracket VM1-B (side ported only)
Source SMC Korea catalog VM100F (SMCKR_VM100F.pdf), p. 1391-1392 (PDF p. 3-4)
VM120F-23-00 Ports: 2-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø3.2 mm | Actuator: Basic type (no actuator) | Color: N/A
VM120F-04-00 Ports: 2-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø4 mm | Actuator: Basic type (no actuator) | Color: N/A
VM120F-06-00 Ports: 2-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø6 mm | Actuator: Basic type (no actuator) | Color: N/A
VM120F-01-00 Ports: 2-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø1/8 in | Actuator: Basic type (no actuator) | Color: N/A
VM120F-03-00 Ports: 2-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø5/32 in | Actuator: Basic type (no actuator) | Color: N/A
VM120F-07-00 Ports: 2-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø1/4 in | Actuator: Basic type (no actuator) | Color: N/A
VM130F-23-00 Ports: 3-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø3.2 mm | Actuator: Basic type (no actuator) | Color: N/A
VM130F-04-00 Ports: 3-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø4 mm | Actuator: Basic type (no actuator) | Color: N/A
VM130F-06-00 Ports: 3-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø6 mm | Actuator: Basic type (no actuator) | Color: N/A
VM130F-01-00 Ports: 3-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø1/8 in | Actuator: Basic type (no actuator) | Color: N/A
VM130F-03-00 Ports: 3-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø5/32 in | Actuator: Basic type (no actuator) | Color: N/A
VM130F-07-00 Ports: 3-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø1/4 in | Actuator: Basic type (no actuator) | Color: N/A
VM122F-23-00 Ports: 2-port (N.C.) | Piping: Bottom ported, long plunger | Tube OD: ø3.2 mm | Actuator: Basic type (no actuator) | Color: N/A
VM122F-04-00 Ports: 2-port (N.C.) | Piping: Bottom ported, long plunger | Tube OD: ø4 mm | Actuator: Basic type (no actuator) | Color: N/A
VM122F-01-00 Ports: 2-port (N.C.) | Piping: Bottom ported, long plunger | Tube OD: ø1/8 in | Actuator: Basic type (no actuator) | Color: N/A
VM122F-03-00 Ports: 2-port (N.C.) | Piping: Bottom ported, long plunger | Tube OD: ø5/32 in | Actuator: Basic type (no actuator) | Color: N/A
VM132F-23-00 Ports: 3-port (N.C.) | Piping: Bottom ported, long plunger | Tube OD: ø3.2 mm | Actuator: Basic type (no actuator) | Color: N/A
VM132F-04-00 Ports: 3-port (N.C.) | Piping: Bottom ported, long plunger | Tube OD: ø4 mm | Actuator: Basic type (no actuator) | Color: N/A
VM132F-01-00 Ports: 3-port (N.C.) | Piping: Bottom ported, long plunger | Tube OD: ø1/8 in | Actuator: Basic type (no actuator) | Color: N/A
VM132F-03-00 Ports: 3-port (N.C.) | Piping: Bottom ported, long plunger | Tube OD: ø5/32 in | Actuator: Basic type (no actuator) | Color: N/A
VM121F-23-00 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Basic type (no actuator) | Color: N/A
VM121F-04-00 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Basic type (no actuator) | Color: N/A
VM121F-06-00 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Basic type (no actuator) | Color: N/A
VM121F-01-00 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Basic type (no actuator) | Color: N/A
VM121F-03-00 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Basic type (no actuator) | Color: N/A
VM121F-07-00 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Basic type (no actuator) | Color: N/A
VM131F-23-00 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Basic type (no actuator) | Color: N/A
VM131F-04-00 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Basic type (no actuator) | Color: N/A
VM131F-06-00 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Basic type (no actuator) | Color: N/A
VM131F-01-00 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Basic type (no actuator) | Color: N/A
VM131F-03-00 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Basic type (no actuator) | Color: N/A
VM131F-07-00 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Basic type (no actuator) | Color: N/A
VM123F-23-00 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Basic type (no actuator) | Color: N/A
VM123F-04-00 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Basic type (no actuator) | Color: N/A
VM123F-01-00 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Basic type (no actuator) | Color: N/A
VM123F-03-00 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Basic type (no actuator) | Color: N/A
VM133F-23-00 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Basic type (no actuator) | Color: N/A
VM133F-04-00 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Basic type (no actuator) | Color: N/A
VM133F-01-00 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Basic type (no actuator) | Color: N/A
VM133F-03-00 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Basic type (no actuator) | Color: N/A
VM121F-23-01 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller lever, POM roller | Color: N/A
VM121F-04-01 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Roller lever, POM roller | Color: N/A
VM121F-06-01 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Roller lever, POM roller | Color: N/A
VM121F-01-01 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller lever, POM roller | Color: N/A
VM121F-03-01 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller lever, POM roller | Color: N/A
VM121F-07-01 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Roller lever, POM roller | Color: N/A
VM131F-23-01 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller lever, POM roller | Color: N/A
VM131F-04-01 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Roller lever, POM roller | Color: N/A
VM131F-06-01 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Roller lever, POM roller | Color: N/A
VM131F-01-01 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller lever, POM roller | Color: N/A
VM131F-03-01 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller lever, POM roller | Color: N/A
VM131F-07-01 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Roller lever, POM roller | Color: N/A
VM123F-23-01 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller lever, POM roller | Color: N/A
VM123F-04-01 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Roller lever, POM roller | Color: N/A
VM123F-01-01 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller lever, POM roller | Color: N/A
VM123F-03-01 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller lever, POM roller | Color: N/A
VM133F-23-01 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller lever, POM roller | Color: N/A
VM133F-04-01 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Roller lever, POM roller | Color: N/A
VM133F-01-01 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller lever, POM roller | Color: N/A
VM133F-03-01 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller lever, POM roller | Color: N/A
VM121F-23-01S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller lever, steel roller | Color: N/A
VM121F-04-01S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Roller lever, steel roller | Color: N/A
VM121F-06-01S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Roller lever, steel roller | Color: N/A
VM121F-01-01S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller lever, steel roller | Color: N/A
VM121F-03-01S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller lever, steel roller | Color: N/A
VM121F-07-01S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Roller lever, steel roller | Color: N/A
VM131F-23-01S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller lever, steel roller | Color: N/A
VM131F-04-01S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Roller lever, steel roller | Color: N/A
VM131F-06-01S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Roller lever, steel roller | Color: N/A
VM131F-01-01S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller lever, steel roller | Color: N/A
VM131F-03-01S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller lever, steel roller | Color: N/A
VM131F-07-01S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Roller lever, steel roller | Color: N/A
VM123F-23-01S Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller lever, steel roller | Color: N/A
VM123F-04-01S Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Roller lever, steel roller | Color: N/A
VM123F-01-01S Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller lever, steel roller | Color: N/A
VM123F-03-01S Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller lever, steel roller | Color: N/A
VM133F-23-01S Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller lever, steel roller | Color: N/A
VM133F-04-01S Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Roller lever, steel roller | Color: N/A
VM133F-01-01S Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller lever, steel roller | Color: N/A
VM133F-03-01S Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller lever, steel roller | Color: N/A
VM121F-23-02 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: One-way roller lever, POM roller | Color: N/A
VM121F-04-02 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: One-way roller lever, POM roller | Color: N/A
VM121F-06-02 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: One-way roller lever, POM roller | Color: N/A
VM121F-01-02 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: One-way roller lever, POM roller | Color: N/A
VM121F-03-02 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: One-way roller lever, POM roller | Color: N/A
VM121F-07-02 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: One-way roller lever, POM roller | Color: N/A
VM131F-23-02 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: One-way roller lever, POM roller | Color: N/A
VM131F-04-02 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: One-way roller lever, POM roller | Color: N/A
VM131F-06-02 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: One-way roller lever, POM roller | Color: N/A
VM131F-01-02 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: One-way roller lever, POM roller | Color: N/A
VM131F-03-02 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: One-way roller lever, POM roller | Color: N/A
VM131F-07-02 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: One-way roller lever, POM roller | Color: N/A
VM123F-23-02 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: One-way roller lever, POM roller | Color: N/A
VM123F-04-02 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: One-way roller lever, POM roller | Color: N/A
VM123F-01-02 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: One-way roller lever, POM roller | Color: N/A
VM123F-03-02 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: One-way roller lever, POM roller | Color: N/A
VM133F-23-02 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: One-way roller lever, POM roller | Color: N/A
VM133F-04-02 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: One-way roller lever, POM roller | Color: N/A
VM133F-01-02 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: One-way roller lever, POM roller | Color: N/A
VM133F-03-02 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: One-way roller lever, POM roller | Color: N/A
VM121F-23-02S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: One-way roller lever, steel roller | Color: N/A
VM121F-04-02S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: One-way roller lever, steel roller | Color: N/A
VM121F-06-02S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: One-way roller lever, steel roller | Color: N/A
VM121F-01-02S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: One-way roller lever, steel roller | Color: N/A
VM121F-03-02S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: One-way roller lever, steel roller | Color: N/A
VM121F-07-02S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: One-way roller lever, steel roller | Color: N/A
VM131F-23-02S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: One-way roller lever, steel roller | Color: N/A
VM131F-04-02S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: One-way roller lever, steel roller | Color: N/A
VM131F-06-02S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: One-way roller lever, steel roller | Color: N/A
VM131F-01-02S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: One-way roller lever, steel roller | Color: N/A
VM131F-03-02S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: One-way roller lever, steel roller | Color: N/A
VM131F-07-02S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: One-way roller lever, steel roller | Color: N/A
VM123F-23-02S Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: One-way roller lever, steel roller | Color: N/A
VM123F-04-02S Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: One-way roller lever, steel roller | Color: N/A
VM123F-01-02S Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: One-way roller lever, steel roller | Color: N/A
VM123F-03-02S Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: One-way roller lever, steel roller | Color: N/A
VM133F-23-02S Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: One-way roller lever, steel roller | Color: N/A
VM133F-04-02S Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: One-way roller lever, steel roller | Color: N/A
VM133F-01-02S Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: One-way roller lever, steel roller | Color: N/A
VM133F-03-02S Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: One-way roller lever, steel roller | Color: N/A
VM121F-23-05 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Straight plunger | Color: N/A
VM121F-04-05 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Straight plunger | Color: N/A
VM121F-06-05 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Straight plunger | Color: N/A
VM121F-01-05 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Straight plunger | Color: N/A
VM121F-03-05 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Straight plunger | Color: N/A
VM121F-07-05 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Straight plunger | Color: N/A
VM131F-23-05 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Straight plunger | Color: N/A
VM131F-04-05 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Straight plunger | Color: N/A
VM131F-06-05 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Straight plunger | Color: N/A
VM131F-01-05 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Straight plunger | Color: N/A
VM131F-03-05 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Straight plunger | Color: N/A
VM131F-07-05 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Straight plunger | Color: N/A
VM123F-23-05 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Straight plunger | Color: N/A
VM123F-04-05 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Straight plunger | Color: N/A
VM123F-01-05 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Straight plunger | Color: N/A
VM123F-03-05 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Straight plunger | Color: N/A
VM133F-23-05 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Straight plunger | Color: N/A
VM133F-04-05 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Straight plunger | Color: N/A
VM133F-01-05 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Straight plunger | Color: N/A
VM133F-03-05 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Straight plunger | Color: N/A
VM121F-23-06 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller plunger, POM roller | Color: N/A
VM121F-04-06 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Roller plunger, POM roller | Color: N/A
VM121F-06-06 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Roller plunger, POM roller | Color: N/A
VM121F-01-06 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller plunger, POM roller | Color: N/A
VM121F-03-06 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller plunger, POM roller | Color: N/A
VM121F-07-06 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Roller plunger, POM roller | Color: N/A
VM131F-23-06 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller plunger, POM roller | Color: N/A
VM131F-04-06 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Roller plunger, POM roller | Color: N/A
VM131F-06-06 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Roller plunger, POM roller | Color: N/A
VM131F-01-06 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller plunger, POM roller | Color: N/A
VM131F-03-06 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller plunger, POM roller | Color: N/A
VM131F-07-06 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Roller plunger, POM roller | Color: N/A
VM123F-23-06 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller plunger, POM roller | Color: N/A
VM123F-04-06 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Roller plunger, POM roller | Color: N/A
VM123F-01-06 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller plunger, POM roller | Color: N/A
VM123F-03-06 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller plunger, POM roller | Color: N/A
VM133F-23-06 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller plunger, POM roller | Color: N/A
VM133F-04-06 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Roller plunger, POM roller | Color: N/A
VM133F-01-06 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller plunger, POM roller | Color: N/A
VM133F-03-06 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller plunger, POM roller | Color: N/A
VM121F-23-06S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller plunger, steel roller | Color: N/A
VM121F-04-06S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Roller plunger, steel roller | Color: N/A
VM121F-06-06S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Roller plunger, steel roller | Color: N/A
VM121F-01-06S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller plunger, steel roller | Color: N/A
VM121F-03-06S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller plunger, steel roller | Color: N/A
VM121F-07-06S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Roller plunger, steel roller | Color: N/A
VM131F-23-06S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller plunger, steel roller | Color: N/A
VM131F-04-06S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Roller plunger, steel roller | Color: N/A
VM131F-06-06S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Roller plunger, steel roller | Color: N/A
VM131F-01-06S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller plunger, steel roller | Color: N/A
VM131F-03-06S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller plunger, steel roller | Color: N/A
VM131F-07-06S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Roller plunger, steel roller | Color: N/A
VM123F-23-06S Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller plunger, steel roller | Color: N/A
VM123F-04-06S Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Roller plunger, steel roller | Color: N/A
VM123F-01-06S Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller plunger, steel roller | Color: N/A
VM123F-03-06S Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller plunger, steel roller | Color: N/A
VM133F-23-06S Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller plunger, steel roller | Color: N/A
VM133F-04-06S Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Roller plunger, steel roller | Color: N/A
VM133F-01-06S Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller plunger, steel roller | Color: N/A
VM133F-03-06S Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller plunger, steel roller | Color: N/A
VM121F-23-07 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Cross roller plunger, POM roller | Color: N/A
VM121F-04-07 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Cross roller plunger, POM roller | Color: N/A
VM121F-06-07 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Cross roller plunger, POM roller | Color: N/A
VM121F-01-07 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Cross roller plunger, POM roller | Color: N/A
VM121F-03-07 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Cross roller plunger, POM roller | Color: N/A
VM121F-07-07 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Cross roller plunger, POM roller | Color: N/A
VM131F-23-07 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Cross roller plunger, POM roller | Color: N/A
VM131F-04-07 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Cross roller plunger, POM roller | Color: N/A
VM131F-06-07 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Cross roller plunger, POM roller | Color: N/A
VM131F-01-07 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Cross roller plunger, POM roller | Color: N/A
VM131F-03-07 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Cross roller plunger, POM roller | Color: N/A
VM131F-07-07 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Cross roller plunger, POM roller | Color: N/A
VM123F-23-07 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Cross roller plunger, POM roller | Color: N/A
VM123F-04-07 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Cross roller plunger, POM roller | Color: N/A
VM123F-01-07 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Cross roller plunger, POM roller | Color: N/A
VM123F-03-07 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Cross roller plunger, POM roller | Color: N/A
VM133F-23-07 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Cross roller plunger, POM roller | Color: N/A
VM133F-04-07 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Cross roller plunger, POM roller | Color: N/A
VM133F-01-07 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Cross roller plunger, POM roller | Color: N/A
VM133F-03-07 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Cross roller plunger, POM roller | Color: N/A
VM121F-23-07S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Cross roller plunger, steel roller | Color: N/A
VM121F-04-07S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Cross roller plunger, steel roller | Color: N/A
VM121F-06-07S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Cross roller plunger, steel roller | Color: N/A
VM121F-01-07S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Cross roller plunger, steel roller | Color: N/A
VM121F-03-07S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Cross roller plunger, steel roller | Color: N/A
VM121F-07-07S Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Cross roller plunger, steel roller | Color: N/A
VM131F-23-07S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Cross roller plunger, steel roller | Color: N/A
VM131F-04-07S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Cross roller plunger, steel roller | Color: N/A
VM131F-06-07S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Cross roller plunger, steel roller | Color: N/A
VM131F-01-07S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Cross roller plunger, steel roller | Color: N/A
VM131F-03-07S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Cross roller plunger, steel roller | Color: N/A
VM131F-07-07S Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Cross roller plunger, steel roller | Color: N/A
VM123F-23-07S Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Cross roller plunger, steel roller | Color: N/A
VM123F-04-07S Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Cross roller plunger, steel roller | Color: N/A
VM123F-01-07S Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Cross roller plunger, steel roller | Color: N/A
VM123F-03-07S Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Cross roller plunger, steel roller | Color: N/A
VM133F-23-07S Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Cross roller plunger, steel roller | Color: N/A
VM133F-04-07S Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Cross roller plunger, steel roller | Color: N/A
VM133F-01-07S Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Cross roller plunger, steel roller | Color: N/A
VM133F-03-07S Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Cross roller plunger, steel roller | Color: N/A
VM121F-23-08 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Flip toggle | Color: N/A
VM121F-04-08 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Flip toggle | Color: N/A
VM121F-06-08 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Flip toggle | Color: N/A
VM121F-01-08 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Flip toggle | Color: N/A
VM121F-03-08 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Flip toggle | Color: N/A
VM121F-07-08 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Flip toggle | Color: N/A
VM131F-23-08 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Flip toggle | Color: N/A
VM131F-04-08 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Flip toggle | Color: N/A
VM131F-06-08 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Flip toggle | Color: N/A
VM131F-01-08 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Flip toggle | Color: N/A
VM131F-03-08 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Flip toggle | Color: N/A
VM131F-07-08 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Flip toggle | Color: N/A
VM123F-23-08 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Flip toggle | Color: N/A
VM123F-04-08 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Flip toggle | Color: N/A
VM123F-01-08 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Flip toggle | Color: N/A
VM123F-03-08 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Flip toggle | Color: N/A
VM133F-23-08 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Flip toggle | Color: N/A
VM133F-04-08 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Flip toggle | Color: N/A
VM133F-01-08 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Flip toggle | Color: N/A
VM133F-03-08 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Flip toggle | Color: N/A
VM121F-23-30R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Red
VM121F-04-30R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Red
VM121F-06-30R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (mushroom) | Color: Red
VM121F-01-30R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Red
VM121F-03-30R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Red
VM121F-07-30R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (mushroom) | Color: Red
VM131F-23-30R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Red
VM131F-04-30R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Red
VM131F-06-30R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (mushroom) | Color: Red
VM131F-01-30R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Red
VM131F-03-30R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Red
VM131F-07-30R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (mushroom) | Color: Red
VM123F-23-30R Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Red
VM123F-04-30R Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Red
VM123F-01-30R Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Red
VM123F-03-30R Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Red
VM133F-23-30R Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Red
VM133F-04-30R Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Red
VM133F-01-30R Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Red
VM133F-03-30R Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Red
VM121F-23-30B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Black
VM121F-04-30B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Black
VM121F-06-30B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (mushroom) | Color: Black
VM121F-01-30B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Black
VM121F-03-30B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Black
VM121F-07-30B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (mushroom) | Color: Black
VM131F-23-30B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Black
VM131F-04-30B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Black
VM131F-06-30B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (mushroom) | Color: Black
VM131F-01-30B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Black
VM131F-03-30B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Black
VM131F-07-30B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (mushroom) | Color: Black
VM123F-23-30B Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Black
VM123F-04-30B Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Black
VM123F-01-30B Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Black
VM123F-03-30B Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Black
VM133F-23-30B Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Black
VM133F-04-30B Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Black
VM133F-01-30B Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Black
VM133F-03-30B Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Black
VM121F-23-30G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Green
VM121F-04-30G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Green
VM121F-06-30G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (mushroom) | Color: Green
VM121F-01-30G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Green
VM121F-03-30G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Green
VM121F-07-30G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (mushroom) | Color: Green
VM131F-23-30G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Green
VM131F-04-30G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Green
VM131F-06-30G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (mushroom) | Color: Green
VM131F-01-30G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Green
VM131F-03-30G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Green
VM131F-07-30G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (mushroom) | Color: Green
VM123F-23-30G Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Green
VM123F-04-30G Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Green
VM123F-01-30G Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Green
VM123F-03-30G Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Green
VM133F-23-30G Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Green
VM133F-04-30G Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Green
VM133F-01-30G Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Green
VM133F-03-30G Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Green
VM121F-23-30Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Yellow
VM121F-04-30Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Yellow
VM121F-06-30Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (mushroom) | Color: Yellow
VM121F-01-30Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Yellow
VM121F-03-30Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Yellow
VM121F-07-30Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (mushroom) | Color: Yellow
VM131F-23-30Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Yellow
VM131F-04-30Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Yellow
VM131F-06-30Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (mushroom) | Color: Yellow
VM131F-01-30Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Yellow
VM131F-03-30Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Yellow
VM131F-07-30Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (mushroom) | Color: Yellow
VM123F-23-30Y Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Yellow
VM123F-04-30Y Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Yellow
VM123F-01-30Y Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Yellow
VM123F-03-30Y Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Yellow
VM133F-23-30Y Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Yellow
VM133F-04-30Y Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Yellow
VM133F-01-30Y Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Yellow
VM133F-03-30Y Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Yellow
VM121F-23-32R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Red
VM121F-04-32R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Red
VM121F-06-32R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (extended) | Color: Red
VM121F-01-32R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Red
VM121F-03-32R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Red
VM121F-07-32R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (extended) | Color: Red
VM131F-23-32R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Red
VM131F-04-32R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Red
VM131F-06-32R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (extended) | Color: Red
VM131F-01-32R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Red
VM131F-03-32R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Red
VM131F-07-32R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (extended) | Color: Red
VM123F-23-32R Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Red
VM123F-04-32R Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Red
VM123F-01-32R Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Red
VM123F-03-32R Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Red
VM133F-23-32R Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Red
VM133F-04-32R Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Red
VM133F-01-32R Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Red
VM133F-03-32R Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Red
VM121F-23-32B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Black
VM121F-04-32B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Black
VM121F-06-32B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (extended) | Color: Black
VM121F-01-32B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Black
VM121F-03-32B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Black
VM121F-07-32B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (extended) | Color: Black
VM131F-23-32B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Black
VM131F-04-32B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Black
VM131F-06-32B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (extended) | Color: Black
VM131F-01-32B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Black
VM131F-03-32B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Black
VM131F-07-32B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (extended) | Color: Black
VM123F-23-32B Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Black
VM123F-04-32B Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Black
VM123F-01-32B Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Black
VM123F-03-32B Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Black
VM133F-23-32B Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Black
VM133F-04-32B Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Black
VM133F-01-32B Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Black
VM133F-03-32B Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Black
VM121F-23-32G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Green
VM121F-04-32G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Green
VM121F-06-32G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (extended) | Color: Green
VM121F-01-32G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Green
VM121F-03-32G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Green
VM121F-07-32G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (extended) | Color: Green
VM131F-23-32G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Green
VM131F-04-32G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Green
VM131F-06-32G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (extended) | Color: Green
VM131F-01-32G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Green
VM131F-03-32G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Green
VM131F-07-32G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (extended) | Color: Green
VM123F-23-32G Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Green
VM123F-04-32G Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Green
VM123F-01-32G Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Green
VM123F-03-32G Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Green
VM133F-23-32G Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Green
VM133F-04-32G Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Green
VM133F-01-32G Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Green
VM133F-03-32G Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Green
VM121F-23-32Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Yellow
VM121F-04-32Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Yellow
VM121F-06-32Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (extended) | Color: Yellow
VM121F-01-32Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Yellow
VM121F-03-32Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Yellow
VM121F-07-32Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (extended) | Color: Yellow
VM131F-23-32Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Yellow
VM131F-04-32Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Yellow
VM131F-06-32Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (extended) | Color: Yellow
VM131F-01-32Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Yellow
VM131F-03-32Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Yellow
VM131F-07-32Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (extended) | Color: Yellow
VM123F-23-32Y Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Yellow
VM123F-04-32Y Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Yellow
VM123F-01-32Y Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Yellow
VM123F-03-32Y Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Yellow
VM133F-23-32Y Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Yellow
VM133F-04-32Y Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Yellow
VM133F-01-32Y Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Yellow
VM133F-03-32Y Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Yellow
VM121F-23-33R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Red
VM121F-04-33R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Red
VM121F-06-33R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (flush) | Color: Red
VM121F-01-33R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Red
VM121F-03-33R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Red
VM121F-07-33R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (flush) | Color: Red
VM131F-23-33R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Red
VM131F-04-33R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Red
VM131F-06-33R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (flush) | Color: Red
VM131F-01-33R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Red
VM131F-03-33R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Red
VM131F-07-33R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (flush) | Color: Red
VM123F-23-33R Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Red
VM123F-04-33R Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Red
VM123F-01-33R Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Red
VM123F-03-33R Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Red
VM133F-23-33R Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Red
VM133F-04-33R Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Red
VM133F-01-33R Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Red
VM133F-03-33R Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Red
VM121F-23-33B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Black
VM121F-04-33B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Black
VM121F-06-33B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (flush) | Color: Black
VM121F-01-33B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Black
VM121F-03-33B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Black
VM121F-07-33B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (flush) | Color: Black
VM131F-23-33B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Black
VM131F-04-33B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Black
VM131F-06-33B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (flush) | Color: Black
VM131F-01-33B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Black
VM131F-03-33B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Black
VM131F-07-33B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (flush) | Color: Black
VM123F-23-33B Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Black
VM123F-04-33B Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Black
VM123F-01-33B Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Black
VM123F-03-33B Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Black
VM133F-23-33B Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Black
VM133F-04-33B Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Black
VM133F-01-33B Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Black
VM133F-03-33B Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Black
VM121F-23-33G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Green
VM121F-04-33G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Green
VM121F-06-33G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (flush) | Color: Green
VM121F-01-33G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Green
VM121F-03-33G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Green
VM121F-07-33G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (flush) | Color: Green
VM131F-23-33G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Green
VM131F-04-33G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Green
VM131F-06-33G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (flush) | Color: Green
VM131F-01-33G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Green
VM131F-03-33G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Green
VM131F-07-33G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (flush) | Color: Green
VM123F-23-33G Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Green
VM123F-04-33G Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Green
VM123F-01-33G Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Green
VM123F-03-33G Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Green
VM133F-23-33G Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Green
VM133F-04-33G Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Green
VM133F-01-33G Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Green
VM133F-03-33G Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Green
VM121F-23-33Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Yellow
VM121F-04-33Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Yellow
VM121F-06-33Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (flush) | Color: Yellow
VM121F-01-33Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Yellow
VM121F-03-33Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Yellow
VM121F-07-33Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (flush) | Color: Yellow
VM131F-23-33Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Yellow
VM131F-04-33Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Yellow
VM131F-06-33Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (flush) | Color: Yellow
VM131F-01-33Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Yellow
VM131F-03-33Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Yellow
VM131F-07-33Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (flush) | Color: Yellow
VM123F-23-33Y Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Yellow
VM123F-04-33Y Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Yellow
VM123F-01-33Y Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Yellow
VM123F-03-33Y Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Yellow
VM133F-23-33Y Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Yellow
VM133F-04-33Y Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Yellow
VM133F-01-33Y Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Yellow
VM133F-03-33Y Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Yellow
VM121F-23-34R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Red
VM121F-04-34R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Red
VM121F-06-34R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (2-position) | Color: Red
VM121F-01-34R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Red
VM121F-03-34R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Red
VM121F-07-34R Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (2-position) | Color: Red
VM131F-23-34R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Red
VM131F-04-34R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Red
VM131F-06-34R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (2-position) | Color: Red
VM131F-01-34R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Red
VM131F-03-34R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Red
VM131F-07-34R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (2-position) | Color: Red
VM123F-23-34R Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Red
VM123F-04-34R Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Red
VM123F-01-34R Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Red
VM123F-03-34R Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Red
VM133F-23-34R Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Red
VM133F-04-34R Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Red
VM133F-01-34R Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Red
VM133F-03-34R Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Red
VM121F-23-34B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Black
VM121F-04-34B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Black
VM121F-06-34B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (2-position) | Color: Black
VM121F-01-34B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Black
VM121F-03-34B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Black
VM121F-07-34B Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (2-position) | Color: Black
VM131F-23-34B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Black
VM131F-04-34B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Black
VM131F-06-34B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (2-position) | Color: Black
VM131F-01-34B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Black
VM131F-03-34B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Black
VM131F-07-34B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (2-position) | Color: Black
VM123F-23-34B Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Black
VM123F-04-34B Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Black
VM123F-01-34B Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Black
VM123F-03-34B Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Black
VM133F-23-34B Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Black
VM133F-04-34B Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Black
VM133F-01-34B Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Black
VM133F-03-34B Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Black
VM121F-23-34G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Green
VM121F-04-34G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Green
VM121F-06-34G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (2-position) | Color: Green
VM121F-01-34G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Green
VM121F-03-34G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Green
VM121F-07-34G Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (2-position) | Color: Green
VM131F-23-34G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Green
VM131F-04-34G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Green
VM131F-06-34G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (2-position) | Color: Green
VM131F-01-34G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Green
VM131F-03-34G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Green
VM131F-07-34G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (2-position) | Color: Green
VM123F-23-34G Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Green
VM123F-04-34G Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Green
VM123F-01-34G Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Green
VM123F-03-34G Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Green
VM133F-23-34G Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Green
VM133F-04-34G Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Green
VM133F-01-34G Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Green
VM133F-03-34G Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Green
VM121F-23-34Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Yellow
VM121F-04-34Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Yellow
VM121F-06-34Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (2-position) | Color: Yellow
VM121F-01-34Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Yellow
VM121F-03-34Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Yellow
VM121F-07-34Y Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (2-position) | Color: Yellow
VM131F-23-34Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Yellow
VM131F-04-34Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Yellow
VM131F-06-34Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (2-position) | Color: Yellow
VM131F-01-34Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Yellow
VM131F-03-34Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Yellow
VM131F-07-34Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (2-position) | Color: Yellow
VM123F-23-34Y Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Yellow
VM123F-04-34Y Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Yellow
VM123F-01-34Y Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Yellow
VM123F-03-34Y Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Yellow
VM133F-23-34Y Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Yellow
VM133F-04-34Y Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Yellow
VM133F-01-34Y Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Yellow
VM133F-03-34Y Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Yellow
VM121F-23-36 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Key selector (2-position) | Color: N/A
VM121F-04-36 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Key selector (2-position) | Color: N/A
VM121F-06-36 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Key selector (2-position) | Color: N/A
VM121F-01-36 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Key selector (2-position) | Color: N/A
VM121F-03-36 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Key selector (2-position) | Color: N/A
VM121F-07-36 Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Key selector (2-position) | Color: N/A
VM131F-23-36 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Key selector (2-position) | Color: N/A
VM131F-04-36 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Key selector (2-position) | Color: N/A
VM131F-06-36 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Key selector (2-position) | Color: N/A
VM131F-01-36 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Key selector (2-position) | Color: N/A
VM131F-03-36 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Key selector (2-position) | Color: N/A
VM131F-07-36 Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Key selector (2-position) | Color: N/A
VM123F-23-36 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Key selector (2-position) | Color: N/A
VM123F-04-36 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Key selector (2-position) | Color: N/A
VM123F-01-36 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Key selector (2-position) | Color: N/A
VM123F-03-36 Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Key selector (2-position) | Color: N/A
VM133F-23-36 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Key selector (2-position) | Color: N/A
VM133F-04-36 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Key selector (2-position) | Color: N/A
VM133F-01-36 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Key selector (2-position) | Color: N/A
VM133F-03-36 Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Key selector (2-position) | Color: N/A
VM131F-23-35R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Red
VM131F-04-35R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Red
VM131F-06-35R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (3-position) | Color: Red
VM131F-01-35R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Red
VM131F-03-35R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Red
VM131F-07-35R Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (3-position) | Color: Red
VM151F-23-35R Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Red
VM151F-04-35R Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Red
VM151F-06-35R Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (3-position) | Color: Red
VM151F-01-35R Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Red
VM151F-03-35R Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Red
VM151F-07-35R Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (3-position) | Color: Red
VM133F-23-35R Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Red
VM133F-04-35R Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Red
VM133F-01-35R Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Red
VM133F-03-35R Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Red
VM153F-23-35R Ports: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Red
VM153F-04-35R Ports: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Red
VM153F-01-35R Ports: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Red
VM153F-03-35R Ports: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Red
VM131F-23-35B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Black
VM131F-04-35B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Black
VM131F-06-35B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (3-position) | Color: Black
VM131F-01-35B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Black
VM131F-03-35B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Black
VM131F-07-35B Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (3-position) | Color: Black
VM151F-23-35B Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Black
VM151F-04-35B Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Black
VM151F-06-35B Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (3-position) | Color: Black
VM151F-01-35B Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Black
VM151F-03-35B Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Black
VM151F-07-35B Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (3-position) | Color: Black
VM133F-23-35B Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Black
VM133F-04-35B Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Black
VM133F-01-35B Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Black
VM133F-03-35B Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Black
VM153F-23-35B Ports: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Black
VM153F-04-35B Ports: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Black
VM153F-01-35B Ports: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Black
VM153F-03-35B Ports: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Black
VM131F-23-35G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Green
VM131F-04-35G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Green
VM131F-06-35G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (3-position) | Color: Green
VM131F-01-35G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Green
VM131F-03-35G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Green
VM131F-07-35G Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (3-position) | Color: Green
VM151F-23-35G Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Green
VM151F-04-35G Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Green
VM151F-06-35G Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (3-position) | Color: Green
VM151F-01-35G Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Green
VM151F-03-35G Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Green
VM151F-07-35G Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (3-position) | Color: Green
VM133F-23-35G Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Green
VM133F-04-35G Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Green
VM133F-01-35G Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Green
VM133F-03-35G Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Green
VM153F-23-35G Ports: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Green
VM153F-04-35G Ports: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Green
VM153F-01-35G Ports: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Green
VM153F-03-35G Ports: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Green
VM131F-23-35Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Yellow
VM131F-04-35Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Yellow
VM131F-06-35Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (3-position) | Color: Yellow
VM131F-01-35Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Yellow
VM131F-03-35Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Yellow
VM131F-07-35Y Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (3-position) | Color: Yellow
VM151F-23-35Y Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Yellow
VM151F-04-35Y Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Yellow
VM151F-06-35Y Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (3-position) | Color: Yellow
VM151F-01-35Y Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Yellow
VM151F-03-35Y Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Yellow
VM151F-07-35Y Ports: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (3-position) | Color: Yellow
VM133F-23-35Y Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Yellow
VM133F-04-35Y Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Yellow
VM133F-01-35Y Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Yellow
VM133F-03-35Y Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Yellow
VM153F-23-35Y Ports: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Yellow
VM153F-04-35Y Ports: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Yellow
VM153F-01-35Y Ports: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Yellow
VM153F-03-35Y Ports: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Yellow
Mechanical ValvesSMC
660 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VM100F 2/3-Port Mechanical Valve (One-touch Fittings)

Brand SMC·Mechanical Valves

Available part numbers (660)

VM120F-23-00, VM120F-04-00, VM120F-06-00, VM120F-01-00, VM120F-03-00, VM120F-07-00, VM130F-23-00, VM130F-04-00, VM130F-06-00, VM130F-01-00 + 650 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VM120F-23-00Ports: 2-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø3.2 mm | Actuator: Basic type (no actuator) | Color: N/A
VM120F-04-00Ports: 2-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø4 mm | Actuator: Basic type (no actuator) | Color: N/A
VM120F-06-00Ports: 2-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø6 mm | Actuator: Basic type (no actuator) | Color: N/A
VM120F-01-00Ports: 2-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø1/8 in | Actuator: Basic type (no actuator) | Color: N/A
VM120F-03-00Ports: 2-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø5/32 in | Actuator: Basic type (no actuator) | Color: N/A
VM120F-07-00Ports: 2-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø1/4 in | Actuator: Basic type (no actuator) | Color: N/A
VM130F-23-00Ports: 3-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø3.2 mm | Actuator: Basic type (no actuator) | Color: N/A
VM130F-04-00Ports: 3-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø4 mm | Actuator: Basic type (no actuator) | Color: N/A
VM130F-06-00Ports: 3-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø6 mm | Actuator: Basic type (no actuator) | Color: N/A
VM130F-01-00Ports: 3-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø1/8 in | Actuator: Basic type (no actuator) | Color: N/A
VM130F-03-00Ports: 3-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø5/32 in | Actuator: Basic type (no actuator) | Color: N/A
VM130F-07-00Ports: 3-port (N.C.) | Piping: Side ported, long plunger | Tube OD: ø1/4 in | Actuator: Basic type (no actuator) | Color: N/A
VM122F-23-00Ports: 2-port (N.C.) | Piping: Bottom ported, long plunger | Tube OD: ø3.2 mm | Actuator: Basic type (no actuator) | Color: N/A
VM122F-04-00Ports: 2-port (N.C.) | Piping: Bottom ported, long plunger | Tube OD: ø4 mm | Actuator: Basic type (no actuator) | Color: N/A
VM122F-01-00Ports: 2-port (N.C.) | Piping: Bottom ported, long plunger | Tube OD: ø1/8 in | Actuator: Basic type (no actuator) | Color: N/A
VM122F-03-00Ports: 2-port (N.C.) | Piping: Bottom ported, long plunger | Tube OD: ø5/32 in | Actuator: Basic type (no actuator) | Color: N/A
VM132F-23-00Ports: 3-port (N.C.) | Piping: Bottom ported, long plunger | Tube OD: ø3.2 mm | Actuator: Basic type (no actuator) | Color: N/A
VM132F-04-00Ports: 3-port (N.C.) | Piping: Bottom ported, long plunger | Tube OD: ø4 mm | Actuator: Basic type (no actuator) | Color: N/A
VM132F-01-00Ports: 3-port (N.C.) | Piping: Bottom ported, long plunger | Tube OD: ø1/8 in | Actuator: Basic type (no actuator) | Color: N/A
VM132F-03-00Ports: 3-port (N.C.) | Piping: Bottom ported, long plunger | Tube OD: ø5/32 in | Actuator: Basic type (no actuator) | Color: N/A
VM121F-23-00Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Basic type (no actuator) | Color: N/A
VM121F-04-00Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Basic type (no actuator) | Color: N/A
VM121F-06-00Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Basic type (no actuator) | Color: N/A
VM121F-01-00Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Basic type (no actuator) | Color: N/A
VM121F-03-00Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Basic type (no actuator) | Color: N/A
VM121F-07-00Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Basic type (no actuator) | Color: N/A
VM131F-23-00Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Basic type (no actuator) | Color: N/A
VM131F-04-00Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Basic type (no actuator) | Color: N/A
VM131F-06-00Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Basic type (no actuator) | Color: N/A
VM131F-01-00Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Basic type (no actuator) | Color: N/A
VM131F-03-00Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Basic type (no actuator) | Color: N/A
VM131F-07-00Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Basic type (no actuator) | Color: N/A
VM123F-23-00Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Basic type (no actuator) | Color: N/A
VM123F-04-00Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Basic type (no actuator) | Color: N/A
VM123F-01-00Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Basic type (no actuator) | Color: N/A
VM123F-03-00Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Basic type (no actuator) | Color: N/A
VM133F-23-00Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Basic type (no actuator) | Color: N/A
VM133F-04-00Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Basic type (no actuator) | Color: N/A
VM133F-01-00Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Basic type (no actuator) | Color: N/A
VM133F-03-00Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Basic type (no actuator) | Color: N/A
VM121F-23-01Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller lever, POM roller | Color: N/A
VM121F-04-01Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Roller lever, POM roller | Color: N/A
VM121F-06-01Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Roller lever, POM roller | Color: N/A
VM121F-01-01Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller lever, POM roller | Color: N/A
VM121F-03-01Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller lever, POM roller | Color: N/A
VM121F-07-01Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Roller lever, POM roller | Color: N/A
VM131F-23-01Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller lever, POM roller | Color: N/A
VM131F-04-01Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Roller lever, POM roller | Color: N/A
VM131F-06-01Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Roller lever, POM roller | Color: N/A
VM131F-01-01Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller lever, POM roller | Color: N/A
VM131F-03-01Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller lever, POM roller | Color: N/A
VM131F-07-01Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Roller lever, POM roller | Color: N/A
VM123F-23-01Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller lever, POM roller | Color: N/A
VM123F-04-01Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Roller lever, POM roller | Color: N/A
VM123F-01-01Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller lever, POM roller | Color: N/A
VM123F-03-01Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller lever, POM roller | Color: N/A
VM133F-23-01Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller lever, POM roller | Color: N/A
VM133F-04-01Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Roller lever, POM roller | Color: N/A
VM133F-01-01Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller lever, POM roller | Color: N/A
VM133F-03-01Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller lever, POM roller | Color: N/A
VM121F-23-01SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller lever, steel roller | Color: N/A
VM121F-04-01SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Roller lever, steel roller | Color: N/A
VM121F-06-01SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Roller lever, steel roller | Color: N/A
VM121F-01-01SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller lever, steel roller | Color: N/A
VM121F-03-01SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller lever, steel roller | Color: N/A
VM121F-07-01SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Roller lever, steel roller | Color: N/A
VM131F-23-01SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller lever, steel roller | Color: N/A
VM131F-04-01SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Roller lever, steel roller | Color: N/A
VM131F-06-01SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Roller lever, steel roller | Color: N/A
VM131F-01-01SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller lever, steel roller | Color: N/A
VM131F-03-01SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller lever, steel roller | Color: N/A
VM131F-07-01SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Roller lever, steel roller | Color: N/A
VM123F-23-01SPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller lever, steel roller | Color: N/A
VM123F-04-01SPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Roller lever, steel roller | Color: N/A
VM123F-01-01SPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller lever, steel roller | Color: N/A
VM123F-03-01SPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller lever, steel roller | Color: N/A
VM133F-23-01SPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller lever, steel roller | Color: N/A
VM133F-04-01SPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Roller lever, steel roller | Color: N/A
VM133F-01-01SPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller lever, steel roller | Color: N/A
VM133F-03-01SPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller lever, steel roller | Color: N/A
VM121F-23-02Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: One-way roller lever, POM roller | Color: N/A
VM121F-04-02Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: One-way roller lever, POM roller | Color: N/A
VM121F-06-02Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: One-way roller lever, POM roller | Color: N/A
VM121F-01-02Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: One-way roller lever, POM roller | Color: N/A
VM121F-03-02Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: One-way roller lever, POM roller | Color: N/A
VM121F-07-02Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: One-way roller lever, POM roller | Color: N/A
VM131F-23-02Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: One-way roller lever, POM roller | Color: N/A
VM131F-04-02Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: One-way roller lever, POM roller | Color: N/A
VM131F-06-02Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: One-way roller lever, POM roller | Color: N/A
VM131F-01-02Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: One-way roller lever, POM roller | Color: N/A
VM131F-03-02Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: One-way roller lever, POM roller | Color: N/A
VM131F-07-02Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: One-way roller lever, POM roller | Color: N/A
VM123F-23-02Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: One-way roller lever, POM roller | Color: N/A
VM123F-04-02Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: One-way roller lever, POM roller | Color: N/A
VM123F-01-02Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: One-way roller lever, POM roller | Color: N/A
VM123F-03-02Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: One-way roller lever, POM roller | Color: N/A
VM133F-23-02Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: One-way roller lever, POM roller | Color: N/A
VM133F-04-02Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: One-way roller lever, POM roller | Color: N/A
VM133F-01-02Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: One-way roller lever, POM roller | Color: N/A
VM133F-03-02Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: One-way roller lever, POM roller | Color: N/A
VM121F-23-02SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: One-way roller lever, steel roller | Color: N/A
VM121F-04-02SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: One-way roller lever, steel roller | Color: N/A
VM121F-06-02SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: One-way roller lever, steel roller | Color: N/A
VM121F-01-02SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: One-way roller lever, steel roller | Color: N/A
VM121F-03-02SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: One-way roller lever, steel roller | Color: N/A
VM121F-07-02SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: One-way roller lever, steel roller | Color: N/A
VM131F-23-02SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: One-way roller lever, steel roller | Color: N/A
VM131F-04-02SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: One-way roller lever, steel roller | Color: N/A
VM131F-06-02SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: One-way roller lever, steel roller | Color: N/A
VM131F-01-02SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: One-way roller lever, steel roller | Color: N/A
VM131F-03-02SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: One-way roller lever, steel roller | Color: N/A
VM131F-07-02SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: One-way roller lever, steel roller | Color: N/A
VM123F-23-02SPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: One-way roller lever, steel roller | Color: N/A
VM123F-04-02SPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: One-way roller lever, steel roller | Color: N/A
VM123F-01-02SPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: One-way roller lever, steel roller | Color: N/A
VM123F-03-02SPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: One-way roller lever, steel roller | Color: N/A
VM133F-23-02SPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: One-way roller lever, steel roller | Color: N/A
VM133F-04-02SPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: One-way roller lever, steel roller | Color: N/A
VM133F-01-02SPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: One-way roller lever, steel roller | Color: N/A
VM133F-03-02SPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: One-way roller lever, steel roller | Color: N/A
VM121F-23-05Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Straight plunger | Color: N/A
VM121F-04-05Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Straight plunger | Color: N/A
VM121F-06-05Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Straight plunger | Color: N/A
VM121F-01-05Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Straight plunger | Color: N/A
VM121F-03-05Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Straight plunger | Color: N/A
VM121F-07-05Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Straight plunger | Color: N/A
VM131F-23-05Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Straight plunger | Color: N/A
VM131F-04-05Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Straight plunger | Color: N/A
VM131F-06-05Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Straight plunger | Color: N/A
VM131F-01-05Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Straight plunger | Color: N/A
VM131F-03-05Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Straight plunger | Color: N/A
VM131F-07-05Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Straight plunger | Color: N/A
VM123F-23-05Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Straight plunger | Color: N/A
VM123F-04-05Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Straight plunger | Color: N/A
VM123F-01-05Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Straight plunger | Color: N/A
VM123F-03-05Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Straight plunger | Color: N/A
VM133F-23-05Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Straight plunger | Color: N/A
VM133F-04-05Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Straight plunger | Color: N/A
VM133F-01-05Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Straight plunger | Color: N/A
VM133F-03-05Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Straight plunger | Color: N/A
VM121F-23-06Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller plunger, POM roller | Color: N/A
VM121F-04-06Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Roller plunger, POM roller | Color: N/A
VM121F-06-06Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Roller plunger, POM roller | Color: N/A
VM121F-01-06Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller plunger, POM roller | Color: N/A
VM121F-03-06Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller plunger, POM roller | Color: N/A
VM121F-07-06Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Roller plunger, POM roller | Color: N/A
VM131F-23-06Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller plunger, POM roller | Color: N/A
VM131F-04-06Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Roller plunger, POM roller | Color: N/A
VM131F-06-06Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Roller plunger, POM roller | Color: N/A
VM131F-01-06Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller plunger, POM roller | Color: N/A
VM131F-03-06Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller plunger, POM roller | Color: N/A
VM131F-07-06Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Roller plunger, POM roller | Color: N/A
VM123F-23-06Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller plunger, POM roller | Color: N/A
VM123F-04-06Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Roller plunger, POM roller | Color: N/A
VM123F-01-06Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller plunger, POM roller | Color: N/A
VM123F-03-06Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller plunger, POM roller | Color: N/A
VM133F-23-06Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller plunger, POM roller | Color: N/A
VM133F-04-06Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Roller plunger, POM roller | Color: N/A
VM133F-01-06Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller plunger, POM roller | Color: N/A
VM133F-03-06Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller plunger, POM roller | Color: N/A
VM121F-23-06SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller plunger, steel roller | Color: N/A
VM121F-04-06SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Roller plunger, steel roller | Color: N/A
VM121F-06-06SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Roller plunger, steel roller | Color: N/A
VM121F-01-06SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller plunger, steel roller | Color: N/A
VM121F-03-06SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller plunger, steel roller | Color: N/A
VM121F-07-06SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Roller plunger, steel roller | Color: N/A
VM131F-23-06SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller plunger, steel roller | Color: N/A
VM131F-04-06SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Roller plunger, steel roller | Color: N/A
VM131F-06-06SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Roller plunger, steel roller | Color: N/A
VM131F-01-06SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller plunger, steel roller | Color: N/A
VM131F-03-06SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller plunger, steel roller | Color: N/A
VM131F-07-06SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Roller plunger, steel roller | Color: N/A
VM123F-23-06SPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller plunger, steel roller | Color: N/A
VM123F-04-06SPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Roller plunger, steel roller | Color: N/A
VM123F-01-06SPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller plunger, steel roller | Color: N/A
VM123F-03-06SPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller plunger, steel roller | Color: N/A
VM133F-23-06SPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Roller plunger, steel roller | Color: N/A
VM133F-04-06SPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Roller plunger, steel roller | Color: N/A
VM133F-01-06SPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Roller plunger, steel roller | Color: N/A
VM133F-03-06SPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Roller plunger, steel roller | Color: N/A
VM121F-23-07Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Cross roller plunger, POM roller | Color: N/A
VM121F-04-07Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Cross roller plunger, POM roller | Color: N/A
VM121F-06-07Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Cross roller plunger, POM roller | Color: N/A
VM121F-01-07Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Cross roller plunger, POM roller | Color: N/A
VM121F-03-07Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Cross roller plunger, POM roller | Color: N/A
VM121F-07-07Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Cross roller plunger, POM roller | Color: N/A
VM131F-23-07Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Cross roller plunger, POM roller | Color: N/A
VM131F-04-07Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Cross roller plunger, POM roller | Color: N/A
VM131F-06-07Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Cross roller plunger, POM roller | Color: N/A
VM131F-01-07Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Cross roller plunger, POM roller | Color: N/A
VM131F-03-07Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Cross roller plunger, POM roller | Color: N/A
VM131F-07-07Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Cross roller plunger, POM roller | Color: N/A
VM123F-23-07Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Cross roller plunger, POM roller | Color: N/A
VM123F-04-07Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Cross roller plunger, POM roller | Color: N/A
VM123F-01-07Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Cross roller plunger, POM roller | Color: N/A
VM123F-03-07Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Cross roller plunger, POM roller | Color: N/A
VM133F-23-07Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Cross roller plunger, POM roller | Color: N/A
VM133F-04-07Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Cross roller plunger, POM roller | Color: N/A
VM133F-01-07Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Cross roller plunger, POM roller | Color: N/A
VM133F-03-07Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Cross roller plunger, POM roller | Color: N/A
VM121F-23-07SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Cross roller plunger, steel roller | Color: N/A
VM121F-04-07SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Cross roller plunger, steel roller | Color: N/A
VM121F-06-07SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Cross roller plunger, steel roller | Color: N/A
VM121F-01-07SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Cross roller plunger, steel roller | Color: N/A
VM121F-03-07SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Cross roller plunger, steel roller | Color: N/A
VM121F-07-07SPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Cross roller plunger, steel roller | Color: N/A
VM131F-23-07SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Cross roller plunger, steel roller | Color: N/A
VM131F-04-07SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Cross roller plunger, steel roller | Color: N/A
VM131F-06-07SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Cross roller plunger, steel roller | Color: N/A
VM131F-01-07SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Cross roller plunger, steel roller | Color: N/A
VM131F-03-07SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Cross roller plunger, steel roller | Color: N/A
VM131F-07-07SPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Cross roller plunger, steel roller | Color: N/A
VM123F-23-07SPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Cross roller plunger, steel roller | Color: N/A
VM123F-04-07SPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Cross roller plunger, steel roller | Color: N/A
VM123F-01-07SPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Cross roller plunger, steel roller | Color: N/A
VM123F-03-07SPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Cross roller plunger, steel roller | Color: N/A
VM133F-23-07SPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Cross roller plunger, steel roller | Color: N/A
VM133F-04-07SPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Cross roller plunger, steel roller | Color: N/A
VM133F-01-07SPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Cross roller plunger, steel roller | Color: N/A
VM133F-03-07SPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Cross roller plunger, steel roller | Color: N/A
VM121F-23-08Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Flip toggle | Color: N/A
VM121F-04-08Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Flip toggle | Color: N/A
VM121F-06-08Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Flip toggle | Color: N/A
VM121F-01-08Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Flip toggle | Color: N/A
VM121F-03-08Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Flip toggle | Color: N/A
VM121F-07-08Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Flip toggle | Color: N/A
VM131F-23-08Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Flip toggle | Color: N/A
VM131F-04-08Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Flip toggle | Color: N/A
VM131F-06-08Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Flip toggle | Color: N/A
VM131F-01-08Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Flip toggle | Color: N/A
VM131F-03-08Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Flip toggle | Color: N/A
VM131F-07-08Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Flip toggle | Color: N/A
VM123F-23-08Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Flip toggle | Color: N/A
VM123F-04-08Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Flip toggle | Color: N/A
VM123F-01-08Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Flip toggle | Color: N/A
VM123F-03-08Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Flip toggle | Color: N/A
VM133F-23-08Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Flip toggle | Color: N/A
VM133F-04-08Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Flip toggle | Color: N/A
VM133F-01-08Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Flip toggle | Color: N/A
VM133F-03-08Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Flip toggle | Color: N/A
VM121F-23-30RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Red
VM121F-04-30RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Red
VM121F-06-30RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (mushroom) | Color: Red
VM121F-01-30RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Red
VM121F-03-30RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Red
VM121F-07-30RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (mushroom) | Color: Red
VM131F-23-30RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Red
VM131F-04-30RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Red
VM131F-06-30RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (mushroom) | Color: Red
VM131F-01-30RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Red
VM131F-03-30RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Red
VM131F-07-30RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (mushroom) | Color: Red
VM123F-23-30RPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Red
VM123F-04-30RPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Red
VM123F-01-30RPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Red
VM123F-03-30RPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Red
VM133F-23-30RPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Red
VM133F-04-30RPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Red
VM133F-01-30RPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Red
VM133F-03-30RPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Red
VM121F-23-30BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Black
VM121F-04-30BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Black
VM121F-06-30BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (mushroom) | Color: Black
VM121F-01-30BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Black
VM121F-03-30BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Black
VM121F-07-30BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (mushroom) | Color: Black
VM131F-23-30BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Black
VM131F-04-30BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Black
VM131F-06-30BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (mushroom) | Color: Black
VM131F-01-30BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Black
VM131F-03-30BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Black
VM131F-07-30BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (mushroom) | Color: Black
VM123F-23-30BPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Black
VM123F-04-30BPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Black
VM123F-01-30BPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Black
VM123F-03-30BPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Black
VM133F-23-30BPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Black
VM133F-04-30BPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Black
VM133F-01-30BPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Black
VM133F-03-30BPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Black
VM121F-23-30GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Green
VM121F-04-30GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Green
VM121F-06-30GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (mushroom) | Color: Green
VM121F-01-30GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Green
VM121F-03-30GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Green
VM121F-07-30GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (mushroom) | Color: Green
VM131F-23-30GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Green
VM131F-04-30GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Green
VM131F-06-30GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (mushroom) | Color: Green
VM131F-01-30GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Green
VM131F-03-30GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Green
VM131F-07-30GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (mushroom) | Color: Green
VM123F-23-30GPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Green
VM123F-04-30GPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Green
VM123F-01-30GPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Green
VM123F-03-30GPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Green
VM133F-23-30GPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Green
VM133F-04-30GPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Green
VM133F-01-30GPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Green
VM133F-03-30GPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Green
VM121F-23-30YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Yellow
VM121F-04-30YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Yellow
VM121F-06-30YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (mushroom) | Color: Yellow
VM121F-01-30YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Yellow
VM121F-03-30YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Yellow
VM121F-07-30YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (mushroom) | Color: Yellow
VM131F-23-30YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Yellow
VM131F-04-30YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Yellow
VM131F-06-30YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (mushroom) | Color: Yellow
VM131F-01-30YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Yellow
VM131F-03-30YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Yellow
VM131F-07-30YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (mushroom) | Color: Yellow
VM123F-23-30YPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Yellow
VM123F-04-30YPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Yellow
VM123F-01-30YPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Yellow
VM123F-03-30YPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Yellow
VM133F-23-30YPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (mushroom) | Color: Yellow
VM133F-04-30YPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (mushroom) | Color: Yellow
VM133F-01-30YPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (mushroom) | Color: Yellow
VM133F-03-30YPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (mushroom) | Color: Yellow
VM121F-23-32RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Red
VM121F-04-32RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Red
VM121F-06-32RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (extended) | Color: Red
VM121F-01-32RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Red
VM121F-03-32RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Red
VM121F-07-32RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (extended) | Color: Red
VM131F-23-32RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Red
VM131F-04-32RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Red
VM131F-06-32RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (extended) | Color: Red
VM131F-01-32RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Red
VM131F-03-32RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Red
VM131F-07-32RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (extended) | Color: Red
VM123F-23-32RPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Red
VM123F-04-32RPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Red
VM123F-01-32RPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Red
VM123F-03-32RPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Red
VM133F-23-32RPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Red
VM133F-04-32RPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Red
VM133F-01-32RPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Red
VM133F-03-32RPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Red
VM121F-23-32BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Black
VM121F-04-32BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Black
VM121F-06-32BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (extended) | Color: Black
VM121F-01-32BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Black
VM121F-03-32BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Black
VM121F-07-32BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (extended) | Color: Black
VM131F-23-32BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Black
VM131F-04-32BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Black
VM131F-06-32BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (extended) | Color: Black
VM131F-01-32BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Black
VM131F-03-32BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Black
VM131F-07-32BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (extended) | Color: Black
VM123F-23-32BPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Black
VM123F-04-32BPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Black
VM123F-01-32BPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Black
VM123F-03-32BPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Black
VM133F-23-32BPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Black
VM133F-04-32BPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Black
VM133F-01-32BPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Black
VM133F-03-32BPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Black
VM121F-23-32GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Green
VM121F-04-32GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Green
VM121F-06-32GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (extended) | Color: Green
VM121F-01-32GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Green
VM121F-03-32GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Green
VM121F-07-32GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (extended) | Color: Green
VM131F-23-32GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Green
VM131F-04-32GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Green
VM131F-06-32GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (extended) | Color: Green
VM131F-01-32GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Green
VM131F-03-32GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Green
VM131F-07-32GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (extended) | Color: Green
VM123F-23-32GPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Green
VM123F-04-32GPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Green
VM123F-01-32GPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Green
VM123F-03-32GPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Green
VM133F-23-32GPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Green
VM133F-04-32GPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Green
VM133F-01-32GPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Green
VM133F-03-32GPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Green
VM121F-23-32YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Yellow
VM121F-04-32YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Yellow
VM121F-06-32YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (extended) | Color: Yellow
VM121F-01-32YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Yellow
VM121F-03-32YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Yellow
VM121F-07-32YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (extended) | Color: Yellow
VM131F-23-32YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Yellow
VM131F-04-32YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Yellow
VM131F-06-32YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (extended) | Color: Yellow
VM131F-01-32YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Yellow
VM131F-03-32YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Yellow
VM131F-07-32YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (extended) | Color: Yellow
VM123F-23-32YPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Yellow
VM123F-04-32YPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Yellow
VM123F-01-32YPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Yellow
VM123F-03-32YPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Yellow
VM133F-23-32YPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (extended) | Color: Yellow
VM133F-04-32YPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (extended) | Color: Yellow
VM133F-01-32YPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (extended) | Color: Yellow
VM133F-03-32YPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (extended) | Color: Yellow
VM121F-23-33RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Red
VM121F-04-33RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Red
VM121F-06-33RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (flush) | Color: Red
VM121F-01-33RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Red
VM121F-03-33RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Red
VM121F-07-33RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (flush) | Color: Red
VM131F-23-33RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Red
VM131F-04-33RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Red
VM131F-06-33RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (flush) | Color: Red
VM131F-01-33RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Red
VM131F-03-33RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Red
VM131F-07-33RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (flush) | Color: Red
VM123F-23-33RPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Red
VM123F-04-33RPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Red
VM123F-01-33RPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Red
VM123F-03-33RPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Red
VM133F-23-33RPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Red
VM133F-04-33RPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Red
VM133F-01-33RPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Red
VM133F-03-33RPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Red
VM121F-23-33BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Black
VM121F-04-33BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Black
VM121F-06-33BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (flush) | Color: Black
VM121F-01-33BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Black
VM121F-03-33BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Black
VM121F-07-33BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (flush) | Color: Black
VM131F-23-33BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Black
VM131F-04-33BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Black
VM131F-06-33BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (flush) | Color: Black
VM131F-01-33BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Black
VM131F-03-33BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Black
VM131F-07-33BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (flush) | Color: Black
VM123F-23-33BPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Black
VM123F-04-33BPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Black
VM123F-01-33BPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Black
VM123F-03-33BPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Black
VM133F-23-33BPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Black
VM133F-04-33BPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Black
VM133F-01-33BPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Black
VM133F-03-33BPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Black
VM121F-23-33GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Green
VM121F-04-33GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Green
VM121F-06-33GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (flush) | Color: Green
VM121F-01-33GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Green
VM121F-03-33GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Green
VM121F-07-33GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (flush) | Color: Green
VM131F-23-33GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Green
VM131F-04-33GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Green
VM131F-06-33GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (flush) | Color: Green
VM131F-01-33GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Green
VM131F-03-33GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Green
VM131F-07-33GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (flush) | Color: Green
VM123F-23-33GPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Green
VM123F-04-33GPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Green
VM123F-01-33GPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Green
VM123F-03-33GPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Green
VM133F-23-33GPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Green
VM133F-04-33GPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Green
VM133F-01-33GPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Green
VM133F-03-33GPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Green
VM121F-23-33YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Yellow
VM121F-04-33YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Yellow
VM121F-06-33YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (flush) | Color: Yellow
VM121F-01-33YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Yellow
VM121F-03-33YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Yellow
VM121F-07-33YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (flush) | Color: Yellow
VM131F-23-33YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Yellow
VM131F-04-33YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Yellow
VM131F-06-33YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Push button (flush) | Color: Yellow
VM131F-01-33YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Yellow
VM131F-03-33YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Yellow
VM131F-07-33YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Push button (flush) | Color: Yellow
VM123F-23-33YPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Yellow
VM123F-04-33YPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Yellow
VM123F-01-33YPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Yellow
VM123F-03-33YPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Yellow
VM133F-23-33YPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Push button (flush) | Color: Yellow
VM133F-04-33YPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Push button (flush) | Color: Yellow
VM133F-01-33YPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Push button (flush) | Color: Yellow
VM133F-03-33YPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Push button (flush) | Color: Yellow
VM121F-23-34RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Red
VM121F-04-34RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Red
VM121F-06-34RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (2-position) | Color: Red
VM121F-01-34RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Red
VM121F-03-34RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Red
VM121F-07-34RPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (2-position) | Color: Red
VM131F-23-34RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Red
VM131F-04-34RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Red
VM131F-06-34RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (2-position) | Color: Red
VM131F-01-34RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Red
VM131F-03-34RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Red
VM131F-07-34RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (2-position) | Color: Red
VM123F-23-34RPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Red
VM123F-04-34RPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Red
VM123F-01-34RPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Red
VM123F-03-34RPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Red
VM133F-23-34RPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Red
VM133F-04-34RPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Red
VM133F-01-34RPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Red
VM133F-03-34RPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Red
VM121F-23-34BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Black
VM121F-04-34BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Black
VM121F-06-34BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (2-position) | Color: Black
VM121F-01-34BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Black
VM121F-03-34BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Black
VM121F-07-34BPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (2-position) | Color: Black
VM131F-23-34BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Black
VM131F-04-34BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Black
VM131F-06-34BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (2-position) | Color: Black
VM131F-01-34BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Black
VM131F-03-34BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Black
VM131F-07-34BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (2-position) | Color: Black
VM123F-23-34BPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Black
VM123F-04-34BPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Black
VM123F-01-34BPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Black
VM123F-03-34BPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Black
VM133F-23-34BPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Black
VM133F-04-34BPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Black
VM133F-01-34BPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Black
VM133F-03-34BPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Black
VM121F-23-34GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Green
VM121F-04-34GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Green
VM121F-06-34GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (2-position) | Color: Green
VM121F-01-34GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Green
VM121F-03-34GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Green
VM121F-07-34GPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (2-position) | Color: Green
VM131F-23-34GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Green
VM131F-04-34GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Green
VM131F-06-34GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (2-position) | Color: Green
VM131F-01-34GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Green
VM131F-03-34GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Green
VM131F-07-34GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (2-position) | Color: Green
VM123F-23-34GPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Green
VM123F-04-34GPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Green
VM123F-01-34GPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Green
VM123F-03-34GPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Green
VM133F-23-34GPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Green
VM133F-04-34GPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Green
VM133F-01-34GPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Green
VM133F-03-34GPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Green
VM121F-23-34YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Yellow
VM121F-04-34YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Yellow
VM121F-06-34YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (2-position) | Color: Yellow
VM121F-01-34YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Yellow
VM121F-03-34YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Yellow
VM121F-07-34YPorts: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (2-position) | Color: Yellow
VM131F-23-34YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Yellow
VM131F-04-34YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Yellow
VM131F-06-34YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (2-position) | Color: Yellow
VM131F-01-34YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Yellow
VM131F-03-34YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Yellow
VM131F-07-34YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (2-position) | Color: Yellow
VM123F-23-34YPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Yellow
VM123F-04-34YPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Yellow
VM123F-01-34YPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Yellow
VM123F-03-34YPorts: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Yellow
VM133F-23-34YPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (2-position) | Color: Yellow
VM133F-04-34YPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (2-position) | Color: Yellow
VM133F-01-34YPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (2-position) | Color: Yellow
VM133F-03-34YPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (2-position) | Color: Yellow
VM121F-23-36Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Key selector (2-position) | Color: N/A
VM121F-04-36Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Key selector (2-position) | Color: N/A
VM121F-06-36Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Key selector (2-position) | Color: N/A
VM121F-01-36Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Key selector (2-position) | Color: N/A
VM121F-03-36Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Key selector (2-position) | Color: N/A
VM121F-07-36Ports: 2-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Key selector (2-position) | Color: N/A
VM131F-23-36Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Key selector (2-position) | Color: N/A
VM131F-04-36Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Key selector (2-position) | Color: N/A
VM131F-06-36Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Key selector (2-position) | Color: N/A
VM131F-01-36Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Key selector (2-position) | Color: N/A
VM131F-03-36Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Key selector (2-position) | Color: N/A
VM131F-07-36Ports: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Key selector (2-position) | Color: N/A
VM123F-23-36Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Key selector (2-position) | Color: N/A
VM123F-04-36Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Key selector (2-position) | Color: N/A
VM123F-01-36Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Key selector (2-position) | Color: N/A
VM123F-03-36Ports: 2-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Key selector (2-position) | Color: N/A
VM133F-23-36Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Key selector (2-position) | Color: N/A
VM133F-04-36Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Key selector (2-position) | Color: N/A
VM133F-01-36Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Key selector (2-position) | Color: N/A
VM133F-03-36Ports: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Key selector (2-position) | Color: N/A
VM131F-23-35RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Red
VM131F-04-35RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Red
VM131F-06-35RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (3-position) | Color: Red
VM131F-01-35RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Red
VM131F-03-35RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Red
VM131F-07-35RPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (3-position) | Color: Red
VM151F-23-35RPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Red
VM151F-04-35RPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Red
VM151F-06-35RPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (3-position) | Color: Red
VM151F-01-35RPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Red
VM151F-03-35RPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Red
VM151F-07-35RPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (3-position) | Color: Red
VM133F-23-35RPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Red
VM133F-04-35RPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Red
VM133F-01-35RPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Red
VM133F-03-35RPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Red
VM153F-23-35RPorts: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Red
VM153F-04-35RPorts: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Red
VM153F-01-35RPorts: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Red
VM153F-03-35RPorts: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Red
VM131F-23-35BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Black
VM131F-04-35BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Black
VM131F-06-35BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (3-position) | Color: Black
VM131F-01-35BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Black
VM131F-03-35BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Black
VM131F-07-35BPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (3-position) | Color: Black
VM151F-23-35BPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Black
VM151F-04-35BPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Black
VM151F-06-35BPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (3-position) | Color: Black
VM151F-01-35BPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Black
VM151F-03-35BPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Black
VM151F-07-35BPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (3-position) | Color: Black
VM133F-23-35BPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Black
VM133F-04-35BPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Black
VM133F-01-35BPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Black
VM133F-03-35BPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Black
VM153F-23-35BPorts: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Black
VM153F-04-35BPorts: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Black
VM153F-01-35BPorts: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Black
VM153F-03-35BPorts: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Black
VM131F-23-35GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Green
VM131F-04-35GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Green
VM131F-06-35GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (3-position) | Color: Green
VM131F-01-35GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Green
VM131F-03-35GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Green
VM131F-07-35GPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (3-position) | Color: Green
VM151F-23-35GPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Green
VM151F-04-35GPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Green
VM151F-06-35GPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (3-position) | Color: Green
VM151F-01-35GPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Green
VM151F-03-35GPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Green
VM151F-07-35GPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (3-position) | Color: Green
VM133F-23-35GPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Green
VM133F-04-35GPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Green
VM133F-01-35GPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Green
VM133F-03-35GPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Green
VM153F-23-35GPorts: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Green
VM153F-04-35GPorts: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Green
VM153F-01-35GPorts: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Green
VM153F-03-35GPorts: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Green
VM131F-23-35YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Yellow
VM131F-04-35YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Yellow
VM131F-06-35YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (3-position) | Color: Yellow
VM131F-01-35YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Yellow
VM131F-03-35YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Yellow
VM131F-07-35YPorts: 3-port (N.C.) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (3-position) | Color: Yellow
VM151F-23-35YPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Yellow
VM151F-04-35YPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Yellow
VM151F-06-35YPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø6 mm | Actuator: Selector (3-position) | Color: Yellow
VM151F-01-35YPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Yellow
VM151F-03-35YPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Yellow
VM151F-07-35YPorts: 5-port (3-pos selector) | Piping: Side ported, short plunger | Tube OD: ø1/4 in | Actuator: Selector (3-position) | Color: Yellow
VM133F-23-35YPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Yellow
VM133F-04-35YPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Yellow
VM133F-01-35YPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Yellow
VM133F-03-35YPorts: 3-port (N.C.) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Yellow
VM153F-23-35YPorts: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø3.2 mm | Actuator: Selector (3-position) | Color: Yellow
VM153F-04-35YPorts: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø4 mm | Actuator: Selector (3-position) | Color: Yellow
VM153F-01-35YPorts: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø1/8 in | Actuator: Selector (3-position) | Color: Yellow
VM153F-03-35YPorts: 5-port (3-pos selector) | Piping: Bottom ported, short plunger | Tube OD: ø5/32 in | Actuator: Selector (3-position) | Color: Yellow

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
