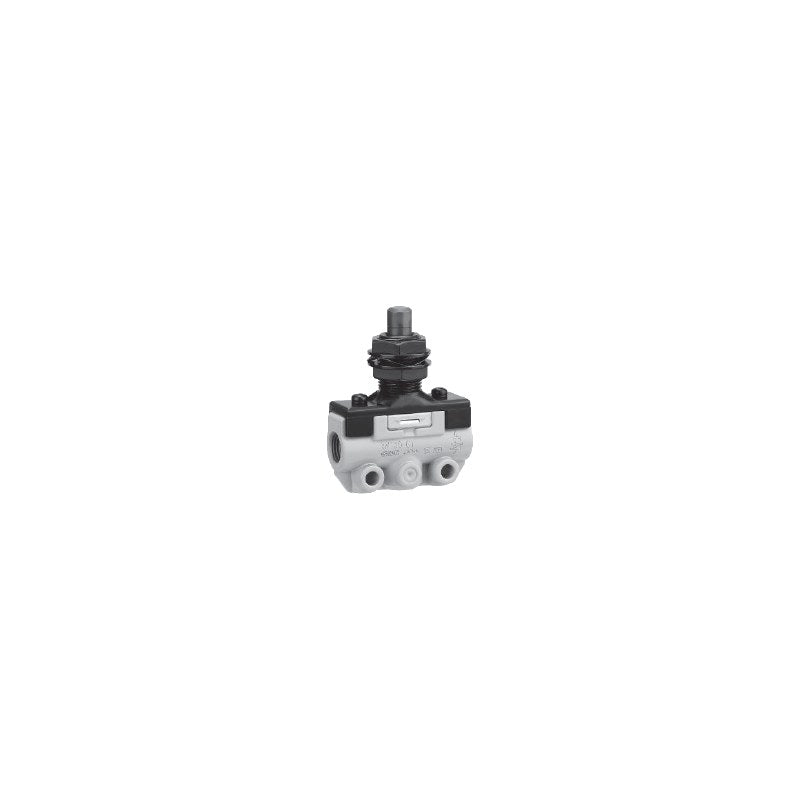

SMC VM400 3-Port Mechanical Valve (N.C./N.O. Selectable, Rc1/8)

SMC VM400 3-Port Mechanical Valve (N.C./N.O. Selectable, Rc1/8)

SMC VM400 series 3-port mechanical valve usable as N.C. or N.O., with all ports pipeable and a wide choice of mechanical and manual actuators.

Key features

  • N.C. or N.O. selectable by port connection
  • All ports can be piped, so exhaust can be led away where contamination or noise is a concern
  • Mechanical actuators: roller lever, one-way roller lever, straight, roller and cross roller plungers (POM or hardened steel rollers)
  • Manual actuators: flip toggle, push buttons, 2-position selector and key selector; four button colors
  • Actuators are interchangeable; NPT1/8 (N01), G1/8 (F01) and push-lock buttons (X207A/X219A) on order

Specifications

Fluid Air
Operating pressure -100 kPa to 1.0 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Flow rate C [dm³/(s·bar)] 1.4 (NC-OUT, NO-OUT)
Cv 0.29
Port size Rc1/8
Lubrication Not required (use ISO VG32 turbine oil if lubricated)
Replacement actuator part no. VM-<actuator code>A (e.g. VM-01A, VM-30AR)
Source SMC Korea catalog VM/VZM/VFM (SMCKR_VM_VZM_VFM.pdf), p. 1440-1441 (PDF p. 34-35)
VM430-01-00 Actuator: Basic type (no actuator) | Color: N/A | Weight: 110 g
VM430-01-01 Actuator: Roller lever, POM roller | Color: N/A | Weight: 140 g
VM430-01-01S Actuator: Roller lever, steel roller | Color: N/A | Weight: 150 g
VM430-01-02 Actuator: One-way roller lever, POM roller | Color: N/A | Weight: 150 g
VM430-01-02S Actuator: One-way roller lever, steel roller | Color: N/A | Weight: 160 g
VM430-01-06 Actuator: Roller plunger, POM roller | Color: N/A | Weight: 210 g
VM430-01-06S Actuator: Roller plunger, steel roller | Color: N/A | Weight: 220 g
VM430-01-07 Actuator: Cross roller plunger, POM roller | Color: N/A | Weight: 210 g
VM430-01-07S Actuator: Cross roller plunger, steel roller | Color: N/A | Weight: 220 g
VM430-01-05 Actuator: Straight plunger | Color: N/A | Weight: 220 g
VM430-01-08 Actuator: Flip toggle | Color: N/A | Weight: 200 g
VM430-01-30R Actuator: Push button (mushroom) | Color: Red | Weight: 168 g
VM430-01-30B Actuator: Push button (mushroom) | Color: Black | Weight: 168 g
VM430-01-30G Actuator: Push button (mushroom) | Color: Green | Weight: 168 g
VM430-01-30Y Actuator: Push button (mushroom) | Color: Yellow | Weight: 168 g
VM430-01-33 Actuator: Push button (flush) | Color: 4-color set (R/B/G/Y) | Weight: 167 g
VM430-01-34R Actuator: Selector (2-position) | Color: Red | Weight: 168 g
VM430-01-34B Actuator: Selector (2-position) | Color: Black | Weight: 168 g
VM430-01-34G Actuator: Selector (2-position) | Color: Green | Weight: 168 g
VM430-01-34Y Actuator: Selector (2-position) | Color: Yellow | Weight: 168 g
VM430-01-36 Actuator: Key selector (2-position) | Color: N/A | Weight: 188 g
VM430-01-32R Actuator: Push button (extended) | Color: Red | Weight: 162 g
VM430-01-32B Actuator: Push button (extended) | Color: Black | Weight: 162 g
VM430-01-32G Actuator: Push button (extended) | Color: Green | Weight: 162 g
VM430-01-32Y Actuator: Push button (extended) | Color: Yellow | Weight: 162 g
Mechanical ValvesSMC
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VM400 3-Port Mechanical Valve (N.C./N.O. Selectable, Rc1/8)

Brand SMC·Mechanical Valves

Available part numbers (25)

VM430-01-00, VM430-01-01, VM430-01-01S, VM430-01-02, VM430-01-02S, VM430-01-06, VM430-01-06S, VM430-01-07, VM430-01-07S, VM430-01-05 + 15 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VM430-01-00Actuator: Basic type (no actuator) | Color: N/A | Weight: 110 g
VM430-01-01Actuator: Roller lever, POM roller | Color: N/A | Weight: 140 g
VM430-01-01SActuator: Roller lever, steel roller | Color: N/A | Weight: 150 g
VM430-01-02Actuator: One-way roller lever, POM roller | Color: N/A | Weight: 150 g
VM430-01-02SActuator: One-way roller lever, steel roller | Color: N/A | Weight: 160 g
VM430-01-06Actuator: Roller plunger, POM roller | Color: N/A | Weight: 210 g
VM430-01-06SActuator: Roller plunger, steel roller | Color: N/A | Weight: 220 g
VM430-01-07Actuator: Cross roller plunger, POM roller | Color: N/A | Weight: 210 g
VM430-01-07SActuator: Cross roller plunger, steel roller | Color: N/A | Weight: 220 g
VM430-01-05Actuator: Straight plunger | Color: N/A | Weight: 220 g
VM430-01-08Actuator: Flip toggle | Color: N/A | Weight: 200 g
VM430-01-30RActuator: Push button (mushroom) | Color: Red | Weight: 168 g
VM430-01-30BActuator: Push button (mushroom) | Color: Black | Weight: 168 g
VM430-01-30GActuator: Push button (mushroom) | Color: Green | Weight: 168 g
VM430-01-30YActuator: Push button (mushroom) | Color: Yellow | Weight: 168 g
VM430-01-33Actuator: Push button (flush) | Color: 4-color set (R/B/G/Y) | Weight: 167 g
VM430-01-34RActuator: Selector (2-position) | Color: Red | Weight: 168 g
VM430-01-34BActuator: Selector (2-position) | Color: Black | Weight: 168 g
VM430-01-34GActuator: Selector (2-position) | Color: Green | Weight: 168 g
VM430-01-34YActuator: Selector (2-position) | Color: Yellow | Weight: 168 g
VM430-01-36Actuator: Key selector (2-position) | Color: N/A | Weight: 188 g
VM430-01-32RActuator: Push button (extended) | Color: Red | Weight: 162 g
VM430-01-32BActuator: Push button (extended) | Color: Black | Weight: 162 g
VM430-01-32GActuator: Push button (extended) | Color: Green | Weight: 162 g
VM430-01-32YActuator: Push button (extended) | Color: Yellow | Weight: 162 g
