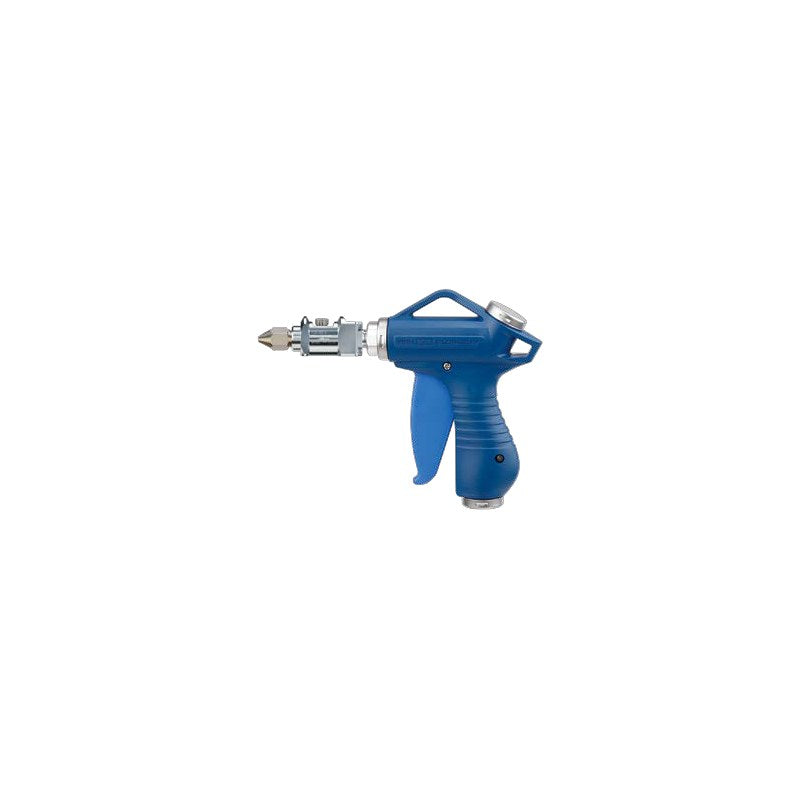

SMC VMG Blow Gun (Low Pressure Loss, Nozzle Selectable)

SMC VMG series energy-saving blow gun with a large 30 mm2 effective area that reduces pressure loss, available with screw, S coupler or one-touch fitting connection and a wide range of nozzles.

Key features

Large effective area (30 mm2) lowers pressure drop so smaller nozzles and lower supply pressure can be used
Balanced poppet valve gives a constant operating force regardless of supply pressure
Nozzles: male thread ø1 to ø4, high-efficiency (OSHA 1910.242B), low-noise (OSHA 1910.95), flow-adjust and ø6/ø8 copper long nozzles
Connection by Rc1/4 or Rc3/8 thread, S coupler plug (KK4P/KK130P) or one-touch fitting ø6/ø8/ø10 (coupler/fitting included)
Nozzle cover (C: HNBR, CF: FKM) and flow adjustment built-in (-X54) available as suffix options
Resin parts marked with material names for separation and recycling; passes 2 m drop test

Specifications

Fluid	Air
Proof pressure	1.5 MPa
Operating pressure range	0 to 1.0 MPa
Ambient and fluid temperature	-5 to 60°C (no freezing)
Flow characteristics (without nozzle)	C 6.0 dm3/(s·bar), b 0.25 (effective area 30 mm2)
Nozzle connection	Rc1/4
Body material	PBT (impact-resistant resin)
Operating force (fully open)	7 N
Weight (body only)	165 g
Source	SMC Korea catalog CAT.KS50-20G (SMCKR_VMG.pdf), p. 1-5 (PDF p. 1-6)

VMG11W-02		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG11W-02-01		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11W-02-02		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11W-02-03		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11W-02-04		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG11W-02-05		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG11W-02-06		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG11W-02-07		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG11W-02-11		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11W-02-12		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11W-02-13		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11W-02-21		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG11W-02-22		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG11W-02-23		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG11W-02-24		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG11W-02-25		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG11W-02-31		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG11W-02-32		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG11W-02-33		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG11W-02-34		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG11W-02-35		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG11W-02-36		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG11W-02-37		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG11W-02-38		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG11W-02-41		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG11W-02-42		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG11W-02-43		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG11W-02-44		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG11W-02-45		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG11W-02-46		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG11W-02-47		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG11W-02-48		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG11W-02-49		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG11W-02-50		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG11W-02-51		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG11W-02-52		Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG11W-03		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG11W-03-01		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11W-03-02		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11W-03-03		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11W-03-04		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG11W-03-05		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG11W-03-06		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG11W-03-07		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG11W-03-11		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11W-03-12		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11W-03-13		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11W-03-21		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG11W-03-22		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG11W-03-23		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG11W-03-24		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG11W-03-25		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG11W-03-31		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG11W-03-32		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG11W-03-33		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG11W-03-34		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG11W-03-35		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG11W-03-36		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG11W-03-37		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG11W-03-38		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG11W-03-41		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG11W-03-42		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG11W-03-43		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG11W-03-44		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG11W-03-45		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG11W-03-46		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG11W-03-47		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG11W-03-48		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG11W-03-49		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG11W-03-50		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG11W-03-51		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG11W-03-52		Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG11W-11		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG11W-11-01		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11W-11-02		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11W-11-03		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11W-11-04		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG11W-11-05		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG11W-11-06		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG11W-11-07		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG11W-11-11		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11W-11-12		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11W-11-13		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11W-11-21		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG11W-11-22		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG11W-11-23		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG11W-11-24		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG11W-11-25		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG11W-11-31		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG11W-11-32		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG11W-11-33		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG11W-11-34		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG11W-11-35		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG11W-11-36		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG11W-11-37		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG11W-11-38		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG11W-11-41		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG11W-11-42		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG11W-11-43		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG11W-11-44		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG11W-11-45		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG11W-11-46		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG11W-11-47		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG11W-11-48		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG11W-11-49		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG11W-11-50		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG11W-11-51		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG11W-11-52		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG11W-12		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG11W-12-01		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11W-12-02		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11W-12-03		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11W-12-04		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG11W-12-05		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG11W-12-06		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG11W-12-07		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG11W-12-11		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11W-12-12		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11W-12-13		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11W-12-21		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG11W-12-22		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG11W-12-23		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG11W-12-24		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG11W-12-25		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG11W-12-31		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG11W-12-32		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG11W-12-33		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG11W-12-34		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG11W-12-35		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG11W-12-36		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG11W-12-37		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG11W-12-38		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG11W-12-41		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG11W-12-42		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG11W-12-43		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG11W-12-44		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG11W-12-45		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG11W-12-46		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG11W-12-47		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG11W-12-48		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG11W-12-49		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG11W-12-50		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG11W-12-51		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG11W-12-52		Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG11W-H06		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG11W-H06-01		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11W-H06-02		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11W-H06-03		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11W-H06-04		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG11W-H06-05		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG11W-H06-06		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG11W-H06-07		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG11W-H06-11		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11W-H06-12		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11W-H06-13		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11W-H06-21		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG11W-H06-22		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG11W-H06-23		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG11W-H06-24		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG11W-H06-25		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG11W-H06-31		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG11W-H06-32		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG11W-H06-33		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG11W-H06-34		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG11W-H06-35		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG11W-H06-36		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG11W-H06-37		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG11W-H06-38		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG11W-H06-41		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG11W-H06-42		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG11W-H06-43		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG11W-H06-44		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG11W-H06-45		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG11W-H06-46		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG11W-H06-47		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG11W-H06-48		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG11W-H06-49		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG11W-H06-50		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG11W-H06-51		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG11W-H06-52		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG11W-H08		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG11W-H08-01		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11W-H08-02		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11W-H08-03		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11W-H08-04		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG11W-H08-05		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG11W-H08-06		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG11W-H08-07		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG11W-H08-11		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11W-H08-12		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11W-H08-13		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11W-H08-21		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG11W-H08-22		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG11W-H08-23		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG11W-H08-24		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG11W-H08-25		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG11W-H08-31		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG11W-H08-32		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG11W-H08-33		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG11W-H08-34		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG11W-H08-35		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG11W-H08-36		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG11W-H08-37		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG11W-H08-38		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG11W-H08-41		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG11W-H08-42		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG11W-H08-43		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG11W-H08-44		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG11W-H08-45		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG11W-H08-46		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG11W-H08-47		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG11W-H08-48		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG11W-H08-49		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG11W-H08-50		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG11W-H08-51		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG11W-H08-52		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG11W-H10		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG11W-H10-01		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11W-H10-02		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11W-H10-03		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11W-H10-04		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG11W-H10-05		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG11W-H10-06		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG11W-H10-07		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG11W-H10-11		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11W-H10-12		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11W-H10-13		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11W-H10-21		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG11W-H10-22		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG11W-H10-23		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG11W-H10-24		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG11W-H10-25		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG11W-H10-31		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG11W-H10-32		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG11W-H10-33		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG11W-H10-34		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG11W-H10-35		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG11W-H10-36		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG11W-H10-37		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG11W-H10-38		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG11W-H10-41		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG11W-H10-42		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG11W-H10-43		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG11W-H10-44		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG11W-H10-45		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG11W-H10-46		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG11W-H10-47		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG11W-H10-48		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG11W-H10-49		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG11W-H10-50		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG11W-H10-51		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG11W-H10-52		Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG11BU-02		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG11BU-02-01		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11BU-02-02		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11BU-02-03		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11BU-02-04		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG11BU-02-05		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG11BU-02-06		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG11BU-02-07		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG11BU-02-11		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11BU-02-12		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11BU-02-13		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11BU-02-21		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG11BU-02-22		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG11BU-02-23		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG11BU-02-24		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG11BU-02-25		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG11BU-02-31		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG11BU-02-32		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG11BU-02-33		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG11BU-02-34		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG11BU-02-35		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG11BU-02-36		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG11BU-02-37		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG11BU-02-38		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG11BU-02-41		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG11BU-02-42		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG11BU-02-43		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG11BU-02-44		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG11BU-02-45		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG11BU-02-46		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG11BU-02-47		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG11BU-02-48		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG11BU-02-49		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG11BU-02-50		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG11BU-02-51		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG11BU-02-52		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG11BU-03		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG11BU-03-01		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11BU-03-02		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11BU-03-03		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11BU-03-04		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG11BU-03-05		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG11BU-03-06		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG11BU-03-07		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG11BU-03-11		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11BU-03-12		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11BU-03-13		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11BU-03-21		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG11BU-03-22		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG11BU-03-23		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG11BU-03-24		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG11BU-03-25		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG11BU-03-31		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG11BU-03-32		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG11BU-03-33		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG11BU-03-34		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG11BU-03-35		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG11BU-03-36		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG11BU-03-37		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG11BU-03-38		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG11BU-03-41		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG11BU-03-42		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG11BU-03-43		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG11BU-03-44		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG11BU-03-45		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG11BU-03-46		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG11BU-03-47		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG11BU-03-48		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG11BU-03-49		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG11BU-03-50		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG11BU-03-51		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG11BU-03-52		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG11BU-11		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG11BU-11-01		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11BU-11-02		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11BU-11-03		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11BU-11-04		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG11BU-11-05		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG11BU-11-06		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG11BU-11-07		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG11BU-11-11		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11BU-11-12		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11BU-11-13		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11BU-11-21		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG11BU-11-22		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG11BU-11-23		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG11BU-11-24		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG11BU-11-25		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG11BU-11-31		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG11BU-11-32		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG11BU-11-33		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG11BU-11-34		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG11BU-11-35		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG11BU-11-36		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG11BU-11-37		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG11BU-11-38		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG11BU-11-41		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG11BU-11-42		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG11BU-11-43		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG11BU-11-44		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG11BU-11-45		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG11BU-11-46		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG11BU-11-47		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG11BU-11-48		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG11BU-11-49		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG11BU-11-50		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG11BU-11-51		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG11BU-11-52		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG11BU-12		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG11BU-12-01		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11BU-12-02		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11BU-12-03		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11BU-12-04		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG11BU-12-05		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG11BU-12-06		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG11BU-12-07		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG11BU-12-11		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11BU-12-12		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11BU-12-13		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11BU-12-21		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG11BU-12-22		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG11BU-12-23		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG11BU-12-24		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG11BU-12-25		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG11BU-12-31		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG11BU-12-32		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG11BU-12-33		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG11BU-12-34		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG11BU-12-35		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG11BU-12-36		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG11BU-12-37		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG11BU-12-38		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG11BU-12-41		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG11BU-12-42		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG11BU-12-43		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG11BU-12-44		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG11BU-12-45		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG11BU-12-46		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG11BU-12-47		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG11BU-12-48		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG11BU-12-49		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG11BU-12-50		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG11BU-12-51		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG11BU-12-52		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG11BU-H06		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG11BU-H06-01		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11BU-H06-02		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11BU-H06-03		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11BU-H06-04		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG11BU-H06-05		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG11BU-H06-06		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG11BU-H06-07		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG11BU-H06-11		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11BU-H06-12		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11BU-H06-13		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11BU-H06-21		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG11BU-H06-22		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG11BU-H06-23		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG11BU-H06-24		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG11BU-H06-25		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG11BU-H06-31		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG11BU-H06-32		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG11BU-H06-33		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG11BU-H06-34		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG11BU-H06-35		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG11BU-H06-36		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG11BU-H06-37		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG11BU-H06-38		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG11BU-H06-41		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG11BU-H06-42		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG11BU-H06-43		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG11BU-H06-44		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG11BU-H06-45		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG11BU-H06-46		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG11BU-H06-47		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG11BU-H06-48		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG11BU-H06-49		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG11BU-H06-50		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG11BU-H06-51		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG11BU-H06-52		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG11BU-H08		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG11BU-H08-01		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11BU-H08-02		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11BU-H08-03		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11BU-H08-04		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG11BU-H08-05		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG11BU-H08-06		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG11BU-H08-07		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG11BU-H08-11		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11BU-H08-12		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11BU-H08-13		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11BU-H08-21		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG11BU-H08-22		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG11BU-H08-23		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG11BU-H08-24		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG11BU-H08-25		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG11BU-H08-31		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG11BU-H08-32		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG11BU-H08-33		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG11BU-H08-34		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG11BU-H08-35		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG11BU-H08-36		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG11BU-H08-37		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG11BU-H08-38		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG11BU-H08-41		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG11BU-H08-42		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG11BU-H08-43		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG11BU-H08-44		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG11BU-H08-45		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG11BU-H08-46		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG11BU-H08-47		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG11BU-H08-48		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG11BU-H08-49		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG11BU-H08-50		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG11BU-H08-51		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG11BU-H08-52		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG11BU-H10		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG11BU-H10-01		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11BU-H10-02		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11BU-H10-03		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11BU-H10-04		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG11BU-H10-05		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG11BU-H10-06		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG11BU-H10-07		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG11BU-H10-11		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG11BU-H10-12		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG11BU-H10-13		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG11BU-H10-21		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG11BU-H10-22		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG11BU-H10-23		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG11BU-H10-24		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG11BU-H10-25		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG11BU-H10-31		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG11BU-H10-32		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG11BU-H10-33		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG11BU-H10-34		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG11BU-H10-35		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG11BU-H10-36		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG11BU-H10-37		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG11BU-H10-38		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG11BU-H10-41		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG11BU-H10-42		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG11BU-H10-43		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG11BU-H10-44		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG11BU-H10-45		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG11BU-H10-46		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG11BU-H10-47		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG11BU-H10-48		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG11BU-H10-49		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG11BU-H10-50		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG11BU-H10-51		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG11BU-H10-52		Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG12W-02		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG12W-02-01		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12W-02-02		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12W-02-03		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12W-02-04		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG12W-02-05		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG12W-02-06		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG12W-02-07		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG12W-02-11		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12W-02-12		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12W-02-13		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12W-02-21		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG12W-02-22		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG12W-02-23		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG12W-02-24		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG12W-02-25		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG12W-02-31		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG12W-02-32		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG12W-02-33		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG12W-02-34		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG12W-02-35		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG12W-02-36		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG12W-02-37		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG12W-02-38		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG12W-02-41		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG12W-02-42		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG12W-02-43		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG12W-02-44		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG12W-02-45		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG12W-02-46		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG12W-02-47		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG12W-02-48		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG12W-02-49		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG12W-02-50		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG12W-02-51		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG12W-02-52		Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG12W-03		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG12W-03-01		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12W-03-02		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12W-03-03		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12W-03-04		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG12W-03-05		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG12W-03-06		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG12W-03-07		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG12W-03-11		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12W-03-12		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12W-03-13		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12W-03-21		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG12W-03-22		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG12W-03-23		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG12W-03-24		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG12W-03-25		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG12W-03-31		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG12W-03-32		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG12W-03-33		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG12W-03-34		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG12W-03-35		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG12W-03-36		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG12W-03-37		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG12W-03-38		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG12W-03-41		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG12W-03-42		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG12W-03-43		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG12W-03-44		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG12W-03-45		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG12W-03-46		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG12W-03-47		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG12W-03-48		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG12W-03-49		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG12W-03-50		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG12W-03-51		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG12W-03-52		Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG12W-11		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG12W-11-01		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12W-11-02		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12W-11-03		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12W-11-04		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG12W-11-05		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG12W-11-06		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG12W-11-07		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG12W-11-11		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12W-11-12		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12W-11-13		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12W-11-21		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG12W-11-22		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG12W-11-23		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG12W-11-24		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG12W-11-25		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG12W-11-31		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG12W-11-32		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG12W-11-33		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG12W-11-34		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG12W-11-35		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG12W-11-36		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG12W-11-37		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG12W-11-38		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG12W-11-41		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG12W-11-42		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG12W-11-43		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG12W-11-44		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG12W-11-45		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG12W-11-46		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG12W-11-47		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG12W-11-48		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG12W-11-49		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG12W-11-50		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG12W-11-51		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG12W-11-52		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG12W-12		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG12W-12-01		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12W-12-02		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12W-12-03		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12W-12-04		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG12W-12-05		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG12W-12-06		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG12W-12-07		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG12W-12-11		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12W-12-12		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12W-12-13		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12W-12-21		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG12W-12-22		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG12W-12-23		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG12W-12-24		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG12W-12-25		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG12W-12-31		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG12W-12-32		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG12W-12-33		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG12W-12-34		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG12W-12-35		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG12W-12-36		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG12W-12-37		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG12W-12-38		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG12W-12-41		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG12W-12-42		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG12W-12-43		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG12W-12-44		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG12W-12-45		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG12W-12-46		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG12W-12-47		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG12W-12-48		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG12W-12-49		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG12W-12-50		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG12W-12-51		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG12W-12-52		Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG12W-H06		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG12W-H06-01		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12W-H06-02		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12W-H06-03		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12W-H06-04		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG12W-H06-05		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG12W-H06-06		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG12W-H06-07		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG12W-H06-11		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12W-H06-12		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12W-H06-13		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12W-H06-21		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG12W-H06-22		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG12W-H06-23		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG12W-H06-24		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG12W-H06-25		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG12W-H06-31		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG12W-H06-32		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG12W-H06-33		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG12W-H06-34		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG12W-H06-35		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG12W-H06-36		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG12W-H06-37		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG12W-H06-38		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG12W-H06-41		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG12W-H06-42		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG12W-H06-43		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG12W-H06-44		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG12W-H06-45		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG12W-H06-46		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG12W-H06-47		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG12W-H06-48		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG12W-H06-49		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG12W-H06-50		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG12W-H06-51		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG12W-H06-52		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG12W-H08		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG12W-H08-01		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12W-H08-02		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12W-H08-03		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12W-H08-04		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG12W-H08-05		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG12W-H08-06		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG12W-H08-07		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG12W-H08-11		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12W-H08-12		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12W-H08-13		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12W-H08-21		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG12W-H08-22		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG12W-H08-23		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG12W-H08-24		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG12W-H08-25		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG12W-H08-31		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG12W-H08-32		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG12W-H08-33		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG12W-H08-34		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG12W-H08-35		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG12W-H08-36		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG12W-H08-37		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG12W-H08-38		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG12W-H08-41		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG12W-H08-42		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG12W-H08-43		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG12W-H08-44		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG12W-H08-45		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG12W-H08-46		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG12W-H08-47		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG12W-H08-48		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG12W-H08-49		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG12W-H08-50		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG12W-H08-51		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG12W-H08-52		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG12W-H10		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG12W-H10-01		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12W-H10-02		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12W-H10-03		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12W-H10-04		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG12W-H10-05		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG12W-H10-06		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG12W-H10-07		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG12W-H10-11		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12W-H10-12		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12W-H10-13		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12W-H10-21		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG12W-H10-22		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG12W-H10-23		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG12W-H10-24		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG12W-H10-25		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG12W-H10-31		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG12W-H10-32		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG12W-H10-33		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG12W-H10-34		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG12W-H10-35		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG12W-H10-36		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG12W-H10-37		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG12W-H10-38		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG12W-H10-41		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG12W-H10-42		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG12W-H10-43		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG12W-H10-44		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG12W-H10-45		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG12W-H10-46		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG12W-H10-47		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG12W-H10-48		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG12W-H10-49		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG12W-H10-50		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG12W-H10-51		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG12W-H10-52		Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG12BU-02		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG12BU-02-01		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12BU-02-02		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12BU-02-03		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12BU-02-04		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG12BU-02-05		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG12BU-02-06		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG12BU-02-07		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG12BU-02-11		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12BU-02-12		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12BU-02-13		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12BU-02-21		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG12BU-02-22		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG12BU-02-23		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG12BU-02-24		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG12BU-02-25		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG12BU-02-31		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG12BU-02-32		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG12BU-02-33		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG12BU-02-34		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG12BU-02-35		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG12BU-02-36		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG12BU-02-37		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG12BU-02-38		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG12BU-02-41		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG12BU-02-42		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG12BU-02-43		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG12BU-02-44		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG12BU-02-45		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG12BU-02-46		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG12BU-02-47		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG12BU-02-48		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG12BU-02-49		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG12BU-02-50		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG12BU-02-51		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG12BU-02-52		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG12BU-03		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG12BU-03-01		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12BU-03-02		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12BU-03-03		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12BU-03-04		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG12BU-03-05		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG12BU-03-06		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG12BU-03-07		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG12BU-03-11		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12BU-03-12		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12BU-03-13		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12BU-03-21		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG12BU-03-22		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG12BU-03-23		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG12BU-03-24		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG12BU-03-25		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG12BU-03-31		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG12BU-03-32		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG12BU-03-33		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG12BU-03-34		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG12BU-03-35		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG12BU-03-36		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG12BU-03-37		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG12BU-03-38		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG12BU-03-41		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG12BU-03-42		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG12BU-03-43		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG12BU-03-44		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG12BU-03-45		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG12BU-03-46		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG12BU-03-47		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG12BU-03-48		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG12BU-03-49		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG12BU-03-50		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG12BU-03-51		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG12BU-03-52		Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG12BU-11		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG12BU-11-01		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12BU-11-02		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12BU-11-03		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12BU-11-04		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG12BU-11-05		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG12BU-11-06		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG12BU-11-07		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG12BU-11-11		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12BU-11-12		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12BU-11-13		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12BU-11-21		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG12BU-11-22		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG12BU-11-23		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG12BU-11-24		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG12BU-11-25		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG12BU-11-31		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG12BU-11-32		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG12BU-11-33		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG12BU-11-34		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG12BU-11-35		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG12BU-11-36		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG12BU-11-37		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG12BU-11-38		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG12BU-11-41		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG12BU-11-42		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG12BU-11-43		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG12BU-11-44		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG12BU-11-45		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG12BU-11-46		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG12BU-11-47		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG12BU-11-48		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG12BU-11-49		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG12BU-11-50		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG12BU-11-51		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG12BU-11-52		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG12BU-12		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG12BU-12-01		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12BU-12-02		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12BU-12-03		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12BU-12-04		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG12BU-12-05		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG12BU-12-06		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG12BU-12-07		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG12BU-12-11		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12BU-12-12		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12BU-12-13		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12BU-12-21		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG12BU-12-22		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG12BU-12-23		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG12BU-12-24		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG12BU-12-25		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG12BU-12-31		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG12BU-12-32		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG12BU-12-33		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG12BU-12-34		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG12BU-12-35		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG12BU-12-36		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG12BU-12-37		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG12BU-12-38		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG12BU-12-41		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG12BU-12-42		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG12BU-12-43		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG12BU-12-44		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG12BU-12-45		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG12BU-12-46		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG12BU-12-47		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG12BU-12-48		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG12BU-12-49		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG12BU-12-50		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG12BU-12-51		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG12BU-12-52		Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG12BU-H06		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG12BU-H06-01		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12BU-H06-02		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12BU-H06-03		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12BU-H06-04		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG12BU-H06-05		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG12BU-H06-06		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG12BU-H06-07		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG12BU-H06-11		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12BU-H06-12		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12BU-H06-13		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12BU-H06-21		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG12BU-H06-22		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG12BU-H06-23		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG12BU-H06-24		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG12BU-H06-25		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG12BU-H06-31		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG12BU-H06-32		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG12BU-H06-33		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG12BU-H06-34		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG12BU-H06-35		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG12BU-H06-36		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG12BU-H06-37		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG12BU-H06-38		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG12BU-H06-41		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG12BU-H06-42		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG12BU-H06-43		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG12BU-H06-44		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG12BU-H06-45		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG12BU-H06-46		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG12BU-H06-47		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG12BU-H06-48		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG12BU-H06-49		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG12BU-H06-50		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG12BU-H06-51		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG12BU-H06-52		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG12BU-H08		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG12BU-H08-01		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12BU-H08-02		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12BU-H08-03		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12BU-H08-04		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG12BU-H08-05		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG12BU-H08-06		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG12BU-H08-07		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG12BU-H08-11		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12BU-H08-12		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12BU-H08-13		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12BU-H08-21		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG12BU-H08-22		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG12BU-H08-23		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG12BU-H08-24		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG12BU-H08-25		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG12BU-H08-31		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG12BU-H08-32		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG12BU-H08-33		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG12BU-H08-34		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG12BU-H08-35		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG12BU-H08-36		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG12BU-H08-37		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG12BU-H08-38		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG12BU-H08-41		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG12BU-H08-42		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG12BU-H08-43		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG12BU-H08-44		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG12BU-H08-45		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG12BU-H08-46		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG12BU-H08-47		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG12BU-H08-48		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG12BU-H08-49		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG12BU-H08-50		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG12BU-H08-51		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG12BU-H08-52		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
VMG12BU-H10		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
VMG12BU-H10-01		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12BU-H10-02		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12BU-H10-03		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12BU-H10-04		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
VMG12BU-H10-05		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
VMG12BU-H10-06		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
VMG12BU-H10-07		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
VMG12BU-H10-11		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
VMG12BU-H10-12		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
VMG12BU-H10-13		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
VMG12BU-H10-21		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
VMG12BU-H10-22		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
VMG12BU-H10-23		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
VMG12BU-H10-24		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
VMG12BU-H10-25		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
VMG12BU-H10-31		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
VMG12BU-H10-32		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
VMG12BU-H10-33		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
VMG12BU-H10-34		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
VMG12BU-H10-35		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
VMG12BU-H10-36		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
VMG12BU-H10-37		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
VMG12BU-H10-38		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
VMG12BU-H10-41		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
VMG12BU-H10-42		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
VMG12BU-H10-43		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
VMG12BU-H10-44		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
VMG12BU-H10-45		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
VMG12BU-H10-46		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
VMG12BU-H10-47		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
VMG12BU-H10-48		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
VMG12BU-H10-49		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
VMG12BU-H10-50		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
VMG12BU-H10-51		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
VMG12BU-H10-52		Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm

Blow GunsSMC

1008 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VMG Blow Gun (Low Pressure Loss, Nozzle Selectable)

Brand SMC·Blow Guns

Available part numbers (1008)

VMG11W-02, VMG11W-02-01, VMG11W-02-02, VMG11W-02-03, VMG11W-02-04, VMG11W-02-05, VMG11W-02-06, VMG11W-02-07, VMG11W-02-11, VMG11W-02-12 + 998 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	VMG11W-02	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG11W-02-01	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11W-02-02	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11W-02-03	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11W-02-04	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG11W-02-05	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG11W-02-06	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG11W-02-07	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG11W-02-11	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11W-02-12	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11W-02-13	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11W-02-21	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG11W-02-22	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG11W-02-23	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG11W-02-24	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG11W-02-25	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG11W-02-31	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG11W-02-32	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG11W-02-33	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG11W-02-34	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG11W-02-35	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG11W-02-36	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG11W-02-37	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG11W-02-38	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG11W-02-41	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG11W-02-42	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG11W-02-43	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG11W-02-44	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG11W-02-45	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG11W-02-46	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG11W-02-47	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG11W-02-48	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG11W-02-49	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG11W-02-50	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG11W-02-51	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG11W-02-52	Piping direction: Bottom piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG11W-03	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG11W-03-01	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11W-03-02	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11W-03-03	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11W-03-04	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG11W-03-05	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG11W-03-06	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG11W-03-07	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG11W-03-11	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11W-03-12	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11W-03-13	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11W-03-21	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG11W-03-22	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG11W-03-23	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG11W-03-24	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG11W-03-25	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG11W-03-31	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG11W-03-32	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG11W-03-33	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG11W-03-34	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG11W-03-35	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG11W-03-36	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG11W-03-37	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG11W-03-38	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG11W-03-41	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG11W-03-42	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG11W-03-43	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG11W-03-44	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG11W-03-45	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG11W-03-46	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG11W-03-47	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG11W-03-48	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG11W-03-49	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG11W-03-50	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG11W-03-51	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG11W-03-52	Piping direction: Bottom piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG11W-11	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG11W-11-01	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11W-11-02	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11W-11-03	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11W-11-04	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG11W-11-05	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG11W-11-06	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG11W-11-07	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG11W-11-11	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11W-11-12	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11W-11-13	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11W-11-21	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG11W-11-22	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG11W-11-23	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG11W-11-24	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG11W-11-25	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG11W-11-31	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG11W-11-32	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG11W-11-33	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG11W-11-34	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG11W-11-35	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG11W-11-36	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG11W-11-37	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG11W-11-38	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG11W-11-41	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG11W-11-42	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG11W-11-43	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG11W-11-44	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG11W-11-45	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG11W-11-46	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG11W-11-47	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG11W-11-48	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG11W-11-49	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG11W-11-50	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG11W-11-51	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG11W-11-52	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG11W-12	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG11W-12-01	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11W-12-02	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11W-12-03	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11W-12-04	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG11W-12-05	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG11W-12-06	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG11W-12-07	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG11W-12-11	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11W-12-12	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11W-12-13	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11W-12-21	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG11W-12-22	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG11W-12-23	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG11W-12-24	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG11W-12-25	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG11W-12-31	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG11W-12-32	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG11W-12-33	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG11W-12-34	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG11W-12-35	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG11W-12-36	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG11W-12-37	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG11W-12-38	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG11W-12-41	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG11W-12-42	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG11W-12-43	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG11W-12-44	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG11W-12-45	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG11W-12-46	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG11W-12-47	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG11W-12-48	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG11W-12-49	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG11W-12-50	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG11W-12-51	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG11W-12-52	Piping direction: Bottom piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG11W-H06	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG11W-H06-01	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11W-H06-02	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11W-H06-03	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11W-H06-04	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG11W-H06-05	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG11W-H06-06	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG11W-H06-07	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG11W-H06-11	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11W-H06-12	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11W-H06-13	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11W-H06-21	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG11W-H06-22	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG11W-H06-23	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG11W-H06-24	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG11W-H06-25	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG11W-H06-31	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG11W-H06-32	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG11W-H06-33	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG11W-H06-34	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG11W-H06-35	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG11W-H06-36	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG11W-H06-37	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG11W-H06-38	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG11W-H06-41	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG11W-H06-42	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG11W-H06-43	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG11W-H06-44	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG11W-H06-45	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG11W-H06-46	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG11W-H06-47	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG11W-H06-48	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG11W-H06-49	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG11W-H06-50	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG11W-H06-51	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG11W-H06-52	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG11W-H08	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG11W-H08-01	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11W-H08-02	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11W-H08-03	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11W-H08-04	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG11W-H08-05	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG11W-H08-06	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG11W-H08-07	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG11W-H08-11	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11W-H08-12	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11W-H08-13	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11W-H08-21	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG11W-H08-22	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG11W-H08-23	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG11W-H08-24	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG11W-H08-25	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG11W-H08-31	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG11W-H08-32	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG11W-H08-33	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG11W-H08-34	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG11W-H08-35	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG11W-H08-36	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG11W-H08-37	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG11W-H08-38	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG11W-H08-41	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG11W-H08-42	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG11W-H08-43	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG11W-H08-44	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG11W-H08-45	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG11W-H08-46	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG11W-H08-47	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG11W-H08-48	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG11W-H08-49	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG11W-H08-50	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG11W-H08-51	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG11W-H08-52	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG11W-H10	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG11W-H10-01	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11W-H10-02	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11W-H10-03	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11W-H10-04	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG11W-H10-05	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG11W-H10-06	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG11W-H10-07	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG11W-H10-11	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11W-H10-12	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11W-H10-13	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11W-H10-21	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG11W-H10-22	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG11W-H10-23	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG11W-H10-24	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG11W-H10-25	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG11W-H10-31	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG11W-H10-32	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG11W-H10-33	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG11W-H10-34	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG11W-H10-35	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG11W-H10-36	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG11W-H10-37	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG11W-H10-38	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG11W-H10-41	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG11W-H10-42	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG11W-H10-43	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG11W-H10-44	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG11W-H10-45	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG11W-H10-46	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG11W-H10-47	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG11W-H10-48	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG11W-H10-49	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG11W-H10-50	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG11W-H10-51	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG11W-H10-52	Piping direction: Bottom piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG11BU-02	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG11BU-02-01	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11BU-02-02	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11BU-02-03	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11BU-02-04	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG11BU-02-05	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG11BU-02-06	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG11BU-02-07	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG11BU-02-11	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11BU-02-12	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11BU-02-13	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11BU-02-21	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG11BU-02-22	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG11BU-02-23	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG11BU-02-24	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG11BU-02-25	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG11BU-02-31	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG11BU-02-32	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG11BU-02-33	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG11BU-02-34	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG11BU-02-35	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG11BU-02-36	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG11BU-02-37	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG11BU-02-38	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG11BU-02-41	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG11BU-02-42	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG11BU-02-43	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG11BU-02-44	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG11BU-02-45	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG11BU-02-46	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG11BU-02-47	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG11BU-02-48	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG11BU-02-49	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG11BU-02-50	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG11BU-02-51	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG11BU-02-52	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG11BU-03	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG11BU-03-01	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11BU-03-02	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11BU-03-03	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11BU-03-04	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG11BU-03-05	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG11BU-03-06	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG11BU-03-07	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG11BU-03-11	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11BU-03-12	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11BU-03-13	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11BU-03-21	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG11BU-03-22	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG11BU-03-23	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG11BU-03-24	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG11BU-03-25	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG11BU-03-31	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG11BU-03-32	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG11BU-03-33	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG11BU-03-34	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG11BU-03-35	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG11BU-03-36	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG11BU-03-37	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG11BU-03-38	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG11BU-03-41	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG11BU-03-42	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG11BU-03-43	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG11BU-03-44	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG11BU-03-45	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG11BU-03-46	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG11BU-03-47	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG11BU-03-48	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG11BU-03-49	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG11BU-03-50	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG11BU-03-51	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG11BU-03-52	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG11BU-11	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG11BU-11-01	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11BU-11-02	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11BU-11-03	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11BU-11-04	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG11BU-11-05	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG11BU-11-06	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG11BU-11-07	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG11BU-11-11	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11BU-11-12	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11BU-11-13	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11BU-11-21	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG11BU-11-22	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG11BU-11-23	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG11BU-11-24	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG11BU-11-25	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG11BU-11-31	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG11BU-11-32	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG11BU-11-33	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG11BU-11-34	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG11BU-11-35	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG11BU-11-36	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG11BU-11-37	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG11BU-11-38	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG11BU-11-41	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG11BU-11-42	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG11BU-11-43	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG11BU-11-44	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG11BU-11-45	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG11BU-11-46	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG11BU-11-47	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG11BU-11-48	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG11BU-11-49	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG11BU-11-50	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG11BU-11-51	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG11BU-11-52	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG11BU-12	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG11BU-12-01	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11BU-12-02	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11BU-12-03	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11BU-12-04	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG11BU-12-05	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG11BU-12-06	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG11BU-12-07	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG11BU-12-11	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11BU-12-12	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11BU-12-13	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11BU-12-21	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG11BU-12-22	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG11BU-12-23	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG11BU-12-24	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG11BU-12-25	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG11BU-12-31	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG11BU-12-32	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG11BU-12-33	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG11BU-12-34	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG11BU-12-35	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG11BU-12-36	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG11BU-12-37	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG11BU-12-38	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG11BU-12-41	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG11BU-12-42	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG11BU-12-43	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG11BU-12-44	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG11BU-12-45	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG11BU-12-46	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG11BU-12-47	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG11BU-12-48	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG11BU-12-49	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG11BU-12-50	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG11BU-12-51	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG11BU-12-52	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG11BU-H06	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG11BU-H06-01	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11BU-H06-02	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11BU-H06-03	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11BU-H06-04	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG11BU-H06-05	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG11BU-H06-06	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG11BU-H06-07	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG11BU-H06-11	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11BU-H06-12	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11BU-H06-13	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11BU-H06-21	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG11BU-H06-22	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG11BU-H06-23	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG11BU-H06-24	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG11BU-H06-25	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG11BU-H06-31	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG11BU-H06-32	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG11BU-H06-33	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG11BU-H06-34	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG11BU-H06-35	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG11BU-H06-36	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG11BU-H06-37	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG11BU-H06-38	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG11BU-H06-41	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG11BU-H06-42	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG11BU-H06-43	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG11BU-H06-44	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG11BU-H06-45	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG11BU-H06-46	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG11BU-H06-47	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG11BU-H06-48	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG11BU-H06-49	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG11BU-H06-50	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG11BU-H06-51	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG11BU-H06-52	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG11BU-H08	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG11BU-H08-01	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11BU-H08-02	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11BU-H08-03	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11BU-H08-04	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG11BU-H08-05	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG11BU-H08-06	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG11BU-H08-07	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG11BU-H08-11	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11BU-H08-12	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11BU-H08-13	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11BU-H08-21	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG11BU-H08-22	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG11BU-H08-23	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG11BU-H08-24	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG11BU-H08-25	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG11BU-H08-31	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG11BU-H08-32	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG11BU-H08-33	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG11BU-H08-34	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG11BU-H08-35	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG11BU-H08-36	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG11BU-H08-37	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG11BU-H08-38	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG11BU-H08-41	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG11BU-H08-42	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG11BU-H08-43	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG11BU-H08-44	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG11BU-H08-45	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG11BU-H08-46	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG11BU-H08-47	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG11BU-H08-48	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG11BU-H08-49	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG11BU-H08-50	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG11BU-H08-51	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG11BU-H08-52	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG11BU-H10	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG11BU-H10-01	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11BU-H10-02	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11BU-H10-03	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11BU-H10-04	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG11BU-H10-05	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG11BU-H10-06	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG11BU-H10-07	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG11BU-H10-11	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG11BU-H10-12	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG11BU-H10-13	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG11BU-H10-21	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG11BU-H10-22	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG11BU-H10-23	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG11BU-H10-24	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG11BU-H10-25	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG11BU-H10-31	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG11BU-H10-32	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG11BU-H10-33	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG11BU-H10-34	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG11BU-H10-35	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG11BU-H10-36	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG11BU-H10-37	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG11BU-H10-38	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG11BU-H10-41	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG11BU-H10-42	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG11BU-H10-43	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG11BU-H10-44	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG11BU-H10-45	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG11BU-H10-46	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG11BU-H10-47	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG11BU-H10-48	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG11BU-H10-49	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG11BU-H10-50	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG11BU-H10-51	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG11BU-H10-52	Piping direction: Bottom piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG12W-02	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG12W-02-01	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12W-02-02	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12W-02-03	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12W-02-04	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG12W-02-05	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG12W-02-06	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG12W-02-07	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG12W-02-11	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12W-02-12	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12W-02-13	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12W-02-21	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG12W-02-22	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG12W-02-23	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG12W-02-24	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG12W-02-25	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG12W-02-31	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG12W-02-32	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG12W-02-33	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG12W-02-34	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG12W-02-35	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG12W-02-36	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG12W-02-37	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG12W-02-38	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG12W-02-41	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG12W-02-42	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG12W-02-43	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG12W-02-44	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG12W-02-45	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG12W-02-46	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG12W-02-47	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG12W-02-48	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG12W-02-49	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG12W-02-50	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG12W-02-51	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG12W-02-52	Piping direction: Top piping \| Body color: White \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG12W-03	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG12W-03-01	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12W-03-02	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12W-03-03	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12W-03-04	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG12W-03-05	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG12W-03-06	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG12W-03-07	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG12W-03-11	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12W-03-12	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12W-03-13	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12W-03-21	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG12W-03-22	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG12W-03-23	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG12W-03-24	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG12W-03-25	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG12W-03-31	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG12W-03-32	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG12W-03-33	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG12W-03-34	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG12W-03-35	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG12W-03-36	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG12W-03-37	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG12W-03-38	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG12W-03-41	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG12W-03-42	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG12W-03-43	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG12W-03-44	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG12W-03-45	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG12W-03-46	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG12W-03-47	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG12W-03-48	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG12W-03-49	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG12W-03-50	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG12W-03-51	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG12W-03-52	Piping direction: Top piping \| Body color: White \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG12W-11	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG12W-11-01	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12W-11-02	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12W-11-03	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12W-11-04	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG12W-11-05	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG12W-11-06	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG12W-11-07	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG12W-11-11	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12W-11-12	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12W-11-13	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12W-11-21	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG12W-11-22	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG12W-11-23	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG12W-11-24	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG12W-11-25	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG12W-11-31	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG12W-11-32	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG12W-11-33	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG12W-11-34	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG12W-11-35	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG12W-11-36	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG12W-11-37	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG12W-11-38	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG12W-11-41	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG12W-11-42	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG12W-11-43	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG12W-11-44	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG12W-11-45	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG12W-11-46	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG12W-11-47	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG12W-11-48	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG12W-11-49	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG12W-11-50	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG12W-11-51	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG12W-11-52	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG12W-12	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG12W-12-01	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12W-12-02	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12W-12-03	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12W-12-04	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG12W-12-05	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG12W-12-06	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG12W-12-07	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG12W-12-11	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12W-12-12	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12W-12-13	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12W-12-21	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG12W-12-22	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG12W-12-23	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG12W-12-24	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG12W-12-25	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG12W-12-31	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG12W-12-32	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG12W-12-33	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG12W-12-34	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG12W-12-35	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG12W-12-36	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG12W-12-37	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG12W-12-38	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG12W-12-41	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG12W-12-42	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG12W-12-43	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG12W-12-44	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG12W-12-45	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG12W-12-46	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG12W-12-47	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG12W-12-48	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG12W-12-49	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG12W-12-50	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG12W-12-51	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG12W-12-52	Piping direction: Top piping \| Body color: White \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG12W-H06	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG12W-H06-01	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12W-H06-02	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12W-H06-03	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12W-H06-04	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG12W-H06-05	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG12W-H06-06	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG12W-H06-07	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG12W-H06-11	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12W-H06-12	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12W-H06-13	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12W-H06-21	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG12W-H06-22	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG12W-H06-23	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG12W-H06-24	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG12W-H06-25	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG12W-H06-31	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG12W-H06-32	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG12W-H06-33	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG12W-H06-34	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG12W-H06-35	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG12W-H06-36	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG12W-H06-37	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG12W-H06-38	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG12W-H06-41	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG12W-H06-42	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG12W-H06-43	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG12W-H06-44	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG12W-H06-45	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG12W-H06-46	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG12W-H06-47	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG12W-H06-48	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG12W-H06-49	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG12W-H06-50	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG12W-H06-51	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG12W-H06-52	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG12W-H08	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG12W-H08-01	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12W-H08-02	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12W-H08-03	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12W-H08-04	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG12W-H08-05	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG12W-H08-06	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG12W-H08-07	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG12W-H08-11	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12W-H08-12	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12W-H08-13	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12W-H08-21	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG12W-H08-22	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG12W-H08-23	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG12W-H08-24	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG12W-H08-25	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG12W-H08-31	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG12W-H08-32	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG12W-H08-33	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG12W-H08-34	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG12W-H08-35	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG12W-H08-36	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG12W-H08-37	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG12W-H08-38	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG12W-H08-41	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG12W-H08-42	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG12W-H08-43	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG12W-H08-44	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG12W-H08-45	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG12W-H08-46	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG12W-H08-47	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG12W-H08-48	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG12W-H08-49	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG12W-H08-50	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG12W-H08-51	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG12W-H08-52	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG12W-H10	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG12W-H10-01	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12W-H10-02	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12W-H10-03	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12W-H10-04	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG12W-H10-05	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG12W-H10-06	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG12W-H10-07	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG12W-H10-11	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12W-H10-12	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12W-H10-13	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12W-H10-21	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG12W-H10-22	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG12W-H10-23	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG12W-H10-24	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG12W-H10-25	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG12W-H10-31	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG12W-H10-32	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG12W-H10-33	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG12W-H10-34	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG12W-H10-35	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG12W-H10-36	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG12W-H10-37	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG12W-H10-38	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG12W-H10-41	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG12W-H10-42	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG12W-H10-43	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG12W-H10-44	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG12W-H10-45	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG12W-H10-46	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG12W-H10-47	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG12W-H10-48	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG12W-H10-49	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG12W-H10-50	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG12W-H10-51	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG12W-H10-52	Piping direction: Top piping \| Body color: White \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG12BU-02	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG12BU-02-01	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12BU-02-02	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12BU-02-03	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12BU-02-04	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG12BU-02-05	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG12BU-02-06	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG12BU-02-07	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG12BU-02-11	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12BU-02-12	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12BU-02-13	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12BU-02-21	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG12BU-02-22	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG12BU-02-23	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG12BU-02-24	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG12BU-02-25	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG12BU-02-31	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG12BU-02-32	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG12BU-02-33	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG12BU-02-34	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG12BU-02-35	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG12BU-02-36	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG12BU-02-37	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG12BU-02-38	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG12BU-02-41	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG12BU-02-42	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG12BU-02-43	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG12BU-02-44	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG12BU-02-45	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG12BU-02-46	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG12BU-02-47	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG12BU-02-48	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG12BU-02-49	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG12BU-02-50	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG12BU-02-51	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG12BU-02-52	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc1/4 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG12BU-03	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG12BU-03-01	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12BU-03-02	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12BU-03-03	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12BU-03-04	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG12BU-03-05	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG12BU-03-06	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG12BU-03-07	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG12BU-03-11	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12BU-03-12	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12BU-03-13	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12BU-03-21	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG12BU-03-22	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG12BU-03-23	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG12BU-03-24	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG12BU-03-25	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG12BU-03-31	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG12BU-03-32	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG12BU-03-33	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG12BU-03-34	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG12BU-03-35	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG12BU-03-36	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG12BU-03-37	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG12BU-03-38	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG12BU-03-41	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG12BU-03-42	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG12BU-03-43	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG12BU-03-44	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG12BU-03-45	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG12BU-03-46	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG12BU-03-47	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG12BU-03-48	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG12BU-03-49	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG12BU-03-50	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG12BU-03-51	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG12BU-03-52	Piping direction: Top piping \| Body color: Dark blue \| Connection: Rc3/8 thread \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG12BU-11	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG12BU-11-01	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12BU-11-02	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12BU-11-03	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12BU-11-04	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG12BU-11-05	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG12BU-11-06	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG12BU-11-07	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG12BU-11-11	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12BU-11-12	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12BU-11-13	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12BU-11-21	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG12BU-11-22	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG12BU-11-23	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG12BU-11-24	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG12BU-11-25	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG12BU-11-31	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG12BU-11-32	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG12BU-11-33	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG12BU-11-34	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG12BU-11-35	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG12BU-11-36	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG12BU-11-37	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG12BU-11-38	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG12BU-11-41	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG12BU-11-42	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG12BU-11-43	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG12BU-11-44	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG12BU-11-45	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG12BU-11-46	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG12BU-11-47	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG12BU-11-48	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG12BU-11-49	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG12BU-11-50	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG12BU-11-51	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG12BU-11-52	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK4P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG12BU-12	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG12BU-12-01	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12BU-12-02	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12BU-12-03	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12BU-12-04	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG12BU-12-05	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG12BU-12-06	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG12BU-12-07	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG12BU-12-11	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12BU-12-12	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12BU-12-13	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12BU-12-21	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG12BU-12-22	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG12BU-12-23	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG12BU-12-24	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG12BU-12-25	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG12BU-12-31	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG12BU-12-32	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG12BU-12-33	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG12BU-12-34	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG12BU-12-35	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG12BU-12-36	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG12BU-12-37	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG12BU-12-38	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG12BU-12-41	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG12BU-12-42	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG12BU-12-43	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG12BU-12-44	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG12BU-12-45	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG12BU-12-46	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG12BU-12-47	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG12BU-12-48	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG12BU-12-49	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG12BU-12-50	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG12BU-12-51	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG12BU-12-52	Piping direction: Top piping \| Body color: Dark blue \| Connection: S coupler plug KK130P-02MS \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG12BU-H06	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG12BU-H06-01	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12BU-H06-02	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12BU-H06-03	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12BU-H06-04	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG12BU-H06-05	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG12BU-H06-06	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG12BU-H06-07	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG12BU-H06-11	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12BU-H06-12	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12BU-H06-13	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12BU-H06-21	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG12BU-H06-22	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG12BU-H06-23	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG12BU-H06-24	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG12BU-H06-25	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG12BU-H06-31	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG12BU-H06-32	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG12BU-H06-33	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG12BU-H06-34	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG12BU-H06-35	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG12BU-H06-36	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG12BU-H06-37	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG12BU-H06-38	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG12BU-H06-41	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG12BU-H06-42	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG12BU-H06-43	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG12BU-H06-44	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG12BU-H06-45	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG12BU-H06-46	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG12BU-H06-47	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG12BU-H06-48	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG12BU-H06-49	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG12BU-H06-50	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG12BU-H06-51	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG12BU-H06-52	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø6 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG12BU-H08	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG12BU-H08-01	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12BU-H08-02	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12BU-H08-03	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12BU-H08-04	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG12BU-H08-05	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG12BU-H08-06	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG12BU-H08-07	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG12BU-H08-11	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12BU-H08-12	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12BU-H08-13	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12BU-H08-21	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG12BU-H08-22	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG12BU-H08-23	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG12BU-H08-24	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG12BU-H08-25	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG12BU-H08-31	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG12BU-H08-32	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG12BU-H08-33	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG12BU-H08-34	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG12BU-H08-35	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG12BU-H08-36	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG12BU-H08-37	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG12BU-H08-38	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG12BU-H08-41	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG12BU-H08-42	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG12BU-H08-43	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG12BU-H08-44	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG12BU-H08-45	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG12BU-H08-46	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG12BU-H08-47	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG12BU-H08-48	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG12BU-H08-49	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG12BU-H08-50	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG12BU-H08-51	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG12BU-H08-52	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø8 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm
	VMG12BU-H10	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: None \| Nozzle dia.: None \| Nozzle length: -
	VMG12BU-H10-01	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12BU-H10-02	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12BU-H10-03	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12BU-H10-04	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: -
	VMG12BU-H10-05	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3 \| Nozzle length: -
	VMG12BU-H10-06	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: -
	VMG12BU-H10-07	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Male thread nozzle \| Nozzle dia.: ø4 \| Nozzle length: -
	VMG12BU-H10-11	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1 \| Nozzle length: -
	VMG12BU-H10-12	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: -
	VMG12BU-H10-13	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: High-efficiency nozzle \| Nozzle dia.: ø2 \| Nozzle length: -
	VMG12BU-H10-21	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.75x4 \| Nozzle length: -
	VMG12BU-H10-22	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø0.9x8 \| Nozzle length: -
	VMG12BU-H10-23	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1x4 \| Nozzle length: -
	VMG12BU-H10-24	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Low-noise nozzle \| Nozzle dia.: ø1.1x8 \| Nozzle length: -
	VMG12BU-H10-25	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: Flow adjustment nozzle \| Nozzle dia.: Adjustable \| Nozzle length: -
	VMG12BU-H10-31	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 300 mm
	VMG12BU-H10-32	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 300 mm
	VMG12BU-H10-33	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 600 mm
	VMG12BU-H10-34	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 600 mm
	VMG12BU-H10-35	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 100 mm
	VMG12BU-H10-36	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 100 mm
	VMG12BU-H10-37	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø1.5 \| Nozzle length: 150 mm
	VMG12BU-H10-38	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø6 copper long nozzle \| Nozzle dia.: ø2 \| Nozzle length: 150 mm
	VMG12BU-H10-41	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 100 mm
	VMG12BU-H10-42	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 100 mm
	VMG12BU-H10-43	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 100 mm
	VMG12BU-H10-44	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 150 mm
	VMG12BU-H10-45	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 150 mm
	VMG12BU-H10-46	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 150 mm
	VMG12BU-H10-47	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 300 mm
	VMG12BU-H10-48	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 300 mm
	VMG12BU-H10-49	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 300 mm
	VMG12BU-H10-50	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø2.5 \| Nozzle length: 600 mm
	VMG12BU-H10-51	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3 \| Nozzle length: 600 mm
	VMG12BU-H10-52	Piping direction: Top piping \| Body color: Dark blue \| Connection: One-touch fitting ø10 \| Nozzle type: ø8 copper long nozzle \| Nozzle dia.: ø3.5 \| Nozzle length: 600 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC VMG Blow Gun (Low Pressure Loss, Nozzle Selectable)
