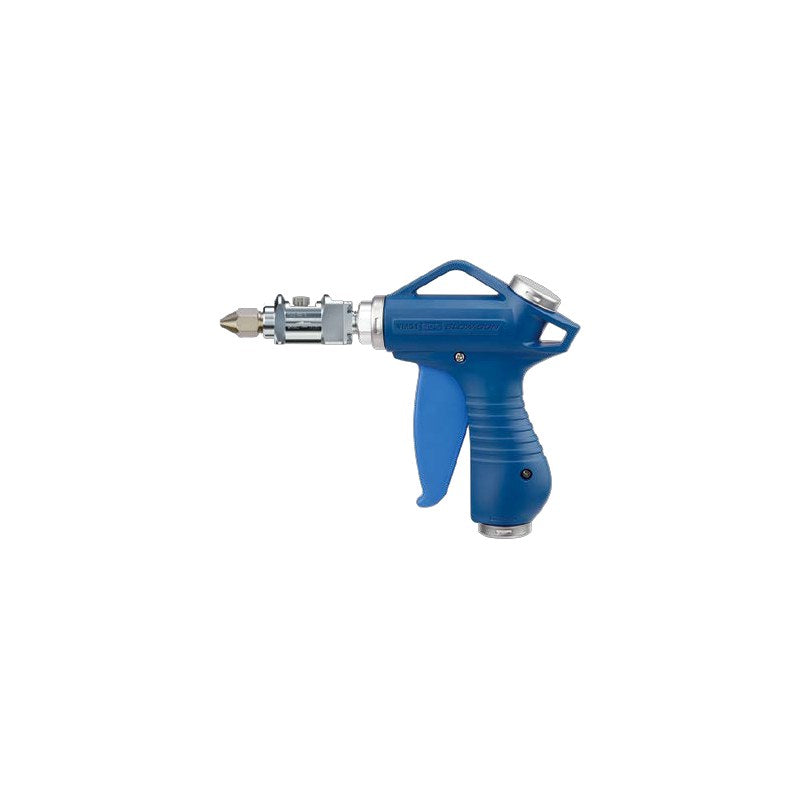

SMC VMG Blow Gun with Pulse Blow Unit (VMG1-P, PU20-R02)

SMC VMG Blow Gun with Pulse Blow Unit (VMG1-P, PU20-R02)

SMC VMG series blow gun supplied with the PU20-R02 pulse blow unit, giving intermittent impact blow that improves removal efficiency by 35% versus continuous blow while cutting air consumption.

Key features

  • Pulse blow unit PU20-R02 and nozzle shipped with the gun (not assembled)
  • Repeated intermittent air blow improves removal efficiency by 35% vs. continuous blow (SMC test)
  • Up to 60% lower compressor power / CO2 emissions combined with S coupler and coil tube (piping and pulse conditions apply)
  • Pulse frequency adjustable 5 to 10 Hz
  • Nozzles: male thread ø1/ø1.5/ø2, high-efficiency ø1 to ø2, low-noise ø0.75x4 and ø1x4, flow-adjust nozzle
  • Nozzle cover C (HNBR) or CF (FKM) available as suffix option

Specifications

Fluid Air
Operating pressure range 0.3 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Flow characteristics (without nozzle and pulse unit) C 6.0 dm3/(s·bar), b 0.25 (30 mm2)
Pulse frequency range 5 to 10 Hz
Nozzle connection Rc1/4
Nozzle length -
Operating force (fully open) 7 N
Weight (VMG + PU) 212 g
Source SMC Korea catalog CAT.KS50-20G (SMCKR_VMG.pdf), p. 6 (PDF p. 7)
VMG11W-02-01-P Piping direction: Bottom piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11W-02-02-P Piping direction: Bottom piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11W-02-03-P Piping direction: Bottom piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11W-02-11-P Piping direction: Bottom piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11W-02-12-P Piping direction: Bottom piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11W-02-13-P Piping direction: Bottom piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11W-02-21-P Piping direction: Bottom piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11W-02-23-P Piping direction: Bottom piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11W-02-25-P Piping direction: Bottom piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11W-03-01-P Piping direction: Bottom piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11W-03-02-P Piping direction: Bottom piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11W-03-03-P Piping direction: Bottom piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11W-03-11-P Piping direction: Bottom piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11W-03-12-P Piping direction: Bottom piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11W-03-13-P Piping direction: Bottom piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11W-03-21-P Piping direction: Bottom piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11W-03-23-P Piping direction: Bottom piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11W-03-25-P Piping direction: Bottom piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11W-11-01-P Piping direction: Bottom piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11W-11-02-P Piping direction: Bottom piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11W-11-03-P Piping direction: Bottom piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11W-11-11-P Piping direction: Bottom piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11W-11-12-P Piping direction: Bottom piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11W-11-13-P Piping direction: Bottom piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11W-11-21-P Piping direction: Bottom piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11W-11-23-P Piping direction: Bottom piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11W-11-25-P Piping direction: Bottom piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11W-12-01-P Piping direction: Bottom piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11W-12-02-P Piping direction: Bottom piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11W-12-03-P Piping direction: Bottom piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11W-12-11-P Piping direction: Bottom piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11W-12-12-P Piping direction: Bottom piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11W-12-13-P Piping direction: Bottom piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11W-12-21-P Piping direction: Bottom piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11W-12-23-P Piping direction: Bottom piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11W-12-25-P Piping direction: Bottom piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11W-H06-01-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11W-H06-02-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11W-H06-03-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11W-H06-11-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11W-H06-12-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11W-H06-13-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11W-H06-21-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11W-H06-23-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11W-H06-25-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11W-H08-01-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11W-H08-02-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11W-H08-03-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11W-H08-11-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11W-H08-12-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11W-H08-13-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11W-H08-21-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11W-H08-23-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11W-H08-25-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11W-H10-01-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11W-H10-02-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11W-H10-03-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11W-H10-11-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11W-H10-12-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11W-H10-13-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11W-H10-21-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11W-H10-23-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11W-H10-25-P Piping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11BU-02-01-P Piping direction: Bottom piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11BU-02-02-P Piping direction: Bottom piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11BU-02-03-P Piping direction: Bottom piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11BU-02-11-P Piping direction: Bottom piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11BU-02-12-P Piping direction: Bottom piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11BU-02-13-P Piping direction: Bottom piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11BU-02-21-P Piping direction: Bottom piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11BU-02-23-P Piping direction: Bottom piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11BU-02-25-P Piping direction: Bottom piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11BU-03-01-P Piping direction: Bottom piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11BU-03-02-P Piping direction: Bottom piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11BU-03-03-P Piping direction: Bottom piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11BU-03-11-P Piping direction: Bottom piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11BU-03-12-P Piping direction: Bottom piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11BU-03-13-P Piping direction: Bottom piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11BU-03-21-P Piping direction: Bottom piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11BU-03-23-P Piping direction: Bottom piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11BU-03-25-P Piping direction: Bottom piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11BU-11-01-P Piping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11BU-11-02-P Piping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11BU-11-03-P Piping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11BU-11-11-P Piping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11BU-11-12-P Piping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11BU-11-13-P Piping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11BU-11-21-P Piping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11BU-11-23-P Piping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11BU-11-25-P Piping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11BU-12-01-P Piping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11BU-12-02-P Piping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11BU-12-03-P Piping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11BU-12-11-P Piping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11BU-12-12-P Piping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11BU-12-13-P Piping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11BU-12-21-P Piping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11BU-12-23-P Piping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11BU-12-25-P Piping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11BU-H06-01-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11BU-H06-02-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11BU-H06-03-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11BU-H06-11-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11BU-H06-12-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11BU-H06-13-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11BU-H06-21-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11BU-H06-23-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11BU-H06-25-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11BU-H08-01-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11BU-H08-02-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11BU-H08-03-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11BU-H08-11-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11BU-H08-12-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11BU-H08-13-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11BU-H08-21-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11BU-H08-23-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11BU-H08-25-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11BU-H10-01-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11BU-H10-02-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11BU-H10-03-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11BU-H10-11-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11BU-H10-12-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11BU-H10-13-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11BU-H10-21-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11BU-H10-23-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11BU-H10-25-P Piping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12W-02-01-P Piping direction: Top piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12W-02-02-P Piping direction: Top piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12W-02-03-P Piping direction: Top piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12W-02-11-P Piping direction: Top piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12W-02-12-P Piping direction: Top piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12W-02-13-P Piping direction: Top piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12W-02-21-P Piping direction: Top piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12W-02-23-P Piping direction: Top piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12W-02-25-P Piping direction: Top piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12W-03-01-P Piping direction: Top piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12W-03-02-P Piping direction: Top piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12W-03-03-P Piping direction: Top piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12W-03-11-P Piping direction: Top piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12W-03-12-P Piping direction: Top piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12W-03-13-P Piping direction: Top piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12W-03-21-P Piping direction: Top piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12W-03-23-P Piping direction: Top piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12W-03-25-P Piping direction: Top piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12W-11-01-P Piping direction: Top piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12W-11-02-P Piping direction: Top piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12W-11-03-P Piping direction: Top piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12W-11-11-P Piping direction: Top piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12W-11-12-P Piping direction: Top piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12W-11-13-P Piping direction: Top piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12W-11-21-P Piping direction: Top piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12W-11-23-P Piping direction: Top piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12W-11-25-P Piping direction: Top piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12W-12-01-P Piping direction: Top piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12W-12-02-P Piping direction: Top piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12W-12-03-P Piping direction: Top piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12W-12-11-P Piping direction: Top piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12W-12-12-P Piping direction: Top piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12W-12-13-P Piping direction: Top piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12W-12-21-P Piping direction: Top piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12W-12-23-P Piping direction: Top piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12W-12-25-P Piping direction: Top piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12W-H06-01-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12W-H06-02-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12W-H06-03-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12W-H06-11-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12W-H06-12-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12W-H06-13-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12W-H06-21-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12W-H06-23-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12W-H06-25-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12W-H08-01-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12W-H08-02-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12W-H08-03-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12W-H08-11-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12W-H08-12-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12W-H08-13-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12W-H08-21-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12W-H08-23-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12W-H08-25-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12W-H10-01-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12W-H10-02-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12W-H10-03-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12W-H10-11-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12W-H10-12-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12W-H10-13-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12W-H10-21-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12W-H10-23-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12W-H10-25-P Piping direction: Top piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12BU-02-01-P Piping direction: Top piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12BU-02-02-P Piping direction: Top piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12BU-02-03-P Piping direction: Top piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12BU-02-11-P Piping direction: Top piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12BU-02-12-P Piping direction: Top piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12BU-02-13-P Piping direction: Top piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12BU-02-21-P Piping direction: Top piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12BU-02-23-P Piping direction: Top piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12BU-02-25-P Piping direction: Top piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12BU-03-01-P Piping direction: Top piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12BU-03-02-P Piping direction: Top piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12BU-03-03-P Piping direction: Top piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12BU-03-11-P Piping direction: Top piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12BU-03-12-P Piping direction: Top piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12BU-03-13-P Piping direction: Top piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12BU-03-21-P Piping direction: Top piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12BU-03-23-P Piping direction: Top piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12BU-03-25-P Piping direction: Top piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12BU-11-01-P Piping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12BU-11-02-P Piping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12BU-11-03-P Piping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12BU-11-11-P Piping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12BU-11-12-P Piping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12BU-11-13-P Piping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12BU-11-21-P Piping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12BU-11-23-P Piping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12BU-11-25-P Piping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12BU-12-01-P Piping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12BU-12-02-P Piping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12BU-12-03-P Piping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12BU-12-11-P Piping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12BU-12-12-P Piping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12BU-12-13-P Piping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12BU-12-21-P Piping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12BU-12-23-P Piping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12BU-12-25-P Piping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12BU-H06-01-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12BU-H06-02-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12BU-H06-03-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12BU-H06-11-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12BU-H06-12-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12BU-H06-13-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12BU-H06-21-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12BU-H06-23-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12BU-H06-25-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12BU-H08-01-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12BU-H08-02-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12BU-H08-03-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12BU-H08-11-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12BU-H08-12-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12BU-H08-13-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12BU-H08-21-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12BU-H08-23-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12BU-H08-25-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12BU-H10-01-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12BU-H10-02-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12BU-H10-03-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12BU-H10-11-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12BU-H10-12-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12BU-H10-13-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12BU-H10-21-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12BU-H10-23-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12BU-H10-25-P Piping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
Blow GunsSMC
252 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VMG Blow Gun with Pulse Blow Unit (VMG1-P, PU20-R02)

Brand SMC·Blow Guns

Available part numbers (252)

VMG11W-02-01-P, VMG11W-02-02-P, VMG11W-02-03-P, VMG11W-02-11-P, VMG11W-02-12-P, VMG11W-02-13-P, VMG11W-02-21-P, VMG11W-02-23-P, VMG11W-02-25-P, VMG11W-03-01-P + 242 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VMG11W-02-01-PPiping direction: Bottom piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11W-02-02-PPiping direction: Bottom piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11W-02-03-PPiping direction: Bottom piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11W-02-11-PPiping direction: Bottom piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11W-02-12-PPiping direction: Bottom piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11W-02-13-PPiping direction: Bottom piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11W-02-21-PPiping direction: Bottom piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11W-02-23-PPiping direction: Bottom piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11W-02-25-PPiping direction: Bottom piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11W-03-01-PPiping direction: Bottom piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11W-03-02-PPiping direction: Bottom piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11W-03-03-PPiping direction: Bottom piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11W-03-11-PPiping direction: Bottom piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11W-03-12-PPiping direction: Bottom piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11W-03-13-PPiping direction: Bottom piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11W-03-21-PPiping direction: Bottom piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11W-03-23-PPiping direction: Bottom piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11W-03-25-PPiping direction: Bottom piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11W-11-01-PPiping direction: Bottom piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11W-11-02-PPiping direction: Bottom piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11W-11-03-PPiping direction: Bottom piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11W-11-11-PPiping direction: Bottom piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11W-11-12-PPiping direction: Bottom piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11W-11-13-PPiping direction: Bottom piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11W-11-21-PPiping direction: Bottom piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11W-11-23-PPiping direction: Bottom piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11W-11-25-PPiping direction: Bottom piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11W-12-01-PPiping direction: Bottom piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11W-12-02-PPiping direction: Bottom piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11W-12-03-PPiping direction: Bottom piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11W-12-11-PPiping direction: Bottom piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11W-12-12-PPiping direction: Bottom piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11W-12-13-PPiping direction: Bottom piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11W-12-21-PPiping direction: Bottom piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11W-12-23-PPiping direction: Bottom piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11W-12-25-PPiping direction: Bottom piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11W-H06-01-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11W-H06-02-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11W-H06-03-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11W-H06-11-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11W-H06-12-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11W-H06-13-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11W-H06-21-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11W-H06-23-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11W-H06-25-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11W-H08-01-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11W-H08-02-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11W-H08-03-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11W-H08-11-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11W-H08-12-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11W-H08-13-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11W-H08-21-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11W-H08-23-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11W-H08-25-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11W-H10-01-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11W-H10-02-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11W-H10-03-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11W-H10-11-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11W-H10-12-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11W-H10-13-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11W-H10-21-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11W-H10-23-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11W-H10-25-PPiping direction: Bottom piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11BU-02-01-PPiping direction: Bottom piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11BU-02-02-PPiping direction: Bottom piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11BU-02-03-PPiping direction: Bottom piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11BU-02-11-PPiping direction: Bottom piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11BU-02-12-PPiping direction: Bottom piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11BU-02-13-PPiping direction: Bottom piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11BU-02-21-PPiping direction: Bottom piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11BU-02-23-PPiping direction: Bottom piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11BU-02-25-PPiping direction: Bottom piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11BU-03-01-PPiping direction: Bottom piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11BU-03-02-PPiping direction: Bottom piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11BU-03-03-PPiping direction: Bottom piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11BU-03-11-PPiping direction: Bottom piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11BU-03-12-PPiping direction: Bottom piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11BU-03-13-PPiping direction: Bottom piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11BU-03-21-PPiping direction: Bottom piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11BU-03-23-PPiping direction: Bottom piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11BU-03-25-PPiping direction: Bottom piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11BU-11-01-PPiping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11BU-11-02-PPiping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11BU-11-03-PPiping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11BU-11-11-PPiping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11BU-11-12-PPiping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11BU-11-13-PPiping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11BU-11-21-PPiping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11BU-11-23-PPiping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11BU-11-25-PPiping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11BU-12-01-PPiping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11BU-12-02-PPiping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11BU-12-03-PPiping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11BU-12-11-PPiping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11BU-12-12-PPiping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11BU-12-13-PPiping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11BU-12-21-PPiping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11BU-12-23-PPiping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11BU-12-25-PPiping direction: Bottom piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11BU-H06-01-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11BU-H06-02-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11BU-H06-03-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11BU-H06-11-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11BU-H06-12-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11BU-H06-13-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11BU-H06-21-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11BU-H06-23-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11BU-H06-25-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11BU-H08-01-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11BU-H08-02-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11BU-H08-03-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11BU-H08-11-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11BU-H08-12-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11BU-H08-13-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11BU-H08-21-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11BU-H08-23-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11BU-H08-25-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG11BU-H10-01-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG11BU-H10-02-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG11BU-H10-03-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG11BU-H10-11-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG11BU-H10-12-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG11BU-H10-13-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG11BU-H10-21-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG11BU-H10-23-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG11BU-H10-25-PPiping direction: Bottom piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12W-02-01-PPiping direction: Top piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12W-02-02-PPiping direction: Top piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12W-02-03-PPiping direction: Top piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12W-02-11-PPiping direction: Top piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12W-02-12-PPiping direction: Top piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12W-02-13-PPiping direction: Top piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12W-02-21-PPiping direction: Top piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12W-02-23-PPiping direction: Top piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12W-02-25-PPiping direction: Top piping | Body color: White | Connection: Rc1/4 thread | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12W-03-01-PPiping direction: Top piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12W-03-02-PPiping direction: Top piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12W-03-03-PPiping direction: Top piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12W-03-11-PPiping direction: Top piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12W-03-12-PPiping direction: Top piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12W-03-13-PPiping direction: Top piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12W-03-21-PPiping direction: Top piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12W-03-23-PPiping direction: Top piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12W-03-25-PPiping direction: Top piping | Body color: White | Connection: Rc3/8 thread | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12W-11-01-PPiping direction: Top piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12W-11-02-PPiping direction: Top piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12W-11-03-PPiping direction: Top piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12W-11-11-PPiping direction: Top piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12W-11-12-PPiping direction: Top piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12W-11-13-PPiping direction: Top piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12W-11-21-PPiping direction: Top piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12W-11-23-PPiping direction: Top piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12W-11-25-PPiping direction: Top piping | Body color: White | Connection: S coupler plug KK4P-02MS | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12W-12-01-PPiping direction: Top piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12W-12-02-PPiping direction: Top piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12W-12-03-PPiping direction: Top piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12W-12-11-PPiping direction: Top piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12W-12-12-PPiping direction: Top piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12W-12-13-PPiping direction: Top piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12W-12-21-PPiping direction: Top piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12W-12-23-PPiping direction: Top piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12W-12-25-PPiping direction: Top piping | Body color: White | Connection: S coupler plug KK130P-02MS | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12W-H06-01-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12W-H06-02-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12W-H06-03-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12W-H06-11-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12W-H06-12-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12W-H06-13-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12W-H06-21-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12W-H06-23-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12W-H06-25-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø6 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12W-H08-01-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12W-H08-02-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12W-H08-03-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12W-H08-11-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12W-H08-12-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12W-H08-13-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12W-H08-21-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12W-H08-23-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12W-H08-25-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø8 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12W-H10-01-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12W-H10-02-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12W-H10-03-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12W-H10-11-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12W-H10-12-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12W-H10-13-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12W-H10-21-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12W-H10-23-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12W-H10-25-PPiping direction: Top piping | Body color: White | Connection: One-touch fitting ø10 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12BU-02-01-PPiping direction: Top piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12BU-02-02-PPiping direction: Top piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12BU-02-03-PPiping direction: Top piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12BU-02-11-PPiping direction: Top piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12BU-02-12-PPiping direction: Top piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12BU-02-13-PPiping direction: Top piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12BU-02-21-PPiping direction: Top piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12BU-02-23-PPiping direction: Top piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12BU-02-25-PPiping direction: Top piping | Body color: Dark blue | Connection: Rc1/4 thread | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12BU-03-01-PPiping direction: Top piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12BU-03-02-PPiping direction: Top piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12BU-03-03-PPiping direction: Top piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12BU-03-11-PPiping direction: Top piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12BU-03-12-PPiping direction: Top piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12BU-03-13-PPiping direction: Top piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12BU-03-21-PPiping direction: Top piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12BU-03-23-PPiping direction: Top piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12BU-03-25-PPiping direction: Top piping | Body color: Dark blue | Connection: Rc3/8 thread | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12BU-11-01-PPiping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12BU-11-02-PPiping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12BU-11-03-PPiping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12BU-11-11-PPiping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12BU-11-12-PPiping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12BU-11-13-PPiping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12BU-11-21-PPiping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12BU-11-23-PPiping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12BU-11-25-PPiping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK4P-02MS | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12BU-12-01-PPiping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12BU-12-02-PPiping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12BU-12-03-PPiping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12BU-12-11-PPiping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12BU-12-12-PPiping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12BU-12-13-PPiping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12BU-12-21-PPiping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12BU-12-23-PPiping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12BU-12-25-PPiping direction: Top piping | Body color: Dark blue | Connection: S coupler plug KK130P-02MS | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12BU-H06-01-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12BU-H06-02-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12BU-H06-03-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12BU-H06-11-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12BU-H06-12-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12BU-H06-13-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12BU-H06-21-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12BU-H06-23-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12BU-H06-25-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø6 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12BU-H08-01-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12BU-H08-02-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12BU-H08-03-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12BU-H08-11-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12BU-H08-12-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12BU-H08-13-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12BU-H08-21-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12BU-H08-23-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12BU-H08-25-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø8 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)
VMG12BU-H10-01-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1
VMG12BU-H10-02-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5
VMG12BU-H10-03-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Male thread nozzle | Nozzle dia.: ø2
VMG12BU-H10-11-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1
VMG12BU-H10-12-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø1.5
VMG12BU-H10-13-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: High-efficiency nozzle | Nozzle dia.: ø2
VMG12BU-H10-21-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø0.75x4
VMG12BU-H10-23-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Low-noise nozzle | Nozzle dia.: ø1x4
VMG12BU-H10-25-PPiping direction: Top piping | Body color: Dark blue | Connection: One-touch fitting ø10 | Nozzle type: Flow adjustment nozzle | Nozzle dia.: Adjustable (up to ø2)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
