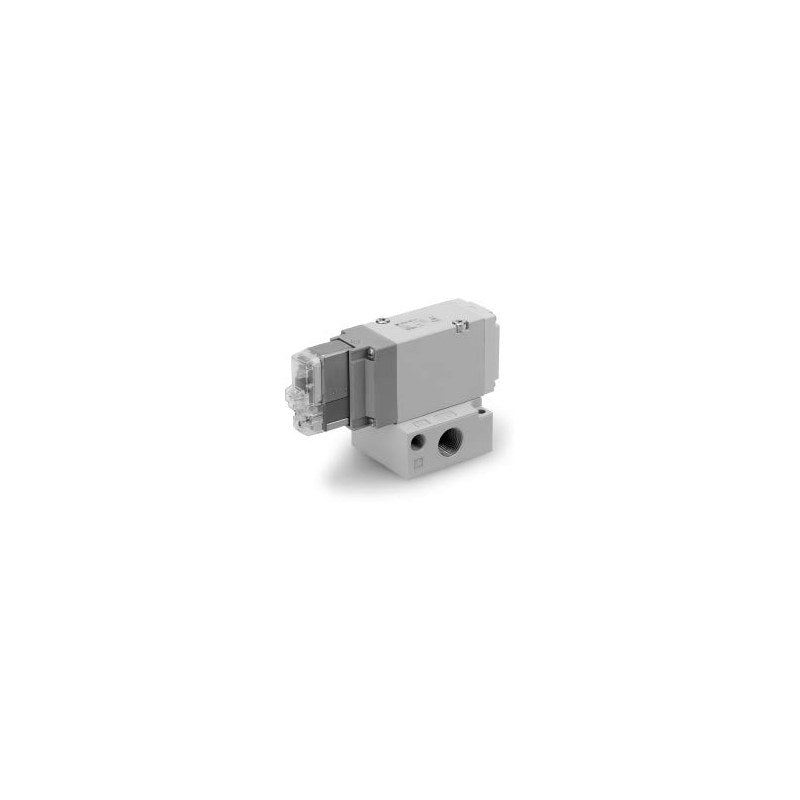

SMC VP300/500/700 3-Port Solenoid Valve (Poppet, Direct/Base Piping)

SMC VP300/500/700 series pilot-operated 3-port poppet solenoid valve with elastomer seal, available body ported for direct piping (VP3x2) or base mounted with or without sub-plate (VP3x4).

Key features

Pilot-operated poppet type with HNBR elastomer seal; N.C. or N.O. (convertible), usable as selector or divider valve
Low power consumption 1.5 W DC (standard); power-saving circuit type T (start 1.55 W, hold 0.55 W) on order
AC versions use a built-in full-wave rectifier for low noise (apparent power 1.55 VA); built-in strainer in the pilot valve
Listed codes: internal pilot, standard 0.7 MPa, Rc thread, non-locking manual override, DC24V/12V and AC100V/200V
Ordered as code options: external pilot (R, vacuum to -100 kPa), high pressure 1.0 MPa (K), lead wire H/LN/MN, DIN Y, suppressors S/R/U, locking manual D/E, G/NPT/NPTF threads, bracket (F), -X500/-X505/-X600
Base-mounted valves (VP344/544/744 without sub-plate) fit VV3P3/5/7 manifolds

Specifications

Fluid	Air
Valve type	Pilot-operated 3-port poppet, elastomer seal
Internal pilot operating pressure	0.2 to 0.7 MPa (high-pressure type 0.2 to 1.0 MPa)
External pilot operating pressure	-100 kPa to 0.7 MPa (pilot pressure min. 0.2 MPa)
Ambient and fluid temperature	-10 to 50°C (no freezing)
Max. operating frequency	5 Hz
Lubrication	Not required
Mounting orientation	Unrestricted
Impact/vibration resistance	300/50 m/s²
Enclosure	Dustproof (D, Y, T: IP65)
Sonic conductance C [dm³/(s·bar)]	Direct VP300 4.2, VP500 8.9, VP700 15.3; base 3.8 / 8.8 / 15.0
Source	SMC Korea catalog VP300/500/700 (SMCKR_VP300_500_700.pdf), p. 1053-1057, 1063 (PDF p. 1-5, 11)

VP342-5G1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP342-5G1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP342-5GZ1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-5GZ1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-5L1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP342-5L1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP342-5LZ1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-5LZ1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-5M1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP342-5M1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP342-5MZ1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-5MZ1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-5D1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP342-5D1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP342-5DZ1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-5DZ1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-5T1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP342-5T1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP342-5TZ1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-5TZ1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-6G1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP342-6G1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP342-6GZ1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-6GZ1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-6L1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP342-6L1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP342-6LZ1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-6LZ1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-6M1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP342-6M1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP342-6MZ1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-6MZ1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-6D1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP342-6D1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP342-6DZ1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-6DZ1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-6T1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP342-6T1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP342-6TZ1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-6TZ1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-1D1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP342-1D1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP342-1DZ1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-1DZ1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-1T1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP342-1T1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP342-1TZ1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-1TZ1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-2D1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP342-2D1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP342-2DZ1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-2DZ1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-2T1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP342-2T1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP342-2TZ1-01A		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-2TZ1-01B		Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-5G1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP342-5G1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP342-5GZ1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-5GZ1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-5L1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP342-5L1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP342-5LZ1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-5LZ1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-5M1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP342-5M1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP342-5MZ1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-5MZ1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-5D1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP342-5D1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP342-5DZ1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-5DZ1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-5T1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP342-5T1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP342-5TZ1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-5TZ1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-6G1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP342-6G1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP342-6GZ1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-6GZ1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-6L1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP342-6L1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP342-6LZ1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-6LZ1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-6M1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP342-6M1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP342-6MZ1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-6MZ1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-6D1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP342-6D1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP342-6DZ1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-6DZ1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-6T1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP342-6T1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP342-6TZ1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-6TZ1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-1D1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP342-1D1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP342-1DZ1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-1DZ1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-1T1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP342-1T1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP342-1TZ1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-1TZ1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-2D1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP342-2D1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP342-2DZ1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-2DZ1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP342-2T1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP342-2T1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP342-2TZ1-02A		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP342-2TZ1-02B		Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-5G1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP344-5G1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP344-5GZ1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-5GZ1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-5L1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP344-5L1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP344-5LZ1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-5LZ1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-5M1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP344-5M1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP344-5MZ1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-5MZ1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-5D1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP344-5D1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP344-5DZ1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-5DZ1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-5T1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP344-5T1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP344-5TZ1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-5TZ1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-6G1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP344-6G1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP344-6GZ1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-6GZ1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-6L1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP344-6L1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP344-6LZ1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-6LZ1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-6M1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP344-6M1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP344-6MZ1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-6MZ1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-6D1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP344-6D1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP344-6DZ1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-6DZ1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-6T1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP344-6T1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP344-6TZ1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-6TZ1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-1D1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP344-1D1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP344-1DZ1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-1DZ1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-1T1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP344-1T1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP344-1TZ1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-1TZ1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-2D1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP344-2D1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP344-2DZ1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-2DZ1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-2T1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP344-2T1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP344-2TZ1-A		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-2TZ1-B		Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-5G1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP344-5G1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP344-5GZ1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-5GZ1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-5L1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP344-5L1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP344-5LZ1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-5LZ1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-5M1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP344-5M1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP344-5MZ1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-5MZ1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-5D1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP344-5D1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP344-5DZ1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-5DZ1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-5T1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP344-5T1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP344-5TZ1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-5TZ1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-6G1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP344-6G1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP344-6GZ1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-6GZ1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-6L1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP344-6L1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP344-6LZ1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-6LZ1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-6M1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP344-6M1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP344-6MZ1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-6MZ1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-6D1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP344-6D1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP344-6DZ1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-6DZ1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-6T1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP344-6T1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP344-6TZ1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-6TZ1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-1D1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP344-1D1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP344-1DZ1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-1DZ1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-1T1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP344-1T1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP344-1TZ1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-1TZ1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-2D1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP344-2D1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP344-2DZ1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-2DZ1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-2T1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP344-2T1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP344-2TZ1-01A		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-2TZ1-01B		Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-5G1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP344-5G1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP344-5GZ1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-5GZ1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-5L1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP344-5L1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP344-5LZ1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-5LZ1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-5M1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP344-5M1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP344-5MZ1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-5MZ1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-5D1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP344-5D1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP344-5DZ1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-5DZ1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-5T1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP344-5T1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP344-5TZ1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-5TZ1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-6G1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP344-6G1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP344-6GZ1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-6GZ1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-6L1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP344-6L1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP344-6LZ1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-6LZ1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-6M1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP344-6M1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP344-6MZ1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-6MZ1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-6D1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP344-6D1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP344-6DZ1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-6DZ1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-6T1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP344-6T1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP344-6TZ1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-6TZ1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-1D1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP344-1D1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP344-1DZ1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-1DZ1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-1T1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP344-1T1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP344-1TZ1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-1TZ1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-2D1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP344-2D1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP344-2DZ1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-2DZ1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP344-2T1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP344-2T1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP344-2TZ1-02A		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP344-2TZ1-02B		Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-5G1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP542-5G1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP542-5GZ1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-5GZ1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-5L1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP542-5L1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP542-5LZ1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-5LZ1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-5M1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP542-5M1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP542-5MZ1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-5MZ1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-5D1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP542-5D1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP542-5DZ1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-5DZ1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-5T1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP542-5T1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP542-5TZ1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-5TZ1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-6G1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP542-6G1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP542-6GZ1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-6GZ1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-6L1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP542-6L1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP542-6LZ1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-6LZ1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-6M1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP542-6M1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP542-6MZ1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-6MZ1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-6D1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP542-6D1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP542-6DZ1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-6DZ1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-6T1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP542-6T1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP542-6TZ1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-6TZ1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-1D1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP542-1D1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP542-1DZ1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-1DZ1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-1T1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP542-1T1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP542-1TZ1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-1TZ1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-2D1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP542-2D1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP542-2DZ1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-2DZ1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-2T1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP542-2T1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP542-2TZ1-02A		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-2TZ1-02B		Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-5G1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP542-5G1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP542-5GZ1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-5GZ1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-5L1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP542-5L1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP542-5LZ1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-5LZ1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-5M1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP542-5M1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP542-5MZ1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-5MZ1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-5D1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP542-5D1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP542-5DZ1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-5DZ1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-5T1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP542-5T1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP542-5TZ1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-5TZ1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-6G1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP542-6G1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP542-6GZ1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-6GZ1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-6L1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP542-6L1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP542-6LZ1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-6LZ1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-6M1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP542-6M1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP542-6MZ1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-6MZ1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-6D1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP542-6D1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP542-6DZ1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-6DZ1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-6T1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP542-6T1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP542-6TZ1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-6TZ1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-1D1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP542-1D1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP542-1DZ1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-1DZ1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-1T1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP542-1T1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP542-1TZ1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-1TZ1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-2D1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP542-2D1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP542-2DZ1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-2DZ1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP542-2T1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP542-2T1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP542-2TZ1-03A		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP542-2TZ1-03B		Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-5G1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP544-5G1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP544-5GZ1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-5GZ1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-5L1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP544-5L1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP544-5LZ1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-5LZ1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-5M1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP544-5M1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP544-5MZ1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-5MZ1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-5D1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP544-5D1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP544-5DZ1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-5DZ1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-5T1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP544-5T1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP544-5TZ1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-5TZ1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-6G1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP544-6G1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP544-6GZ1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-6GZ1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-6L1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP544-6L1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP544-6LZ1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-6LZ1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-6M1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP544-6M1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP544-6MZ1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-6MZ1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-6D1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP544-6D1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP544-6DZ1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-6DZ1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-6T1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP544-6T1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP544-6TZ1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-6TZ1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-1D1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP544-1D1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP544-1DZ1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-1DZ1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-1T1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP544-1T1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP544-1TZ1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-1TZ1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-2D1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP544-2D1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP544-2DZ1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-2DZ1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-2T1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP544-2T1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP544-2TZ1-A		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-2TZ1-B		Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-5G1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP544-5G1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP544-5GZ1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-5GZ1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-5L1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP544-5L1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP544-5LZ1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-5LZ1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-5M1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP544-5M1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP544-5MZ1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-5MZ1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-5D1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP544-5D1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP544-5DZ1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-5DZ1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-5T1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP544-5T1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP544-5TZ1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-5TZ1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-6G1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP544-6G1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP544-6GZ1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-6GZ1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-6L1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP544-6L1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP544-6LZ1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-6LZ1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-6M1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP544-6M1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP544-6MZ1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-6MZ1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-6D1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP544-6D1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP544-6DZ1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-6DZ1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-6T1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP544-6T1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP544-6TZ1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-6TZ1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-1D1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP544-1D1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP544-1DZ1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-1DZ1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-1T1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP544-1T1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP544-1TZ1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-1TZ1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-2D1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP544-2D1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP544-2DZ1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-2DZ1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-2T1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP544-2T1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP544-2TZ1-02A		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-2TZ1-02B		Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-5G1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP544-5G1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP544-5GZ1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-5GZ1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-5L1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP544-5L1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP544-5LZ1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-5LZ1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-5M1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP544-5M1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP544-5MZ1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-5MZ1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-5D1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP544-5D1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP544-5DZ1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-5DZ1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-5T1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP544-5T1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP544-5TZ1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-5TZ1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-6G1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP544-6G1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP544-6GZ1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-6GZ1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-6L1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP544-6L1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP544-6LZ1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-6LZ1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-6M1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP544-6M1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP544-6MZ1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-6MZ1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-6D1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP544-6D1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP544-6DZ1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-6DZ1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-6T1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP544-6T1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP544-6TZ1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-6TZ1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-1D1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP544-1D1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP544-1DZ1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-1DZ1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-1T1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP544-1T1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP544-1TZ1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-1TZ1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-2D1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP544-2D1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP544-2DZ1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-2DZ1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP544-2T1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP544-2T1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP544-2TZ1-03A		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP544-2TZ1-03B		Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-5G1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP742-5G1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP742-5GZ1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-5GZ1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-5L1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP742-5L1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP742-5LZ1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-5LZ1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-5M1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP742-5M1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP742-5MZ1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-5MZ1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-5D1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP742-5D1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP742-5DZ1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-5DZ1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-5T1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP742-5T1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP742-5TZ1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-5TZ1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-6G1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP742-6G1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP742-6GZ1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-6GZ1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-6L1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP742-6L1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP742-6LZ1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-6LZ1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-6M1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP742-6M1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP742-6MZ1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-6MZ1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-6D1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP742-6D1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP742-6DZ1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-6DZ1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-6T1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP742-6T1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP742-6TZ1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-6TZ1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-1D1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP742-1D1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP742-1DZ1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-1DZ1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-1T1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP742-1T1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP742-1TZ1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-1TZ1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-2D1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP742-2D1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP742-2DZ1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-2DZ1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-2T1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP742-2T1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP742-2TZ1-03A		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-2TZ1-03B		Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-5G1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP742-5G1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP742-5GZ1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-5GZ1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-5L1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP742-5L1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP742-5LZ1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-5LZ1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-5M1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP742-5M1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP742-5MZ1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-5MZ1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-5D1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP742-5D1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP742-5DZ1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-5DZ1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-5T1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP742-5T1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP742-5TZ1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-5TZ1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-6G1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP742-6G1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP742-6GZ1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-6GZ1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-6L1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP742-6L1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP742-6LZ1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-6LZ1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-6M1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP742-6M1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP742-6MZ1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-6MZ1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-6D1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP742-6D1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP742-6DZ1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-6DZ1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-6T1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP742-6T1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP742-6TZ1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-6TZ1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-1D1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP742-1D1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP742-1DZ1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-1DZ1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-1T1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP742-1T1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP742-1TZ1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-1TZ1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-2D1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP742-2D1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP742-2DZ1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-2DZ1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP742-2T1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP742-2T1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP742-2TZ1-04A		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP742-2TZ1-04B		Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-5G1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP744-5G1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP744-5GZ1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-5GZ1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-5L1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP744-5L1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP744-5LZ1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-5LZ1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-5M1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP744-5M1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP744-5MZ1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-5MZ1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-5D1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP744-5D1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP744-5DZ1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-5DZ1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-5T1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP744-5T1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP744-5TZ1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-5TZ1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-6G1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP744-6G1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP744-6GZ1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-6GZ1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-6L1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP744-6L1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP744-6LZ1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-6LZ1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-6M1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP744-6M1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP744-6MZ1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-6MZ1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-6D1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP744-6D1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP744-6DZ1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-6DZ1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-6T1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP744-6T1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP744-6TZ1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-6TZ1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-1D1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP744-1D1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP744-1DZ1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-1DZ1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-1T1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP744-1T1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP744-1TZ1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-1TZ1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-2D1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP744-2D1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP744-2DZ1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-2DZ1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-2T1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP744-2T1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP744-2TZ1-A		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-2TZ1-B		Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-5G1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP744-5G1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP744-5GZ1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-5GZ1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-5L1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP744-5L1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP744-5LZ1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-5LZ1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-5M1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP744-5M1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP744-5MZ1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-5MZ1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-5D1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP744-5D1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP744-5DZ1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-5DZ1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-5T1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP744-5T1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP744-5TZ1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-5TZ1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-6G1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP744-6G1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP744-6GZ1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-6GZ1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-6L1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP744-6L1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP744-6LZ1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-6LZ1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-6M1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP744-6M1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP744-6MZ1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-6MZ1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-6D1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP744-6D1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP744-6DZ1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-6DZ1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-6T1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP744-6T1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP744-6TZ1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-6TZ1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-1D1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP744-1D1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP744-1DZ1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-1DZ1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-1T1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP744-1T1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP744-1TZ1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-1TZ1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-2D1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP744-2D1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP744-2DZ1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-2DZ1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-2T1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP744-2T1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP744-2TZ1-03A		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-2TZ1-03B		Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-5G1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP744-5G1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP744-5GZ1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-5GZ1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-5L1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP744-5L1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP744-5LZ1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-5LZ1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-5M1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP744-5M1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP744-5MZ1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-5MZ1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-5D1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP744-5D1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP744-5DZ1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-5DZ1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-5T1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP744-5T1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP744-5TZ1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-5TZ1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-6G1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
VP744-6G1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
VP744-6GZ1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-6GZ1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-6L1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
VP744-6L1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
VP744-6LZ1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-6LZ1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-6M1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
VP744-6M1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
VP744-6MZ1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-6MZ1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-6D1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP744-6D1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP744-6DZ1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-6DZ1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-6T1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP744-6T1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP744-6TZ1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-6TZ1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-1D1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP744-1D1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP744-1DZ1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-1DZ1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-1T1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP744-1T1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP744-1TZ1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-1TZ1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-2D1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
VP744-2D1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
VP744-2DZ1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-2DZ1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
VP744-2T1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
VP744-2T1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
VP744-2TZ1-04A		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
VP744-2TZ1-04B		Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.

3-Port Solenoid ValvesSMC

840 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VP300/500/700 3-Port Solenoid Valve (Poppet, Direct/Base Piping)

Brand SMC·3-Port Solenoid Valves

Available part numbers (840)

VP342-5G1-01A, VP342-5G1-01B, VP342-5GZ1-01A, VP342-5GZ1-01B, VP342-5L1-01A, VP342-5L1-01B, VP342-5LZ1-01A, VP342-5LZ1-01B, VP342-5M1-01A, VP342-5M1-01B + 830 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	VP342-5G1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP342-5G1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP342-5GZ1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-5GZ1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-5L1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP342-5L1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP342-5LZ1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-5LZ1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-5M1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP342-5M1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP342-5MZ1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-5MZ1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-5D1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP342-5D1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP342-5DZ1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-5DZ1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-5T1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP342-5T1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP342-5TZ1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-5TZ1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-6G1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP342-6G1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP342-6GZ1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-6GZ1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-6L1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP342-6L1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP342-6LZ1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-6LZ1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-6M1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP342-6M1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP342-6MZ1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-6MZ1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-6D1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP342-6D1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP342-6DZ1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-6DZ1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-6T1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP342-6T1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP342-6TZ1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-6TZ1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-1D1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP342-1D1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP342-1DZ1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-1DZ1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-1T1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP342-1T1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP342-1TZ1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-1TZ1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-2D1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP342-2D1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP342-2DZ1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-2DZ1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-2T1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP342-2T1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP342-2TZ1-01A	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-2TZ1-01B	Series: VP300 \| Piping / port: Direct, 1/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-5G1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP342-5G1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP342-5GZ1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-5GZ1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-5L1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP342-5L1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP342-5LZ1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-5LZ1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-5M1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP342-5M1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP342-5MZ1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-5MZ1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-5D1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP342-5D1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP342-5DZ1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-5DZ1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-5T1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP342-5T1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP342-5TZ1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-5TZ1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-6G1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP342-6G1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP342-6GZ1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-6GZ1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-6L1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP342-6L1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP342-6LZ1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-6LZ1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-6M1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP342-6M1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP342-6MZ1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-6MZ1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-6D1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP342-6D1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP342-6DZ1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-6DZ1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-6T1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP342-6T1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP342-6TZ1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-6TZ1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-1D1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP342-1D1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP342-1DZ1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-1DZ1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-1T1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP342-1T1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP342-1TZ1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-1TZ1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-2D1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP342-2D1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP342-2DZ1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-2DZ1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP342-2T1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP342-2T1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP342-2TZ1-02A	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP342-2TZ1-02B	Series: VP300 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-5G1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP344-5G1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP344-5GZ1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-5GZ1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-5L1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP344-5L1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP344-5LZ1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-5LZ1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-5M1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP344-5M1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP344-5MZ1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-5MZ1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-5D1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP344-5D1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP344-5DZ1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-5DZ1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-5T1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP344-5T1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP344-5TZ1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-5TZ1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-6G1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP344-6G1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP344-6GZ1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-6GZ1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-6L1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP344-6L1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP344-6LZ1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-6LZ1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-6M1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP344-6M1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP344-6MZ1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-6MZ1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-6D1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP344-6D1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP344-6DZ1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-6DZ1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-6T1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP344-6T1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP344-6TZ1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-6TZ1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-1D1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP344-1D1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP344-1DZ1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-1DZ1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-1T1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP344-1T1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP344-1TZ1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-1TZ1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-2D1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP344-2D1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP344-2DZ1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-2DZ1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-2T1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP344-2T1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP344-2TZ1-A	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-2TZ1-B	Series: VP300 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-5G1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP344-5G1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP344-5GZ1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-5GZ1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-5L1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP344-5L1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP344-5LZ1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-5LZ1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-5M1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP344-5M1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP344-5MZ1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-5MZ1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-5D1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP344-5D1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP344-5DZ1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-5DZ1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-5T1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP344-5T1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP344-5TZ1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-5TZ1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-6G1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP344-6G1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP344-6GZ1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-6GZ1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-6L1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP344-6L1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP344-6LZ1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-6LZ1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-6M1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP344-6M1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP344-6MZ1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-6MZ1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-6D1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP344-6D1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP344-6DZ1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-6DZ1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-6T1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP344-6T1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP344-6TZ1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-6TZ1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-1D1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP344-1D1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP344-1DZ1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-1DZ1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-1T1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP344-1T1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP344-1TZ1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-1TZ1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-2D1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP344-2D1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP344-2DZ1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-2DZ1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-2T1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP344-2T1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP344-2TZ1-01A	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-2TZ1-01B	Series: VP300 \| Piping / port: Base, sub-plate 1/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-5G1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP344-5G1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP344-5GZ1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-5GZ1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-5L1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP344-5L1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP344-5LZ1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-5LZ1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-5M1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP344-5M1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP344-5MZ1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-5MZ1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-5D1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP344-5D1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP344-5DZ1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-5DZ1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-5T1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP344-5T1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP344-5TZ1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-5TZ1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-6G1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP344-6G1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP344-6GZ1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-6GZ1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-6L1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP344-6L1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP344-6LZ1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-6LZ1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-6M1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP344-6M1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP344-6MZ1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-6MZ1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-6D1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP344-6D1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP344-6DZ1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-6DZ1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-6T1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP344-6T1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP344-6TZ1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-6TZ1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-1D1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP344-1D1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP344-1DZ1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-1DZ1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-1T1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP344-1T1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP344-1TZ1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-1TZ1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-2D1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP344-2D1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP344-2DZ1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-2DZ1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP344-2T1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP344-2T1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP344-2TZ1-02A	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP344-2TZ1-02B	Series: VP300 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-5G1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP542-5G1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP542-5GZ1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-5GZ1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-5L1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP542-5L1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP542-5LZ1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-5LZ1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-5M1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP542-5M1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP542-5MZ1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-5MZ1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-5D1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP542-5D1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP542-5DZ1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-5DZ1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-5T1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP542-5T1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP542-5TZ1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-5TZ1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-6G1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP542-6G1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP542-6GZ1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-6GZ1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-6L1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP542-6L1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP542-6LZ1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-6LZ1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-6M1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP542-6M1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP542-6MZ1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-6MZ1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-6D1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP542-6D1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP542-6DZ1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-6DZ1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-6T1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP542-6T1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP542-6TZ1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-6TZ1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-1D1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP542-1D1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP542-1DZ1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-1DZ1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-1T1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP542-1T1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP542-1TZ1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-1TZ1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-2D1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP542-2D1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP542-2DZ1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-2DZ1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-2T1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP542-2T1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP542-2TZ1-02A	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-2TZ1-02B	Series: VP500 \| Piping / port: Direct, 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-5G1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP542-5G1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP542-5GZ1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-5GZ1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-5L1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP542-5L1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP542-5LZ1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-5LZ1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-5M1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP542-5M1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP542-5MZ1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-5MZ1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-5D1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP542-5D1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP542-5DZ1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-5DZ1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-5T1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP542-5T1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP542-5TZ1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-5TZ1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-6G1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP542-6G1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP542-6GZ1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-6GZ1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-6L1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP542-6L1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP542-6LZ1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-6LZ1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-6M1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP542-6M1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP542-6MZ1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-6MZ1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-6D1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP542-6D1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP542-6DZ1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-6DZ1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-6T1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP542-6T1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP542-6TZ1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-6TZ1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-1D1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP542-1D1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP542-1DZ1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-1DZ1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-1T1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP542-1T1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP542-1TZ1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-1TZ1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-2D1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP542-2D1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP542-2DZ1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-2DZ1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP542-2T1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP542-2T1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP542-2TZ1-03A	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP542-2TZ1-03B	Series: VP500 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-5G1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP544-5G1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP544-5GZ1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-5GZ1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-5L1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP544-5L1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP544-5LZ1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-5LZ1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-5M1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP544-5M1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP544-5MZ1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-5MZ1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-5D1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP544-5D1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP544-5DZ1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-5DZ1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-5T1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP544-5T1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP544-5TZ1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-5TZ1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-6G1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP544-6G1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP544-6GZ1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-6GZ1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-6L1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP544-6L1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP544-6LZ1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-6LZ1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-6M1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP544-6M1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP544-6MZ1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-6MZ1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-6D1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP544-6D1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP544-6DZ1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-6DZ1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-6T1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP544-6T1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP544-6TZ1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-6TZ1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-1D1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP544-1D1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP544-1DZ1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-1DZ1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-1T1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP544-1T1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP544-1TZ1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-1TZ1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-2D1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP544-2D1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP544-2DZ1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-2DZ1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-2T1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP544-2T1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP544-2TZ1-A	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-2TZ1-B	Series: VP500 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-5G1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP544-5G1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP544-5GZ1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-5GZ1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-5L1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP544-5L1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP544-5LZ1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-5LZ1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-5M1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP544-5M1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP544-5MZ1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-5MZ1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-5D1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP544-5D1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP544-5DZ1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-5DZ1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-5T1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP544-5T1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP544-5TZ1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-5TZ1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-6G1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP544-6G1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP544-6GZ1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-6GZ1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-6L1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP544-6L1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP544-6LZ1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-6LZ1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-6M1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP544-6M1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP544-6MZ1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-6MZ1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-6D1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP544-6D1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP544-6DZ1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-6DZ1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-6T1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP544-6T1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP544-6TZ1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-6TZ1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-1D1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP544-1D1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP544-1DZ1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-1DZ1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-1T1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP544-1T1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP544-1TZ1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-1TZ1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-2D1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP544-2D1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP544-2DZ1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-2DZ1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-2T1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP544-2T1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP544-2TZ1-02A	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-2TZ1-02B	Series: VP500 \| Piping / port: Base, sub-plate 1/4 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-5G1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP544-5G1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP544-5GZ1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-5GZ1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-5L1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP544-5L1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP544-5LZ1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-5LZ1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-5M1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP544-5M1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP544-5MZ1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-5MZ1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-5D1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP544-5D1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP544-5DZ1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-5DZ1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-5T1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP544-5T1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP544-5TZ1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-5TZ1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-6G1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP544-6G1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP544-6GZ1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-6GZ1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-6L1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP544-6L1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP544-6LZ1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-6LZ1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-6M1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP544-6M1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP544-6MZ1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-6MZ1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-6D1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP544-6D1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP544-6DZ1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-6DZ1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-6T1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP544-6T1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP544-6TZ1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-6TZ1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-1D1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP544-1D1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP544-1DZ1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-1DZ1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-1T1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP544-1T1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP544-1TZ1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-1TZ1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-2D1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP544-2D1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP544-2DZ1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-2DZ1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP544-2T1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP544-2T1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP544-2TZ1-03A	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP544-2TZ1-03B	Series: VP500 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-5G1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP742-5G1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP742-5GZ1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-5GZ1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-5L1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP742-5L1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP742-5LZ1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-5LZ1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-5M1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP742-5M1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP742-5MZ1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-5MZ1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-5D1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP742-5D1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP742-5DZ1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-5DZ1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-5T1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP742-5T1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP742-5TZ1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-5TZ1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-6G1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP742-6G1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP742-6GZ1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-6GZ1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-6L1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP742-6L1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP742-6LZ1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-6LZ1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-6M1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP742-6M1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP742-6MZ1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-6MZ1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-6D1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP742-6D1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP742-6DZ1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-6DZ1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-6T1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP742-6T1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP742-6TZ1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-6TZ1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-1D1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP742-1D1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP742-1DZ1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-1DZ1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-1T1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP742-1T1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP742-1TZ1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-1TZ1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-2D1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP742-2D1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP742-2DZ1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-2DZ1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-2T1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP742-2T1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP742-2TZ1-03A	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-2TZ1-03B	Series: VP700 \| Piping / port: Direct, 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-5G1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP742-5G1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP742-5GZ1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-5GZ1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-5L1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP742-5L1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP742-5LZ1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-5LZ1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-5M1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP742-5M1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP742-5MZ1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-5MZ1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-5D1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP742-5D1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP742-5DZ1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-5DZ1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-5T1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP742-5T1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP742-5TZ1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-5TZ1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-6G1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP742-6G1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP742-6GZ1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-6GZ1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-6L1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP742-6L1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP742-6LZ1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-6LZ1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-6M1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP742-6M1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP742-6MZ1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-6MZ1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-6D1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP742-6D1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP742-6DZ1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-6DZ1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-6T1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP742-6T1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP742-6TZ1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-6TZ1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-1D1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP742-1D1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP742-1DZ1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-1DZ1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-1T1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP742-1T1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP742-1TZ1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-1TZ1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-2D1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP742-2D1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP742-2DZ1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-2DZ1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP742-2T1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP742-2T1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP742-2TZ1-04A	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP742-2TZ1-04B	Series: VP700 \| Piping / port: Direct, 1/2 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-5G1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP744-5G1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP744-5GZ1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-5GZ1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-5L1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP744-5L1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP744-5LZ1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-5LZ1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-5M1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP744-5M1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP744-5MZ1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-5MZ1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-5D1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP744-5D1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP744-5DZ1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-5DZ1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-5T1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP744-5T1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP744-5TZ1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-5TZ1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-6G1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP744-6G1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP744-6GZ1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-6GZ1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-6L1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP744-6L1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP744-6LZ1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-6LZ1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-6M1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP744-6M1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP744-6MZ1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-6MZ1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-6D1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP744-6D1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP744-6DZ1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-6DZ1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-6T1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP744-6T1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP744-6TZ1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-6TZ1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-1D1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP744-1D1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP744-1DZ1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-1DZ1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-1T1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP744-1T1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP744-1TZ1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-1TZ1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-2D1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP744-2D1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP744-2DZ1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-2DZ1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-2T1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP744-2T1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP744-2TZ1-A	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-2TZ1-B	Series: VP700 \| Piping / port: Base, without sub-plate \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-5G1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP744-5G1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP744-5GZ1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-5GZ1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-5L1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP744-5L1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP744-5LZ1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-5LZ1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-5M1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP744-5M1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP744-5MZ1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-5MZ1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-5D1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP744-5D1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP744-5DZ1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-5DZ1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-5T1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP744-5T1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP744-5TZ1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-5TZ1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-6G1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP744-6G1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP744-6GZ1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-6GZ1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-6L1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP744-6L1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP744-6LZ1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-6LZ1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-6M1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP744-6M1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP744-6MZ1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-6MZ1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-6D1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP744-6D1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP744-6DZ1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-6DZ1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-6T1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP744-6T1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP744-6TZ1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-6TZ1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-1D1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP744-1D1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP744-1DZ1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-1DZ1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-1T1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP744-1T1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP744-1TZ1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-1TZ1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-2D1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP744-2D1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP744-2DZ1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-2DZ1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-2T1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP744-2T1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP744-2TZ1-03A	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-2TZ1-03B	Series: VP700 \| Piping / port: Base, sub-plate 3/8 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-5G1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP744-5G1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP744-5GZ1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-5GZ1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-5L1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP744-5L1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP744-5LZ1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-5LZ1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-5M1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP744-5M1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP744-5MZ1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-5MZ1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-5D1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP744-5D1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP744-5DZ1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-5DZ1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-5T1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP744-5T1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP744-5TZ1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-5TZ1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-6G1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.C.
	VP744-6G1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: None \| Switching: N.O.
	VP744-6GZ1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-6GZ1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: Grommet 300 mm \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-6L1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.C.
	VP744-6L1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: None \| Switching: N.O.
	VP744-6LZ1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-6LZ1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-6M1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.C.
	VP744-6M1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: None \| Switching: N.O.
	VP744-6MZ1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-6MZ1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-6D1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP744-6D1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP744-6DZ1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-6DZ1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-6T1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP744-6T1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP744-6TZ1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-6TZ1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: DC12V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-1D1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP744-1D1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP744-1DZ1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-1DZ1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-1T1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP744-1T1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP744-1TZ1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-1TZ1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-2D1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.C.
	VP744-2D1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None \| Switching: N.O.
	VP744-2DZ1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-2DZ1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.
	VP744-2T1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.C.
	VP744-2T1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: None \| Switching: N.O.
	VP744-2TZ1-04A	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.C.
	VP744-2TZ1-04B	Series: VP700 \| Piping / port: Base, sub-plate 1/2 \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Light/surge: Light/surge suppressor \| Switching: N.O.

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC VP300/500/700 3-Port Solenoid Valve (Poppet, Direct/Base Piping)
