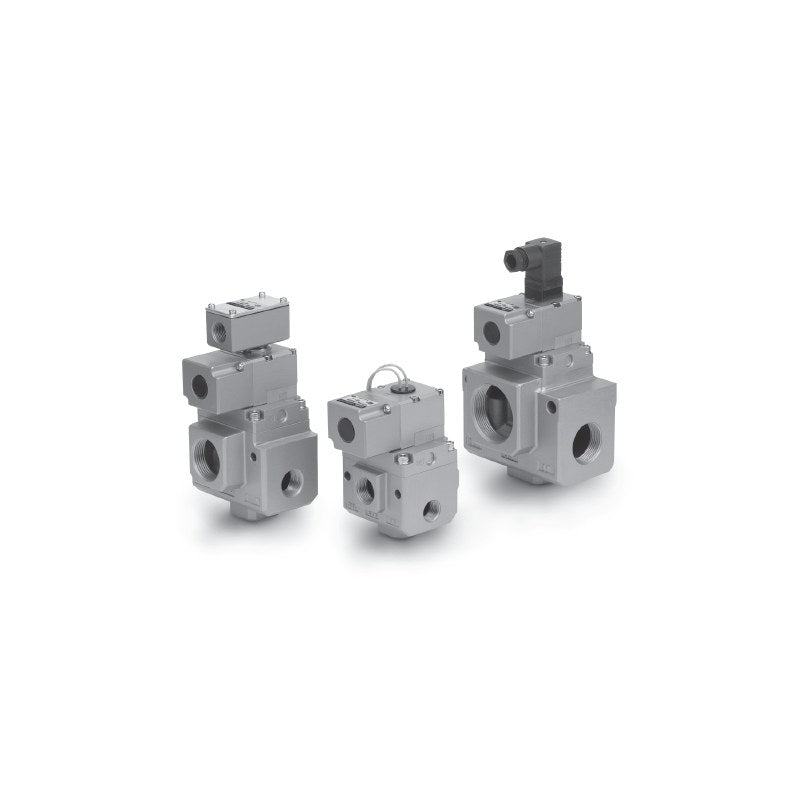

SMC VP3145/3165/3185 Large 3-Port Solenoid Valve (Rc3/8 to Rc2)

SMC VP3145/3165/3185 series large-flow pilot-operated 3-port solenoid valve with elastomer seal, body ported for direct piping from Rc3/8 to Rc2.

Key features

Large flow capacity with low exhaust resistance; body sizes 1/2, 1 and 1 1/2
N.C. or N.O. by turning the switching plate, without changing piping
Vacuum/low-pressure version (V, external pilot) usable to -101.2 kPa or 0 to 0.2 MPa
Listed codes: AC100V, AC200V, DC24V with grommet, conduit or DIN terminal (standard); AC110V/220V/240V, DC12V and TL/TS/TZ/DL/DS/DZ entries are semi-standard
G/NPT/NPTF threads, CE/UKCA (Q, DIN entries only) and made-to-order -X80/-X81 by suffix

Specifications

Fluid	Air
Valve type	Pilot-operated 3-port, elastomer seal, direct piping
Operating pressure	0.2 to 0.8 MPa (vacuum/low-pressure type -101.2 kPa to 0.2 MPa)
Ambient and fluid temperature	0 to 60°C (no freezing)
Response time (0.5 MPa)	ON: AC 30 ms, DC 40 ms or less; OFF: 30 ms or less
Max. operating frequency	3 Hz
Lubrication	Required (turbine oil class 1, ISO VG32)
Manual override	Non-locking
Mounting orientation	Unrestricted
Impact/vibration resistance	150/50 m/s²
Power consumption	DC 12 W; AC apparent 73/58 VA inrush, 28/17 VA holding (50/60 Hz)
Source	SMC Korea catalog VP3145/3165/3185 (SMCKR_VP3145_3165_3185.pdf), p. 1115-1116 (PDF p. 1-2)

VP3145-031GA		Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3145-031GB		Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3145-031TA		Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145-031TB		Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145-031DA		Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145-031DB		Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145-032GA		Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3145-032GB		Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3145-032TA		Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145-032TB		Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145-032DA		Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145-032DB		Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145-035GA		Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3145-035GB		Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3145-035TA		Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145-035TB		Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145-035DA		Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145-035DB		Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145-031GA1		Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3145-031GB1		Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3145-031TA1		Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145-031TB1		Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145-031DA1		Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145-031DB1		Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145-032GA1		Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3145-032GB1		Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3145-032TA1		Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145-032TB1		Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145-032DA1		Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145-032DB1		Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145-035GA1		Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3145-035GB1		Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3145-035TA1		Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145-035TB1		Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145-035DA1		Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145-035DB1		Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145V-031GA1		Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3145V-031GB1		Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3145V-031TA1		Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145V-031TB1		Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145V-031DA1		Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145V-031DB1		Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145V-032GA1		Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3145V-032GB1		Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3145V-032TA1		Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145V-032TB1		Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145V-032DA1		Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145V-032DB1		Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145V-035GA1		Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3145V-035GB1		Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3145V-035TA1		Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145V-035TB1		Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145V-035DA1		Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145V-035DB1		Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145-041GA		Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3145-041GB		Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3145-041TA		Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145-041TB		Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145-041DA		Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145-041DB		Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145-042GA		Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3145-042GB		Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3145-042TA		Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145-042TB		Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145-042DA		Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145-042DB		Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145-045GA		Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3145-045GB		Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3145-045TA		Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145-045TB		Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145-045DA		Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145-045DB		Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145-041GA1		Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3145-041GB1		Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3145-041TA1		Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145-041TB1		Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145-041DA1		Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145-041DB1		Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145-042GA1		Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3145-042GB1		Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3145-042TA1		Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145-042TB1		Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145-042DA1		Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145-042DB1		Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145-045GA1		Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3145-045GB1		Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3145-045TA1		Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145-045TB1		Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145-045DA1		Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145-045DB1		Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145V-041GA1		Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3145V-041GB1		Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3145V-041TA1		Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145V-041TB1		Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145V-041DA1		Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145V-041DB1		Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145V-042GA1		Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3145V-042GB1		Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3145V-042TA1		Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145V-042TB1		Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145V-042DA1		Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145V-042DB1		Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145V-045GA1		Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3145V-045GB1		Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3145V-045TA1		Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145V-045TB1		Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145V-045DA1		Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145V-045DB1		Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145-061GA		Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3145-061GB		Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3145-061TA		Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145-061TB		Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145-061DA		Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145-061DB		Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145-062GA		Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3145-062GB		Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3145-062TA		Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145-062TB		Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145-062DA		Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145-062DB		Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145-065GA		Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3145-065GB		Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3145-065TA		Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145-065TB		Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145-065DA		Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145-065DB		Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145-061GA1		Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3145-061GB1		Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3145-061TA1		Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145-061TB1		Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145-061DA1		Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145-061DB1		Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145-062GA1		Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3145-062GB1		Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3145-062TA1		Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145-062TB1		Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145-062DA1		Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145-062DB1		Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145-065GA1		Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3145-065GB1		Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3145-065TA1		Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145-065TB1		Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145-065DA1		Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145-065DB1		Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145V-061GA1		Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3145V-061GB1		Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3145V-061TA1		Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145V-061TB1		Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145V-061DA1		Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145V-061DB1		Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145V-062GA1		Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3145V-062GB1		Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3145V-062TA1		Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145V-062TB1		Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145V-062DA1		Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145V-062DB1		Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3145V-065GA1		Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3145V-065GB1		Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3145V-065TA1		Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3145V-065TB1		Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3145V-065DA1		Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3145V-065DB1		Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165-061GA		Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3165-061GB		Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3165-061TA		Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165-061TB		Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165-061DA		Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165-061DB		Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165-062GA		Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3165-062GB		Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3165-062TA		Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165-062TB		Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165-062DA		Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165-062DB		Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165-065GA		Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3165-065GB		Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3165-065TA		Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165-065TB		Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165-065DA		Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165-065DB		Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165-061GA1		Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3165-061GB1		Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3165-061TA1		Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165-061TB1		Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165-061DA1		Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165-061DB1		Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165-062GA1		Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3165-062GB1		Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3165-062TA1		Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165-062TB1		Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165-062DA1		Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165-062DB1		Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165-065GA1		Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3165-065GB1		Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3165-065TA1		Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165-065TB1		Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165-065DA1		Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165-065DB1		Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165V-061GA1		Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3165V-061GB1		Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3165V-061TA1		Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165V-061TB1		Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165V-061DA1		Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165V-061DB1		Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165V-062GA1		Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3165V-062GB1		Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3165V-062TA1		Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165V-062TB1		Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165V-062DA1		Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165V-062DB1		Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165V-065GA1		Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3165V-065GB1		Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3165V-065TA1		Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165V-065TB1		Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165V-065DA1		Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165V-065DB1		Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165-101GA		Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3165-101GB		Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3165-101TA		Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165-101TB		Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165-101DA		Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165-101DB		Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165-102GA		Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3165-102GB		Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3165-102TA		Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165-102TB		Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165-102DA		Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165-102DB		Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165-105GA		Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3165-105GB		Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3165-105TA		Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165-105TB		Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165-105DA		Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165-105DB		Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165-101GA1		Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3165-101GB1		Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3165-101TA1		Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165-101TB1		Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165-101DA1		Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165-101DB1		Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165-102GA1		Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3165-102GB1		Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3165-102TA1		Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165-102TB1		Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165-102DA1		Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165-102DB1		Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165-105GA1		Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3165-105GB1		Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3165-105TA1		Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165-105TB1		Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165-105DA1		Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165-105DB1		Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165V-101GA1		Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3165V-101GB1		Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3165V-101TA1		Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165V-101TB1		Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165V-101DA1		Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165V-101DB1		Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165V-102GA1		Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3165V-102GB1		Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3165V-102TA1		Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165V-102TB1		Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165V-102DA1		Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165V-102DB1		Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165V-105GA1		Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3165V-105GB1		Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3165V-105TA1		Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165V-105TB1		Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165V-105DA1		Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165V-105DB1		Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165-121GA		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3165-121GB		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3165-121TA		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165-121TB		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165-121DA		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165-121DB		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165-122GA		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3165-122GB		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3165-122TA		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165-122TB		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165-122DA		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165-122DB		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165-125GA		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3165-125GB		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3165-125TA		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165-125TB		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165-125DA		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165-125DB		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165-121GA1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3165-121GB1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3165-121TA1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165-121TB1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165-121DA1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165-121DB1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165-122GA1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3165-122GB1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3165-122TA1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165-122TB1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165-122DA1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165-122DB1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165-125GA1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3165-125GB1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3165-125TA1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165-125TB1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165-125DA1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165-125DB1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165V-121GA1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3165V-121GB1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3165V-121TA1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165V-121TB1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165V-121DA1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165V-121DB1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165V-122GA1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3165V-122GB1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3165V-122TA1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165V-122TB1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165V-122DA1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165V-122DB1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3165V-125GA1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3165V-125GB1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3165V-125TA1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3165V-125TB1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3165V-125DA1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3165V-125DB1		Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185-121GA		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3185-121GB		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3185-121TA		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185-121TB		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185-121DA		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185-121DB		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185-122GA		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3185-122GB		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3185-122TA		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185-122TB		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185-122DA		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185-122DB		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185-125GA		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3185-125GB		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3185-125TA		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185-125TB		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185-125DA		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185-125DB		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185-121GA1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3185-121GB1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3185-121TA1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185-121TB1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185-121DA1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185-121DB1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185-122GA1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3185-122GB1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3185-122TA1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185-122TB1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185-122DA1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185-122DB1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185-125GA1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3185-125GB1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3185-125TA1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185-125TB1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185-125DA1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185-125DB1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185V-121GA1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3185V-121GB1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3185V-121TA1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185V-121TB1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185V-121DA1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185V-121DB1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185V-122GA1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3185V-122GB1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3185V-122TA1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185V-122TB1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185V-122DA1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185V-122DB1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185V-125GA1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3185V-125GB1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3185V-125TA1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185V-125TB1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185V-125DA1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185V-125DB1		Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185-141GA		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3185-141GB		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3185-141TA		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185-141TB		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185-141DA		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185-141DB		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185-142GA		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3185-142GB		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3185-142TA		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185-142TB		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185-142DA		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185-142DB		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185-145GA		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3185-145GB		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3185-145TA		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185-145TB		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185-145DA		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185-145DB		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185-141GA1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3185-141GB1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3185-141TA1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185-141TB1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185-141DA1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185-141DB1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185-142GA1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3185-142GB1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3185-142TA1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185-142TB1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185-142DA1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185-142DB1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185-145GA1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3185-145GB1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3185-145TA1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185-145TB1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185-145DA1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185-145DB1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185V-141GA1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3185V-141GB1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3185V-141TA1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185V-141TB1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185V-141DA1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185V-141DB1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185V-142GA1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3185V-142GB1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3185V-142TA1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185V-142TB1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185V-142DA1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185V-142DB1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185V-145GA1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3185V-145GB1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3185V-145TA1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185V-145TB1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185V-145DA1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185V-145DB1		Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185-201GA		Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3185-201GB		Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3185-201TA		Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185-201TB		Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185-201DA		Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185-201DB		Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185-202GA		Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3185-202GB		Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3185-202TA		Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185-202TB		Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185-202DA		Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185-202DB		Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185-205GA		Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3185-205GB		Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3185-205TA		Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185-205TB		Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185-205DA		Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185-205DB		Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185-201GA1		Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3185-201GB1		Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3185-201TA1		Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185-201TB1		Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185-201DA1		Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185-201DB1		Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185-202GA1		Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3185-202GB1		Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3185-202TA1		Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185-202TB1		Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185-202DA1		Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185-202DB1		Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185-205GA1		Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3185-205GB1		Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3185-205TA1		Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185-205TB1		Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185-205DA1		Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185-205DB1		Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185V-201GA1		Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
VP3185V-201GB1		Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
VP3185V-201TA1		Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185V-201TB1		Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185V-201DA1		Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185V-201DB1		Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185V-202GA1		Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
VP3185V-202GB1		Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
VP3185V-202TA1		Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185V-202TB1		Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185V-202DA1		Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185V-202DB1		Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
VP3185V-205GA1		Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
VP3185V-205GB1		Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
VP3185V-205TA1		Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
VP3185V-205TB1		Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
VP3185V-205DA1		Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
VP3185V-205DB1		Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.

3-Port Solenoid ValvesSMC

486 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VP3145/3165/3185 Large 3-Port Solenoid Valve (Rc3/8 to Rc2)

Brand SMC·3-Port Solenoid Valves

Available part numbers (486)

VP3145-031GA, VP3145-031GB, VP3145-031TA, VP3145-031TB, VP3145-031DA, VP3145-031DB, VP3145-032GA, VP3145-032GB, VP3145-032TA, VP3145-032TB + 476 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	VP3145-031GA	Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145-031GB	Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145-031TA	Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145-031TB	Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145-031DA	Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145-031DB	Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145-032GA	Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145-032GB	Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145-032TA	Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145-032TB	Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145-032DA	Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145-032DB	Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145-035GA	Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145-035GB	Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145-035TA	Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145-035TB	Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145-035DA	Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145-035DB	Series: VP3145 \| Port size: Rc3/8 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145-031GA1	Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145-031GB1	Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145-031TA1	Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145-031TB1	Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145-031DA1	Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145-031DB1	Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145-032GA1	Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145-032GB1	Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145-032TA1	Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145-032TB1	Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145-032DA1	Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145-032DB1	Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145-035GA1	Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145-035GB1	Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145-035TA1	Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145-035TB1	Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145-035DA1	Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145-035DB1	Series: VP3145 \| Port size: Rc3/8 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145V-031GA1	Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145V-031GB1	Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145V-031TA1	Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145V-031TB1	Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145V-031DA1	Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145V-031DB1	Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145V-032GA1	Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145V-032GB1	Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145V-032TA1	Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145V-032TB1	Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145V-032DA1	Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145V-032DB1	Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145V-035GA1	Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145V-035GB1	Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145V-035TA1	Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145V-035TB1	Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145V-035DA1	Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145V-035DB1	Series: VP3145 \| Port size: Rc3/8 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145-041GA	Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145-041GB	Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145-041TA	Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145-041TB	Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145-041DA	Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145-041DB	Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145-042GA	Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145-042GB	Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145-042TA	Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145-042TB	Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145-042DA	Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145-042DB	Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145-045GA	Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145-045GB	Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145-045TA	Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145-045TB	Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145-045DA	Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145-045DB	Series: VP3145 \| Port size: Rc1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145-041GA1	Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145-041GB1	Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145-041TA1	Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145-041TB1	Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145-041DA1	Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145-041DB1	Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145-042GA1	Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145-042GB1	Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145-042TA1	Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145-042TB1	Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145-042DA1	Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145-042DB1	Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145-045GA1	Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145-045GB1	Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145-045TA1	Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145-045TB1	Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145-045DA1	Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145-045DB1	Series: VP3145 \| Port size: Rc1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145V-041GA1	Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145V-041GB1	Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145V-041TA1	Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145V-041TB1	Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145V-041DA1	Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145V-041DB1	Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145V-042GA1	Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145V-042GB1	Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145V-042TA1	Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145V-042TB1	Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145V-042DA1	Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145V-042DB1	Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145V-045GA1	Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145V-045GB1	Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145V-045TA1	Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145V-045TB1	Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145V-045DA1	Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145V-045DB1	Series: VP3145 \| Port size: Rc1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145-061GA	Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145-061GB	Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145-061TA	Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145-061TB	Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145-061DA	Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145-061DB	Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145-062GA	Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145-062GB	Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145-062TA	Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145-062TB	Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145-062DA	Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145-062DB	Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145-065GA	Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145-065GB	Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145-065TA	Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145-065TB	Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145-065DA	Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145-065DB	Series: VP3145 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145-061GA1	Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145-061GB1	Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145-061TA1	Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145-061TB1	Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145-061DA1	Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145-061DB1	Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145-062GA1	Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145-062GB1	Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145-062TA1	Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145-062TB1	Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145-062DA1	Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145-062DB1	Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145-065GA1	Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145-065GB1	Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145-065TA1	Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145-065TB1	Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145-065DA1	Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145-065DB1	Series: VP3145 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145V-061GA1	Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145V-061GB1	Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145V-061TA1	Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145V-061TB1	Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145V-061DA1	Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145V-061DB1	Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145V-062GA1	Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145V-062GB1	Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145V-062TA1	Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145V-062TB1	Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145V-062DA1	Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145V-062DB1	Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3145V-065GA1	Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3145V-065GB1	Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3145V-065TA1	Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3145V-065TB1	Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3145V-065DA1	Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3145V-065DB1	Series: VP3145 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165-061GA	Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165-061GB	Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165-061TA	Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165-061TB	Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165-061DA	Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165-061DB	Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165-062GA	Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165-062GB	Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165-062TA	Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165-062TB	Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165-062DA	Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165-062DB	Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165-065GA	Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165-065GB	Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165-065TA	Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165-065TB	Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165-065DA	Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165-065DB	Series: VP3165 \| Port size: Rc3/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165-061GA1	Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165-061GB1	Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165-061TA1	Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165-061TB1	Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165-061DA1	Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165-061DB1	Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165-062GA1	Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165-062GB1	Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165-062TA1	Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165-062TB1	Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165-062DA1	Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165-062DB1	Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165-065GA1	Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165-065GB1	Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165-065TA1	Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165-065TB1	Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165-065DA1	Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165-065DB1	Series: VP3165 \| Port size: Rc3/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165V-061GA1	Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165V-061GB1	Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165V-061TA1	Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165V-061TB1	Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165V-061DA1	Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165V-061DB1	Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165V-062GA1	Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165V-062GB1	Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165V-062TA1	Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165V-062TB1	Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165V-062DA1	Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165V-062DB1	Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165V-065GA1	Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165V-065GB1	Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165V-065TA1	Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165V-065TB1	Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165V-065DA1	Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165V-065DB1	Series: VP3165 \| Port size: Rc3/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165-101GA	Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165-101GB	Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165-101TA	Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165-101TB	Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165-101DA	Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165-101DB	Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165-102GA	Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165-102GB	Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165-102TA	Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165-102TB	Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165-102DA	Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165-102DB	Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165-105GA	Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165-105GB	Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165-105TA	Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165-105TB	Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165-105DA	Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165-105DB	Series: VP3165 \| Port size: Rc1 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165-101GA1	Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165-101GB1	Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165-101TA1	Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165-101TB1	Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165-101DA1	Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165-101DB1	Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165-102GA1	Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165-102GB1	Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165-102TA1	Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165-102TB1	Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165-102DA1	Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165-102DB1	Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165-105GA1	Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165-105GB1	Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165-105TA1	Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165-105TB1	Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165-105DA1	Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165-105DB1	Series: VP3165 \| Port size: Rc1 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165V-101GA1	Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165V-101GB1	Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165V-101TA1	Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165V-101TB1	Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165V-101DA1	Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165V-101DB1	Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165V-102GA1	Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165V-102GB1	Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165V-102TA1	Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165V-102TB1	Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165V-102DA1	Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165V-102DB1	Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165V-105GA1	Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165V-105GB1	Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165V-105TA1	Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165V-105TB1	Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165V-105DA1	Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165V-105DB1	Series: VP3165 \| Port size: Rc1 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165-121GA	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165-121GB	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165-121TA	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165-121TB	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165-121DA	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165-121DB	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165-122GA	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165-122GB	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165-122TA	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165-122TB	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165-122DA	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165-122DB	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165-125GA	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165-125GB	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165-125TA	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165-125TB	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165-125DA	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165-125DB	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165-121GA1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165-121GB1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165-121TA1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165-121TB1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165-121DA1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165-121DB1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165-122GA1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165-122GB1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165-122TA1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165-122TB1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165-122DA1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165-122DB1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165-125GA1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165-125GB1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165-125TA1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165-125TB1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165-125DA1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165-125DB1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165V-121GA1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165V-121GB1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165V-121TA1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165V-121TB1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165V-121DA1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165V-121DB1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165V-122GA1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165V-122GB1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165V-122TA1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165V-122TB1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165V-122DA1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165V-122DB1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3165V-125GA1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3165V-125GB1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3165V-125TA1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3165V-125TB1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3165V-125DA1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3165V-125DB1	Series: VP3165 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185-121GA	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185-121GB	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185-121TA	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185-121TB	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185-121DA	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185-121DB	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185-122GA	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185-122GB	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185-122TA	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185-122TB	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185-122DA	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185-122DB	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185-125GA	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185-125GB	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185-125TA	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185-125TB	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185-125DA	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185-125DB	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185-121GA1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185-121GB1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185-121TA1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185-121TB1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185-121DA1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185-121DB1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185-122GA1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185-122GB1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185-122TA1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185-122TB1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185-122DA1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185-122DB1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185-125GA1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185-125GB1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185-125TA1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185-125TB1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185-125DA1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185-125DB1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185V-121GA1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185V-121GB1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185V-121TA1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185V-121TB1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185V-121DA1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185V-121DB1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185V-122GA1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185V-122GB1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185V-122TA1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185V-122TB1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185V-122DA1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185V-122DB1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185V-125GA1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185V-125GB1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185V-125TA1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185V-125TB1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185V-125DA1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185V-125DB1	Series: VP3185 \| Port size: Rc1 1/4 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185-141GA	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185-141GB	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185-141TA	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185-141TB	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185-141DA	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185-141DB	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185-142GA	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185-142GB	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185-142TA	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185-142TB	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185-142DA	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185-142DB	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185-145GA	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185-145GB	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185-145TA	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185-145TB	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185-145DA	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185-145DB	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185-141GA1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185-141GB1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185-141TA1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185-141TB1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185-141DA1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185-141DB1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185-142GA1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185-142GB1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185-142TA1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185-142TB1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185-142DA1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185-142DB1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185-145GA1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185-145GB1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185-145TA1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185-145TB1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185-145DA1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185-145DB1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185V-141GA1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185V-141GB1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185V-141TA1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185V-141TB1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185V-141DA1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185V-141DB1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185V-142GA1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185V-142GB1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185V-142TA1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185V-142TB1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185V-142DA1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185V-142DB1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185V-145GA1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185V-145GB1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185V-145TA1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185V-145TB1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185V-145DA1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185V-145DB1	Series: VP3185 \| Port size: Rc1 1/2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185-201GA	Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185-201GB	Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185-201TA	Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185-201TB	Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185-201DA	Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185-201DB	Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185-202GA	Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185-202GB	Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185-202TA	Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185-202TB	Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185-202DA	Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185-202DB	Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185-205GA	Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185-205GB	Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185-205TA	Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185-205TB	Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185-205DA	Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185-205DB	Series: VP3185 \| Port size: Rc2 \| Option: General, internal pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185-201GA1	Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185-201GB1	Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185-201TA1	Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185-201TB1	Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185-201DA1	Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185-201DB1	Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185-202GA1	Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185-202GB1	Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185-202TA1	Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185-202TB1	Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185-202DA1	Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185-202DB1	Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185-205GA1	Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185-205GB1	Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185-205TA1	Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185-205TB1	Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185-205DA1	Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185-205DB1	Series: VP3185 \| Port size: Rc2 \| Option: General, external pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185V-201GA1	Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185V-201GB1	Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185V-201TA1	Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185V-201TB1	Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185V-201DA1	Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185V-201DB1	Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC100V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185V-202GA1	Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185V-202GB1	Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185V-202TA1	Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185V-202TB1	Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185V-202DA1	Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185V-202DB1	Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: AC200V \| Electrical entry: DIN terminal \| Switching: N.O.
	VP3185V-205GA1	Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.C.
	VP3185V-205GB1	Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Grommet \| Switching: N.O.
	VP3185V-205TA1	Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.C.
	VP3185V-205TB1	Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: Conduit terminal \| Switching: N.O.
	VP3185V-205DA1	Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.C.
	VP3185V-205DB1	Series: VP3185 \| Port size: Rc2 \| Option: Vacuum/low pressure, ext. pilot \| Voltage: DC24V \| Electrical entry: DIN terminal \| Switching: N.O.

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC VP3145/3165/3185 Large 3-Port Solenoid Valve (Rc3/8 to Rc2)
