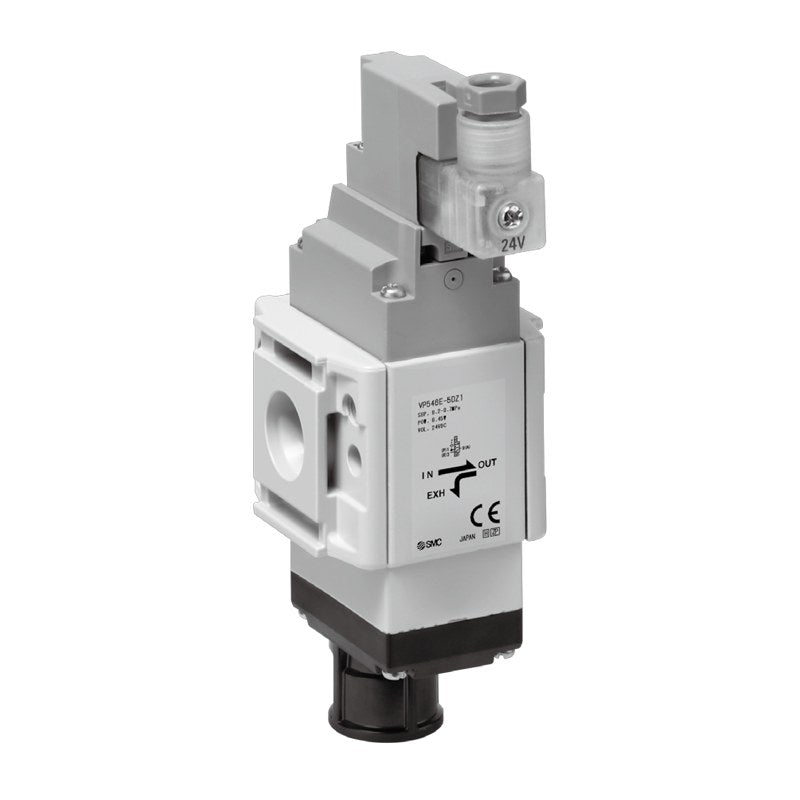

SMC VP346E/546E/746E/946E Residual Pressure Release Valve (Modular)

SMC VP346E/546E/746E/946E series 3-port residual pressure release solenoid valve, modular type for direct connection to AC-D F.R.L. combinations, with optional built-in soft start-up.

Key features

Connects directly to AC20-D to AC60-D modular F.R.L. combinations, saving space and piping work
Soft start-up function can be built in (S): slow supply at start-up then full flow
Low power consumption 0.35 W (without lamp); check valve in pilot passage counters pilot pressure drop
Electrical entry: DIN terminal (D/DO/DZ), EN175301-803C DIN terminal (Y/YO/YZ) or M12 connector (KOZ)
High-pressure 1.0 MPa type (K) for VP546E/746E; manual operation types A (VP500/700 only) and E
No connection thread on valve body: order piping adapter (E-D) and bracket spacer (Y-T-D) separately

Specifications

Fluid	Air
Switching	N.C.
Internal pilot operating pressure	0.2 to 0.7 MPa (K type 0.2 to 1.0 MPa)
Ambient and fluid temperature	-10 to 50°C (no freezing)
Rated voltage	DC24V
Power consumption	0.35 W (with lamp 0.45 W; M12 0.4 W)
Enclosure	IP65
Max. operating frequency	5 Hz (VP946E 1 Hz), except soft start-up type
Flow rate C 1-2 [dm³/(s·bar)]	VP346E 4.3, VP546E 8.8, VP746E 13.8
Pilot exhaust	Individual exhaust
Source	SMC Korea catalog VP346E/546E/746E/946E (SMCKR_VP546E-746E.pdf), p. 1095-1102 (PDF p. 1-3)

VP346E-5D1		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP346E-5D1-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP346E-5D1-R		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP346E-5D1-R-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP346E-5DE1		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP346E-5DE1-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP346E-5DE1-R		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP346E-5DE1-R-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP346E-5DZ1		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP346E-5DZ1-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP346E-5DZ1-R		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP346E-5DZ1-R-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP346E-5DZE1		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP346E-5DZE1-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP346E-5DZE1-R		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP346E-5DZE1-R-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP346E-5DO1		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP346E-5DO1-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP346E-5DO1-R		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP346E-5DO1-R-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP346E-5DOE1		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP346E-5DOE1-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP346E-5DOE1-R		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP346E-5DOE1-R-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP346E-5Y1		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP346E-5Y1-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP346E-5Y1-R		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP346E-5Y1-R-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP346E-5YE1		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP346E-5YE1-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP346E-5YE1-R		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP346E-5YE1-R-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP346E-5YZ1		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP346E-5YZ1-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP346E-5YZ1-R		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP346E-5YZ1-R-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP346E-5YZE1		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP346E-5YZE1-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP346E-5YZE1-R		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP346E-5YZE1-R-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP346E-5YO1		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP346E-5YO1-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP346E-5YO1-R		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP346E-5YO1-R-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP346E-5YOE1		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP346E-5YOE1-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP346E-5YOE1-R		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP346E-5YOE1-R-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP346E-5KOZ1		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP346E-5KOZ1-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP346E-5KOZ1-R		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP346E-5KOZ1-R-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP346E-5KOZE1		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP346E-5KOZE1-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP346E-5KOZE1-R		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP346E-5KOZE1-R-S		Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5D1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP546E-5D1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5D1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP546E-5D1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5DA1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP546E-5DA1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5DA1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP546E-5DA1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5DE1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP546E-5DE1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5DE1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP546E-5DE1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5DZ1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP546E-5DZ1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5DZ1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP546E-5DZ1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5DZA1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP546E-5DZA1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5DZA1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP546E-5DZA1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5DZE1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP546E-5DZE1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5DZE1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP546E-5DZE1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5DO1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP546E-5DO1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5DO1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP546E-5DO1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5DOA1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP546E-5DOA1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5DOA1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP546E-5DOA1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5DOE1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP546E-5DOE1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5DOE1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP546E-5DOE1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5Y1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP546E-5Y1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5Y1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP546E-5Y1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5YA1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP546E-5YA1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5YA1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP546E-5YA1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5YE1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP546E-5YE1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5YE1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP546E-5YE1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5YZ1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP546E-5YZ1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5YZ1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP546E-5YZ1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5YZA1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP546E-5YZA1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5YZA1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP546E-5YZA1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5YZE1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP546E-5YZE1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5YZE1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP546E-5YZE1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5YO1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP546E-5YO1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5YO1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP546E-5YO1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5YOA1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP546E-5YOA1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5YOA1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP546E-5YOA1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5YOE1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP546E-5YOE1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5YOE1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP546E-5YOE1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5KOZ1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP546E-5KOZ1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5KOZ1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP546E-5KOZ1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5KOZA1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP546E-5KOZA1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5KOZA1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP546E-5KOZA1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546E-5KOZE1		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP546E-5KOZE1-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546E-5KOZE1-R		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP546E-5KOZE1-R-S		Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5D1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP546EK-5D1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5D1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP546EK-5D1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5DA1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP546EK-5DA1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5DA1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP546EK-5DA1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5DE1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP546EK-5DE1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5DE1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP546EK-5DE1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5DZ1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP546EK-5DZ1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5DZ1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP546EK-5DZ1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5DZA1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP546EK-5DZA1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5DZA1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP546EK-5DZA1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5DZE1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP546EK-5DZE1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5DZE1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP546EK-5DZE1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5DO1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP546EK-5DO1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5DO1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP546EK-5DO1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5DOA1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP546EK-5DOA1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5DOA1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP546EK-5DOA1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5DOE1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP546EK-5DOE1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5DOE1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP546EK-5DOE1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5Y1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP546EK-5Y1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5Y1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP546EK-5Y1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5YA1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP546EK-5YA1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5YA1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP546EK-5YA1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5YE1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP546EK-5YE1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5YE1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP546EK-5YE1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5YZ1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP546EK-5YZ1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5YZ1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP546EK-5YZ1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5YZA1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP546EK-5YZA1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5YZA1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP546EK-5YZA1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5YZE1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP546EK-5YZE1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5YZE1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP546EK-5YZE1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5YO1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP546EK-5YO1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5YO1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP546EK-5YO1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5YOA1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP546EK-5YOA1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5YOA1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP546EK-5YOA1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5YOE1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP546EK-5YOE1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5YOE1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP546EK-5YOE1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5KOZ1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP546EK-5KOZ1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5KOZ1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP546EK-5KOZ1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5KOZA1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP546EK-5KOZA1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5KOZA1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP546EK-5KOZA1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP546EK-5KOZE1		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP546EK-5KOZE1-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP546EK-5KOZE1-R		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP546EK-5KOZE1-R-S		Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5D1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP746E-5D1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5D1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP746E-5D1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5DA1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP746E-5DA1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5DA1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP746E-5DA1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5DE1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP746E-5DE1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5DE1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP746E-5DE1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5DZ1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP746E-5DZ1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5DZ1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP746E-5DZ1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5DZA1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP746E-5DZA1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5DZA1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP746E-5DZA1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5DZE1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP746E-5DZE1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5DZE1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP746E-5DZE1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5DO1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP746E-5DO1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5DO1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP746E-5DO1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5DOA1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP746E-5DOA1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5DOA1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP746E-5DOA1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5DOE1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP746E-5DOE1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5DOE1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP746E-5DOE1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5Y1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP746E-5Y1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5Y1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP746E-5Y1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5YA1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP746E-5YA1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5YA1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP746E-5YA1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5YE1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP746E-5YE1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5YE1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP746E-5YE1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5YZ1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP746E-5YZ1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5YZ1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP746E-5YZ1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5YZA1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP746E-5YZA1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5YZA1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP746E-5YZA1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5YZE1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP746E-5YZE1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5YZE1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP746E-5YZE1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5YO1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP746E-5YO1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5YO1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP746E-5YO1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5YOA1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP746E-5YOA1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5YOA1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP746E-5YOA1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5YOE1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP746E-5YOE1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5YOE1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP746E-5YOE1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5KOZ1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP746E-5KOZ1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5KOZ1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP746E-5KOZ1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5KOZA1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP746E-5KOZA1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5KOZA1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP746E-5KOZA1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746E-5KOZE1		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP746E-5KOZE1-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746E-5KOZE1-R		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP746E-5KOZE1-R-S		Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5D1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP746EK-5D1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5D1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP746EK-5D1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5DA1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP746EK-5DA1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5DA1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP746EK-5DA1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5DE1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP746EK-5DE1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5DE1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP746EK-5DE1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5DZ1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP746EK-5DZ1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5DZ1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP746EK-5DZ1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5DZA1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP746EK-5DZA1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5DZA1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP746EK-5DZA1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5DZE1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP746EK-5DZE1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5DZE1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP746EK-5DZE1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5DO1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP746EK-5DO1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5DO1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP746EK-5DO1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5DOA1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP746EK-5DOA1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5DOA1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP746EK-5DOA1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5DOE1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP746EK-5DOE1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5DOE1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP746EK-5DOE1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5Y1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP746EK-5Y1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5Y1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP746EK-5Y1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5YA1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP746EK-5YA1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5YA1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP746EK-5YA1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5YE1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP746EK-5YE1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5YE1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP746EK-5YE1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5YZ1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP746EK-5YZ1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5YZ1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP746EK-5YZ1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5YZA1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP746EK-5YZA1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5YZA1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP746EK-5YZA1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5YZE1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP746EK-5YZE1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5YZE1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP746EK-5YZE1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5YO1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP746EK-5YO1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5YO1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP746EK-5YO1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5YOA1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP746EK-5YOA1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5YOA1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP746EK-5YOA1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5YOE1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP746EK-5YOE1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5YOE1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP746EK-5YOE1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5KOZ1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP746EK-5KOZ1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5KOZ1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP746EK-5KOZ1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5KOZA1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
VP746EK-5KOZA1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5KOZA1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
VP746EK-5KOZA1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP746EK-5KOZE1		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP746EK-5KOZE1-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP746EK-5KOZE1-R		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP746EK-5KOZE1-R-S		Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP946E-5D1		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP946E-5D1-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP946E-5D1-R		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP946E-5D1-R-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP946E-5DE1		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP946E-5DE1-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP946E-5DE1-R		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP946E-5DE1-R-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP946E-5DZ1		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP946E-5DZ1-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP946E-5DZ1-R		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP946E-5DZ1-R-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP946E-5DZE1		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP946E-5DZE1-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP946E-5DZE1-R		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP946E-5DZE1-R-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP946E-5DO1		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP946E-5DO1-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP946E-5DO1-R		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP946E-5DO1-R-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP946E-5DOE1		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP946E-5DOE1-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP946E-5DOE1-R		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP946E-5DOE1-R-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP946E-5Y1		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP946E-5Y1-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP946E-5Y1-R		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP946E-5Y1-R-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP946E-5YE1		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP946E-5YE1-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP946E-5YE1-R		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP946E-5YE1-R-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP946E-5YZ1		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP946E-5YZ1-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP946E-5YZ1-R		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP946E-5YZ1-R-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP946E-5YZE1		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP946E-5YZE1-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP946E-5YZE1-R		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP946E-5YZE1-R-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP946E-5YO1		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP946E-5YO1-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP946E-5YO1-R		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP946E-5YO1-R-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP946E-5YOE1		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP946E-5YOE1-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP946E-5YOE1-R		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP946E-5YOE1-R-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
VP946E-5KOZ1		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
VP946E-5KOZ1-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
VP946E-5KOZ1-R		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
VP946E-5KOZ1-R-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
VP946E-5KOZE1		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
VP946E-5KOZE1-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
VP946E-5KOZE1-R		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
VP946E-5KOZE1-R-S		Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in

3-Port Solenoid ValvesSMC

448 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VP346E/546E/746E/946E Residual Pressure Release Valve (Modular)

Brand SMC·3-Port Solenoid Valves

Available part numbers (448)

VP346E-5D1, VP346E-5D1-S, VP346E-5D1-R, VP346E-5D1-R-S, VP346E-5DE1, VP346E-5DE1-S, VP346E-5DE1-R, VP346E-5DE1-R-S, VP346E-5DZ1, VP346E-5DZ1-S + 438 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	VP346E-5D1	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP346E-5D1-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP346E-5D1-R	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP346E-5D1-R-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP346E-5DE1	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP346E-5DE1-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP346E-5DE1-R	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP346E-5DE1-R-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP346E-5DZ1	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP346E-5DZ1-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP346E-5DZ1-R	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP346E-5DZ1-R-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP346E-5DZE1	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP346E-5DZE1-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP346E-5DZE1-R	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP346E-5DZE1-R-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP346E-5DO1	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP346E-5DO1-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP346E-5DO1-R	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP346E-5DO1-R-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP346E-5DOE1	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP346E-5DOE1-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP346E-5DOE1-R	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP346E-5DOE1-R-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP346E-5Y1	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP346E-5Y1-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP346E-5Y1-R	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP346E-5Y1-R-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP346E-5YE1	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP346E-5YE1-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP346E-5YE1-R	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP346E-5YE1-R-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP346E-5YZ1	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP346E-5YZ1-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP346E-5YZ1-R	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP346E-5YZ1-R-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP346E-5YZE1	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP346E-5YZE1-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP346E-5YZE1-R	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP346E-5YZE1-R-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP346E-5YO1	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP346E-5YO1-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP346E-5YO1-R	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP346E-5YO1-R-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP346E-5YOE1	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP346E-5YOE1-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP346E-5YOE1-R	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP346E-5YOE1-R-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP346E-5KOZ1	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP346E-5KOZ1-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP346E-5KOZ1-R	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP346E-5KOZ1-R-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP346E-5KOZE1	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP346E-5KOZE1-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP346E-5KOZE1-R	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP346E-5KOZE1-R-S	Series: VP300 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5D1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP546E-5D1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5D1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP546E-5D1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5DA1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546E-5DA1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5DA1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546E-5DA1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5DE1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546E-5DE1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5DE1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546E-5DE1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5DZ1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP546E-5DZ1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5DZ1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP546E-5DZ1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5DZA1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546E-5DZA1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5DZA1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546E-5DZA1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5DZE1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546E-5DZE1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5DZE1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546E-5DZE1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5DO1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP546E-5DO1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5DO1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP546E-5DO1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5DOA1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546E-5DOA1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5DOA1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546E-5DOA1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5DOE1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546E-5DOE1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5DOE1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546E-5DOE1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5Y1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP546E-5Y1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5Y1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP546E-5Y1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5YA1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546E-5YA1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5YA1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546E-5YA1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5YE1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546E-5YE1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5YE1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546E-5YE1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5YZ1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP546E-5YZ1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5YZ1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP546E-5YZ1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5YZA1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546E-5YZA1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5YZA1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546E-5YZA1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5YZE1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546E-5YZE1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5YZE1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546E-5YZE1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5YO1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP546E-5YO1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5YO1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP546E-5YO1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5YOA1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546E-5YOA1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5YOA1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546E-5YOA1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5YOE1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546E-5YOE1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5YOE1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546E-5YOE1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5KOZ1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP546E-5KOZ1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5KOZ1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP546E-5KOZ1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5KOZA1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546E-5KOZA1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5KOZA1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546E-5KOZA1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546E-5KOZE1	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546E-5KOZE1-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546E-5KOZE1-R	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546E-5KOZE1-R-S	Series: VP500 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5D1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP546EK-5D1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5D1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP546EK-5D1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5DA1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546EK-5DA1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5DA1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546EK-5DA1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5DE1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546EK-5DE1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5DE1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546EK-5DE1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5DZ1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP546EK-5DZ1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5DZ1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP546EK-5DZ1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5DZA1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546EK-5DZA1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5DZA1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546EK-5DZA1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5DZE1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546EK-5DZE1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5DZE1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546EK-5DZE1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5DO1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP546EK-5DO1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5DO1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP546EK-5DO1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5DOA1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546EK-5DOA1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5DOA1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546EK-5DOA1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5DOE1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546EK-5DOE1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5DOE1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546EK-5DOE1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5Y1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP546EK-5Y1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5Y1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP546EK-5Y1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5YA1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546EK-5YA1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5YA1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546EK-5YA1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5YE1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546EK-5YE1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5YE1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546EK-5YE1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5YZ1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP546EK-5YZ1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5YZ1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP546EK-5YZ1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5YZA1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546EK-5YZA1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5YZA1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546EK-5YZA1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5YZE1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546EK-5YZE1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5YZE1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546EK-5YZE1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5YO1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP546EK-5YO1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5YO1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP546EK-5YO1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5YOA1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546EK-5YOA1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5YOA1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546EK-5YOA1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5YOE1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546EK-5YOE1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5YOE1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546EK-5YOE1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5KOZ1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP546EK-5KOZ1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5KOZ1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP546EK-5KOZ1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5KOZA1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546EK-5KOZA1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5KOZA1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546EK-5KOZA1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP546EK-5KOZE1	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP546EK-5KOZE1-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP546EK-5KOZE1-R	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP546EK-5KOZE1-R-S	Series: VP500 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5D1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP746E-5D1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5D1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP746E-5D1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5DA1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746E-5DA1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5DA1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746E-5DA1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5DE1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746E-5DE1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5DE1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746E-5DE1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5DZ1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP746E-5DZ1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5DZ1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP746E-5DZ1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5DZA1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746E-5DZA1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5DZA1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746E-5DZA1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5DZE1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746E-5DZE1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5DZE1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746E-5DZE1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5DO1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP746E-5DO1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5DO1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP746E-5DO1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5DOA1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746E-5DOA1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5DOA1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746E-5DOA1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5DOE1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746E-5DOE1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5DOE1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746E-5DOE1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5Y1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP746E-5Y1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5Y1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP746E-5Y1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5YA1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746E-5YA1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5YA1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746E-5YA1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5YE1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746E-5YE1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5YE1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746E-5YE1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5YZ1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP746E-5YZ1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5YZ1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP746E-5YZ1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5YZA1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746E-5YZA1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5YZA1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746E-5YZA1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5YZE1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746E-5YZE1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5YZE1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746E-5YZE1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5YO1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP746E-5YO1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5YO1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP746E-5YO1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5YOA1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746E-5YOA1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5YOA1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746E-5YOA1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5YOE1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746E-5YOE1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5YOE1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746E-5YOE1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5KOZ1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP746E-5KOZ1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5KOZ1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP746E-5KOZ1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5KOZA1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746E-5KOZA1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5KOZA1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746E-5KOZA1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746E-5KOZE1	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746E-5KOZE1-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746E-5KOZE1-R	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746E-5KOZE1-R-S	Series: VP700 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5D1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP746EK-5D1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5D1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP746EK-5D1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5DA1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746EK-5DA1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5DA1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746EK-5DA1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5DE1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746EK-5DE1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5DE1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746EK-5DE1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5DZ1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP746EK-5DZ1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5DZ1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP746EK-5DZ1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5DZA1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746EK-5DZA1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5DZA1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746EK-5DZA1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5DZE1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746EK-5DZE1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5DZE1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746EK-5DZE1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5DO1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP746EK-5DO1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5DO1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP746EK-5DO1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5DOA1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746EK-5DOA1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5DOA1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746EK-5DOA1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5DOE1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746EK-5DOE1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5DOE1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746EK-5DOE1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5Y1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP746EK-5Y1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5Y1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP746EK-5Y1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5YA1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746EK-5YA1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5YA1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746EK-5YA1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5YE1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746EK-5YE1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5YE1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746EK-5YE1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5YZ1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP746EK-5YZ1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5YZ1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP746EK-5YZ1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5YZA1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746EK-5YZA1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5YZA1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746EK-5YZA1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5YZE1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746EK-5YZE1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5YZE1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746EK-5YZE1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5YO1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP746EK-5YO1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5YO1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP746EK-5YO1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5YOA1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746EK-5YOA1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5YOA1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746EK-5YOA1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5YOE1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746EK-5YOE1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5YOE1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746EK-5YOE1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5KOZ1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP746EK-5KOZ1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5KOZ1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP746EK-5KOZ1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5KOZA1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746EK-5KOZA1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5KOZA1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746EK-5KOZA1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP746EK-5KOZE1	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP746EK-5KOZE1-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP746EK-5KOZE1-R	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP746EK-5KOZE1-R-S	Series: VP700 \| Pressure: High 1.0 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP946E-5D1	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP946E-5D1-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP946E-5D1-R	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP946E-5D1-R-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP946E-5DE1	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP946E-5DE1-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP946E-5DE1-R	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP946E-5DE1-R-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal with connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP946E-5DZ1	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP946E-5DZ1-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP946E-5DZ1-R	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP946E-5DZ1-R-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP946E-5DZE1	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP946E-5DZE1-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP946E-5DZE1-R	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP946E-5DZE1-R-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal, connector, lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP946E-5DO1	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP946E-5DO1-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP946E-5DO1-R	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP946E-5DO1-R-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP946E-5DOE1	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP946E-5DOE1-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP946E-5DOE1-R	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP946E-5DOE1-R-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN terminal without connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP946E-5Y1	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP946E-5Y1-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP946E-5Y1-R	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP946E-5Y1-R-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP946E-5YE1	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP946E-5YE1-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP946E-5YE1-R	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP946E-5YE1-R-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP946E-5YZ1	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP946E-5YZ1-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP946E-5YZ1-R	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP946E-5YZ1-R-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP946E-5YZE1	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP946E-5YZE1-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP946E-5YZE1-R	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP946E-5YZE1-R-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, conn., lamp/surge \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP946E-5YO1	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP946E-5YO1-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP946E-5YO1-R	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP946E-5YO1-R-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP946E-5YOE1	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP946E-5YOE1-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP946E-5YOE1-R	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP946E-5YOE1-R-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: DIN EN175301-803C, no connector \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in
	VP946E-5KOZ1	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: None
	VP946E-5KOZ1-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Left to right \| Soft start-up: Built-in
	VP946E-5KOZ1-R	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: None
	VP946E-5KOZ1-R-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Non-locking push \| Flow: Right to left \| Soft start-up: Built-in
	VP946E-5KOZE1	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: None
	VP946E-5KOZE1-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Left to right \| Soft start-up: Built-in
	VP946E-5KOZE1-R	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: None
	VP946E-5KOZE1-R-S	Series: VP900 \| Pressure: Standard 0.7 MPa \| Electrical entry: M12 connector, no cable \| Manual: Push-turn locking, manual operation \| Flow: Right to left \| Soft start-up: Built-in

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC VP346E/546E/746E/946E Residual Pressure Release Valve (Modular)
