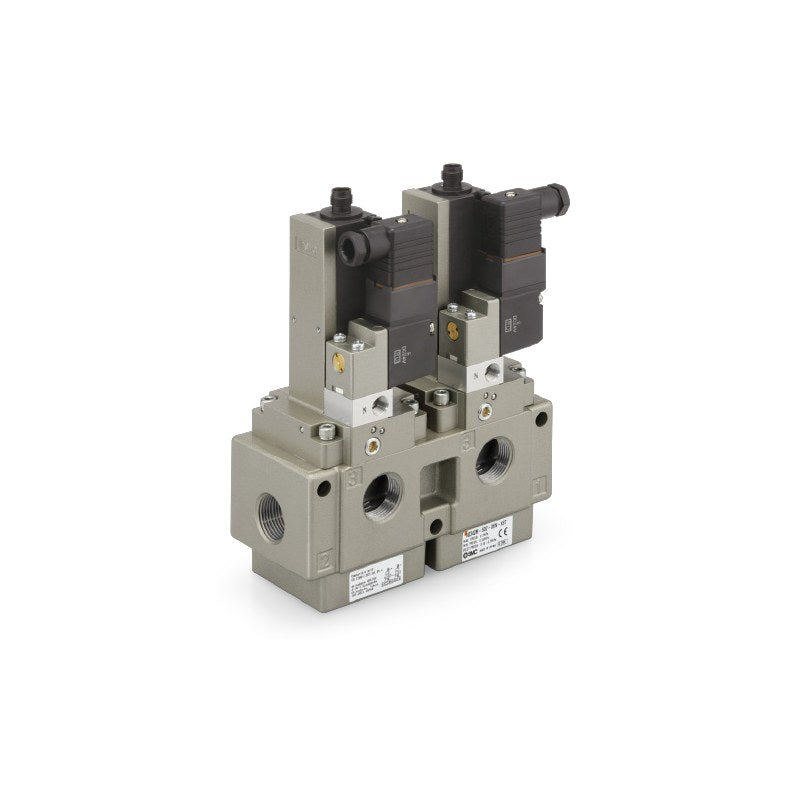

SMC VP500/700-X536/X538/X555 Residual Pressure Release Valve

SMC VP500/700-X536/X538/X555 Residual Pressure Release Valve

SMC VP500/700-X536, -X538 and -X555 ISO 13849-1 certified 3-port residual pressure release valves with main valve position detection by safety limit switch.

Key features

  • Main valve position detected directly via a rod and contact-type safety limit switch to detect mismatch between input signal and valve action
  • X536 single valve (category 2, direct or base piping); X538 dual valve and X555 dual valve with soft start-up (categories 3 and 4)
  • Spring return exhausts residual pressure regardless of supply pressure; B10D 10,000,000 cycles (Omron switch)
  • Safety limit switch: Omron G1/2 conduit, Omron M12 or Rockwell Automation M12 connector
  • X555 soft start-up with variable or fixed orifice (ø1, ø1.5, ø2 for VP700); check valve on external pilot port (A/B), modular connection bracket (M/M1) and G/NPT threads by code option

Specifications

Fluid Air
Switching N.C. (spring return)
Operating pressure 0.25 to 0.7 MPa (external pilot equal to operating pressure)
Rated voltage DC24V, 0.45 W, varistor surge suppressor, LED
Ambient and fluid temperature -10 to 50°C (no freezing)
Max./min. operating frequency 30 cycles/min / 1 cycle per week
Enclosure IP65
Manual override None
Impact/vibration resistance 150/30 m/s²
Standards EN ISO 13849-1:2015, EN ISO 4414, EN ISO 13849-2
Source SMC Korea catalog CAT.KS11-111B (SMCKR_VP_VG_ISO13849-1.pdf), p. 1-6
VP542-5DZ1-03-X536 Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544-5DZ1-03-X536 Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544-5DZ1-03-X538 Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544-5DZ1-03-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Variable
VP544-5DZ1-03-10-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1 mm
VP544-5DZ1-03-15-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1.5 mm
VP542-5DZ1-03-M-X536 Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544-5DZ1-03-M-X536 Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544-5DZ1-03-M-X538 Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544-5DZ1-03-M-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Variable
VP544-5DZ1-03-M10-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1 mm
VP544-5DZ1-03-M15-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1.5 mm
VP542-5DZ1-03-S1-X536 Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544-5DZ1-03-S1-X536 Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544-5DZ1-03-S1-X538 Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544-5DZ1-03-S1-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Variable
VP544-5DZ1-03-S110-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1 mm
VP544-5DZ1-03-S115-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1.5 mm
VP542-5YZ1-03-X536 Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544-5YZ1-03-X536 Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544-5YZ1-03-X538 Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544-5YZ1-03-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Variable
VP544-5YZ1-03-10-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1 mm
VP544-5YZ1-03-15-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1.5 mm
VP542-5YZ1-03-M-X536 Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544-5YZ1-03-M-X536 Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544-5YZ1-03-M-X538 Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544-5YZ1-03-M-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Variable
VP544-5YZ1-03-M10-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1 mm
VP544-5YZ1-03-M15-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1.5 mm
VP542-5YZ1-03-S1-X536 Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544-5YZ1-03-S1-X536 Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544-5YZ1-03-S1-X538 Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544-5YZ1-03-S1-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Variable
VP544-5YZ1-03-S110-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1 mm
VP544-5YZ1-03-S115-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1.5 mm
VP542R-5DZ1-03-X536 Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544R-5DZ1-03-X536 Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544R-5DZ1-03-X538 Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544R-5DZ1-03-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Variable
VP544R-5DZ1-03-10-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1 mm
VP544R-5DZ1-03-15-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1.5 mm
VP542R-5DZ1-03-M-X536 Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544R-5DZ1-03-M-X536 Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544R-5DZ1-03-M-X538 Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544R-5DZ1-03-M-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Variable
VP544R-5DZ1-03-M10-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1 mm
VP544R-5DZ1-03-M15-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1.5 mm
VP542R-5DZ1-03-S1-X536 Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544R-5DZ1-03-S1-X536 Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544R-5DZ1-03-S1-X538 Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544R-5DZ1-03-S1-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Variable
VP544R-5DZ1-03-S110-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1 mm
VP544R-5DZ1-03-S115-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1.5 mm
VP542R-5YZ1-03-X536 Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544R-5YZ1-03-X536 Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544R-5YZ1-03-X538 Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544R-5YZ1-03-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Variable
VP544R-5YZ1-03-10-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1 mm
VP544R-5YZ1-03-15-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1.5 mm
VP542R-5YZ1-03-M-X536 Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544R-5YZ1-03-M-X536 Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544R-5YZ1-03-M-X538 Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544R-5YZ1-03-M-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Variable
VP544R-5YZ1-03-M10-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1 mm
VP544R-5YZ1-03-M15-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1.5 mm
VP542R-5YZ1-03-S1-X536 Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544R-5YZ1-03-S1-X536 Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544R-5YZ1-03-S1-X538 Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544R-5YZ1-03-S1-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Variable
VP544R-5YZ1-03-S110-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1 mm
VP544R-5YZ1-03-S115-X555 Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1.5 mm
VP742-5DZ1-04-X536 Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744-5DZ1-04-X536 Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744-5DZ1-04-X538 Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744-5DZ1-04-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Variable
VP744-5DZ1-04-10-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1 mm
VP744-5DZ1-04-15-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1.5 mm
VP744-5DZ1-04-20-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 2 mm
VP742-5DZ1-04-M-X536 Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744-5DZ1-04-M-X536 Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744-5DZ1-04-M-X538 Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744-5DZ1-04-M-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Variable
VP744-5DZ1-04-M10-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1 mm
VP744-5DZ1-04-M15-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1.5 mm
VP744-5DZ1-04-M20-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 2 mm
VP742-5DZ1-04-S1-X536 Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744-5DZ1-04-S1-X536 Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744-5DZ1-04-S1-X538 Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744-5DZ1-04-S1-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Variable
VP744-5DZ1-04-S110-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1 mm
VP744-5DZ1-04-S115-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1.5 mm
VP744-5DZ1-04-S120-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 2 mm
VP742-5YZ1-04-X536 Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744-5YZ1-04-X536 Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744-5YZ1-04-X538 Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744-5YZ1-04-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Variable
VP744-5YZ1-04-10-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1 mm
VP744-5YZ1-04-15-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1.5 mm
VP744-5YZ1-04-20-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 2 mm
VP742-5YZ1-04-M-X536 Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744-5YZ1-04-M-X536 Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744-5YZ1-04-M-X538 Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744-5YZ1-04-M-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Variable
VP744-5YZ1-04-M10-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1 mm
VP744-5YZ1-04-M15-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1.5 mm
VP744-5YZ1-04-M20-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 2 mm
VP742-5YZ1-04-S1-X536 Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744-5YZ1-04-S1-X536 Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744-5YZ1-04-S1-X538 Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744-5YZ1-04-S1-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Variable
VP744-5YZ1-04-S110-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1 mm
VP744-5YZ1-04-S115-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1.5 mm
VP744-5YZ1-04-S120-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 2 mm
VP742R-5DZ1-04-X536 Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744R-5DZ1-04-X536 Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744R-5DZ1-04-X538 Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744R-5DZ1-04-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Variable
VP744R-5DZ1-04-10-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1 mm
VP744R-5DZ1-04-15-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1.5 mm
VP744R-5DZ1-04-20-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 2 mm
VP742R-5DZ1-04-M-X536 Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744R-5DZ1-04-M-X536 Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744R-5DZ1-04-M-X538 Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744R-5DZ1-04-M-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Variable
VP744R-5DZ1-04-M10-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1 mm
VP744R-5DZ1-04-M15-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1.5 mm
VP744R-5DZ1-04-M20-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 2 mm
VP742R-5DZ1-04-S1-X536 Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744R-5DZ1-04-S1-X536 Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744R-5DZ1-04-S1-X538 Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744R-5DZ1-04-S1-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Variable
VP744R-5DZ1-04-S110-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1 mm
VP744R-5DZ1-04-S115-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1.5 mm
VP744R-5DZ1-04-S120-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 2 mm
VP742R-5YZ1-04-X536 Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744R-5YZ1-04-X536 Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744R-5YZ1-04-X538 Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744R-5YZ1-04-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Variable
VP744R-5YZ1-04-10-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1 mm
VP744R-5YZ1-04-15-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1.5 mm
VP744R-5YZ1-04-20-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 2 mm
VP742R-5YZ1-04-M-X536 Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744R-5YZ1-04-M-X536 Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744R-5YZ1-04-M-X538 Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744R-5YZ1-04-M-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Variable
VP744R-5YZ1-04-M10-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1 mm
VP744R-5YZ1-04-M15-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1.5 mm
VP744R-5YZ1-04-M20-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 2 mm
VP742R-5YZ1-04-S1-X536 Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744R-5YZ1-04-S1-X536 Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744R-5YZ1-04-S1-X538 Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744R-5YZ1-04-S1-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Variable
VP744R-5YZ1-04-S110-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1 mm
VP744R-5YZ1-04-S115-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1.5 mm
VP744R-5YZ1-04-S120-X555 Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 2 mm
3-Port Solenoid ValvesSMC
156 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VP500/700-X536/X538/X555 Residual Pressure Release Valve

Brand SMC·3-Port Solenoid Valves

Available part numbers (156)

VP542-5DZ1-03-X536, VP544-5DZ1-03-X536, VP544-5DZ1-03-X538, VP544-5DZ1-03-X555, VP544-5DZ1-03-10-X555, VP544-5DZ1-03-15-X555, VP542-5DZ1-03-M-X536, VP544-5DZ1-03-M-X536, VP544-5DZ1-03-M-X538, VP544-5DZ1-03-M-X555 + 146 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VP542-5DZ1-03-X536Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544-5DZ1-03-X536Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544-5DZ1-03-X538Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544-5DZ1-03-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Variable
VP544-5DZ1-03-10-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1 mm
VP544-5DZ1-03-15-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1.5 mm
VP542-5DZ1-03-M-X536Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544-5DZ1-03-M-X536Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544-5DZ1-03-M-X538Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544-5DZ1-03-M-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Variable
VP544-5DZ1-03-M10-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1 mm
VP544-5DZ1-03-M15-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1.5 mm
VP542-5DZ1-03-S1-X536Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544-5DZ1-03-S1-X536Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544-5DZ1-03-S1-X538Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544-5DZ1-03-S1-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Variable
VP544-5DZ1-03-S110-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1 mm
VP544-5DZ1-03-S115-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1.5 mm
VP542-5YZ1-03-X536Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544-5YZ1-03-X536Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544-5YZ1-03-X538Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544-5YZ1-03-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Variable
VP544-5YZ1-03-10-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1 mm
VP544-5YZ1-03-15-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1.5 mm
VP542-5YZ1-03-M-X536Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544-5YZ1-03-M-X536Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544-5YZ1-03-M-X538Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544-5YZ1-03-M-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Variable
VP544-5YZ1-03-M10-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1 mm
VP544-5YZ1-03-M15-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1.5 mm
VP542-5YZ1-03-S1-X536Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544-5YZ1-03-S1-X536Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544-5YZ1-03-S1-X538Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544-5YZ1-03-S1-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Variable
VP544-5YZ1-03-S110-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1 mm
VP544-5YZ1-03-S115-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1.5 mm
VP542R-5DZ1-03-X536Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544R-5DZ1-03-X536Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544R-5DZ1-03-X538Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544R-5DZ1-03-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Variable
VP544R-5DZ1-03-10-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1 mm
VP544R-5DZ1-03-15-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1.5 mm
VP542R-5DZ1-03-M-X536Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544R-5DZ1-03-M-X536Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544R-5DZ1-03-M-X538Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544R-5DZ1-03-M-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Variable
VP544R-5DZ1-03-M10-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1 mm
VP544R-5DZ1-03-M15-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1.5 mm
VP542R-5DZ1-03-S1-X536Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544R-5DZ1-03-S1-X536Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544R-5DZ1-03-S1-X538Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544R-5DZ1-03-S1-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Variable
VP544R-5DZ1-03-S110-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1 mm
VP544R-5DZ1-03-S115-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1.5 mm
VP542R-5YZ1-03-X536Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544R-5YZ1-03-X536Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544R-5YZ1-03-X538Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP544R-5YZ1-03-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Variable
VP544R-5YZ1-03-10-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1 mm
VP544R-5YZ1-03-15-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1.5 mm
VP542R-5YZ1-03-M-X536Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544R-5YZ1-03-M-X536Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544R-5YZ1-03-M-X538Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP544R-5YZ1-03-M-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Variable
VP544R-5YZ1-03-M10-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1 mm
VP544R-5YZ1-03-M15-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1.5 mm
VP542R-5YZ1-03-S1-X536Model: X536 single, direct piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544R-5YZ1-03-S1-X536Model: X536 single, base piping | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544R-5YZ1-03-S1-X538Model: X538 dual | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP544R-5YZ1-03-S1-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Variable
VP544R-5YZ1-03-S110-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1 mm
VP544R-5YZ1-03-S115-X555Model: X555 dual, soft start-up | Series / port: VP500, Rc3/8 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1.5 mm
VP742-5DZ1-04-X536Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744-5DZ1-04-X536Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744-5DZ1-04-X538Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744-5DZ1-04-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Variable
VP744-5DZ1-04-10-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1 mm
VP744-5DZ1-04-15-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1.5 mm
VP744-5DZ1-04-20-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 2 mm
VP742-5DZ1-04-M-X536Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744-5DZ1-04-M-X536Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744-5DZ1-04-M-X538Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744-5DZ1-04-M-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Variable
VP744-5DZ1-04-M10-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1 mm
VP744-5DZ1-04-M15-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1.5 mm
VP744-5DZ1-04-M20-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 2 mm
VP742-5DZ1-04-S1-X536Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744-5DZ1-04-S1-X536Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744-5DZ1-04-S1-X538Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744-5DZ1-04-S1-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Variable
VP744-5DZ1-04-S110-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1 mm
VP744-5DZ1-04-S115-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1.5 mm
VP744-5DZ1-04-S120-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 2 mm
VP742-5YZ1-04-X536Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744-5YZ1-04-X536Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744-5YZ1-04-X538Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744-5YZ1-04-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Variable
VP744-5YZ1-04-10-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1 mm
VP744-5YZ1-04-15-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1.5 mm
VP744-5YZ1-04-20-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 2 mm
VP742-5YZ1-04-M-X536Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744-5YZ1-04-M-X536Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744-5YZ1-04-M-X538Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744-5YZ1-04-M-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Variable
VP744-5YZ1-04-M10-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1 mm
VP744-5YZ1-04-M15-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1.5 mm
VP744-5YZ1-04-M20-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 2 mm
VP742-5YZ1-04-S1-X536Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744-5YZ1-04-S1-X536Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744-5YZ1-04-S1-X538Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744-5YZ1-04-S1-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Variable
VP744-5YZ1-04-S110-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1 mm
VP744-5YZ1-04-S115-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1.5 mm
VP744-5YZ1-04-S120-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: Internal | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 2 mm
VP742R-5DZ1-04-X536Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744R-5DZ1-04-X536Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744R-5DZ1-04-X538Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744R-5DZ1-04-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Variable
VP744R-5DZ1-04-10-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1 mm
VP744R-5DZ1-04-15-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1.5 mm
VP744R-5DZ1-04-20-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 2 mm
VP742R-5DZ1-04-M-X536Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744R-5DZ1-04-M-X536Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744R-5DZ1-04-M-X538Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744R-5DZ1-04-M-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Variable
VP744R-5DZ1-04-M10-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1 mm
VP744R-5DZ1-04-M15-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1.5 mm
VP744R-5DZ1-04-M20-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 2 mm
VP742R-5DZ1-04-S1-X536Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744R-5DZ1-04-S1-X536Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744R-5DZ1-04-S1-X538Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744R-5DZ1-04-S1-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Variable
VP744R-5DZ1-04-S110-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1 mm
VP744R-5DZ1-04-S115-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1.5 mm
VP744R-5DZ1-04-S120-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN terminal, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 2 mm
VP742R-5YZ1-04-X536Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744R-5YZ1-04-X536Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744R-5YZ1-04-X538Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: None
VP744R-5YZ1-04-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Variable
VP744R-5YZ1-04-10-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1 mm
VP744R-5YZ1-04-15-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 1.5 mm
VP744R-5YZ1-04-20-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, G1/2 conduit | Orifice: Fixed 2 mm
VP742R-5YZ1-04-M-X536Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744R-5YZ1-04-M-X536Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744R-5YZ1-04-M-X538Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: None
VP744R-5YZ1-04-M-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Variable
VP744R-5YZ1-04-M10-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1 mm
VP744R-5YZ1-04-M15-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 1.5 mm
VP744R-5YZ1-04-M20-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Omron, M12 connector | Orifice: Fixed 2 mm
VP742R-5YZ1-04-S1-X536Model: X536 single, direct piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744R-5YZ1-04-S1-X536Model: X536 single, base piping | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744R-5YZ1-04-S1-X538Model: X538 dual | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: None
VP744R-5YZ1-04-S1-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Variable
VP744R-5YZ1-04-S110-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1 mm
VP744R-5YZ1-04-S115-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 1.5 mm
VP744R-5YZ1-04-S120-X555Model: X555 dual, soft start-up | Series / port: VP700, Rc1/2 | Pilot: External | Electrical entry: DIN EN175301-803, light/surge | Limit switch: Rockwell, M12 connector | Orifice: Fixed 2 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
