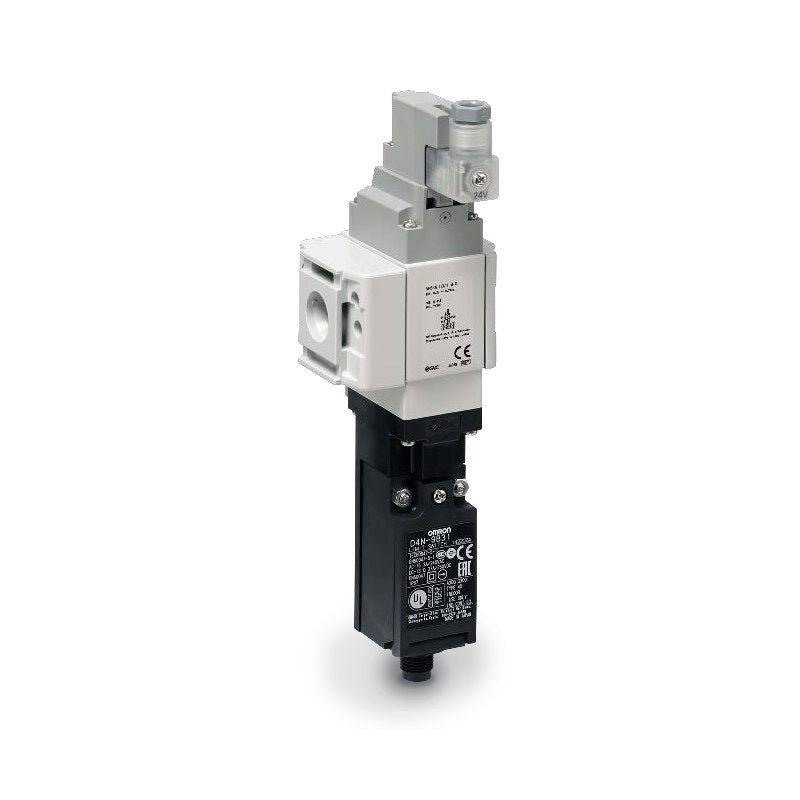

SMC VP546/746 Residual Release Valve with Position Detection

SMC VP546/746 Residual Release Valve with Position Detection

SMC VP546/VP746 modular 3-port residual pressure release valve with built-in main valve position detection via safety limit switch, in single or dual configuration (special product SP201X-004K).

Key features

  • Main valve position detection detects mismatch between input signal and valve operation
  • Single or dual (redundant) residual pressure release valve configuration; soft start-up function can be built in
  • Safety limit switch from Omron (G1/2 conduit or M12) or Rockwell Automation (M12)
  • Connects to AC-D modular F.R.L. combinations; check valve in pilot passage
  • Internal or external pilot (R), standard 0.7 MPa or high-pressure 1.0 MPa (K); external pilot port thread Rc, G (F) or NPT (N)
  • DC24V coil with DIN terminal (DZ) or EN175301-803C terminal (YZ), lamp and surge suppressor

Specifications

Fluid Air
Switching N.C. (spring return)
Internal pilot operating pressure 0.25 to 0.7 MPa (K 0.25 to 1.0 MPa)
Ambient and fluid temperature -10 to 50°C (no freezing)
Max. operating frequency 30 cycles/min
Rated voltage DC24V
Power consumption 0.45 W
Enclosure IP65
Manual override None
Product status SMC Korea special product information SP201X-004K
Source SMC Korea P.G. information VP546/746 SP201X-004K (SMCKR_VP546_746__SP201X-004K_.pdf), PDF p. 1-3
VP546-5DZ1-S Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP546-5DZ1-SS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP546-5DZ1-D Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP546-5DZ1-DS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546-5DZ1-R-S Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP546-5DZ1-R-SS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP546-5DZ1-R-D Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP546-5DZ1-R-DS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546-5DZ1-M-S Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP546-5DZ1-M-SS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP546-5DZ1-M-D Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP546-5DZ1-M-DS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546-5DZ1-MR-S Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP546-5DZ1-MR-SS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP546-5DZ1-MR-D Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP546-5DZ1-MR-DS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546-5DZ1-S1-S Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP546-5DZ1-S1-SS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP546-5DZ1-S1-D Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP546-5DZ1-S1-DS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP546-5DZ1-S1R-S Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP546-5DZ1-S1R-SS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP546-5DZ1-S1R-D Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP546-5DZ1-S1R-DS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP546-5YZ1-S Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP546-5YZ1-SS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP546-5YZ1-D Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP546-5YZ1-DS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546-5YZ1-R-S Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP546-5YZ1-R-SS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP546-5YZ1-R-D Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP546-5YZ1-R-DS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546-5YZ1-M-S Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP546-5YZ1-M-SS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP546-5YZ1-M-D Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP546-5YZ1-M-DS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546-5YZ1-MR-S Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP546-5YZ1-MR-SS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP546-5YZ1-MR-D Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP546-5YZ1-MR-DS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546-5YZ1-S1-S Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP546-5YZ1-S1-SS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP546-5YZ1-S1-D Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP546-5YZ1-S1-DS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP546-5YZ1-S1R-S Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP546-5YZ1-S1R-SS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP546-5YZ1-S1R-D Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP546-5YZ1-S1R-DS Series: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP546K-5DZ1-S Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP546K-5DZ1-SS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP546K-5DZ1-D Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP546K-5DZ1-DS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546K-5DZ1-R-S Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP546K-5DZ1-R-SS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP546K-5DZ1-R-D Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP546K-5DZ1-R-DS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546K-5DZ1-M-S Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP546K-5DZ1-M-SS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP546K-5DZ1-M-D Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP546K-5DZ1-M-DS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546K-5DZ1-MR-S Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP546K-5DZ1-MR-SS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP546K-5DZ1-MR-D Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP546K-5DZ1-MR-DS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546K-5DZ1-S1-S Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP546K-5DZ1-S1-SS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP546K-5DZ1-S1-D Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP546K-5DZ1-S1-DS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP546K-5DZ1-S1R-S Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP546K-5DZ1-S1R-SS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP546K-5DZ1-S1R-D Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP546K-5DZ1-S1R-DS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP546K-5YZ1-S Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP546K-5YZ1-SS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP546K-5YZ1-D Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP546K-5YZ1-DS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546K-5YZ1-R-S Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP546K-5YZ1-R-SS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP546K-5YZ1-R-D Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP546K-5YZ1-R-DS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546K-5YZ1-M-S Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP546K-5YZ1-M-SS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP546K-5YZ1-M-D Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP546K-5YZ1-M-DS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546K-5YZ1-MR-S Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP546K-5YZ1-MR-SS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP546K-5YZ1-MR-D Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP546K-5YZ1-MR-DS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546K-5YZ1-S1-S Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP546K-5YZ1-S1-SS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP546K-5YZ1-S1-D Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP546K-5YZ1-S1-DS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP546K-5YZ1-S1R-S Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP546K-5YZ1-S1R-SS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP546K-5YZ1-S1R-D Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP546K-5YZ1-S1R-DS Series: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP546R-5DZ1-S Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP546R-5DZ1-SS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP546R-5DZ1-D Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP546R-5DZ1-DS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546R-5DZ1-R-S Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP546R-5DZ1-R-SS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP546R-5DZ1-R-D Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP546R-5DZ1-R-DS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546R-5DZ1-M-S Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP546R-5DZ1-M-SS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP546R-5DZ1-M-D Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP546R-5DZ1-M-DS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546R-5DZ1-MR-S Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP546R-5DZ1-MR-SS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP546R-5DZ1-MR-D Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP546R-5DZ1-MR-DS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546R-5DZ1-S1-S Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP546R-5DZ1-S1-SS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP546R-5DZ1-S1-D Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP546R-5DZ1-S1-DS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP546R-5DZ1-S1R-S Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP546R-5DZ1-S1R-SS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP546R-5DZ1-S1R-D Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP546R-5DZ1-S1R-DS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP546R-5YZ1-S Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP546R-5YZ1-SS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP546R-5YZ1-D Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP546R-5YZ1-DS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546R-5YZ1-R-S Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP546R-5YZ1-R-SS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP546R-5YZ1-R-D Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP546R-5YZ1-R-DS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546R-5YZ1-M-S Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP546R-5YZ1-M-SS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP546R-5YZ1-M-D Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP546R-5YZ1-M-DS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546R-5YZ1-MR-S Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP546R-5YZ1-MR-SS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP546R-5YZ1-MR-D Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP546R-5YZ1-MR-DS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546R-5YZ1-S1-S Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP546R-5YZ1-S1-SS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP546R-5YZ1-S1-D Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP546R-5YZ1-S1-DS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP546R-5YZ1-S1R-S Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP546R-5YZ1-S1R-SS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP546R-5YZ1-S1R-D Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP546R-5YZ1-S1R-DS Series: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP546RK-5DZ1-S Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP546RK-5DZ1-SS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP546RK-5DZ1-D Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP546RK-5DZ1-DS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546RK-5DZ1-R-S Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP546RK-5DZ1-R-SS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP546RK-5DZ1-R-D Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP546RK-5DZ1-R-DS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546RK-5DZ1-M-S Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP546RK-5DZ1-M-SS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP546RK-5DZ1-M-D Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP546RK-5DZ1-M-DS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546RK-5DZ1-MR-S Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP546RK-5DZ1-MR-SS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP546RK-5DZ1-MR-D Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP546RK-5DZ1-MR-DS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546RK-5DZ1-S1-S Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP546RK-5DZ1-S1-SS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP546RK-5DZ1-S1-D Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP546RK-5DZ1-S1-DS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP546RK-5DZ1-S1R-S Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP546RK-5DZ1-S1R-SS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP546RK-5DZ1-S1R-D Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP546RK-5DZ1-S1R-DS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP546RK-5YZ1-S Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP546RK-5YZ1-SS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP546RK-5YZ1-D Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP546RK-5YZ1-DS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546RK-5YZ1-R-S Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP546RK-5YZ1-R-SS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP546RK-5YZ1-R-D Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP546RK-5YZ1-R-DS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546RK-5YZ1-M-S Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP546RK-5YZ1-M-SS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP546RK-5YZ1-M-D Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP546RK-5YZ1-M-DS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546RK-5YZ1-MR-S Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP546RK-5YZ1-MR-SS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP546RK-5YZ1-MR-D Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP546RK-5YZ1-MR-DS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546RK-5YZ1-S1-S Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP546RK-5YZ1-S1-SS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP546RK-5YZ1-S1-D Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP546RK-5YZ1-S1-DS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP546RK-5YZ1-S1R-S Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP546RK-5YZ1-S1R-SS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP546RK-5YZ1-S1R-D Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP546RK-5YZ1-S1R-DS Series: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP746-5DZ1-S Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP746-5DZ1-SS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP746-5DZ1-D Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP746-5DZ1-DS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746-5DZ1-R-S Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP746-5DZ1-R-SS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP746-5DZ1-R-D Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP746-5DZ1-R-DS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746-5DZ1-M-S Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP746-5DZ1-M-SS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP746-5DZ1-M-D Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP746-5DZ1-M-DS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746-5DZ1-MR-S Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP746-5DZ1-MR-SS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP746-5DZ1-MR-D Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP746-5DZ1-MR-DS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746-5DZ1-S1-S Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP746-5DZ1-S1-SS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP746-5DZ1-S1-D Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP746-5DZ1-S1-DS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP746-5DZ1-S1R-S Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP746-5DZ1-S1R-SS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP746-5DZ1-S1R-D Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP746-5DZ1-S1R-DS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP746-5YZ1-S Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP746-5YZ1-SS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP746-5YZ1-D Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP746-5YZ1-DS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746-5YZ1-R-S Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP746-5YZ1-R-SS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP746-5YZ1-R-D Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP746-5YZ1-R-DS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746-5YZ1-M-S Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP746-5YZ1-M-SS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP746-5YZ1-M-D Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP746-5YZ1-M-DS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746-5YZ1-MR-S Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP746-5YZ1-MR-SS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP746-5YZ1-MR-D Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP746-5YZ1-MR-DS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746-5YZ1-S1-S Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP746-5YZ1-S1-SS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP746-5YZ1-S1-D Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP746-5YZ1-S1-DS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP746-5YZ1-S1R-S Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP746-5YZ1-S1R-SS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP746-5YZ1-S1R-D Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP746-5YZ1-S1R-DS Series: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP746K-5DZ1-S Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP746K-5DZ1-SS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP746K-5DZ1-D Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP746K-5DZ1-DS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746K-5DZ1-R-S Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP746K-5DZ1-R-SS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP746K-5DZ1-R-D Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP746K-5DZ1-R-DS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746K-5DZ1-M-S Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP746K-5DZ1-M-SS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP746K-5DZ1-M-D Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP746K-5DZ1-M-DS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746K-5DZ1-MR-S Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP746K-5DZ1-MR-SS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP746K-5DZ1-MR-D Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP746K-5DZ1-MR-DS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746K-5DZ1-S1-S Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP746K-5DZ1-S1-SS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP746K-5DZ1-S1-D Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP746K-5DZ1-S1-DS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP746K-5DZ1-S1R-S Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP746K-5DZ1-S1R-SS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP746K-5DZ1-S1R-D Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP746K-5DZ1-S1R-DS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP746K-5YZ1-S Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP746K-5YZ1-SS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP746K-5YZ1-D Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP746K-5YZ1-DS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746K-5YZ1-R-S Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP746K-5YZ1-R-SS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP746K-5YZ1-R-D Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP746K-5YZ1-R-DS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746K-5YZ1-M-S Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP746K-5YZ1-M-SS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP746K-5YZ1-M-D Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP746K-5YZ1-M-DS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746K-5YZ1-MR-S Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP746K-5YZ1-MR-SS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP746K-5YZ1-MR-D Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP746K-5YZ1-MR-DS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746K-5YZ1-S1-S Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP746K-5YZ1-S1-SS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP746K-5YZ1-S1-D Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP746K-5YZ1-S1-DS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP746K-5YZ1-S1R-S Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP746K-5YZ1-S1R-SS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP746K-5YZ1-S1R-D Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP746K-5YZ1-S1R-DS Series: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP746R-5DZ1-S Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP746R-5DZ1-SS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP746R-5DZ1-D Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP746R-5DZ1-DS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746R-5DZ1-R-S Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP746R-5DZ1-R-SS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP746R-5DZ1-R-D Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP746R-5DZ1-R-DS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746R-5DZ1-M-S Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP746R-5DZ1-M-SS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP746R-5DZ1-M-D Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP746R-5DZ1-M-DS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746R-5DZ1-MR-S Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP746R-5DZ1-MR-SS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP746R-5DZ1-MR-D Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP746R-5DZ1-MR-DS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746R-5DZ1-S1-S Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP746R-5DZ1-S1-SS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP746R-5DZ1-S1-D Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP746R-5DZ1-S1-DS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP746R-5DZ1-S1R-S Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP746R-5DZ1-S1R-SS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP746R-5DZ1-S1R-D Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP746R-5DZ1-S1R-DS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP746R-5YZ1-S Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP746R-5YZ1-SS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP746R-5YZ1-D Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP746R-5YZ1-DS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746R-5YZ1-R-S Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP746R-5YZ1-R-SS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP746R-5YZ1-R-D Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP746R-5YZ1-R-DS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746R-5YZ1-M-S Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP746R-5YZ1-M-SS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP746R-5YZ1-M-D Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP746R-5YZ1-M-DS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746R-5YZ1-MR-S Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP746R-5YZ1-MR-SS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP746R-5YZ1-MR-D Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP746R-5YZ1-MR-DS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746R-5YZ1-S1-S Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP746R-5YZ1-S1-SS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP746R-5YZ1-S1-D Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP746R-5YZ1-S1-DS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP746R-5YZ1-S1R-S Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP746R-5YZ1-S1R-SS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP746R-5YZ1-S1R-D Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP746R-5YZ1-S1R-DS Series: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP746RK-5DZ1-S Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP746RK-5DZ1-SS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP746RK-5DZ1-D Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP746RK-5DZ1-DS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746RK-5DZ1-R-S Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP746RK-5DZ1-R-SS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP746RK-5DZ1-R-D Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP746RK-5DZ1-R-DS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746RK-5DZ1-M-S Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP746RK-5DZ1-M-SS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP746RK-5DZ1-M-D Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP746RK-5DZ1-M-DS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746RK-5DZ1-MR-S Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP746RK-5DZ1-MR-SS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP746RK-5DZ1-MR-D Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP746RK-5DZ1-MR-DS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746RK-5DZ1-S1-S Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP746RK-5DZ1-S1-SS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP746RK-5DZ1-S1-D Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP746RK-5DZ1-S1-DS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP746RK-5DZ1-S1R-S Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP746RK-5DZ1-S1R-SS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP746RK-5DZ1-S1R-D Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP746RK-5DZ1-S1R-DS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP746RK-5YZ1-S Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP746RK-5YZ1-SS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP746RK-5YZ1-D Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP746RK-5YZ1-DS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746RK-5YZ1-R-S Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP746RK-5YZ1-R-SS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP746RK-5YZ1-R-D Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP746RK-5YZ1-R-DS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746RK-5YZ1-M-S Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP746RK-5YZ1-M-SS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP746RK-5YZ1-M-D Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP746RK-5YZ1-M-DS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746RK-5YZ1-MR-S Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP746RK-5YZ1-MR-SS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP746RK-5YZ1-MR-D Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP746RK-5YZ1-MR-DS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746RK-5YZ1-S1-S Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP746RK-5YZ1-S1-SS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP746RK-5YZ1-S1-D Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP746RK-5YZ1-S1-DS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP746RK-5YZ1-S1R-S Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP746RK-5YZ1-S1R-SS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP746RK-5YZ1-S1R-D Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP746RK-5YZ1-S1R-DS Series: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
3-Port Solenoid ValvesSMC
384 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VP546/746 Residual Release Valve with Position Detection

Brand SMC·3-Port Solenoid Valves

Available part numbers (384)

VP546-5DZ1-S, VP546-5DZ1-SS, VP546-5DZ1-D, VP546-5DZ1-DS, VP546-5DZ1-R-S, VP546-5DZ1-R-SS, VP546-5DZ1-R-D, VP546-5DZ1-R-DS, VP546-5DZ1-M-S, VP546-5DZ1-M-SS + 374 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VP546-5DZ1-SSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP546-5DZ1-SSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP546-5DZ1-DSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP546-5DZ1-DSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546-5DZ1-R-SSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP546-5DZ1-R-SSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP546-5DZ1-R-DSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP546-5DZ1-R-DSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546-5DZ1-M-SSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP546-5DZ1-M-SSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP546-5DZ1-M-DSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP546-5DZ1-M-DSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546-5DZ1-MR-SSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP546-5DZ1-MR-SSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP546-5DZ1-MR-DSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP546-5DZ1-MR-DSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546-5DZ1-S1-SSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP546-5DZ1-S1-SSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP546-5DZ1-S1-DSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP546-5DZ1-S1-DSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP546-5DZ1-S1R-SSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP546-5DZ1-S1R-SSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP546-5DZ1-S1R-DSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP546-5DZ1-S1R-DSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP546-5YZ1-SSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP546-5YZ1-SSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP546-5YZ1-DSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP546-5YZ1-DSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546-5YZ1-R-SSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP546-5YZ1-R-SSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP546-5YZ1-R-DSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP546-5YZ1-R-DSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546-5YZ1-M-SSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP546-5YZ1-M-SSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP546-5YZ1-M-DSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP546-5YZ1-M-DSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546-5YZ1-MR-SSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP546-5YZ1-MR-SSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP546-5YZ1-MR-DSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP546-5YZ1-MR-DSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546-5YZ1-S1-SSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP546-5YZ1-S1-SSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP546-5YZ1-S1-DSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP546-5YZ1-S1-DSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP546-5YZ1-S1R-SSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP546-5YZ1-S1R-SSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP546-5YZ1-S1R-DSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP546-5YZ1-S1R-DSSeries: VP500 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP546K-5DZ1-SSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP546K-5DZ1-SSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP546K-5DZ1-DSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP546K-5DZ1-DSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546K-5DZ1-R-SSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP546K-5DZ1-R-SSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP546K-5DZ1-R-DSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP546K-5DZ1-R-DSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546K-5DZ1-M-SSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP546K-5DZ1-M-SSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP546K-5DZ1-M-DSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP546K-5DZ1-M-DSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546K-5DZ1-MR-SSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP546K-5DZ1-MR-SSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP546K-5DZ1-MR-DSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP546K-5DZ1-MR-DSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546K-5DZ1-S1-SSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP546K-5DZ1-S1-SSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP546K-5DZ1-S1-DSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP546K-5DZ1-S1-DSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP546K-5DZ1-S1R-SSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP546K-5DZ1-S1R-SSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP546K-5DZ1-S1R-DSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP546K-5DZ1-S1R-DSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP546K-5YZ1-SSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP546K-5YZ1-SSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP546K-5YZ1-DSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP546K-5YZ1-DSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546K-5YZ1-R-SSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP546K-5YZ1-R-SSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP546K-5YZ1-R-DSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP546K-5YZ1-R-DSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546K-5YZ1-M-SSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP546K-5YZ1-M-SSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP546K-5YZ1-M-DSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP546K-5YZ1-M-DSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546K-5YZ1-MR-SSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP546K-5YZ1-MR-SSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP546K-5YZ1-MR-DSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP546K-5YZ1-MR-DSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546K-5YZ1-S1-SSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP546K-5YZ1-S1-SSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP546K-5YZ1-S1-DSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP546K-5YZ1-S1-DSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP546K-5YZ1-S1R-SSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP546K-5YZ1-S1R-SSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP546K-5YZ1-S1R-DSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP546K-5YZ1-S1R-DSSeries: VP500 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP546R-5DZ1-SSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP546R-5DZ1-SSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP546R-5DZ1-DSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP546R-5DZ1-DSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546R-5DZ1-R-SSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP546R-5DZ1-R-SSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP546R-5DZ1-R-DSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP546R-5DZ1-R-DSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546R-5DZ1-M-SSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP546R-5DZ1-M-SSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP546R-5DZ1-M-DSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP546R-5DZ1-M-DSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546R-5DZ1-MR-SSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP546R-5DZ1-MR-SSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP546R-5DZ1-MR-DSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP546R-5DZ1-MR-DSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546R-5DZ1-S1-SSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP546R-5DZ1-S1-SSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP546R-5DZ1-S1-DSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP546R-5DZ1-S1-DSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP546R-5DZ1-S1R-SSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP546R-5DZ1-S1R-SSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP546R-5DZ1-S1R-DSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP546R-5DZ1-S1R-DSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP546R-5YZ1-SSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP546R-5YZ1-SSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP546R-5YZ1-DSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP546R-5YZ1-DSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546R-5YZ1-R-SSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP546R-5YZ1-R-SSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP546R-5YZ1-R-DSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP546R-5YZ1-R-DSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546R-5YZ1-M-SSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP546R-5YZ1-M-SSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP546R-5YZ1-M-DSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP546R-5YZ1-M-DSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546R-5YZ1-MR-SSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP546R-5YZ1-MR-SSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP546R-5YZ1-MR-DSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP546R-5YZ1-MR-DSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546R-5YZ1-S1-SSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP546R-5YZ1-S1-SSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP546R-5YZ1-S1-DSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP546R-5YZ1-S1-DSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP546R-5YZ1-S1R-SSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP546R-5YZ1-S1R-SSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP546R-5YZ1-S1R-DSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP546R-5YZ1-S1R-DSSeries: VP500 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP546RK-5DZ1-SSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP546RK-5DZ1-SSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP546RK-5DZ1-DSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP546RK-5DZ1-DSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546RK-5DZ1-R-SSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP546RK-5DZ1-R-SSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP546RK-5DZ1-R-DSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP546RK-5DZ1-R-DSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546RK-5DZ1-M-SSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP546RK-5DZ1-M-SSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP546RK-5DZ1-M-DSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP546RK-5DZ1-M-DSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546RK-5DZ1-MR-SSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP546RK-5DZ1-MR-SSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP546RK-5DZ1-MR-DSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP546RK-5DZ1-MR-DSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546RK-5DZ1-S1-SSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP546RK-5DZ1-S1-SSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP546RK-5DZ1-S1-DSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP546RK-5DZ1-S1-DSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP546RK-5DZ1-S1R-SSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP546RK-5DZ1-S1R-SSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP546RK-5DZ1-S1R-DSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP546RK-5DZ1-S1R-DSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP546RK-5YZ1-SSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP546RK-5YZ1-SSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP546RK-5YZ1-DSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP546RK-5YZ1-DSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546RK-5YZ1-R-SSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP546RK-5YZ1-R-SSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP546RK-5YZ1-R-DSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP546RK-5YZ1-R-DSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546RK-5YZ1-M-SSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP546RK-5YZ1-M-SSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP546RK-5YZ1-M-DSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP546RK-5YZ1-M-DSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP546RK-5YZ1-MR-SSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP546RK-5YZ1-MR-SSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP546RK-5YZ1-MR-DSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP546RK-5YZ1-MR-DSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP546RK-5YZ1-S1-SSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP546RK-5YZ1-S1-SSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP546RK-5YZ1-S1-DSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP546RK-5YZ1-S1-DSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP546RK-5YZ1-S1R-SSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP546RK-5YZ1-S1R-SSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP546RK-5YZ1-S1R-DSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP546RK-5YZ1-S1R-DSSeries: VP500 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP746-5DZ1-SSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP746-5DZ1-SSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP746-5DZ1-DSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP746-5DZ1-DSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746-5DZ1-R-SSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP746-5DZ1-R-SSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP746-5DZ1-R-DSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP746-5DZ1-R-DSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746-5DZ1-M-SSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP746-5DZ1-M-SSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP746-5DZ1-M-DSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP746-5DZ1-M-DSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746-5DZ1-MR-SSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP746-5DZ1-MR-SSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP746-5DZ1-MR-DSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP746-5DZ1-MR-DSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746-5DZ1-S1-SSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP746-5DZ1-S1-SSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP746-5DZ1-S1-DSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP746-5DZ1-S1-DSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP746-5DZ1-S1R-SSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP746-5DZ1-S1R-SSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP746-5DZ1-S1R-DSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP746-5DZ1-S1R-DSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP746-5YZ1-SSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP746-5YZ1-SSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP746-5YZ1-DSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP746-5YZ1-DSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746-5YZ1-R-SSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP746-5YZ1-R-SSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP746-5YZ1-R-DSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP746-5YZ1-R-DSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746-5YZ1-M-SSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP746-5YZ1-M-SSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP746-5YZ1-M-DSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP746-5YZ1-M-DSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746-5YZ1-MR-SSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP746-5YZ1-MR-SSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP746-5YZ1-MR-DSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP746-5YZ1-MR-DSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746-5YZ1-S1-SSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP746-5YZ1-S1-SSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP746-5YZ1-S1-DSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP746-5YZ1-S1-DSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP746-5YZ1-S1R-SSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP746-5YZ1-S1R-SSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP746-5YZ1-S1R-DSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP746-5YZ1-S1R-DSSeries: VP700 | Pilot: Internal, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP746K-5DZ1-SSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP746K-5DZ1-SSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP746K-5DZ1-DSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP746K-5DZ1-DSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746K-5DZ1-R-SSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP746K-5DZ1-R-SSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP746K-5DZ1-R-DSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP746K-5DZ1-R-DSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746K-5DZ1-M-SSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP746K-5DZ1-M-SSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP746K-5DZ1-M-DSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP746K-5DZ1-M-DSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746K-5DZ1-MR-SSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP746K-5DZ1-MR-SSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP746K-5DZ1-MR-DSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP746K-5DZ1-MR-DSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746K-5DZ1-S1-SSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP746K-5DZ1-S1-SSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP746K-5DZ1-S1-DSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP746K-5DZ1-S1-DSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP746K-5DZ1-S1R-SSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP746K-5DZ1-S1R-SSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP746K-5DZ1-S1R-DSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP746K-5DZ1-S1R-DSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP746K-5YZ1-SSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP746K-5YZ1-SSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP746K-5YZ1-DSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP746K-5YZ1-DSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746K-5YZ1-R-SSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP746K-5YZ1-R-SSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP746K-5YZ1-R-DSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP746K-5YZ1-R-DSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746K-5YZ1-M-SSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP746K-5YZ1-M-SSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP746K-5YZ1-M-DSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP746K-5YZ1-M-DSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746K-5YZ1-MR-SSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP746K-5YZ1-MR-SSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP746K-5YZ1-MR-DSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP746K-5YZ1-MR-DSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746K-5YZ1-S1-SSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP746K-5YZ1-S1-SSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP746K-5YZ1-S1-DSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP746K-5YZ1-S1-DSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP746K-5YZ1-S1R-SSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP746K-5YZ1-S1R-SSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP746K-5YZ1-S1R-DSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP746K-5YZ1-S1R-DSSeries: VP700 | Pilot: Internal, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP746R-5DZ1-SSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP746R-5DZ1-SSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP746R-5DZ1-DSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP746R-5DZ1-DSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746R-5DZ1-R-SSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP746R-5DZ1-R-SSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP746R-5DZ1-R-DSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP746R-5DZ1-R-DSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746R-5DZ1-M-SSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP746R-5DZ1-M-SSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP746R-5DZ1-M-DSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP746R-5DZ1-M-DSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746R-5DZ1-MR-SSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP746R-5DZ1-MR-SSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP746R-5DZ1-MR-DSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP746R-5DZ1-MR-DSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746R-5DZ1-S1-SSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP746R-5DZ1-S1-SSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP746R-5DZ1-S1-DSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP746R-5DZ1-S1-DSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP746R-5DZ1-S1R-SSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP746R-5DZ1-S1R-SSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP746R-5DZ1-S1R-DSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP746R-5DZ1-S1R-DSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP746R-5YZ1-SSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP746R-5YZ1-SSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP746R-5YZ1-DSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP746R-5YZ1-DSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746R-5YZ1-R-SSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP746R-5YZ1-R-SSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP746R-5YZ1-R-DSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP746R-5YZ1-R-DSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746R-5YZ1-M-SSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP746R-5YZ1-M-SSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP746R-5YZ1-M-DSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP746R-5YZ1-M-DSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746R-5YZ1-MR-SSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP746R-5YZ1-MR-SSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP746R-5YZ1-MR-DSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP746R-5YZ1-MR-DSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746R-5YZ1-S1-SSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP746R-5YZ1-S1-SSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP746R-5YZ1-S1-DSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP746R-5YZ1-S1-DSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP746R-5YZ1-S1R-SSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP746R-5YZ1-S1R-SSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP746R-5YZ1-S1R-DSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP746R-5YZ1-S1R-DSSeries: VP700 | Pilot: External, 0.7 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP746RK-5DZ1-SSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP746RK-5DZ1-SSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP746RK-5DZ1-DSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP746RK-5DZ1-DSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746RK-5DZ1-R-SSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP746RK-5DZ1-R-SSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP746RK-5DZ1-R-DSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP746RK-5DZ1-R-DSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746RK-5DZ1-M-SSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP746RK-5DZ1-M-SSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP746RK-5DZ1-M-DSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP746RK-5DZ1-M-DSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746RK-5DZ1-MR-SSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP746RK-5DZ1-MR-SSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP746RK-5DZ1-MR-DSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP746RK-5DZ1-MR-DSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746RK-5DZ1-S1-SSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP746RK-5DZ1-S1-SSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP746RK-5DZ1-S1-DSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP746RK-5DZ1-S1-DSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP746RK-5DZ1-S1R-SSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP746RK-5DZ1-S1R-SSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP746RK-5DZ1-S1R-DSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP746RK-5DZ1-S1R-DSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN terminal | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start
VP746RK-5YZ1-SSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single
VP746RK-5YZ1-SSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Single, soft start
VP746RK-5YZ1-DSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual
VP746RK-5YZ1-DSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746RK-5YZ1-R-SSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single
VP746RK-5YZ1-R-SSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Single, soft start
VP746RK-5YZ1-R-DSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual
VP746RK-5YZ1-R-DSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: G1/2 (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746RK-5YZ1-M-SSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single
VP746RK-5YZ1-M-SSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Single, soft start
VP746RK-5YZ1-M-DSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual
VP746RK-5YZ1-M-DSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Left to right | Valve: Dual, soft start
VP746RK-5YZ1-MR-SSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single
VP746RK-5YZ1-MR-SSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Single, soft start
VP746RK-5YZ1-MR-DSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual
VP746RK-5YZ1-MR-DSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 connector (Omron) | Flow: Right to left | Valve: Dual, soft start
VP746RK-5YZ1-S1-SSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single
VP746RK-5YZ1-S1-SSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Single, soft start
VP746RK-5YZ1-S1-DSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual
VP746RK-5YZ1-S1-DSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Left to right | Valve: Dual, soft start
VP746RK-5YZ1-S1R-SSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single
VP746RK-5YZ1-S1R-SSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Single, soft start
VP746RK-5YZ1-S1R-DSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual
VP746RK-5YZ1-S1R-DSSeries: VP700 | Pilot: External, 1.0 MPa | Electrical entry: DIN EN175301-803C | Safety switch: M12 (Rockwell Automation) | Flow: Right to left | Valve: Dual, soft start

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
