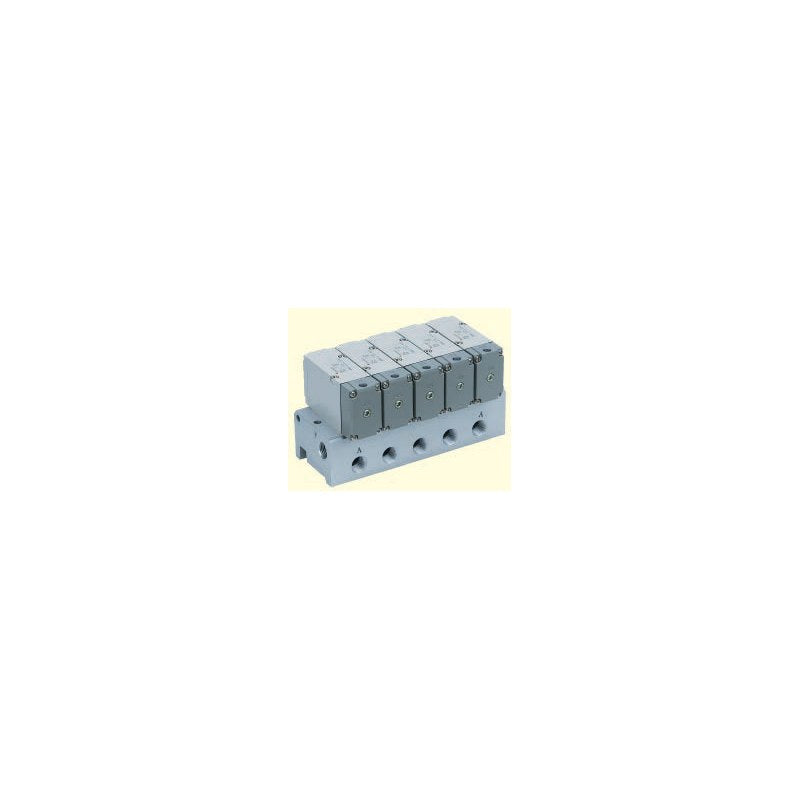

SMC VPA300/500/700 3-Port Air Operated Valve and VV3PA Manifold

SMC VPA300/500/700 3-Port Air Operated Valve and VV3PA Manifold

SMC VPA300/500/700 series air-piloted 3-port poppet valve for 0.2 to 1.0 MPa or vacuum, as direct piping or base piping single units and on VV3PA manifolds.

Key features

  • Three body sizes with Rc1/8 to Rc1/2 ports; N.C. or N.O. (switching type convertible)
  • Standard type 0.2 to 1.0 MPa; vacuum type (V) -100 kPa to 0.2 MPa
  • Base piping valves listed with Rc sub-plate or without sub-plate (gasket and 2 mounting bolts included)
  • VV3PA manifolds: type 41 common exhaust or type 42 individual exhaust, 2 to 20 stations, common supply
  • Bracket (-F, direct piping), G/NPT/NPTF threads and X505 old-mounting-pitch version on order; blanking plate VP300/500/700-25-1A

Specifications

Fluid Air
Valve type 3-port air operated valve, poppet
Operating pressure range Standard 0.2 to 1.0 MPa; vacuum -100 kPa to 0.2 MPa
Pilot pressure 0.2 to 1.0 MPa (not less than operating pressure)
Ambient and fluid temperature -10 to 50°C (no freezing)
Lubrication Not required
Mounting orientation Unrestricted
Impact/vibration resistance 300/50 m/s²
Pilot port (12/PA) Rc1/8
Flow rate C (1→2) [dm³/(s·bar)] VPA342 3.5-4.2, VPA542 7.9-8.9, VPA742 11.9-15.1
Manifold valves VPA344 / VPA544 / VPA744 (order separately)
Source SMC Korea catalog VPA300/500/700 (SMCKR_VPA.pdf), p. 1360, 1366, 1371-1372 (PDF p. 4, 10, 15-16)
VPA342-1-01A Series: VPA300 | Type: Direct piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc1/8
VPA342-1-02A Series: VPA300 | Type: Direct piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc1/4
VPA344-1-A Series: VPA300 | Type: Base piping valve | Option / stations: Standard | Switching: N.C. | Port size: Without sub-plate
VPA344-1-01A Series: VPA300 | Type: Base piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc1/8 (sub-plate)
VPA344-1-02A Series: VPA300 | Type: Base piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc1/4 (sub-plate)
VPA342-1-01B Series: VPA300 | Type: Direct piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc1/8
VPA342-1-02B Series: VPA300 | Type: Direct piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc1/4
VPA344-1-B Series: VPA300 | Type: Base piping valve | Option / stations: Standard | Switching: N.O. | Port size: Without sub-plate
VPA344-1-01B Series: VPA300 | Type: Base piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc1/8 (sub-plate)
VPA344-1-02B Series: VPA300 | Type: Base piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc1/4 (sub-plate)
VPA342V-1-01A Series: VPA300 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc1/8
VPA342V-1-02A Series: VPA300 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc1/4
VPA344V-1-A Series: VPA300 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Without sub-plate
VPA344V-1-01A Series: VPA300 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc1/8 (sub-plate)
VPA344V-1-02A Series: VPA300 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc1/4 (sub-plate)
VPA342V-1-01B Series: VPA300 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc1/8
VPA342V-1-02B Series: VPA300 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc1/4
VPA344V-1-B Series: VPA300 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Without sub-plate
VPA344V-1-01B Series: VPA300 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc1/8 (sub-plate)
VPA344V-1-02B Series: VPA300 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc1/4 (sub-plate)
VPA542-1-02A Series: VPA500 | Type: Direct piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc1/4
VPA542-1-03A Series: VPA500 | Type: Direct piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc3/8
VPA544-1-A Series: VPA500 | Type: Base piping valve | Option / stations: Standard | Switching: N.C. | Port size: Without sub-plate
VPA544-1-02A Series: VPA500 | Type: Base piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc1/4 (sub-plate)
VPA544-1-03A Series: VPA500 | Type: Base piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc3/8 (sub-plate)
VPA542-1-02B Series: VPA500 | Type: Direct piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc1/4
VPA542-1-03B Series: VPA500 | Type: Direct piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc3/8
VPA544-1-B Series: VPA500 | Type: Base piping valve | Option / stations: Standard | Switching: N.O. | Port size: Without sub-plate
VPA544-1-02B Series: VPA500 | Type: Base piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc1/4 (sub-plate)
VPA544-1-03B Series: VPA500 | Type: Base piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc3/8 (sub-plate)
VPA542V-1-02A Series: VPA500 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc1/4
VPA542V-1-03A Series: VPA500 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc3/8
VPA544V-1-A Series: VPA500 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Without sub-plate
VPA544V-1-02A Series: VPA500 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc1/4 (sub-plate)
VPA544V-1-03A Series: VPA500 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc3/8 (sub-plate)
VPA542V-1-02B Series: VPA500 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc1/4
VPA542V-1-03B Series: VPA500 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc3/8
VPA544V-1-B Series: VPA500 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Without sub-plate
VPA544V-1-02B Series: VPA500 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc1/4 (sub-plate)
VPA544V-1-03B Series: VPA500 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc3/8 (sub-plate)
VPA742-1-03A Series: VPA700 | Type: Direct piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc3/8
VPA742-1-04A Series: VPA700 | Type: Direct piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc1/2
VPA744-1-A Series: VPA700 | Type: Base piping valve | Option / stations: Standard | Switching: N.C. | Port size: Without sub-plate
VPA744-1-03A Series: VPA700 | Type: Base piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc3/8 (sub-plate)
VPA744-1-04A Series: VPA700 | Type: Base piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc1/2 (sub-plate)
VPA742-1-03B Series: VPA700 | Type: Direct piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc3/8
VPA742-1-04B Series: VPA700 | Type: Direct piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc1/2
VPA744-1-B Series: VPA700 | Type: Base piping valve | Option / stations: Standard | Switching: N.O. | Port size: Without sub-plate
VPA744-1-03B Series: VPA700 | Type: Base piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc3/8 (sub-plate)
VPA744-1-04B Series: VPA700 | Type: Base piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc1/2 (sub-plate)
VPA742V-1-03A Series: VPA700 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc3/8
VPA742V-1-04A Series: VPA700 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc1/2
VPA744V-1-A Series: VPA700 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Without sub-plate
VPA744V-1-03A Series: VPA700 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc3/8 (sub-plate)
VPA744V-1-04A Series: VPA700 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc1/2 (sub-plate)
VPA742V-1-03B Series: VPA700 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc3/8
VPA742V-1-04B Series: VPA700 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc1/2
VPA744V-1-B Series: VPA700 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Without sub-plate
VPA744V-1-03B Series: VPA700 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc3/8 (sub-plate)
VPA744V-1-04B Series: VPA700 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc1/2 (sub-plate)
VV3PA3-41-021-02 Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 2 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-031-02 Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 3 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-041-02 Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 4 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-051-02 Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 5 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-061-02 Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 6 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-071-02 Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 7 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-081-02 Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 8 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-091-02 Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 9 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-101-02 Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 10 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-111-02 Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 11 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-121-02 Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 12 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-131-02 Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 13 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-141-02 Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 14 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-151-02 Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 15 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-161-02 Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 16 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-171-02 Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 17 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-181-02 Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 18 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-191-02 Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 19 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-201-02 Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 20 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-023-02 Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 2 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-033-02 Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 3 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-043-02 Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 4 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-053-02 Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 5 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-063-02 Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 6 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-073-02 Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 7 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-083-02 Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 8 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-093-02 Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 9 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-103-02 Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 10 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-113-02 Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 11 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-123-02 Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 12 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-133-02 Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 13 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-143-02 Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 14 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-153-02 Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 15 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-163-02 Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 16 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-173-02 Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 17 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-183-02 Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 18 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-193-02 Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 19 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-203-02 Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 20 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA5-41-021-03 Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 2 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-031-03 Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 3 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-041-03 Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 4 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-051-03 Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 5 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-061-03 Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 6 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-071-03 Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 7 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-081-03 Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 8 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-091-03 Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 9 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-101-03 Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 10 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-111-03 Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 11 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-121-03 Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 12 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-131-03 Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 13 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-141-03 Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 14 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-151-03 Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 15 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-161-03 Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 16 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-171-03 Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 17 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-181-03 Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 18 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-191-03 Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 19 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-201-03 Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 20 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-023-03 Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 2 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-033-03 Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 3 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-043-03 Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 4 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-053-03 Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 5 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-063-03 Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 6 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-073-03 Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 7 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-083-03 Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 8 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-093-03 Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 9 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-103-03 Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 10 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-113-03 Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 11 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-123-03 Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 12 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-133-03 Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 13 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-143-03 Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 14 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-153-03 Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 15 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-163-03 Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 16 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-173-03 Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 17 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-183-03 Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 18 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-193-03 Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 19 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-203-03 Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 20 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA7-41-021-04 Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 2 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-031-04 Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 3 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-041-04 Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 4 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-051-04 Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 5 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-061-04 Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 6 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-071-04 Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 7 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-081-04 Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 8 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-091-04 Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 9 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-101-04 Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 10 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-111-04 Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 11 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-121-04 Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 12 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-131-04 Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 13 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-141-04 Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 14 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-151-04 Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 15 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-161-04 Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 16 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-171-04 Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 17 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-181-04 Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 18 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-191-04 Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 19 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-201-04 Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 20 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-023-04 Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 2 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-033-04 Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 3 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-043-04 Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 4 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-053-04 Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 5 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-063-04 Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 6 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-073-04 Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 7 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-083-04 Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 8 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-093-04 Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 9 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-103-04 Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 10 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-113-04 Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 11 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-123-04 Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 12 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-133-04 Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 13 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-143-04 Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 14 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-153-04 Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 15 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-163-04 Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 16 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-173-04 Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 17 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-183-04 Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 18 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-193-04 Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 19 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-203-04 Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 20 stations | Switching: Per mounted valve | Port size: Rc1/2
Air Operated ValvesSMC
174 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VPA300/500/700 3-Port Air Operated Valve and VV3PA Manifold

Brand SMC·Air Operated Valves

Available part numbers (174)

VPA342-1-01A, VPA342-1-02A, VPA344-1-A, VPA344-1-01A, VPA344-1-02A, VPA342-1-01B, VPA342-1-02B, VPA344-1-B, VPA344-1-01B, VPA344-1-02B + 164 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VPA342-1-01ASeries: VPA300 | Type: Direct piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc1/8
VPA342-1-02ASeries: VPA300 | Type: Direct piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc1/4
VPA344-1-ASeries: VPA300 | Type: Base piping valve | Option / stations: Standard | Switching: N.C. | Port size: Without sub-plate
VPA344-1-01ASeries: VPA300 | Type: Base piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc1/8 (sub-plate)
VPA344-1-02ASeries: VPA300 | Type: Base piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc1/4 (sub-plate)
VPA342-1-01BSeries: VPA300 | Type: Direct piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc1/8
VPA342-1-02BSeries: VPA300 | Type: Direct piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc1/4
VPA344-1-BSeries: VPA300 | Type: Base piping valve | Option / stations: Standard | Switching: N.O. | Port size: Without sub-plate
VPA344-1-01BSeries: VPA300 | Type: Base piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc1/8 (sub-plate)
VPA344-1-02BSeries: VPA300 | Type: Base piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc1/4 (sub-plate)
VPA342V-1-01ASeries: VPA300 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc1/8
VPA342V-1-02ASeries: VPA300 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc1/4
VPA344V-1-ASeries: VPA300 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Without sub-plate
VPA344V-1-01ASeries: VPA300 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc1/8 (sub-plate)
VPA344V-1-02ASeries: VPA300 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc1/4 (sub-plate)
VPA342V-1-01BSeries: VPA300 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc1/8
VPA342V-1-02BSeries: VPA300 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc1/4
VPA344V-1-BSeries: VPA300 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Without sub-plate
VPA344V-1-01BSeries: VPA300 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc1/8 (sub-plate)
VPA344V-1-02BSeries: VPA300 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc1/4 (sub-plate)
VPA542-1-02ASeries: VPA500 | Type: Direct piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc1/4
VPA542-1-03ASeries: VPA500 | Type: Direct piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc3/8
VPA544-1-ASeries: VPA500 | Type: Base piping valve | Option / stations: Standard | Switching: N.C. | Port size: Without sub-plate
VPA544-1-02ASeries: VPA500 | Type: Base piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc1/4 (sub-plate)
VPA544-1-03ASeries: VPA500 | Type: Base piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc3/8 (sub-plate)
VPA542-1-02BSeries: VPA500 | Type: Direct piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc1/4
VPA542-1-03BSeries: VPA500 | Type: Direct piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc3/8
VPA544-1-BSeries: VPA500 | Type: Base piping valve | Option / stations: Standard | Switching: N.O. | Port size: Without sub-plate
VPA544-1-02BSeries: VPA500 | Type: Base piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc1/4 (sub-plate)
VPA544-1-03BSeries: VPA500 | Type: Base piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc3/8 (sub-plate)
VPA542V-1-02ASeries: VPA500 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc1/4
VPA542V-1-03ASeries: VPA500 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc3/8
VPA544V-1-ASeries: VPA500 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Without sub-plate
VPA544V-1-02ASeries: VPA500 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc1/4 (sub-plate)
VPA544V-1-03ASeries: VPA500 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc3/8 (sub-plate)
VPA542V-1-02BSeries: VPA500 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc1/4
VPA542V-1-03BSeries: VPA500 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc3/8
VPA544V-1-BSeries: VPA500 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Without sub-plate
VPA544V-1-02BSeries: VPA500 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc1/4 (sub-plate)
VPA544V-1-03BSeries: VPA500 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc3/8 (sub-plate)
VPA742-1-03ASeries: VPA700 | Type: Direct piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc3/8
VPA742-1-04ASeries: VPA700 | Type: Direct piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc1/2
VPA744-1-ASeries: VPA700 | Type: Base piping valve | Option / stations: Standard | Switching: N.C. | Port size: Without sub-plate
VPA744-1-03ASeries: VPA700 | Type: Base piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc3/8 (sub-plate)
VPA744-1-04ASeries: VPA700 | Type: Base piping valve | Option / stations: Standard | Switching: N.C. | Port size: Rc1/2 (sub-plate)
VPA742-1-03BSeries: VPA700 | Type: Direct piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc3/8
VPA742-1-04BSeries: VPA700 | Type: Direct piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc1/2
VPA744-1-BSeries: VPA700 | Type: Base piping valve | Option / stations: Standard | Switching: N.O. | Port size: Without sub-plate
VPA744-1-03BSeries: VPA700 | Type: Base piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc3/8 (sub-plate)
VPA744-1-04BSeries: VPA700 | Type: Base piping valve | Option / stations: Standard | Switching: N.O. | Port size: Rc1/2 (sub-plate)
VPA742V-1-03ASeries: VPA700 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc3/8
VPA742V-1-04ASeries: VPA700 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc1/2
VPA744V-1-ASeries: VPA700 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Without sub-plate
VPA744V-1-03ASeries: VPA700 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc3/8 (sub-plate)
VPA744V-1-04ASeries: VPA700 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.C. | Port size: Rc1/2 (sub-plate)
VPA742V-1-03BSeries: VPA700 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc3/8
VPA742V-1-04BSeries: VPA700 | Type: Direct piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc1/2
VPA744V-1-BSeries: VPA700 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Without sub-plate
VPA744V-1-03BSeries: VPA700 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc3/8 (sub-plate)
VPA744V-1-04BSeries: VPA700 | Type: Base piping valve | Option / stations: Vacuum | Switching: N.O. | Port size: Rc1/2 (sub-plate)
VV3PA3-41-021-02Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 2 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-031-02Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 3 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-041-02Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 4 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-051-02Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 5 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-061-02Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 6 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-071-02Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 7 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-081-02Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 8 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-091-02Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 9 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-101-02Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 10 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-111-02Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 11 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-121-02Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 12 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-131-02Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 13 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-141-02Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 14 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-151-02Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 15 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-161-02Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 16 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-171-02Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 17 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-181-02Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 18 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-191-02Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 19 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-41-201-02Series: VPA300 | Type: Manifold 41 common exhaust | Option / stations: 20 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-023-02Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 2 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-033-02Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 3 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-043-02Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 4 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-053-02Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 5 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-063-02Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 6 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-073-02Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 7 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-083-02Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 8 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-093-02Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 9 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-103-02Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 10 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-113-02Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 11 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-123-02Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 12 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-133-02Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 13 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-143-02Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 14 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-153-02Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 15 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-163-02Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 16 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-173-02Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 17 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-183-02Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 18 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-193-02Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 19 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA3-42-203-02Series: VPA300 | Type: Manifold 42 individual exh. | Option / stations: 20 stations | Switching: Per mounted valve | Port size: Rc1/4
VV3PA5-41-021-03Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 2 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-031-03Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 3 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-041-03Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 4 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-051-03Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 5 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-061-03Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 6 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-071-03Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 7 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-081-03Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 8 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-091-03Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 9 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-101-03Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 10 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-111-03Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 11 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-121-03Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 12 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-131-03Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 13 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-141-03Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 14 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-151-03Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 15 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-161-03Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 16 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-171-03Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 17 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-181-03Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 18 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-191-03Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 19 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-41-201-03Series: VPA500 | Type: Manifold 41 common exhaust | Option / stations: 20 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-023-03Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 2 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-033-03Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 3 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-043-03Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 4 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-053-03Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 5 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-063-03Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 6 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-073-03Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 7 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-083-03Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 8 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-093-03Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 9 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-103-03Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 10 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-113-03Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 11 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-123-03Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 12 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-133-03Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 13 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-143-03Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 14 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-153-03Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 15 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-163-03Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 16 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-173-03Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 17 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-183-03Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 18 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-193-03Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 19 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA5-42-203-03Series: VPA500 | Type: Manifold 42 individual exh. | Option / stations: 20 stations | Switching: Per mounted valve | Port size: Rc3/8
VV3PA7-41-021-04Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 2 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-031-04Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 3 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-041-04Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 4 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-051-04Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 5 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-061-04Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 6 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-071-04Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 7 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-081-04Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 8 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-091-04Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 9 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-101-04Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 10 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-111-04Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 11 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-121-04Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 12 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-131-04Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 13 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-141-04Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 14 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-151-04Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 15 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-161-04Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 16 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-171-04Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 17 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-181-04Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 18 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-191-04Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 19 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-41-201-04Series: VPA700 | Type: Manifold 41 common exhaust | Option / stations: 20 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-023-04Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 2 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-033-04Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 3 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-043-04Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 4 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-053-04Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 5 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-063-04Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 6 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-073-04Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 7 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-083-04Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 8 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-093-04Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 9 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-103-04Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 10 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-113-04Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 11 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-123-04Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 12 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-133-04Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 13 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-143-04Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 14 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-153-04Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 15 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-163-04Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 16 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-173-04Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 17 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-183-04Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 18 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-193-04Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 19 stations | Switching: Per mounted valve | Port size: Rc1/2
VV3PA7-42-203-04Series: VPA700 | Type: Manifold 42 individual exh. | Option / stations: 20 stations | Switching: Per mounted valve | Port size: Rc1/2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
