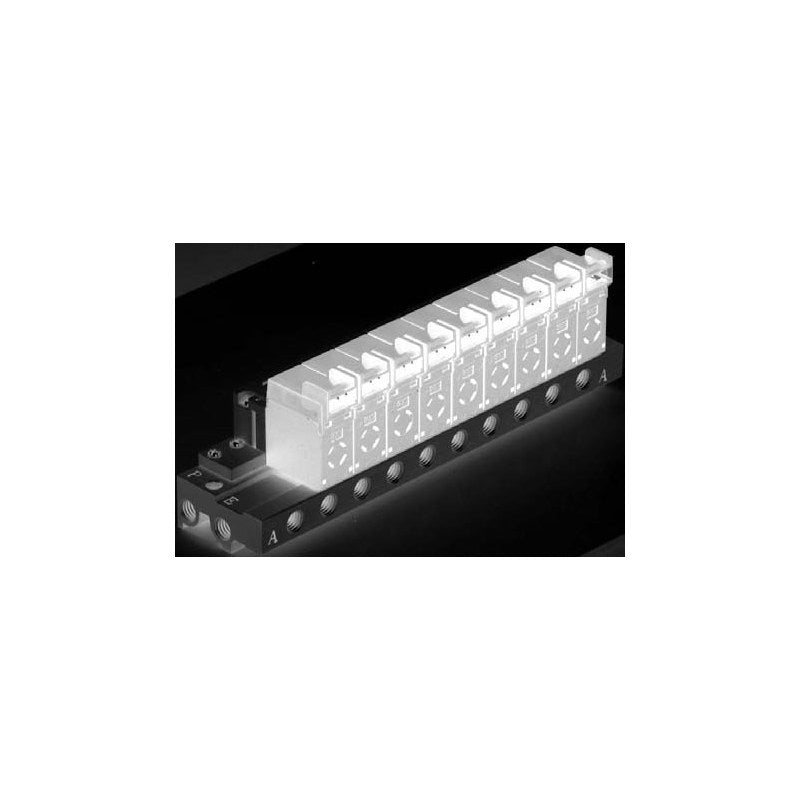

SMC VQ100 3-Port Solenoid Valve (Direct Operated Poppet, 9.8 mm)

SMC VQ100 3-Port Solenoid Valve (Direct Operated Poppet, 9.8 mm)

SMC VQ100 series compact direct-operated 3-port poppet solenoid valve, 9.8 mm wide, with fast stable response and N.C./N.O. switching.

Key features

  • Fast, stable response: ON 3.5 ms / OFF 2 ms (+/-1 ms) with light/surge voltage suppressor at 0.5 MPa
  • Body width 9.8 mm; flow C 0.055 dm3/(s.bar) standard, 0.14 dm3/(s.bar) high-flow type (U, semi-standard)
  • Functions: standard 1W, high pressure 1.5W (H), low wattage 0.5W (Y); latching (L/N) and high-flow (U) as semi-standard
  • Electrical entry: plug-in (F) for VV3Q11 manifold, L/M plug connector with or without lead wire, grommet
  • Single-unit with M3/M5 sub-plate or no sub-plate for VV3Q12 manifold; Lock-type manual override (B), CE/UKCA (-Q), clean series (10-) and made-to-order X21/X42/X113 on order
  • No copper-based materials in wetted parts

Specifications

Valve construction Direct operated 3-port poppet
Fluid Air, inert gas
Max. operating pressure 0.7 MPa (high pressure type 0.8 MPa, N.O. 0.5 MPa)
Min. operating pressure 0 MPa (vacuum -0.1 MPa with 10- clean series)
Ambient and fluid temperature -10 to 50 C
Lubrication Not required
Manual override Non-locking push (tool required); Lock type semi-standard
Impact/vibration resistance 150/30 m/s2
Enclosure Dustproof
Allowable voltage fluctuation +/-10% of rated voltage
Weight 12.6 g (L/M plug connector, without sub-plate)
Source SMC Korea catalog VQ100 Series (SMCKR_VQ100.pdf), p. 2-4, 6, 8, 10
VQ110-1F Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ110-1F-M3 Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ110-1F-M5 Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ110-1L Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ110-1L-M3 Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ110-1L-M5 Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ110-1LO Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ110-1LO-M3 Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ110-1LO-M5 Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ110-1M Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ110-1M-M3 Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ110-1M-M5 Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ110-1MO Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ110-1MO-M3 Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ110-1MO-M5 Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ110-2F Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ110-2F-M3 Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ110-2F-M5 Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ110-2L Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ110-2L-M3 Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ110-2L-M5 Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ110-2LO Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ110-2LO-M3 Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ110-2LO-M5 Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ110-2M Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ110-2M-M3 Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ110-2M-M5 Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ110-2MO Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ110-2MO-M3 Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ110-2MO-M5 Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ110-3F Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ110-3F-M3 Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ110-3F-M5 Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ110-3L Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ110-3L-M3 Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ110-3L-M5 Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ110-3LO Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ110-3LO-M3 Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ110-3LO-M5 Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ110-3M Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ110-3M-M3 Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ110-3M-M5 Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ110-3MO Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ110-3MO-M3 Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ110-3MO-M5 Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ110-4F Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ110-4F-M3 Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ110-4F-M5 Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ110-4L Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ110-4L-M3 Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ110-4L-M5 Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ110-4LO Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ110-4LO-M3 Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ110-4LO-M5 Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ110-4M Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ110-4M-M3 Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ110-4M-M5 Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ110-4MO Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ110-4MO-M3 Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ110-4MO-M5 Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ110-5F Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ110-5F-M3 Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ110-5F-M5 Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ110-5L Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ110-5L-M3 Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ110-5L-M5 Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ110-5LO Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ110-5LO-M3 Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ110-5LO-M5 Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ110-5M Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ110-5M-M3 Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ110-5M-M5 Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ110-5MO Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ110-5MO-M3 Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ110-5MO-M5 Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ110-5G Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Grommet | Port: No sub-plate
VQ110-5G-M3 Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Grommet | Port: Sub-plate M3
VQ110-5G-M5 Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Grommet | Port: Sub-plate M5
VQ110-6F Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ110-6F-M3 Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ110-6F-M5 Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ110-6L Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ110-6L-M3 Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ110-6L-M5 Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ110-6LO Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ110-6LO-M3 Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ110-6LO-M5 Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ110-6M Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ110-6M-M3 Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ110-6M-M5 Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ110-6MO Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ110-6MO-M3 Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ110-6MO-M5 Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ110-6G Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Grommet | Port: No sub-plate
VQ110-6G-M3 Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Grommet | Port: Sub-plate M3
VQ110-6G-M5 Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Grommet | Port: Sub-plate M5
VQ110H-5F Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ110H-5F-M3 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ110H-5F-M5 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ110H-5L Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ110H-5L-M3 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ110H-5L-M5 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ110H-5LO Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ110H-5LO-M3 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ110H-5LO-M5 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ110H-5M Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ110H-5M-M3 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ110H-5M-M5 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ110H-5MO Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ110H-5MO-M3 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ110H-5MO-M5 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ110H-5G Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: Grommet | Port: No sub-plate
VQ110H-5G-M3 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: Grommet | Port: Sub-plate M3
VQ110H-5G-M5 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: Grommet | Port: Sub-plate M5
VQ110H-6F Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ110H-6F-M3 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ110H-6F-M5 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ110H-6L Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ110H-6L-M3 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ110H-6L-M5 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ110H-6LO Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ110H-6LO-M3 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ110H-6LO-M5 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ110H-6M Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ110H-6M-M3 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ110H-6M-M5 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ110H-6MO Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ110H-6MO-M3 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ110H-6MO-M5 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ110H-6G Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: Grommet | Port: No sub-plate
VQ110H-6G-M3 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: Grommet | Port: Sub-plate M3
VQ110H-6G-M5 Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: Grommet | Port: Sub-plate M5
VQ110Y-5F Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ110Y-5F-M3 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ110Y-5F-M5 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ110Y-5L Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ110Y-5L-M3 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ110Y-5L-M5 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ110Y-5LO Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ110Y-5LO-M3 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ110Y-5LO-M5 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ110Y-5M Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ110Y-5M-M3 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ110Y-5M-M5 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ110Y-5MO Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ110Y-5MO-M3 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ110Y-5MO-M5 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ110Y-5G Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: Grommet | Port: No sub-plate
VQ110Y-5G-M3 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: Grommet | Port: Sub-plate M3
VQ110Y-5G-M5 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: Grommet | Port: Sub-plate M5
VQ110Y-6F Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ110Y-6F-M3 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ110Y-6F-M5 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ110Y-6L Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ110Y-6L-M3 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ110Y-6L-M5 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ110Y-6LO Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ110Y-6LO-M3 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ110Y-6LO-M5 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ110Y-6M Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ110Y-6M-M3 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ110Y-6M-M5 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ110Y-6MO Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ110Y-6MO-M3 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ110Y-6MO-M5 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ110Y-6G Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: Grommet | Port: No sub-plate
VQ110Y-6G-M3 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: Grommet | Port: Sub-plate M3
VQ110Y-6G-M5 Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: Grommet | Port: Sub-plate M5
VQ120-1F Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ120-1F-M3 Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ120-1F-M5 Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ120-1L Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ120-1L-M3 Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ120-1L-M5 Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ120-1LO Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ120-1LO-M3 Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ120-1LO-M5 Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ120-1M Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ120-1M-M3 Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ120-1M-M5 Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ120-1MO Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ120-1MO-M3 Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ120-1MO-M5 Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ120-2F Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ120-2F-M3 Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ120-2F-M5 Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ120-2L Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ120-2L-M3 Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ120-2L-M5 Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ120-2LO Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ120-2LO-M3 Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ120-2LO-M5 Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ120-2M Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ120-2M-M3 Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ120-2M-M5 Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ120-2MO Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ120-2MO-M3 Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ120-2MO-M5 Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ120-3F Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ120-3F-M3 Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ120-3F-M5 Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ120-3L Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ120-3L-M3 Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ120-3L-M5 Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ120-3LO Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ120-3LO-M3 Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ120-3LO-M5 Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ120-3M Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ120-3M-M3 Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ120-3M-M5 Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ120-3MO Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ120-3MO-M3 Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ120-3MO-M5 Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ120-4F Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ120-4F-M3 Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ120-4F-M5 Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ120-4L Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ120-4L-M3 Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ120-4L-M5 Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ120-4LO Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ120-4LO-M3 Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ120-4LO-M5 Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ120-4M Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ120-4M-M3 Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ120-4M-M5 Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ120-4MO Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ120-4MO-M3 Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ120-4MO-M5 Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ120-5F Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ120-5F-M3 Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ120-5F-M5 Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ120-5L Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ120-5L-M3 Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ120-5L-M5 Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ120-5LO Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ120-5LO-M3 Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ120-5LO-M5 Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ120-5M Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ120-5M-M3 Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ120-5M-M5 Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ120-5MO Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ120-5MO-M3 Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ120-5MO-M5 Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ120-5G Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Grommet | Port: No sub-plate
VQ120-5G-M3 Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Grommet | Port: Sub-plate M3
VQ120-5G-M5 Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Grommet | Port: Sub-plate M5
VQ120-6F Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ120-6F-M3 Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ120-6F-M5 Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ120-6L Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ120-6L-M3 Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ120-6L-M5 Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ120-6LO Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ120-6LO-M3 Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ120-6LO-M5 Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ120-6M Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ120-6M-M3 Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ120-6M-M5 Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ120-6MO Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ120-6MO-M3 Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ120-6MO-M5 Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ120-6G Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Grommet | Port: No sub-plate
VQ120-6G-M3 Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Grommet | Port: Sub-plate M3
VQ120-6G-M5 Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Grommet | Port: Sub-plate M5
3-Port Solenoid ValvesSMC
264 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VQ100 3-Port Solenoid Valve (Direct Operated Poppet, 9.8 mm)

Brand SMC·3-Port Solenoid Valves

Available part numbers (264)

VQ110-1F, VQ110-1F-M3, VQ110-1F-M5, VQ110-1L, VQ110-1L-M3, VQ110-1L-M5, VQ110-1LO, VQ110-1LO-M3, VQ110-1LO-M5, VQ110-1M + 254 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VQ110-1FSwitching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ110-1F-M3Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ110-1F-M5Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ110-1LSwitching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ110-1L-M3Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ110-1L-M5Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ110-1LOSwitching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ110-1LO-M3Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ110-1LO-M5Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ110-1MSwitching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ110-1M-M3Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ110-1M-M5Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ110-1MOSwitching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ110-1MO-M3Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ110-1MO-M5Switching: N.C. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ110-2FSwitching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ110-2F-M3Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ110-2F-M5Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ110-2LSwitching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ110-2L-M3Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ110-2L-M5Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ110-2LOSwitching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ110-2LO-M3Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ110-2LO-M5Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ110-2MSwitching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ110-2M-M3Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ110-2M-M5Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ110-2MOSwitching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ110-2MO-M3Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ110-2MO-M5Switching: N.C. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ110-3FSwitching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ110-3F-M3Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ110-3F-M5Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ110-3LSwitching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ110-3L-M3Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ110-3L-M5Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ110-3LOSwitching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ110-3LO-M3Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ110-3LO-M5Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ110-3MSwitching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ110-3M-M3Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ110-3M-M5Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ110-3MOSwitching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ110-3MO-M3Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ110-3MO-M5Switching: N.C. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ110-4FSwitching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ110-4F-M3Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ110-4F-M5Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ110-4LSwitching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ110-4L-M3Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ110-4L-M5Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ110-4LOSwitching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ110-4LO-M3Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ110-4LO-M5Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ110-4MSwitching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ110-4M-M3Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ110-4M-M5Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ110-4MOSwitching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ110-4MO-M3Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ110-4MO-M5Switching: N.C. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ110-5FSwitching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ110-5F-M3Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ110-5F-M5Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ110-5LSwitching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ110-5L-M3Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ110-5L-M5Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ110-5LOSwitching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ110-5LO-M3Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ110-5LO-M5Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ110-5MSwitching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ110-5M-M3Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ110-5M-M5Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ110-5MOSwitching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ110-5MO-M3Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ110-5MO-M5Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ110-5GSwitching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Grommet | Port: No sub-plate
VQ110-5G-M3Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Grommet | Port: Sub-plate M3
VQ110-5G-M5Switching: N.C. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Grommet | Port: Sub-plate M5
VQ110-6FSwitching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ110-6F-M3Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ110-6F-M5Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ110-6LSwitching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ110-6L-M3Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ110-6L-M5Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ110-6LOSwitching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ110-6LO-M3Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ110-6LO-M5Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ110-6MSwitching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ110-6M-M3Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ110-6M-M5Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ110-6MOSwitching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ110-6MO-M3Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ110-6MO-M5Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ110-6GSwitching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Grommet | Port: No sub-plate
VQ110-6G-M3Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Grommet | Port: Sub-plate M3
VQ110-6G-M5Switching: N.C. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Grommet | Port: Sub-plate M5
VQ110H-5FSwitching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ110H-5F-M3Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ110H-5F-M5Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ110H-5LSwitching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ110H-5L-M3Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ110H-5L-M5Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ110H-5LOSwitching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ110H-5LO-M3Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ110H-5LO-M5Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ110H-5MSwitching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ110H-5M-M3Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ110H-5M-M5Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ110H-5MOSwitching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ110H-5MO-M3Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ110H-5MO-M5Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ110H-5GSwitching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: Grommet | Port: No sub-plate
VQ110H-5G-M3Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: Grommet | Port: Sub-plate M3
VQ110H-5G-M5Switching: N.C. | Function: High pressure 1.5W | Voltage: DC24V | Electrical entry: Grommet | Port: Sub-plate M5
VQ110H-6FSwitching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ110H-6F-M3Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ110H-6F-M5Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ110H-6LSwitching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ110H-6L-M3Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ110H-6L-M5Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ110H-6LOSwitching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ110H-6LO-M3Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ110H-6LO-M5Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ110H-6MSwitching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ110H-6M-M3Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ110H-6M-M5Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ110H-6MOSwitching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ110H-6MO-M3Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ110H-6MO-M5Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ110H-6GSwitching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: Grommet | Port: No sub-plate
VQ110H-6G-M3Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: Grommet | Port: Sub-plate M3
VQ110H-6G-M5Switching: N.C. | Function: High pressure 1.5W | Voltage: DC12V | Electrical entry: Grommet | Port: Sub-plate M5
VQ110Y-5FSwitching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ110Y-5F-M3Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ110Y-5F-M5Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ110Y-5LSwitching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ110Y-5L-M3Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ110Y-5L-M5Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ110Y-5LOSwitching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ110Y-5LO-M3Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ110Y-5LO-M5Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ110Y-5MSwitching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ110Y-5M-M3Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ110Y-5M-M5Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ110Y-5MOSwitching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ110Y-5MO-M3Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ110Y-5MO-M5Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ110Y-5GSwitching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: Grommet | Port: No sub-plate
VQ110Y-5G-M3Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: Grommet | Port: Sub-plate M3
VQ110Y-5G-M5Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC24V | Electrical entry: Grommet | Port: Sub-plate M5
VQ110Y-6FSwitching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ110Y-6F-M3Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ110Y-6F-M5Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ110Y-6LSwitching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ110Y-6L-M3Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ110Y-6L-M5Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ110Y-6LOSwitching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ110Y-6LO-M3Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ110Y-6LO-M5Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ110Y-6MSwitching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ110Y-6M-M3Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ110Y-6M-M5Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ110Y-6MOSwitching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ110Y-6MO-M3Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ110Y-6MO-M5Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ110Y-6GSwitching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: Grommet | Port: No sub-plate
VQ110Y-6G-M3Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: Grommet | Port: Sub-plate M3
VQ110Y-6G-M5Switching: N.C. | Function: Low wattage 0.5W | Voltage: DC12V | Electrical entry: Grommet | Port: Sub-plate M5
VQ120-1FSwitching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ120-1F-M3Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ120-1F-M5Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ120-1LSwitching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ120-1L-M3Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ120-1L-M5Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ120-1LOSwitching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ120-1LO-M3Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ120-1LO-M5Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ120-1MSwitching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ120-1M-M3Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ120-1M-M5Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ120-1MOSwitching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ120-1MO-M3Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ120-1MO-M5Switching: N.O. | Function: Standard 1W | Voltage: AC100V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ120-2FSwitching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ120-2F-M3Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ120-2F-M5Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ120-2LSwitching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ120-2L-M3Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ120-2L-M5Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ120-2LOSwitching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ120-2LO-M3Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ120-2LO-M5Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ120-2MSwitching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ120-2M-M3Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ120-2M-M5Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ120-2MOSwitching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ120-2MO-M3Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ120-2MO-M5Switching: N.O. | Function: Standard 1W | Voltage: AC200V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ120-3FSwitching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ120-3F-M3Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ120-3F-M5Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ120-3LSwitching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ120-3L-M3Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ120-3L-M5Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ120-3LOSwitching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ120-3LO-M3Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ120-3LO-M5Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ120-3MSwitching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ120-3M-M3Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ120-3M-M5Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ120-3MOSwitching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ120-3MO-M3Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ120-3MO-M5Switching: N.O. | Function: Standard 1W | Voltage: AC110V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ120-4FSwitching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ120-4F-M3Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ120-4F-M5Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ120-4LSwitching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ120-4L-M3Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ120-4L-M5Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ120-4LOSwitching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ120-4LO-M3Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ120-4LO-M5Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ120-4MSwitching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ120-4M-M3Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ120-4M-M5Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ120-4MOSwitching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ120-4MO-M3Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ120-4MO-M5Switching: N.O. | Function: Standard 1W | Voltage: AC220V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ120-5FSwitching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ120-5F-M3Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ120-5F-M5Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ120-5LSwitching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ120-5L-M3Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ120-5L-M5Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ120-5LOSwitching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ120-5LO-M3Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ120-5LO-M5Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ120-5MSwitching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ120-5M-M3Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ120-5M-M5Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ120-5MOSwitching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ120-5MO-M3Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ120-5MO-M5Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ120-5GSwitching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Grommet | Port: No sub-plate
VQ120-5G-M3Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Grommet | Port: Sub-plate M3
VQ120-5G-M5Switching: N.O. | Function: Standard 1W | Voltage: DC24V | Electrical entry: Grommet | Port: Sub-plate M5
VQ120-6FSwitching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: No sub-plate
VQ120-6F-M3Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M3
VQ120-6F-M5Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Plug-in (manifold) | Port: Sub-plate M5
VQ120-6LSwitching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: No sub-plate
VQ120-6L-M3Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: Sub-plate M3
VQ120-6L-M5Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, with lead wire | Port: Sub-plate M5
VQ120-6LOSwitching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: No sub-plate
VQ120-6LO-M3Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: Sub-plate M3
VQ120-6LO-M5Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: L plug, no connector | Port: Sub-plate M5
VQ120-6MSwitching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: No sub-plate
VQ120-6M-M3Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: Sub-plate M3
VQ120-6M-M5Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, with lead wire | Port: Sub-plate M5
VQ120-6MOSwitching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: No sub-plate
VQ120-6MO-M3Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: Sub-plate M3
VQ120-6MO-M5Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: M plug, no connector | Port: Sub-plate M5
VQ120-6GSwitching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Grommet | Port: No sub-plate
VQ120-6G-M3Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Grommet | Port: Sub-plate M3
VQ120-6G-M5Switching: N.O. | Function: Standard 1W | Voltage: DC12V | Electrical entry: Grommet | Port: Sub-plate M5

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
