SMC VQ1000/2000 5-Port Solenoid Valve (Plug-in, Base Mounted)

SMC VQ1000/2000 5-Port Solenoid Valve (Plug-in, Base Mounted)

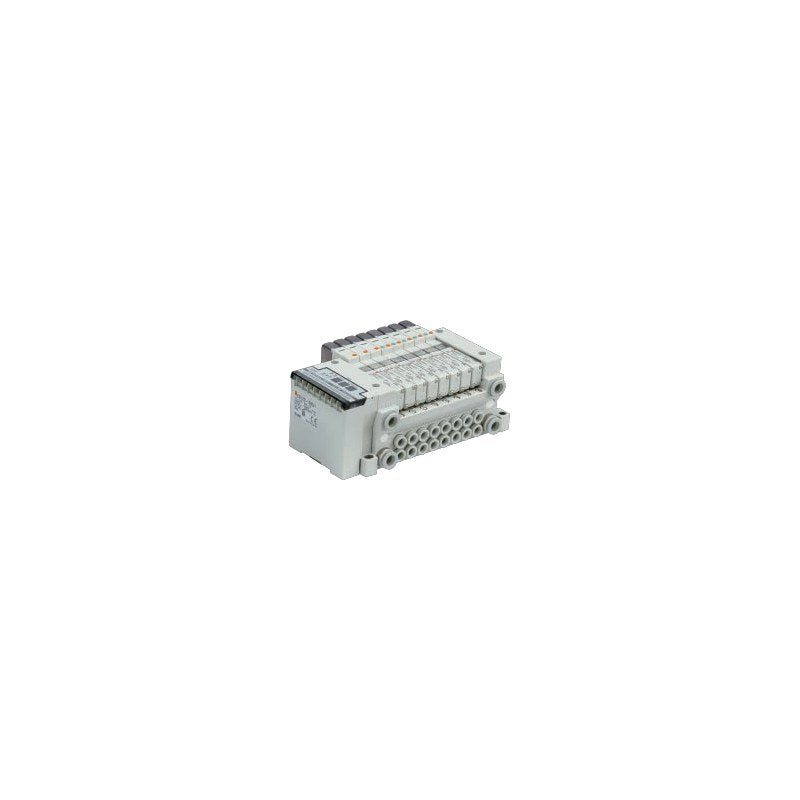

SMC VQ1000/2000 series plug-in 5-port solenoid valve for VV5Q11/VV5Q21 base-mounted manifolds, with metal or rubber seal and a 0.4 W standard coil.

Key features

  • Plug-in unit for VV5Q11 (VQ1000) and VV5Q21 (VQ2000) manifolds with F, P, T, L, S and M wiring kits
  • Low power consumption: 0.4 W standard; 0.95 W high-speed response (B) and high-pressure 1.0 MPa (K, metal seal) types
  • Switching: 2-position single/double, 3-position closed/exhaust/pressure center, 4-position dual 3-port (A, B, C; rubber seal only)
  • Listed codes: standard function, with light/surge voltage suppressor, non-locking push (tool) manual override
  • Coil voltages DC24V, DC12V, AC100V, AC110V, AC200V, AC220V; listed codes cover DC24V, DC12V and AC100V
  • Options by code letter: B, K, N (negative common), R (external pilot), E (non-polar, no light), manual B/C/D, CE/UKCA (Q)

Specifications

Fluid Air
Valve type Pilot-operated 5-port, base mounted plug-in unit
Max. operating pressure 0.7 MPa (high-pressure type 1.0 MPa)
Min. operating pressure Metal seal 0.1 MPa; rubber seal 0.15 MPa (single), 0.1 MPa (double), 0.2 MPa (3/4-pos)
Ambient and fluid temperature -10 to 50°C
Lubrication Not required
Impact/vibration resistance 150/30 m/s²
Allowable voltage fluctuation ±10% of rated voltage
Power consumption DC 0.4 W standard, 0.95 W high-speed/high-pressure
Coil insulation Class B or equivalent
Source SMC Korea catalog VQ1000/2000 (SMCKR_VQ1000_2000.pdf), p. 367, 371, 374-375 (PDF p. 9, 13, 16-17)
VQ1100-51 Series: VQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V
VQ1100-61 Series: VQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V
VQ1100-11 Series: VQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: AC100V
VQ1101-51 Series: VQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V
VQ1101-61 Series: VQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V
VQ1101-11 Series: VQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: AC100V
VQ1200-51 Series: VQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V
VQ1200-61 Series: VQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V
VQ1200-11 Series: VQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: AC100V
VQ1201-51 Series: VQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V
VQ1201-61 Series: VQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V
VQ1201-11 Series: VQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: AC100V
VQ1300-51 Series: VQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V
VQ1300-61 Series: VQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V
VQ1300-11 Series: VQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: AC100V
VQ1301-51 Series: VQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V
VQ1301-61 Series: VQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V
VQ1301-11 Series: VQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: AC100V
VQ1400-51 Series: VQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V
VQ1400-61 Series: VQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V
VQ1400-11 Series: VQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: AC100V
VQ1401-51 Series: VQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V
VQ1401-61 Series: VQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V
VQ1401-11 Series: VQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: AC100V
VQ1500-51 Series: VQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V
VQ1500-61 Series: VQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V
VQ1500-11 Series: VQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: AC100V
VQ1501-51 Series: VQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V
VQ1501-61 Series: VQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V
VQ1501-11 Series: VQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: AC100V
VQ1A01-51 Series: VQ1000 | Switching: 4-pos dual 3-port (A) N.C./N.C. | Seal: Rubber seal | Voltage: DC24V
VQ1A01-61 Series: VQ1000 | Switching: 4-pos dual 3-port (A) N.C./N.C. | Seal: Rubber seal | Voltage: DC12V
VQ1A01-11 Series: VQ1000 | Switching: 4-pos dual 3-port (A) N.C./N.C. | Seal: Rubber seal | Voltage: AC100V
VQ1B01-51 Series: VQ1000 | Switching: 4-pos dual 3-port (B) N.O./N.O. | Seal: Rubber seal | Voltage: DC24V
VQ1B01-61 Series: VQ1000 | Switching: 4-pos dual 3-port (B) N.O./N.O. | Seal: Rubber seal | Voltage: DC12V
VQ1B01-11 Series: VQ1000 | Switching: 4-pos dual 3-port (B) N.O./N.O. | Seal: Rubber seal | Voltage: AC100V
VQ1C01-51 Series: VQ1000 | Switching: 4-pos dual 3-port (C) N.C./N.O. | Seal: Rubber seal | Voltage: DC24V
VQ1C01-61 Series: VQ1000 | Switching: 4-pos dual 3-port (C) N.C./N.O. | Seal: Rubber seal | Voltage: DC12V
VQ1C01-11 Series: VQ1000 | Switching: 4-pos dual 3-port (C) N.C./N.O. | Seal: Rubber seal | Voltage: AC100V
VQ2100-51 Series: VQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V
VQ2100-61 Series: VQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V
VQ2100-11 Series: VQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: AC100V
VQ2101-51 Series: VQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V
VQ2101-61 Series: VQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V
VQ2101-11 Series: VQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: AC100V
VQ2200-51 Series: VQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V
VQ2200-61 Series: VQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V
VQ2200-11 Series: VQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: AC100V
VQ2201-51 Series: VQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V
VQ2201-61 Series: VQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V
VQ2201-11 Series: VQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: AC100V
VQ2300-51 Series: VQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V
VQ2300-61 Series: VQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V
VQ2300-11 Series: VQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: AC100V
VQ2301-51 Series: VQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V
VQ2301-61 Series: VQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V
VQ2301-11 Series: VQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: AC100V
VQ2400-51 Series: VQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V
VQ2400-61 Series: VQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V
VQ2400-11 Series: VQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: AC100V
VQ2401-51 Series: VQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V
VQ2401-61 Series: VQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V
VQ2401-11 Series: VQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: AC100V
VQ2500-51 Series: VQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V
VQ2500-61 Series: VQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V
VQ2500-11 Series: VQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: AC100V
VQ2501-51 Series: VQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V
VQ2501-61 Series: VQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V
VQ2501-11 Series: VQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: AC100V
VQ2A01-51 Series: VQ2000 | Switching: 4-pos dual 3-port (A) N.C./N.C. | Seal: Rubber seal | Voltage: DC24V
VQ2A01-61 Series: VQ2000 | Switching: 4-pos dual 3-port (A) N.C./N.C. | Seal: Rubber seal | Voltage: DC12V
VQ2A01-11 Series: VQ2000 | Switching: 4-pos dual 3-port (A) N.C./N.C. | Seal: Rubber seal | Voltage: AC100V
VQ2B01-51 Series: VQ2000 | Switching: 4-pos dual 3-port (B) N.O./N.O. | Seal: Rubber seal | Voltage: DC24V
VQ2B01-61 Series: VQ2000 | Switching: 4-pos dual 3-port (B) N.O./N.O. | Seal: Rubber seal | Voltage: DC12V
VQ2B01-11 Series: VQ2000 | Switching: 4-pos dual 3-port (B) N.O./N.O. | Seal: Rubber seal | Voltage: AC100V
VQ2C01-51 Series: VQ2000 | Switching: 4-pos dual 3-port (C) N.C./N.O. | Seal: Rubber seal | Voltage: DC24V
VQ2C01-61 Series: VQ2000 | Switching: 4-pos dual 3-port (C) N.C./N.O. | Seal: Rubber seal | Voltage: DC12V
VQ2C01-11 Series: VQ2000 | Switching: 4-pos dual 3-port (C) N.C./N.O. | Seal: Rubber seal | Voltage: AC100V
