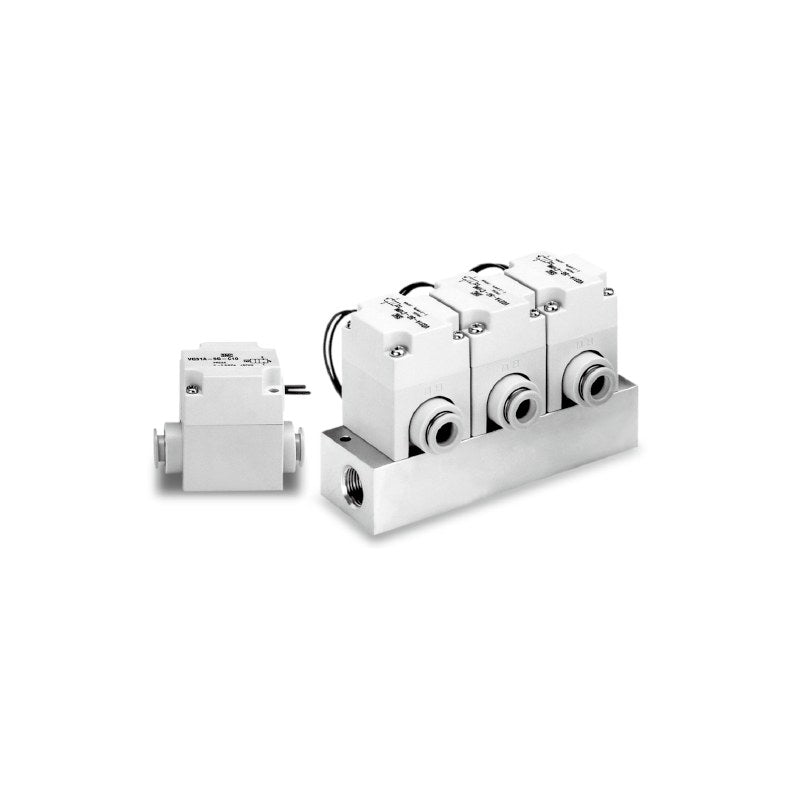

SMC VQ20/30 Pilot Operated 2-Port Solenoid Valve (Dry Air)

SMC VQ20/30 Pilot Operated 2-Port Solenoid Valve (Dry Air)

SMC VQ20/30 series compact pilot-operated N.C. 2-port solenoid valve for dry air with built-in one-touch fittings, as single units or manifold-mounted valves for VV2Q manifolds.

Key features

  • High-speed response 7 ms or less (VQ20), 20 ms or less (VQ30) with high-speed type H at 0.5 MPa
  • Compact, lightweight, high flow: VQ20 46 g, C 1.5 dm³/(s·bar) (C8); VQ30 80 g, C 3.0 (C12)
  • Built-in one-touch fittings ø6/ø8 (VQ20) and ø10/ø12 (VQ30); grommet or DIN terminal (IP65)
  • Power-saving circuit standard (start 2.9 W, hold 0.6 W DC); Z adds light; H high-speed type cannot be energized continuously
  • Suited for air blow and workpiece ejection; manual override B (locking), bracket F, L-type bracket L (VQ20) and CE/UKCA (Q) are order options

Specifications

Valve construction Pilot-operated 2-port poppet, N.C.
Fluid Dry air
Operating pressure 0.01 MPa to 0.6 MPa (VQ20), 0.5 MPa (VQ30)
Ambient and fluid temperature -10 to 50°C
Lubrication Not allowed
Impact/vibration resistance 150/30 m/s²
Enclosure Dustproof (DIN terminal IP65)
Allowable voltage fluctuation ±10% of rated voltage
Coil insulation Class B equivalent
Mass VQ20 46 g, VQ30 80 g
Source SMC Korea catalog VQ20/30 Series (SMCKR_VQ20_VQ30.pdf), p. 513-521 (PDF p. 1-3, 9)
VQ21A1-1G-C6 Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-1G-C8 Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-1GZ-C6 Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-1GZ-C8 Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-1Y-C6 Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-1Y-C8 Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-1YZ-C6 Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-1YZ-C8 Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-1YO-C6 Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-1YO-C8 Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-1YOZ-C6 Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-1YOZ-C8 Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-2G-C6 Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-2G-C8 Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-2GZ-C6 Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-2GZ-C8 Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-2Y-C6 Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-2Y-C8 Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-2YZ-C6 Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-2YZ-C8 Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-2YO-C6 Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-2YO-C8 Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-2YOZ-C6 Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-2YOZ-C8 Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-4G-C6 Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-4G-C8 Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-4GZ-C6 Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-4GZ-C8 Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-4Y-C6 Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-4Y-C8 Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-4YZ-C6 Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-4YZ-C8 Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-4YO-C6 Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-4YO-C8 Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-4YOZ-C6 Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-4YOZ-C8 Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-5G-C6 Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-5G-C8 Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-5GZ-C6 Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-5GZ-C8 Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-5GH-C6 Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: High-speed response (DC only) | Port: ø6 one-touch
VQ21A1-5GH-C8 Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: High-speed response (DC only) | Port: ø8 one-touch
VQ21A1-5Y-C6 Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-5Y-C8 Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-5YZ-C6 Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-5YZ-C8 Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-5YH-C6 Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: High-speed response (DC only) | Port: ø6 one-touch
VQ21A1-5YH-C8 Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: High-speed response (DC only) | Port: ø8 one-touch
VQ21A1-5YO-C6 Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-5YO-C8 Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-5YOZ-C6 Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-5YOZ-C8 Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-5YOH-C6 Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: High-speed response (DC only) | Port: ø6 one-touch
VQ21A1-5YOH-C8 Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: High-speed response (DC only) | Port: ø8 one-touch
VQ21M1-1G-C6 Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-1G-C8 Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-1GZ-C6 Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-1GZ-C8 Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-1Y-C6 Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-1Y-C8 Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-1YZ-C6 Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-1YZ-C8 Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-1YO-C6 Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-1YO-C8 Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-1YOZ-C6 Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-1YOZ-C8 Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-2G-C6 Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-2G-C8 Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-2GZ-C6 Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-2GZ-C8 Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-2Y-C6 Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-2Y-C8 Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-2YZ-C6 Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-2YZ-C8 Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-2YO-C6 Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-2YO-C8 Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-2YOZ-C6 Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-2YOZ-C8 Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-4G-C6 Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-4G-C8 Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-4GZ-C6 Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-4GZ-C8 Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-4Y-C6 Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-4Y-C8 Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-4YZ-C6 Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-4YZ-C8 Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-4YO-C6 Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-4YO-C8 Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-4YOZ-C6 Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-4YOZ-C8 Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-5G-C6 Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-5G-C8 Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-5GZ-C6 Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-5GZ-C8 Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-5GH-C6 Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: High-speed response (DC only) | Port: ø6 one-touch
VQ21M1-5GH-C8 Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: High-speed response (DC only) | Port: ø8 one-touch
VQ21M1-5Y-C6 Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-5Y-C8 Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-5YZ-C6 Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-5YZ-C8 Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-5YH-C6 Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: High-speed response (DC only) | Port: ø6 one-touch
VQ21M1-5YH-C8 Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: High-speed response (DC only) | Port: ø8 one-touch
VQ21M1-5YO-C6 Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-5YO-C8 Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-5YOZ-C6 Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-5YOZ-C8 Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-5YOH-C6 Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: High-speed response (DC only) | Port: ø6 one-touch
VQ21M1-5YOH-C8 Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: High-speed response (DC only) | Port: ø8 one-touch
VQ31A1-1G-C10 Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-1G-C12 Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-1GZ-C10 Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-1GZ-C12 Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-1Y-C10 Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-1Y-C12 Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-1YZ-C10 Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-1YZ-C12 Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-1YO-C10 Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-1YO-C12 Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-1YOZ-C10 Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-1YOZ-C12 Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-2G-C10 Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-2G-C12 Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-2GZ-C10 Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-2GZ-C12 Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-2Y-C10 Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-2Y-C12 Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-2YZ-C10 Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-2YZ-C12 Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-2YO-C10 Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-2YO-C12 Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-2YOZ-C10 Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-2YOZ-C12 Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-4G-C10 Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-4G-C12 Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-4GZ-C10 Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-4GZ-C12 Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-4Y-C10 Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-4Y-C12 Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-4YZ-C10 Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-4YZ-C12 Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-4YO-C10 Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-4YO-C12 Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-4YOZ-C10 Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-4YOZ-C12 Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-5G-C10 Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-5G-C12 Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-5GZ-C10 Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-5GZ-C12 Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-5GH-C10 Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: High-speed response (DC only) | Port: ø10 one-touch
VQ31A1-5GH-C12 Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: High-speed response (DC only) | Port: ø12 one-touch
VQ31A1-5Y-C10 Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-5Y-C12 Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-5YZ-C10 Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-5YZ-C12 Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-5YH-C10 Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: High-speed response (DC only) | Port: ø10 one-touch
VQ31A1-5YH-C12 Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: High-speed response (DC only) | Port: ø12 one-touch
VQ31A1-5YO-C10 Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-5YO-C12 Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-5YOZ-C10 Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-5YOZ-C12 Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-5YOH-C10 Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: High-speed response (DC only) | Port: ø10 one-touch
VQ31A1-5YOH-C12 Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: High-speed response (DC only) | Port: ø12 one-touch
VQ31M1-1G-C10 Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-1G-C12 Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-1GZ-C10 Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-1GZ-C12 Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-1Y-C10 Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-1Y-C12 Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-1YZ-C10 Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-1YZ-C12 Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-1YO-C10 Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-1YO-C12 Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-1YOZ-C10 Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-1YOZ-C12 Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-2G-C10 Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-2G-C12 Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-2GZ-C10 Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-2GZ-C12 Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-2Y-C10 Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-2Y-C12 Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-2YZ-C10 Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-2YZ-C12 Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-2YO-C10 Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-2YO-C12 Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-2YOZ-C10 Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-2YOZ-C12 Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-4G-C10 Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-4G-C12 Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-4GZ-C10 Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-4GZ-C12 Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-4Y-C10 Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-4Y-C12 Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-4YZ-C10 Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-4YZ-C12 Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-4YO-C10 Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-4YO-C12 Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-4YOZ-C10 Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-4YOZ-C12 Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-5G-C10 Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-5G-C12 Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-5GZ-C10 Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-5GZ-C12 Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-5GH-C10 Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: High-speed response (DC only) | Port: ø10 one-touch
VQ31M1-5GH-C12 Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: High-speed response (DC only) | Port: ø12 one-touch
VQ31M1-5Y-C10 Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-5Y-C12 Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-5YZ-C10 Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-5YZ-C12 Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-5YH-C10 Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: High-speed response (DC only) | Port: ø10 one-touch
VQ31M1-5YH-C12 Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: High-speed response (DC only) | Port: ø12 one-touch
VQ31M1-5YO-C10 Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-5YO-C12 Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-5YOZ-C10 Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-5YOZ-C12 Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-5YOH-C10 Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: High-speed response (DC only) | Port: ø10 one-touch
VQ31M1-5YOH-C12 Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: High-speed response (DC only) | Port: ø12 one-touch
2-Port ValvesSMC
216 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VQ20/30 Pilot Operated 2-Port Solenoid Valve (Dry Air)

Brand SMC·2-Port Valves

Available part numbers (216)

VQ21A1-1G-C6, VQ21A1-1G-C8, VQ21A1-1GZ-C6, VQ21A1-1GZ-C8, VQ21A1-1Y-C6, VQ21A1-1Y-C8, VQ21A1-1YZ-C6, VQ21A1-1YZ-C8, VQ21A1-1YO-C6, VQ21A1-1YO-C8 + 206 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VQ21A1-1G-C6Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-1G-C8Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-1GZ-C6Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-1GZ-C8Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-1Y-C6Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-1Y-C8Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-1YZ-C6Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-1YZ-C8Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-1YO-C6Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-1YO-C8Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-1YOZ-C6Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-1YOZ-C8Series: VQ20 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-2G-C6Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-2G-C8Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-2GZ-C6Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-2GZ-C8Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-2Y-C6Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-2Y-C8Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-2YZ-C6Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-2YZ-C8Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-2YO-C6Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-2YO-C8Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-2YOZ-C6Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-2YOZ-C8Series: VQ20 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-4G-C6Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-4G-C8Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-4GZ-C6Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-4GZ-C8Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-4Y-C6Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-4Y-C8Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-4YZ-C6Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-4YZ-C8Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-4YO-C6Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-4YO-C8Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-4YOZ-C6Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-4YOZ-C8Series: VQ20 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-5G-C6Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-5G-C8Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-5GZ-C6Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-5GZ-C8Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-5GH-C6Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: High-speed response (DC only) | Port: ø6 one-touch
VQ21A1-5GH-C8Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: High-speed response (DC only) | Port: ø8 one-touch
VQ21A1-5Y-C6Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-5Y-C8Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-5YZ-C6Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-5YZ-C8Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-5YH-C6Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: High-speed response (DC only) | Port: ø6 one-touch
VQ21A1-5YH-C8Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: High-speed response (DC only) | Port: ø8 one-touch
VQ21A1-5YO-C6Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21A1-5YO-C8Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21A1-5YOZ-C6Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21A1-5YOZ-C8Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21A1-5YOH-C6Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: High-speed response (DC only) | Port: ø6 one-touch
VQ21A1-5YOH-C8Series: VQ20 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: High-speed response (DC only) | Port: ø8 one-touch
VQ21M1-1G-C6Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-1G-C8Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-1GZ-C6Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-1GZ-C8Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-1Y-C6Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-1Y-C8Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-1YZ-C6Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-1YZ-C8Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-1YO-C6Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-1YO-C8Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-1YOZ-C6Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-1YOZ-C8Series: VQ20 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-2G-C6Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-2G-C8Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-2GZ-C6Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-2GZ-C8Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-2Y-C6Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-2Y-C8Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-2YZ-C6Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-2YZ-C8Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-2YO-C6Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-2YO-C8Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-2YOZ-C6Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-2YOZ-C8Series: VQ20 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-4G-C6Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-4G-C8Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-4GZ-C6Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-4GZ-C8Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-4Y-C6Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-4Y-C8Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-4YZ-C6Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-4YZ-C8Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-4YO-C6Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-4YO-C8Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-4YOZ-C6Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-4YOZ-C8Series: VQ20 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-5G-C6Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-5G-C8Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-5GZ-C6Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-5GZ-C8Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-5GH-C6Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: High-speed response (DC only) | Port: ø6 one-touch
VQ21M1-5GH-C8Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: High-speed response (DC only) | Port: ø8 one-touch
VQ21M1-5Y-C6Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-5Y-C8Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-5YZ-C6Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-5YZ-C8Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-5YH-C6Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: High-speed response (DC only) | Port: ø6 one-touch
VQ21M1-5YH-C8Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: High-speed response (DC only) | Port: ø8 one-touch
VQ21M1-5YO-C6Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø6 one-touch
VQ21M1-5YO-C8Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø8 one-touch
VQ21M1-5YOZ-C6Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø6 one-touch
VQ21M1-5YOZ-C8Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø8 one-touch
VQ21M1-5YOH-C6Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: High-speed response (DC only) | Port: ø6 one-touch
VQ21M1-5YOH-C8Series: VQ20 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: High-speed response (DC only) | Port: ø8 one-touch
VQ31A1-1G-C10Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-1G-C12Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-1GZ-C10Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-1GZ-C12Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-1Y-C10Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-1Y-C12Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-1YZ-C10Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-1YZ-C12Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-1YO-C10Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-1YO-C12Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-1YOZ-C10Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-1YOZ-C12Series: VQ30 | Body: Single unit | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-2G-C10Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-2G-C12Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-2GZ-C10Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-2GZ-C12Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-2Y-C10Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-2Y-C12Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-2YZ-C10Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-2YZ-C12Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-2YO-C10Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-2YO-C12Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-2YOZ-C10Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-2YOZ-C12Series: VQ30 | Body: Single unit | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-4G-C10Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-4G-C12Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-4GZ-C10Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-4GZ-C12Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-4Y-C10Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-4Y-C12Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-4YZ-C10Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-4YZ-C12Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-4YO-C10Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-4YO-C12Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-4YOZ-C10Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-4YOZ-C12Series: VQ30 | Body: Single unit | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-5G-C10Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-5G-C12Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-5GZ-C10Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-5GZ-C12Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-5GH-C10Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: High-speed response (DC only) | Port: ø10 one-touch
VQ31A1-5GH-C12Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: Grommet | Circuit: High-speed response (DC only) | Port: ø12 one-touch
VQ31A1-5Y-C10Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-5Y-C12Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-5YZ-C10Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-5YZ-C12Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-5YH-C10Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: High-speed response (DC only) | Port: ø10 one-touch
VQ31A1-5YH-C12Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: High-speed response (DC only) | Port: ø12 one-touch
VQ31A1-5YO-C10Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31A1-5YO-C12Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31A1-5YOZ-C10Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31A1-5YOZ-C12Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31A1-5YOH-C10Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: High-speed response (DC only) | Port: ø10 one-touch
VQ31A1-5YOH-C12Series: VQ30 | Body: Single unit | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: High-speed response (DC only) | Port: ø12 one-touch
VQ31M1-1G-C10Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-1G-C12Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-1GZ-C10Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-1GZ-C12Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-1Y-C10Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-1Y-C12Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-1YZ-C10Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-1YZ-C12Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-1YO-C10Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-1YO-C12Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-1YOZ-C10Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-1YOZ-C12Series: VQ30 | Body: Manifold | Voltage: AC100V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-2G-C10Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-2G-C12Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-2GZ-C10Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-2GZ-C12Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-2Y-C10Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-2Y-C12Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-2YZ-C10Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-2YZ-C12Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-2YO-C10Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-2YO-C12Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-2YOZ-C10Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-2YOZ-C12Series: VQ30 | Body: Manifold | Voltage: AC200V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-4G-C10Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-4G-C12Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-4GZ-C10Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-4GZ-C12Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-4Y-C10Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-4Y-C12Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-4YZ-C10Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-4YZ-C12Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-4YO-C10Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-4YO-C12Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-4YOZ-C10Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-4YOZ-C12Series: VQ30 | Body: Manifold | Voltage: AC220V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-5G-C10Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-5G-C12Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-5GZ-C10Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-5GZ-C12Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-5GH-C10Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: High-speed response (DC only) | Port: ø10 one-touch
VQ31M1-5GH-C12Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: Grommet | Circuit: High-speed response (DC only) | Port: ø12 one-touch
VQ31M1-5Y-C10Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-5Y-C12Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-5YZ-C10Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-5YZ-C12Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-5YH-C10Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: High-speed response (DC only) | Port: ø10 one-touch
VQ31M1-5YH-C12Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal | Circuit: High-speed response (DC only) | Port: ø12 one-touch
VQ31M1-5YO-C10Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø10 one-touch
VQ31M1-5YO-C12Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, surge suppressor | Port: ø12 one-touch
VQ31M1-5YOZ-C10Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø10 one-touch
VQ31M1-5YOZ-C12Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: Power-saving, light + surge supp. | Port: ø12 one-touch
VQ31M1-5YOH-C10Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: High-speed response (DC only) | Port: ø10 one-touch
VQ31M1-5YOH-C12Series: VQ30 | Body: Manifold | Voltage: DC24V | Electrical entry: DIN terminal, no connector | Circuit: High-speed response (DC only) | Port: ø12 one-touch

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
