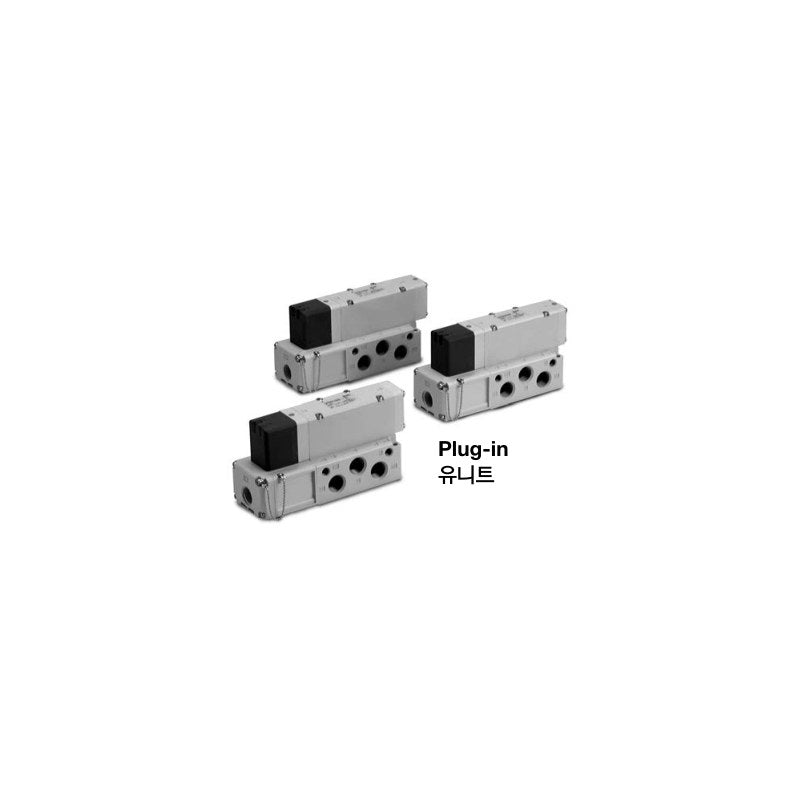

SMC VQC4000/5000 5-Port Solenoid Valve (Plug-in, Base Mounted)

SMC VQC4000/5000 5-Port Solenoid Valve (Plug-in, Base Mounted)

SMC VQC4000/5000 series large-flow plug-in 5-port solenoid valve for VV5QC41/51 connector manifolds or single sub-plate mounting, with metal or rubber seal.

Key features

  • Compact high-flow valve: VQC4000 25 mm pitch (C up to 7.3, cylinders to ø160), VQC5000 41 mm pitch (C up to 17, cylinders to ø180)
  • Seven switching types: 2-position single/double, 3-position closed/exhaust/pressure center and 3-position perfect
  • Metal seal (long life, approx. 100 million cycles) or rubber seal; max. operating pressure 1.0 MPa
  • Listed codes: standard 0.95 W coil, with light/surge voltage suppressor, non-locking push manual override; without or with sub-plate (Rc)
  • Options ordered as code letters: Y low-wattage 0.4 W, R external pilot, E no light/surge suppressor, B/C locking manual override; N/T/F thread for NPT/NPTF/G
  • CE/UKCA compliant; IP67 compatible when used with S, T, L or M kit manifolds

Specifications

Fluid Air
Valve type Pilot-operated 5-port, plug-in, base mounted
Max. operating pressure 1.0 MPa
Min. operating pressure Metal seal 0.10-0.15 MPa; rubber seal 0.15-0.20 MPa (by type/size)
Ambient and fluid temperature VQC4000 -10 to 50°C, VQC5000 -5 to 50°C
Lubrication Not required
Impact/vibration resistance 150/30 m/s²
Coil rated voltage DC24V, DC12V (±10%)
Power consumption 0.95 W standard, 0.4 W low-wattage (Y)
Cylinder port size VQC4000 3/8, VQC5000 1/2 (with sub-plate)
Enclosure Dustproof (IP67 compatible)
Source SMC Korea catalog VQC4000/5000 (SMCKR_VQC4000_5000.pdf), p. 1149, 1156-1157, 1198-1199 (PDF p. 1, 8-9, 57-58)
VQC4100-51 Series: VQC4000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4100-51-02 Series: VQC4000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4100-51-03 Series: VQC4000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4100-51-B02 Series: VQC4000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4100-61 Series: VQC4000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4100-61-02 Series: VQC4000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4100-61-03 Series: VQC4000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4100-61-B02 Series: VQC4000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4101-51 Series: VQC4000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4101-51-02 Series: VQC4000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4101-51-03 Series: VQC4000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4101-51-B02 Series: VQC4000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4101-61 Series: VQC4000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4101-61-02 Series: VQC4000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4101-61-03 Series: VQC4000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4101-61-B02 Series: VQC4000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4200-51 Series: VQC4000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4200-51-02 Series: VQC4000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4200-51-03 Series: VQC4000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4200-51-B02 Series: VQC4000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4200-61 Series: VQC4000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4200-61-02 Series: VQC4000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4200-61-03 Series: VQC4000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4200-61-B02 Series: VQC4000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4201-51 Series: VQC4000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4201-51-02 Series: VQC4000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4201-51-03 Series: VQC4000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4201-51-B02 Series: VQC4000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4201-61 Series: VQC4000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4201-61-02 Series: VQC4000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4201-61-03 Series: VQC4000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4201-61-B02 Series: VQC4000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4300-51 Series: VQC4000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4300-51-02 Series: VQC4000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4300-51-03 Series: VQC4000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4300-51-B02 Series: VQC4000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4300-61 Series: VQC4000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4300-61-02 Series: VQC4000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4300-61-03 Series: VQC4000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4300-61-B02 Series: VQC4000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4301-51 Series: VQC4000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4301-51-02 Series: VQC4000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4301-51-03 Series: VQC4000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4301-51-B02 Series: VQC4000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4301-61 Series: VQC4000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4301-61-02 Series: VQC4000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4301-61-03 Series: VQC4000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4301-61-B02 Series: VQC4000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4400-51 Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4400-51-02 Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4400-51-03 Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4400-51-B02 Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4400-61 Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4400-61-02 Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4400-61-03 Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4400-61-B02 Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4401-51 Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4401-51-02 Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4401-51-03 Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4401-51-B02 Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4401-61 Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4401-61-02 Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4401-61-03 Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4401-61-B02 Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4500-51 Series: VQC4000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4500-51-02 Series: VQC4000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4500-51-03 Series: VQC4000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4500-51-B02 Series: VQC4000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4500-61 Series: VQC4000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4500-61-02 Series: VQC4000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4500-61-03 Series: VQC4000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4500-61-B02 Series: VQC4000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4501-51 Series: VQC4000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4501-51-02 Series: VQC4000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4501-51-03 Series: VQC4000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4501-51-B02 Series: VQC4000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4501-61 Series: VQC4000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4501-61-02 Series: VQC4000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4501-61-03 Series: VQC4000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4501-61-B02 Series: VQC4000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4600-51 Series: VQC4000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4600-51-02 Series: VQC4000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4600-51-03 Series: VQC4000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4600-51-B02 Series: VQC4000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4600-61 Series: VQC4000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4600-61-02 Series: VQC4000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4600-61-03 Series: VQC4000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4600-61-B02 Series: VQC4000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4601-51 Series: VQC4000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4601-51-02 Series: VQC4000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4601-51-03 Series: VQC4000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4601-51-B02 Series: VQC4000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4601-61 Series: VQC4000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4601-61-02 Series: VQC4000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4601-61-03 Series: VQC4000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4601-61-B02 Series: VQC4000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC5100-51 Series: VQC5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5100-51-04 Series: VQC5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5100-51-B04 Series: VQC5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5100-61 Series: VQC5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5100-61-04 Series: VQC5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5100-61-B04 Series: VQC5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5101-51 Series: VQC5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5101-51-04 Series: VQC5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5101-51-B04 Series: VQC5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5101-61 Series: VQC5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5101-61-04 Series: VQC5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5101-61-B04 Series: VQC5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5200-51 Series: VQC5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5200-51-04 Series: VQC5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5200-51-B04 Series: VQC5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5200-61 Series: VQC5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5200-61-04 Series: VQC5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5200-61-B04 Series: VQC5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5201-51 Series: VQC5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5201-51-04 Series: VQC5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5201-51-B04 Series: VQC5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5201-61 Series: VQC5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5201-61-04 Series: VQC5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5201-61-B04 Series: VQC5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5300-51 Series: VQC5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5300-51-04 Series: VQC5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5300-51-B04 Series: VQC5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5300-61 Series: VQC5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5300-61-04 Series: VQC5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5300-61-B04 Series: VQC5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5301-51 Series: VQC5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5301-51-04 Series: VQC5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5301-51-B04 Series: VQC5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5301-61 Series: VQC5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5301-61-04 Series: VQC5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5301-61-B04 Series: VQC5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5400-51 Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5400-51-04 Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5400-51-B04 Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5400-61 Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5400-61-04 Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5400-61-B04 Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5401-51 Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5401-51-04 Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5401-51-B04 Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5401-61 Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5401-61-04 Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5401-61-B04 Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5500-51 Series: VQC5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5500-51-04 Series: VQC5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5500-51-B04 Series: VQC5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5500-61 Series: VQC5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5500-61-04 Series: VQC5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5500-61-B04 Series: VQC5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5501-51 Series: VQC5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5501-51-04 Series: VQC5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5501-51-B04 Series: VQC5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5501-61 Series: VQC5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5501-61-04 Series: VQC5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5501-61-B04 Series: VQC5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5600-51 Series: VQC5000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5600-51-04 Series: VQC5000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5600-51-B04 Series: VQC5000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5600-61 Series: VQC5000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5600-61-04 Series: VQC5000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5600-61-B04 Series: VQC5000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5601-51 Series: VQC5000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5601-51-04 Series: VQC5000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5601-51-B04 Series: VQC5000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5601-61 Series: VQC5000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5601-61-04 Series: VQC5000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5601-61-B04 Series: VQC5000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
5-Port Solenoid ValvesSMC
168 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VQC4000/5000 5-Port Solenoid Valve (Plug-in, Base Mounted)

Brand SMC·5-Port Solenoid Valves

Available part numbers (168)

VQC4100-51, VQC4100-51-02, VQC4100-51-03, VQC4100-51-B02, VQC4100-61, VQC4100-61-02, VQC4100-61-03, VQC4100-61-B02, VQC4101-51, VQC4101-51-02 + 158 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VQC4100-51Series: VQC4000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4100-51-02Series: VQC4000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4100-51-03Series: VQC4000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4100-51-B02Series: VQC4000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4100-61Series: VQC4000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4100-61-02Series: VQC4000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4100-61-03Series: VQC4000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4100-61-B02Series: VQC4000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4101-51Series: VQC4000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4101-51-02Series: VQC4000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4101-51-03Series: VQC4000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4101-51-B02Series: VQC4000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4101-61Series: VQC4000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4101-61-02Series: VQC4000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4101-61-03Series: VQC4000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4101-61-B02Series: VQC4000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4200-51Series: VQC4000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4200-51-02Series: VQC4000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4200-51-03Series: VQC4000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4200-51-B02Series: VQC4000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4200-61Series: VQC4000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4200-61-02Series: VQC4000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4200-61-03Series: VQC4000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4200-61-B02Series: VQC4000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4201-51Series: VQC4000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4201-51-02Series: VQC4000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4201-51-03Series: VQC4000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4201-51-B02Series: VQC4000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4201-61Series: VQC4000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4201-61-02Series: VQC4000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4201-61-03Series: VQC4000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4201-61-B02Series: VQC4000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4300-51Series: VQC4000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4300-51-02Series: VQC4000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4300-51-03Series: VQC4000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4300-51-B02Series: VQC4000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4300-61Series: VQC4000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4300-61-02Series: VQC4000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4300-61-03Series: VQC4000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4300-61-B02Series: VQC4000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4301-51Series: VQC4000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4301-51-02Series: VQC4000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4301-51-03Series: VQC4000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4301-51-B02Series: VQC4000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4301-61Series: VQC4000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4301-61-02Series: VQC4000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4301-61-03Series: VQC4000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4301-61-B02Series: VQC4000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4400-51Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4400-51-02Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4400-51-03Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4400-51-B02Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4400-61Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4400-61-02Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4400-61-03Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4400-61-B02Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4401-51Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4401-51-02Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4401-51-03Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4401-51-B02Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4401-61Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4401-61-02Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4401-61-03Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4401-61-B02Series: VQC4000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4500-51Series: VQC4000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4500-51-02Series: VQC4000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4500-51-03Series: VQC4000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4500-51-B02Series: VQC4000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4500-61Series: VQC4000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4500-61-02Series: VQC4000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4500-61-03Series: VQC4000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4500-61-B02Series: VQC4000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4501-51Series: VQC4000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4501-51-02Series: VQC4000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4501-51-03Series: VQC4000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4501-51-B02Series: VQC4000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4501-61Series: VQC4000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4501-61-02Series: VQC4000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4501-61-03Series: VQC4000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4501-61-B02Series: VQC4000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4600-51Series: VQC4000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4600-51-02Series: VQC4000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4600-51-03Series: VQC4000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4600-51-B02Series: VQC4000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4600-61Series: VQC4000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4600-61-02Series: VQC4000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4600-61-03Series: VQC4000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4600-61-B02Series: VQC4000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC4601-51Series: VQC4000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC4601-51-02Series: VQC4000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/4
VQC4601-51-03Series: VQC4000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc3/8
VQC4601-51-B02Series: VQC4000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/4
VQC4601-61Series: VQC4000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC4601-61-02Series: VQC4000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/4
VQC4601-61-03Series: VQC4000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc3/8
VQC4601-61-B02Series: VQC4000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/4
VQC5100-51Series: VQC5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5100-51-04Series: VQC5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5100-51-B04Series: VQC5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5100-61Series: VQC5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5100-61-04Series: VQC5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5100-61-B04Series: VQC5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5101-51Series: VQC5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5101-51-04Series: VQC5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5101-51-B04Series: VQC5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5101-61Series: VQC5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5101-61-04Series: VQC5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5101-61-B04Series: VQC5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5200-51Series: VQC5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5200-51-04Series: VQC5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5200-51-B04Series: VQC5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5200-61Series: VQC5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5200-61-04Series: VQC5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5200-61-B04Series: VQC5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5201-51Series: VQC5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5201-51-04Series: VQC5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5201-51-B04Series: VQC5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5201-61Series: VQC5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5201-61-04Series: VQC5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5201-61-B04Series: VQC5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5300-51Series: VQC5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5300-51-04Series: VQC5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5300-51-B04Series: VQC5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5300-61Series: VQC5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5300-61-04Series: VQC5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5300-61-B04Series: VQC5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5301-51Series: VQC5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5301-51-04Series: VQC5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5301-51-B04Series: VQC5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5301-61Series: VQC5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5301-61-04Series: VQC5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5301-61-B04Series: VQC5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5400-51Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5400-51-04Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5400-51-B04Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5400-61Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5400-61-04Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5400-61-B04Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5401-51Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5401-51-04Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5401-51-B04Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5401-61Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5401-61-04Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5401-61-B04Series: VQC5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5500-51Series: VQC5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5500-51-04Series: VQC5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5500-51-B04Series: VQC5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5500-61Series: VQC5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5500-61-04Series: VQC5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5500-61-B04Series: VQC5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5501-51Series: VQC5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5501-51-04Series: VQC5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5501-51-B04Series: VQC5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5501-61Series: VQC5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5501-61-04Series: VQC5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5501-61-B04Series: VQC5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5600-51Series: VQC5000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5600-51-04Series: VQC5000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5600-51-B04Series: VQC5000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5600-61Series: VQC5000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5600-61-04Series: VQC5000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5600-61-B04Series: VQC5000 | Switching: 3-pos perfect | Seal: Metal seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2
VQC5601-51Series: VQC5000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC24V | Port: No sub-plate (manifold use)
VQC5601-51-04Series: VQC5000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate side Rc1/2
VQC5601-51-B04Series: VQC5000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC24V | Port: Sub-plate bottom Rc1/2
VQC5601-61Series: VQC5000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC12V | Port: No sub-plate (manifold use)
VQC5601-61-04Series: VQC5000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate side Rc1/2
VQC5601-61-B04Series: VQC5000 | Switching: 3-pos perfect | Seal: Rubber seal | Voltage: DC12V | Port: Sub-plate bottom Rc1/2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
