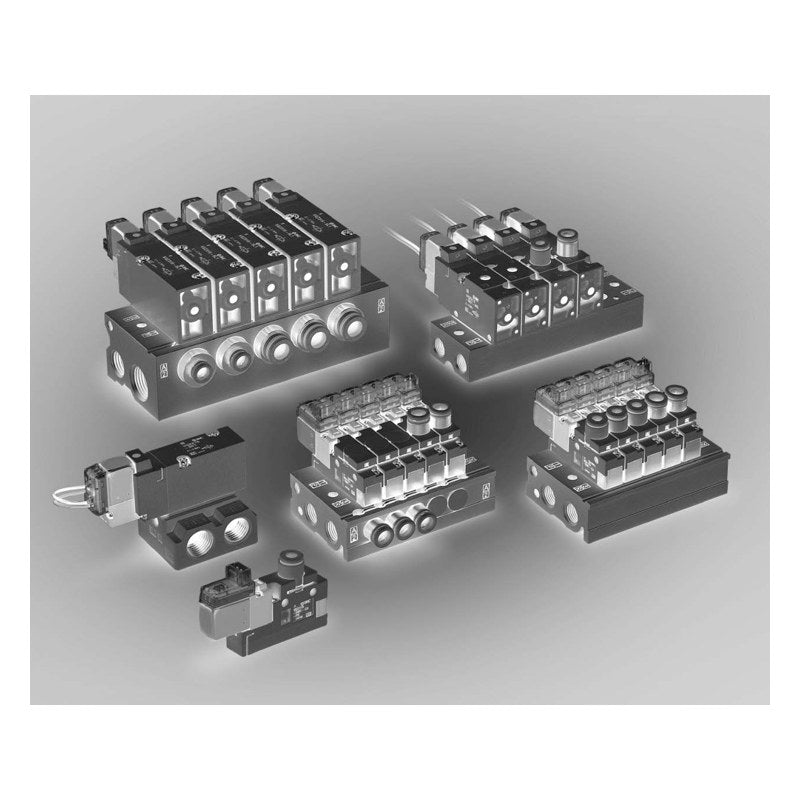

SMC VQZ100/200/300 3-Port Solenoid Valve (Body Ported / Base)

SMC VQZ100/200/300 series compact pilot-operated 3-port solenoid valve, body ported or base mounted, with poppet (VQZ100), metal or rubber seal and 0.35 W standard coil.

Key features

Body widths 10 mm (VQZ100), 15 mm (VQZ200) and 18 mm (VQZ300)
VQZ100: N.C. poppet valve; VQZ200/300: N.C. or N.O., metal or rubber seal
Flow rate C [dm³/(s·bar)] body ported: VQZ100 0.56, VQZ200 1.3/1.7, VQZ300 2.4/3.0 (metal/rubber); base mounted: VQZ100 1.0, VQZ200 2.0/3.0, VQZ300 3.2/4.1
VQZ100 body-ported single unit supplied with P/R ports (-PR); base-mounted VQZ100 with top-ported fittings for VV3QZ15 manifolds or CP (port plug)
Also available: high-speed (B), high-pressure (K), external pilot (R/BR/KR), LO/MO and DIN terminal Y types (VQZ200/300), lock manual override (B), IP65 (W), bracket (F), CE/UKCA (Q)

Specifications

Fluid	Air
Valve type	Pilot-operated 3-port
Max. operating pressure	0.7 MPa (high-pressure type 1.0 MPa)
Min. operating pressure	Metal seal 0.1 MPa; rubber/poppet seal 0.15 MPa
Ambient and fluid temperature	-10 to 50°C (no freezing)
Max. operating frequency	Metal seal and poppet 20 Hz; rubber seal 5 Hz
Lubrication	Not required
Mounting orientation	Unrestricted
Impact/vibration resistance	150/30 m/s²
Power consumption	DC 0.35 W standard (0.4 W with light); 0.9 W high-speed/high-pressure
Enclosure	Dustproof (DIN terminal IP65)
Source	SMC Korea catalog VQZ100/200/300 (SMCKR_VQZ100_200_300_New_.pdf), p. 1011, 1014-1016, 1030-1031, 1037 (PDF p. 1, 4-6, 20-21, 27)

VQZ115-1L1-C3-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø3.2 one-touch
VQZ115-1L1-C4-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
VQZ115-1L1-C6-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ115-1L1-M5-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
VQZ115-1M1-C3-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø3.2 one-touch
VQZ115-1M1-C4-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
VQZ115-1M1-C6-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ115-1M1-M5-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
VQZ115-2L1-C3-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø3.2 one-touch
VQZ115-2L1-C4-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
VQZ115-2L1-C6-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ115-2L1-M5-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
VQZ115-2M1-C3-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø3.2 one-touch
VQZ115-2M1-C4-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
VQZ115-2M1-C6-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ115-2M1-M5-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
VQZ115-5G1-C3-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø3.2 one-touch
VQZ115-5G1-C4-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø4 one-touch
VQZ115-5G1-C6-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø6 one-touch
VQZ115-5G1-M5-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: M5 thread
VQZ115-5L1-C3-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø3.2 one-touch
VQZ115-5L1-C4-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
VQZ115-5L1-C6-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ115-5L1-M5-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
VQZ115-5M1-C3-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø3.2 one-touch
VQZ115-5M1-C4-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
VQZ115-5M1-C6-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ115-5M1-M5-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
VQZ115-6G1-C3-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø3.2 one-touch
VQZ115-6G1-C4-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø4 one-touch
VQZ115-6G1-C6-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø6 one-touch
VQZ115-6G1-M5-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: M5 thread
VQZ115-6L1-C3-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø3.2 one-touch
VQZ115-6L1-C4-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
VQZ115-6L1-C6-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ115-6L1-M5-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
VQZ115-6M1-C3-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø3.2 one-touch
VQZ115-6M1-C4-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
VQZ115-6M1-C6-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ115-6M1-M5-PR		Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
VQZ212-1L1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
VQZ212-1L1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ212-1L1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
VQZ212-1M1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
VQZ212-1M1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ212-1M1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
VQZ212-2L1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
VQZ212-2L1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ212-2L1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
VQZ212-2M1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
VQZ212-2M1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ212-2M1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
VQZ212-5G1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø4 one-touch
VQZ212-5G1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø6 one-touch
VQZ212-5G1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: M5 thread
VQZ212-5L1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
VQZ212-5L1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ212-5L1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
VQZ212-5M1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
VQZ212-5M1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ212-5M1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
VQZ212-6G1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø4 one-touch
VQZ212-6G1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø6 one-touch
VQZ212-6G1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: M5 thread
VQZ212-6L1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
VQZ212-6L1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ212-6L1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
VQZ212-6M1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
VQZ212-6M1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ212-6M1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
VQZ222-1L1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
VQZ222-1L1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ222-1L1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
VQZ222-1M1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
VQZ222-1M1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ222-1M1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
VQZ222-2L1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
VQZ222-2L1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ222-2L1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
VQZ222-2M1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
VQZ222-2M1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ222-2M1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
VQZ222-5G1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø4 one-touch
VQZ222-5G1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø6 one-touch
VQZ222-5G1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: M5 thread
VQZ222-5L1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
VQZ222-5L1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ222-5L1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
VQZ222-5M1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
VQZ222-5M1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ222-5M1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
VQZ222-6G1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø4 one-touch
VQZ222-6G1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø6 one-touch
VQZ222-6G1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: M5 thread
VQZ222-6L1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
VQZ222-6L1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ222-6L1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
VQZ222-6M1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
VQZ222-6M1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ222-6M1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
VQZ232-1L1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
VQZ232-1L1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ232-1L1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
VQZ232-1M1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
VQZ232-1M1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ232-1M1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
VQZ232-2L1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
VQZ232-2L1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ232-2L1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
VQZ232-2M1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
VQZ232-2M1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ232-2M1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
VQZ232-5G1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø4 one-touch
VQZ232-5G1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø6 one-touch
VQZ232-5G1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: M5 thread
VQZ232-5L1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
VQZ232-5L1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ232-5L1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
VQZ232-5M1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
VQZ232-5M1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ232-5M1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
VQZ232-6G1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø4 one-touch
VQZ232-6G1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø6 one-touch
VQZ232-6G1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: M5 thread
VQZ232-6L1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
VQZ232-6L1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ232-6L1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
VQZ232-6M1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
VQZ232-6M1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ232-6M1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
VQZ242-1L1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
VQZ242-1L1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ242-1L1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
VQZ242-1M1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
VQZ242-1M1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ242-1M1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
VQZ242-2L1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
VQZ242-2L1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ242-2L1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
VQZ242-2M1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
VQZ242-2M1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ242-2M1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
VQZ242-5G1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø4 one-touch
VQZ242-5G1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø6 one-touch
VQZ242-5G1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: M5 thread
VQZ242-5L1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
VQZ242-5L1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ242-5L1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
VQZ242-5M1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
VQZ242-5M1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ242-5M1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
VQZ242-6G1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø4 one-touch
VQZ242-6G1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø6 one-touch
VQZ242-6G1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: M5 thread
VQZ242-6L1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
VQZ242-6L1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ242-6L1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
VQZ242-6M1-C4		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
VQZ242-6M1-C6		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ242-6M1-M5		Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
VQZ312-1L1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ312-1L1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
VQZ312-1L1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
VQZ312-1L1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
VQZ312-1M1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ312-1M1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
VQZ312-1M1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
VQZ312-1M1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
VQZ312-2L1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ312-2L1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
VQZ312-2L1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
VQZ312-2L1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
VQZ312-2M1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ312-2M1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
VQZ312-2M1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
VQZ312-2M1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
VQZ312-5G1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø6 one-touch
VQZ312-5G1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø8 one-touch
VQZ312-5G1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø10 one-touch
VQZ312-5G1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4
VQZ312-5L1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ312-5L1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
VQZ312-5L1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
VQZ312-5L1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
VQZ312-5M1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ312-5M1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
VQZ312-5M1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
VQZ312-5M1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
VQZ312-6G1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø6 one-touch
VQZ312-6G1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø8 one-touch
VQZ312-6G1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø10 one-touch
VQZ312-6G1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4
VQZ312-6L1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ312-6L1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
VQZ312-6L1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
VQZ312-6L1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
VQZ312-6M1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ312-6M1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
VQZ312-6M1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
VQZ312-6M1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
VQZ322-1L1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ322-1L1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
VQZ322-1L1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
VQZ322-1L1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
VQZ322-1M1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ322-1M1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
VQZ322-1M1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
VQZ322-1M1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
VQZ322-2L1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ322-2L1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
VQZ322-2L1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
VQZ322-2L1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
VQZ322-2M1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ322-2M1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
VQZ322-2M1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
VQZ322-2M1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
VQZ322-5G1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø6 one-touch
VQZ322-5G1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø8 one-touch
VQZ322-5G1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø10 one-touch
VQZ322-5G1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4
VQZ322-5L1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ322-5L1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
VQZ322-5L1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
VQZ322-5L1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
VQZ322-5M1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ322-5M1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
VQZ322-5M1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
VQZ322-5M1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
VQZ322-6G1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø6 one-touch
VQZ322-6G1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø8 one-touch
VQZ322-6G1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø10 one-touch
VQZ322-6G1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4
VQZ322-6L1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ322-6L1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
VQZ322-6L1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
VQZ322-6L1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
VQZ322-6M1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ322-6M1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
VQZ322-6M1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
VQZ322-6M1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
VQZ332-1L1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ332-1L1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
VQZ332-1L1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
VQZ332-1L1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
VQZ332-1M1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ332-1M1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
VQZ332-1M1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
VQZ332-1M1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
VQZ332-2L1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ332-2L1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
VQZ332-2L1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
VQZ332-2L1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
VQZ332-2M1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ332-2M1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
VQZ332-2M1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
VQZ332-2M1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
VQZ332-5G1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø6 one-touch
VQZ332-5G1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø8 one-touch
VQZ332-5G1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø10 one-touch
VQZ332-5G1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4
VQZ332-5L1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ332-5L1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
VQZ332-5L1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
VQZ332-5L1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
VQZ332-5M1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ332-5M1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
VQZ332-5M1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
VQZ332-5M1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
VQZ332-6G1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø6 one-touch
VQZ332-6G1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø8 one-touch
VQZ332-6G1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø10 one-touch
VQZ332-6G1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4
VQZ332-6L1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ332-6L1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
VQZ332-6L1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
VQZ332-6L1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
VQZ332-6M1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ332-6M1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
VQZ332-6M1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
VQZ332-6M1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
VQZ342-1L1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ342-1L1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
VQZ342-1L1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
VQZ342-1L1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
VQZ342-1M1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ342-1M1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
VQZ342-1M1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
VQZ342-1M1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
VQZ342-2L1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ342-2L1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
VQZ342-2L1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
VQZ342-2L1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
VQZ342-2M1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ342-2M1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
VQZ342-2M1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
VQZ342-2M1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
VQZ342-5G1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø6 one-touch
VQZ342-5G1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø8 one-touch
VQZ342-5G1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø10 one-touch
VQZ342-5G1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4
VQZ342-5L1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ342-5L1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
VQZ342-5L1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
VQZ342-5L1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
VQZ342-5M1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ342-5M1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
VQZ342-5M1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
VQZ342-5M1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
VQZ342-6G1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø6 one-touch
VQZ342-6G1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø8 one-touch
VQZ342-6G1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø10 one-touch
VQZ342-6G1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4
VQZ342-6L1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
VQZ342-6L1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
VQZ342-6L1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
VQZ342-6L1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
VQZ342-6M1-C6		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
VQZ342-6M1-C8		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
VQZ342-6M1-C10		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
VQZ342-6M1-02		Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
VQZ115-1L1-CP		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate / port plug
VQZ115-1L1-01		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ115-1L1-C3		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø3.2 one-touch, top
VQZ115-1L1-C4		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch, top
VQZ115-1L1-C6		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch, top
VQZ115-1L1-M5		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread, top
VQZ115-1M1-CP		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate / port plug
VQZ115-1M1-01		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ115-1M1-C3		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø3.2 one-touch, top
VQZ115-1M1-C4		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch, top
VQZ115-1M1-C6		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch, top
VQZ115-1M1-M5		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread, top
VQZ115-2L1-CP		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate / port plug
VQZ115-2L1-01		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ115-2L1-C3		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø3.2 one-touch, top
VQZ115-2L1-C4		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch, top
VQZ115-2L1-C6		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch, top
VQZ115-2L1-M5		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread, top
VQZ115-2M1-CP		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate / port plug
VQZ115-2M1-01		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ115-2M1-C3		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø3.2 one-touch, top
VQZ115-2M1-C4		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch, top
VQZ115-2M1-C6		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch, top
VQZ115-2M1-M5		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread, top
VQZ115-5G1-CP		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate / port plug
VQZ115-5G1-01		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ115-5G1-C3		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø3.2 one-touch, top
VQZ115-5G1-C4		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø4 one-touch, top
VQZ115-5G1-C6		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø6 one-touch, top
VQZ115-5G1-M5		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: M5 thread, top
VQZ115-5L1-CP		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate / port plug
VQZ115-5L1-01		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ115-5L1-C3		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø3.2 one-touch, top
VQZ115-5L1-C4		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch, top
VQZ115-5L1-C6		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch, top
VQZ115-5L1-M5		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread, top
VQZ115-5M1-CP		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate / port plug
VQZ115-5M1-01		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ115-5M1-C3		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø3.2 one-touch, top
VQZ115-5M1-C4		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch, top
VQZ115-5M1-C6		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch, top
VQZ115-5M1-M5		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread, top
VQZ115-6G1-CP		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate / port plug
VQZ115-6G1-01		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ115-6G1-C3		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø3.2 one-touch, top
VQZ115-6G1-C4		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø4 one-touch, top
VQZ115-6G1-C6		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø6 one-touch, top
VQZ115-6G1-M5		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: M5 thread, top
VQZ115-6L1-CP		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate / port plug
VQZ115-6L1-01		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ115-6L1-C3		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø3.2 one-touch, top
VQZ115-6L1-C4		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch, top
VQZ115-6L1-C6		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch, top
VQZ115-6L1-M5		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread, top
VQZ115-6M1-CP		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate / port plug
VQZ115-6M1-01		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ115-6M1-C3		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø3.2 one-touch, top
VQZ115-6M1-C4		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch, top
VQZ115-6M1-C6		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch, top
VQZ115-6M1-M5		Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread, top
VQZ215-1L1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ215-1L1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ215-1L1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ215-1M1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ215-1M1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ215-1M1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ215-2L1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ215-2L1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ215-2L1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ215-2M1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ215-2M1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ215-2M1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ215-5G1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ215-5G1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ215-5G1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ215-5L1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ215-5L1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ215-5L1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ215-5M1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ215-5M1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ215-5M1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ215-6G1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ215-6G1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ215-6G1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ215-6L1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ215-6L1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ215-6L1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ215-6M1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ215-6M1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ215-6M1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ225-1L1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ225-1L1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ225-1L1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ225-1M1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ225-1M1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ225-1M1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ225-2L1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ225-2L1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ225-2L1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ225-2M1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ225-2M1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ225-2M1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ225-5G1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ225-5G1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ225-5G1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ225-5L1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ225-5L1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ225-5L1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ225-5M1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ225-5M1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ225-5M1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ225-6G1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ225-6G1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ225-6G1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ225-6L1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ225-6L1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ225-6L1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ225-6M1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ225-6M1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ225-6M1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ235-1L1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ235-1L1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ235-1L1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ235-1M1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ235-1M1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ235-1M1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ235-2L1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ235-2L1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ235-2L1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ235-2M1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ235-2M1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ235-2M1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ235-5G1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ235-5G1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ235-5G1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ235-5L1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ235-5L1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ235-5L1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ235-5M1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ235-5M1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ235-5M1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ235-6G1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ235-6G1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ235-6G1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ235-6L1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ235-6L1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ235-6L1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ235-6M1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ235-6M1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ235-6M1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ245-1L1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ245-1L1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ245-1L1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ245-1M1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ245-1M1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ245-1M1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ245-2L1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ245-2L1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ245-2L1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ245-2M1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ245-2M1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ245-2M1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ245-5G1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ245-5G1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ245-5G1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ245-5L1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ245-5L1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ245-5L1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ245-5M1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ245-5M1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ245-5M1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ245-6G1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ245-6G1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ245-6G1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ245-6L1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ245-6L1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ245-6L1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ245-6M1		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ245-6M1-01		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ245-6M1-02		Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ315-1L1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ315-1L1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ315-1L1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ315-1M1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ315-1M1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ315-1M1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ315-2L1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ315-2L1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ315-2L1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ315-2M1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ315-2M1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ315-2M1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ315-5G1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ315-5G1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ315-5G1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ315-5L1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ315-5L1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ315-5L1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ315-5M1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ315-5M1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ315-5M1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ315-6G1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ315-6G1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ315-6G1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ315-6L1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ315-6L1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ315-6L1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ315-6M1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ315-6M1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ315-6M1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ325-1L1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ325-1L1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ325-1L1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ325-1M1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ325-1M1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ325-1M1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ325-2L1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ325-2L1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ325-2L1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ325-2M1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ325-2M1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ325-2M1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ325-5G1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ325-5G1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ325-5G1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ325-5L1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ325-5L1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ325-5L1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ325-5M1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ325-5M1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ325-5M1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ325-6G1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ325-6G1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ325-6G1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ325-6L1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ325-6L1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ325-6L1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ325-6M1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ325-6M1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ325-6M1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ335-1L1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ335-1L1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ335-1L1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ335-1M1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ335-1M1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ335-1M1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ335-2L1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ335-2L1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ335-2L1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ335-2M1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ335-2M1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ335-2M1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ335-5G1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ335-5G1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ335-5G1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ335-5L1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ335-5L1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ335-5L1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ335-5M1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ335-5M1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ335-5M1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ335-6G1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ335-6G1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ335-6G1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ335-6L1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ335-6L1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ335-6L1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ335-6M1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ335-6M1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ335-6M1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ345-1L1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ345-1L1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ345-1L1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ345-1M1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ345-1M1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ345-1M1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ345-2L1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ345-2L1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ345-2L1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ345-2M1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ345-2M1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ345-2M1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ345-5G1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ345-5G1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ345-5G1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ345-5L1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ345-5L1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ345-5L1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ345-5M1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ345-5M1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ345-5M1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ345-6G1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ345-6G1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ345-6G1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ345-6L1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ345-6L1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ345-6L1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ345-6M1		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ345-6M1-02		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ345-6M1-03		Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate

3-Port Solenoid ValvesSMC

620 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VQZ100/200/300 3-Port Solenoid Valve (Body Ported / Base)

Brand SMC·3-Port Solenoid Valves

Available part numbers (620)

VQZ115-1L1-C3-PR, VQZ115-1L1-C4-PR, VQZ115-1L1-C6-PR, VQZ115-1L1-M5-PR, VQZ115-1M1-C3-PR, VQZ115-1M1-C4-PR, VQZ115-1M1-C6-PR, VQZ115-1M1-M5-PR, VQZ115-2L1-C3-PR, VQZ115-2L1-C4-PR + 610 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	VQZ115-1L1-C3-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø3.2 one-touch
	VQZ115-1L1-C4-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
	VQZ115-1L1-C6-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ115-1L1-M5-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
	VQZ115-1M1-C3-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø3.2 one-touch
	VQZ115-1M1-C4-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
	VQZ115-1M1-C6-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ115-1M1-M5-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
	VQZ115-2L1-C3-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø3.2 one-touch
	VQZ115-2L1-C4-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
	VQZ115-2L1-C6-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ115-2L1-M5-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
	VQZ115-2M1-C3-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø3.2 one-touch
	VQZ115-2M1-C4-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
	VQZ115-2M1-C6-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ115-2M1-M5-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
	VQZ115-5G1-C3-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø3.2 one-touch
	VQZ115-5G1-C4-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø4 one-touch
	VQZ115-5G1-C6-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø6 one-touch
	VQZ115-5G1-M5-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: M5 thread
	VQZ115-5L1-C3-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø3.2 one-touch
	VQZ115-5L1-C4-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
	VQZ115-5L1-C6-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ115-5L1-M5-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
	VQZ115-5M1-C3-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø3.2 one-touch
	VQZ115-5M1-C4-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
	VQZ115-5M1-C6-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ115-5M1-M5-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
	VQZ115-6G1-C3-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø3.2 one-touch
	VQZ115-6G1-C4-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø4 one-touch
	VQZ115-6G1-C6-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø6 one-touch
	VQZ115-6G1-M5-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: M5 thread
	VQZ115-6L1-C3-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø3.2 one-touch
	VQZ115-6L1-C4-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
	VQZ115-6L1-C6-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ115-6L1-M5-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
	VQZ115-6M1-C3-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø3.2 one-touch
	VQZ115-6M1-C4-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
	VQZ115-6M1-C6-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ115-6M1-M5-PR	Series: VQZ100 \| Mounting: Body ported \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
	VQZ212-1L1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
	VQZ212-1L1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ212-1L1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
	VQZ212-1M1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
	VQZ212-1M1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ212-1M1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
	VQZ212-2L1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
	VQZ212-2L1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ212-2L1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
	VQZ212-2M1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
	VQZ212-2M1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ212-2M1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
	VQZ212-5G1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø4 one-touch
	VQZ212-5G1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø6 one-touch
	VQZ212-5G1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: M5 thread
	VQZ212-5L1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
	VQZ212-5L1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ212-5L1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
	VQZ212-5M1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
	VQZ212-5M1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ212-5M1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
	VQZ212-6G1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø4 one-touch
	VQZ212-6G1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø6 one-touch
	VQZ212-6G1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: M5 thread
	VQZ212-6L1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
	VQZ212-6L1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ212-6L1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
	VQZ212-6M1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
	VQZ212-6M1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ212-6M1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
	VQZ222-1L1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
	VQZ222-1L1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ222-1L1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
	VQZ222-1M1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
	VQZ222-1M1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ222-1M1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
	VQZ222-2L1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
	VQZ222-2L1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ222-2L1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
	VQZ222-2M1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
	VQZ222-2M1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ222-2M1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
	VQZ222-5G1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø4 one-touch
	VQZ222-5G1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø6 one-touch
	VQZ222-5G1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: M5 thread
	VQZ222-5L1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
	VQZ222-5L1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ222-5L1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
	VQZ222-5M1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
	VQZ222-5M1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ222-5M1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
	VQZ222-6G1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø4 one-touch
	VQZ222-6G1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø6 one-touch
	VQZ222-6G1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: M5 thread
	VQZ222-6L1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
	VQZ222-6L1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ222-6L1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
	VQZ222-6M1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
	VQZ222-6M1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ222-6M1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
	VQZ232-1L1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
	VQZ232-1L1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ232-1L1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
	VQZ232-1M1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
	VQZ232-1M1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ232-1M1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
	VQZ232-2L1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
	VQZ232-2L1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ232-2L1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
	VQZ232-2M1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
	VQZ232-2M1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ232-2M1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
	VQZ232-5G1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø4 one-touch
	VQZ232-5G1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø6 one-touch
	VQZ232-5G1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: M5 thread
	VQZ232-5L1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
	VQZ232-5L1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ232-5L1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
	VQZ232-5M1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
	VQZ232-5M1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ232-5M1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
	VQZ232-6G1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø4 one-touch
	VQZ232-6G1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø6 one-touch
	VQZ232-6G1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: M5 thread
	VQZ232-6L1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
	VQZ232-6L1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ232-6L1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
	VQZ232-6M1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
	VQZ232-6M1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ232-6M1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
	VQZ242-1L1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
	VQZ242-1L1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ242-1L1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
	VQZ242-1M1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
	VQZ242-1M1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ242-1M1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
	VQZ242-2L1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
	VQZ242-2L1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ242-2L1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
	VQZ242-2M1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
	VQZ242-2M1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ242-2M1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
	VQZ242-5G1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø4 one-touch
	VQZ242-5G1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø6 one-touch
	VQZ242-5G1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: M5 thread
	VQZ242-5L1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
	VQZ242-5L1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ242-5L1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
	VQZ242-5M1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
	VQZ242-5M1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ242-5M1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
	VQZ242-6G1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø4 one-touch
	VQZ242-6G1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø6 one-touch
	VQZ242-6G1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: M5 thread
	VQZ242-6L1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch
	VQZ242-6L1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ242-6L1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread
	VQZ242-6M1-C4	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch
	VQZ242-6M1-C6	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ242-6M1-M5	Series: VQZ200 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread
	VQZ312-1L1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ312-1L1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
	VQZ312-1L1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
	VQZ312-1L1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
	VQZ312-1M1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ312-1M1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
	VQZ312-1M1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
	VQZ312-1M1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
	VQZ312-2L1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ312-2L1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
	VQZ312-2L1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
	VQZ312-2L1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
	VQZ312-2M1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ312-2M1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
	VQZ312-2M1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
	VQZ312-2M1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
	VQZ312-5G1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø6 one-touch
	VQZ312-5G1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø8 one-touch
	VQZ312-5G1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø10 one-touch
	VQZ312-5G1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4
	VQZ312-5L1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ312-5L1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
	VQZ312-5L1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
	VQZ312-5L1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
	VQZ312-5M1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ312-5M1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
	VQZ312-5M1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
	VQZ312-5M1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
	VQZ312-6G1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø6 one-touch
	VQZ312-6G1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø8 one-touch
	VQZ312-6G1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø10 one-touch
	VQZ312-6G1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4
	VQZ312-6L1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ312-6L1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
	VQZ312-6L1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
	VQZ312-6L1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
	VQZ312-6M1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ312-6M1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
	VQZ312-6M1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
	VQZ312-6M1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
	VQZ322-1L1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ322-1L1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
	VQZ322-1L1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
	VQZ322-1L1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
	VQZ322-1M1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ322-1M1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
	VQZ322-1M1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
	VQZ322-1M1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
	VQZ322-2L1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ322-2L1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
	VQZ322-2L1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
	VQZ322-2L1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
	VQZ322-2M1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ322-2M1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
	VQZ322-2M1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
	VQZ322-2M1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
	VQZ322-5G1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø6 one-touch
	VQZ322-5G1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø8 one-touch
	VQZ322-5G1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø10 one-touch
	VQZ322-5G1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4
	VQZ322-5L1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ322-5L1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
	VQZ322-5L1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
	VQZ322-5L1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
	VQZ322-5M1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ322-5M1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
	VQZ322-5M1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
	VQZ322-5M1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
	VQZ322-6G1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø6 one-touch
	VQZ322-6G1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø8 one-touch
	VQZ322-6G1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø10 one-touch
	VQZ322-6G1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4
	VQZ322-6L1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ322-6L1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
	VQZ322-6L1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
	VQZ322-6L1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
	VQZ322-6M1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ322-6M1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
	VQZ322-6M1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
	VQZ322-6M1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
	VQZ332-1L1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ332-1L1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
	VQZ332-1L1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
	VQZ332-1L1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
	VQZ332-1M1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ332-1M1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
	VQZ332-1M1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
	VQZ332-1M1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
	VQZ332-2L1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ332-2L1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
	VQZ332-2L1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
	VQZ332-2L1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
	VQZ332-2M1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ332-2M1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
	VQZ332-2M1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
	VQZ332-2M1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
	VQZ332-5G1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø6 one-touch
	VQZ332-5G1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø8 one-touch
	VQZ332-5G1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø10 one-touch
	VQZ332-5G1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4
	VQZ332-5L1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ332-5L1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
	VQZ332-5L1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
	VQZ332-5L1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
	VQZ332-5M1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ332-5M1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
	VQZ332-5M1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
	VQZ332-5M1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
	VQZ332-6G1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø6 one-touch
	VQZ332-6G1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø8 one-touch
	VQZ332-6G1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø10 one-touch
	VQZ332-6G1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4
	VQZ332-6L1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ332-6L1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
	VQZ332-6L1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
	VQZ332-6L1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
	VQZ332-6M1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ332-6M1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
	VQZ332-6M1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
	VQZ332-6M1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
	VQZ342-1L1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ342-1L1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
	VQZ342-1L1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
	VQZ342-1L1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
	VQZ342-1M1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ342-1M1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
	VQZ342-1M1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
	VQZ342-1M1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
	VQZ342-2L1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ342-2L1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
	VQZ342-2L1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
	VQZ342-2L1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
	VQZ342-2M1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ342-2M1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
	VQZ342-2M1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
	VQZ342-2M1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
	VQZ342-5G1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø6 one-touch
	VQZ342-5G1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø8 one-touch
	VQZ342-5G1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø10 one-touch
	VQZ342-5G1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4
	VQZ342-5L1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ342-5L1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
	VQZ342-5L1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
	VQZ342-5L1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
	VQZ342-5M1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ342-5M1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
	VQZ342-5M1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
	VQZ342-5M1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
	VQZ342-6G1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø6 one-touch
	VQZ342-6G1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø8 one-touch
	VQZ342-6G1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø10 one-touch
	VQZ342-6G1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4
	VQZ342-6L1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch
	VQZ342-6L1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø8 one-touch
	VQZ342-6L1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø10 one-touch
	VQZ342-6L1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4
	VQZ342-6M1-C6	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch
	VQZ342-6M1-C8	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø8 one-touch
	VQZ342-6M1-C10	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø10 one-touch
	VQZ342-6M1-02	Series: VQZ300 \| Mounting: Body ported \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4
	VQZ115-1L1-CP	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate / port plug
	VQZ115-1L1-01	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ115-1L1-C3	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø3.2 one-touch, top
	VQZ115-1L1-C4	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch, top
	VQZ115-1L1-C6	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch, top
	VQZ115-1L1-M5	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread, top
	VQZ115-1M1-CP	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate / port plug
	VQZ115-1M1-01	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ115-1M1-C3	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø3.2 one-touch, top
	VQZ115-1M1-C4	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch, top
	VQZ115-1M1-C6	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch, top
	VQZ115-1M1-M5	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread, top
	VQZ115-2L1-CP	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate / port plug
	VQZ115-2L1-01	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ115-2L1-C3	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø3.2 one-touch, top
	VQZ115-2L1-C4	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch, top
	VQZ115-2L1-C6	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch, top
	VQZ115-2L1-M5	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread, top
	VQZ115-2M1-CP	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate / port plug
	VQZ115-2M1-01	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ115-2M1-C3	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø3.2 one-touch, top
	VQZ115-2M1-C4	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch, top
	VQZ115-2M1-C6	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch, top
	VQZ115-2M1-M5	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread, top
	VQZ115-5G1-CP	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate / port plug
	VQZ115-5G1-01	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ115-5G1-C3	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø3.2 one-touch, top
	VQZ115-5G1-C4	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø4 one-touch, top
	VQZ115-5G1-C6	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: ø6 one-touch, top
	VQZ115-5G1-M5	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: M5 thread, top
	VQZ115-5L1-CP	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate / port plug
	VQZ115-5L1-01	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ115-5L1-C3	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø3.2 one-touch, top
	VQZ115-5L1-C4	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch, top
	VQZ115-5L1-C6	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch, top
	VQZ115-5L1-M5	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread, top
	VQZ115-5M1-CP	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate / port plug
	VQZ115-5M1-01	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ115-5M1-C3	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø3.2 one-touch, top
	VQZ115-5M1-C4	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch, top
	VQZ115-5M1-C6	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch, top
	VQZ115-5M1-M5	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread, top
	VQZ115-6G1-CP	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate / port plug
	VQZ115-6G1-01	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ115-6G1-C3	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø3.2 one-touch, top
	VQZ115-6G1-C4	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø4 one-touch, top
	VQZ115-6G1-C6	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: ø6 one-touch, top
	VQZ115-6G1-M5	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: M5 thread, top
	VQZ115-6L1-CP	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate / port plug
	VQZ115-6L1-01	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ115-6L1-C3	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø3.2 one-touch, top
	VQZ115-6L1-C4	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø4 one-touch, top
	VQZ115-6L1-C6	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: ø6 one-touch, top
	VQZ115-6L1-M5	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: M5 thread, top
	VQZ115-6M1-CP	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate / port plug
	VQZ115-6M1-01	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ115-6M1-C3	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø3.2 one-touch, top
	VQZ115-6M1-C4	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø4 one-touch, top
	VQZ115-6M1-C6	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: ø6 one-touch, top
	VQZ115-6M1-M5	Series: VQZ100 \| Mounting: Base mounted \| Switching: N.C., poppet seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: M5 thread, top
	VQZ215-1L1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ215-1L1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ215-1L1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ215-1M1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ215-1M1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ215-1M1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ215-2L1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ215-2L1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ215-2L1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ215-2M1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ215-2M1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ215-2M1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ215-5G1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ215-5G1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ215-5G1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ215-5L1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ215-5L1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ215-5L1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ215-5M1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ215-5M1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ215-5M1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ215-6G1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ215-6G1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ215-6G1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ215-6L1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ215-6L1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ215-6L1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ215-6M1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ215-6M1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ215-6M1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ225-1L1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ225-1L1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ225-1L1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ225-1M1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ225-1M1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ225-1M1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ225-2L1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ225-2L1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ225-2L1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ225-2M1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ225-2M1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ225-2M1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ225-5G1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ225-5G1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ225-5G1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ225-5L1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ225-5L1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ225-5L1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ225-5M1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ225-5M1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ225-5M1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ225-6G1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ225-6G1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ225-6G1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ225-6L1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ225-6L1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ225-6L1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ225-6M1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ225-6M1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ225-6M1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ235-1L1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ235-1L1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ235-1L1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ235-1M1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ235-1M1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ235-1M1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ235-2L1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ235-2L1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ235-2L1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ235-2M1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ235-2M1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ235-2M1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ235-5G1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ235-5G1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ235-5G1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ235-5L1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ235-5L1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ235-5L1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ235-5M1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ235-5M1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ235-5M1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ235-6G1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ235-6G1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ235-6G1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ235-6L1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ235-6L1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ235-6L1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ235-6M1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ235-6M1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ235-6M1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ245-1L1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ245-1L1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ245-1L1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ245-1M1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ245-1M1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ245-1M1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ245-2L1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ245-2L1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ245-2L1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ245-2M1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ245-2M1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ245-2M1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ245-5G1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ245-5G1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ245-5G1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ245-5L1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ245-5L1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ245-5L1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ245-5M1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ245-5M1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ245-5M1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ245-6G1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ245-6G1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ245-6G1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ245-6L1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ245-6L1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ245-6L1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ245-6M1	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ245-6M1-01	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ245-6M1-02	Series: VQZ200 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ315-1L1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ315-1L1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ315-1L1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ315-1M1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ315-1M1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ315-1M1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ315-2L1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ315-2L1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ315-2L1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ315-2M1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ315-2M1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ315-2M1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ315-5G1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ315-5G1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ315-5G1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ315-5L1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ315-5L1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ315-5L1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ315-5M1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ315-5M1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ315-5M1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ315-6G1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ315-6G1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ315-6G1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ315-6L1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ315-6L1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ315-6L1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ315-6M1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ315-6M1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ315-6M1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ325-1L1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ325-1L1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ325-1L1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ325-1M1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ325-1M1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ325-1M1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ325-2L1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ325-2L1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ325-2L1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ325-2M1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ325-2M1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ325-2M1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ325-5G1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ325-5G1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ325-5G1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ325-5L1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ325-5L1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ325-5L1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ325-5M1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ325-5M1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ325-5M1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ325-6G1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ325-6G1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ325-6G1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ325-6L1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ325-6L1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ325-6L1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ325-6M1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ325-6M1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ325-6M1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ335-1L1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ335-1L1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ335-1L1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ335-1M1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ335-1M1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ335-1M1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ335-2L1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ335-2L1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ335-2L1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ335-2M1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ335-2M1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ335-2M1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ335-5G1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ335-5G1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ335-5G1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ335-5L1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ335-5L1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ335-5L1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ335-5M1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ335-5M1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ335-5M1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ335-6G1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ335-6G1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ335-6G1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ335-6L1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ335-6L1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ335-6L1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ335-6M1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ335-6M1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ335-6M1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.C., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ345-1L1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ345-1L1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ345-1L1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ345-1M1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ345-1M1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ345-1M1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ345-2L1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ345-2L1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ345-2L1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ345-2M1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ345-2M1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ345-2M1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ345-5G1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ345-5G1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ345-5G1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ345-5L1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ345-5L1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ345-5L1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ345-5M1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ345-5M1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ345-5M1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ345-6G1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ345-6G1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ345-6G1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ345-6L1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ345-6L1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ345-6L1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ345-6M1	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ345-6M1-02	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ345-6M1-03	Series: VQZ300 \| Mounting: Base mounted \| Switching: N.O., rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC VQZ100/200/300 3-Port Solenoid Valve (Body Ported / Base)
