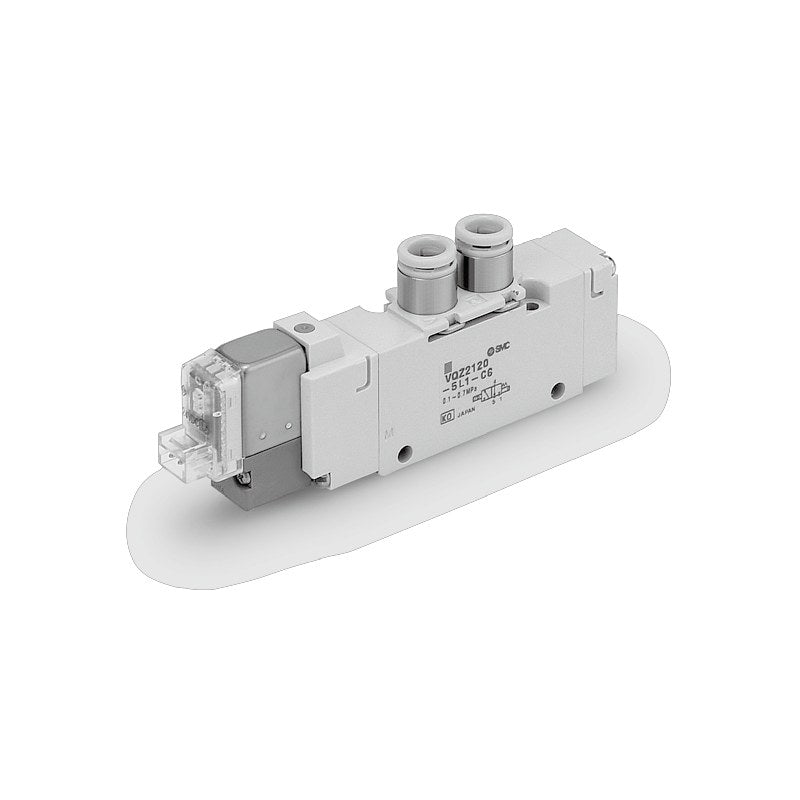

SMC VQZ1000/2000/3000 5-Port Solenoid Valve (Base Mounted)

SMC VQZ1000/2000/3000 series pilot-operated 5-port solenoid valve for base mounting, supplied without sub-plate for VV5QZ manifolds or with a threaded Rc sub-plate for single use.

Key features

Body widths 10/15/18 mm; low power consumption 0.35 W standard (0.9 W high-speed/high-pressure)
Flow rate C [dm³/(s·bar)] metal/rubber seal: VQZ1000 0.70/1.3, VQZ2000 1.9/2.3, VQZ3000 3.0/4.6
Sub-plate ports: VQZ1000 Rc1/8, VQZ2000 Rc1/8 or Rc1/4, VQZ3000 Rc1/4 or Rc3/8
VQZ2000 compact body type (-C) for VV5QZ25C manifolds, rubber seal version with built-in throttle valve (S) for cylinder speed adjustment
Also available: high-speed (B), high-pressure (K), external pilot (R/BR/KR), LO/MO and DIN terminal Y types, lock manual override (B), IP65 (W), CE/UKCA (Q)
Mounting screws and gasket included when ordered as a single valve

Specifications

Fluid	Air
Valve type	Pilot-operated 5-port, base mounted
Max. operating pressure	0.7 MPa (high-pressure type 1.0 MPa)
Min. operating pressure	Metal seal 0.1-0.15 MPa; rubber seal 0.1-0.2 MPa
Ambient and fluid temperature	-10 to 50°C (no condensation)
Lubrication	Not required
Impact/vibration resistance	150/30 m/s²
Power consumption	DC 0.35 W standard (0.4 W with light); 0.9 W high-speed/high-pressure
Allowable voltage fluctuation	±10% of rated voltage
Enclosure	Dustproof (DIN terminal IP65)
Source	SMC Korea catalog VQZ1000/2000/3000 (SMCKR_VQZ1000_2000_3000_New_.pdf), p. 523, 558-559, 579 (PDF p. 1, 36-37, 57)

VQZ1150-1L1		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1150-1L1-01		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1150-1M1		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1150-1M1-01		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1150-2L1		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1150-2L1-01		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1150-2M1		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1150-2M1-01		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1150-5G1		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ1150-5G1-01		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ1150-5L1		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1150-5L1-01		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1150-5M1		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1150-5M1-01		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1150-6G1		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ1150-6G1-01		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ1150-6L1		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1150-6L1-01		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1150-6M1		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1150-6M1-01		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1151-1L1		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1151-1L1-01		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1151-1M1		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1151-1M1-01		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1151-2L1		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1151-2L1-01		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1151-2M1		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1151-2M1-01		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1151-5G1		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ1151-5G1-01		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ1151-5L1		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1151-5L1-01		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1151-5M1		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1151-5M1-01		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1151-6G1		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ1151-6G1-01		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ1151-6L1		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1151-6L1-01		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1151-6M1		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1151-6M1-01		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1250-1L1		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1250-1L1-01		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1250-1M1		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1250-1M1-01		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1250-2L1		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1250-2L1-01		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1250-2M1		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1250-2M1-01		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1250-5G1		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ1250-5G1-01		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ1250-5L1		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1250-5L1-01		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1250-5M1		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1250-5M1-01		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1250-6G1		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ1250-6G1-01		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ1250-6L1		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1250-6L1-01		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1250-6M1		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1250-6M1-01		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1251-1L1		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1251-1L1-01		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1251-1M1		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1251-1M1-01		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1251-2L1		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1251-2L1-01		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1251-2M1		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1251-2M1-01		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1251-5G1		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ1251-5G1-01		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ1251-5L1		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1251-5L1-01		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1251-5M1		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1251-5M1-01		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1251-6G1		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ1251-6G1-01		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ1251-6L1		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1251-6L1-01		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1251-6M1		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1251-6M1-01		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1350-1L1		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1350-1L1-01		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1350-1M1		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1350-1M1-01		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1350-2L1		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1350-2L1-01		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1350-2M1		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1350-2M1-01		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1350-5G1		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ1350-5G1-01		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ1350-5L1		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1350-5L1-01		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1350-5M1		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1350-5M1-01		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1350-6G1		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ1350-6G1-01		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ1350-6L1		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1350-6L1-01		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1350-6M1		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1350-6M1-01		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1351-1L1		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1351-1L1-01		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1351-1M1		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1351-1M1-01		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1351-2L1		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1351-2L1-01		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1351-2M1		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1351-2M1-01		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1351-5G1		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ1351-5G1-01		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ1351-5L1		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1351-5L1-01		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1351-5M1		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1351-5M1-01		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1351-6G1		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ1351-6G1-01		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ1351-6L1		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1351-6L1-01		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1351-6M1		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1351-6M1-01		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1450-1L1		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1450-1L1-01		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1450-1M1		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1450-1M1-01		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1450-2L1		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1450-2L1-01		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1450-2M1		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1450-2M1-01		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1450-5G1		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ1450-5G1-01		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ1450-5L1		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1450-5L1-01		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1450-5M1		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1450-5M1-01		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1450-6G1		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ1450-6G1-01		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ1450-6L1		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1450-6L1-01		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1450-6M1		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1450-6M1-01		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1451-1L1		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1451-1L1-01		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1451-1M1		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1451-1M1-01		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1451-2L1		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1451-2L1-01		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1451-2M1		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1451-2M1-01		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1451-5G1		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ1451-5G1-01		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ1451-5L1		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1451-5L1-01		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1451-5M1		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1451-5M1-01		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1451-6G1		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ1451-6G1-01		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ1451-6L1		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1451-6L1-01		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1451-6M1		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1451-6M1-01		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1551-1L1		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1551-1L1-01		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1551-1M1		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1551-1M1-01		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1551-2L1		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1551-2L1-01		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1551-2M1		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1551-2M1-01		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1551-5G1		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ1551-5G1-01		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ1551-5L1		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1551-5L1-01		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1551-5M1		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1551-5M1-01		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1551-6G1		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ1551-6G1-01		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ1551-6L1		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ1551-6L1-01		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ1551-6M1		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ1551-6M1-01		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2150-1L1		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2150-1L1-01		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2150-1L1-02		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2150-1M1		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2150-1M1-01		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2150-1M1-02		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2150-2L1		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2150-2L1-01		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2150-2L1-02		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2150-2M1		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2150-2M1-01		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2150-2M1-02		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2150-5G1		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2150-5G1-01		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2150-5G1-02		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ2150-5L1		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2150-5L1-01		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2150-5L1-02		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2150-5M1		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2150-5M1-01		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2150-5M1-02		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2150-6G1		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2150-6G1-01		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2150-6G1-02		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ2150-6L1		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2150-6L1-01		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2150-6L1-02		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2150-6M1		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2150-6M1-01		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2150-6M1-02		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2151-1L1		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2151-1L1-01		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151-1L1-02		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2151-1M1		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2151-1M1-01		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151-1M1-02		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2151-2L1		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2151-2L1-01		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151-2L1-02		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2151-2M1		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2151-2M1-01		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151-2M1-02		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2151-5G1		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2151-5G1-01		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2151-5G1-02		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ2151-5L1		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2151-5L1-01		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151-5L1-02		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2151-5M1		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2151-5M1-01		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151-5M1-02		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2151-6G1		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2151-6G1-01		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2151-6G1-02		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ2151-6L1		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2151-6L1-01		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151-6L1-02		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2151-6M1		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2151-6M1-01		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151-6M1-02		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2250-1L1		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2250-1L1-01		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2250-1L1-02		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2250-1M1		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2250-1M1-01		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2250-1M1-02		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2250-2L1		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2250-2L1-01		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2250-2L1-02		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2250-2M1		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2250-2M1-01		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2250-2M1-02		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2250-5G1		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2250-5G1-01		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2250-5G1-02		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ2250-5L1		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2250-5L1-01		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2250-5L1-02		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2250-5M1		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2250-5M1-01		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2250-5M1-02		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2250-6G1		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2250-6G1-01		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2250-6G1-02		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ2250-6L1		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2250-6L1-01		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2250-6L1-02		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2250-6M1		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2250-6M1-01		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2250-6M1-02		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2251-1L1		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2251-1L1-01		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251-1L1-02		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2251-1M1		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2251-1M1-01		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251-1M1-02		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2251-2L1		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2251-2L1-01		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251-2L1-02		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2251-2M1		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2251-2M1-01		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251-2M1-02		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2251-5G1		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2251-5G1-01		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2251-5G1-02		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ2251-5L1		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2251-5L1-01		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251-5L1-02		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2251-5M1		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2251-5M1-01		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251-5M1-02		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2251-6G1		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2251-6G1-01		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2251-6G1-02		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ2251-6L1		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2251-6L1-01		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251-6L1-02		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2251-6M1		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2251-6M1-01		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251-6M1-02		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2350-1L1		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2350-1L1-01		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2350-1L1-02		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2350-1M1		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2350-1M1-01		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2350-1M1-02		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2350-2L1		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2350-2L1-01		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2350-2L1-02		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2350-2M1		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2350-2M1-01		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2350-2M1-02		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2350-5G1		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2350-5G1-01		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2350-5G1-02		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ2350-5L1		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2350-5L1-01		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2350-5L1-02		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2350-5M1		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2350-5M1-01		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2350-5M1-02		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2350-6G1		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2350-6G1-01		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2350-6G1-02		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ2350-6L1		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2350-6L1-01		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2350-6L1-02		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2350-6M1		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2350-6M1-01		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2350-6M1-02		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2351-1L1		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2351-1L1-01		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351-1L1-02		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2351-1M1		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2351-1M1-01		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351-1M1-02		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2351-2L1		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2351-2L1-01		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351-2L1-02		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2351-2M1		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2351-2M1-01		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351-2M1-02		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2351-5G1		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2351-5G1-01		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2351-5G1-02		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ2351-5L1		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2351-5L1-01		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351-5L1-02		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2351-5M1		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2351-5M1-01		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351-5M1-02		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2351-6G1		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2351-6G1-01		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2351-6G1-02		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ2351-6L1		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2351-6L1-01		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351-6L1-02		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2351-6M1		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2351-6M1-01		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351-6M1-02		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2450-1L1		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2450-1L1-01		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2450-1L1-02		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2450-1M1		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2450-1M1-01		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2450-1M1-02		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2450-2L1		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2450-2L1-01		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2450-2L1-02		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2450-2M1		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2450-2M1-01		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2450-2M1-02		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2450-5G1		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2450-5G1-01		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2450-5G1-02		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ2450-5L1		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2450-5L1-01		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2450-5L1-02		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2450-5M1		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2450-5M1-01		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2450-5M1-02		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2450-6G1		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2450-6G1-01		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2450-6G1-02		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ2450-6L1		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2450-6L1-01		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2450-6L1-02		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2450-6M1		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2450-6M1-01		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2450-6M1-02		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2451-1L1		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2451-1L1-01		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451-1L1-02		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2451-1M1		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2451-1M1-01		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451-1M1-02		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2451-2L1		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2451-2L1-01		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451-2L1-02		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2451-2M1		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2451-2M1-01		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451-2M1-02		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2451-5G1		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2451-5G1-01		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2451-5G1-02		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ2451-5L1		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2451-5L1-01		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451-5L1-02		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2451-5M1		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2451-5M1-01		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451-5M1-02		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2451-6G1		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2451-6G1-01		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2451-6G1-02		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ2451-6L1		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2451-6L1-01		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451-6L1-02		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2451-6M1		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2451-6M1-01		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451-6M1-02		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2550-1L1		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2550-1L1-01		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2550-1L1-02		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2550-1M1		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2550-1M1-01		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2550-1M1-02		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2550-2L1		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2550-2L1-01		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2550-2L1-02		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2550-2M1		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2550-2M1-01		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2550-2M1-02		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2550-5G1		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2550-5G1-01		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2550-5G1-02		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ2550-5L1		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2550-5L1-01		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2550-5L1-02		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2550-5M1		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2550-5M1-01		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2550-5M1-02		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2550-6G1		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2550-6G1-01		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2550-6G1-02		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ2550-6L1		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2550-6L1-01		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2550-6L1-02		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2550-6M1		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2550-6M1-01		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2550-6M1-02		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2551-1L1		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2551-1L1-01		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2551-1L1-02		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2551-1M1		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2551-1M1-01		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2551-1M1-02		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2551-2L1		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2551-2L1-01		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2551-2L1-02		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2551-2M1		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2551-2M1-01		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2551-2M1-02		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2551-5G1		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2551-5G1-01		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2551-5G1-02		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ2551-5L1		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2551-5L1-01		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2551-5L1-02		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2551-5M1		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2551-5M1-01		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2551-5M1-02		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2551-6G1		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2551-6G1-01		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2551-6G1-02		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ2551-6L1		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2551-6L1-01		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2551-6L1-02		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ2551-6M1		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2551-6M1-01		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2551-6M1-02		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3150-1L1		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3150-1L1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3150-1L1-03		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3150-1M1		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3150-1M1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3150-1M1-03		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3150-2L1		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3150-2L1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3150-2L1-03		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3150-2M1		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3150-2M1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3150-2M1-03		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3150-5G1		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ3150-5G1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ3150-5G1-03		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ3150-5L1		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3150-5L1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3150-5L1-03		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3150-5M1		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3150-5M1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3150-5M1-03		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3150-6G1		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ3150-6G1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ3150-6G1-03		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ3150-6L1		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3150-6L1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3150-6L1-03		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3150-6M1		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3150-6M1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3150-6M1-03		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3151-1L1		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3151-1L1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3151-1L1-03		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3151-1M1		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3151-1M1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3151-1M1-03		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3151-2L1		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3151-2L1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3151-2L1-03		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3151-2M1		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3151-2M1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3151-2M1-03		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3151-5G1		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ3151-5G1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ3151-5G1-03		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ3151-5L1		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3151-5L1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3151-5L1-03		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3151-5M1		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3151-5M1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3151-5M1-03		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3151-6G1		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ3151-6G1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ3151-6G1-03		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ3151-6L1		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3151-6L1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3151-6L1-03		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3151-6M1		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3151-6M1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3151-6M1-03		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3250-1L1		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3250-1L1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3250-1L1-03		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3250-1M1		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3250-1M1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3250-1M1-03		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3250-2L1		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3250-2L1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3250-2L1-03		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3250-2M1		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3250-2M1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3250-2M1-03		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3250-5G1		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ3250-5G1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ3250-5G1-03		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ3250-5L1		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3250-5L1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3250-5L1-03		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3250-5M1		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3250-5M1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3250-5M1-03		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3250-6G1		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ3250-6G1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ3250-6G1-03		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ3250-6L1		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3250-6L1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3250-6L1-03		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3250-6M1		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3250-6M1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3250-6M1-03		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3251-1L1		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3251-1L1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3251-1L1-03		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3251-1M1		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3251-1M1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3251-1M1-03		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3251-2L1		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3251-2L1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3251-2L1-03		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3251-2M1		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3251-2M1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3251-2M1-03		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3251-5G1		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ3251-5G1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ3251-5G1-03		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ3251-5L1		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3251-5L1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3251-5L1-03		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3251-5M1		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3251-5M1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3251-5M1-03		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3251-6G1		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ3251-6G1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ3251-6G1-03		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ3251-6L1		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3251-6L1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3251-6L1-03		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3251-6M1		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3251-6M1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3251-6M1-03		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3350-1L1		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3350-1L1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3350-1L1-03		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3350-1M1		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3350-1M1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3350-1M1-03		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3350-2L1		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3350-2L1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3350-2L1-03		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3350-2M1		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3350-2M1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3350-2M1-03		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3350-5G1		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ3350-5G1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ3350-5G1-03		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ3350-5L1		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3350-5L1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3350-5L1-03		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3350-5M1		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3350-5M1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3350-5M1-03		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3350-6G1		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ3350-6G1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ3350-6G1-03		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ3350-6L1		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3350-6L1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3350-6L1-03		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3350-6M1		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3350-6M1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3350-6M1-03		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3351-1L1		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3351-1L1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3351-1L1-03		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3351-1M1		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3351-1M1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3351-1M1-03		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3351-2L1		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3351-2L1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3351-2L1-03		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3351-2M1		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3351-2M1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3351-2M1-03		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3351-5G1		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ3351-5G1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ3351-5G1-03		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ3351-5L1		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3351-5L1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3351-5L1-03		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3351-5M1		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3351-5M1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3351-5M1-03		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3351-6G1		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ3351-6G1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ3351-6G1-03		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ3351-6L1		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3351-6L1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3351-6L1-03		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3351-6M1		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3351-6M1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3351-6M1-03		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3450-1L1		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3450-1L1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3450-1L1-03		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3450-1M1		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3450-1M1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3450-1M1-03		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3450-2L1		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3450-2L1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3450-2L1-03		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3450-2M1		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3450-2M1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3450-2M1-03		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3450-5G1		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ3450-5G1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ3450-5G1-03		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ3450-5L1		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3450-5L1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3450-5L1-03		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3450-5M1		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3450-5M1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3450-5M1-03		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3450-6G1		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ3450-6G1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ3450-6G1-03		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ3450-6L1		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3450-6L1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3450-6L1-03		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3450-6M1		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3450-6M1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3450-6M1-03		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3451-1L1		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3451-1L1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3451-1L1-03		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3451-1M1		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3451-1M1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3451-1M1-03		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3451-2L1		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3451-2L1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3451-2L1-03		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3451-2M1		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3451-2M1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3451-2M1-03		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3451-5G1		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ3451-5G1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ3451-5G1-03		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ3451-5L1		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3451-5L1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3451-5L1-03		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3451-5M1		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3451-5M1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3451-5M1-03		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3451-6G1		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ3451-6G1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ3451-6G1-03		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ3451-6L1		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3451-6L1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3451-6L1-03		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3451-6M1		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3451-6M1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3451-6M1-03		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3550-1L1		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3550-1L1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3550-1L1-03		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3550-1M1		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3550-1M1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3550-1M1-03		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3550-2L1		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3550-2L1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3550-2L1-03		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3550-2M1		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3550-2M1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3550-2M1-03		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3550-5G1		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ3550-5G1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ3550-5G1-03		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ3550-5L1		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3550-5L1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3550-5L1-03		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3550-5M1		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3550-5M1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3550-5M1-03		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3550-6G1		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ3550-6G1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ3550-6G1-03		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ3550-6L1		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3550-6L1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3550-6L1-03		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3550-6M1		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3550-6M1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3550-6M1-03		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3551-1L1		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3551-1L1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3551-1L1-03		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3551-1M1		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3551-1M1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3551-1M1-03		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3551-2L1		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3551-2L1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3551-2L1-03		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3551-2M1		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3551-2M1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3551-2M1-03		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3551-5G1		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ3551-5G1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ3551-5G1-03		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ3551-5L1		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3551-5L1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3551-5L1-03		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3551-5M1		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3551-5M1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3551-5M1-03		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3551-6G1		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ3551-6G1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
VQZ3551-6G1-03		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
VQZ3551-6L1		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ3551-6L1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3551-6L1-03		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ3551-6M1		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ3551-6M1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
VQZ3551-6M1-03		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
VQZ2150-1L1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2150-1L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2150-1M1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2150-1M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2150-2L1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2150-2L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2150-2M1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2150-2M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2150-5G1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2150-5G1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2150-5L1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2150-5L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2150-5M1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2150-5M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2150-6G1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2150-6G1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2150-6L1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2150-6L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2150-6M1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2150-6M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151-1L1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2151-1L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151-1M1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2151-1M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151-2L1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2151-2L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151-2M1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2151-2M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151-5G1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2151-5G1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2151-5L1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2151-5L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151-5M1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2151-5M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151-6G1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2151-6G1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2151-6L1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2151-6L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151-6M1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2151-6M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151S-1L1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2151S-1L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151S-1M1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2151S-1M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151S-2L1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2151S-2L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151S-2M1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2151S-2M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151S-5G1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2151S-5G1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2151S-5L1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2151S-5L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151S-5M1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2151S-5M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151S-6G1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2151S-6G1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2151S-6L1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2151S-6L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2151S-6M1-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2151S-6M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2250-1L1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2250-1L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2250-1M1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2250-1M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2250-2L1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2250-2L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2250-2M1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2250-2M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2250-5G1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2250-5G1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2250-5L1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2250-5L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2250-5M1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2250-5M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2250-6G1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2250-6G1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2250-6L1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2250-6L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2250-6M1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2250-6M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251-1L1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2251-1L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251-1M1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2251-1M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251-2L1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2251-2L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251-2M1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2251-2M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251-5G1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2251-5G1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2251-5L1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2251-5L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251-5M1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2251-5M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251-6G1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2251-6G1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2251-6L1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2251-6L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251-6M1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2251-6M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251S-1L1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2251S-1L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251S-1M1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2251S-1M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251S-2L1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2251S-2L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251S-2M1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2251S-2M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251S-5G1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2251S-5G1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2251S-5L1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2251S-5L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251S-5M1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2251S-5M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251S-6G1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2251S-6G1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2251S-6L1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2251S-6L1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2251S-6M1-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2251S-6M1-01-C		Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2350-1L1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2350-1L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2350-1M1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2350-1M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2350-2L1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2350-2L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2350-2M1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2350-2M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2350-5G1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2350-5G1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2350-5L1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2350-5L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2350-5M1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2350-5M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2350-6G1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2350-6G1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2350-6L1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2350-6L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2350-6M1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2350-6M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351-1L1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2351-1L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351-1M1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2351-1M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351-2L1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2351-2L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351-2M1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2351-2M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351-5G1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2351-5G1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2351-5L1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2351-5L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351-5M1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2351-5M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351-6G1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2351-6G1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2351-6L1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2351-6L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351-6M1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2351-6M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351S-1L1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2351S-1L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351S-1M1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2351S-1M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351S-2L1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2351S-2L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351S-2M1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2351S-2M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351S-5G1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2351S-5G1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2351S-5L1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2351S-5L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351S-5M1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2351S-5M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351S-6G1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2351S-6G1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2351S-6L1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2351S-6L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2351S-6M1-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2351S-6M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2450-1L1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2450-1L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2450-1M1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2450-1M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2450-2L1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2450-2L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2450-2M1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2450-2M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2450-5G1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2450-5G1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2450-5L1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2450-5L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2450-5M1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2450-5M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2450-6G1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2450-6G1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2450-6L1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2450-6L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2450-6M1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2450-6M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451-1L1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2451-1L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451-1M1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2451-1M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451-2L1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2451-2L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451-2M1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2451-2M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451-5G1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2451-5G1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2451-5L1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2451-5L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451-5M1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2451-5M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451-6G1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2451-6G1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2451-6L1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2451-6L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451-6M1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2451-6M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451S-1L1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2451S-1L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451S-1M1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2451S-1M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451S-2L1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2451S-2L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451S-2M1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2451S-2M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451S-5G1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2451S-5G1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2451S-5L1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2451S-5L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451S-5M1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2451S-5M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451S-6G1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
VQZ2451S-6G1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
VQZ2451S-6L1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
VQZ2451S-6L1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
VQZ2451S-6M1-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
VQZ2451S-6M1-01-C		Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate

5-Port Solenoid ValvesSMC

1020 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VQZ1000/2000/3000 5-Port Solenoid Valve (Base Mounted)

Brand SMC·5-Port Solenoid Valves

Available part numbers (1020)

VQZ1150-1L1, VQZ1150-1L1-01, VQZ1150-1M1, VQZ1150-1M1-01, VQZ1150-2L1, VQZ1150-2L1-01, VQZ1150-2M1, VQZ1150-2M1-01, VQZ1150-5G1, VQZ1150-5G1-01 + 1010 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	VQZ1150-1L1	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1150-1L1-01	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1150-1M1	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1150-1M1-01	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1150-2L1	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1150-2L1-01	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1150-2M1	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1150-2M1-01	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1150-5G1	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ1150-5G1-01	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ1150-5L1	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1150-5L1-01	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1150-5M1	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1150-5M1-01	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1150-6G1	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ1150-6G1-01	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ1150-6L1	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1150-6L1-01	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1150-6M1	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1150-6M1-01	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1151-1L1	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1151-1L1-01	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1151-1M1	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1151-1M1-01	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1151-2L1	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1151-2L1-01	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1151-2M1	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1151-2M1-01	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1151-5G1	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ1151-5G1-01	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ1151-5L1	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1151-5L1-01	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1151-5M1	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1151-5M1-01	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1151-6G1	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ1151-6G1-01	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ1151-6L1	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1151-6L1-01	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1151-6M1	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1151-6M1-01	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1250-1L1	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1250-1L1-01	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1250-1M1	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1250-1M1-01	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1250-2L1	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1250-2L1-01	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1250-2M1	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1250-2M1-01	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1250-5G1	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ1250-5G1-01	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ1250-5L1	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1250-5L1-01	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1250-5M1	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1250-5M1-01	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1250-6G1	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ1250-6G1-01	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ1250-6L1	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1250-6L1-01	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1250-6M1	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1250-6M1-01	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1251-1L1	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1251-1L1-01	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1251-1M1	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1251-1M1-01	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1251-2L1	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1251-2L1-01	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1251-2M1	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1251-2M1-01	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1251-5G1	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ1251-5G1-01	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ1251-5L1	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1251-5L1-01	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1251-5M1	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1251-5M1-01	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1251-6G1	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ1251-6G1-01	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ1251-6L1	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1251-6L1-01	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1251-6M1	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1251-6M1-01	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1350-1L1	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1350-1L1-01	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1350-1M1	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1350-1M1-01	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1350-2L1	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1350-2L1-01	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1350-2M1	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1350-2M1-01	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1350-5G1	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ1350-5G1-01	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ1350-5L1	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1350-5L1-01	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1350-5M1	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1350-5M1-01	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1350-6G1	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ1350-6G1-01	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ1350-6L1	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1350-6L1-01	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1350-6M1	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1350-6M1-01	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1351-1L1	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1351-1L1-01	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1351-1M1	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1351-1M1-01	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1351-2L1	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1351-2L1-01	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1351-2M1	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1351-2M1-01	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1351-5G1	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ1351-5G1-01	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ1351-5L1	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1351-5L1-01	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1351-5M1	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1351-5M1-01	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1351-6G1	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ1351-6G1-01	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ1351-6L1	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1351-6L1-01	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1351-6M1	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1351-6M1-01	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1450-1L1	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1450-1L1-01	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1450-1M1	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1450-1M1-01	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1450-2L1	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1450-2L1-01	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1450-2M1	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1450-2M1-01	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1450-5G1	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ1450-5G1-01	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ1450-5L1	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1450-5L1-01	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1450-5M1	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1450-5M1-01	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1450-6G1	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ1450-6G1-01	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ1450-6L1	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1450-6L1-01	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1450-6M1	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1450-6M1-01	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1451-1L1	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1451-1L1-01	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1451-1M1	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1451-1M1-01	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1451-2L1	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1451-2L1-01	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1451-2M1	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1451-2M1-01	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1451-5G1	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ1451-5G1-01	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ1451-5L1	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1451-5L1-01	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1451-5M1	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1451-5M1-01	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1451-6G1	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ1451-6G1-01	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ1451-6L1	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1451-6L1-01	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1451-6M1	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1451-6M1-01	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1551-1L1	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1551-1L1-01	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1551-1M1	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1551-1M1-01	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1551-2L1	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1551-2L1-01	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1551-2M1	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1551-2M1-01	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1551-5G1	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ1551-5G1-01	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ1551-5L1	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1551-5L1-01	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1551-5M1	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1551-5M1-01	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1551-6G1	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ1551-6G1-01	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ1551-6L1	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ1551-6L1-01	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ1551-6M1	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ1551-6M1-01	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2150-1L1	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2150-1L1-01	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2150-1L1-02	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2150-1M1	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2150-1M1-01	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2150-1M1-02	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2150-2L1	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2150-2L1-01	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2150-2L1-02	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2150-2M1	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2150-2M1-01	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2150-2M1-02	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2150-5G1	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2150-5G1-01	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2150-5G1-02	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ2150-5L1	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2150-5L1-01	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2150-5L1-02	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2150-5M1	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2150-5M1-01	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2150-5M1-02	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2150-6G1	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2150-6G1-01	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2150-6G1-02	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ2150-6L1	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2150-6L1-01	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2150-6L1-02	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2150-6M1	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2150-6M1-01	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2150-6M1-02	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2151-1L1	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2151-1L1-01	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151-1L1-02	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2151-1M1	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2151-1M1-01	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151-1M1-02	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2151-2L1	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2151-2L1-01	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151-2L1-02	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2151-2M1	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2151-2M1-01	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151-2M1-02	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2151-5G1	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2151-5G1-01	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2151-5G1-02	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ2151-5L1	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2151-5L1-01	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151-5L1-02	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2151-5M1	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2151-5M1-01	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151-5M1-02	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2151-6G1	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2151-6G1-01	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2151-6G1-02	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ2151-6L1	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2151-6L1-01	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151-6L1-02	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2151-6M1	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2151-6M1-01	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151-6M1-02	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2250-1L1	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2250-1L1-01	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2250-1L1-02	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2250-1M1	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2250-1M1-01	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2250-1M1-02	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2250-2L1	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2250-2L1-01	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2250-2L1-02	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2250-2M1	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2250-2M1-01	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2250-2M1-02	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2250-5G1	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2250-5G1-01	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2250-5G1-02	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ2250-5L1	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2250-5L1-01	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2250-5L1-02	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2250-5M1	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2250-5M1-01	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2250-5M1-02	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2250-6G1	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2250-6G1-01	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2250-6G1-02	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ2250-6L1	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2250-6L1-01	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2250-6L1-02	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2250-6M1	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2250-6M1-01	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2250-6M1-02	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2251-1L1	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2251-1L1-01	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251-1L1-02	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2251-1M1	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2251-1M1-01	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251-1M1-02	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2251-2L1	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2251-2L1-01	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251-2L1-02	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2251-2M1	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2251-2M1-01	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251-2M1-02	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2251-5G1	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2251-5G1-01	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2251-5G1-02	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ2251-5L1	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2251-5L1-01	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251-5L1-02	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2251-5M1	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2251-5M1-01	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251-5M1-02	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2251-6G1	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2251-6G1-01	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2251-6G1-02	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ2251-6L1	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2251-6L1-01	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251-6L1-02	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2251-6M1	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2251-6M1-01	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251-6M1-02	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2350-1L1	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2350-1L1-01	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2350-1L1-02	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2350-1M1	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2350-1M1-01	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2350-1M1-02	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2350-2L1	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2350-2L1-01	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2350-2L1-02	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2350-2M1	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2350-2M1-01	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2350-2M1-02	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2350-5G1	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2350-5G1-01	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2350-5G1-02	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ2350-5L1	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2350-5L1-01	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2350-5L1-02	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2350-5M1	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2350-5M1-01	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2350-5M1-02	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2350-6G1	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2350-6G1-01	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2350-6G1-02	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ2350-6L1	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2350-6L1-01	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2350-6L1-02	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2350-6M1	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2350-6M1-01	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2350-6M1-02	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2351-1L1	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2351-1L1-01	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351-1L1-02	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2351-1M1	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2351-1M1-01	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351-1M1-02	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2351-2L1	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2351-2L1-01	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351-2L1-02	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2351-2M1	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2351-2M1-01	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351-2M1-02	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2351-5G1	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2351-5G1-01	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2351-5G1-02	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ2351-5L1	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2351-5L1-01	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351-5L1-02	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2351-5M1	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2351-5M1-01	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351-5M1-02	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2351-6G1	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2351-6G1-01	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2351-6G1-02	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ2351-6L1	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2351-6L1-01	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351-6L1-02	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2351-6M1	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2351-6M1-01	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351-6M1-02	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2450-1L1	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2450-1L1-01	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2450-1L1-02	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2450-1M1	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2450-1M1-01	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2450-1M1-02	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2450-2L1	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2450-2L1-01	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2450-2L1-02	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2450-2M1	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2450-2M1-01	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2450-2M1-02	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2450-5G1	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2450-5G1-01	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2450-5G1-02	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ2450-5L1	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2450-5L1-01	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2450-5L1-02	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2450-5M1	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2450-5M1-01	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2450-5M1-02	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2450-6G1	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2450-6G1-01	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2450-6G1-02	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ2450-6L1	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2450-6L1-01	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2450-6L1-02	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2450-6M1	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2450-6M1-01	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2450-6M1-02	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2451-1L1	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2451-1L1-01	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451-1L1-02	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2451-1M1	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2451-1M1-01	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451-1M1-02	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2451-2L1	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2451-2L1-01	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451-2L1-02	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2451-2M1	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2451-2M1-01	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451-2M1-02	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2451-5G1	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2451-5G1-01	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2451-5G1-02	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ2451-5L1	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2451-5L1-01	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451-5L1-02	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2451-5M1	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2451-5M1-01	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451-5M1-02	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2451-6G1	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2451-6G1-01	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2451-6G1-02	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ2451-6L1	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2451-6L1-01	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451-6L1-02	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2451-6M1	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2451-6M1-01	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451-6M1-02	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2550-1L1	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2550-1L1-01	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2550-1L1-02	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2550-1M1	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2550-1M1-01	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2550-1M1-02	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2550-2L1	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2550-2L1-01	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2550-2L1-02	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2550-2M1	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2550-2M1-01	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2550-2M1-02	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2550-5G1	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2550-5G1-01	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2550-5G1-02	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ2550-5L1	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2550-5L1-01	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2550-5L1-02	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2550-5M1	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2550-5M1-01	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2550-5M1-02	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2550-6G1	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2550-6G1-01	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2550-6G1-02	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ2550-6L1	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2550-6L1-01	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2550-6L1-02	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2550-6M1	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2550-6M1-01	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2550-6M1-02	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2551-1L1	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2551-1L1-01	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2551-1L1-02	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2551-1M1	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2551-1M1-01	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2551-1M1-02	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2551-2L1	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2551-2L1-01	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2551-2L1-02	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2551-2M1	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2551-2M1-01	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2551-2M1-02	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2551-5G1	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2551-5G1-01	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2551-5G1-02	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ2551-5L1	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2551-5L1-01	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2551-5L1-02	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2551-5M1	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2551-5M1-01	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2551-5M1-02	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2551-6G1	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2551-6G1-01	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2551-6G1-02	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ2551-6L1	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2551-6L1-01	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2551-6L1-02	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ2551-6M1	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2551-6M1-01	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2551-6M1-02	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3150-1L1	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3150-1L1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3150-1L1-03	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3150-1M1	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3150-1M1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3150-1M1-03	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3150-2L1	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3150-2L1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3150-2L1-03	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3150-2M1	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3150-2M1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3150-2M1-03	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3150-5G1	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ3150-5G1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ3150-5G1-03	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ3150-5L1	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3150-5L1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3150-5L1-03	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3150-5M1	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3150-5M1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3150-5M1-03	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3150-6G1	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ3150-6G1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ3150-6G1-03	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ3150-6L1	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3150-6L1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3150-6L1-03	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3150-6M1	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3150-6M1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3150-6M1-03	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3151-1L1	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3151-1L1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3151-1L1-03	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3151-1M1	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3151-1M1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3151-1M1-03	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3151-2L1	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3151-2L1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3151-2L1-03	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3151-2M1	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3151-2M1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3151-2M1-03	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3151-5G1	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ3151-5G1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ3151-5G1-03	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ3151-5L1	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3151-5L1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3151-5L1-03	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3151-5M1	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3151-5M1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3151-5M1-03	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3151-6G1	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ3151-6G1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ3151-6G1-03	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ3151-6L1	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3151-6L1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3151-6L1-03	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3151-6M1	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3151-6M1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3151-6M1-03	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3250-1L1	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3250-1L1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3250-1L1-03	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3250-1M1	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3250-1M1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3250-1M1-03	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3250-2L1	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3250-2L1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3250-2L1-03	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3250-2M1	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3250-2M1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3250-2M1-03	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3250-5G1	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ3250-5G1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ3250-5G1-03	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ3250-5L1	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3250-5L1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3250-5L1-03	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3250-5M1	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3250-5M1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3250-5M1-03	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3250-6G1	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ3250-6G1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ3250-6G1-03	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ3250-6L1	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3250-6L1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3250-6L1-03	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3250-6M1	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3250-6M1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3250-6M1-03	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3251-1L1	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3251-1L1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3251-1L1-03	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3251-1M1	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3251-1M1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3251-1M1-03	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3251-2L1	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3251-2L1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3251-2L1-03	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3251-2M1	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3251-2M1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3251-2M1-03	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3251-5G1	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ3251-5G1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ3251-5G1-03	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ3251-5L1	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3251-5L1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3251-5L1-03	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3251-5M1	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3251-5M1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3251-5M1-03	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3251-6G1	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ3251-6G1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ3251-6G1-03	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ3251-6L1	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3251-6L1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3251-6L1-03	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3251-6M1	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3251-6M1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3251-6M1-03	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3350-1L1	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3350-1L1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3350-1L1-03	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3350-1M1	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3350-1M1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3350-1M1-03	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3350-2L1	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3350-2L1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3350-2L1-03	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3350-2M1	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3350-2M1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3350-2M1-03	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3350-5G1	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ3350-5G1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ3350-5G1-03	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ3350-5L1	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3350-5L1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3350-5L1-03	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3350-5M1	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3350-5M1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3350-5M1-03	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3350-6G1	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ3350-6G1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ3350-6G1-03	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ3350-6L1	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3350-6L1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3350-6L1-03	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3350-6M1	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3350-6M1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3350-6M1-03	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3351-1L1	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3351-1L1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3351-1L1-03	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3351-1M1	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3351-1M1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3351-1M1-03	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3351-2L1	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3351-2L1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3351-2L1-03	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3351-2M1	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3351-2M1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3351-2M1-03	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3351-5G1	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ3351-5G1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ3351-5G1-03	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ3351-5L1	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3351-5L1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3351-5L1-03	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3351-5M1	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3351-5M1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3351-5M1-03	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3351-6G1	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ3351-6G1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ3351-6G1-03	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ3351-6L1	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3351-6L1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3351-6L1-03	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3351-6M1	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3351-6M1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3351-6M1-03	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3450-1L1	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3450-1L1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3450-1L1-03	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3450-1M1	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3450-1M1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3450-1M1-03	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3450-2L1	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3450-2L1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3450-2L1-03	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3450-2M1	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3450-2M1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3450-2M1-03	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3450-5G1	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ3450-5G1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ3450-5G1-03	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ3450-5L1	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3450-5L1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3450-5L1-03	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3450-5M1	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3450-5M1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3450-5M1-03	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3450-6G1	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ3450-6G1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ3450-6G1-03	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ3450-6L1	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3450-6L1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3450-6L1-03	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3450-6M1	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3450-6M1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3450-6M1-03	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3451-1L1	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3451-1L1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3451-1L1-03	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3451-1M1	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3451-1M1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3451-1M1-03	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3451-2L1	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3451-2L1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3451-2L1-03	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3451-2M1	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3451-2M1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3451-2M1-03	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3451-5G1	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ3451-5G1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ3451-5G1-03	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ3451-5L1	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3451-5L1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3451-5L1-03	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3451-5M1	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3451-5M1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3451-5M1-03	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3451-6G1	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ3451-6G1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ3451-6G1-03	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ3451-6L1	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3451-6L1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3451-6L1-03	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3451-6M1	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3451-6M1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3451-6M1-03	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3550-1L1	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3550-1L1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3550-1L1-03	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3550-1M1	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3550-1M1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3550-1M1-03	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3550-2L1	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3550-2L1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3550-2L1-03	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3550-2M1	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3550-2M1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3550-2M1-03	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3550-5G1	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ3550-5G1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ3550-5G1-03	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ3550-5L1	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3550-5L1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3550-5L1-03	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3550-5M1	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3550-5M1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3550-5M1-03	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3550-6G1	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ3550-6G1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ3550-6G1-03	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ3550-6L1	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3550-6L1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3550-6L1-03	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3550-6M1	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3550-6M1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3550-6M1-03	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3551-1L1	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3551-1L1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3551-1L1-03	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3551-1M1	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3551-1M1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3551-1M1-03	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3551-2L1	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3551-2L1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3551-2L1-03	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3551-2M1	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3551-2M1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3551-2M1-03	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3551-5G1	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ3551-5G1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ3551-5G1-03	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ3551-5L1	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3551-5L1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3551-5L1-03	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3551-5M1	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3551-5M1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3551-5M1-03	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3551-6G1	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ3551-6G1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/4 sub-plate
	VQZ3551-6G1-03	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc3/8 sub-plate
	VQZ3551-6L1	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ3551-6L1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3551-6L1-03	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ3551-6M1	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ3551-6M1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/4 sub-plate
	VQZ3551-6M1-03	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc3/8 sub-plate
	VQZ2150-1L1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2150-1L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2150-1M1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2150-1M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2150-2L1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2150-2L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2150-2M1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2150-2M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2150-5G1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2150-5G1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2150-5L1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2150-5L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2150-5M1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2150-5M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2150-6G1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2150-6G1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2150-6L1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2150-6L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2150-6M1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2150-6M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151-1L1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2151-1L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151-1M1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2151-1M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151-2L1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2151-2L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151-2M1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2151-2M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151-5G1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2151-5G1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2151-5L1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2151-5L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151-5M1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2151-5M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151-6G1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2151-6G1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2151-6L1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2151-6L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151-6M1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2151-6M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151S-1L1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2151S-1L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151S-1M1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2151S-1M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151S-2L1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2151S-2L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151S-2M1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2151S-2M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151S-5G1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2151S-5G1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2151S-5L1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2151S-5L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151S-5M1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2151S-5M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151S-6G1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2151S-6G1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2151S-6L1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2151S-6L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2151S-6M1-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2151S-6M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos single \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2250-1L1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2250-1L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2250-1M1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2250-1M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2250-2L1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2250-2L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2250-2M1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2250-2M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2250-5G1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2250-5G1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2250-5L1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2250-5L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2250-5M1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2250-5M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2250-6G1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2250-6G1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2250-6L1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2250-6L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2250-6M1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2250-6M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251-1L1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2251-1L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251-1M1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2251-1M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251-2L1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2251-2L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251-2M1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2251-2M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251-5G1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2251-5G1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2251-5L1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2251-5L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251-5M1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2251-5M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251-6G1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2251-6G1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2251-6L1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2251-6L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251-6M1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2251-6M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251S-1L1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2251S-1L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251S-1M1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2251S-1M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251S-2L1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2251S-2L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251S-2M1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2251S-2M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251S-5G1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2251S-5G1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2251S-5L1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2251S-5L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251S-5M1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2251S-5M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251S-6G1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2251S-6G1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2251S-6L1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2251S-6L1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2251S-6M1-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2251S-6M1-01-C	Series: VQZ2000 compact body \| Switching: 2-pos double \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2350-1L1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2350-1L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2350-1M1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2350-1M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2350-2L1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2350-2L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2350-2M1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2350-2M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2350-5G1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2350-5G1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2350-5L1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2350-5L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2350-5M1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2350-5M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2350-6G1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2350-6G1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2350-6L1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2350-6L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2350-6M1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2350-6M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351-1L1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2351-1L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351-1M1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2351-1M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351-2L1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2351-2L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351-2M1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2351-2M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351-5G1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2351-5G1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2351-5L1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2351-5L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351-5M1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2351-5M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351-6G1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2351-6G1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2351-6L1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2351-6L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351-6M1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2351-6M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351S-1L1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2351S-1L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351S-1M1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2351S-1M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351S-2L1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2351S-2L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351S-2M1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2351S-2M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351S-5G1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2351S-5G1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2351S-5L1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2351S-5L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351S-5M1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2351S-5M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351S-6G1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2351S-6G1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2351S-6L1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2351S-6L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2351S-6M1-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2351S-6M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos closed center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2450-1L1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2450-1L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2450-1M1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2450-1M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2450-2L1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2450-2L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2450-2M1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2450-2M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2450-5G1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2450-5G1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2450-5L1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2450-5L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2450-5M1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2450-5M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2450-6G1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2450-6G1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2450-6L1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2450-6L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2450-6M1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2450-6M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451-1L1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2451-1L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451-1M1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2451-1M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451-2L1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2451-2L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451-2M1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2451-2M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451-5G1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2451-5G1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2451-5L1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2451-5L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451-5M1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2451-5M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451-6G1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2451-6G1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2451-6L1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2451-6L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451-6M1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2451-6M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451S-1L1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2451S-1L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451S-1M1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2451S-1M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451S-2L1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2451S-2L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451S-2M1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2451S-2M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451S-5G1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2451S-5G1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2451S-5L1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2451S-5L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451S-5M1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2451S-5M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451S-6G1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Without sub-plate
	VQZ2451S-6G1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: Grommet \| Port: Rc1/8 sub-plate
	VQZ2451S-6L1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Without sub-plate
	VQZ2451S-6L1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| Port: Rc1/8 sub-plate
	VQZ2451S-6M1-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Without sub-plate
	VQZ2451S-6M1-01-C	Series: VQZ2000 compact body \| Switching: 3-pos exhaust center \| Seal: Rubber seal, throttle \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| Port: Rc1/8 sub-plate

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC VQZ1000/2000/3000 5-Port Solenoid Valve (Base Mounted)
