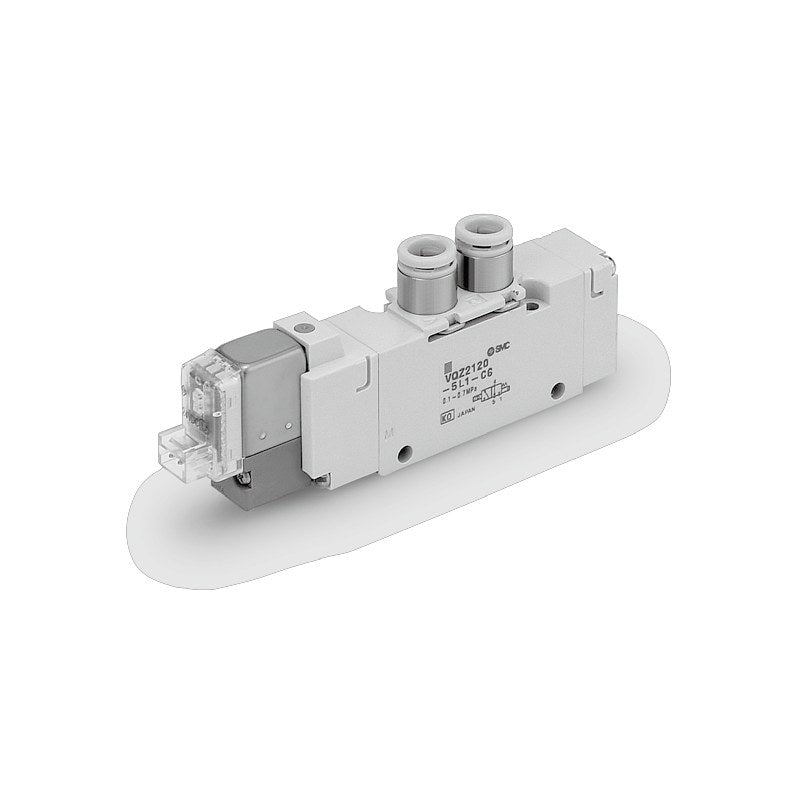

SMC VQZ1000/2000/3000 5-Port Solenoid Valve (Body Ported)

SMC VQZ1000/2000/3000 series compact, high-flow pilot-operated 5-port solenoid valve, body ported for direct piping as a single unit or on a VV5QZ manifold, with metal or rubber seal.

Key features

Body widths 10 mm (VQZ1000), 15 mm (VQZ2000) and 18 mm (VQZ3000); low power consumption 0.35 W standard
Switching: 2-position single/double, 3-position closed, exhaust and pressure center (no metal seal pressure center on VQZ1000)
Flow rate C [dm³/(s·bar)] metal/rubber seal: VQZ1000 0.54/0.71, VQZ2000 1.4/1.6, VQZ3000 2.4/3.2
Listed codes: standard type, non-locking push manual override, grommet (DC) or L/M plug connector with lead wire
Also available: high-speed (B), high-pressure 1.0 MPa (K), external pilot (R/BR/KR), LO/MO connector-less and DIN terminal Y types (VQZ2000/3000), lock manual override (B), IP65 (W), bracket (F), CE/UKCA (Q)
Mixed 3-port valves (switching 8/9) for manifold mounting; manifold mounting screws and gasket not included with single valves

Specifications

Fluid	Air
Valve type	Pilot-operated 5-port, body ported (direct piping)
Max. operating pressure	0.7 MPa (high-pressure type 1.0 MPa)
Min. operating pressure	Metal seal 0.1-0.15 MPa; rubber seal 0.1-0.2 MPa
Ambient and fluid temperature	-10 to 50°C (no condensation)
Pilot exhaust	Individual exhaust
Lubrication	Not required
Impact/vibration resistance	150/30 m/s²
Power consumption	DC 0.35 W standard (0.4 W with light); 0.9 W high-speed/high-pressure
Allowable voltage fluctuation	±10% of rated voltage
Enclosure	Dustproof (DIN terminal IP65)
Source	SMC Korea catalog VQZ1000/2000/3000 (SMCKR_VQZ1000_2000_3000_New_.pdf), p. 523, 529-530 (PDF p. 1, 7-8)

VQZ1120-1L1-C3		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1120-1L1-C4		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1120-1L1-C6		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1120-1L1-M5		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1120-1M1-C3		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1120-1M1-C4		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1120-1M1-C6		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1120-1M1-M5		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1120-2L1-C3		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1120-2L1-C4		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1120-2L1-C6		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1120-2L1-M5		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1120-2M1-C3		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1120-2M1-C4		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1120-2M1-C6		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1120-2M1-M5		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1120-5G1-C3		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
VQZ1120-5G1-C4		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ1120-5G1-C6		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ1120-5G1-M5		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ1120-5L1-C3		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1120-5L1-C4		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1120-5L1-C6		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1120-5L1-M5		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1120-5M1-C3		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1120-5M1-C4		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1120-5M1-C6		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1120-5M1-M5		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1120-6G1-C3		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
VQZ1120-6G1-C4		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ1120-6G1-C6		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ1120-6G1-M5		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ1120-6L1-C3		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1120-6L1-C4		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1120-6L1-C6		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1120-6L1-M5		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1120-6M1-C3		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1120-6M1-C4		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1120-6M1-C6		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1120-6M1-M5		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1121-1L1-C3		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1121-1L1-C4		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1121-1L1-C6		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1121-1L1-M5		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1121-1M1-C3		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1121-1M1-C4		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1121-1M1-C6		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1121-1M1-M5		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1121-2L1-C3		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1121-2L1-C4		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1121-2L1-C6		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1121-2L1-M5		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1121-2M1-C3		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1121-2M1-C4		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1121-2M1-C6		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1121-2M1-M5		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1121-5G1-C3		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
VQZ1121-5G1-C4		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ1121-5G1-C6		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ1121-5G1-M5		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ1121-5L1-C3		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1121-5L1-C4		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1121-5L1-C6		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1121-5L1-M5		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1121-5M1-C3		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1121-5M1-C4		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1121-5M1-C6		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1121-5M1-M5		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1121-6G1-C3		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
VQZ1121-6G1-C4		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ1121-6G1-C6		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ1121-6G1-M5		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ1121-6L1-C3		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1121-6L1-C4		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1121-6L1-C6		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1121-6L1-M5		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1121-6M1-C3		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1121-6M1-C4		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1121-6M1-C6		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1121-6M1-M5		Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1220-1L1-C3		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1220-1L1-C4		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1220-1L1-C6		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1220-1L1-M5		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1220-1M1-C3		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1220-1M1-C4		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1220-1M1-C6		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1220-1M1-M5		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1220-2L1-C3		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1220-2L1-C4		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1220-2L1-C6		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1220-2L1-M5		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1220-2M1-C3		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1220-2M1-C4		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1220-2M1-C6		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1220-2M1-M5		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1220-5G1-C3		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
VQZ1220-5G1-C4		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ1220-5G1-C6		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ1220-5G1-M5		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ1220-5L1-C3		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1220-5L1-C4		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1220-5L1-C6		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1220-5L1-M5		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1220-5M1-C3		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1220-5M1-C4		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1220-5M1-C6		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1220-5M1-M5		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1220-6G1-C3		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
VQZ1220-6G1-C4		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ1220-6G1-C6		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ1220-6G1-M5		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ1220-6L1-C3		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1220-6L1-C4		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1220-6L1-C6		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1220-6L1-M5		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1220-6M1-C3		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1220-6M1-C4		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1220-6M1-C6		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1220-6M1-M5		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1221-1L1-C3		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1221-1L1-C4		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1221-1L1-C6		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1221-1L1-M5		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1221-1M1-C3		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1221-1M1-C4		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1221-1M1-C6		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1221-1M1-M5		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1221-2L1-C3		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1221-2L1-C4		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1221-2L1-C6		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1221-2L1-M5		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1221-2M1-C3		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1221-2M1-C4		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1221-2M1-C6		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1221-2M1-M5		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1221-5G1-C3		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
VQZ1221-5G1-C4		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ1221-5G1-C6		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ1221-5G1-M5		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ1221-5L1-C3		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1221-5L1-C4		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1221-5L1-C6		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1221-5L1-M5		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1221-5M1-C3		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1221-5M1-C4		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1221-5M1-C6		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1221-5M1-M5		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1221-6G1-C3		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
VQZ1221-6G1-C4		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ1221-6G1-C6		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ1221-6G1-M5		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ1221-6L1-C3		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1221-6L1-C4		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1221-6L1-C6		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1221-6L1-M5		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1221-6M1-C3		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1221-6M1-C4		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1221-6M1-C6		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1221-6M1-M5		Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1320-1L1-C3		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1320-1L1-C4		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1320-1L1-C6		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1320-1L1-M5		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1320-1M1-C3		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1320-1M1-C4		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1320-1M1-C6		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1320-1M1-M5		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1320-2L1-C3		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1320-2L1-C4		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1320-2L1-C6		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1320-2L1-M5		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1320-2M1-C3		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1320-2M1-C4		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1320-2M1-C6		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1320-2M1-M5		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1320-5G1-C3		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
VQZ1320-5G1-C4		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ1320-5G1-C6		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ1320-5G1-M5		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ1320-5L1-C3		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1320-5L1-C4		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1320-5L1-C6		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1320-5L1-M5		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1320-5M1-C3		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1320-5M1-C4		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1320-5M1-C6		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1320-5M1-M5		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1320-6G1-C3		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
VQZ1320-6G1-C4		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ1320-6G1-C6		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ1320-6G1-M5		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ1320-6L1-C3		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1320-6L1-C4		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1320-6L1-C6		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1320-6L1-M5		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1320-6M1-C3		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1320-6M1-C4		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1320-6M1-C6		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1320-6M1-M5		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1321-1L1-C3		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1321-1L1-C4		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1321-1L1-C6		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1321-1L1-M5		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1321-1M1-C3		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1321-1M1-C4		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1321-1M1-C6		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1321-1M1-M5		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1321-2L1-C3		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1321-2L1-C4		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1321-2L1-C6		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1321-2L1-M5		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1321-2M1-C3		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1321-2M1-C4		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1321-2M1-C6		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1321-2M1-M5		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1321-5G1-C3		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
VQZ1321-5G1-C4		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ1321-5G1-C6		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ1321-5G1-M5		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ1321-5L1-C3		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1321-5L1-C4		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1321-5L1-C6		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1321-5L1-M5		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1321-5M1-C3		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1321-5M1-C4		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1321-5M1-C6		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1321-5M1-M5		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1321-6G1-C3		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
VQZ1321-6G1-C4		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ1321-6G1-C6		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ1321-6G1-M5		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ1321-6L1-C3		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1321-6L1-C4		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1321-6L1-C6		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1321-6L1-M5		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1321-6M1-C3		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1321-6M1-C4		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1321-6M1-C6		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1321-6M1-M5		Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1420-1L1-C3		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1420-1L1-C4		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1420-1L1-C6		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1420-1L1-M5		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1420-1M1-C3		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1420-1M1-C4		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1420-1M1-C6		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1420-1M1-M5		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1420-2L1-C3		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1420-2L1-C4		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1420-2L1-C6		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1420-2L1-M5		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1420-2M1-C3		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1420-2M1-C4		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1420-2M1-C6		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1420-2M1-M5		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1420-5G1-C3		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
VQZ1420-5G1-C4		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ1420-5G1-C6		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ1420-5G1-M5		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ1420-5L1-C3		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1420-5L1-C4		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1420-5L1-C6		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1420-5L1-M5		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1420-5M1-C3		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1420-5M1-C4		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1420-5M1-C6		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1420-5M1-M5		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1420-6G1-C3		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
VQZ1420-6G1-C4		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ1420-6G1-C6		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ1420-6G1-M5		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ1420-6L1-C3		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1420-6L1-C4		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1420-6L1-C6		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1420-6L1-M5		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1420-6M1-C3		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1420-6M1-C4		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1420-6M1-C6		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1420-6M1-M5		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1421-1L1-C3		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1421-1L1-C4		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1421-1L1-C6		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1421-1L1-M5		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1421-1M1-C3		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1421-1M1-C4		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1421-1M1-C6		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1421-1M1-M5		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1421-2L1-C3		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1421-2L1-C4		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1421-2L1-C6		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1421-2L1-M5		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1421-2M1-C3		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1421-2M1-C4		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1421-2M1-C6		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1421-2M1-M5		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1421-5G1-C3		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
VQZ1421-5G1-C4		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ1421-5G1-C6		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ1421-5G1-M5		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ1421-5L1-C3		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1421-5L1-C4		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1421-5L1-C6		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1421-5L1-M5		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1421-5M1-C3		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1421-5M1-C4		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1421-5M1-C6		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1421-5M1-M5		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1421-6G1-C3		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
VQZ1421-6G1-C4		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ1421-6G1-C6		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ1421-6G1-M5		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ1421-6L1-C3		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1421-6L1-C4		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1421-6L1-C6		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1421-6L1-M5		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1421-6M1-C3		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1421-6M1-C4		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1421-6M1-C6		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1421-6M1-M5		Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1521-1L1-C3		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1521-1L1-C4		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1521-1L1-C6		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1521-1L1-M5		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1521-1M1-C3		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1521-1M1-C4		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1521-1M1-C6		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1521-1M1-M5		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1521-2L1-C3		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1521-2L1-C4		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1521-2L1-C6		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1521-2L1-M5		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1521-2M1-C3		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1521-2M1-C4		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1521-2M1-C6		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1521-2M1-M5		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1521-5G1-C3		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
VQZ1521-5G1-C4		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ1521-5G1-C6		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ1521-5G1-M5		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ1521-5L1-C3		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1521-5L1-C4		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1521-5L1-C6		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1521-5L1-M5		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1521-5M1-C3		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1521-5M1-C4		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1521-5M1-C6		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1521-5M1-M5		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ1521-6G1-C3		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
VQZ1521-6G1-C4		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ1521-6G1-C6		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ1521-6G1-M5		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ1521-6L1-C3		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1521-6L1-C4		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1521-6L1-C6		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1521-6L1-M5		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ1521-6M1-C3		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
VQZ1521-6M1-C4		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ1521-6M1-C6		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ1521-6M1-M5		Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2120-1L1-C4		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2120-1L1-C6		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2120-1L1-M5		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2120-1M1-C4		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2120-1M1-C6		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2120-1M1-M5		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2120-2L1-C4		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2120-2L1-C6		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2120-2L1-M5		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2120-2M1-C4		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2120-2M1-C6		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2120-2M1-M5		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2120-5G1-C4		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ2120-5G1-C6		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ2120-5G1-M5		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ2120-5L1-C4		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2120-5L1-C6		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2120-5L1-M5		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2120-5M1-C4		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2120-5M1-C6		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2120-5M1-M5		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2120-6G1-C4		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ2120-6G1-C6		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ2120-6G1-M5		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ2120-6L1-C4		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2120-6L1-C6		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2120-6L1-M5		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2120-6M1-C4		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2120-6M1-C6		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2120-6M1-M5		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2121-1L1-C4		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2121-1L1-C6		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2121-1L1-M5		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2121-1M1-C4		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2121-1M1-C6		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2121-1M1-M5		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2121-2L1-C4		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2121-2L1-C6		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2121-2L1-M5		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2121-2M1-C4		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2121-2M1-C6		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2121-2M1-M5		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2121-5G1-C4		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ2121-5G1-C6		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ2121-5G1-M5		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ2121-5L1-C4		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2121-5L1-C6		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2121-5L1-M5		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2121-5M1-C4		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2121-5M1-C6		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2121-5M1-M5		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2121-6G1-C4		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ2121-6G1-C6		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ2121-6G1-M5		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ2121-6L1-C4		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2121-6L1-C6		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2121-6L1-M5		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2121-6M1-C4		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2121-6M1-C6		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2121-6M1-M5		Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2220-1L1-C4		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2220-1L1-C6		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2220-1L1-M5		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2220-1M1-C4		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2220-1M1-C6		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2220-1M1-M5		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2220-2L1-C4		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2220-2L1-C6		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2220-2L1-M5		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2220-2M1-C4		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2220-2M1-C6		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2220-2M1-M5		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2220-5G1-C4		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ2220-5G1-C6		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ2220-5G1-M5		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ2220-5L1-C4		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2220-5L1-C6		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2220-5L1-M5		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2220-5M1-C4		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2220-5M1-C6		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2220-5M1-M5		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2220-6G1-C4		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ2220-6G1-C6		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ2220-6G1-M5		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ2220-6L1-C4		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2220-6L1-C6		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2220-6L1-M5		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2220-6M1-C4		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2220-6M1-C6		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2220-6M1-M5		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2221-1L1-C4		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2221-1L1-C6		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2221-1L1-M5		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2221-1M1-C4		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2221-1M1-C6		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2221-1M1-M5		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2221-2L1-C4		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2221-2L1-C6		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2221-2L1-M5		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2221-2M1-C4		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2221-2M1-C6		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2221-2M1-M5		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2221-5G1-C4		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ2221-5G1-C6		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ2221-5G1-M5		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ2221-5L1-C4		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2221-5L1-C6		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2221-5L1-M5		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2221-5M1-C4		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2221-5M1-C6		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2221-5M1-M5		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2221-6G1-C4		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ2221-6G1-C6		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ2221-6G1-M5		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ2221-6L1-C4		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2221-6L1-C6		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2221-6L1-M5		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2221-6M1-C4		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2221-6M1-C6		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2221-6M1-M5		Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2320-1L1-C4		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2320-1L1-C6		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2320-1L1-M5		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2320-1M1-C4		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2320-1M1-C6		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2320-1M1-M5		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2320-2L1-C4		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2320-2L1-C6		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2320-2L1-M5		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2320-2M1-C4		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2320-2M1-C6		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2320-2M1-M5		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2320-5G1-C4		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ2320-5G1-C6		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ2320-5G1-M5		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ2320-5L1-C4		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2320-5L1-C6		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2320-5L1-M5		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2320-5M1-C4		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2320-5M1-C6		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2320-5M1-M5		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2320-6G1-C4		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ2320-6G1-C6		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ2320-6G1-M5		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ2320-6L1-C4		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2320-6L1-C6		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2320-6L1-M5		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2320-6M1-C4		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2320-6M1-C6		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2320-6M1-M5		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2321-1L1-C4		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2321-1L1-C6		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2321-1L1-M5		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2321-1M1-C4		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2321-1M1-C6		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2321-1M1-M5		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2321-2L1-C4		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2321-2L1-C6		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2321-2L1-M5		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2321-2M1-C4		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2321-2M1-C6		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2321-2M1-M5		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2321-5G1-C4		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ2321-5G1-C6		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ2321-5G1-M5		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ2321-5L1-C4		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2321-5L1-C6		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2321-5L1-M5		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2321-5M1-C4		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2321-5M1-C6		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2321-5M1-M5		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2321-6G1-C4		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ2321-6G1-C6		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ2321-6G1-M5		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ2321-6L1-C4		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2321-6L1-C6		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2321-6L1-M5		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2321-6M1-C4		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2321-6M1-C6		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2321-6M1-M5		Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2420-1L1-C4		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2420-1L1-C6		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2420-1L1-M5		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2420-1M1-C4		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2420-1M1-C6		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2420-1M1-M5		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2420-2L1-C4		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2420-2L1-C6		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2420-2L1-M5		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2420-2M1-C4		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2420-2M1-C6		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2420-2M1-M5		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2420-5G1-C4		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ2420-5G1-C6		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ2420-5G1-M5		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ2420-5L1-C4		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2420-5L1-C6		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2420-5L1-M5		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2420-5M1-C4		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2420-5M1-C6		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2420-5M1-M5		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2420-6G1-C4		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ2420-6G1-C6		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ2420-6G1-M5		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ2420-6L1-C4		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2420-6L1-C6		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2420-6L1-M5		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2420-6M1-C4		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2420-6M1-C6		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2420-6M1-M5		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2421-1L1-C4		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2421-1L1-C6		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2421-1L1-M5		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2421-1M1-C4		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2421-1M1-C6		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2421-1M1-M5		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2421-2L1-C4		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2421-2L1-C6		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2421-2L1-M5		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2421-2M1-C4		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2421-2M1-C6		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2421-2M1-M5		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2421-5G1-C4		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ2421-5G1-C6		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ2421-5G1-M5		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ2421-5L1-C4		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2421-5L1-C6		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2421-5L1-M5		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2421-5M1-C4		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2421-5M1-C6		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2421-5M1-M5		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2421-6G1-C4		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ2421-6G1-C6		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ2421-6G1-M5		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ2421-6L1-C4		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2421-6L1-C6		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2421-6L1-M5		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2421-6M1-C4		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2421-6M1-C6		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2421-6M1-M5		Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2520-1L1-C4		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2520-1L1-C6		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2520-1L1-M5		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2520-1M1-C4		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2520-1M1-C6		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2520-1M1-M5		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2520-2L1-C4		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2520-2L1-C6		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2520-2L1-M5		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2520-2M1-C4		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2520-2M1-C6		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2520-2M1-M5		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2520-5G1-C4		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ2520-5G1-C6		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ2520-5G1-M5		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ2520-5L1-C4		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2520-5L1-C6		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2520-5L1-M5		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2520-5M1-C4		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2520-5M1-C6		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2520-5M1-M5		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2520-6G1-C4		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ2520-6G1-C6		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ2520-6G1-M5		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ2520-6L1-C4		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2520-6L1-C6		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2520-6L1-M5		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2520-6M1-C4		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2520-6M1-C6		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2520-6M1-M5		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2521-1L1-C4		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2521-1L1-C6		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2521-1L1-M5		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2521-1M1-C4		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2521-1M1-C6		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2521-1M1-M5		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2521-2L1-C4		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2521-2L1-C6		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2521-2L1-M5		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2521-2M1-C4		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2521-2M1-C6		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2521-2M1-M5		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2521-5G1-C4		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ2521-5G1-C6		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ2521-5G1-M5		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ2521-5L1-C4		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2521-5L1-C6		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2521-5L1-M5		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2521-5M1-C4		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2521-5M1-C6		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2521-5M1-M5		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ2521-6G1-C4		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
VQZ2521-6G1-C6		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ2521-6G1-M5		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
VQZ2521-6L1-C4		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2521-6L1-C6		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2521-6L1-M5		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
VQZ2521-6M1-C4		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
VQZ2521-6M1-C6		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ2521-6M1-M5		Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
VQZ3120-1L1-C6		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3120-1L1-C8		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3120-1L1-C10		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3120-1L1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3120-1M1-C6		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3120-1M1-C8		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3120-1M1-C10		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3120-1M1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3120-2L1-C6		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3120-2L1-C8		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3120-2L1-C10		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3120-2L1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3120-2M1-C6		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3120-2M1-C8		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3120-2M1-C10		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3120-2M1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3120-5G1-C6		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ3120-5G1-C8		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
VQZ3120-5G1-C10		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
VQZ3120-5G1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: Rc1/4
VQZ3120-5L1-C6		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3120-5L1-C8		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3120-5L1-C10		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3120-5L1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3120-5M1-C6		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3120-5M1-C8		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3120-5M1-C10		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3120-5M1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3120-6G1-C6		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ3120-6G1-C8		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
VQZ3120-6G1-C10		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
VQZ3120-6G1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: Rc1/4
VQZ3120-6L1-C6		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3120-6L1-C8		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3120-6L1-C10		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3120-6L1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3120-6M1-C6		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3120-6M1-C8		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3120-6M1-C10		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3120-6M1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3121-1L1-C6		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3121-1L1-C8		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3121-1L1-C10		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3121-1L1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3121-1M1-C6		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3121-1M1-C8		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3121-1M1-C10		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3121-1M1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3121-2L1-C6		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3121-2L1-C8		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3121-2L1-C10		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3121-2L1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3121-2M1-C6		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3121-2M1-C8		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3121-2M1-C10		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3121-2M1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3121-5G1-C6		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ3121-5G1-C8		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
VQZ3121-5G1-C10		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
VQZ3121-5G1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: Rc1/4
VQZ3121-5L1-C6		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3121-5L1-C8		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3121-5L1-C10		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3121-5L1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3121-5M1-C6		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3121-5M1-C8		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3121-5M1-C10		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3121-5M1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3121-6G1-C6		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ3121-6G1-C8		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
VQZ3121-6G1-C10		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
VQZ3121-6G1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: Rc1/4
VQZ3121-6L1-C6		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3121-6L1-C8		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3121-6L1-C10		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3121-6L1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3121-6M1-C6		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3121-6M1-C8		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3121-6M1-C10		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3121-6M1-02		Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3220-1L1-C6		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3220-1L1-C8		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3220-1L1-C10		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3220-1L1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3220-1M1-C6		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3220-1M1-C8		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3220-1M1-C10		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3220-1M1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3220-2L1-C6		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3220-2L1-C8		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3220-2L1-C10		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3220-2L1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3220-2M1-C6		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3220-2M1-C8		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3220-2M1-C10		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3220-2M1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3220-5G1-C6		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ3220-5G1-C8		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
VQZ3220-5G1-C10		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
VQZ3220-5G1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: Rc1/4
VQZ3220-5L1-C6		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3220-5L1-C8		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3220-5L1-C10		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3220-5L1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3220-5M1-C6		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3220-5M1-C8		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3220-5M1-C10		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3220-5M1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3220-6G1-C6		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ3220-6G1-C8		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
VQZ3220-6G1-C10		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
VQZ3220-6G1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: Rc1/4
VQZ3220-6L1-C6		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3220-6L1-C8		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3220-6L1-C10		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3220-6L1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3220-6M1-C6		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3220-6M1-C8		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3220-6M1-C10		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3220-6M1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3221-1L1-C6		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3221-1L1-C8		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3221-1L1-C10		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3221-1L1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3221-1M1-C6		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3221-1M1-C8		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3221-1M1-C10		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3221-1M1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3221-2L1-C6		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3221-2L1-C8		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3221-2L1-C10		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3221-2L1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3221-2M1-C6		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3221-2M1-C8		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3221-2M1-C10		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3221-2M1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3221-5G1-C6		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ3221-5G1-C8		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
VQZ3221-5G1-C10		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
VQZ3221-5G1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: Rc1/4
VQZ3221-5L1-C6		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3221-5L1-C8		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3221-5L1-C10		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3221-5L1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3221-5M1-C6		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3221-5M1-C8		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3221-5M1-C10		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3221-5M1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3221-6G1-C6		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ3221-6G1-C8		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
VQZ3221-6G1-C10		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
VQZ3221-6G1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: Rc1/4
VQZ3221-6L1-C6		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3221-6L1-C8		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3221-6L1-C10		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3221-6L1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3221-6M1-C6		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3221-6M1-C8		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3221-6M1-C10		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3221-6M1-02		Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3320-1L1-C6		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3320-1L1-C8		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3320-1L1-C10		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3320-1L1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3320-1M1-C6		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3320-1M1-C8		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3320-1M1-C10		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3320-1M1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3320-2L1-C6		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3320-2L1-C8		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3320-2L1-C10		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3320-2L1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3320-2M1-C6		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3320-2M1-C8		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3320-2M1-C10		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3320-2M1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3320-5G1-C6		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ3320-5G1-C8		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
VQZ3320-5G1-C10		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
VQZ3320-5G1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: Rc1/4
VQZ3320-5L1-C6		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3320-5L1-C8		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3320-5L1-C10		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3320-5L1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3320-5M1-C6		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3320-5M1-C8		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3320-5M1-C10		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3320-5M1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3320-6G1-C6		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ3320-6G1-C8		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
VQZ3320-6G1-C10		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
VQZ3320-6G1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: Rc1/4
VQZ3320-6L1-C6		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3320-6L1-C8		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3320-6L1-C10		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3320-6L1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3320-6M1-C6		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3320-6M1-C8		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3320-6M1-C10		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3320-6M1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3321-1L1-C6		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3321-1L1-C8		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3321-1L1-C10		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3321-1L1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3321-1M1-C6		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3321-1M1-C8		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3321-1M1-C10		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3321-1M1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3321-2L1-C6		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3321-2L1-C8		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3321-2L1-C10		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3321-2L1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3321-2M1-C6		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3321-2M1-C8		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3321-2M1-C10		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3321-2M1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3321-5G1-C6		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ3321-5G1-C8		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
VQZ3321-5G1-C10		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
VQZ3321-5G1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: Rc1/4
VQZ3321-5L1-C6		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3321-5L1-C8		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3321-5L1-C10		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3321-5L1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3321-5M1-C6		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3321-5M1-C8		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3321-5M1-C10		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3321-5M1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3321-6G1-C6		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ3321-6G1-C8		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
VQZ3321-6G1-C10		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
VQZ3321-6G1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: Rc1/4
VQZ3321-6L1-C6		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3321-6L1-C8		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3321-6L1-C10		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3321-6L1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3321-6M1-C6		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3321-6M1-C8		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3321-6M1-C10		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3321-6M1-02		Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3420-1L1-C6		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3420-1L1-C8		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3420-1L1-C10		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3420-1L1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3420-1M1-C6		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3420-1M1-C8		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3420-1M1-C10		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3420-1M1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3420-2L1-C6		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3420-2L1-C8		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3420-2L1-C10		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3420-2L1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3420-2M1-C6		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3420-2M1-C8		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3420-2M1-C10		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3420-2M1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3420-5G1-C6		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ3420-5G1-C8		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
VQZ3420-5G1-C10		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
VQZ3420-5G1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: Rc1/4
VQZ3420-5L1-C6		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3420-5L1-C8		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3420-5L1-C10		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3420-5L1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3420-5M1-C6		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3420-5M1-C8		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3420-5M1-C10		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3420-5M1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3420-6G1-C6		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ3420-6G1-C8		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
VQZ3420-6G1-C10		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
VQZ3420-6G1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: Rc1/4
VQZ3420-6L1-C6		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3420-6L1-C8		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3420-6L1-C10		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3420-6L1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3420-6M1-C6		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3420-6M1-C8		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3420-6M1-C10		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3420-6M1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3421-1L1-C6		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3421-1L1-C8		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3421-1L1-C10		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3421-1L1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3421-1M1-C6		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3421-1M1-C8		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3421-1M1-C10		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3421-1M1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3421-2L1-C6		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3421-2L1-C8		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3421-2L1-C10		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3421-2L1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3421-2M1-C6		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3421-2M1-C8		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3421-2M1-C10		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3421-2M1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3421-5G1-C6		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ3421-5G1-C8		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
VQZ3421-5G1-C10		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
VQZ3421-5G1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: Rc1/4
VQZ3421-5L1-C6		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3421-5L1-C8		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3421-5L1-C10		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3421-5L1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3421-5M1-C6		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3421-5M1-C8		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3421-5M1-C10		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3421-5M1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3421-6G1-C6		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ3421-6G1-C8		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
VQZ3421-6G1-C10		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
VQZ3421-6G1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: Rc1/4
VQZ3421-6L1-C6		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3421-6L1-C8		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3421-6L1-C10		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3421-6L1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3421-6M1-C6		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3421-6M1-C8		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3421-6M1-C10		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3421-6M1-02		Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3520-1L1-C6		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3520-1L1-C8		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3520-1L1-C10		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3520-1L1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3520-1M1-C6		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3520-1M1-C8		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3520-1M1-C10		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3520-1M1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3520-2L1-C6		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3520-2L1-C8		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3520-2L1-C10		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3520-2L1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3520-2M1-C6		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3520-2M1-C8		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3520-2M1-C10		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3520-2M1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3520-5G1-C6		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ3520-5G1-C8		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
VQZ3520-5G1-C10		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
VQZ3520-5G1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: Rc1/4
VQZ3520-5L1-C6		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3520-5L1-C8		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3520-5L1-C10		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3520-5L1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3520-5M1-C6		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3520-5M1-C8		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3520-5M1-C10		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3520-5M1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3520-6G1-C6		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ3520-6G1-C8		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
VQZ3520-6G1-C10		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
VQZ3520-6G1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: Rc1/4
VQZ3520-6L1-C6		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3520-6L1-C8		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3520-6L1-C10		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3520-6L1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3520-6M1-C6		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3520-6M1-C8		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3520-6M1-C10		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3520-6M1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3521-1L1-C6		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3521-1L1-C8		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3521-1L1-C10		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3521-1L1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3521-1M1-C6		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3521-1M1-C8		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3521-1M1-C10		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3521-1M1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3521-2L1-C6		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3521-2L1-C8		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3521-2L1-C10		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3521-2L1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3521-2M1-C6		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3521-2M1-C8		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3521-2M1-C10		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3521-2M1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3521-5G1-C6		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ3521-5G1-C8		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
VQZ3521-5G1-C10		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
VQZ3521-5G1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: Rc1/4
VQZ3521-5L1-C6		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3521-5L1-C8		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3521-5L1-C10		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3521-5L1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3521-5M1-C6		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3521-5M1-C8		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3521-5M1-C10		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3521-5M1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
VQZ3521-6G1-C6		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
VQZ3521-6G1-C8		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
VQZ3521-6G1-C10		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
VQZ3521-6G1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: Rc1/4
VQZ3521-6L1-C6		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3521-6L1-C8		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3521-6L1-C10		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3521-6L1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
VQZ3521-6M1-C6		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
VQZ3521-6M1-C8		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
VQZ3521-6M1-C10		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
VQZ3521-6M1-02		Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4

5-Port Solenoid ValvesSMC

1060 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VQZ1000/2000/3000 5-Port Solenoid Valve (Body Ported)

Brand SMC·5-Port Solenoid Valves

Available part numbers (1060)

VQZ1120-1L1-C3, VQZ1120-1L1-C4, VQZ1120-1L1-C6, VQZ1120-1L1-M5, VQZ1120-1M1-C3, VQZ1120-1M1-C4, VQZ1120-1M1-C6, VQZ1120-1M1-M5, VQZ1120-2L1-C3, VQZ1120-2L1-C4 + 1050 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	VQZ1120-1L1-C3	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1120-1L1-C4	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1120-1L1-C6	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1120-1L1-M5	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1120-1M1-C3	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1120-1M1-C4	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1120-1M1-C6	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1120-1M1-M5	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1120-2L1-C3	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1120-2L1-C4	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1120-2L1-C6	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1120-2L1-M5	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1120-2M1-C3	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1120-2M1-C4	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1120-2M1-C6	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1120-2M1-M5	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1120-5G1-C3	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
	VQZ1120-5G1-C4	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ1120-5G1-C6	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ1120-5G1-M5	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ1120-5L1-C3	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1120-5L1-C4	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1120-5L1-C6	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1120-5L1-M5	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1120-5M1-C3	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1120-5M1-C4	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1120-5M1-C6	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1120-5M1-M5	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1120-6G1-C3	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
	VQZ1120-6G1-C4	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ1120-6G1-C6	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ1120-6G1-M5	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ1120-6L1-C3	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1120-6L1-C4	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1120-6L1-C6	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1120-6L1-M5	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1120-6M1-C3	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1120-6M1-C4	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1120-6M1-C6	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1120-6M1-M5	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1121-1L1-C3	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1121-1L1-C4	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1121-1L1-C6	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1121-1L1-M5	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1121-1M1-C3	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1121-1M1-C4	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1121-1M1-C6	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1121-1M1-M5	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1121-2L1-C3	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1121-2L1-C4	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1121-2L1-C6	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1121-2L1-M5	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1121-2M1-C3	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1121-2M1-C4	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1121-2M1-C6	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1121-2M1-M5	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1121-5G1-C3	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
	VQZ1121-5G1-C4	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ1121-5G1-C6	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ1121-5G1-M5	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ1121-5L1-C3	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1121-5L1-C4	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1121-5L1-C6	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1121-5L1-M5	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1121-5M1-C3	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1121-5M1-C4	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1121-5M1-C6	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1121-5M1-M5	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1121-6G1-C3	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
	VQZ1121-6G1-C4	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ1121-6G1-C6	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ1121-6G1-M5	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ1121-6L1-C3	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1121-6L1-C4	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1121-6L1-C6	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1121-6L1-M5	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1121-6M1-C3	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1121-6M1-C4	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1121-6M1-C6	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1121-6M1-M5	Series: VQZ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1220-1L1-C3	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1220-1L1-C4	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1220-1L1-C6	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1220-1L1-M5	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1220-1M1-C3	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1220-1M1-C4	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1220-1M1-C6	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1220-1M1-M5	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1220-2L1-C3	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1220-2L1-C4	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1220-2L1-C6	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1220-2L1-M5	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1220-2M1-C3	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1220-2M1-C4	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1220-2M1-C6	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1220-2M1-M5	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1220-5G1-C3	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
	VQZ1220-5G1-C4	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ1220-5G1-C6	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ1220-5G1-M5	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ1220-5L1-C3	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1220-5L1-C4	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1220-5L1-C6	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1220-5L1-M5	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1220-5M1-C3	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1220-5M1-C4	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1220-5M1-C6	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1220-5M1-M5	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1220-6G1-C3	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
	VQZ1220-6G1-C4	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ1220-6G1-C6	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ1220-6G1-M5	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ1220-6L1-C3	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1220-6L1-C4	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1220-6L1-C6	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1220-6L1-M5	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1220-6M1-C3	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1220-6M1-C4	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1220-6M1-C6	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1220-6M1-M5	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1221-1L1-C3	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1221-1L1-C4	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1221-1L1-C6	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1221-1L1-M5	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1221-1M1-C3	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1221-1M1-C4	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1221-1M1-C6	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1221-1M1-M5	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1221-2L1-C3	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1221-2L1-C4	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1221-2L1-C6	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1221-2L1-M5	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1221-2M1-C3	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1221-2M1-C4	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1221-2M1-C6	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1221-2M1-M5	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1221-5G1-C3	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
	VQZ1221-5G1-C4	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ1221-5G1-C6	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ1221-5G1-M5	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ1221-5L1-C3	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1221-5L1-C4	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1221-5L1-C6	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1221-5L1-M5	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1221-5M1-C3	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1221-5M1-C4	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1221-5M1-C6	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1221-5M1-M5	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1221-6G1-C3	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
	VQZ1221-6G1-C4	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ1221-6G1-C6	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ1221-6G1-M5	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ1221-6L1-C3	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1221-6L1-C4	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1221-6L1-C6	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1221-6L1-M5	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1221-6M1-C3	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1221-6M1-C4	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1221-6M1-C6	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1221-6M1-M5	Series: VQZ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1320-1L1-C3	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1320-1L1-C4	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1320-1L1-C6	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1320-1L1-M5	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1320-1M1-C3	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1320-1M1-C4	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1320-1M1-C6	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1320-1M1-M5	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1320-2L1-C3	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1320-2L1-C4	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1320-2L1-C6	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1320-2L1-M5	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1320-2M1-C3	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1320-2M1-C4	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1320-2M1-C6	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1320-2M1-M5	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1320-5G1-C3	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
	VQZ1320-5G1-C4	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ1320-5G1-C6	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ1320-5G1-M5	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ1320-5L1-C3	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1320-5L1-C4	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1320-5L1-C6	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1320-5L1-M5	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1320-5M1-C3	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1320-5M1-C4	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1320-5M1-C6	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1320-5M1-M5	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1320-6G1-C3	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
	VQZ1320-6G1-C4	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ1320-6G1-C6	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ1320-6G1-M5	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ1320-6L1-C3	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1320-6L1-C4	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1320-6L1-C6	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1320-6L1-M5	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1320-6M1-C3	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1320-6M1-C4	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1320-6M1-C6	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1320-6M1-M5	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1321-1L1-C3	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1321-1L1-C4	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1321-1L1-C6	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1321-1L1-M5	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1321-1M1-C3	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1321-1M1-C4	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1321-1M1-C6	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1321-1M1-M5	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1321-2L1-C3	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1321-2L1-C4	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1321-2L1-C6	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1321-2L1-M5	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1321-2M1-C3	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1321-2M1-C4	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1321-2M1-C6	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1321-2M1-M5	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1321-5G1-C3	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
	VQZ1321-5G1-C4	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ1321-5G1-C6	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ1321-5G1-M5	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ1321-5L1-C3	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1321-5L1-C4	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1321-5L1-C6	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1321-5L1-M5	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1321-5M1-C3	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1321-5M1-C4	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1321-5M1-C6	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1321-5M1-M5	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1321-6G1-C3	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
	VQZ1321-6G1-C4	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ1321-6G1-C6	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ1321-6G1-M5	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ1321-6L1-C3	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1321-6L1-C4	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1321-6L1-C6	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1321-6L1-M5	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1321-6M1-C3	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1321-6M1-C4	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1321-6M1-C6	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1321-6M1-M5	Series: VQZ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1420-1L1-C3	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1420-1L1-C4	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1420-1L1-C6	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1420-1L1-M5	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1420-1M1-C3	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1420-1M1-C4	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1420-1M1-C6	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1420-1M1-M5	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1420-2L1-C3	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1420-2L1-C4	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1420-2L1-C6	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1420-2L1-M5	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1420-2M1-C3	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1420-2M1-C4	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1420-2M1-C6	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1420-2M1-M5	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1420-5G1-C3	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
	VQZ1420-5G1-C4	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ1420-5G1-C6	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ1420-5G1-M5	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ1420-5L1-C3	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1420-5L1-C4	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1420-5L1-C6	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1420-5L1-M5	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1420-5M1-C3	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1420-5M1-C4	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1420-5M1-C6	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1420-5M1-M5	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1420-6G1-C3	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
	VQZ1420-6G1-C4	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ1420-6G1-C6	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ1420-6G1-M5	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ1420-6L1-C3	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1420-6L1-C4	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1420-6L1-C6	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1420-6L1-M5	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1420-6M1-C3	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1420-6M1-C4	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1420-6M1-C6	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1420-6M1-M5	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1421-1L1-C3	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1421-1L1-C4	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1421-1L1-C6	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1421-1L1-M5	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1421-1M1-C3	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1421-1M1-C4	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1421-1M1-C6	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1421-1M1-M5	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1421-2L1-C3	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1421-2L1-C4	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1421-2L1-C6	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1421-2L1-M5	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1421-2M1-C3	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1421-2M1-C4	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1421-2M1-C6	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1421-2M1-M5	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1421-5G1-C3	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
	VQZ1421-5G1-C4	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ1421-5G1-C6	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ1421-5G1-M5	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ1421-5L1-C3	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1421-5L1-C4	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1421-5L1-C6	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1421-5L1-M5	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1421-5M1-C3	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1421-5M1-C4	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1421-5M1-C6	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1421-5M1-M5	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1421-6G1-C3	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
	VQZ1421-6G1-C4	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ1421-6G1-C6	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ1421-6G1-M5	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ1421-6L1-C3	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1421-6L1-C4	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1421-6L1-C6	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1421-6L1-M5	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1421-6M1-C3	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1421-6M1-C4	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1421-6M1-C6	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1421-6M1-M5	Series: VQZ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1521-1L1-C3	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1521-1L1-C4	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1521-1L1-C6	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1521-1L1-M5	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1521-1M1-C3	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1521-1M1-C4	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1521-1M1-C6	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1521-1M1-M5	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1521-2L1-C3	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1521-2L1-C4	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1521-2L1-C6	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1521-2L1-M5	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1521-2M1-C3	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1521-2M1-C4	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1521-2M1-C6	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1521-2M1-M5	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1521-5G1-C3	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
	VQZ1521-5G1-C4	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ1521-5G1-C6	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ1521-5G1-M5	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ1521-5L1-C3	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1521-5L1-C4	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1521-5L1-C6	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1521-5L1-M5	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1521-5M1-C3	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1521-5M1-C4	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1521-5M1-C6	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1521-5M1-M5	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ1521-6G1-C3	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø3.2 one-touch
	VQZ1521-6G1-C4	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ1521-6G1-C6	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ1521-6G1-M5	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ1521-6L1-C3	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1521-6L1-C4	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1521-6L1-C6	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1521-6L1-M5	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ1521-6M1-C3	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø3.2 one-touch
	VQZ1521-6M1-C4	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ1521-6M1-C6	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ1521-6M1-M5	Series: VQZ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2120-1L1-C4	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2120-1L1-C6	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2120-1L1-M5	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2120-1M1-C4	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2120-1M1-C6	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2120-1M1-M5	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2120-2L1-C4	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2120-2L1-C6	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2120-2L1-M5	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2120-2M1-C4	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2120-2M1-C6	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2120-2M1-M5	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2120-5G1-C4	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ2120-5G1-C6	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ2120-5G1-M5	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ2120-5L1-C4	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2120-5L1-C6	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2120-5L1-M5	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2120-5M1-C4	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2120-5M1-C6	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2120-5M1-M5	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2120-6G1-C4	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ2120-6G1-C6	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ2120-6G1-M5	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ2120-6L1-C4	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2120-6L1-C6	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2120-6L1-M5	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2120-6M1-C4	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2120-6M1-C6	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2120-6M1-M5	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2121-1L1-C4	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2121-1L1-C6	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2121-1L1-M5	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2121-1M1-C4	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2121-1M1-C6	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2121-1M1-M5	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2121-2L1-C4	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2121-2L1-C6	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2121-2L1-M5	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2121-2M1-C4	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2121-2M1-C6	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2121-2M1-M5	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2121-5G1-C4	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ2121-5G1-C6	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ2121-5G1-M5	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ2121-5L1-C4	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2121-5L1-C6	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2121-5L1-M5	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2121-5M1-C4	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2121-5M1-C6	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2121-5M1-M5	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2121-6G1-C4	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ2121-6G1-C6	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ2121-6G1-M5	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ2121-6L1-C4	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2121-6L1-C6	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2121-6L1-M5	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2121-6M1-C4	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2121-6M1-C6	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2121-6M1-M5	Series: VQZ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2220-1L1-C4	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2220-1L1-C6	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2220-1L1-M5	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2220-1M1-C4	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2220-1M1-C6	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2220-1M1-M5	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2220-2L1-C4	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2220-2L1-C6	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2220-2L1-M5	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2220-2M1-C4	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2220-2M1-C6	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2220-2M1-M5	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2220-5G1-C4	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ2220-5G1-C6	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ2220-5G1-M5	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ2220-5L1-C4	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2220-5L1-C6	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2220-5L1-M5	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2220-5M1-C4	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2220-5M1-C6	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2220-5M1-M5	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2220-6G1-C4	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ2220-6G1-C6	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ2220-6G1-M5	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ2220-6L1-C4	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2220-6L1-C6	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2220-6L1-M5	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2220-6M1-C4	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2220-6M1-C6	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2220-6M1-M5	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2221-1L1-C4	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2221-1L1-C6	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2221-1L1-M5	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2221-1M1-C4	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2221-1M1-C6	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2221-1M1-M5	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2221-2L1-C4	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2221-2L1-C6	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2221-2L1-M5	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2221-2M1-C4	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2221-2M1-C6	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2221-2M1-M5	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2221-5G1-C4	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ2221-5G1-C6	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ2221-5G1-M5	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ2221-5L1-C4	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2221-5L1-C6	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2221-5L1-M5	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2221-5M1-C4	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2221-5M1-C6	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2221-5M1-M5	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2221-6G1-C4	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ2221-6G1-C6	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ2221-6G1-M5	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ2221-6L1-C4	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2221-6L1-C6	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2221-6L1-M5	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2221-6M1-C4	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2221-6M1-C6	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2221-6M1-M5	Series: VQZ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2320-1L1-C4	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2320-1L1-C6	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2320-1L1-M5	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2320-1M1-C4	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2320-1M1-C6	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2320-1M1-M5	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2320-2L1-C4	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2320-2L1-C6	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2320-2L1-M5	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2320-2M1-C4	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2320-2M1-C6	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2320-2M1-M5	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2320-5G1-C4	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ2320-5G1-C6	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ2320-5G1-M5	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ2320-5L1-C4	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2320-5L1-C6	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2320-5L1-M5	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2320-5M1-C4	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2320-5M1-C6	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2320-5M1-M5	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2320-6G1-C4	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ2320-6G1-C6	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ2320-6G1-M5	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ2320-6L1-C4	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2320-6L1-C6	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2320-6L1-M5	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2320-6M1-C4	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2320-6M1-C6	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2320-6M1-M5	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2321-1L1-C4	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2321-1L1-C6	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2321-1L1-M5	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2321-1M1-C4	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2321-1M1-C6	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2321-1M1-M5	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2321-2L1-C4	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2321-2L1-C6	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2321-2L1-M5	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2321-2M1-C4	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2321-2M1-C6	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2321-2M1-M5	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2321-5G1-C4	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ2321-5G1-C6	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ2321-5G1-M5	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ2321-5L1-C4	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2321-5L1-C6	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2321-5L1-M5	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2321-5M1-C4	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2321-5M1-C6	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2321-5M1-M5	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2321-6G1-C4	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ2321-6G1-C6	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ2321-6G1-M5	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ2321-6L1-C4	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2321-6L1-C6	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2321-6L1-M5	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2321-6M1-C4	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2321-6M1-C6	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2321-6M1-M5	Series: VQZ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2420-1L1-C4	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2420-1L1-C6	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2420-1L1-M5	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2420-1M1-C4	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2420-1M1-C6	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2420-1M1-M5	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2420-2L1-C4	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2420-2L1-C6	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2420-2L1-M5	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2420-2M1-C4	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2420-2M1-C6	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2420-2M1-M5	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2420-5G1-C4	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ2420-5G1-C6	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ2420-5G1-M5	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ2420-5L1-C4	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2420-5L1-C6	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2420-5L1-M5	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2420-5M1-C4	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2420-5M1-C6	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2420-5M1-M5	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2420-6G1-C4	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ2420-6G1-C6	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ2420-6G1-M5	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ2420-6L1-C4	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2420-6L1-C6	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2420-6L1-M5	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2420-6M1-C4	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2420-6M1-C6	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2420-6M1-M5	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2421-1L1-C4	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2421-1L1-C6	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2421-1L1-M5	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2421-1M1-C4	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2421-1M1-C6	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2421-1M1-M5	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2421-2L1-C4	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2421-2L1-C6	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2421-2L1-M5	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2421-2M1-C4	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2421-2M1-C6	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2421-2M1-M5	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2421-5G1-C4	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ2421-5G1-C6	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ2421-5G1-M5	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ2421-5L1-C4	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2421-5L1-C6	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2421-5L1-M5	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2421-5M1-C4	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2421-5M1-C6	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2421-5M1-M5	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2421-6G1-C4	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ2421-6G1-C6	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ2421-6G1-M5	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ2421-6L1-C4	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2421-6L1-C6	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2421-6L1-M5	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2421-6M1-C4	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2421-6M1-C6	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2421-6M1-M5	Series: VQZ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2520-1L1-C4	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2520-1L1-C6	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2520-1L1-M5	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2520-1M1-C4	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2520-1M1-C6	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2520-1M1-M5	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2520-2L1-C4	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2520-2L1-C6	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2520-2L1-M5	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2520-2M1-C4	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2520-2M1-C6	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2520-2M1-M5	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2520-5G1-C4	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ2520-5G1-C6	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ2520-5G1-M5	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ2520-5L1-C4	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2520-5L1-C6	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2520-5L1-M5	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2520-5M1-C4	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2520-5M1-C6	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2520-5M1-M5	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2520-6G1-C4	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ2520-6G1-C6	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ2520-6G1-M5	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ2520-6L1-C4	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2520-6L1-C6	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2520-6L1-M5	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2520-6M1-C4	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2520-6M1-C6	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2520-6M1-M5	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2521-1L1-C4	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2521-1L1-C6	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2521-1L1-M5	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2521-1M1-C4	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2521-1M1-C6	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2521-1M1-M5	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2521-2L1-C4	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2521-2L1-C6	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2521-2L1-M5	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2521-2M1-C4	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2521-2M1-C6	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2521-2M1-M5	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2521-5G1-C4	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ2521-5G1-C6	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ2521-5G1-M5	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ2521-5L1-C4	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2521-5L1-C6	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2521-5L1-M5	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2521-5M1-C4	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2521-5M1-C6	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2521-5M1-M5	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ2521-6G1-C4	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø4 one-touch
	VQZ2521-6G1-C6	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ2521-6G1-M5	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: M5 thread
	VQZ2521-6L1-C4	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2521-6L1-C6	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2521-6L1-M5	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: M5 thread
	VQZ2521-6M1-C4	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø4 one-touch
	VQZ2521-6M1-C6	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ2521-6M1-M5	Series: VQZ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: M5 thread
	VQZ3120-1L1-C6	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3120-1L1-C8	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3120-1L1-C10	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3120-1L1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3120-1M1-C6	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3120-1M1-C8	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3120-1M1-C10	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3120-1M1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3120-2L1-C6	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3120-2L1-C8	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3120-2L1-C10	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3120-2L1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3120-2M1-C6	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3120-2M1-C8	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3120-2M1-C10	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3120-2M1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3120-5G1-C6	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ3120-5G1-C8	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
	VQZ3120-5G1-C10	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
	VQZ3120-5G1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: Rc1/4
	VQZ3120-5L1-C6	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3120-5L1-C8	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3120-5L1-C10	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3120-5L1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3120-5M1-C6	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3120-5M1-C8	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3120-5M1-C10	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3120-5M1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3120-6G1-C6	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ3120-6G1-C8	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
	VQZ3120-6G1-C10	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
	VQZ3120-6G1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: Rc1/4
	VQZ3120-6L1-C6	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3120-6L1-C8	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3120-6L1-C10	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3120-6L1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3120-6M1-C6	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3120-6M1-C8	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3120-6M1-C10	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3120-6M1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3121-1L1-C6	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3121-1L1-C8	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3121-1L1-C10	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3121-1L1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3121-1M1-C6	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3121-1M1-C8	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3121-1M1-C10	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3121-1M1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3121-2L1-C6	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3121-2L1-C8	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3121-2L1-C10	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3121-2L1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3121-2M1-C6	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3121-2M1-C8	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3121-2M1-C10	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3121-2M1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3121-5G1-C6	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ3121-5G1-C8	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
	VQZ3121-5G1-C10	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
	VQZ3121-5G1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: Rc1/4
	VQZ3121-5L1-C6	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3121-5L1-C8	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3121-5L1-C10	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3121-5L1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3121-5M1-C6	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3121-5M1-C8	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3121-5M1-C10	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3121-5M1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3121-6G1-C6	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ3121-6G1-C8	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
	VQZ3121-6G1-C10	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
	VQZ3121-6G1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: Rc1/4
	VQZ3121-6L1-C6	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3121-6L1-C8	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3121-6L1-C10	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3121-6L1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3121-6M1-C6	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3121-6M1-C8	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3121-6M1-C10	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3121-6M1-02	Series: VQZ3000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3220-1L1-C6	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3220-1L1-C8	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3220-1L1-C10	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3220-1L1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3220-1M1-C6	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3220-1M1-C8	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3220-1M1-C10	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3220-1M1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3220-2L1-C6	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3220-2L1-C8	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3220-2L1-C10	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3220-2L1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3220-2M1-C6	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3220-2M1-C8	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3220-2M1-C10	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3220-2M1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3220-5G1-C6	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ3220-5G1-C8	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
	VQZ3220-5G1-C10	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
	VQZ3220-5G1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: Rc1/4
	VQZ3220-5L1-C6	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3220-5L1-C8	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3220-5L1-C10	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3220-5L1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3220-5M1-C6	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3220-5M1-C8	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3220-5M1-C10	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3220-5M1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3220-6G1-C6	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ3220-6G1-C8	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
	VQZ3220-6G1-C10	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
	VQZ3220-6G1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: Rc1/4
	VQZ3220-6L1-C6	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3220-6L1-C8	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3220-6L1-C10	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3220-6L1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3220-6M1-C6	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3220-6M1-C8	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3220-6M1-C10	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3220-6M1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3221-1L1-C6	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3221-1L1-C8	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3221-1L1-C10	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3221-1L1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3221-1M1-C6	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3221-1M1-C8	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3221-1M1-C10	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3221-1M1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3221-2L1-C6	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3221-2L1-C8	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3221-2L1-C10	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3221-2L1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3221-2M1-C6	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3221-2M1-C8	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3221-2M1-C10	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3221-2M1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3221-5G1-C6	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ3221-5G1-C8	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
	VQZ3221-5G1-C10	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
	VQZ3221-5G1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: Rc1/4
	VQZ3221-5L1-C6	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3221-5L1-C8	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3221-5L1-C10	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3221-5L1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3221-5M1-C6	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3221-5M1-C8	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3221-5M1-C10	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3221-5M1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3221-6G1-C6	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ3221-6G1-C8	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
	VQZ3221-6G1-C10	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
	VQZ3221-6G1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: Rc1/4
	VQZ3221-6L1-C6	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3221-6L1-C8	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3221-6L1-C10	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3221-6L1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3221-6M1-C6	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3221-6M1-C8	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3221-6M1-C10	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3221-6M1-02	Series: VQZ3000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3320-1L1-C6	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3320-1L1-C8	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3320-1L1-C10	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3320-1L1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3320-1M1-C6	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3320-1M1-C8	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3320-1M1-C10	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3320-1M1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3320-2L1-C6	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3320-2L1-C8	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3320-2L1-C10	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3320-2L1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3320-2M1-C6	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3320-2M1-C8	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3320-2M1-C10	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3320-2M1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3320-5G1-C6	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ3320-5G1-C8	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
	VQZ3320-5G1-C10	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
	VQZ3320-5G1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: Rc1/4
	VQZ3320-5L1-C6	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3320-5L1-C8	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3320-5L1-C10	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3320-5L1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3320-5M1-C6	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3320-5M1-C8	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3320-5M1-C10	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3320-5M1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3320-6G1-C6	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ3320-6G1-C8	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
	VQZ3320-6G1-C10	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
	VQZ3320-6G1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: Rc1/4
	VQZ3320-6L1-C6	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3320-6L1-C8	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3320-6L1-C10	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3320-6L1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3320-6M1-C6	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3320-6M1-C8	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3320-6M1-C10	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3320-6M1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3321-1L1-C6	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3321-1L1-C8	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3321-1L1-C10	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3321-1L1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3321-1M1-C6	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3321-1M1-C8	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3321-1M1-C10	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3321-1M1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3321-2L1-C6	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3321-2L1-C8	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3321-2L1-C10	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3321-2L1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3321-2M1-C6	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3321-2M1-C8	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3321-2M1-C10	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3321-2M1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3321-5G1-C6	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ3321-5G1-C8	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
	VQZ3321-5G1-C10	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
	VQZ3321-5G1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: Rc1/4
	VQZ3321-5L1-C6	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3321-5L1-C8	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3321-5L1-C10	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3321-5L1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3321-5M1-C6	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3321-5M1-C8	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3321-5M1-C10	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3321-5M1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3321-6G1-C6	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ3321-6G1-C8	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
	VQZ3321-6G1-C10	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
	VQZ3321-6G1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: Rc1/4
	VQZ3321-6L1-C6	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3321-6L1-C8	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3321-6L1-C10	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3321-6L1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3321-6M1-C6	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3321-6M1-C8	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3321-6M1-C10	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3321-6M1-02	Series: VQZ3000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3420-1L1-C6	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3420-1L1-C8	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3420-1L1-C10	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3420-1L1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3420-1M1-C6	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3420-1M1-C8	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3420-1M1-C10	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3420-1M1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3420-2L1-C6	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3420-2L1-C8	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3420-2L1-C10	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3420-2L1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3420-2M1-C6	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3420-2M1-C8	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3420-2M1-C10	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3420-2M1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3420-5G1-C6	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ3420-5G1-C8	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
	VQZ3420-5G1-C10	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
	VQZ3420-5G1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: Rc1/4
	VQZ3420-5L1-C6	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3420-5L1-C8	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3420-5L1-C10	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3420-5L1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3420-5M1-C6	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3420-5M1-C8	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3420-5M1-C10	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3420-5M1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3420-6G1-C6	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ3420-6G1-C8	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
	VQZ3420-6G1-C10	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
	VQZ3420-6G1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: Rc1/4
	VQZ3420-6L1-C6	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3420-6L1-C8	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3420-6L1-C10	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3420-6L1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3420-6M1-C6	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3420-6M1-C8	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3420-6M1-C10	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3420-6M1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3421-1L1-C6	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3421-1L1-C8	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3421-1L1-C10	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3421-1L1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3421-1M1-C6	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3421-1M1-C8	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3421-1M1-C10	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3421-1M1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3421-2L1-C6	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3421-2L1-C8	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3421-2L1-C10	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3421-2L1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3421-2M1-C6	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3421-2M1-C8	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3421-2M1-C10	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3421-2M1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3421-5G1-C6	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ3421-5G1-C8	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
	VQZ3421-5G1-C10	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
	VQZ3421-5G1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: Rc1/4
	VQZ3421-5L1-C6	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3421-5L1-C8	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3421-5L1-C10	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3421-5L1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3421-5M1-C6	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3421-5M1-C8	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3421-5M1-C10	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3421-5M1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3421-6G1-C6	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ3421-6G1-C8	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
	VQZ3421-6G1-C10	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
	VQZ3421-6G1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: Rc1/4
	VQZ3421-6L1-C6	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3421-6L1-C8	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3421-6L1-C10	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3421-6L1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3421-6M1-C6	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3421-6M1-C8	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3421-6M1-C10	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3421-6M1-02	Series: VQZ3000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3520-1L1-C6	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3520-1L1-C8	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3520-1L1-C10	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3520-1L1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3520-1M1-C6	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3520-1M1-C8	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3520-1M1-C10	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3520-1M1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3520-2L1-C6	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3520-2L1-C8	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3520-2L1-C10	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3520-2L1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3520-2M1-C6	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3520-2M1-C8	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3520-2M1-C10	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3520-2M1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3520-5G1-C6	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ3520-5G1-C8	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
	VQZ3520-5G1-C10	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
	VQZ3520-5G1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: Rc1/4
	VQZ3520-5L1-C6	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3520-5L1-C8	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3520-5L1-C10	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3520-5L1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3520-5M1-C6	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3520-5M1-C8	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3520-5M1-C10	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3520-5M1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3520-6G1-C6	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ3520-6G1-C8	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
	VQZ3520-6G1-C10	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
	VQZ3520-6G1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: Rc1/4
	VQZ3520-6L1-C6	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3520-6L1-C8	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3520-6L1-C10	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3520-6L1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3520-6M1-C6	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3520-6M1-C8	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3520-6M1-C10	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3520-6M1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3521-1L1-C6	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3521-1L1-C8	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3521-1L1-C10	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3521-1L1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3521-1M1-C6	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3521-1M1-C8	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3521-1M1-C10	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3521-1M1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC100V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3521-2L1-C6	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3521-2L1-C8	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3521-2L1-C10	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3521-2L1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3521-2M1-C6	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3521-2M1-C8	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3521-2M1-C10	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3521-2M1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: AC200V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3521-5G1-C6	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ3521-5G1-C8	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
	VQZ3521-5G1-C10	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
	VQZ3521-5G1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Grommet \| A/B port: Rc1/4
	VQZ3521-5L1-C6	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3521-5L1-C8	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3521-5L1-C10	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3521-5L1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3521-5M1-C6	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3521-5M1-C8	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3521-5M1-C10	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3521-5M1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4
	VQZ3521-6G1-C6	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø6 one-touch
	VQZ3521-6G1-C8	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø8 one-touch
	VQZ3521-6G1-C10	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: ø10 one-touch
	VQZ3521-6G1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Grommet \| A/B port: Rc1/4
	VQZ3521-6L1-C6	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3521-6L1-C8	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3521-6L1-C10	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3521-6L1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: L plug connector, lead wire \| A/B port: Rc1/4
	VQZ3521-6M1-C6	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø6 one-touch
	VQZ3521-6M1-C8	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø8 one-touch
	VQZ3521-6M1-C10	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: ø10 one-touch
	VQZ3521-6M1-02	Series: VQZ3000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: M plug connector, lead wire \| A/B port: Rc1/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC VQZ1000/2000/3000 5-Port Solenoid Valve (Body Ported)
