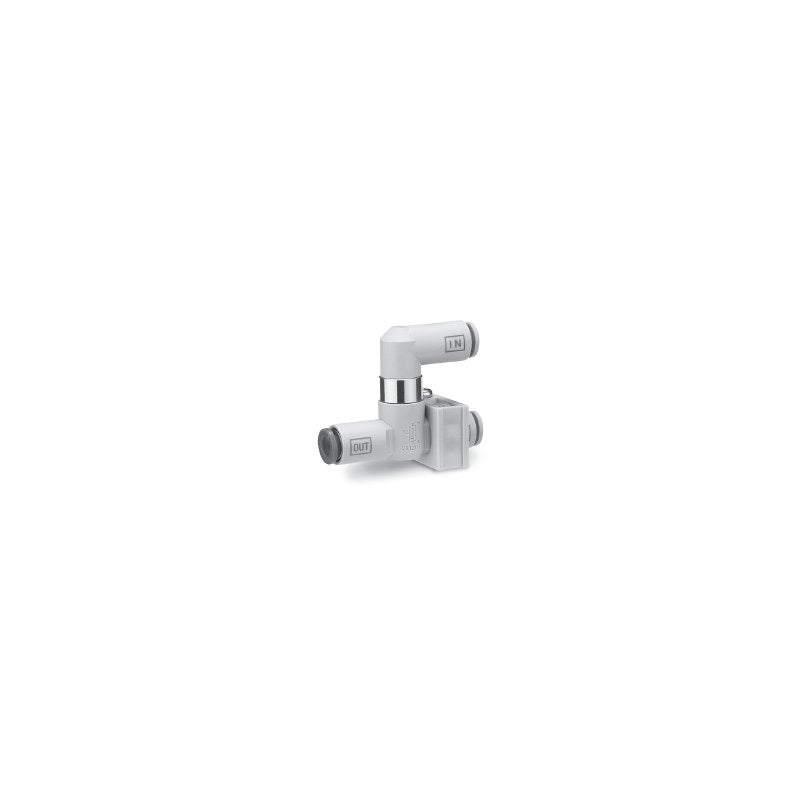

SMC VR1211F Dual Pressure Valve (AND Valve, One-touch Fitting)

SMC VR1211F Dual Pressure Valve (AND Valve, One-touch Fitting)

SMC VR1211F dual pressure (AND) valve with one-touch fittings that outputs at OUT only when both P1 and P2 are pressurized, passing the lower of the two pressures.

Key features

  • No output when only one of P1 or P2 is supplied
  • With different input pressures, the lower pressure is passed to OUT
  • One-touch fittings for metric ø3.2/ø4/ø6 or inch ø1/8"/ø5/32"/ø1/4" tubing
  • Brass parts electroless nickel plated (copper- and fluorine-free)
  • Can be fixed with TMH series holders

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.05 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Applicable tubing Nylon, soft nylon, polyurethane
Body size 1/8
Flow rate C [dm³/(s·bar)] 0.3 to 0.6 (b = 0.25)
Source SMC Korea catalog VR series (SMCKR_VRx.pdf), p. 1488-1489 (PDF p. 6-7)
VR1211F-23 Tube size: ø3.2 | Size system: Metric
VR1211F-04 Tube size: ø4 | Size system: Metric
VR1211F-06 Tube size: ø6 | Size system: Metric
VR1211F-01 Tube size: ø1/8" | Size system: Inch
VR1211F-03 Tube size: ø5/32" | Size system: Inch
VR1211F-07 Tube size: ø1/4" | Size system: Inch
Shuttle ValvesSMC
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VR1211F Dual Pressure Valve (AND Valve, One-touch Fitting)

Brand SMC·Shuttle Valves

Available part numbers (6)

VR1211F-23, VR1211F-04, VR1211F-06, VR1211F-01, VR1211F-03, VR1211F-07

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VR1211F-23Tube size: ø3.2 | Size system: Metric
VR1211F-04Tube size: ø4 | Size system: Metric
VR1211F-06Tube size: ø6 | Size system: Metric
VR1211F-01Tube size: ø1/8" | Size system: Inch
VR1211F-03Tube size: ø5/32" | Size system: Inch
VR1211F-07Tube size: ø1/4" | Size system: Inch
