• SMC VR2110 Time Delay Valve (Pneumatic Timer, 0.5 to 60 s)
1 1

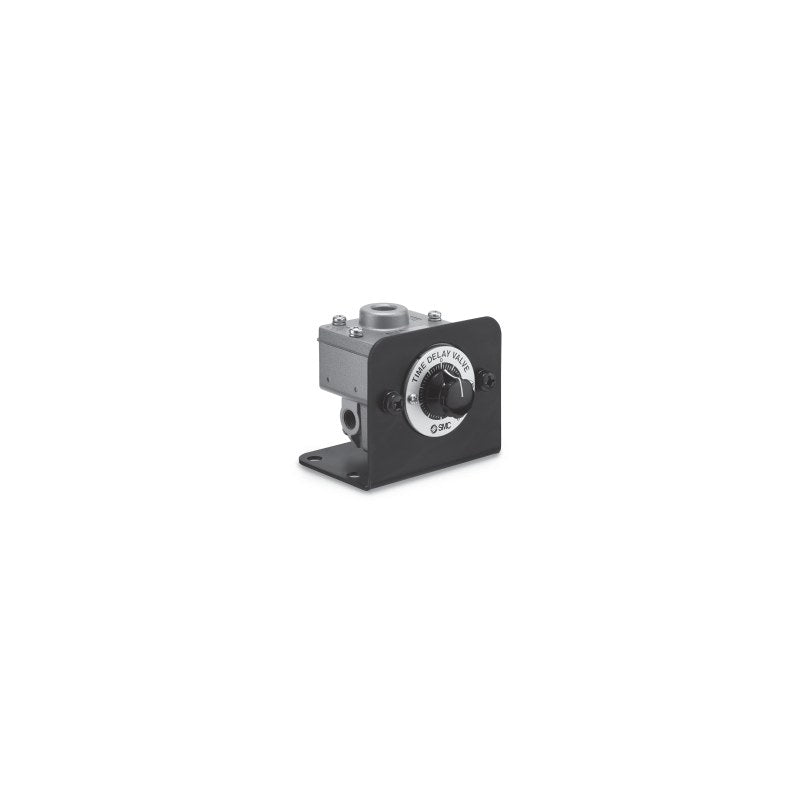

SMC VR2110 Time Delay Valve (Pneumatic Timer, 0.5 to 60 s)

SMC VR2110 Time Delay Valve (Pneumatic Timer, 0.5 to 60 s)

SMC VR2110 time delay valve that adds an adjustable 0.5 to 60 s delay to a pneumatic signal using a variable orifice and fixed volume, the pneumatic equivalent of a timer relay.

Key features

  • Delay time adjustable 0.5 to 60 s with a finger-operated knob
  • Repeatability ±10% F.S. (typical)
  • Panel mount or bracket mount
  • Options: X3 auxiliary tank port (Rc1/4) for longer delay, X102 N.O./N.C. common type with VM430
  • Rc1/8 ports standard; NPT1/8 (N01) and G1/8 (F01) available

Specifications

Fluid Air
Supply pressure 0 to 1.0 MPa
Input signal pressure 0.25 to 0.8 MPa
Delay time 0.5 to 60 s
Repeatability ±10% F.S. (typical)
Ambient and fluid temperature -5 to 60°C (no freezing)
Flow rate C [dm³/(s·bar)] 0.6 (P→A), 0.5 (A→R)
Port size 1/8
Mass 518 g
Source SMC Korea catalog VR series (SMCKR_VRx.pdf), p. 1490-1491 (PDF p. 8-9)
VR2110-01 Model: VR2110-01 | Option: Standard
VR2110-01-X3 Model: VR2110-01-X3 | Option: Rc1/4 auxiliary tank port
VR2110-01-X102 Model: VR2110-01-X102 | Option: N.O./N.C. common (VM430)
Mechanical ValvesSMC
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VR2110 Time Delay Valve (Pneumatic Timer, 0.5 to 60 s)

Brand SMC·Mechanical Valves

Available part numbers (3)

VR2110-01, VR2110-01-X3, VR2110-01-X102

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VR2110-01Model: VR2110-01 | Option: Standard
VR2110-01-X3Model: VR2110-01-X3 | Option: Rc1/4 auxiliary tank port
VR2110-01-X102Model: VR2110-01-X102 | Option: N.O./N.C. common (VM430)
