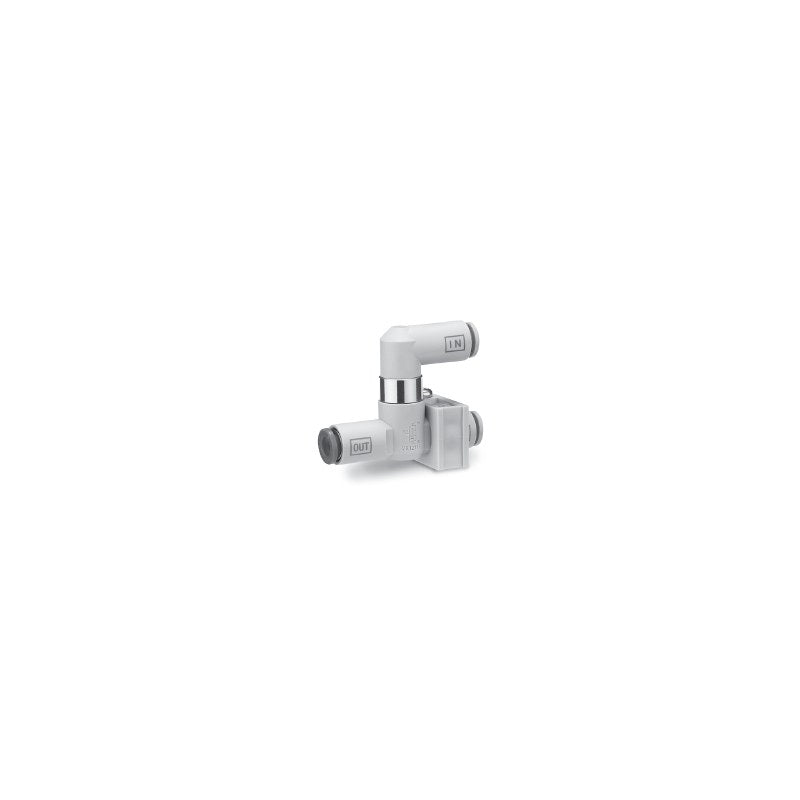

SMC VR3100/VR3110 Air Indicator (Panel and Miniature Type)

SMC VR3100/VR3110 Air Indicator (Panel and Miniature Type)

SMC VR3100 panel-mount air indicator and VR3110 miniature air indicator that show the presence of pressure in a pneumatic signal line, the pneumatic equivalent of a pilot lamp.

Key features

  • VR3100: panel-mount indicator with transparent window, red, green or orange
  • VR3100: 0.1 to 0.8 MPa, up to 100 c.p.m., Rc1/8, 40 g
  • VR3110: ultra-compact R1/8 male indicator, red or green
  • VR3110: 0.15 to 1.0 MPa, up to 300 c.p.m., 6 g
  • Piston-type display with return spring

Specifications

Fluid Air
Ambient and fluid temperature -5 to 60°C (no freezing)
Operating pressure VR3100 0.1 to 0.8 MPa; VR3110 0.15 to 1.0 MPa
Operating frequency VR3100 100 c.p.m. max.; VR3110 300 c.p.m. max.
Mass VR3100 40 g; VR3110 6 g
Port size 1/8
Source SMC Korea catalog VR series (SMCKR_VRx.pdf), p. 1494 (PDF p. 12)
VR3100-01R Model: VR3100 air indicator | Color: Red | Port: Rc1/8 (panel mount)
VR3100-01G Model: VR3100 air indicator | Color: Green | Port: Rc1/8 (panel mount)
VR3100-01O Model: VR3100 air indicator | Color: Orange | Port: Rc1/8 (panel mount)
VR3110-01R Model: VR3110 miniature indicator | Color: Red | Port: R1/8 male
VR3110-01G Model: VR3110 miniature indicator | Color: Green | Port: R1/8 male
Mechanical ValvesSMC
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VR3100/VR3110 Air Indicator (Panel and Miniature Type)

Brand SMC·Mechanical Valves

Available part numbers (5)

VR3100-01R, VR3100-01G, VR3100-01O, VR3110-01R, VR3110-01G

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VR3100-01RModel: VR3100 air indicator | Color: Red | Port: Rc1/8 (panel mount)
VR3100-01GModel: VR3100 air indicator | Color: Green | Port: Rc1/8 (panel mount)
VR3100-01OModel: VR3100 air indicator | Color: Orange | Port: Rc1/8 (panel mount)
VR3110-01RModel: VR3110 miniature indicator | Color: Red | Port: R1/8 male
VR3110-01GModel: VR3110 miniature indicator | Color: Green | Port: R1/8 male
