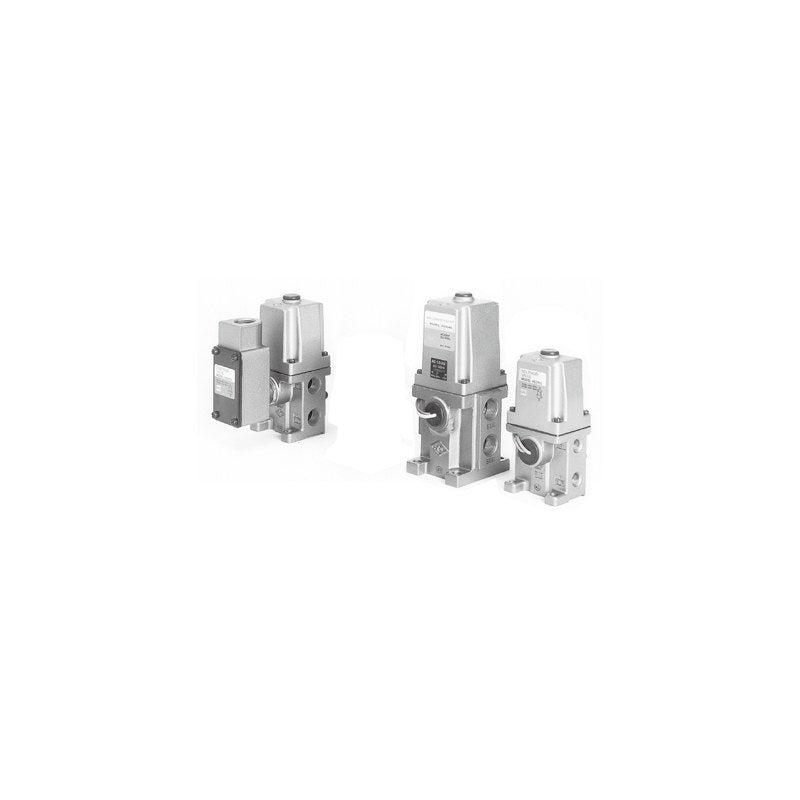

SMC VS3115/3110 3-Port Solenoid Valve (Direct Operated, Metal Seal)

SMC VS3115/3110 3-Port Solenoid Valve (Direct Operated, Metal Seal)

SMC VS3115/3110 direct-operated 3-port metal-seal solenoid valve with balanced spool, for direct piping (VS3115), sub-plate (VS3110) or manifold (VS3114).

Key features

  • Balanced spool and sleeve: different pressures can be supplied to any port
  • Usable non-lubricated or with dry air; operates regardless of mounting orientation
  • Body types: direct piping 1/8, 1/4; sub-plate 1/4, 3/8; without sub-plate for VVS31 manifold
  • Grommet or DIN terminal entry; coils AC100V, AC200V, DC24V (others on request)
  • Bracket (B, direct piping), indicator lamp (L), locking manual override (P) and NPT/NPTF/G threads as options

Specifications

Fluid Air
Valve type Direct operated 3-port, metal seal spool
Operating pressure 0 to 1.0 MPa
Proof pressure 1.5 MPa
Ambient and fluid temperature -20 to 60°C (no freezing)
Response time AC 10 ms, DC 45 ms or less
Max. operating frequency AC 1,500 CPM, DC 180 CPM
Power consumption DC 5.5 W
Coil insulation Class B
Impact/vibration resistance 150/50 m/s²
Source SMC Korea catalog VS3115/3110/3135/3145 (SMCKR_VS3115_3110_3135_3145.pdf), p. 2043-2044 (PDF p. 1-2)
VS3115-011G Piping: Direct piping (VS3115) | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS3115-011D Piping: Direct piping (VS3115) | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS3115-012G Piping: Direct piping (VS3115) | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS3115-012D Piping: Direct piping (VS3115) | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS3115-015G Piping: Direct piping (VS3115) | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Grommet
VS3115-015D Piping: Direct piping (VS3115) | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS3115-021G Piping: Direct piping (VS3115) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS3115-021D Piping: Direct piping (VS3115) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS3115-022G Piping: Direct piping (VS3115) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS3115-022D Piping: Direct piping (VS3115) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS3115-025G Piping: Direct piping (VS3115) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS3115-025D Piping: Direct piping (VS3115) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: DIN terminal
VS3110-021G Piping: With sub-plate (VS3110) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS3110-021D Piping: With sub-plate (VS3110) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS3110-022G Piping: With sub-plate (VS3110) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS3110-022D Piping: With sub-plate (VS3110) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS3110-025G Piping: With sub-plate (VS3110) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS3110-025D Piping: With sub-plate (VS3110) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: DIN terminal
VS3110-031G Piping: With sub-plate (VS3110) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS3110-031D Piping: With sub-plate (VS3110) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS3110-032G Piping: With sub-plate (VS3110) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS3110-032D Piping: With sub-plate (VS3110) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS3110-035G Piping: With sub-plate (VS3110) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VS3110-035D Piping: With sub-plate (VS3110) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS3114-001G Piping: Without sub-plate (VS3114) | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS3114-001D Piping: Without sub-plate (VS3114) | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS3114-002G Piping: Without sub-plate (VS3114) | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS3114-002D Piping: Without sub-plate (VS3114) | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS3114-005G Piping: Without sub-plate (VS3114) | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Grommet
VS3114-005D Piping: Without sub-plate (VS3114) | Port size: None (manifold) | Voltage: DC24V | Electrical entry: DIN terminal
3-Port Solenoid ValvesSMC
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VS3115/3110 3-Port Solenoid Valve (Direct Operated, Metal Seal)

Brand SMC·3-Port Solenoid Valves

Available part numbers (30)

VS3115-011G, VS3115-011D, VS3115-012G, VS3115-012D, VS3115-015G, VS3115-015D, VS3115-021G, VS3115-021D, VS3115-022G, VS3115-022D + 20 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VS3115-011GPiping: Direct piping (VS3115) | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS3115-011DPiping: Direct piping (VS3115) | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS3115-012GPiping: Direct piping (VS3115) | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS3115-012DPiping: Direct piping (VS3115) | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS3115-015GPiping: Direct piping (VS3115) | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Grommet
VS3115-015DPiping: Direct piping (VS3115) | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS3115-021GPiping: Direct piping (VS3115) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS3115-021DPiping: Direct piping (VS3115) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS3115-022GPiping: Direct piping (VS3115) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS3115-022DPiping: Direct piping (VS3115) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS3115-025GPiping: Direct piping (VS3115) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS3115-025DPiping: Direct piping (VS3115) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: DIN terminal
VS3110-021GPiping: With sub-plate (VS3110) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS3110-021DPiping: With sub-plate (VS3110) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS3110-022GPiping: With sub-plate (VS3110) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS3110-022DPiping: With sub-plate (VS3110) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS3110-025GPiping: With sub-plate (VS3110) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS3110-025DPiping: With sub-plate (VS3110) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: DIN terminal
VS3110-031GPiping: With sub-plate (VS3110) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS3110-031DPiping: With sub-plate (VS3110) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS3110-032GPiping: With sub-plate (VS3110) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS3110-032DPiping: With sub-plate (VS3110) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS3110-035GPiping: With sub-plate (VS3110) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VS3110-035DPiping: With sub-plate (VS3110) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS3114-001GPiping: Without sub-plate (VS3114) | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS3114-001DPiping: Without sub-plate (VS3114) | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS3114-002GPiping: Without sub-plate (VS3114) | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS3114-002DPiping: Without sub-plate (VS3114) | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS3114-005GPiping: Without sub-plate (VS3114) | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Grommet
VS3114-005DPiping: Without sub-plate (VS3114) | Port size: None (manifold) | Voltage: DC24V | Electrical entry: DIN terminal
