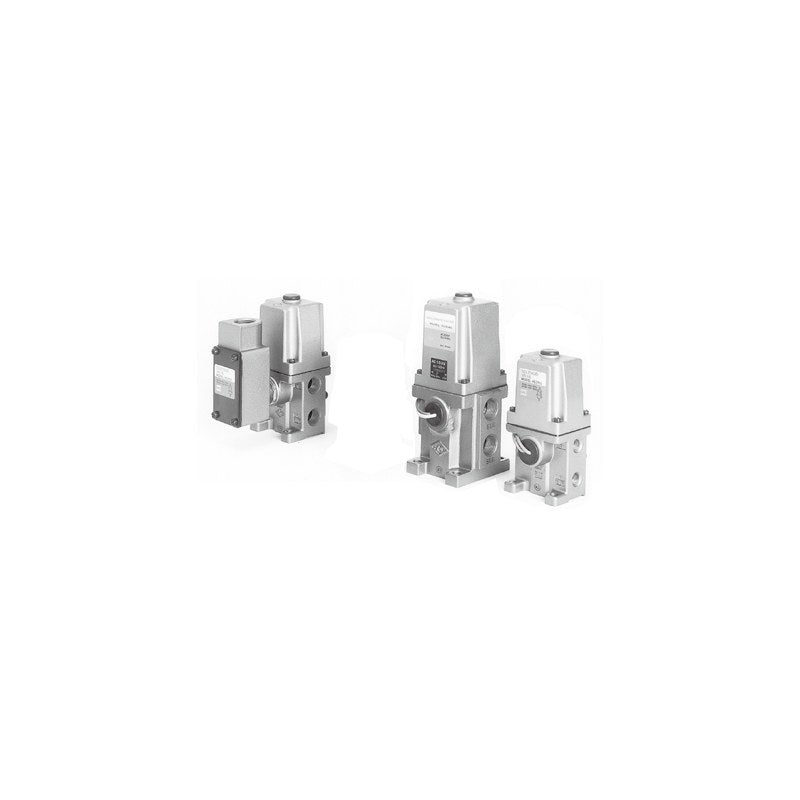

SMC VS3135/3145 3-Port Solenoid Valve (Direct Operated, Metal Seal)

SMC VS3135/3145 3-Port Solenoid Valve (Direct Operated, Metal Seal)

SMC VS3135/3145 direct-operated 3-port metal-seal solenoid valve for large flow, Rc1/4 to Rc3/4 direct piping.

Key features

  • Metal seal spool valve, non-lubricated operation
  • VS3135 (3/8 body) ports 1/4, 3/8, 1/2; VS3145 (1/2 body) ports 1/2, 3/4
  • Grommet, terminal conduit or watertight terminal conduit (WTB) entry, with lamp (L) and/or surge suppressor (Z, AXT307-1)
  • Coils AC100V, AC200V, DC24V (AC110V, AC220V and others on request)
  • Manual override (P: AC locking, DC non-locking) and NPT/NPTF/G threads as options

Specifications

Fluid Air
Valve type Direct operated 3-port, metal seal spool
Operating pressure 0 to 1.0 MPa
Proof pressure 1.5 MPa
Ambient and fluid temperature -20 to 60°C
Response time VS3135 AC 30 ms, DC 60 ms; VS3145 AC 30 ms, DC 80 ms
Power consumption DC 13.2 W (VS3135), 24 W (VS3145)
Mass AC 0.8 kg / DC 1.1 kg (VS3135); AC 1.6 kg / DC 2.4 kg (VS3145)
Coil insulation Class B
Impact/vibration resistance 150/50 m/s²
Source SMC Korea catalog VS3115/3110/3135/3145 (SMCKR_VS3115_3110_3135_3145.pdf), p. 2047-2048 (PDF p. 5-6)
VS3135-021 Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS3135-021T Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS3135-021TL Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, lamp
VS3135-021TZ Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, surge
VS3135-021TLZ Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, lamp + surge
VS3135-021WTB Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight terminal conduit
VS3135-021WTBL Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., lamp
VS3135-021WTBZ Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., surge
VS3135-021WTBLZ Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., lamp + surge
VS3135-022 Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS3135-022T Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS3135-022TL Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, lamp
VS3135-022TZ Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, surge
VS3135-022TLZ Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, lamp + surge
VS3135-022WTB Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight terminal conduit
VS3135-022WTBL Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., lamp
VS3135-022WTBZ Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., surge
VS3135-022WTBLZ Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., lamp + surge
VS3135-025 Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS3135-025T Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit
VS3135-025TL Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit, lamp
VS3135-025TZ Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit, surge
VS3135-025TLZ Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit, lamp + surge
VS3135-025WTB Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Watertight terminal conduit
VS3135-025WTBL Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Watertight term., lamp
VS3135-025WTBZ Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Watertight term., surge
VS3135-025WTBLZ Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Watertight term., lamp + surge
VS3135-031 Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS3135-031T Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS3135-031TL Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, lamp
VS3135-031TZ Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, surge
VS3135-031TLZ Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, lamp + surge
VS3135-031WTB Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight terminal conduit
VS3135-031WTBL Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., lamp
VS3135-031WTBZ Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., surge
VS3135-031WTBLZ Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., lamp + surge
VS3135-032 Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS3135-032T Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS3135-032TL Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, lamp
VS3135-032TZ Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, surge
VS3135-032TLZ Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, lamp + surge
VS3135-032WTB Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight terminal conduit
VS3135-032WTBL Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., lamp
VS3135-032WTBZ Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., surge
VS3135-032WTBLZ Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., lamp + surge
VS3135-035 Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VS3135-035T Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS3135-035TL Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Terminal conduit, lamp
VS3135-035TZ Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Terminal conduit, surge
VS3135-035TLZ Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Terminal conduit, lamp + surge
VS3135-035WTB Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Watertight terminal conduit
VS3135-035WTBL Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Watertight term., lamp
VS3135-035WTBZ Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Watertight term., surge
VS3135-035WTBLZ Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Watertight term., lamp + surge
VS3135-041 Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS3135-041T Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS3135-041TL Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, lamp
VS3135-041TZ Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, surge
VS3135-041TLZ Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, lamp + surge
VS3135-041WTB Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight terminal conduit
VS3135-041WTBL Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., lamp
VS3135-041WTBZ Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., surge
VS3135-041WTBLZ Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., lamp + surge
VS3135-042 Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS3135-042T Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS3135-042TL Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, lamp
VS3135-042TZ Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, surge
VS3135-042TLZ Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, lamp + surge
VS3135-042WTB Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight terminal conduit
VS3135-042WTBL Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., lamp
VS3135-042WTBZ Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., surge
VS3135-042WTBLZ Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., lamp + surge
VS3135-045 Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VS3135-045T Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Terminal conduit
VS3135-045TL Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Terminal conduit, lamp
VS3135-045TZ Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Terminal conduit, surge
VS3135-045TLZ Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Terminal conduit, lamp + surge
VS3135-045WTB Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Watertight terminal conduit
VS3135-045WTBL Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Watertight term., lamp
VS3135-045WTBZ Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Watertight term., surge
VS3135-045WTBLZ Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Watertight term., lamp + surge
VS3145-041 Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS3145-041T Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS3145-041TL Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, lamp
VS3145-041TZ Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, surge
VS3145-041TLZ Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, lamp + surge
VS3145-041WTB Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight terminal conduit
VS3145-041WTBL Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., lamp
VS3145-041WTBZ Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., surge
VS3145-041WTBLZ Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., lamp + surge
VS3145-042 Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS3145-042T Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS3145-042TL Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, lamp
VS3145-042TZ Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, surge
VS3145-042TLZ Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, lamp + surge
VS3145-042WTB Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight terminal conduit
VS3145-042WTBL Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., lamp
VS3145-042WTBZ Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., surge
VS3145-042WTBLZ Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., lamp + surge
VS3145-045 Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VS3145-045T Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Terminal conduit
VS3145-045TL Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Terminal conduit, lamp
VS3145-045TZ Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Terminal conduit, surge
VS3145-045TLZ Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Terminal conduit, lamp + surge
VS3145-045WTB Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Watertight terminal conduit
VS3145-045WTBL Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Watertight term., lamp
VS3145-045WTBZ Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Watertight term., surge
VS3145-045WTBLZ Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Watertight term., lamp + surge
VS3145-061 Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS3145-061T Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS3145-061TL Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, lamp
VS3145-061TZ Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, surge
VS3145-061TLZ Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, lamp + surge
VS3145-061WTB Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight terminal conduit
VS3145-061WTBL Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., lamp
VS3145-061WTBZ Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., surge
VS3145-061WTBLZ Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., lamp + surge
VS3145-062 Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS3145-062T Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS3145-062TL Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, lamp
VS3145-062TZ Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, surge
VS3145-062TLZ Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, lamp + surge
VS3145-062WTB Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight terminal conduit
VS3145-062WTBL Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., lamp
VS3145-062WTBZ Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., surge
VS3145-062WTBLZ Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., lamp + surge
VS3145-065 Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VS3145-065T Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: DC24V | Electrical entry: Terminal conduit
VS3145-065TL Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: DC24V | Electrical entry: Terminal conduit, lamp
VS3145-065TZ Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: DC24V | Electrical entry: Terminal conduit, surge
VS3145-065TLZ Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: DC24V | Electrical entry: Terminal conduit, lamp + surge
VS3145-065WTB Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: DC24V | Electrical entry: Watertight terminal conduit
VS3145-065WTBL Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: DC24V | Electrical entry: Watertight term., lamp
VS3145-065WTBZ Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: DC24V | Electrical entry: Watertight term., surge
VS3145-065WTBLZ Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: DC24V | Electrical entry: Watertight term., lamp + surge
3-Port Solenoid ValvesSMC
135 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VS3135/3145 3-Port Solenoid Valve (Direct Operated, Metal Seal)

Brand SMC·3-Port Solenoid Valves

Available part numbers (135)

VS3135-021, VS3135-021T, VS3135-021TL, VS3135-021TZ, VS3135-021TLZ, VS3135-021WTB, VS3135-021WTBL, VS3135-021WTBZ, VS3135-021WTBLZ, VS3135-022 + 125 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VS3135-021Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS3135-021TBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS3135-021TLBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, lamp
VS3135-021TZBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, surge
VS3135-021TLZBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, lamp + surge
VS3135-021WTBBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight terminal conduit
VS3135-021WTBLBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., lamp
VS3135-021WTBZBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., surge
VS3135-021WTBLZBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., lamp + surge
VS3135-022Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS3135-022TBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS3135-022TLBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, lamp
VS3135-022TZBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, surge
VS3135-022TLZBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, lamp + surge
VS3135-022WTBBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight terminal conduit
VS3135-022WTBLBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., lamp
VS3135-022WTBZBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., surge
VS3135-022WTBLZBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., lamp + surge
VS3135-025Body size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS3135-025TBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit
VS3135-025TLBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit, lamp
VS3135-025TZBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit, surge
VS3135-025TLZBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit, lamp + surge
VS3135-025WTBBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Watertight terminal conduit
VS3135-025WTBLBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Watertight term., lamp
VS3135-025WTBZBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Watertight term., surge
VS3135-025WTBLZBody size: VS3135 (3/8 body) | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Watertight term., lamp + surge
VS3135-031Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS3135-031TBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS3135-031TLBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, lamp
VS3135-031TZBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, surge
VS3135-031TLZBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, lamp + surge
VS3135-031WTBBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight terminal conduit
VS3135-031WTBLBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., lamp
VS3135-031WTBZBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., surge
VS3135-031WTBLZBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., lamp + surge
VS3135-032Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS3135-032TBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS3135-032TLBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, lamp
VS3135-032TZBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, surge
VS3135-032TLZBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, lamp + surge
VS3135-032WTBBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight terminal conduit
VS3135-032WTBLBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., lamp
VS3135-032WTBZBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., surge
VS3135-032WTBLZBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., lamp + surge
VS3135-035Body size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VS3135-035TBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS3135-035TLBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Terminal conduit, lamp
VS3135-035TZBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Terminal conduit, surge
VS3135-035TLZBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Terminal conduit, lamp + surge
VS3135-035WTBBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Watertight terminal conduit
VS3135-035WTBLBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Watertight term., lamp
VS3135-035WTBZBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Watertight term., surge
VS3135-035WTBLZBody size: VS3135 (3/8 body) | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Watertight term., lamp + surge
VS3135-041Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS3135-041TBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS3135-041TLBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, lamp
VS3135-041TZBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, surge
VS3135-041TLZBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, lamp + surge
VS3135-041WTBBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight terminal conduit
VS3135-041WTBLBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., lamp
VS3135-041WTBZBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., surge
VS3135-041WTBLZBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., lamp + surge
VS3135-042Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS3135-042TBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS3135-042TLBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, lamp
VS3135-042TZBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, surge
VS3135-042TLZBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, lamp + surge
VS3135-042WTBBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight terminal conduit
VS3135-042WTBLBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., lamp
VS3135-042WTBZBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., surge
VS3135-042WTBLZBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., lamp + surge
VS3135-045Body size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VS3135-045TBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Terminal conduit
VS3135-045TLBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Terminal conduit, lamp
VS3135-045TZBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Terminal conduit, surge
VS3135-045TLZBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Terminal conduit, lamp + surge
VS3135-045WTBBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Watertight terminal conduit
VS3135-045WTBLBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Watertight term., lamp
VS3135-045WTBZBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Watertight term., surge
VS3135-045WTBLZBody size: VS3135 (3/8 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Watertight term., lamp + surge
VS3145-041Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS3145-041TBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS3145-041TLBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, lamp
VS3145-041TZBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, surge
VS3145-041TLZBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, lamp + surge
VS3145-041WTBBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight terminal conduit
VS3145-041WTBLBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., lamp
VS3145-041WTBZBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., surge
VS3145-041WTBLZBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., lamp + surge
VS3145-042Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS3145-042TBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS3145-042TLBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, lamp
VS3145-042TZBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, surge
VS3145-042TLZBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, lamp + surge
VS3145-042WTBBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight terminal conduit
VS3145-042WTBLBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., lamp
VS3145-042WTBZBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., surge
VS3145-042WTBLZBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., lamp + surge
VS3145-045Body size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VS3145-045TBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Terminal conduit
VS3145-045TLBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Terminal conduit, lamp
VS3145-045TZBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Terminal conduit, surge
VS3145-045TLZBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Terminal conduit, lamp + surge
VS3145-045WTBBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Watertight terminal conduit
VS3145-045WTBLBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Watertight term., lamp
VS3145-045WTBZBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Watertight term., surge
VS3145-045WTBLZBody size: VS3145 (1/2 body) | Port size: Rc1/2 | Voltage: DC24V | Electrical entry: Watertight term., lamp + surge
VS3145-061Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS3145-061TBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS3145-061TLBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, lamp
VS3145-061TZBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, surge
VS3145-061TLZBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit, lamp + surge
VS3145-061WTBBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight terminal conduit
VS3145-061WTBLBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., lamp
VS3145-061WTBZBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., surge
VS3145-061WTBLZBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC100V 50/60Hz | Electrical entry: Watertight term., lamp + surge
VS3145-062Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS3145-062TBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS3145-062TLBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, lamp
VS3145-062TZBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, surge
VS3145-062TLZBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit, lamp + surge
VS3145-062WTBBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight terminal conduit
VS3145-062WTBLBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., lamp
VS3145-062WTBZBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., surge
VS3145-062WTBLZBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: AC200V 50/60Hz | Electrical entry: Watertight term., lamp + surge
VS3145-065Body size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VS3145-065TBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: DC24V | Electrical entry: Terminal conduit
VS3145-065TLBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: DC24V | Electrical entry: Terminal conduit, lamp
VS3145-065TZBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: DC24V | Electrical entry: Terminal conduit, surge
VS3145-065TLZBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: DC24V | Electrical entry: Terminal conduit, lamp + surge
VS3145-065WTBBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: DC24V | Electrical entry: Watertight terminal conduit
VS3145-065WTBLBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: DC24V | Electrical entry: Watertight term., lamp
VS3145-065WTBZBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: DC24V | Electrical entry: Watertight term., surge
VS3145-065WTBLZBody size: VS3145 (1/2 body) | Port size: Rc3/4 | Voltage: DC24V | Electrical entry: Watertight term., lamp + surge

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
