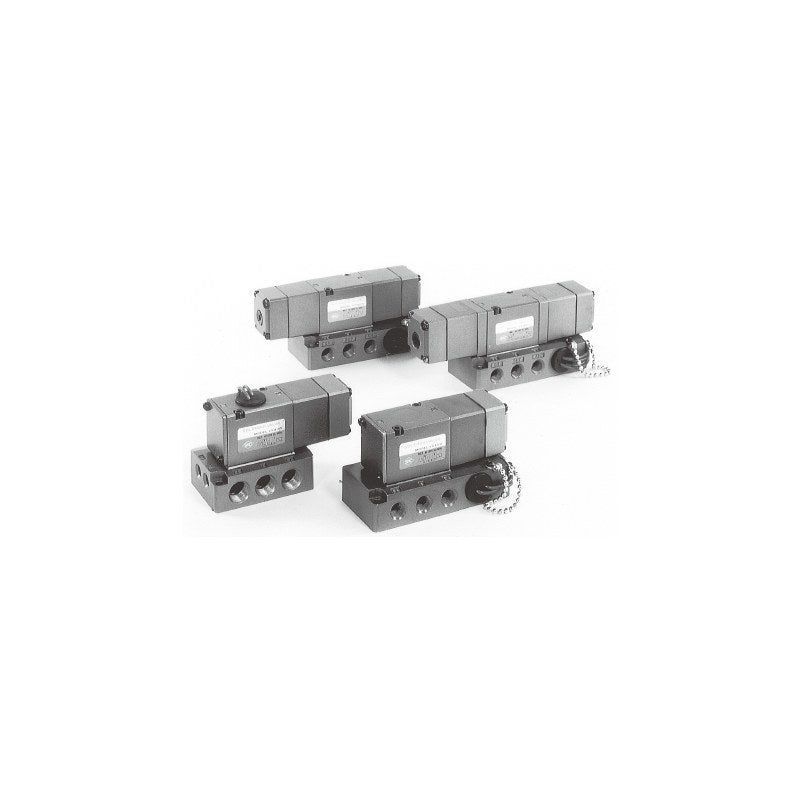

SMC VS410 5-Port Solenoid Valve (Direct Operated, Metal Seal)

SMC VS410 5-Port Solenoid Valve (Direct Operated, Metal Seal)

SMC VS410 direct-operated 5-port metal-seal solenoid valve (VS4110/4210/4310/4410) on sub-plate with 1/8 to 3/8 ports, or without sub-plate for VVS410 manifolds.

Key features

  • Switching: 2-position single (VS4110), double (VS4210), 3-position closed center (VS4310), exhaust center (VS4410)
  • Usable non-lubricated; flow C up to 4.2 dm³/(s·bar)
  • Sub-plate side or bottom ported, or without sub-plate for manifold mounting
  • Grommet, conduit, terminal conduit or DIN entry; lamp (L) and surge suppressor (Z) variants UL, CL, TL, TZ, TLZ, DL, DZ, DLZ on order
  • Locking manual override (P), speed controller unit (R) and NPT/NPTF/G threads as options

Specifications

Fluid Air
Valve type Direct operated 5-port, metal seal spool
Operating pressure 0 to 1.0 MPa
Ambient and fluid temperature -20 to 60°C
Max. operating frequency AC 1,200 CPM (2-pos), 360 CPM (3-pos); DC 180 CPM
Response time AC 13 to 15 ms, DC 40 to 45 ms or less
Power consumption DC 5.5 W
Coil insulation Class B
Impact/vibration resistance 150/30 m/s²
Source SMC Korea catalog VS410 (SMCKR_VS4__10.pdf), p. 2037-2038 (PDF p. 1-2)
VS4110-011U Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4110-011C Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4110-011T Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4110-011D Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4110-012U Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4110-012C Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4110-012T Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4110-012D Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4110-015U Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Grommet
VS4110-015C Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Conduit
VS4110-015T Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4110-015D Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4110-021U Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4110-021C Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4110-021T Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4110-021D Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4110-022U Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4110-022C Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4110-022T Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4110-022D Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4110-025U Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS4110-025C Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Conduit
VS4110-025T Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4110-025D Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: DIN terminal
VS4110-031U Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4110-031C Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4110-031T Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4110-031D Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4110-032U Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4110-032C Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4110-032T Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4110-032D Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4110-035U Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VS4110-035C Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Conduit
VS4110-035T Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4110-035D Switching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4111-011U Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4111-011C Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4111-011T Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4111-011D Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4111-012U Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4111-012C Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4111-012T Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4111-012D Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4111-015U Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Grommet
VS4111-015C Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Conduit
VS4111-015T Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4111-015D Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4111-021U Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4111-021C Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4111-021T Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4111-021D Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4111-022U Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4111-022C Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4111-022T Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4111-022D Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4111-025U Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS4111-025C Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Conduit
VS4111-025T Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4111-025D Switching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: DIN terminal
VS4114-001U Switching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4114-001C Switching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4114-001T Switching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4114-001D Switching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4114-002U Switching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4114-002C Switching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4114-002T Switching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4114-002D Switching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4114-005U Switching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Grommet
VS4114-005C Switching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Conduit
VS4114-005T Switching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Terminal conduit
VS4114-005D Switching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: DIN terminal
VS4210-011U Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4210-011C Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4210-011T Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4210-011D Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4210-012U Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4210-012C Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4210-012T Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4210-012D Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4210-015U Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Grommet
VS4210-015C Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Conduit
VS4210-015T Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4210-015D Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4210-021U Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4210-021C Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4210-021T Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4210-021D Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4210-022U Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4210-022C Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4210-022T Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4210-022D Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4210-025U Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS4210-025C Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Conduit
VS4210-025T Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4210-025D Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: DIN terminal
VS4210-031U Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4210-031C Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4210-031T Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4210-031D Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4210-032U Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4210-032C Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4210-032T Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4210-032D Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4210-035U Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VS4210-035C Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Conduit
VS4210-035T Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4210-035D Switching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4211-011U Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4211-011C Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4211-011T Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4211-011D Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4211-012U Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4211-012C Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4211-012T Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4211-012D Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4211-015U Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Grommet
VS4211-015C Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Conduit
VS4211-015T Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4211-015D Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4211-021U Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4211-021C Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4211-021T Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4211-021D Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4211-022U Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4211-022C Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4211-022T Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4211-022D Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4211-025U Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS4211-025C Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Conduit
VS4211-025T Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4211-025D Switching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: DIN terminal
VS4214-001U Switching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4214-001C Switching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4214-001T Switching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4214-001D Switching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4214-002U Switching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4214-002C Switching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4214-002T Switching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4214-002D Switching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4214-005U Switching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Grommet
VS4214-005C Switching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Conduit
VS4214-005T Switching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Terminal conduit
VS4214-005D Switching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: DIN terminal
VS4310-011U Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4310-011C Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4310-011T Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4310-011D Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4310-012U Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4310-012C Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4310-012T Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4310-012D Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4310-015U Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Grommet
VS4310-015C Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Conduit
VS4310-015T Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4310-015D Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4310-021U Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4310-021C Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4310-021T Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4310-021D Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4310-022U Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4310-022C Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4310-022T Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4310-022D Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4310-025U Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS4310-025C Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Conduit
VS4310-025T Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4310-025D Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: DIN terminal
VS4310-031U Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4310-031C Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4310-031T Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4310-031D Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4310-032U Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4310-032C Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4310-032T Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4310-032D Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4310-035U Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VS4310-035C Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Conduit
VS4310-035T Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4310-035D Switching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4311-011U Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4311-011C Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4311-011T Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4311-011D Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4311-012U Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4311-012C Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4311-012T Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4311-012D Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4311-015U Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Grommet
VS4311-015C Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Conduit
VS4311-015T Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4311-015D Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4311-021U Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4311-021C Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4311-021T Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4311-021D Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4311-022U Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4311-022C Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4311-022T Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4311-022D Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4311-025U Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS4311-025C Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Conduit
VS4311-025T Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4311-025D Switching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: DIN terminal
VS4314-001U Switching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4314-001C Switching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4314-001T Switching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4314-001D Switching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4314-002U Switching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4314-002C Switching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4314-002T Switching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4314-002D Switching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4314-005U Switching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Grommet
VS4314-005C Switching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Conduit
VS4314-005T Switching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Terminal conduit
VS4314-005D Switching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: DIN terminal
VS4410-011U Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4410-011C Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4410-011T Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4410-011D Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4410-012U Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4410-012C Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4410-012T Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4410-012D Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4410-015U Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Grommet
VS4410-015C Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Conduit
VS4410-015T Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4410-015D Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4410-021U Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4410-021C Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4410-021T Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4410-021D Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4410-022U Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4410-022C Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4410-022T Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4410-022D Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4410-025U Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS4410-025C Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Conduit
VS4410-025T Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4410-025D Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: DIN terminal
VS4410-031U Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4410-031C Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4410-031T Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4410-031D Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4410-032U Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4410-032C Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4410-032T Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4410-032D Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4410-035U Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VS4410-035C Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Conduit
VS4410-035T Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4410-035D Switching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4411-011U Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4411-011C Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4411-011T Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4411-011D Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4411-012U Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4411-012C Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4411-012T Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4411-012D Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4411-015U Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Grommet
VS4411-015C Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Conduit
VS4411-015T Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4411-015D Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4411-021U Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4411-021C Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4411-021T Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4411-021D Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4411-022U Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4411-022C Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4411-022T Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4411-022D Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4411-025U Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS4411-025C Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Conduit
VS4411-025T Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4411-025D Switching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: DIN terminal
VS4414-001U Switching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4414-001C Switching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4414-001T Switching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4414-001D Switching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4414-002U Switching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4414-002C Switching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4414-002T Switching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4414-002D Switching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4414-005U Switching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Grommet
VS4414-005C Switching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Conduit
VS4414-005T Switching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Terminal conduit
VS4414-005D Switching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: DIN terminal
5-Port Solenoid ValvesSMC
288 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VS410 5-Port Solenoid Valve (Direct Operated, Metal Seal)

Brand SMC·5-Port Solenoid Valves

Available part numbers (288)

VS4110-011U, VS4110-011C, VS4110-011T, VS4110-011D, VS4110-012U, VS4110-012C, VS4110-012T, VS4110-012D, VS4110-015U, VS4110-015C + 278 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VS4110-011USwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4110-011CSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4110-011TSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4110-011DSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4110-012USwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4110-012CSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4110-012TSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4110-012DSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4110-015USwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Grommet
VS4110-015CSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Conduit
VS4110-015TSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4110-015DSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4110-021USwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4110-021CSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4110-021TSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4110-021DSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4110-022USwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4110-022CSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4110-022TSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4110-022DSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4110-025USwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS4110-025CSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Conduit
VS4110-025TSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4110-025DSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: DIN terminal
VS4110-031USwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4110-031CSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4110-031TSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4110-031DSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4110-032USwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4110-032CSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4110-032TSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4110-032DSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4110-035USwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VS4110-035CSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Conduit
VS4110-035TSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4110-035DSwitching: 2-pos single | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4111-011USwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4111-011CSwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4111-011TSwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4111-011DSwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4111-012USwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4111-012CSwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4111-012TSwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4111-012DSwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4111-015USwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Grommet
VS4111-015CSwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Conduit
VS4111-015TSwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4111-015DSwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4111-021USwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4111-021CSwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4111-021TSwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4111-021DSwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4111-022USwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4111-022CSwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4111-022TSwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4111-022DSwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4111-025USwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS4111-025CSwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Conduit
VS4111-025TSwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4111-025DSwitching: 2-pos single | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: DIN terminal
VS4114-001USwitching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4114-001CSwitching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4114-001TSwitching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4114-001DSwitching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4114-002USwitching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4114-002CSwitching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4114-002TSwitching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4114-002DSwitching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4114-005USwitching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Grommet
VS4114-005CSwitching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Conduit
VS4114-005TSwitching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Terminal conduit
VS4114-005DSwitching: 2-pos single | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: DIN terminal
VS4210-011USwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4210-011CSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4210-011TSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4210-011DSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4210-012USwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4210-012CSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4210-012TSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4210-012DSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4210-015USwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Grommet
VS4210-015CSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Conduit
VS4210-015TSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4210-015DSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4210-021USwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4210-021CSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4210-021TSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4210-021DSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4210-022USwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4210-022CSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4210-022TSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4210-022DSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4210-025USwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS4210-025CSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Conduit
VS4210-025TSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4210-025DSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: DIN terminal
VS4210-031USwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4210-031CSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4210-031TSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4210-031DSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4210-032USwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4210-032CSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4210-032TSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4210-032DSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4210-035USwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VS4210-035CSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Conduit
VS4210-035TSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4210-035DSwitching: 2-pos double | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4211-011USwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4211-011CSwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4211-011TSwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4211-011DSwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4211-012USwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4211-012CSwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4211-012TSwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4211-012DSwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4211-015USwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Grommet
VS4211-015CSwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Conduit
VS4211-015TSwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4211-015DSwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4211-021USwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4211-021CSwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4211-021TSwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4211-021DSwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4211-022USwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4211-022CSwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4211-022TSwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4211-022DSwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4211-025USwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS4211-025CSwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Conduit
VS4211-025TSwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4211-025DSwitching: 2-pos double | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: DIN terminal
VS4214-001USwitching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4214-001CSwitching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4214-001TSwitching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4214-001DSwitching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4214-002USwitching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4214-002CSwitching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4214-002TSwitching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4214-002DSwitching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4214-005USwitching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Grommet
VS4214-005CSwitching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Conduit
VS4214-005TSwitching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Terminal conduit
VS4214-005DSwitching: 2-pos double | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: DIN terminal
VS4310-011USwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4310-011CSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4310-011TSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4310-011DSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4310-012USwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4310-012CSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4310-012TSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4310-012DSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4310-015USwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Grommet
VS4310-015CSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Conduit
VS4310-015TSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4310-015DSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4310-021USwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4310-021CSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4310-021TSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4310-021DSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4310-022USwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4310-022CSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4310-022TSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4310-022DSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4310-025USwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS4310-025CSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Conduit
VS4310-025TSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4310-025DSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: DIN terminal
VS4310-031USwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4310-031CSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4310-031TSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4310-031DSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4310-032USwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4310-032CSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4310-032TSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4310-032DSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4310-035USwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VS4310-035CSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Conduit
VS4310-035TSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4310-035DSwitching: 3-pos closed center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4311-011USwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4311-011CSwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4311-011TSwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4311-011DSwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4311-012USwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4311-012CSwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4311-012TSwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4311-012DSwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4311-015USwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Grommet
VS4311-015CSwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Conduit
VS4311-015TSwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4311-015DSwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4311-021USwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4311-021CSwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4311-021TSwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4311-021DSwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4311-022USwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4311-022CSwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4311-022TSwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4311-022DSwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4311-025USwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS4311-025CSwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Conduit
VS4311-025TSwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4311-025DSwitching: 3-pos closed center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: DIN terminal
VS4314-001USwitching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4314-001CSwitching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4314-001TSwitching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4314-001DSwitching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4314-002USwitching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4314-002CSwitching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4314-002TSwitching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4314-002DSwitching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4314-005USwitching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Grommet
VS4314-005CSwitching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Conduit
VS4314-005TSwitching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Terminal conduit
VS4314-005DSwitching: 3-pos closed center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: DIN terminal
VS4410-011USwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4410-011CSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4410-011TSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4410-011DSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4410-012USwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4410-012CSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4410-012TSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4410-012DSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4410-015USwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Grommet
VS4410-015CSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Conduit
VS4410-015TSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4410-015DSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4410-021USwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4410-021CSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4410-021TSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4410-021DSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4410-022USwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4410-022CSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4410-022TSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4410-022DSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4410-025USwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS4410-025CSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Conduit
VS4410-025TSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4410-025DSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: DIN terminal
VS4410-031USwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4410-031CSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4410-031TSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4410-031DSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4410-032USwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4410-032CSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4410-032TSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4410-032DSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4410-035USwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VS4410-035CSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Conduit
VS4410-035TSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4410-035DSwitching: 3-pos exhaust center | Piping: Sub-plate, side ported | Port size: Rc3/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4411-011USwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4411-011CSwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4411-011TSwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4411-011DSwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4411-012USwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4411-012CSwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4411-012TSwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4411-012DSwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4411-015USwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Grommet
VS4411-015CSwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Conduit
VS4411-015TSwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4411-015DSwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/8 | Voltage: DC24V | Electrical entry: DIN terminal
VS4411-021USwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4411-021CSwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4411-021TSwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4411-021DSwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4411-022USwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4411-022CSwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4411-022TSwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4411-022DSwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4411-025USwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VS4411-025CSwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Conduit
VS4411-025TSwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: Terminal conduit
VS4411-025DSwitching: 3-pos exhaust center | Piping: Sub-plate, bottom ported | Port size: Rc1/4 | Voltage: DC24V | Electrical entry: DIN terminal
VS4414-001USwitching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Grommet
VS4414-001CSwitching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Conduit
VS4414-001TSwitching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: Terminal conduit
VS4414-001DSwitching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal
VS4414-002USwitching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Grommet
VS4414-002CSwitching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Conduit
VS4414-002TSwitching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: Terminal conduit
VS4414-002DSwitching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal
VS4414-005USwitching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Grommet
VS4414-005CSwitching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Conduit
VS4414-005TSwitching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: Terminal conduit
VS4414-005DSwitching: 3-pos exhaust center | Piping: Without sub-plate | Port size: None (manifold) | Voltage: DC24V | Electrical entry: DIN terminal

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
