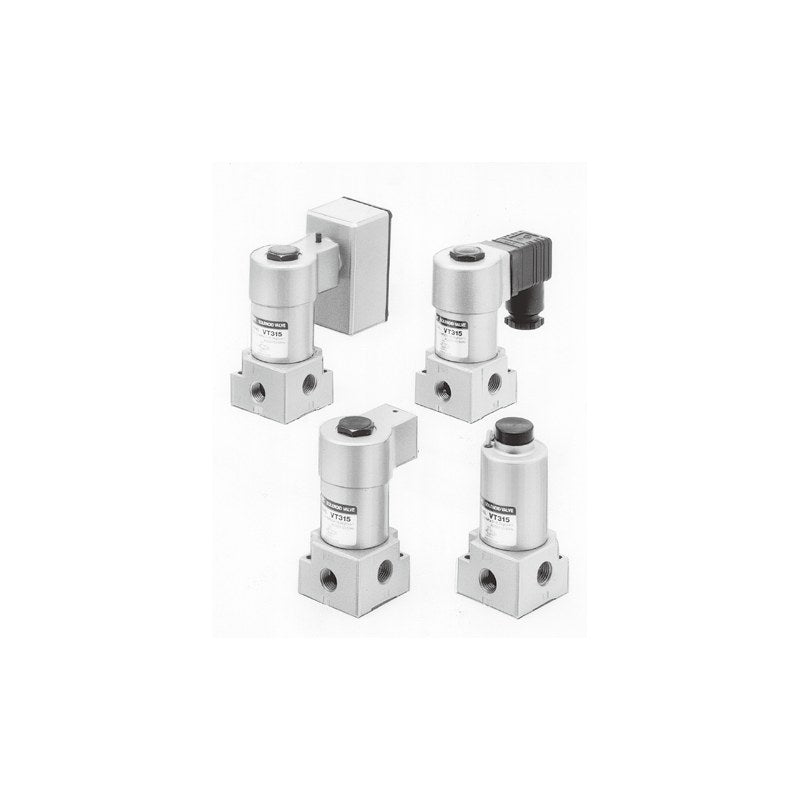

SMC VT315 3-Port Solenoid Valve (Direct Operated Poppet, 1/4)

SMC VT315 3-Port Solenoid Valve (Direct Operated Poppet, 1/4)

SMC VT315 compact direct-operated 3-port poppet solenoid valve with large flow capacity (C 1.7) and universal porting, for direct piping (VT315) or manifold mounting (VO315).

Key features

  • Compact body 45x95x45 mm (grommet) with C = 1.7 dm³/(s·bar)
  • Universal porting: N.C., N.O., divider, selector and other functions from one valve
  • Valve options: standard, continuous duty (E), vacuum (V, -101.2 kPa)
  • Electrical entry: grommet, conduit, DIN terminal, conduit terminal, with lamp (DL, TL); H lead wire and DO/DOL connector-less on order
  • Built-in surge suppressor (S), locking manual override (M) and G/NPT/NPTF threads as options

Specifications

Fluid Air
Valve type Direct operated 2-position single, poppet, elastomer seal
Operating pressure 0 to 1.0 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Response time 30 ms or less (at 0.5 MPa)
Max. operating frequency 10 Hz
Port size Rc1/4 (VT315); VO315 on VVT32 manifold
Power consumption DC 6 to 7 W
Manual override Non-locking push type
Impact/vibration resistance 150/50 m/s²
Source SMC Korea catalog VT315 (SMCKR_VT315.pdf), p. 9-12 (PDF p. 1-2, 4)
VT315-021G Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VO315-001G Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT315-021GS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO315-001GS Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT315-021C Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315-001C Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315-001C-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT315-021CS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315-001CS Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315-001CS-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT315-021D Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315-001D Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315-001D-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT315-021DS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315-001DS Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315-001DS-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT315-021T Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315-001T Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315-001T-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT315-021TS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315-001TS Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315-001TS-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT315-021DL Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315-001DL Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315-001DL-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT315-021DLS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315-001DLS Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315-001DLS-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT315-021TL Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315-001TL Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315-001TL-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT315-021TLS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315-001TLS Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315-001TLS-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT315-022G Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VO315-002G Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT315-022GS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO315-002GS Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT315-022C Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315-002C Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315-002C-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT315-022CS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315-002CS Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315-002CS-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT315-022D Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315-002D Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315-002D-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT315-022DS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315-002DS Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315-002DS-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT315-022T Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315-002T Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315-002T-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT315-022TS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315-002TS Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315-002TS-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT315-022DL Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315-002DL Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315-002DL-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT315-022DLS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315-002DLS Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315-002DLS-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT315-022TL Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315-002TL Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315-002TL-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT315-022TLS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315-002TLS Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315-002TLS-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT315-025G Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VO315-005G Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VT315-025GS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO315-005GS Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT315-025C Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VO315-005C Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VO315-005C-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VT315-025CS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315-005CS Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315-005CS-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT315-025D Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VO315-005D Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VO315-005D-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VT315-025DS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315-005DS Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315-005DS-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT315-025T Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VO315-005T Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VO315-005T-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VT315-025TS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315-005TS Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315-005TS-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT315-025DL Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315-005DL Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315-005DL-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT315-025DLS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315-005DLS Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315-005DLS-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT315-025TL Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315-005TL Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315-005TL-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT315-025TLS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315-005TLS Body: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315-005TLS-1 Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT315E-021G Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VO315E-001G Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT315E-021GS Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO315E-001GS Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT315E-021C Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315E-001C Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315E-001C-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT315E-021CS Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315E-001CS Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315E-001CS-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT315E-021D Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315E-001D Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315E-001D-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT315E-021DS Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315E-001DS Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315E-001DS-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT315E-021T Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315E-001T Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315E-001T-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT315E-021TS Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315E-001TS Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315E-001TS-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT315E-021DL Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315E-001DL Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315E-001DL-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT315E-021DLS Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315E-001DLS Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315E-001DLS-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT315E-021TL Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315E-001TL Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315E-001TL-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT315E-021TLS Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315E-001TLS Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315E-001TLS-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT315E-022G Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VO315E-002G Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT315E-022GS Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO315E-002GS Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT315E-022C Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315E-002C Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315E-002C-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT315E-022CS Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315E-002CS Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315E-002CS-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT315E-022D Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315E-002D Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315E-002D-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT315E-022DS Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315E-002DS Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315E-002DS-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT315E-022T Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315E-002T Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315E-002T-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT315E-022TS Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315E-002TS Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315E-002TS-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT315E-022DL Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315E-002DL Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315E-002DL-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT315E-022DLS Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315E-002DLS Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315E-002DLS-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT315E-022TL Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315E-002TL Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315E-002TL-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT315E-022TLS Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315E-002TLS Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315E-002TLS-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT315E-025G Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VO315E-005G Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VT315E-025GS Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO315E-005GS Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT315E-025C Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VO315E-005C Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VO315E-005C-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VT315E-025CS Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315E-005CS Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315E-005CS-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT315E-025D Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VO315E-005D Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VO315E-005D-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VT315E-025DS Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315E-005DS Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315E-005DS-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT315E-025T Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VO315E-005T Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VO315E-005T-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VT315E-025TS Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315E-005TS Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315E-005TS-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT315E-025DL Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315E-005DL Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315E-005DL-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT315E-025DLS Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315E-005DLS Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315E-005DLS-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT315E-025TL Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315E-005TL Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315E-005TL-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT315E-025TLS Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315E-005TLS Body: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315E-005TLS-1 Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT315V-021G Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VO315V-001G Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT315V-021GS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO315V-001GS Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT315V-021C Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315V-001C Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315V-001C-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT315V-021CS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315V-001CS Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315V-001CS-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT315V-021D Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315V-001D Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315V-001D-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT315V-021DS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315V-001DS Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315V-001DS-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT315V-021T Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315V-001T Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315V-001T-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT315V-021TS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315V-001TS Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315V-001TS-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT315V-021DL Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315V-001DL Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315V-001DL-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT315V-021DLS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315V-001DLS Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315V-001DLS-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT315V-021TL Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315V-001TL Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315V-001TL-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT315V-021TLS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315V-001TLS Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315V-001TLS-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT315V-022G Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VO315V-002G Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT315V-022GS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO315V-002GS Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT315V-022C Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315V-002C Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315V-002C-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT315V-022CS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315V-002CS Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315V-002CS-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT315V-022D Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315V-002D Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315V-002D-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT315V-022DS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315V-002DS Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315V-002DS-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT315V-022T Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315V-002T Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315V-002T-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT315V-022TS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315V-002TS Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315V-002TS-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT315V-022DL Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315V-002DL Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315V-002DL-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT315V-022DLS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315V-002DLS Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315V-002DLS-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT315V-022TL Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315V-002TL Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315V-002TL-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT315V-022TLS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315V-002TLS Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315V-002TLS-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT315V-025G Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VO315V-005G Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VT315V-025GS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO315V-005GS Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT315V-025C Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VO315V-005C Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VO315V-005C-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VT315V-025CS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315V-005CS Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315V-005CS-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT315V-025D Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VO315V-005D Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VO315V-005D-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VT315V-025DS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315V-005DS Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315V-005DS-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT315V-025T Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VO315V-005T Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VO315V-005T-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VT315V-025TS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315V-005TS Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315V-005TS-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT315V-025DL Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315V-005DL Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315V-005DL-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT315V-025DLS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315V-005DLS Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315V-005DLS-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT315V-025TL Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315V-005TL Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315V-005TL-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT315V-025TLS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315V-005TLS Body: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315V-005TLS-1 Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
3-Port Solenoid ValvesSMC
306 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VT315 3-Port Solenoid Valve (Direct Operated Poppet, 1/4)

Brand SMC·3-Port Solenoid Valves

Available part numbers (306)

VT315-021G, VO315-001G, VT315-021GS, VO315-001GS, VT315-021C, VO315-001C, VO315-001C-1, VT315-021CS, VO315-001CS, VO315-001CS-1 + 296 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VT315-021GBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VO315-001GBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT315-021GSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO315-001GSBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT315-021CBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315-001CBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315-001C-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT315-021CSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315-001CSBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315-001CS-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT315-021DBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315-001DBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315-001D-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT315-021DSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315-001DSBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315-001DS-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT315-021TBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315-001TBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315-001T-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT315-021TSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315-001TSBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315-001TS-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT315-021DLBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315-001DLBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315-001DL-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT315-021DLSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315-001DLSBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315-001DLS-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT315-021TLBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315-001TLBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315-001TL-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT315-021TLSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315-001TLSBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315-001TLS-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT315-022GBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VO315-002GBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT315-022GSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO315-002GSBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT315-022CBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315-002CBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315-002C-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT315-022CSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315-002CSBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315-002CS-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT315-022DBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315-002DBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315-002D-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT315-022DSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315-002DSBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315-002DS-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT315-022TBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315-002TBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315-002T-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT315-022TSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315-002TSBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315-002TS-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT315-022DLBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315-002DLBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315-002DL-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT315-022DLSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315-002DLSBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315-002DLS-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT315-022TLBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315-002TLBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315-002TL-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT315-022TLSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315-002TLSBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315-002TLS-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT315-025GBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VO315-005GBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VT315-025GSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO315-005GSBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT315-025CBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VO315-005CBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VO315-005C-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VT315-025CSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315-005CSBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315-005CS-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT315-025DBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VO315-005DBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VO315-005D-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VT315-025DSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315-005DSBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315-005DS-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT315-025TBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VO315-005TBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VO315-005T-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VT315-025TSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315-005TSBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315-005TS-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT315-025DLBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315-005DLBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315-005DL-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT315-025DLSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315-005DLSBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315-005DLS-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT315-025TLBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315-005TLBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315-005TL-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT315-025TLSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315-005TLSBody: Manifold mount, common exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315-005TLS-1Body: Manifold mount, individual exhaust | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT315E-021GBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VO315E-001GBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT315E-021GSBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO315E-001GSBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT315E-021CBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315E-001CBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315E-001C-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT315E-021CSBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315E-001CSBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315E-001CS-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT315E-021DBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315E-001DBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315E-001D-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT315E-021DSBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315E-001DSBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315E-001DS-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT315E-021TBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315E-001TBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315E-001T-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT315E-021TSBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315E-001TSBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315E-001TS-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT315E-021DLBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315E-001DLBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315E-001DL-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT315E-021DLSBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315E-001DLSBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315E-001DLS-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT315E-021TLBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315E-001TLBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315E-001TL-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT315E-021TLSBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315E-001TLSBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315E-001TLS-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT315E-022GBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VO315E-002GBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT315E-022GSBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO315E-002GSBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT315E-022CBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315E-002CBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315E-002C-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT315E-022CSBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315E-002CSBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315E-002CS-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT315E-022DBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315E-002DBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315E-002D-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT315E-022DSBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315E-002DSBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315E-002DS-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT315E-022TBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315E-002TBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315E-002T-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT315E-022TSBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315E-002TSBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315E-002TS-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT315E-022DLBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315E-002DLBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315E-002DL-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT315E-022DLSBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315E-002DLSBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315E-002DLS-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT315E-022TLBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315E-002TLBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315E-002TL-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT315E-022TLSBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315E-002TLSBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315E-002TLS-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT315E-025GBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VO315E-005GBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VT315E-025GSBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO315E-005GSBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT315E-025CBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VO315E-005CBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VO315E-005C-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VT315E-025CSBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315E-005CSBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315E-005CS-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT315E-025DBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VO315E-005DBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VO315E-005D-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VT315E-025DSBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315E-005DSBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315E-005DS-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT315E-025TBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VO315E-005TBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VO315E-005T-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VT315E-025TSBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315E-005TSBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315E-005TS-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT315E-025DLBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315E-005DLBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315E-005DL-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT315E-025DLSBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315E-005DLSBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315E-005DLS-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT315E-025TLBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315E-005TLBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315E-005TL-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT315E-025TLSBody: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315E-005TLSBody: Manifold mount, common exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315E-005TLS-1Body: Manifold mount, individual exhaust | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT315V-021GBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VO315V-001GBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT315V-021GSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO315V-001GSBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT315V-021CBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315V-001CBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315V-001C-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT315V-021CSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315V-001CSBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315V-001CS-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT315V-021DBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315V-001DBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315V-001D-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT315V-021DSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315V-001DSBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315V-001DS-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT315V-021TBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315V-001TBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315V-001T-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT315V-021TSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315V-001TSBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315V-001TS-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT315V-021DLBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315V-001DLBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315V-001DL-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT315V-021DLSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315V-001DLSBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315V-001DLS-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT315V-021TLBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315V-001TLBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315V-001TL-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT315V-021TLSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315V-001TLSBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315V-001TLS-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT315V-022GBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VO315V-002GBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT315V-022GSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO315V-002GSBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT315V-022CBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315V-002CBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO315V-002C-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT315V-022CSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315V-002CSBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315V-002CS-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT315V-022DBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315V-002DBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO315V-002D-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT315V-022DSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315V-002DSBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315V-002DS-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT315V-022TBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315V-002TBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO315V-002T-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT315V-022TSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315V-002TSBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315V-002TS-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT315V-022DLBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315V-002DLBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315V-002DL-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT315V-022DLSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315V-002DLSBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315V-002DLS-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT315V-022TLBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315V-002TLBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315V-002TL-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT315V-022TLSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315V-002TLSBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315V-002TLS-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT315V-025GBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VO315V-005GBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VT315V-025GSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO315V-005GSBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT315V-025CBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VO315V-005CBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VO315V-005C-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VT315V-025CSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315V-005CSBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO315V-005CS-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT315V-025DBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VO315V-005DBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VO315V-005D-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VT315V-025DSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315V-005DSBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO315V-005DS-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT315V-025TBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VO315V-005TBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VO315V-005T-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VT315V-025TSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315V-005TSBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO315V-005TS-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT315V-025DLBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315V-005DLBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO315V-005DL-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT315V-025DLSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315V-005DLSBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO315V-005DLS-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT315V-025TLBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315V-005TLBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO315V-005TL-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT315V-025TLSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315V-005TLSBody: Manifold mount, common exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO315V-005TLS-1Body: Manifold mount, individual exhaust | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
