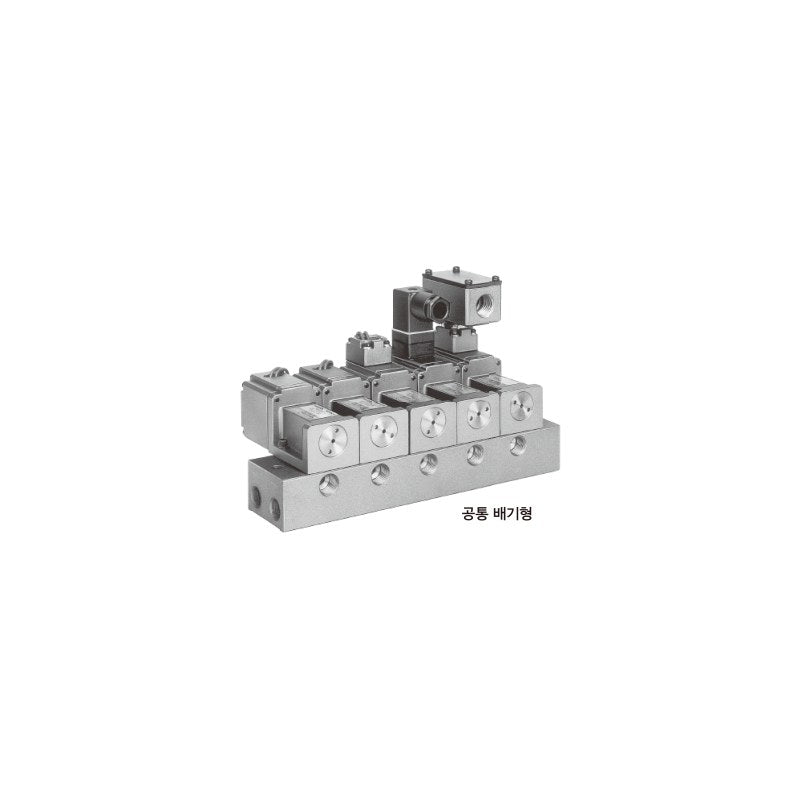

SMC VT317 3-Port Solenoid Valve (Direct Operated Poppet, 1/4)

SMC VT317 3-Port Solenoid Valve (Direct Operated Poppet, 1/4)

SMC VT317 direct-operated 3-port poppet solenoid valve with C 2.6 flow and universal porting, for direct piping (VT317) or manifold mounting (VO317).

Key features

  • Compact 45x89.5x45 mm (grommet) with C = 2.6 dm³/(s·bar)
  • Universal porting: N.C., N.O., divider, selector and other functions from one valve
  • Valve options: standard, continuous duty (E), vacuum (V, -101.2 kPa)
  • Electrical entry: grommet, conduit, conduit terminal, DIN terminal; H lead wire and DO connector-less on order
  • Surge suppressor (S), lamp + surge suppressor (Z, terminal types), G/NPT/NPTF threads and CE/UKCA (-Q, DIN only) as options

Specifications

Fluid Air
Valve type Direct operated 2-position single, poppet, elastomer seal
Operating pressure 0 to 0.9 MPa
Ambient and fluid temperature -10 to 50°C (no freezing)
Response time 30 ms or less (at 0.5 MPa)
Max. operating frequency 10 Hz
Power consumption DC 6 W (6.3 W with lamp)
Manual override Non-locking push type
Impact/vibration resistance 150/50 m/s²
Mass 0.29 kg (grommet)
Source SMC Korea catalog VT317/325 (SMCKR_VT317_325.pdf), p. 1251-1252 (PDF p. 1-2)
VT317-1G-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VT317-1GS-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VT317-1C-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VT317-1CS-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VT317-1T-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VT317-1TS-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VT317-1TZ-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VT317-1D-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VT317-1DS-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VT317-1DZ-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VT317-2G-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VT317-2GS-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VT317-2C-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VT317-2CS-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VT317-2T-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VT317-2TS-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VT317-2TZ-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VT317-2D-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VT317-2DS-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VT317-2DZ-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VT317-5G-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: None
VT317-5GS-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VT317-5C-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: None
VT317-5CS-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VT317-5T-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: None
VT317-5TS-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VT317-5TZ-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VT317-5D-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: None
VT317-5DS-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VT317-5DZ-02 Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VT317E-1G-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VT317E-1GS-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VT317E-1C-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VT317E-1CS-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VT317E-1T-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VT317E-1TS-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VT317E-1TZ-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VT317E-1D-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VT317E-1DS-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VT317E-1DZ-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VT317E-2G-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VT317E-2GS-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VT317E-2C-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VT317E-2CS-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VT317E-2T-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VT317E-2TS-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VT317E-2TZ-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VT317E-2D-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VT317E-2DS-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VT317E-2DZ-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VT317E-5G-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: None
VT317E-5GS-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VT317E-5C-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: None
VT317E-5CS-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VT317E-5T-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: None
VT317E-5TS-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VT317E-5TZ-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VT317E-5D-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: None
VT317E-5DS-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VT317E-5DZ-02 Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VT317V-1G-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VT317V-1GS-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VT317V-1C-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VT317V-1CS-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VT317V-1T-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VT317V-1TS-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VT317V-1TZ-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VT317V-1D-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VT317V-1DS-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VT317V-1DZ-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VT317V-2G-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VT317V-2GS-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VT317V-2C-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VT317V-2CS-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VT317V-2T-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VT317V-2TS-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VT317V-2TZ-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VT317V-2D-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VT317V-2DS-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VT317V-2DZ-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VT317V-5G-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: None
VT317V-5GS-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VT317V-5C-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: None
VT317V-5CS-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VT317V-5T-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: None
VT317V-5TS-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VT317V-5TZ-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VT317V-5D-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: None
VT317V-5DS-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VT317V-5DZ-02 Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VO317-1G Body: Manifold mount (VO317) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VO317-1GS Body: Manifold mount (VO317) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VO317-1C Body: Manifold mount (VO317) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VO317-1CS Body: Manifold mount (VO317) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VO317-1T Body: Manifold mount (VO317) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VO317-1TS Body: Manifold mount (VO317) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VO317-1TZ Body: Manifold mount (VO317) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VO317-1D Body: Manifold mount (VO317) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VO317-1DS Body: Manifold mount (VO317) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VO317-1DZ Body: Manifold mount (VO317) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VO317-2G Body: Manifold mount (VO317) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VO317-2GS Body: Manifold mount (VO317) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VO317-2C Body: Manifold mount (VO317) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VO317-2CS Body: Manifold mount (VO317) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VO317-2T Body: Manifold mount (VO317) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VO317-2TS Body: Manifold mount (VO317) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VO317-2TZ Body: Manifold mount (VO317) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VO317-2D Body: Manifold mount (VO317) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VO317-2DS Body: Manifold mount (VO317) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VO317-2DZ Body: Manifold mount (VO317) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VO317-5G Body: Manifold mount (VO317) | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: None
VO317-5GS Body: Manifold mount (VO317) | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VO317-5C Body: Manifold mount (VO317) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: None
VO317-5CS Body: Manifold mount (VO317) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VO317-5T Body: Manifold mount (VO317) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: None
VO317-5TS Body: Manifold mount (VO317) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VO317-5TZ Body: Manifold mount (VO317) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VO317-5D Body: Manifold mount (VO317) | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: None
VO317-5DS Body: Manifold mount (VO317) | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VO317-5DZ Body: Manifold mount (VO317) | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VO317E-1G Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VO317E-1GS Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VO317E-1C Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VO317E-1CS Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VO317E-1T Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VO317E-1TS Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VO317E-1TZ Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VO317E-1D Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VO317E-1DS Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VO317E-1DZ Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VO317E-2G Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VO317E-2GS Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VO317E-2C Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VO317E-2CS Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VO317E-2T Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VO317E-2TS Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VO317E-2TZ Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VO317E-2D Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VO317E-2DS Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VO317E-2DZ Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VO317E-5G Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: None
VO317E-5GS Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VO317E-5C Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: None
VO317E-5CS Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VO317E-5T Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: None
VO317E-5TS Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VO317E-5TZ Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VO317E-5D Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: None
VO317E-5DS Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VO317E-5DZ Body: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VO317V-1G Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VO317V-1GS Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VO317V-1C Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VO317V-1CS Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VO317V-1T Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VO317V-1TS Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VO317V-1TZ Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VO317V-1D Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VO317V-1DS Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VO317V-1DZ Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VO317V-2G Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VO317V-2GS Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VO317V-2C Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VO317V-2CS Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VO317V-2T Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VO317V-2TS Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VO317V-2TZ Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VO317V-2D Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VO317V-2DS Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VO317V-2DZ Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VO317V-5G Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: None
VO317V-5GS Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VO317V-5C Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: None
VO317V-5CS Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VO317V-5T Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: None
VO317V-5TS Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VO317V-5TZ Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VO317V-5D Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: None
VO317V-5DS Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VO317V-5DZ Body: Manifold mount (VO317) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
3-Port Solenoid ValvesSMC
180 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VT317 3-Port Solenoid Valve (Direct Operated Poppet, 1/4)

Brand SMC·3-Port Solenoid Valves

Available part numbers (180)

VT317-1G-02, VT317-1GS-02, VT317-1C-02, VT317-1CS-02, VT317-1T-02, VT317-1TS-02, VT317-1TZ-02, VT317-1D-02, VT317-1DS-02, VT317-1DZ-02 + 170 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VT317-1G-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VT317-1GS-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VT317-1C-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VT317-1CS-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VT317-1T-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VT317-1TS-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VT317-1TZ-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VT317-1D-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VT317-1DS-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VT317-1DZ-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VT317-2G-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VT317-2GS-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VT317-2C-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VT317-2CS-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VT317-2T-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VT317-2TS-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VT317-2TZ-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VT317-2D-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VT317-2DS-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VT317-2DZ-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VT317-5G-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: None
VT317-5GS-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VT317-5C-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: None
VT317-5CS-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VT317-5T-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: None
VT317-5TS-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VT317-5TZ-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VT317-5D-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: None
VT317-5DS-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VT317-5DZ-02Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VT317E-1G-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VT317E-1GS-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VT317E-1C-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VT317E-1CS-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VT317E-1T-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VT317E-1TS-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VT317E-1TZ-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VT317E-1D-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VT317E-1DS-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VT317E-1DZ-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VT317E-2G-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VT317E-2GS-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VT317E-2C-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VT317E-2CS-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VT317E-2T-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VT317E-2TS-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VT317E-2TZ-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VT317E-2D-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VT317E-2DS-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VT317E-2DZ-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VT317E-5G-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: None
VT317E-5GS-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VT317E-5C-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: None
VT317E-5CS-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VT317E-5T-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: None
VT317E-5TS-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VT317E-5TZ-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VT317E-5D-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: None
VT317E-5DS-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VT317E-5DZ-02Body: Direct piping, Rc1/4 | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VT317V-1G-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VT317V-1GS-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VT317V-1C-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VT317V-1CS-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VT317V-1T-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VT317V-1TS-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VT317V-1TZ-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VT317V-1D-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VT317V-1DS-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VT317V-1DZ-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VT317V-2G-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VT317V-2GS-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VT317V-2C-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VT317V-2CS-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VT317V-2T-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VT317V-2TS-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VT317V-2TZ-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VT317V-2D-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VT317V-2DS-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VT317V-2DZ-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VT317V-5G-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: None
VT317V-5GS-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VT317V-5C-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: None
VT317V-5CS-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VT317V-5T-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: None
VT317V-5TS-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VT317V-5TZ-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VT317V-5D-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: None
VT317V-5DS-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VT317V-5DZ-02Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VO317-1GBody: Manifold mount (VO317) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VO317-1GSBody: Manifold mount (VO317) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VO317-1CBody: Manifold mount (VO317) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VO317-1CSBody: Manifold mount (VO317) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VO317-1TBody: Manifold mount (VO317) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VO317-1TSBody: Manifold mount (VO317) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VO317-1TZBody: Manifold mount (VO317) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VO317-1DBody: Manifold mount (VO317) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VO317-1DSBody: Manifold mount (VO317) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VO317-1DZBody: Manifold mount (VO317) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VO317-2GBody: Manifold mount (VO317) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VO317-2GSBody: Manifold mount (VO317) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VO317-2CBody: Manifold mount (VO317) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VO317-2CSBody: Manifold mount (VO317) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VO317-2TBody: Manifold mount (VO317) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VO317-2TSBody: Manifold mount (VO317) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VO317-2TZBody: Manifold mount (VO317) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VO317-2DBody: Manifold mount (VO317) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VO317-2DSBody: Manifold mount (VO317) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VO317-2DZBody: Manifold mount (VO317) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VO317-5GBody: Manifold mount (VO317) | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: None
VO317-5GSBody: Manifold mount (VO317) | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VO317-5CBody: Manifold mount (VO317) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: None
VO317-5CSBody: Manifold mount (VO317) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VO317-5TBody: Manifold mount (VO317) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: None
VO317-5TSBody: Manifold mount (VO317) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VO317-5TZBody: Manifold mount (VO317) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VO317-5DBody: Manifold mount (VO317) | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: None
VO317-5DSBody: Manifold mount (VO317) | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VO317-5DZBody: Manifold mount (VO317) | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VO317E-1GBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VO317E-1GSBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VO317E-1CBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VO317E-1CSBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VO317E-1TBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VO317E-1TSBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VO317E-1TZBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VO317E-1DBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VO317E-1DSBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VO317E-1DZBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VO317E-2GBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VO317E-2GSBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VO317E-2CBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VO317E-2CSBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VO317E-2TBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VO317E-2TSBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VO317E-2TZBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VO317E-2DBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VO317E-2DSBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VO317E-2DZBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VO317E-5GBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: None
VO317E-5GSBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VO317E-5CBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: None
VO317E-5CSBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VO317E-5TBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: None
VO317E-5TSBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VO317E-5TZBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VO317E-5DBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: None
VO317E-5DSBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VO317E-5DZBody: Manifold mount (VO317) | Valve option: Continuous duty | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VO317V-1GBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VO317V-1GSBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VO317V-1CBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VO317V-1CSBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VO317V-1TBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VO317V-1TSBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VO317V-1TZBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VO317V-1DBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VO317V-1DSBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VO317V-1DZBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VO317V-2GBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: None
VO317V-2GSBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VO317V-2CBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: None
VO317V-2CSBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VO317V-2TBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: None
VO317V-2TSBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VO317V-2TZBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VO317V-2DBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: None
VO317V-2DSBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VO317V-2DZBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor
VO317V-5GBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: None
VO317V-5GSBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Lamp/surge: Surge suppressor
VO317V-5CBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: None
VO317V-5CSBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Lamp/surge: Surge suppressor
VO317V-5TBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: None
VO317V-5TSBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Surge suppressor
VO317V-5TZBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Lamp/surge: Lamp + surge suppressor
VO317V-5DBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: None
VO317V-5DSBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Surge suppressor
VO317V-5DZBody: Manifold mount (VO317) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Lamp/surge: Lamp + surge suppressor

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
