SMC VT325 3-Port Solenoid Valve (Direct Operated Poppet, 1/4, 3/8)

SMC VT325 3-Port Solenoid Valve (Direct Operated Poppet, 1/4, 3/8)

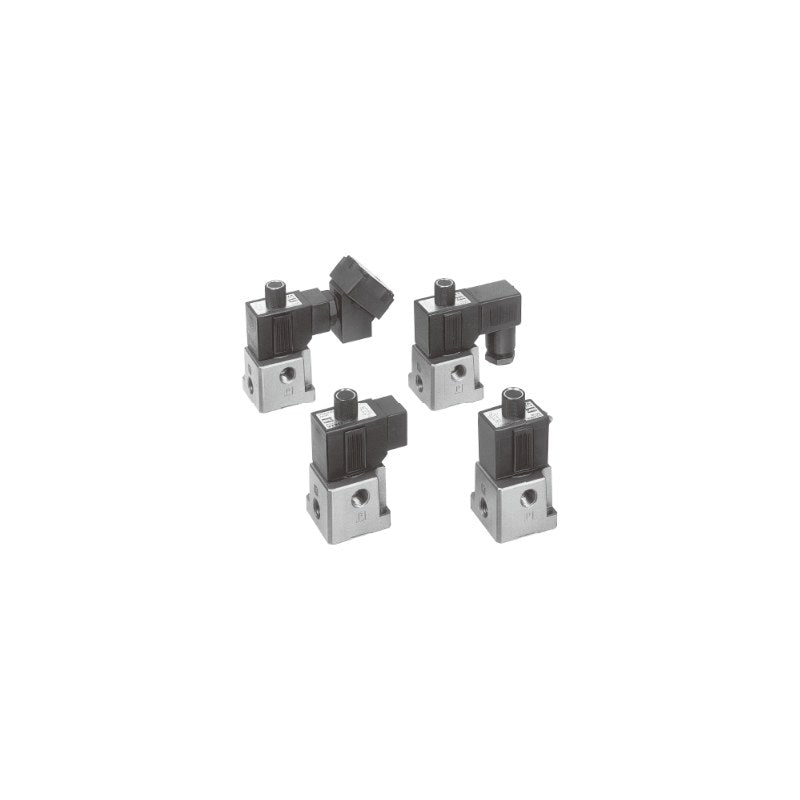

SMC VT325 direct-operated 3-port poppet solenoid valve with large flow (C 6.1) and universal porting, Rc1/4 or Rc3/8 direct piping (VT325) or manifold mounting (VO325).

Key features

  • Compact 55x118x53 mm (grommet) with C = 6.1 dm³/(s·bar) (Rc3/8)
  • Universal porting: N.C., N.O., divider, selector and other functions from one valve
  • Standard or vacuum (V, -101.2 kPa) valve option
  • Electrical entry: grommet (200 mm), conduit, DIN terminal, conduit terminal, with lamp (DL, TL); DO/DOL connector-less on order
  • Surge suppressor (S), locking manual override (M), G/NPT/NPTF threads and CE/UKCA (-Q, DIN only) as options

Specifications

Fluid Air
Valve type Direct operated 2-position single, poppet, elastomer seal
Operating pressure 0 to 1.0 MPa
Ambient and fluid temperature 5 to 50°C
Response time 30 ms or less (at 0.5 MPa)
Max. operating frequency 5 Hz
Power consumption DC 12 W
Manual override Non-locking push type
Impact/vibration resistance 150/50 m/s²
Enclosure Dustproof
Source SMC Korea catalog VT317/325 (SMCKR_VT317_325.pdf), p. 1259, 1262 (PDF p. 9, 12)
VT325-021G Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT325-021GS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325-021C Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT325-021CS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325-021D Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT325-021DS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325-021T Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT325-021TS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325-021DL Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325-021DLS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325-021TL Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325-021TLS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325-022G Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT325-022GS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325-022C Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT325-022CS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325-022D Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT325-022DS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325-022T Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT325-022TS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325-022DL Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325-022DLS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325-022TL Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325-022TLS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325-025G Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VT325-025GS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325-025C Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VT325-025CS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325-025D Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VT325-025DS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325-025T Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VT325-025TS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325-025DL Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325-025DLS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325-025TL Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325-025TLS Body: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325-031G Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT325-031GS Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325-031C Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT325-031CS Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325-031D Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT325-031DS Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325-031T Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT325-031TS Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325-031DL Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325-031DLS Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325-031TL Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325-031TLS Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325-032G Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT325-032GS Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325-032C Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT325-032CS Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325-032D Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT325-032DS Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325-032T Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT325-032TS Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325-032DL Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325-032DLS Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325-032TL Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325-032TLS Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325-035G Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VT325-035GS Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325-035C Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VT325-035CS Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325-035D Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VT325-035DS Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325-035T Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VT325-035TS Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325-035DL Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325-035DLS Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325-035TL Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325-035TLS Body: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO325-001G Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VO325-001GS Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO325-001C Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO325-001CS Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO325-001D Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO325-001DS Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO325-001T Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO325-001TS Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO325-001DL Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO325-001DLS Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO325-001TL Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO325-001TLS Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO325-002G Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VO325-002GS Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO325-002C Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO325-002CS Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO325-002D Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO325-002DS Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO325-002T Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO325-002TS Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO325-002DL Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO325-002DLS Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO325-002TL Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO325-002TLS Body: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO325-005G Body: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VO325-005GS Body: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO325-005C Body: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VO325-005CS Body: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO325-005D Body: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VO325-005DS Body: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO325-005T Body: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VO325-005TS Body: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO325-005DL Body: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO325-005DLS Body: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO325-005TL Body: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO325-005TLS Body: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325V-021G Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT325V-021GS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325V-021C Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT325V-021CS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325V-021D Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT325V-021DS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325V-021T Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT325V-021TS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325V-021DL Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325V-021DLS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325V-021TL Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325V-021TLS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325V-022G Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT325V-022GS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325V-022C Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT325V-022CS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325V-022D Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT325V-022DS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325V-022T Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT325V-022TS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325V-022DL Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325V-022DLS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325V-022TL Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325V-022TLS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325V-025G Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VT325V-025GS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325V-025C Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VT325V-025CS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325V-025D Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VT325V-025DS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325V-025T Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VT325V-025TS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325V-025DL Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325V-025DLS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325V-025TL Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325V-025TLS Body: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325V-031G Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT325V-031GS Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325V-031C Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT325V-031CS Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325V-031D Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT325V-031DS Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325V-031T Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT325V-031TS Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325V-031DL Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325V-031DLS Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325V-031TL Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325V-031TLS Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325V-032G Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT325V-032GS Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325V-032C Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT325V-032CS Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325V-032D Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT325V-032DS Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325V-032T Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT325V-032TS Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325V-032DL Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325V-032DLS Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325V-032TL Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325V-032TLS Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325V-035G Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VT325V-035GS Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325V-035C Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VT325V-035CS Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325V-035D Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VT325V-035DS Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325V-035T Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VT325V-035TS Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325V-035DL Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325V-035DLS Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325V-035TL Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325V-035TLS Body: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO325V-001G Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VO325V-001GS Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO325V-001C Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO325V-001CS Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO325V-001D Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO325V-001DS Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO325V-001T Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO325V-001TS Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO325V-001DL Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO325V-001DLS Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO325V-001TL Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO325V-001TLS Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO325V-002G Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VO325V-002GS Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO325V-002C Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO325V-002CS Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO325V-002D Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO325V-002DS Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO325V-002T Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO325V-002TS Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO325V-002DL Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO325V-002DLS Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO325V-002TL Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO325V-002TLS Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO325V-005G Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VO325V-005GS Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO325V-005C Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VO325V-005CS Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO325V-005D Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VO325V-005DS Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO325V-005T Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VO325V-005TS Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO325V-005DL Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO325V-005DLS Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO325V-005TL Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO325V-005TLS Body: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
3-Port Solenoid ValvesSMC
216 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VT325 3-Port Solenoid Valve (Direct Operated Poppet, 1/4, 3/8)

Brand SMC·3-Port Solenoid Valves

Available part numbers (216)

VT325-021G, VT325-021GS, VT325-021C, VT325-021CS, VT325-021D, VT325-021DS, VT325-021T, VT325-021TS, VT325-021DL, VT325-021DLS + 206 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VT325-021GBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT325-021GSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325-021CBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT325-021CSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325-021DBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT325-021DSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325-021TBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT325-021TSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325-021DLBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325-021DLSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325-021TLBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325-021TLSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325-022GBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT325-022GSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325-022CBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT325-022CSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325-022DBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT325-022DSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325-022TBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT325-022TSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325-022DLBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325-022DLSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325-022TLBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325-022TLSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325-025GBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VT325-025GSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325-025CBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VT325-025CSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325-025DBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VT325-025DSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325-025TBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VT325-025TSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325-025DLBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325-025DLSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325-025TLBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325-025TLSBody: Direct piping, Rc1/4 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325-031GBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT325-031GSBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325-031CBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT325-031CSBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325-031DBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT325-031DSBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325-031TBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT325-031TSBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325-031DLBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325-031DLSBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325-031TLBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325-031TLSBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325-032GBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT325-032GSBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325-032CBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT325-032CSBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325-032DBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT325-032DSBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325-032TBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT325-032TSBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325-032DLBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325-032DLSBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325-032TLBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325-032TLSBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325-035GBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VT325-035GSBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325-035CBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VT325-035CSBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325-035DBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VT325-035DSBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325-035TBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VT325-035TSBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325-035DLBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325-035DLSBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325-035TLBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325-035TLSBody: Direct piping, Rc3/8 | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO325-001GBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VO325-001GSBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO325-001CBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO325-001CSBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO325-001DBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO325-001DSBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO325-001TBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO325-001TSBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO325-001DLBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO325-001DLSBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO325-001TLBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO325-001TLSBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO325-002GBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VO325-002GSBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO325-002CBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO325-002CSBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO325-002DBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO325-002DSBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO325-002TBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO325-002TSBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO325-002DLBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO325-002DLSBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO325-002TLBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO325-002TLSBody: Manifold mount (VO325) | Valve option: Standard | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO325-005GBody: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VO325-005GSBody: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO325-005CBody: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VO325-005CSBody: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO325-005DBody: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VO325-005DSBody: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO325-005TBody: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VO325-005TSBody: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO325-005DLBody: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO325-005DLSBody: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO325-005TLBody: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO325-005TLSBody: Manifold mount (VO325) | Valve option: Standard | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325V-021GBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT325V-021GSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325V-021CBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT325V-021CSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325V-021DBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT325V-021DSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325V-021TBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT325V-021TSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325V-021DLBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325V-021DLSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325V-021TLBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325V-021TLSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325V-022GBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT325V-022GSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325V-022CBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT325V-022CSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325V-022DBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT325V-022DSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325V-022TBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT325V-022TSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325V-022DLBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325V-022DLSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325V-022TLBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325V-022TLSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325V-025GBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VT325V-025GSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325V-025CBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VT325V-025CSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325V-025DBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VT325V-025DSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325V-025TBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VT325V-025TSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325V-025DLBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325V-025DLSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325V-025TLBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325V-025TLSBody: Direct piping, Rc1/4 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325V-031GBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT325V-031GSBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325V-031CBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT325V-031CSBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325V-031DBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT325V-031DSBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325V-031TBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT325V-031TSBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325V-031DLBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325V-031DLSBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325V-031TLBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325V-031TLSBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325V-032GBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VT325V-032GSBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325V-032CBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VT325V-032CSBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325V-032DBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VT325V-032DSBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325V-032TBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VT325V-032TSBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325V-032DLBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325V-032DLSBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325V-032TLBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325V-032TLSBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VT325V-035GBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VT325V-035GSBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VT325V-035CBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VT325V-035CSBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VT325V-035DBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VT325V-035DSBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VT325V-035TBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VT325V-035TSBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VT325V-035DLBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VT325V-035DLSBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VT325V-035TLBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VT325V-035TLSBody: Direct piping, Rc3/8 | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO325V-001GBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VO325V-001GSBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO325V-001CBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO325V-001CSBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO325V-001DBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO325V-001DSBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO325V-001TBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO325V-001TSBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO325V-001DLBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO325V-001DLSBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO325V-001TLBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO325V-001TLSBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC100V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO325V-002GBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: None
VO325V-002GSBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO325V-002CBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: None
VO325V-002CSBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO325V-002DBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: None
VO325V-002DSBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO325V-002TBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: None
VO325V-002TSBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO325V-002DLBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO325V-002DLSBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO325V-002TLBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO325V-002TLSBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: AC200V 50/60Hz | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor
VO325V-005GBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: None
VO325V-005GSBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Grommet | Surge suppressor: Surge suppressor
VO325V-005CBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: None
VO325V-005CSBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit | Surge suppressor: Surge suppressor
VO325V-005DBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: None
VO325V-005DSBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal | Surge suppressor: Surge suppressor
VO325V-005TBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: None
VO325V-005TSBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal | Surge suppressor: Surge suppressor
VO325V-005DLBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: None
VO325V-005DLSBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: DIN terminal with lamp | Surge suppressor: Surge suppressor
VO325V-005TLBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: None
VO325V-005TLSBody: Manifold mount (VO325) | Valve option: Vacuum | Voltage: DC24V | Electrical entry: Conduit terminal with lamp | Surge suppressor: Surge suppressor

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
