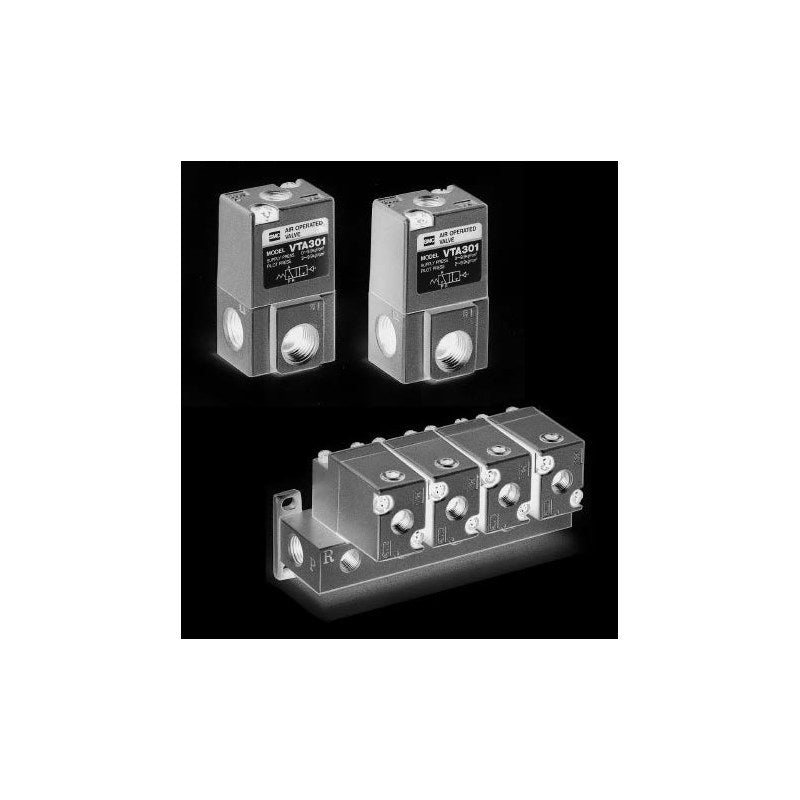

SMC VTA301 3-Port Air Operated Valve and VVTA300 Manifold

SMC VTA301 3-Port Air Operated Valve and VVTA300 Manifold

SMC VTA301 series air-piloted 3-port poppet valve, 0 to 1.0 MPa, as a single body-ported valve or VOA301 manifold valve on VVTA300 manifold bases.

Key features

  • Universal 3-port function: by port selection works as 3-way N.C./N.O., 2-way N.C./N.O., selector or divider
  • Single valve with Rc1/8 or Rc1/4 ports; VOA301 manifold valve without ports
  • VVTA300 manifold: 2 to 20 stations, individual or common exhaust, A port Rc1/8 or Rc1/4
  • Bracket (B, part no. DXT060-27A) and G/NPT/NPTF threads on order; blanking plate DXT060-51-13A
  • Same manifold as the VVT300 solenoid valve series

Specifications

Fluid Air
Valve type 3-port air operated valve, poppet
Operating pressure range 0 to 1.0 MPa
Pilot pressure range 0.2 to 1.0 MPa
Ambient and fluid temperature -10 to 50°C (no freezing)
Lubrication Not required (if used, turbine oil class 1 ISO VG32)
Impact/vibration resistance 150/50 m/s²
Enclosure Dustproof
Pilot port Rc1/8
Flow rate C (1→2) [dm³/(s·bar)] VTA301-01 0.63, VTA301-02 0.66, VOA301 0.34
Mass VTA301 0.11 kg (0.13 kg with bracket), VOA301 0.12 kg
Source SMC Korea catalog VTA301/VTA315 (SMCKR_VTA301_315.pdf), p. 1548-1549 (PDF p. 1-2)
VTA301-01 Type: Single valve | Exhaust: Single unit | Port size: Rc1/8 | Stations: 1
VTA301-02 Type: Single valve | Exhaust: Single unit | Port size: Rc1/4 | Stations: 1
VOA301 Type: Manifold valve | Exhaust: Per manifold | Port size: No port (manifold) | Stations: 1
VVTA300-021-01 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/8 | Stations: 2
VVTA300-021-02 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/4 | Stations: 2
VVTA300-023-01 Type: Manifold base | Exhaust: Common exhaust | Port size: Rc1/8 | Stations: 2
VVTA300-031-01 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/8 | Stations: 3
VVTA300-031-02 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/4 | Stations: 3
VVTA300-033-01 Type: Manifold base | Exhaust: Common exhaust | Port size: Rc1/8 | Stations: 3
VVTA300-041-01 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/8 | Stations: 4
VVTA300-041-02 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/4 | Stations: 4
VVTA300-043-01 Type: Manifold base | Exhaust: Common exhaust | Port size: Rc1/8 | Stations: 4
VVTA300-051-01 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/8 | Stations: 5
VVTA300-051-02 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/4 | Stations: 5
VVTA300-053-01 Type: Manifold base | Exhaust: Common exhaust | Port size: Rc1/8 | Stations: 5
VVTA300-061-01 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/8 | Stations: 6
VVTA300-061-02 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/4 | Stations: 6
VVTA300-063-01 Type: Manifold base | Exhaust: Common exhaust | Port size: Rc1/8 | Stations: 6
VVTA300-071-01 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/8 | Stations: 7
VVTA300-071-02 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/4 | Stations: 7
VVTA300-073-01 Type: Manifold base | Exhaust: Common exhaust | Port size: Rc1/8 | Stations: 7
VVTA300-081-01 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/8 | Stations: 8
VVTA300-081-02 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/4 | Stations: 8
VVTA300-083-01 Type: Manifold base | Exhaust: Common exhaust | Port size: Rc1/8 | Stations: 8
VVTA300-091-01 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/8 | Stations: 9
VVTA300-091-02 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/4 | Stations: 9
VVTA300-093-01 Type: Manifold base | Exhaust: Common exhaust | Port size: Rc1/8 | Stations: 9
VVTA300-101-01 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/8 | Stations: 10
VVTA300-101-02 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/4 | Stations: 10
VVTA300-103-01 Type: Manifold base | Exhaust: Common exhaust | Port size: Rc1/8 | Stations: 10
VVTA300-111-01 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/8 | Stations: 11
VVTA300-111-02 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/4 | Stations: 11
VVTA300-113-01 Type: Manifold base | Exhaust: Common exhaust | Port size: Rc1/8 | Stations: 11
VVTA300-121-01 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/8 | Stations: 12
VVTA300-121-02 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/4 | Stations: 12
VVTA300-123-01 Type: Manifold base | Exhaust: Common exhaust | Port size: Rc1/8 | Stations: 12
VVTA300-131-01 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/8 | Stations: 13
VVTA300-131-02 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/4 | Stations: 13
VVTA300-133-01 Type: Manifold base | Exhaust: Common exhaust | Port size: Rc1/8 | Stations: 13
VVTA300-141-01 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/8 | Stations: 14
VVTA300-141-02 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/4 | Stations: 14
VVTA300-143-01 Type: Manifold base | Exhaust: Common exhaust | Port size: Rc1/8 | Stations: 14
VVTA300-151-01 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/8 | Stations: 15
VVTA300-151-02 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/4 | Stations: 15
VVTA300-153-01 Type: Manifold base | Exhaust: Common exhaust | Port size: Rc1/8 | Stations: 15
VVTA300-161-01 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/8 | Stations: 16
VVTA300-161-02 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/4 | Stations: 16
VVTA300-163-01 Type: Manifold base | Exhaust: Common exhaust | Port size: Rc1/8 | Stations: 16
VVTA300-171-01 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/8 | Stations: 17
VVTA300-171-02 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/4 | Stations: 17
VVTA300-173-01 Type: Manifold base | Exhaust: Common exhaust | Port size: Rc1/8 | Stations: 17
VVTA300-181-01 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/8 | Stations: 18
VVTA300-181-02 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/4 | Stations: 18
VVTA300-183-01 Type: Manifold base | Exhaust: Common exhaust | Port size: Rc1/8 | Stations: 18
VVTA300-191-01 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/8 | Stations: 19
VVTA300-191-02 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/4 | Stations: 19
VVTA300-193-01 Type: Manifold base | Exhaust: Common exhaust | Port size: Rc1/8 | Stations: 19
VVTA300-201-01 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/8 | Stations: 20
VVTA300-201-02 Type: Manifold base | Exhaust: Individual exhaust | Port size: Rc1/4 | Stations: 20
VVTA300-203-01 Type: Manifold base | Exhaust: Common exhaust | Port size: Rc1/8 | Stations: 20
