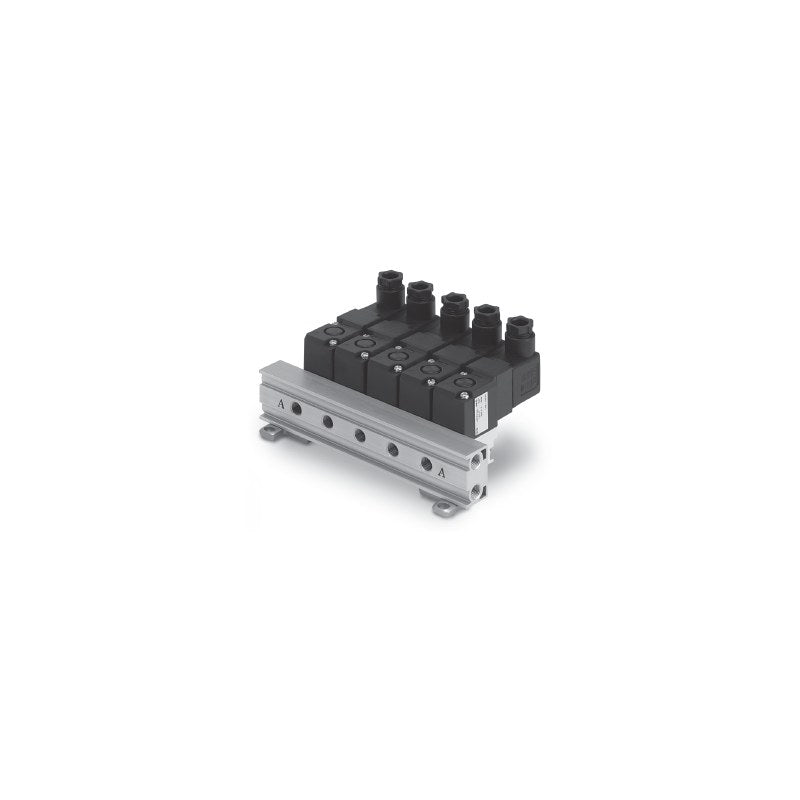

SMC VV307 Manifold Base for VO307 (2 to 20 Stations)

SMC VV307 Manifold Base for VO307 (2 to 20 Stations)

SMC VV307 B-mount manifold base for VO307 3-port solenoid valves, in common exhaust or individual exhaust versions with 2 to 20 stations.

Key features

  • B-mount manifold, common exhaust (2) or individual exhaust (3)
  • A port 1/8 (common or individual exhaust) or 1/4 (individual exhaust) on the base
  • Valves can be switched between N.C. and N.O. by re-mounting the changeover plate
  • Blanking plate DXT060-51-13A available; valves and plates ordered with the base
  • Supplied with mounting bracket (-F); G, NPT, NPTF threads on order

Specifications

Manifold type B mount
Stations 2 to 20
Applicable valves VO307-(-Q)
P port Common exhaust 1/8 (side), individual exhaust 1/4 (side)
R port 1/8
Thread type Rc
Note For 6 stations or more supply P from both sides
Source SMC Korea catalog VT307 (SMCKR_VT307.pdf), p. 1247 (PDF p. 7)
VV307-01-022-01-F Stations: 2 stations | Exhaust: Common exhaust | A port: Rc1/8
VV307-01-023-01-F Stations: 2 stations | Exhaust: Individual exhaust | A port: Rc1/8
VV307-01-023-02-F Stations: 2 stations | Exhaust: Individual exhaust | A port: Rc1/4
VV307-01-032-01-F Stations: 3 stations | Exhaust: Common exhaust | A port: Rc1/8
VV307-01-033-01-F Stations: 3 stations | Exhaust: Individual exhaust | A port: Rc1/8
VV307-01-033-02-F Stations: 3 stations | Exhaust: Individual exhaust | A port: Rc1/4
VV307-01-042-01-F Stations: 4 stations | Exhaust: Common exhaust | A port: Rc1/8
VV307-01-043-01-F Stations: 4 stations | Exhaust: Individual exhaust | A port: Rc1/8
VV307-01-043-02-F Stations: 4 stations | Exhaust: Individual exhaust | A port: Rc1/4
VV307-01-052-01-F Stations: 5 stations | Exhaust: Common exhaust | A port: Rc1/8
VV307-01-053-01-F Stations: 5 stations | Exhaust: Individual exhaust | A port: Rc1/8
VV307-01-053-02-F Stations: 5 stations | Exhaust: Individual exhaust | A port: Rc1/4
VV307-01-062-01-F Stations: 6 stations | Exhaust: Common exhaust | A port: Rc1/8
VV307-01-063-01-F Stations: 6 stations | Exhaust: Individual exhaust | A port: Rc1/8
VV307-01-063-02-F Stations: 6 stations | Exhaust: Individual exhaust | A port: Rc1/4
VV307-01-072-01-F Stations: 7 stations | Exhaust: Common exhaust | A port: Rc1/8
VV307-01-073-01-F Stations: 7 stations | Exhaust: Individual exhaust | A port: Rc1/8
VV307-01-073-02-F Stations: 7 stations | Exhaust: Individual exhaust | A port: Rc1/4
VV307-01-082-01-F Stations: 8 stations | Exhaust: Common exhaust | A port: Rc1/8
VV307-01-083-01-F Stations: 8 stations | Exhaust: Individual exhaust | A port: Rc1/8
VV307-01-083-02-F Stations: 8 stations | Exhaust: Individual exhaust | A port: Rc1/4
VV307-01-092-01-F Stations: 9 stations | Exhaust: Common exhaust | A port: Rc1/8
VV307-01-093-01-F Stations: 9 stations | Exhaust: Individual exhaust | A port: Rc1/8
VV307-01-093-02-F Stations: 9 stations | Exhaust: Individual exhaust | A port: Rc1/4
VV307-01-102-01-F Stations: 10 stations | Exhaust: Common exhaust | A port: Rc1/8
VV307-01-103-01-F Stations: 10 stations | Exhaust: Individual exhaust | A port: Rc1/8
VV307-01-103-02-F Stations: 10 stations | Exhaust: Individual exhaust | A port: Rc1/4
VV307-01-112-01-F Stations: 11 stations | Exhaust: Common exhaust | A port: Rc1/8
VV307-01-113-01-F Stations: 11 stations | Exhaust: Individual exhaust | A port: Rc1/8
VV307-01-113-02-F Stations: 11 stations | Exhaust: Individual exhaust | A port: Rc1/4
VV307-01-122-01-F Stations: 12 stations | Exhaust: Common exhaust | A port: Rc1/8
VV307-01-123-01-F Stations: 12 stations | Exhaust: Individual exhaust | A port: Rc1/8
VV307-01-123-02-F Stations: 12 stations | Exhaust: Individual exhaust | A port: Rc1/4
VV307-01-132-01-F Stations: 13 stations | Exhaust: Common exhaust | A port: Rc1/8
VV307-01-133-01-F Stations: 13 stations | Exhaust: Individual exhaust | A port: Rc1/8
VV307-01-133-02-F Stations: 13 stations | Exhaust: Individual exhaust | A port: Rc1/4
VV307-01-142-01-F Stations: 14 stations | Exhaust: Common exhaust | A port: Rc1/8
VV307-01-143-01-F Stations: 14 stations | Exhaust: Individual exhaust | A port: Rc1/8
VV307-01-143-02-F Stations: 14 stations | Exhaust: Individual exhaust | A port: Rc1/4
VV307-01-152-01-F Stations: 15 stations | Exhaust: Common exhaust | A port: Rc1/8
VV307-01-153-01-F Stations: 15 stations | Exhaust: Individual exhaust | A port: Rc1/8
VV307-01-153-02-F Stations: 15 stations | Exhaust: Individual exhaust | A port: Rc1/4
VV307-01-162-01-F Stations: 16 stations | Exhaust: Common exhaust | A port: Rc1/8
VV307-01-163-01-F Stations: 16 stations | Exhaust: Individual exhaust | A port: Rc1/8
VV307-01-163-02-F Stations: 16 stations | Exhaust: Individual exhaust | A port: Rc1/4
VV307-01-172-01-F Stations: 17 stations | Exhaust: Common exhaust | A port: Rc1/8
VV307-01-173-01-F Stations: 17 stations | Exhaust: Individual exhaust | A port: Rc1/8
VV307-01-173-02-F Stations: 17 stations | Exhaust: Individual exhaust | A port: Rc1/4
VV307-01-182-01-F Stations: 18 stations | Exhaust: Common exhaust | A port: Rc1/8
VV307-01-183-01-F Stations: 18 stations | Exhaust: Individual exhaust | A port: Rc1/8
VV307-01-183-02-F Stations: 18 stations | Exhaust: Individual exhaust | A port: Rc1/4
VV307-01-192-01-F Stations: 19 stations | Exhaust: Common exhaust | A port: Rc1/8
VV307-01-193-01-F Stations: 19 stations | Exhaust: Individual exhaust | A port: Rc1/8
VV307-01-193-02-F Stations: 19 stations | Exhaust: Individual exhaust | A port: Rc1/4
VV307-01-202-01-F Stations: 20 stations | Exhaust: Common exhaust | A port: Rc1/8
VV307-01-203-01-F Stations: 20 stations | Exhaust: Individual exhaust | A port: Rc1/8
VV307-01-203-02-F Stations: 20 stations | Exhaust: Individual exhaust | A port: Rc1/4
ManifoldsSMC
57 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VV307 Manifold Base for VO307 (2 to 20 Stations)

Brand SMC·Manifolds

Available part numbers (57)

VV307-01-022-01-F, VV307-01-023-01-F, VV307-01-023-02-F, VV307-01-032-01-F, VV307-01-033-01-F, VV307-01-033-02-F, VV307-01-042-01-F, VV307-01-043-01-F, VV307-01-043-02-F, VV307-01-052-01-F + 47 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
