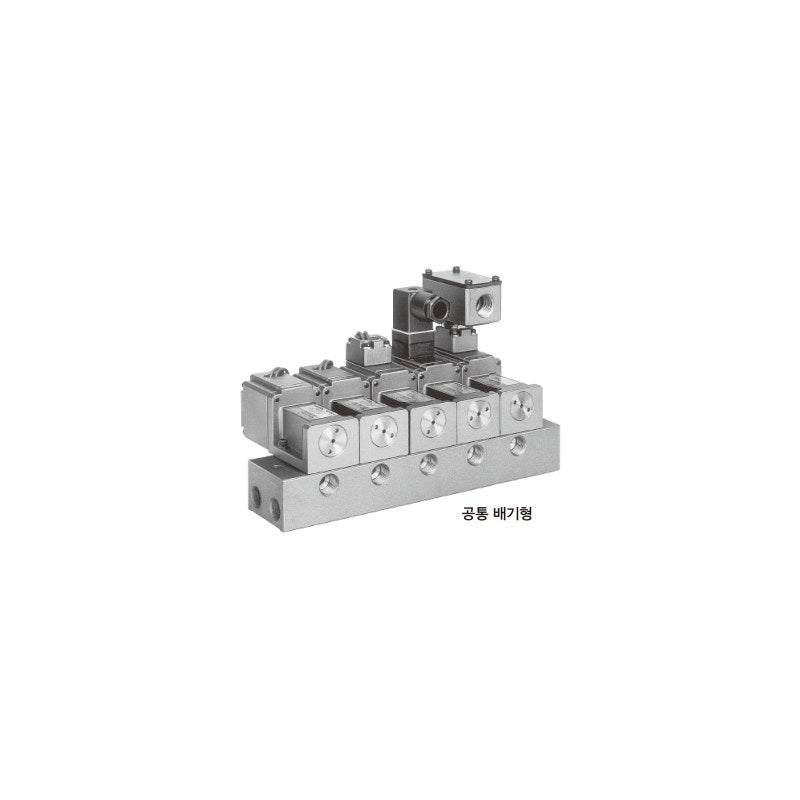

SMC VV317 Manifold Base for VO317 (2 to 20 Stations)

SMC VV317 Manifold Base for VO317 (2 to 20 Stations)

SMC VV317 B-mount 1/4 manifold base for VO317 3-port solenoid valves, common or individual exhaust, 2 to 20 stations.

Key features

  • B-mount 1/4 base, common exhaust (1) or individual exhaust (3)
  • Base ports: P 1/4 (3/8), A 1/4, R 1/4 (3/8) side
  • Mounting bracket option (A) for the common exhaust type
  • Blanking plate PVT317-53-1A available; valves and plates ordered with the base
  • G, NPT, NPTF threads and CE/UKCA (-Q) on order

Specifications

Manifold type B mount
Stations 2 to 20
A port Rc1/4 (base)
Applicable valves VO317-(-Q)
Thread type Rc
Note For 3 stations or more supply P from both sides
Source SMC Korea catalog VT317/325 (SMCKR_VT317_325.pdf), p. 1254 (PDF p. 4)
VV317-02-021-02 Stations: 2 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-021-02-A Stations: 2 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-023-02 Stations: 2 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-031-02 Stations: 3 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-031-02-A Stations: 3 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-033-02 Stations: 3 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-041-02 Stations: 4 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-041-02-A Stations: 4 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-043-02 Stations: 4 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-051-02 Stations: 5 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-051-02-A Stations: 5 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-053-02 Stations: 5 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-061-02 Stations: 6 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-061-02-A Stations: 6 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-063-02 Stations: 6 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-071-02 Stations: 7 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-071-02-A Stations: 7 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-073-02 Stations: 7 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-081-02 Stations: 8 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-081-02-A Stations: 8 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-083-02 Stations: 8 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-091-02 Stations: 9 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-091-02-A Stations: 9 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-093-02 Stations: 9 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-101-02 Stations: 10 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-101-02-A Stations: 10 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-103-02 Stations: 10 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-111-02 Stations: 11 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-111-02-A Stations: 11 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-113-02 Stations: 11 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-121-02 Stations: 12 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-121-02-A Stations: 12 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-123-02 Stations: 12 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-131-02 Stations: 13 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-131-02-A Stations: 13 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-133-02 Stations: 13 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-141-02 Stations: 14 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-141-02-A Stations: 14 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-143-02 Stations: 14 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-151-02 Stations: 15 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-151-02-A Stations: 15 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-153-02 Stations: 15 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-161-02 Stations: 16 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-161-02-A Stations: 16 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-163-02 Stations: 16 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-171-02 Stations: 17 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-171-02-A Stations: 17 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-173-02 Stations: 17 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-181-02 Stations: 18 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-181-02-A Stations: 18 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-183-02 Stations: 18 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-191-02 Stations: 19 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-191-02-A Stations: 19 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-193-02 Stations: 19 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-201-02 Stations: 20 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-201-02-A Stations: 20 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-203-02 Stations: 20 stations | Exhaust: Individual exhaust | Bracket: None
ManifoldsSMC
57 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VV317 Manifold Base for VO317 (2 to 20 Stations)

Brand SMC·Manifolds

Available part numbers (57)

VV317-02-021-02, VV317-02-021-02-A, VV317-02-023-02, VV317-02-031-02, VV317-02-031-02-A, VV317-02-033-02, VV317-02-041-02, VV317-02-041-02-A, VV317-02-043-02, VV317-02-051-02 + 47 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VV317-02-021-02Stations: 2 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-021-02-AStations: 2 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-023-02Stations: 2 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-031-02Stations: 3 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-031-02-AStations: 3 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-033-02Stations: 3 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-041-02Stations: 4 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-041-02-AStations: 4 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-043-02Stations: 4 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-051-02Stations: 5 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-051-02-AStations: 5 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-053-02Stations: 5 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-061-02Stations: 6 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-061-02-AStations: 6 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-063-02Stations: 6 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-071-02Stations: 7 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-071-02-AStations: 7 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-073-02Stations: 7 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-081-02Stations: 8 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-081-02-AStations: 8 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-083-02Stations: 8 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-091-02Stations: 9 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-091-02-AStations: 9 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-093-02Stations: 9 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-101-02Stations: 10 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-101-02-AStations: 10 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-103-02Stations: 10 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-111-02Stations: 11 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-111-02-AStations: 11 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-113-02Stations: 11 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-121-02Stations: 12 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-121-02-AStations: 12 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-123-02Stations: 12 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-131-02Stations: 13 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-131-02-AStations: 13 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-133-02Stations: 13 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-141-02Stations: 14 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-141-02-AStations: 14 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-143-02Stations: 14 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-151-02Stations: 15 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-151-02-AStations: 15 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-153-02Stations: 15 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-161-02Stations: 16 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-161-02-AStations: 16 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-163-02Stations: 16 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-171-02Stations: 17 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-171-02-AStations: 17 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-173-02Stations: 17 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-181-02Stations: 18 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-181-02-AStations: 18 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-183-02Stations: 18 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-191-02Stations: 19 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-191-02-AStations: 19 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-193-02Stations: 19 stations | Exhaust: Individual exhaust | Bracket: None
VV317-02-201-02Stations: 20 stations | Exhaust: Common exhaust | Bracket: None
VV317-02-201-02-AStations: 20 stations | Exhaust: Common exhaust | Bracket: With bracket
VV317-02-203-02Stations: 20 stations | Exhaust: Individual exhaust | Bracket: None
