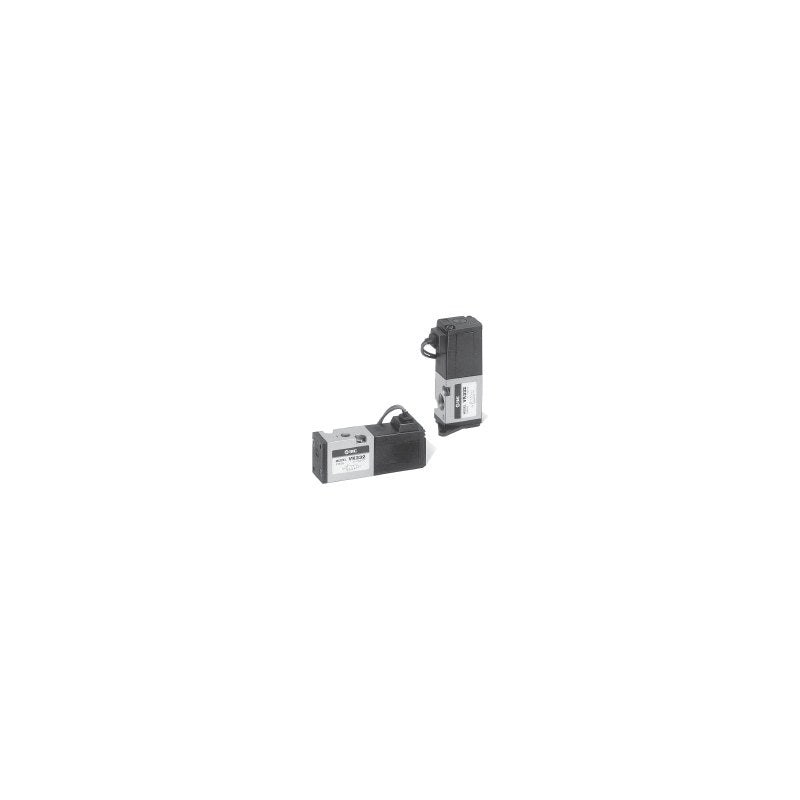

SMC VV3K3 Manifold for VK300 3-Port Valves (1 to 20 Stations)

SMC VV3K3 Manifold for VK300 3-Port Valves (1 to 20 Stations)

SMC VV3K3 manifold for VK300 series 3-port solenoid valves, in direct piping (20, 21) and base mounted (40, 42, S42) types.

Key features

  • Type 20: common SUP/EXH for VK332 direct piping valves (A port on top)
  • Type 21: common SUP, individual EXH for VK332 valves
  • Type 40: base mounted, A port bottom Rc1/8; types 42/S42: A port side Rc1/8 or 4/6 mm one-touch cassette
  • 1 to 20 stations; P and R ports Rc1/8 (supply from both sides at 9 stations or more)
  • G/NPT/NPTF threads, bracket (F) and CE/UKCA (-Q) on order; blanking plate VK300-42-1A

Specifications

Applicable valves VK332 (types 20, 21), VK334 (types 40, 42, S42)
Stations 1 to 20
P, R port Rc1/8
Fluid Air
Valves Order separately, listed under the manifold part number
Source SMC Korea catalog VK300 Series (SMCKR_VK300.pdf), p. 1221 (PDF p. 3)
VV3K3-20-01 Type: 20 direct piping, common EXH | Stations: 1 | A port: On valve (M5/Rc1/8)
VV3K3-21-01 Type: 21 direct piping, individual EXH | Stations: 1 | A port: On valve (M5/Rc1/8)
VV3K3-40-01-01 Type: 40 base mounted, bottom ported | Stations: 1 | A port: Rc1/8
VV3K3-42-01-01 Type: 42 base mounted, side ported | Stations: 1 | A port: Rc1/8
VV3K3-42-01-C4 Type: 42 base mounted, side ported | Stations: 1 | A port: One-touch 4 mm
VV3K3-42-01-C6 Type: 42 base mounted, side ported | Stations: 1 | A port: One-touch 6 mm
VV3K3-S42-01-01 Type: S42 side ported, solenoid on A side | Stations: 1 | A port: Rc1/8
VV3K3-S42-01-C4 Type: S42 side ported, solenoid on A side | Stations: 1 | A port: One-touch 4 mm
VV3K3-S42-01-C6 Type: S42 side ported, solenoid on A side | Stations: 1 | A port: One-touch 6 mm
VV3K3-20-02 Type: 20 direct piping, common EXH | Stations: 2 | A port: On valve (M5/Rc1/8)
VV3K3-21-02 Type: 21 direct piping, individual EXH | Stations: 2 | A port: On valve (M5/Rc1/8)
VV3K3-40-02-01 Type: 40 base mounted, bottom ported | Stations: 2 | A port: Rc1/8
VV3K3-42-02-01 Type: 42 base mounted, side ported | Stations: 2 | A port: Rc1/8
VV3K3-42-02-C4 Type: 42 base mounted, side ported | Stations: 2 | A port: One-touch 4 mm
VV3K3-42-02-C6 Type: 42 base mounted, side ported | Stations: 2 | A port: One-touch 6 mm
VV3K3-S42-02-01 Type: S42 side ported, solenoid on A side | Stations: 2 | A port: Rc1/8
VV3K3-S42-02-C4 Type: S42 side ported, solenoid on A side | Stations: 2 | A port: One-touch 4 mm
VV3K3-S42-02-C6 Type: S42 side ported, solenoid on A side | Stations: 2 | A port: One-touch 6 mm
VV3K3-20-03 Type: 20 direct piping, common EXH | Stations: 3 | A port: On valve (M5/Rc1/8)
VV3K3-21-03 Type: 21 direct piping, individual EXH | Stations: 3 | A port: On valve (M5/Rc1/8)
VV3K3-40-03-01 Type: 40 base mounted, bottom ported | Stations: 3 | A port: Rc1/8
VV3K3-42-03-01 Type: 42 base mounted, side ported | Stations: 3 | A port: Rc1/8
VV3K3-42-03-C4 Type: 42 base mounted, side ported | Stations: 3 | A port: One-touch 4 mm
VV3K3-42-03-C6 Type: 42 base mounted, side ported | Stations: 3 | A port: One-touch 6 mm
VV3K3-S42-03-01 Type: S42 side ported, solenoid on A side | Stations: 3 | A port: Rc1/8
VV3K3-S42-03-C4 Type: S42 side ported, solenoid on A side | Stations: 3 | A port: One-touch 4 mm
VV3K3-S42-03-C6 Type: S42 side ported, solenoid on A side | Stations: 3 | A port: One-touch 6 mm
VV3K3-20-04 Type: 20 direct piping, common EXH | Stations: 4 | A port: On valve (M5/Rc1/8)
VV3K3-21-04 Type: 21 direct piping, individual EXH | Stations: 4 | A port: On valve (M5/Rc1/8)
VV3K3-40-04-01 Type: 40 base mounted, bottom ported | Stations: 4 | A port: Rc1/8
VV3K3-42-04-01 Type: 42 base mounted, side ported | Stations: 4 | A port: Rc1/8
VV3K3-42-04-C4 Type: 42 base mounted, side ported | Stations: 4 | A port: One-touch 4 mm
VV3K3-42-04-C6 Type: 42 base mounted, side ported | Stations: 4 | A port: One-touch 6 mm
VV3K3-S42-04-01 Type: S42 side ported, solenoid on A side | Stations: 4 | A port: Rc1/8
VV3K3-S42-04-C4 Type: S42 side ported, solenoid on A side | Stations: 4 | A port: One-touch 4 mm
VV3K3-S42-04-C6 Type: S42 side ported, solenoid on A side | Stations: 4 | A port: One-touch 6 mm
VV3K3-20-05 Type: 20 direct piping, common EXH | Stations: 5 | A port: On valve (M5/Rc1/8)
VV3K3-21-05 Type: 21 direct piping, individual EXH | Stations: 5 | A port: On valve (M5/Rc1/8)
VV3K3-40-05-01 Type: 40 base mounted, bottom ported | Stations: 5 | A port: Rc1/8
VV3K3-42-05-01 Type: 42 base mounted, side ported | Stations: 5 | A port: Rc1/8
VV3K3-42-05-C4 Type: 42 base mounted, side ported | Stations: 5 | A port: One-touch 4 mm
VV3K3-42-05-C6 Type: 42 base mounted, side ported | Stations: 5 | A port: One-touch 6 mm
VV3K3-S42-05-01 Type: S42 side ported, solenoid on A side | Stations: 5 | A port: Rc1/8
VV3K3-S42-05-C4 Type: S42 side ported, solenoid on A side | Stations: 5 | A port: One-touch 4 mm
VV3K3-S42-05-C6 Type: S42 side ported, solenoid on A side | Stations: 5 | A port: One-touch 6 mm
VV3K3-20-06 Type: 20 direct piping, common EXH | Stations: 6 | A port: On valve (M5/Rc1/8)
VV3K3-21-06 Type: 21 direct piping, individual EXH | Stations: 6 | A port: On valve (M5/Rc1/8)
VV3K3-40-06-01 Type: 40 base mounted, bottom ported | Stations: 6 | A port: Rc1/8
VV3K3-42-06-01 Type: 42 base mounted, side ported | Stations: 6 | A port: Rc1/8
VV3K3-42-06-C4 Type: 42 base mounted, side ported | Stations: 6 | A port: One-touch 4 mm
VV3K3-42-06-C6 Type: 42 base mounted, side ported | Stations: 6 | A port: One-touch 6 mm
VV3K3-S42-06-01 Type: S42 side ported, solenoid on A side | Stations: 6 | A port: Rc1/8
VV3K3-S42-06-C4 Type: S42 side ported, solenoid on A side | Stations: 6 | A port: One-touch 4 mm
VV3K3-S42-06-C6 Type: S42 side ported, solenoid on A side | Stations: 6 | A port: One-touch 6 mm
VV3K3-20-07 Type: 20 direct piping, common EXH | Stations: 7 | A port: On valve (M5/Rc1/8)
VV3K3-21-07 Type: 21 direct piping, individual EXH | Stations: 7 | A port: On valve (M5/Rc1/8)
VV3K3-40-07-01 Type: 40 base mounted, bottom ported | Stations: 7 | A port: Rc1/8
VV3K3-42-07-01 Type: 42 base mounted, side ported | Stations: 7 | A port: Rc1/8
VV3K3-42-07-C4 Type: 42 base mounted, side ported | Stations: 7 | A port: One-touch 4 mm
VV3K3-42-07-C6 Type: 42 base mounted, side ported | Stations: 7 | A port: One-touch 6 mm
VV3K3-S42-07-01 Type: S42 side ported, solenoid on A side | Stations: 7 | A port: Rc1/8
VV3K3-S42-07-C4 Type: S42 side ported, solenoid on A side | Stations: 7 | A port: One-touch 4 mm
VV3K3-S42-07-C6 Type: S42 side ported, solenoid on A side | Stations: 7 | A port: One-touch 6 mm
VV3K3-20-08 Type: 20 direct piping, common EXH | Stations: 8 | A port: On valve (M5/Rc1/8)
VV3K3-21-08 Type: 21 direct piping, individual EXH | Stations: 8 | A port: On valve (M5/Rc1/8)
VV3K3-40-08-01 Type: 40 base mounted, bottom ported | Stations: 8 | A port: Rc1/8
VV3K3-42-08-01 Type: 42 base mounted, side ported | Stations: 8 | A port: Rc1/8
VV3K3-42-08-C4 Type: 42 base mounted, side ported | Stations: 8 | A port: One-touch 4 mm
VV3K3-42-08-C6 Type: 42 base mounted, side ported | Stations: 8 | A port: One-touch 6 mm
VV3K3-S42-08-01 Type: S42 side ported, solenoid on A side | Stations: 8 | A port: Rc1/8
VV3K3-S42-08-C4 Type: S42 side ported, solenoid on A side | Stations: 8 | A port: One-touch 4 mm
VV3K3-S42-08-C6 Type: S42 side ported, solenoid on A side | Stations: 8 | A port: One-touch 6 mm
VV3K3-20-09 Type: 20 direct piping, common EXH | Stations: 9 | A port: On valve (M5/Rc1/8)
VV3K3-21-09 Type: 21 direct piping, individual EXH | Stations: 9 | A port: On valve (M5/Rc1/8)
VV3K3-40-09-01 Type: 40 base mounted, bottom ported | Stations: 9 | A port: Rc1/8
VV3K3-42-09-01 Type: 42 base mounted, side ported | Stations: 9 | A port: Rc1/8
VV3K3-42-09-C4 Type: 42 base mounted, side ported | Stations: 9 | A port: One-touch 4 mm
VV3K3-42-09-C6 Type: 42 base mounted, side ported | Stations: 9 | A port: One-touch 6 mm
VV3K3-S42-09-01 Type: S42 side ported, solenoid on A side | Stations: 9 | A port: Rc1/8
VV3K3-S42-09-C4 Type: S42 side ported, solenoid on A side | Stations: 9 | A port: One-touch 4 mm
VV3K3-S42-09-C6 Type: S42 side ported, solenoid on A side | Stations: 9 | A port: One-touch 6 mm
VV3K3-20-10 Type: 20 direct piping, common EXH | Stations: 10 | A port: On valve (M5/Rc1/8)
VV3K3-21-10 Type: 21 direct piping, individual EXH | Stations: 10 | A port: On valve (M5/Rc1/8)
VV3K3-40-10-01 Type: 40 base mounted, bottom ported | Stations: 10 | A port: Rc1/8
VV3K3-42-10-01 Type: 42 base mounted, side ported | Stations: 10 | A port: Rc1/8
VV3K3-42-10-C4 Type: 42 base mounted, side ported | Stations: 10 | A port: One-touch 4 mm
VV3K3-42-10-C6 Type: 42 base mounted, side ported | Stations: 10 | A port: One-touch 6 mm
VV3K3-S42-10-01 Type: S42 side ported, solenoid on A side | Stations: 10 | A port: Rc1/8
VV3K3-S42-10-C4 Type: S42 side ported, solenoid on A side | Stations: 10 | A port: One-touch 4 mm
VV3K3-S42-10-C6 Type: S42 side ported, solenoid on A side | Stations: 10 | A port: One-touch 6 mm
VV3K3-20-11 Type: 20 direct piping, common EXH | Stations: 11 | A port: On valve (M5/Rc1/8)
VV3K3-21-11 Type: 21 direct piping, individual EXH | Stations: 11 | A port: On valve (M5/Rc1/8)
VV3K3-40-11-01 Type: 40 base mounted, bottom ported | Stations: 11 | A port: Rc1/8
VV3K3-42-11-01 Type: 42 base mounted, side ported | Stations: 11 | A port: Rc1/8
VV3K3-42-11-C4 Type: 42 base mounted, side ported | Stations: 11 | A port: One-touch 4 mm
VV3K3-42-11-C6 Type: 42 base mounted, side ported | Stations: 11 | A port: One-touch 6 mm
VV3K3-S42-11-01 Type: S42 side ported, solenoid on A side | Stations: 11 | A port: Rc1/8
VV3K3-S42-11-C4 Type: S42 side ported, solenoid on A side | Stations: 11 | A port: One-touch 4 mm
VV3K3-S42-11-C6 Type: S42 side ported, solenoid on A side | Stations: 11 | A port: One-touch 6 mm
VV3K3-20-12 Type: 20 direct piping, common EXH | Stations: 12 | A port: On valve (M5/Rc1/8)
VV3K3-21-12 Type: 21 direct piping, individual EXH | Stations: 12 | A port: On valve (M5/Rc1/8)
VV3K3-40-12-01 Type: 40 base mounted, bottom ported | Stations: 12 | A port: Rc1/8
VV3K3-42-12-01 Type: 42 base mounted, side ported | Stations: 12 | A port: Rc1/8
VV3K3-42-12-C4 Type: 42 base mounted, side ported | Stations: 12 | A port: One-touch 4 mm
VV3K3-42-12-C6 Type: 42 base mounted, side ported | Stations: 12 | A port: One-touch 6 mm
VV3K3-S42-12-01 Type: S42 side ported, solenoid on A side | Stations: 12 | A port: Rc1/8
VV3K3-S42-12-C4 Type: S42 side ported, solenoid on A side | Stations: 12 | A port: One-touch 4 mm
VV3K3-S42-12-C6 Type: S42 side ported, solenoid on A side | Stations: 12 | A port: One-touch 6 mm
VV3K3-20-13 Type: 20 direct piping, common EXH | Stations: 13 | A port: On valve (M5/Rc1/8)
VV3K3-21-13 Type: 21 direct piping, individual EXH | Stations: 13 | A port: On valve (M5/Rc1/8)
VV3K3-40-13-01 Type: 40 base mounted, bottom ported | Stations: 13 | A port: Rc1/8
VV3K3-42-13-01 Type: 42 base mounted, side ported | Stations: 13 | A port: Rc1/8
VV3K3-42-13-C4 Type: 42 base mounted, side ported | Stations: 13 | A port: One-touch 4 mm
VV3K3-42-13-C6 Type: 42 base mounted, side ported | Stations: 13 | A port: One-touch 6 mm
VV3K3-S42-13-01 Type: S42 side ported, solenoid on A side | Stations: 13 | A port: Rc1/8
VV3K3-S42-13-C4 Type: S42 side ported, solenoid on A side | Stations: 13 | A port: One-touch 4 mm
VV3K3-S42-13-C6 Type: S42 side ported, solenoid on A side | Stations: 13 | A port: One-touch 6 mm
VV3K3-20-14 Type: 20 direct piping, common EXH | Stations: 14 | A port: On valve (M5/Rc1/8)
VV3K3-21-14 Type: 21 direct piping, individual EXH | Stations: 14 | A port: On valve (M5/Rc1/8)
VV3K3-40-14-01 Type: 40 base mounted, bottom ported | Stations: 14 | A port: Rc1/8
VV3K3-42-14-01 Type: 42 base mounted, side ported | Stations: 14 | A port: Rc1/8
VV3K3-42-14-C4 Type: 42 base mounted, side ported | Stations: 14 | A port: One-touch 4 mm
VV3K3-42-14-C6 Type: 42 base mounted, side ported | Stations: 14 | A port: One-touch 6 mm
VV3K3-S42-14-01 Type: S42 side ported, solenoid on A side | Stations: 14 | A port: Rc1/8
VV3K3-S42-14-C4 Type: S42 side ported, solenoid on A side | Stations: 14 | A port: One-touch 4 mm
VV3K3-S42-14-C6 Type: S42 side ported, solenoid on A side | Stations: 14 | A port: One-touch 6 mm
VV3K3-20-15 Type: 20 direct piping, common EXH | Stations: 15 | A port: On valve (M5/Rc1/8)
VV3K3-21-15 Type: 21 direct piping, individual EXH | Stations: 15 | A port: On valve (M5/Rc1/8)
VV3K3-40-15-01 Type: 40 base mounted, bottom ported | Stations: 15 | A port: Rc1/8
VV3K3-42-15-01 Type: 42 base mounted, side ported | Stations: 15 | A port: Rc1/8
VV3K3-42-15-C4 Type: 42 base mounted, side ported | Stations: 15 | A port: One-touch 4 mm
VV3K3-42-15-C6 Type: 42 base mounted, side ported | Stations: 15 | A port: One-touch 6 mm
VV3K3-S42-15-01 Type: S42 side ported, solenoid on A side | Stations: 15 | A port: Rc1/8
VV3K3-S42-15-C4 Type: S42 side ported, solenoid on A side | Stations: 15 | A port: One-touch 4 mm
VV3K3-S42-15-C6 Type: S42 side ported, solenoid on A side | Stations: 15 | A port: One-touch 6 mm
VV3K3-20-16 Type: 20 direct piping, common EXH | Stations: 16 | A port: On valve (M5/Rc1/8)
VV3K3-21-16 Type: 21 direct piping, individual EXH | Stations: 16 | A port: On valve (M5/Rc1/8)
VV3K3-40-16-01 Type: 40 base mounted, bottom ported | Stations: 16 | A port: Rc1/8
VV3K3-42-16-01 Type: 42 base mounted, side ported | Stations: 16 | A port: Rc1/8
VV3K3-42-16-C4 Type: 42 base mounted, side ported | Stations: 16 | A port: One-touch 4 mm
VV3K3-42-16-C6 Type: 42 base mounted, side ported | Stations: 16 | A port: One-touch 6 mm
VV3K3-S42-16-01 Type: S42 side ported, solenoid on A side | Stations: 16 | A port: Rc1/8
VV3K3-S42-16-C4 Type: S42 side ported, solenoid on A side | Stations: 16 | A port: One-touch 4 mm
VV3K3-S42-16-C6 Type: S42 side ported, solenoid on A side | Stations: 16 | A port: One-touch 6 mm
VV3K3-20-17 Type: 20 direct piping, common EXH | Stations: 17 | A port: On valve (M5/Rc1/8)
VV3K3-21-17 Type: 21 direct piping, individual EXH | Stations: 17 | A port: On valve (M5/Rc1/8)
VV3K3-40-17-01 Type: 40 base mounted, bottom ported | Stations: 17 | A port: Rc1/8
VV3K3-42-17-01 Type: 42 base mounted, side ported | Stations: 17 | A port: Rc1/8
VV3K3-42-17-C4 Type: 42 base mounted, side ported | Stations: 17 | A port: One-touch 4 mm
VV3K3-42-17-C6 Type: 42 base mounted, side ported | Stations: 17 | A port: One-touch 6 mm
VV3K3-S42-17-01 Type: S42 side ported, solenoid on A side | Stations: 17 | A port: Rc1/8
VV3K3-S42-17-C4 Type: S42 side ported, solenoid on A side | Stations: 17 | A port: One-touch 4 mm
VV3K3-S42-17-C6 Type: S42 side ported, solenoid on A side | Stations: 17 | A port: One-touch 6 mm
VV3K3-20-18 Type: 20 direct piping, common EXH | Stations: 18 | A port: On valve (M5/Rc1/8)
VV3K3-21-18 Type: 21 direct piping, individual EXH | Stations: 18 | A port: On valve (M5/Rc1/8)
VV3K3-40-18-01 Type: 40 base mounted, bottom ported | Stations: 18 | A port: Rc1/8
VV3K3-42-18-01 Type: 42 base mounted, side ported | Stations: 18 | A port: Rc1/8
VV3K3-42-18-C4 Type: 42 base mounted, side ported | Stations: 18 | A port: One-touch 4 mm
VV3K3-42-18-C6 Type: 42 base mounted, side ported | Stations: 18 | A port: One-touch 6 mm
VV3K3-S42-18-01 Type: S42 side ported, solenoid on A side | Stations: 18 | A port: Rc1/8
VV3K3-S42-18-C4 Type: S42 side ported, solenoid on A side | Stations: 18 | A port: One-touch 4 mm
VV3K3-S42-18-C6 Type: S42 side ported, solenoid on A side | Stations: 18 | A port: One-touch 6 mm
VV3K3-20-19 Type: 20 direct piping, common EXH | Stations: 19 | A port: On valve (M5/Rc1/8)
VV3K3-21-19 Type: 21 direct piping, individual EXH | Stations: 19 | A port: On valve (M5/Rc1/8)
VV3K3-40-19-01 Type: 40 base mounted, bottom ported | Stations: 19 | A port: Rc1/8
VV3K3-42-19-01 Type: 42 base mounted, side ported | Stations: 19 | A port: Rc1/8
VV3K3-42-19-C4 Type: 42 base mounted, side ported | Stations: 19 | A port: One-touch 4 mm
VV3K3-42-19-C6 Type: 42 base mounted, side ported | Stations: 19 | A port: One-touch 6 mm
VV3K3-S42-19-01 Type: S42 side ported, solenoid on A side | Stations: 19 | A port: Rc1/8
VV3K3-S42-19-C4 Type: S42 side ported, solenoid on A side | Stations: 19 | A port: One-touch 4 mm
VV3K3-S42-19-C6 Type: S42 side ported, solenoid on A side | Stations: 19 | A port: One-touch 6 mm
VV3K3-20-20 Type: 20 direct piping, common EXH | Stations: 20 | A port: On valve (M5/Rc1/8)
VV3K3-21-20 Type: 21 direct piping, individual EXH | Stations: 20 | A port: On valve (M5/Rc1/8)
VV3K3-40-20-01 Type: 40 base mounted, bottom ported | Stations: 20 | A port: Rc1/8
VV3K3-42-20-01 Type: 42 base mounted, side ported | Stations: 20 | A port: Rc1/8
VV3K3-42-20-C4 Type: 42 base mounted, side ported | Stations: 20 | A port: One-touch 4 mm
VV3K3-42-20-C6 Type: 42 base mounted, side ported | Stations: 20 | A port: One-touch 6 mm
VV3K3-S42-20-01 Type: S42 side ported, solenoid on A side | Stations: 20 | A port: Rc1/8
VV3K3-S42-20-C4 Type: S42 side ported, solenoid on A side | Stations: 20 | A port: One-touch 4 mm
VV3K3-S42-20-C6 Type: S42 side ported, solenoid on A side | Stations: 20 | A port: One-touch 6 mm
ManifoldsSMC
180 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VV3K3 Manifold for VK300 3-Port Valves (1 to 20 Stations)

Brand SMC·Manifolds

Available part numbers (180)

VV3K3-20-01, VV3K3-21-01, VV3K3-40-01-01, VV3K3-42-01-01, VV3K3-42-01-C4, VV3K3-42-01-C6, VV3K3-S42-01-01, VV3K3-S42-01-C4, VV3K3-S42-01-C6, VV3K3-20-02 + 170 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VV3K3-20-01Type: 20 direct piping, common EXH | Stations: 1 | A port: On valve (M5/Rc1/8)
VV3K3-21-01Type: 21 direct piping, individual EXH | Stations: 1 | A port: On valve (M5/Rc1/8)
VV3K3-40-01-01Type: 40 base mounted, bottom ported | Stations: 1 | A port: Rc1/8
VV3K3-42-01-01Type: 42 base mounted, side ported | Stations: 1 | A port: Rc1/8
VV3K3-42-01-C4Type: 42 base mounted, side ported | Stations: 1 | A port: One-touch 4 mm
VV3K3-42-01-C6Type: 42 base mounted, side ported | Stations: 1 | A port: One-touch 6 mm
VV3K3-S42-01-01Type: S42 side ported, solenoid on A side | Stations: 1 | A port: Rc1/8
VV3K3-S42-01-C4Type: S42 side ported, solenoid on A side | Stations: 1 | A port: One-touch 4 mm
VV3K3-S42-01-C6Type: S42 side ported, solenoid on A side | Stations: 1 | A port: One-touch 6 mm
VV3K3-20-02Type: 20 direct piping, common EXH | Stations: 2 | A port: On valve (M5/Rc1/8)
VV3K3-21-02Type: 21 direct piping, individual EXH | Stations: 2 | A port: On valve (M5/Rc1/8)
VV3K3-40-02-01Type: 40 base mounted, bottom ported | Stations: 2 | A port: Rc1/8
VV3K3-42-02-01Type: 42 base mounted, side ported | Stations: 2 | A port: Rc1/8
VV3K3-42-02-C4Type: 42 base mounted, side ported | Stations: 2 | A port: One-touch 4 mm
VV3K3-42-02-C6Type: 42 base mounted, side ported | Stations: 2 | A port: One-touch 6 mm
VV3K3-S42-02-01Type: S42 side ported, solenoid on A side | Stations: 2 | A port: Rc1/8
VV3K3-S42-02-C4Type: S42 side ported, solenoid on A side | Stations: 2 | A port: One-touch 4 mm
VV3K3-S42-02-C6Type: S42 side ported, solenoid on A side | Stations: 2 | A port: One-touch 6 mm
VV3K3-20-03Type: 20 direct piping, common EXH | Stations: 3 | A port: On valve (M5/Rc1/8)
VV3K3-21-03Type: 21 direct piping, individual EXH | Stations: 3 | A port: On valve (M5/Rc1/8)
VV3K3-40-03-01Type: 40 base mounted, bottom ported | Stations: 3 | A port: Rc1/8
VV3K3-42-03-01Type: 42 base mounted, side ported | Stations: 3 | A port: Rc1/8
VV3K3-42-03-C4Type: 42 base mounted, side ported | Stations: 3 | A port: One-touch 4 mm
VV3K3-42-03-C6Type: 42 base mounted, side ported | Stations: 3 | A port: One-touch 6 mm
VV3K3-S42-03-01Type: S42 side ported, solenoid on A side | Stations: 3 | A port: Rc1/8
VV3K3-S42-03-C4Type: S42 side ported, solenoid on A side | Stations: 3 | A port: One-touch 4 mm
VV3K3-S42-03-C6Type: S42 side ported, solenoid on A side | Stations: 3 | A port: One-touch 6 mm
VV3K3-20-04Type: 20 direct piping, common EXH | Stations: 4 | A port: On valve (M5/Rc1/8)
VV3K3-21-04Type: 21 direct piping, individual EXH | Stations: 4 | A port: On valve (M5/Rc1/8)
VV3K3-40-04-01Type: 40 base mounted, bottom ported | Stations: 4 | A port: Rc1/8
VV3K3-42-04-01Type: 42 base mounted, side ported | Stations: 4 | A port: Rc1/8
VV3K3-42-04-C4Type: 42 base mounted, side ported | Stations: 4 | A port: One-touch 4 mm
VV3K3-42-04-C6Type: 42 base mounted, side ported | Stations: 4 | A port: One-touch 6 mm
VV3K3-S42-04-01Type: S42 side ported, solenoid on A side | Stations: 4 | A port: Rc1/8
VV3K3-S42-04-C4Type: S42 side ported, solenoid on A side | Stations: 4 | A port: One-touch 4 mm
VV3K3-S42-04-C6Type: S42 side ported, solenoid on A side | Stations: 4 | A port: One-touch 6 mm
VV3K3-20-05Type: 20 direct piping, common EXH | Stations: 5 | A port: On valve (M5/Rc1/8)
VV3K3-21-05Type: 21 direct piping, individual EXH | Stations: 5 | A port: On valve (M5/Rc1/8)
VV3K3-40-05-01Type: 40 base mounted, bottom ported | Stations: 5 | A port: Rc1/8
VV3K3-42-05-01Type: 42 base mounted, side ported | Stations: 5 | A port: Rc1/8
VV3K3-42-05-C4Type: 42 base mounted, side ported | Stations: 5 | A port: One-touch 4 mm
VV3K3-42-05-C6Type: 42 base mounted, side ported | Stations: 5 | A port: One-touch 6 mm
VV3K3-S42-05-01Type: S42 side ported, solenoid on A side | Stations: 5 | A port: Rc1/8
VV3K3-S42-05-C4Type: S42 side ported, solenoid on A side | Stations: 5 | A port: One-touch 4 mm
VV3K3-S42-05-C6Type: S42 side ported, solenoid on A side | Stations: 5 | A port: One-touch 6 mm
VV3K3-20-06Type: 20 direct piping, common EXH | Stations: 6 | A port: On valve (M5/Rc1/8)
VV3K3-21-06Type: 21 direct piping, individual EXH | Stations: 6 | A port: On valve (M5/Rc1/8)
VV3K3-40-06-01Type: 40 base mounted, bottom ported | Stations: 6 | A port: Rc1/8
VV3K3-42-06-01Type: 42 base mounted, side ported | Stations: 6 | A port: Rc1/8
VV3K3-42-06-C4Type: 42 base mounted, side ported | Stations: 6 | A port: One-touch 4 mm
VV3K3-42-06-C6Type: 42 base mounted, side ported | Stations: 6 | A port: One-touch 6 mm
VV3K3-S42-06-01Type: S42 side ported, solenoid on A side | Stations: 6 | A port: Rc1/8
VV3K3-S42-06-C4Type: S42 side ported, solenoid on A side | Stations: 6 | A port: One-touch 4 mm
VV3K3-S42-06-C6Type: S42 side ported, solenoid on A side | Stations: 6 | A port: One-touch 6 mm
VV3K3-20-07Type: 20 direct piping, common EXH | Stations: 7 | A port: On valve (M5/Rc1/8)
VV3K3-21-07Type: 21 direct piping, individual EXH | Stations: 7 | A port: On valve (M5/Rc1/8)
VV3K3-40-07-01Type: 40 base mounted, bottom ported | Stations: 7 | A port: Rc1/8
VV3K3-42-07-01Type: 42 base mounted, side ported | Stations: 7 | A port: Rc1/8
VV3K3-42-07-C4Type: 42 base mounted, side ported | Stations: 7 | A port: One-touch 4 mm
VV3K3-42-07-C6Type: 42 base mounted, side ported | Stations: 7 | A port: One-touch 6 mm
VV3K3-S42-07-01Type: S42 side ported, solenoid on A side | Stations: 7 | A port: Rc1/8
VV3K3-S42-07-C4Type: S42 side ported, solenoid on A side | Stations: 7 | A port: One-touch 4 mm
VV3K3-S42-07-C6Type: S42 side ported, solenoid on A side | Stations: 7 | A port: One-touch 6 mm
VV3K3-20-08Type: 20 direct piping, common EXH | Stations: 8 | A port: On valve (M5/Rc1/8)
VV3K3-21-08Type: 21 direct piping, individual EXH | Stations: 8 | A port: On valve (M5/Rc1/8)
VV3K3-40-08-01Type: 40 base mounted, bottom ported | Stations: 8 | A port: Rc1/8
VV3K3-42-08-01Type: 42 base mounted, side ported | Stations: 8 | A port: Rc1/8
VV3K3-42-08-C4Type: 42 base mounted, side ported | Stations: 8 | A port: One-touch 4 mm
VV3K3-42-08-C6Type: 42 base mounted, side ported | Stations: 8 | A port: One-touch 6 mm
VV3K3-S42-08-01Type: S42 side ported, solenoid on A side | Stations: 8 | A port: Rc1/8
VV3K3-S42-08-C4Type: S42 side ported, solenoid on A side | Stations: 8 | A port: One-touch 4 mm
VV3K3-S42-08-C6Type: S42 side ported, solenoid on A side | Stations: 8 | A port: One-touch 6 mm
VV3K3-20-09Type: 20 direct piping, common EXH | Stations: 9 | A port: On valve (M5/Rc1/8)
VV3K3-21-09Type: 21 direct piping, individual EXH | Stations: 9 | A port: On valve (M5/Rc1/8)
VV3K3-40-09-01Type: 40 base mounted, bottom ported | Stations: 9 | A port: Rc1/8
VV3K3-42-09-01Type: 42 base mounted, side ported | Stations: 9 | A port: Rc1/8
VV3K3-42-09-C4Type: 42 base mounted, side ported | Stations: 9 | A port: One-touch 4 mm
VV3K3-42-09-C6Type: 42 base mounted, side ported | Stations: 9 | A port: One-touch 6 mm
VV3K3-S42-09-01Type: S42 side ported, solenoid on A side | Stations: 9 | A port: Rc1/8
VV3K3-S42-09-C4Type: S42 side ported, solenoid on A side | Stations: 9 | A port: One-touch 4 mm
VV3K3-S42-09-C6Type: S42 side ported, solenoid on A side | Stations: 9 | A port: One-touch 6 mm
VV3K3-20-10Type: 20 direct piping, common EXH | Stations: 10 | A port: On valve (M5/Rc1/8)
VV3K3-21-10Type: 21 direct piping, individual EXH | Stations: 10 | A port: On valve (M5/Rc1/8)
VV3K3-40-10-01Type: 40 base mounted, bottom ported | Stations: 10 | A port: Rc1/8
VV3K3-42-10-01Type: 42 base mounted, side ported | Stations: 10 | A port: Rc1/8
VV3K3-42-10-C4Type: 42 base mounted, side ported | Stations: 10 | A port: One-touch 4 mm
VV3K3-42-10-C6Type: 42 base mounted, side ported | Stations: 10 | A port: One-touch 6 mm
VV3K3-S42-10-01Type: S42 side ported, solenoid on A side | Stations: 10 | A port: Rc1/8
VV3K3-S42-10-C4Type: S42 side ported, solenoid on A side | Stations: 10 | A port: One-touch 4 mm
VV3K3-S42-10-C6Type: S42 side ported, solenoid on A side | Stations: 10 | A port: One-touch 6 mm
VV3K3-20-11Type: 20 direct piping, common EXH | Stations: 11 | A port: On valve (M5/Rc1/8)
VV3K3-21-11Type: 21 direct piping, individual EXH | Stations: 11 | A port: On valve (M5/Rc1/8)
VV3K3-40-11-01Type: 40 base mounted, bottom ported | Stations: 11 | A port: Rc1/8
VV3K3-42-11-01Type: 42 base mounted, side ported | Stations: 11 | A port: Rc1/8
VV3K3-42-11-C4Type: 42 base mounted, side ported | Stations: 11 | A port: One-touch 4 mm
VV3K3-42-11-C6Type: 42 base mounted, side ported | Stations: 11 | A port: One-touch 6 mm
VV3K3-S42-11-01Type: S42 side ported, solenoid on A side | Stations: 11 | A port: Rc1/8
VV3K3-S42-11-C4Type: S42 side ported, solenoid on A side | Stations: 11 | A port: One-touch 4 mm
VV3K3-S42-11-C6Type: S42 side ported, solenoid on A side | Stations: 11 | A port: One-touch 6 mm
VV3K3-20-12Type: 20 direct piping, common EXH | Stations: 12 | A port: On valve (M5/Rc1/8)
VV3K3-21-12Type: 21 direct piping, individual EXH | Stations: 12 | A port: On valve (M5/Rc1/8)
VV3K3-40-12-01Type: 40 base mounted, bottom ported | Stations: 12 | A port: Rc1/8
VV3K3-42-12-01Type: 42 base mounted, side ported | Stations: 12 | A port: Rc1/8
VV3K3-42-12-C4Type: 42 base mounted, side ported | Stations: 12 | A port: One-touch 4 mm
VV3K3-42-12-C6Type: 42 base mounted, side ported | Stations: 12 | A port: One-touch 6 mm
VV3K3-S42-12-01Type: S42 side ported, solenoid on A side | Stations: 12 | A port: Rc1/8
VV3K3-S42-12-C4Type: S42 side ported, solenoid on A side | Stations: 12 | A port: One-touch 4 mm
VV3K3-S42-12-C6Type: S42 side ported, solenoid on A side | Stations: 12 | A port: One-touch 6 mm
VV3K3-20-13Type: 20 direct piping, common EXH | Stations: 13 | A port: On valve (M5/Rc1/8)
VV3K3-21-13Type: 21 direct piping, individual EXH | Stations: 13 | A port: On valve (M5/Rc1/8)
VV3K3-40-13-01Type: 40 base mounted, bottom ported | Stations: 13 | A port: Rc1/8
VV3K3-42-13-01Type: 42 base mounted, side ported | Stations: 13 | A port: Rc1/8
VV3K3-42-13-C4Type: 42 base mounted, side ported | Stations: 13 | A port: One-touch 4 mm
VV3K3-42-13-C6Type: 42 base mounted, side ported | Stations: 13 | A port: One-touch 6 mm
VV3K3-S42-13-01Type: S42 side ported, solenoid on A side | Stations: 13 | A port: Rc1/8
VV3K3-S42-13-C4Type: S42 side ported, solenoid on A side | Stations: 13 | A port: One-touch 4 mm
VV3K3-S42-13-C6Type: S42 side ported, solenoid on A side | Stations: 13 | A port: One-touch 6 mm
VV3K3-20-14Type: 20 direct piping, common EXH | Stations: 14 | A port: On valve (M5/Rc1/8)
VV3K3-21-14Type: 21 direct piping, individual EXH | Stations: 14 | A port: On valve (M5/Rc1/8)
VV3K3-40-14-01Type: 40 base mounted, bottom ported | Stations: 14 | A port: Rc1/8
VV3K3-42-14-01Type: 42 base mounted, side ported | Stations: 14 | A port: Rc1/8
VV3K3-42-14-C4Type: 42 base mounted, side ported | Stations: 14 | A port: One-touch 4 mm
VV3K3-42-14-C6Type: 42 base mounted, side ported | Stations: 14 | A port: One-touch 6 mm
VV3K3-S42-14-01Type: S42 side ported, solenoid on A side | Stations: 14 | A port: Rc1/8
VV3K3-S42-14-C4Type: S42 side ported, solenoid on A side | Stations: 14 | A port: One-touch 4 mm
VV3K3-S42-14-C6Type: S42 side ported, solenoid on A side | Stations: 14 | A port: One-touch 6 mm
VV3K3-20-15Type: 20 direct piping, common EXH | Stations: 15 | A port: On valve (M5/Rc1/8)
VV3K3-21-15Type: 21 direct piping, individual EXH | Stations: 15 | A port: On valve (M5/Rc1/8)
VV3K3-40-15-01Type: 40 base mounted, bottom ported | Stations: 15 | A port: Rc1/8
VV3K3-42-15-01Type: 42 base mounted, side ported | Stations: 15 | A port: Rc1/8
VV3K3-42-15-C4Type: 42 base mounted, side ported | Stations: 15 | A port: One-touch 4 mm
VV3K3-42-15-C6Type: 42 base mounted, side ported | Stations: 15 | A port: One-touch 6 mm
VV3K3-S42-15-01Type: S42 side ported, solenoid on A side | Stations: 15 | A port: Rc1/8
VV3K3-S42-15-C4Type: S42 side ported, solenoid on A side | Stations: 15 | A port: One-touch 4 mm
VV3K3-S42-15-C6Type: S42 side ported, solenoid on A side | Stations: 15 | A port: One-touch 6 mm
VV3K3-20-16Type: 20 direct piping, common EXH | Stations: 16 | A port: On valve (M5/Rc1/8)
VV3K3-21-16Type: 21 direct piping, individual EXH | Stations: 16 | A port: On valve (M5/Rc1/8)
VV3K3-40-16-01Type: 40 base mounted, bottom ported | Stations: 16 | A port: Rc1/8
VV3K3-42-16-01Type: 42 base mounted, side ported | Stations: 16 | A port: Rc1/8
VV3K3-42-16-C4Type: 42 base mounted, side ported | Stations: 16 | A port: One-touch 4 mm
VV3K3-42-16-C6Type: 42 base mounted, side ported | Stations: 16 | A port: One-touch 6 mm
VV3K3-S42-16-01Type: S42 side ported, solenoid on A side | Stations: 16 | A port: Rc1/8
VV3K3-S42-16-C4Type: S42 side ported, solenoid on A side | Stations: 16 | A port: One-touch 4 mm
VV3K3-S42-16-C6Type: S42 side ported, solenoid on A side | Stations: 16 | A port: One-touch 6 mm
VV3K3-20-17Type: 20 direct piping, common EXH | Stations: 17 | A port: On valve (M5/Rc1/8)
VV3K3-21-17Type: 21 direct piping, individual EXH | Stations: 17 | A port: On valve (M5/Rc1/8)
VV3K3-40-17-01Type: 40 base mounted, bottom ported | Stations: 17 | A port: Rc1/8
VV3K3-42-17-01Type: 42 base mounted, side ported | Stations: 17 | A port: Rc1/8
VV3K3-42-17-C4Type: 42 base mounted, side ported | Stations: 17 | A port: One-touch 4 mm
VV3K3-42-17-C6Type: 42 base mounted, side ported | Stations: 17 | A port: One-touch 6 mm
VV3K3-S42-17-01Type: S42 side ported, solenoid on A side | Stations: 17 | A port: Rc1/8
VV3K3-S42-17-C4Type: S42 side ported, solenoid on A side | Stations: 17 | A port: One-touch 4 mm
VV3K3-S42-17-C6Type: S42 side ported, solenoid on A side | Stations: 17 | A port: One-touch 6 mm
VV3K3-20-18Type: 20 direct piping, common EXH | Stations: 18 | A port: On valve (M5/Rc1/8)
VV3K3-21-18Type: 21 direct piping, individual EXH | Stations: 18 | A port: On valve (M5/Rc1/8)
VV3K3-40-18-01Type: 40 base mounted, bottom ported | Stations: 18 | A port: Rc1/8
VV3K3-42-18-01Type: 42 base mounted, side ported | Stations: 18 | A port: Rc1/8
VV3K3-42-18-C4Type: 42 base mounted, side ported | Stations: 18 | A port: One-touch 4 mm
VV3K3-42-18-C6Type: 42 base mounted, side ported | Stations: 18 | A port: One-touch 6 mm
VV3K3-S42-18-01Type: S42 side ported, solenoid on A side | Stations: 18 | A port: Rc1/8
VV3K3-S42-18-C4Type: S42 side ported, solenoid on A side | Stations: 18 | A port: One-touch 4 mm
VV3K3-S42-18-C6Type: S42 side ported, solenoid on A side | Stations: 18 | A port: One-touch 6 mm
VV3K3-20-19Type: 20 direct piping, common EXH | Stations: 19 | A port: On valve (M5/Rc1/8)
VV3K3-21-19Type: 21 direct piping, individual EXH | Stations: 19 | A port: On valve (M5/Rc1/8)
VV3K3-40-19-01Type: 40 base mounted, bottom ported | Stations: 19 | A port: Rc1/8
VV3K3-42-19-01Type: 42 base mounted, side ported | Stations: 19 | A port: Rc1/8
VV3K3-42-19-C4Type: 42 base mounted, side ported | Stations: 19 | A port: One-touch 4 mm
VV3K3-42-19-C6Type: 42 base mounted, side ported | Stations: 19 | A port: One-touch 6 mm
VV3K3-S42-19-01Type: S42 side ported, solenoid on A side | Stations: 19 | A port: Rc1/8
VV3K3-S42-19-C4Type: S42 side ported, solenoid on A side | Stations: 19 | A port: One-touch 4 mm
VV3K3-S42-19-C6Type: S42 side ported, solenoid on A side | Stations: 19 | A port: One-touch 6 mm
VV3K3-20-20Type: 20 direct piping, common EXH | Stations: 20 | A port: On valve (M5/Rc1/8)
VV3K3-21-20Type: 21 direct piping, individual EXH | Stations: 20 | A port: On valve (M5/Rc1/8)
VV3K3-40-20-01Type: 40 base mounted, bottom ported | Stations: 20 | A port: Rc1/8
VV3K3-42-20-01Type: 42 base mounted, side ported | Stations: 20 | A port: Rc1/8
VV3K3-42-20-C4Type: 42 base mounted, side ported | Stations: 20 | A port: One-touch 4 mm
VV3K3-42-20-C6Type: 42 base mounted, side ported | Stations: 20 | A port: One-touch 6 mm
VV3K3-S42-20-01Type: S42 side ported, solenoid on A side | Stations: 20 | A port: Rc1/8
VV3K3-S42-20-C4Type: S42 side ported, solenoid on A side | Stations: 20 | A port: One-touch 4 mm
VV3K3-S42-20-C6Type: S42 side ported, solenoid on A side | Stations: 20 | A port: One-touch 6 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
