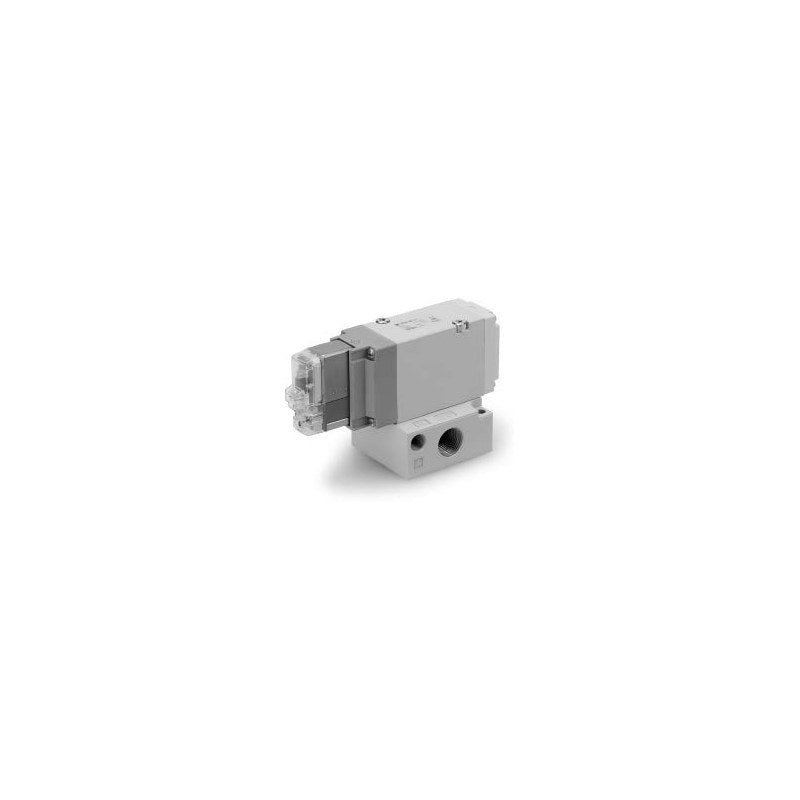

SMC VV3P Manifold for VP300/500/700 3-Port Valves (41/42 Type)

SMC VV3P Manifold for VP300/500/700 3-Port Valves (41/42 Type)

SMC VV3P3/5/7 base-mounted manifold for VP344/544/744 3-port poppet solenoid valves, in common exhaust (41) and individual exhaust (42) types from 2 to 20 stations.

Key features

  • All piping on the base: 1(P), 2(A) and 3(R) ports Rc1/4 (VV3P3), Rc3/8 (VV3P5), Rc1/2 (VV3P7)
  • Common external pilot port collected on the base (R type, mounted valves must be external pilot)
  • Two exhaust styles: common (41) or individual (42); exhaust orifice possible on individual type
  • N.C./N.O. changed by turning valve and end plate 180°
  • Valves (VP344/544/744 without sub-plate) and blanking plate VPx00-25-1A are ordered separately; G/NPT/NPTF threads by suffix

Specifications

Manifold type Base mounted, bar manifold
Applicable valves VP344 (VV3P3), VP544 (VV3P5), VP744 (VV3P7)
Stations 2 to 20
Thread Rc (G, NPT, NPTF on order)
Mass W [g] VV3P3 110n+90, VV3P5 190n+150, VV3P7 410n+380 (n = stations)
Blanking plate VP300-25-1A / VP500-25-1A / VP700-25-1A
Note For 10 stations or more, supply from both 1(P) ports and exhaust from both 3(R) ports
Source SMC Korea catalog VP300/500/700 (SMCKR_VP300_500_700.pdf), p. 1055, 1074-1076 (PDF p. 3, 22-24)
VV3P3-41-021-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 2 | Port size: Rc1/4
VV3P3-41-031-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 3 | Port size: Rc1/4
VV3P3-41-041-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 4 | Port size: Rc1/4
VV3P3-41-051-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 5 | Port size: Rc1/4
VV3P3-41-061-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 6 | Port size: Rc1/4
VV3P3-41-071-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 7 | Port size: Rc1/4
VV3P3-41-081-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 8 | Port size: Rc1/4
VV3P3-41-091-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 9 | Port size: Rc1/4
VV3P3-41-101-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 10 | Port size: Rc1/4
VV3P3-41-111-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 11 | Port size: Rc1/4
VV3P3-41-121-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 12 | Port size: Rc1/4
VV3P3-41-131-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 13 | Port size: Rc1/4
VV3P3-41-141-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 14 | Port size: Rc1/4
VV3P3-41-151-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 15 | Port size: Rc1/4
VV3P3-41-161-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 16 | Port size: Rc1/4
VV3P3-41-171-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 17 | Port size: Rc1/4
VV3P3-41-181-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 18 | Port size: Rc1/4
VV3P3-41-191-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 19 | Port size: Rc1/4
VV3P3-41-201-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 20 | Port size: Rc1/4
VV3P3-41R-021-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 2 | Port size: Rc1/4
VV3P3-41R-031-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 3 | Port size: Rc1/4
VV3P3-41R-041-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 4 | Port size: Rc1/4
VV3P3-41R-051-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 5 | Port size: Rc1/4
VV3P3-41R-061-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 6 | Port size: Rc1/4
VV3P3-41R-071-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 7 | Port size: Rc1/4
VV3P3-41R-081-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 8 | Port size: Rc1/4
VV3P3-41R-091-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 9 | Port size: Rc1/4
VV3P3-41R-101-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 10 | Port size: Rc1/4
VV3P3-41R-111-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 11 | Port size: Rc1/4
VV3P3-41R-121-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 12 | Port size: Rc1/4
VV3P3-41R-131-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 13 | Port size: Rc1/4
VV3P3-41R-141-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 14 | Port size: Rc1/4
VV3P3-41R-151-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 15 | Port size: Rc1/4
VV3P3-41R-161-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 16 | Port size: Rc1/4
VV3P3-41R-171-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 17 | Port size: Rc1/4
VV3P3-41R-181-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 18 | Port size: Rc1/4
VV3P3-41R-191-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 19 | Port size: Rc1/4
VV3P3-41R-201-02 Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 20 | Port size: Rc1/4
VV3P3-42-023-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 2 | Port size: Rc1/4
VV3P3-42-033-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 3 | Port size: Rc1/4
VV3P3-42-043-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 4 | Port size: Rc1/4
VV3P3-42-053-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 5 | Port size: Rc1/4
VV3P3-42-063-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 6 | Port size: Rc1/4
VV3P3-42-073-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 7 | Port size: Rc1/4
VV3P3-42-083-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 8 | Port size: Rc1/4
VV3P3-42-093-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 9 | Port size: Rc1/4
VV3P3-42-103-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 10 | Port size: Rc1/4
VV3P3-42-113-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 11 | Port size: Rc1/4
VV3P3-42-123-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 12 | Port size: Rc1/4
VV3P3-42-133-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 13 | Port size: Rc1/4
VV3P3-42-143-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 14 | Port size: Rc1/4
VV3P3-42-153-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 15 | Port size: Rc1/4
VV3P3-42-163-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 16 | Port size: Rc1/4
VV3P3-42-173-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 17 | Port size: Rc1/4
VV3P3-42-183-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 18 | Port size: Rc1/4
VV3P3-42-193-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 19 | Port size: Rc1/4
VV3P3-42-203-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 20 | Port size: Rc1/4
VV3P3-42R-023-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 2 | Port size: Rc1/4
VV3P3-42R-033-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 3 | Port size: Rc1/4
VV3P3-42R-043-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 4 | Port size: Rc1/4
VV3P3-42R-053-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 5 | Port size: Rc1/4
VV3P3-42R-063-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 6 | Port size: Rc1/4
VV3P3-42R-073-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 7 | Port size: Rc1/4
VV3P3-42R-083-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 8 | Port size: Rc1/4
VV3P3-42R-093-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 9 | Port size: Rc1/4
VV3P3-42R-103-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 10 | Port size: Rc1/4
VV3P3-42R-113-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 11 | Port size: Rc1/4
VV3P3-42R-123-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 12 | Port size: Rc1/4
VV3P3-42R-133-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 13 | Port size: Rc1/4
VV3P3-42R-143-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 14 | Port size: Rc1/4
VV3P3-42R-153-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 15 | Port size: Rc1/4
VV3P3-42R-163-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 16 | Port size: Rc1/4
VV3P3-42R-173-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 17 | Port size: Rc1/4
VV3P3-42R-183-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 18 | Port size: Rc1/4
VV3P3-42R-193-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 19 | Port size: Rc1/4
VV3P3-42R-203-02 Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 20 | Port size: Rc1/4
VV3P5-41-021-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 2 | Port size: Rc3/8
VV3P5-41-031-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 3 | Port size: Rc3/8
VV3P5-41-041-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 4 | Port size: Rc3/8
VV3P5-41-051-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 5 | Port size: Rc3/8
VV3P5-41-061-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 6 | Port size: Rc3/8
VV3P5-41-071-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 7 | Port size: Rc3/8
VV3P5-41-081-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 8 | Port size: Rc3/8
VV3P5-41-091-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 9 | Port size: Rc3/8
VV3P5-41-101-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 10 | Port size: Rc3/8
VV3P5-41-111-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 11 | Port size: Rc3/8
VV3P5-41-121-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 12 | Port size: Rc3/8
VV3P5-41-131-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 13 | Port size: Rc3/8
VV3P5-41-141-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 14 | Port size: Rc3/8
VV3P5-41-151-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 15 | Port size: Rc3/8
VV3P5-41-161-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 16 | Port size: Rc3/8
VV3P5-41-171-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 17 | Port size: Rc3/8
VV3P5-41-181-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 18 | Port size: Rc3/8
VV3P5-41-191-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 19 | Port size: Rc3/8
VV3P5-41-201-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 20 | Port size: Rc3/8
VV3P5-41R-021-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 2 | Port size: Rc3/8
VV3P5-41R-031-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 3 | Port size: Rc3/8
VV3P5-41R-041-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 4 | Port size: Rc3/8
VV3P5-41R-051-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 5 | Port size: Rc3/8
VV3P5-41R-061-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 6 | Port size: Rc3/8
VV3P5-41R-071-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 7 | Port size: Rc3/8
VV3P5-41R-081-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 8 | Port size: Rc3/8
VV3P5-41R-091-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 9 | Port size: Rc3/8
VV3P5-41R-101-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 10 | Port size: Rc3/8
VV3P5-41R-111-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 11 | Port size: Rc3/8
VV3P5-41R-121-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 12 | Port size: Rc3/8
VV3P5-41R-131-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 13 | Port size: Rc3/8
VV3P5-41R-141-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 14 | Port size: Rc3/8
VV3P5-41R-151-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 15 | Port size: Rc3/8
VV3P5-41R-161-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 16 | Port size: Rc3/8
VV3P5-41R-171-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 17 | Port size: Rc3/8
VV3P5-41R-181-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 18 | Port size: Rc3/8
VV3P5-41R-191-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 19 | Port size: Rc3/8
VV3P5-41R-201-03 Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 20 | Port size: Rc3/8
VV3P5-42-023-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 2 | Port size: Rc3/8
VV3P5-42-033-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 3 | Port size: Rc3/8
VV3P5-42-043-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 4 | Port size: Rc3/8
VV3P5-42-053-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 5 | Port size: Rc3/8
VV3P5-42-063-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 6 | Port size: Rc3/8
VV3P5-42-073-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 7 | Port size: Rc3/8
VV3P5-42-083-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 8 | Port size: Rc3/8
VV3P5-42-093-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 9 | Port size: Rc3/8
VV3P5-42-103-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 10 | Port size: Rc3/8
VV3P5-42-113-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 11 | Port size: Rc3/8
VV3P5-42-123-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 12 | Port size: Rc3/8
VV3P5-42-133-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 13 | Port size: Rc3/8
VV3P5-42-143-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 14 | Port size: Rc3/8
VV3P5-42-153-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 15 | Port size: Rc3/8
VV3P5-42-163-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 16 | Port size: Rc3/8
VV3P5-42-173-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 17 | Port size: Rc3/8
VV3P5-42-183-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 18 | Port size: Rc3/8
VV3P5-42-193-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 19 | Port size: Rc3/8
VV3P5-42-203-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 20 | Port size: Rc3/8
VV3P5-42R-023-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 2 | Port size: Rc3/8
VV3P5-42R-033-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 3 | Port size: Rc3/8
VV3P5-42R-043-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 4 | Port size: Rc3/8
VV3P5-42R-053-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 5 | Port size: Rc3/8
VV3P5-42R-063-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 6 | Port size: Rc3/8
VV3P5-42R-073-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 7 | Port size: Rc3/8
VV3P5-42R-083-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 8 | Port size: Rc3/8
VV3P5-42R-093-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 9 | Port size: Rc3/8
VV3P5-42R-103-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 10 | Port size: Rc3/8
VV3P5-42R-113-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 11 | Port size: Rc3/8
VV3P5-42R-123-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 12 | Port size: Rc3/8
VV3P5-42R-133-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 13 | Port size: Rc3/8
VV3P5-42R-143-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 14 | Port size: Rc3/8
VV3P5-42R-153-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 15 | Port size: Rc3/8
VV3P5-42R-163-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 16 | Port size: Rc3/8
VV3P5-42R-173-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 17 | Port size: Rc3/8
VV3P5-42R-183-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 18 | Port size: Rc3/8
VV3P5-42R-193-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 19 | Port size: Rc3/8
VV3P5-42R-203-03 Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 20 | Port size: Rc3/8
VV3P7-41-021-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 2 | Port size: Rc1/2
VV3P7-41-031-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 3 | Port size: Rc1/2
VV3P7-41-041-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 4 | Port size: Rc1/2
VV3P7-41-051-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 5 | Port size: Rc1/2
VV3P7-41-061-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 6 | Port size: Rc1/2
VV3P7-41-071-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 7 | Port size: Rc1/2
VV3P7-41-081-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 8 | Port size: Rc1/2
VV3P7-41-091-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 9 | Port size: Rc1/2
VV3P7-41-101-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 10 | Port size: Rc1/2
VV3P7-41-111-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 11 | Port size: Rc1/2
VV3P7-41-121-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 12 | Port size: Rc1/2
VV3P7-41-131-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 13 | Port size: Rc1/2
VV3P7-41-141-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 14 | Port size: Rc1/2
VV3P7-41-151-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 15 | Port size: Rc1/2
VV3P7-41-161-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 16 | Port size: Rc1/2
VV3P7-41-171-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 17 | Port size: Rc1/2
VV3P7-41-181-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 18 | Port size: Rc1/2
VV3P7-41-191-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 19 | Port size: Rc1/2
VV3P7-41-201-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 20 | Port size: Rc1/2
VV3P7-41R-021-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 2 | Port size: Rc1/2
VV3P7-41R-031-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 3 | Port size: Rc1/2
VV3P7-41R-041-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 4 | Port size: Rc1/2
VV3P7-41R-051-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 5 | Port size: Rc1/2
VV3P7-41R-061-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 6 | Port size: Rc1/2
VV3P7-41R-071-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 7 | Port size: Rc1/2
VV3P7-41R-081-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 8 | Port size: Rc1/2
VV3P7-41R-091-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 9 | Port size: Rc1/2
VV3P7-41R-101-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 10 | Port size: Rc1/2
VV3P7-41R-111-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 11 | Port size: Rc1/2
VV3P7-41R-121-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 12 | Port size: Rc1/2
VV3P7-41R-131-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 13 | Port size: Rc1/2
VV3P7-41R-141-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 14 | Port size: Rc1/2
VV3P7-41R-151-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 15 | Port size: Rc1/2
VV3P7-41R-161-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 16 | Port size: Rc1/2
VV3P7-41R-171-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 17 | Port size: Rc1/2
VV3P7-41R-181-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 18 | Port size: Rc1/2
VV3P7-41R-191-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 19 | Port size: Rc1/2
VV3P7-41R-201-04 Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 20 | Port size: Rc1/2
VV3P7-42-023-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 2 | Port size: Rc1/2
VV3P7-42-033-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 3 | Port size: Rc1/2
VV3P7-42-043-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 4 | Port size: Rc1/2
VV3P7-42-053-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 5 | Port size: Rc1/2
VV3P7-42-063-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 6 | Port size: Rc1/2
VV3P7-42-073-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 7 | Port size: Rc1/2
VV3P7-42-083-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 8 | Port size: Rc1/2
VV3P7-42-093-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 9 | Port size: Rc1/2
VV3P7-42-103-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 10 | Port size: Rc1/2
VV3P7-42-113-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 11 | Port size: Rc1/2
VV3P7-42-123-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 12 | Port size: Rc1/2
VV3P7-42-133-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 13 | Port size: Rc1/2
VV3P7-42-143-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 14 | Port size: Rc1/2
VV3P7-42-153-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 15 | Port size: Rc1/2
VV3P7-42-163-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 16 | Port size: Rc1/2
VV3P7-42-173-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 17 | Port size: Rc1/2
VV3P7-42-183-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 18 | Port size: Rc1/2
VV3P7-42-193-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 19 | Port size: Rc1/2
VV3P7-42-203-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 20 | Port size: Rc1/2
VV3P7-42R-023-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 2 | Port size: Rc1/2
VV3P7-42R-033-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 3 | Port size: Rc1/2
VV3P7-42R-043-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 4 | Port size: Rc1/2
VV3P7-42R-053-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 5 | Port size: Rc1/2
VV3P7-42R-063-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 6 | Port size: Rc1/2
VV3P7-42R-073-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 7 | Port size: Rc1/2
VV3P7-42R-083-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 8 | Port size: Rc1/2
VV3P7-42R-093-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 9 | Port size: Rc1/2
VV3P7-42R-103-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 10 | Port size: Rc1/2
VV3P7-42R-113-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 11 | Port size: Rc1/2
VV3P7-42R-123-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 12 | Port size: Rc1/2
VV3P7-42R-133-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 13 | Port size: Rc1/2
VV3P7-42R-143-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 14 | Port size: Rc1/2
VV3P7-42R-153-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 15 | Port size: Rc1/2
VV3P7-42R-163-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 16 | Port size: Rc1/2
VV3P7-42R-173-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 17 | Port size: Rc1/2
VV3P7-42R-183-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 18 | Port size: Rc1/2
VV3P7-42R-193-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 19 | Port size: Rc1/2
VV3P7-42R-203-04 Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 20 | Port size: Rc1/2
ManifoldsSMC
228 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VV3P Manifold for VP300/500/700 3-Port Valves (41/42 Type)

Brand SMC·Manifolds

Available part numbers (228)

VV3P3-41-021-02, VV3P3-41-031-02, VV3P3-41-041-02, VV3P3-41-051-02, VV3P3-41-061-02, VV3P3-41-071-02, VV3P3-41-081-02, VV3P3-41-091-02, VV3P3-41-101-02, VV3P3-41-111-02 + 218 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VV3P3-41-021-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 2 | Port size: Rc1/4
VV3P3-41-031-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 3 | Port size: Rc1/4
VV3P3-41-041-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 4 | Port size: Rc1/4
VV3P3-41-051-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 5 | Port size: Rc1/4
VV3P3-41-061-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 6 | Port size: Rc1/4
VV3P3-41-071-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 7 | Port size: Rc1/4
VV3P3-41-081-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 8 | Port size: Rc1/4
VV3P3-41-091-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 9 | Port size: Rc1/4
VV3P3-41-101-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 10 | Port size: Rc1/4
VV3P3-41-111-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 11 | Port size: Rc1/4
VV3P3-41-121-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 12 | Port size: Rc1/4
VV3P3-41-131-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 13 | Port size: Rc1/4
VV3P3-41-141-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 14 | Port size: Rc1/4
VV3P3-41-151-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 15 | Port size: Rc1/4
VV3P3-41-161-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 16 | Port size: Rc1/4
VV3P3-41-171-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 17 | Port size: Rc1/4
VV3P3-41-181-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 18 | Port size: Rc1/4
VV3P3-41-191-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 19 | Port size: Rc1/4
VV3P3-41-201-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 20 | Port size: Rc1/4
VV3P3-41R-021-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 2 | Port size: Rc1/4
VV3P3-41R-031-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 3 | Port size: Rc1/4
VV3P3-41R-041-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 4 | Port size: Rc1/4
VV3P3-41R-051-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 5 | Port size: Rc1/4
VV3P3-41R-061-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 6 | Port size: Rc1/4
VV3P3-41R-071-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 7 | Port size: Rc1/4
VV3P3-41R-081-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 8 | Port size: Rc1/4
VV3P3-41R-091-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 9 | Port size: Rc1/4
VV3P3-41R-101-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 10 | Port size: Rc1/4
VV3P3-41R-111-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 11 | Port size: Rc1/4
VV3P3-41R-121-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 12 | Port size: Rc1/4
VV3P3-41R-131-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 13 | Port size: Rc1/4
VV3P3-41R-141-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 14 | Port size: Rc1/4
VV3P3-41R-151-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 15 | Port size: Rc1/4
VV3P3-41R-161-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 16 | Port size: Rc1/4
VV3P3-41R-171-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 17 | Port size: Rc1/4
VV3P3-41R-181-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 18 | Port size: Rc1/4
VV3P3-41R-191-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 19 | Port size: Rc1/4
VV3P3-41R-201-02Series: VP300 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 20 | Port size: Rc1/4
VV3P3-42-023-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 2 | Port size: Rc1/4
VV3P3-42-033-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 3 | Port size: Rc1/4
VV3P3-42-043-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 4 | Port size: Rc1/4
VV3P3-42-053-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 5 | Port size: Rc1/4
VV3P3-42-063-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 6 | Port size: Rc1/4
VV3P3-42-073-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 7 | Port size: Rc1/4
VV3P3-42-083-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 8 | Port size: Rc1/4
VV3P3-42-093-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 9 | Port size: Rc1/4
VV3P3-42-103-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 10 | Port size: Rc1/4
VV3P3-42-113-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 11 | Port size: Rc1/4
VV3P3-42-123-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 12 | Port size: Rc1/4
VV3P3-42-133-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 13 | Port size: Rc1/4
VV3P3-42-143-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 14 | Port size: Rc1/4
VV3P3-42-153-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 15 | Port size: Rc1/4
VV3P3-42-163-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 16 | Port size: Rc1/4
VV3P3-42-173-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 17 | Port size: Rc1/4
VV3P3-42-183-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 18 | Port size: Rc1/4
VV3P3-42-193-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 19 | Port size: Rc1/4
VV3P3-42-203-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 20 | Port size: Rc1/4
VV3P3-42R-023-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 2 | Port size: Rc1/4
VV3P3-42R-033-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 3 | Port size: Rc1/4
VV3P3-42R-043-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 4 | Port size: Rc1/4
VV3P3-42R-053-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 5 | Port size: Rc1/4
VV3P3-42R-063-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 6 | Port size: Rc1/4
VV3P3-42R-073-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 7 | Port size: Rc1/4
VV3P3-42R-083-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 8 | Port size: Rc1/4
VV3P3-42R-093-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 9 | Port size: Rc1/4
VV3P3-42R-103-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 10 | Port size: Rc1/4
VV3P3-42R-113-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 11 | Port size: Rc1/4
VV3P3-42R-123-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 12 | Port size: Rc1/4
VV3P3-42R-133-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 13 | Port size: Rc1/4
VV3P3-42R-143-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 14 | Port size: Rc1/4
VV3P3-42R-153-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 15 | Port size: Rc1/4
VV3P3-42R-163-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 16 | Port size: Rc1/4
VV3P3-42R-173-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 17 | Port size: Rc1/4
VV3P3-42R-183-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 18 | Port size: Rc1/4
VV3P3-42R-193-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 19 | Port size: Rc1/4
VV3P3-42R-203-02Series: VP300 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 20 | Port size: Rc1/4
VV3P5-41-021-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 2 | Port size: Rc3/8
VV3P5-41-031-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 3 | Port size: Rc3/8
VV3P5-41-041-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 4 | Port size: Rc3/8
VV3P5-41-051-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 5 | Port size: Rc3/8
VV3P5-41-061-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 6 | Port size: Rc3/8
VV3P5-41-071-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 7 | Port size: Rc3/8
VV3P5-41-081-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 8 | Port size: Rc3/8
VV3P5-41-091-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 9 | Port size: Rc3/8
VV3P5-41-101-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 10 | Port size: Rc3/8
VV3P5-41-111-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 11 | Port size: Rc3/8
VV3P5-41-121-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 12 | Port size: Rc3/8
VV3P5-41-131-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 13 | Port size: Rc3/8
VV3P5-41-141-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 14 | Port size: Rc3/8
VV3P5-41-151-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 15 | Port size: Rc3/8
VV3P5-41-161-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 16 | Port size: Rc3/8
VV3P5-41-171-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 17 | Port size: Rc3/8
VV3P5-41-181-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 18 | Port size: Rc3/8
VV3P5-41-191-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 19 | Port size: Rc3/8
VV3P5-41-201-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 20 | Port size: Rc3/8
VV3P5-41R-021-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 2 | Port size: Rc3/8
VV3P5-41R-031-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 3 | Port size: Rc3/8
VV3P5-41R-041-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 4 | Port size: Rc3/8
VV3P5-41R-051-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 5 | Port size: Rc3/8
VV3P5-41R-061-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 6 | Port size: Rc3/8
VV3P5-41R-071-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 7 | Port size: Rc3/8
VV3P5-41R-081-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 8 | Port size: Rc3/8
VV3P5-41R-091-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 9 | Port size: Rc3/8
VV3P5-41R-101-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 10 | Port size: Rc3/8
VV3P5-41R-111-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 11 | Port size: Rc3/8
VV3P5-41R-121-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 12 | Port size: Rc3/8
VV3P5-41R-131-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 13 | Port size: Rc3/8
VV3P5-41R-141-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 14 | Port size: Rc3/8
VV3P5-41R-151-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 15 | Port size: Rc3/8
VV3P5-41R-161-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 16 | Port size: Rc3/8
VV3P5-41R-171-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 17 | Port size: Rc3/8
VV3P5-41R-181-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 18 | Port size: Rc3/8
VV3P5-41R-191-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 19 | Port size: Rc3/8
VV3P5-41R-201-03Series: VP500 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 20 | Port size: Rc3/8
VV3P5-42-023-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 2 | Port size: Rc3/8
VV3P5-42-033-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 3 | Port size: Rc3/8
VV3P5-42-043-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 4 | Port size: Rc3/8
VV3P5-42-053-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 5 | Port size: Rc3/8
VV3P5-42-063-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 6 | Port size: Rc3/8
VV3P5-42-073-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 7 | Port size: Rc3/8
VV3P5-42-083-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 8 | Port size: Rc3/8
VV3P5-42-093-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 9 | Port size: Rc3/8
VV3P5-42-103-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 10 | Port size: Rc3/8
VV3P5-42-113-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 11 | Port size: Rc3/8
VV3P5-42-123-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 12 | Port size: Rc3/8
VV3P5-42-133-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 13 | Port size: Rc3/8
VV3P5-42-143-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 14 | Port size: Rc3/8
VV3P5-42-153-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 15 | Port size: Rc3/8
VV3P5-42-163-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 16 | Port size: Rc3/8
VV3P5-42-173-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 17 | Port size: Rc3/8
VV3P5-42-183-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 18 | Port size: Rc3/8
VV3P5-42-193-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 19 | Port size: Rc3/8
VV3P5-42-203-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 20 | Port size: Rc3/8
VV3P5-42R-023-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 2 | Port size: Rc3/8
VV3P5-42R-033-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 3 | Port size: Rc3/8
VV3P5-42R-043-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 4 | Port size: Rc3/8
VV3P5-42R-053-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 5 | Port size: Rc3/8
VV3P5-42R-063-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 6 | Port size: Rc3/8
VV3P5-42R-073-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 7 | Port size: Rc3/8
VV3P5-42R-083-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 8 | Port size: Rc3/8
VV3P5-42R-093-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 9 | Port size: Rc3/8
VV3P5-42R-103-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 10 | Port size: Rc3/8
VV3P5-42R-113-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 11 | Port size: Rc3/8
VV3P5-42R-123-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 12 | Port size: Rc3/8
VV3P5-42R-133-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 13 | Port size: Rc3/8
VV3P5-42R-143-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 14 | Port size: Rc3/8
VV3P5-42R-153-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 15 | Port size: Rc3/8
VV3P5-42R-163-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 16 | Port size: Rc3/8
VV3P5-42R-173-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 17 | Port size: Rc3/8
VV3P5-42R-183-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 18 | Port size: Rc3/8
VV3P5-42R-193-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 19 | Port size: Rc3/8
VV3P5-42R-203-03Series: VP500 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 20 | Port size: Rc3/8
VV3P7-41-021-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 2 | Port size: Rc1/2
VV3P7-41-031-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 3 | Port size: Rc1/2
VV3P7-41-041-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 4 | Port size: Rc1/2
VV3P7-41-051-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 5 | Port size: Rc1/2
VV3P7-41-061-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 6 | Port size: Rc1/2
VV3P7-41-071-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 7 | Port size: Rc1/2
VV3P7-41-081-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 8 | Port size: Rc1/2
VV3P7-41-091-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 9 | Port size: Rc1/2
VV3P7-41-101-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 10 | Port size: Rc1/2
VV3P7-41-111-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 11 | Port size: Rc1/2
VV3P7-41-121-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 12 | Port size: Rc1/2
VV3P7-41-131-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 13 | Port size: Rc1/2
VV3P7-41-141-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 14 | Port size: Rc1/2
VV3P7-41-151-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 15 | Port size: Rc1/2
VV3P7-41-161-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 16 | Port size: Rc1/2
VV3P7-41-171-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 17 | Port size: Rc1/2
VV3P7-41-181-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 18 | Port size: Rc1/2
VV3P7-41-191-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 19 | Port size: Rc1/2
VV3P7-41-201-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: Internal | Stations: 20 | Port size: Rc1/2
VV3P7-41R-021-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 2 | Port size: Rc1/2
VV3P7-41R-031-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 3 | Port size: Rc1/2
VV3P7-41R-041-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 4 | Port size: Rc1/2
VV3P7-41R-051-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 5 | Port size: Rc1/2
VV3P7-41R-061-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 6 | Port size: Rc1/2
VV3P7-41R-071-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 7 | Port size: Rc1/2
VV3P7-41R-081-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 8 | Port size: Rc1/2
VV3P7-41R-091-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 9 | Port size: Rc1/2
VV3P7-41R-101-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 10 | Port size: Rc1/2
VV3P7-41R-111-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 11 | Port size: Rc1/2
VV3P7-41R-121-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 12 | Port size: Rc1/2
VV3P7-41R-131-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 13 | Port size: Rc1/2
VV3P7-41R-141-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 14 | Port size: Rc1/2
VV3P7-41R-151-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 15 | Port size: Rc1/2
VV3P7-41R-161-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 16 | Port size: Rc1/2
VV3P7-41R-171-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 17 | Port size: Rc1/2
VV3P7-41R-181-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 18 | Port size: Rc1/2
VV3P7-41R-191-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 19 | Port size: Rc1/2
VV3P7-41R-201-04Series: VP700 | Manifold type: Common exhaust (41) | Pilot: External | Stations: 20 | Port size: Rc1/2
VV3P7-42-023-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 2 | Port size: Rc1/2
VV3P7-42-033-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 3 | Port size: Rc1/2
VV3P7-42-043-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 4 | Port size: Rc1/2
VV3P7-42-053-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 5 | Port size: Rc1/2
VV3P7-42-063-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 6 | Port size: Rc1/2
VV3P7-42-073-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 7 | Port size: Rc1/2
VV3P7-42-083-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 8 | Port size: Rc1/2
VV3P7-42-093-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 9 | Port size: Rc1/2
VV3P7-42-103-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 10 | Port size: Rc1/2
VV3P7-42-113-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 11 | Port size: Rc1/2
VV3P7-42-123-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 12 | Port size: Rc1/2
VV3P7-42-133-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 13 | Port size: Rc1/2
VV3P7-42-143-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 14 | Port size: Rc1/2
VV3P7-42-153-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 15 | Port size: Rc1/2
VV3P7-42-163-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 16 | Port size: Rc1/2
VV3P7-42-173-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 17 | Port size: Rc1/2
VV3P7-42-183-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 18 | Port size: Rc1/2
VV3P7-42-193-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 19 | Port size: Rc1/2
VV3P7-42-203-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: Internal | Stations: 20 | Port size: Rc1/2
VV3P7-42R-023-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 2 | Port size: Rc1/2
VV3P7-42R-033-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 3 | Port size: Rc1/2
VV3P7-42R-043-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 4 | Port size: Rc1/2
VV3P7-42R-053-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 5 | Port size: Rc1/2
VV3P7-42R-063-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 6 | Port size: Rc1/2
VV3P7-42R-073-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 7 | Port size: Rc1/2
VV3P7-42R-083-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 8 | Port size: Rc1/2
VV3P7-42R-093-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 9 | Port size: Rc1/2
VV3P7-42R-103-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 10 | Port size: Rc1/2
VV3P7-42R-113-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 11 | Port size: Rc1/2
VV3P7-42R-123-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 12 | Port size: Rc1/2
VV3P7-42R-133-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 13 | Port size: Rc1/2
VV3P7-42R-143-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 14 | Port size: Rc1/2
VV3P7-42R-153-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 15 | Port size: Rc1/2
VV3P7-42R-163-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 16 | Port size: Rc1/2
VV3P7-42R-173-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 17 | Port size: Rc1/2
VV3P7-42R-183-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 18 | Port size: Rc1/2
VV3P7-42R-193-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 19 | Port size: Rc1/2
VV3P7-42R-203-04Series: VP700 | Manifold type: Individual exhaust (42) | Pilot: External | Stations: 20 | Port size: Rc1/2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
